GuardianStorm's FS2 (PS2 PC) - 27/02/08 - Finished!

Introduction

I know this is not an original project idea, but it is one that has taken my fancy, and thus I decided to make it so. I read some project logs on this such as these Ouija's HTPS2, which was very inspiring, and to a much lesser extent PlayStation2 PC.

To start off I needed a PS2, so I checked eBay, and also posted on FreeCycle to see if anyone had one they didnít want, preferable broken, as that way I wouldnít want to keep it as a console! I ended up with two PS2ís; one from eBay, and one from Freecycle, both broken. So I used the parts from both to make one working PS2, and one case for my PC.

I did some measuring and designing in SketchUp, so see what my options were for fitting everything inside the case.
[image unavailable at the moment]

I then bought my hardware for the case:
Jetway J7f2 1.5Ghz Mini-ITX motherboard
PSU Kit (Power Brick, PSU Board)
CDROM IDE Adapter
1 Gb of generic RAM
CDRW/DVD Slimline drive
Samsung 40Gb IDE HDD (already had this)

Testing the Kit:

I hooked up all the kit, and tested it with a Xubuntu Live Disk, luckily it all worked



Fixing the case:

First off, we need to get rid of all these pesky mounting stands, which get in the way.





To mount the CD Rom, I cut a small sheet of acrylic, and attached it to the PS2 case using my favourite glue, Plasticweld. This is capillary action glue that apparently creates joints as strong as the original plastic. From what Iíve seen and used, this seems to be accurate


Next I modded the CD Rom drive to allow me to eject it with the PS2 eject button. To do this I traced the circuit tracks through the drive and found that there was a test point on the rear circuit board of the drive. I soldered a wire to it, and threaded it out of spare screw hole on the rear of the drive.



To eject the drive all I have to do is set the pin low (i.e., tie it to a ground)

Now for the motherboard, which needs to be raised just above the CD drive, to make the stand offs I bought a standard kitchen chopping board, and proceeded to chop it up with the band saw.

The only down side to the chopping board is that it is made of a kind of soft plastic, which although is no problem for motherboard stands and CD rests, it means itís not entirely suitable for actual case construction.

And here they are attached to the motherboard, ready to be glued to the case with araldite.


The next item on the list for creation is the hard disk holder, which I created using 1mm acrylic.


It mounts into the case here, which serves dual purpose; it holds the other edge of the CD Rom in place too.


It all fits inÖjust:


To Do:
Back plate with small (slow) fan
Second part of the hard disk holder
Acrylic behind the front port holes
Attach CD Rom Facia

Thanks for reading
And questions and comments are welcome
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal

Last edited by GuardianStorm; 26th Nov 2012 at 13:17. Reason: Fixed image urls
GuardianStorm is offline   Reply With Quote
Old 16th Dec 2007, 21:35   #2
Woodstock
So Say We All

Woodstock's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 1,737
Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.
i could see some great lil home servers being built out of these, and i like how you grabbed two cheep ones two make a good workin one and this
__________________
Hell hath no fury like a hippo with a machine gun.
Woodstock is offline   Reply With Quote
Old 17th Dec 2007, 00:18   #3
500mph
The Right man in the Wrong place

500mph's Avatar

Join Date: Jun 2007
Location: U.S.
Posts: 2,129
500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel
wow, thats looking great!. i think i might use your idea's when i mod my old broken ps2.
__________________
Rocketfeesh Emergen-C!
[Web][Twitter][Steam]

500mph is offline   Reply With Quote
Old 17th Dec 2007, 00:52   #4
notatoad
pretty fing wonderful

notatoad's Avatar

Join Date: Jun 2004
Location: alberta, canada Special:very
Posts: 3,213
notatoad has yet to learn the way of the Dremelnotatoad has yet to learn the way of the Dremelnotatoad has yet to learn the way of the Dremelnotatoad has yet to learn the way of the Dremelnotatoad has yet to learn the way of the Dremelnotatoad has yet to learn the way of the Dremel
nice standoffs. did you have to tap the holes, or was the plastic soft enough to just screw into?
notatoad is offline   Reply With Quote
Old 17th Dec 2007, 13:09   #5
GuardianStorm
Ultramodder

GuardianStorm's Avatar

Join Date: Apr 2005
Location: Bournemouth
Posts: 1,474
GuardianStorm has yet to learn the way of the Dremel
Quote:
Originally Posted by Woodstock View Post
i could see some great lil home servers being built out of these, and i like how you grabbed two cheep ones two make a good workin one and this
Yeah, i was quite pleased that they had different faults...two with dead cd roms would have been annoying

Quote:
Originally Posted by 500mph View Post
wow, thats looking great!. i think i might use your idea's when i mod my old broken ps2.
Thanks

Quote:
Originally Posted by supertoad View Post
nice standoffs. did you have to tap the holes, or was the plastic soft enough to just screw into?
I had to tap the holes, but as the plastic is soft, i didn't need to used any oil to help the process. i also have to be a bit more careful how tight i screw into the blocks in case i strip the threads
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal
GuardianStorm is offline   Reply With Quote
Old 17th Dec 2007, 19:24   #6
Woodstock
So Say We All

Woodstock's Avatar

Join Date: Sep 2006
Location: New Zealand
Posts: 1,737
Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.Woodstock is definitely a rep cheat.
Quote:
Originally Posted by GuardianStorm View Post
Yeah, i was quite pleased that they had different faults...two with dead cd roms would have been annoying

im supprised it wasnt to be honest out of all my mates who bought a ps2 all of them had it die to due to optical drive out of warrenty... they could buy 3 ps2s (almost a ps3) for the charge of repairing them, a bit ridiculous i thought
__________________
Hell hath no fury like a hippo with a machine gun.

Last edited by Woodstock; 17th Dec 2007 at 19:28. Reason: added end quote tag
Woodstock is offline   Reply With Quote
Old 14th Feb 2008, 21:54   #7
GuardianStorm
Ultramodder

GuardianStorm's Avatar

Join Date: Apr 2005
Location: Bournemouth
Posts: 1,474
GuardianStorm has yet to learn the way of the Dremel
Nearly Complete!

Sorry for not updating in a while, but I have been busy with work/life etc. Here is my progress to date:



Controller Blanking Plates
The front of the PS2, as you can see needs some work doing to it, to hide the IDE socket showing (red):


To create blanking plates I used one of those clear CDís that come on top of CD spikes and cut two small blanking plates , which fit inside the holes on the front. These were then sprayed (2nd coat of filler primer shown):


To secure these to the front of the PS2, I used some thin plastic, off of a pack of C size batteries, which was plasti-welded into place inside:


I then used Impact glue (strong all purpose adhesive), to attach the blanking plates to the PS2 and to the thin acrylic:




Rear IO & Back Panel
For the rear panel, I measured and created a paper cutting template for the hole in the rear of the PS2:


This was then glued to a 1.5mm sheet of acrylic, and cut out (mainly on a fretsaw, and with a file), the cut out acrylic now looks like this:


To mount this to the back of the PS2, I attached a scrap 3mm piece of acrylic to the inside of the back to allow me something to tap a hole into (lesson: always keep off cuts of plastic/metal):


The other end of the PS2 had its screw hole removed to allow me to put another screw hole in , in the correct place:


Iím afraid there are no pictures of the IO panel being cut, but it took me most of a day, constantly coming in and out of the garage measuring, going back cutting a little then repeating (no motherboards ever enter the garage; too much metal/wood/plastic dust flying round for my likings). Here is the plate attached to the PS2:

The keen eyed will note that the motherboard is not parallel with the back plate; this is because the motherboard is mounted at a slight angle (5mm lower at one end) due to where the IDE connector sits.

I then added a power connector socket:


And a more complete shot of the back (which will be sprayed matt black at some point (this weekend maybe?)):




Hard Drive support bracket

The bracket earlier works, but has a slight problem; the case is currently upside down. If I turn it the right way up (motherboard becomes upside down), the hard drive hangs at an unhealthy angle:


To fix this, drew anther template, and cut out a bracket out of 3mm acrylic:




The bracket then screws to the motherboard here:


And to the IDE adapter here, which braces the hard disk:


Thatís it for now, the finishing bits to be done:
* Fan controller for the rear fan and CPU fan
* Spray rear panel black
* Create aluminium bracket to screw the front corner of the PS2 together

I am currently letting the case idle, all put together to see what temp it is at. The CPU is steady at 44 degrees and the case temp is steady at 34 degrees.

Any comments, questions and suggestions are more than welcome!
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal

Last edited by GuardianStorm; 26th Nov 2012 at 17:19.
GuardianStorm is offline   Reply With Quote
Old 14th Feb 2008, 22:02   #8
zwiks
My avatar: :D

zwiks's Avatar

Join Date: Jan 2008
Location: Denmark
Posts: 237
zwiks has yet to learn the way of the Dremel
loooking nice so far.
__________________
CURRENT PROJECT: WOODY
SPONSERED BY: WWW.COMPUTERLAND.DK
----------------------
"What goes up must come down. Ask any system administrator."
-uncredited signoff line
zwiks is offline   Reply With Quote
Old 14th Feb 2008, 22:04   #9
zwiks
My avatar: :D

zwiks's Avatar

Join Date: Jan 2008
Location: Denmark
Posts: 237
zwiks has yet to learn the way of the Dremel
sry 2 post.
__________________
CURRENT PROJECT: WOODY
SPONSERED BY: WWW.COMPUTERLAND.DK
----------------------
"What goes up must come down. Ask any system administrator."
-uncredited signoff line
zwiks is offline   Reply With Quote
Old 15th Feb 2008, 20:14   #10
craig_h
Minimodder

Join Date: Jan 2008
Posts: 45
craig_h has yet to learn the way of the Dremel
Where did you get the motherboard from?
__________________
Playstation network ID: craig87

Project: First Mod
craig_h is offline   Reply With Quote
Old 16th Feb 2008, 09:26   #11
GuardianStorm
Ultramodder

GuardianStorm's Avatar

Join Date: Apr 2005
Location: Bournemouth
Posts: 1,474
GuardianStorm has yet to learn the way of the Dremel
most of the hardware (motherboard, adapters, power) was from Lin-itx, and othe bits (CD Drive, RAM) was from eBuyer
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal
GuardianStorm is offline   Reply With Quote
Old 27th Feb 2008, 22:21   #12
GuardianStorm
Ultramodder

GuardianStorm's Avatar

Join Date: Apr 2005
Location: Bournemouth
Posts: 1,474
GuardianStorm has yet to learn the way of the Dremel
To kick things off, there was/is the slight chance of the motherboard shorting out on the top of the CD drive, so to solve this, I used a thin sheet of plastic (came off the back of a file set), to cover the top of the drive:


To hold the front corner of the case in place, I couldnít use the existing screw hole, as there is a motherboard in the way, so I created a small L bracket:


Which I glued to the side of the case using Araldite:


Painting the Back Panel
So, we start off with a lightly sanded 1mm sheet of acrylic:

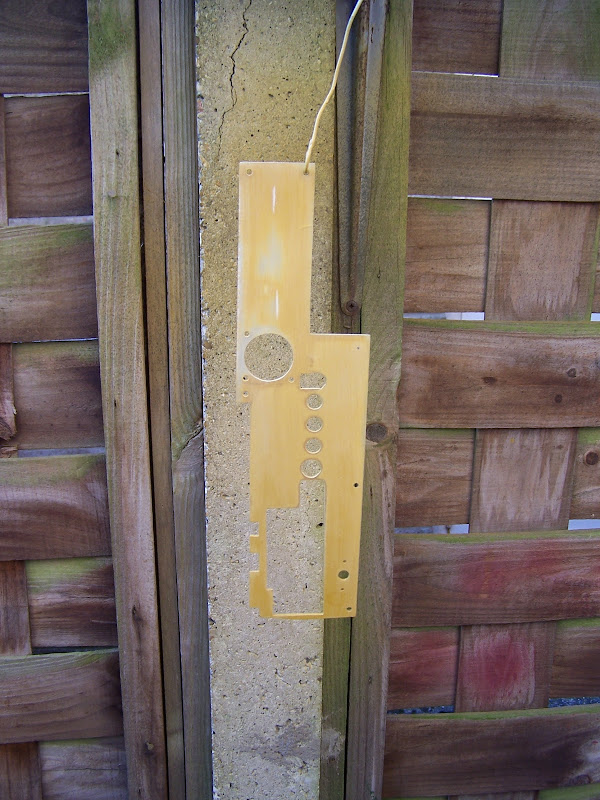

Which then gets a coat of filler primer (which has really nice colour...might use that as afinish colour on another mod...):


I then noticed a small groove in the outside of the back plate, so I used some knifing putty to fill that out, then sanded the whole thing smooth (and back to step 1...):


And finally, after another 2 coats of filler and 3 of Black:



Construction

Time to put it all back together (after cleaning all the case with White Spirit (which is clear... I donít get that).

So, we start with top of the PS2, I have installed the power switch and eject buttons already.


Add the CD-RW/DVD Drive:


Add the Motherboard:


Add the IDE Cable, Two Part HDD Holder, and Hard Disk:


And finally, add PSU & Rear Fan:

(Then attempt to get the lid (base) and back plate on to it all).

Finished Shots

I really enjoyed creating this, as although I have a lack of free time, I have still managed to finish this to a good standard. Hopefully I will now concentrate on Dark Vortex a little more .

Anyway, here are the final shots:








Thanks for reading, and any Questions & Comments are welcome
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal

Last edited by GuardianStorm; 26th Nov 2012 at 17:29.
GuardianStorm is offline   Reply With Quote
Old 27th Feb 2008, 22:36   #13
mrdexter
What's a Dremel?

Join Date: Feb 2008
Posts: 17
mrdexter has yet to learn the way of the Dremel
Very inspirational, and great use of space :-)
mrdexter is offline   Reply With Quote
Old 27th Feb 2008, 22:49   #14
Jar of Almonds
Minimodder

Join Date: Feb 2008
Location: Dartmouth, Nova Scotia
Posts: 22
Jar of Almonds has yet to learn the way of the Dremel
Absolutely fantastic! Like mrdexter said, very efficient use of the supplied space.

(Pssst, do a Wii next! )
__________________
Some days you're the fly. Other days you're the windshield.
Jar of Almonds is offline   Reply With Quote
Old 27th Feb 2008, 23:57   #15
jhanlon303
The Keeper of History

jhanlon303's Avatar

Join Date: Sep 2006
Location: Box under a Bridge, Iowa
Posts: 9,270
jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.jhanlon303 is the Cheesecake. Relix smiles down upon them.
Sweet work! When one of our consoles dies I know what to do with it
John
__________________
Coming to a forum near you. January 2014.
jhanlon303 is offline   Reply With Quote
Old 28th Feb 2008, 01:10   #16
500mph
The Right man in the Wrong place

500mph's Avatar

Join Date: Jun 2007
Location: U.S.
Posts: 2,129
500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel500mph has yet to learn the way of the Dremel
Great job! I love the backplate.
Now, do mine?
Kidding, but I do plan on modding my borked PS2 soon.
__________________
Rocketfeesh Emergen-C!
[Web][Twitter][Steam]

500mph is offline   Reply With Quote
Old 28th Feb 2008, 07:33   #17
TapperSwe
Supermodder

TapperSwe's Avatar

Join Date: Nov 2006
Location: Sweden
Posts: 254
TapperSwe has yet to learn the way of the Dremel
Great solutions fitting in the hardware, the Back panel looks factory-made.

Regards.
__________________
Build done:The Legacy of King Khufu:
http://forums.bit-tech.net/showthread.php?t=129157

Speakers Done:
http://forums.bit-tech.net/showthrea...129157&page=11
TapperSwe is offline   Reply With Quote
Old 29th Feb 2008, 20:35   #18
GuardianStorm
Ultramodder

GuardianStorm's Avatar

Join Date: Apr 2005
Location: Bournemouth
Posts: 1,474
GuardianStorm has yet to learn the way of the Dremel
Quote:
Originally Posted by mrdexter View Post
Very inspirational, and great use of space :-)
Thanks

Quote:
Originally Posted by Jar of Almonds View Post
Absolutely fantastic! Like mrdexter said, very efficient use of the supplied space.

(Pssst, do a Wii next! )
You buying

Quote:
Originally Posted by jhanlon303 View Post
Sweet work! When one of our consoles dies I know what to do with it
John
Yeah, great idea to do, but not the easiest to fit everything in properly. if i had SATA drives, that would have made things easier.

Quote:
Originally Posted by 500mph View Post
Great job! I love the backplate.
Now, do mine?
Kidding, but I do plan on modding my borked PS2 soon.
Lol, i look forward to seeing it

Quote:
Originally Posted by TapperSwe View Post
Great solutions fitting in the hardware, the Back panel looks factory-made.

Regards.
Thanks very much, although when its sat the 'right' way up, i do wonder if the mobo will hold in place , but when its stood on its side, the mobo is at the bottom, so its all fine
__________________
Sites: My Site :: My blog
Tools: Project Log Previewer
Curent Projects: Dark Vortex
Finished Projects: Yarrrbox :: Laptop Stand :: Bench PSU MK2 :: FS2
Guides: How To Bend Metal
GuardianStorm is offline   Reply With Quote
Old 10th Mar 2008, 05:16   #19
nickhelton
Multimodder

nickhelton's Avatar

Join Date: Feb 2008
Location: Atlanta, Georgia
Posts: 240
nickhelton has yet to learn the way of the Dremel
i now wish i hadnt gotten rid of the two i had sittin around
looks good. maybe il try it with the xbox or n64 i have??
__________________
Project 'No Direction'
Powered by MNPCTech
nickhelton is offline   Reply With Quote
Old 15th Sep 2008, 03:26   #20
kaizentech
Just Mod It!

Join Date: Sep 2008
Posts: 3
kaizentech has yet to learn the way of the Dremel
Very cool idea, I have a few of these laying around. Maybe it's time to dust them off.
kaizentech is offline   Reply With Quote
Reply

Tags
case mod

Thread Tools
View Mode

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT +1. The time now is 22:40.
Powered by: vBulletin Version 3
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
