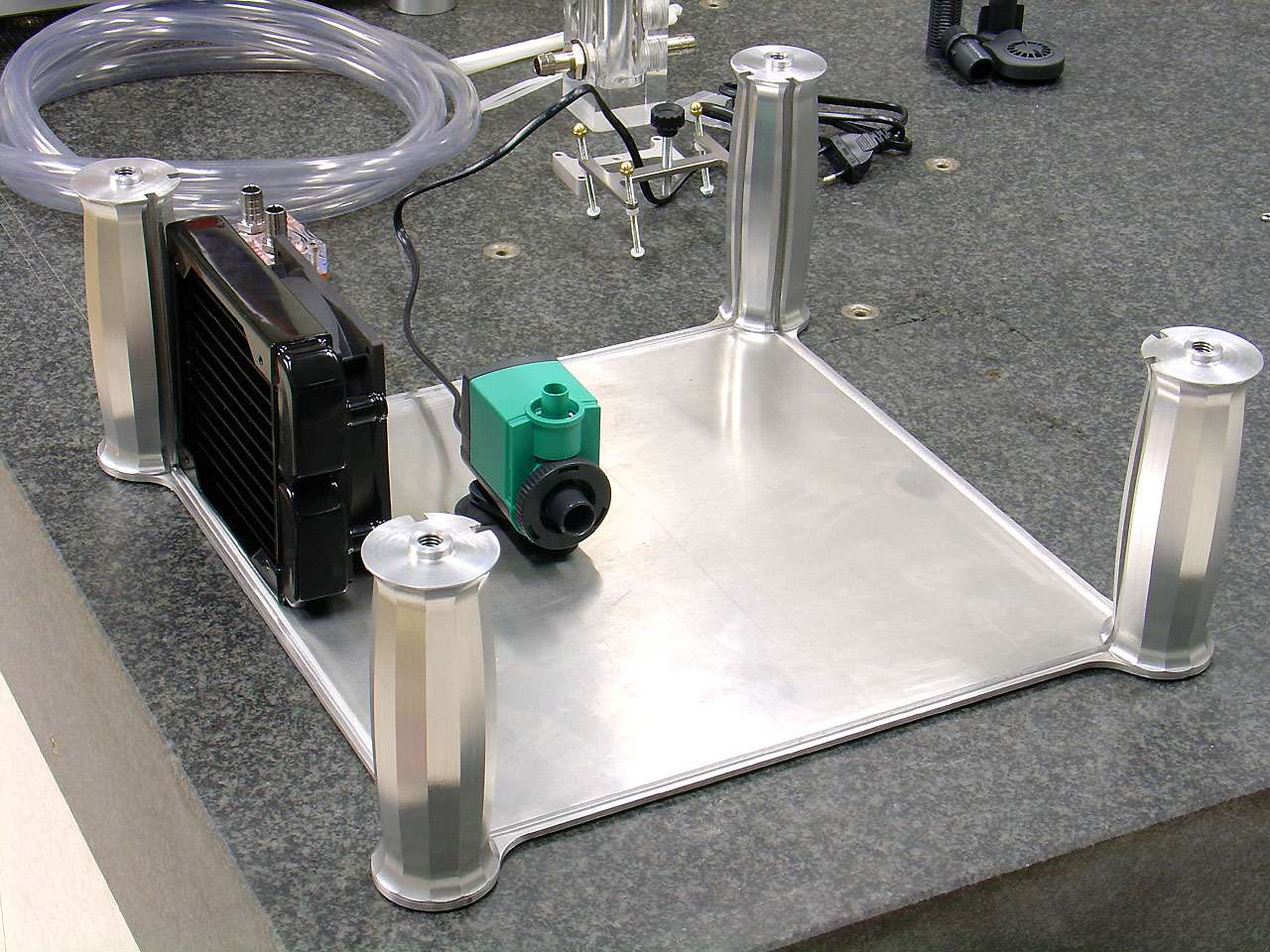

Some components for water cooling. All the costituentswill be integrated in a water station, post under the case. There will be 2 pumps and 2 radiators for 2 indipendent idraulic circuit.


Zoom


Zoom


Zoom

See You soon... - work in progress.

bye bye
__________________
My Modding Spider's Web - Dark Blade - DBRS Project
Dark Blade - Winner of the Bit-Tech and A.C.Ryan Mod of the Year 2006
Dark Blade Sponsored by Ybris Cooling - AMD - ASUSTeK - OCZ Technology - Cooler Master

DBRS Project - Winner of the MoTM of November 2009

G69T is offline   Reply With Quote
Old 25th Jan 2005, 21:51   #69
G69T
CNC Modder

G69T's Avatar

Join Date: Jun 2004
Location: Trento - ITALY
Posts: 570
G69T has yet to learn the way of the DremelG69T has yet to learn the way of the Dremel

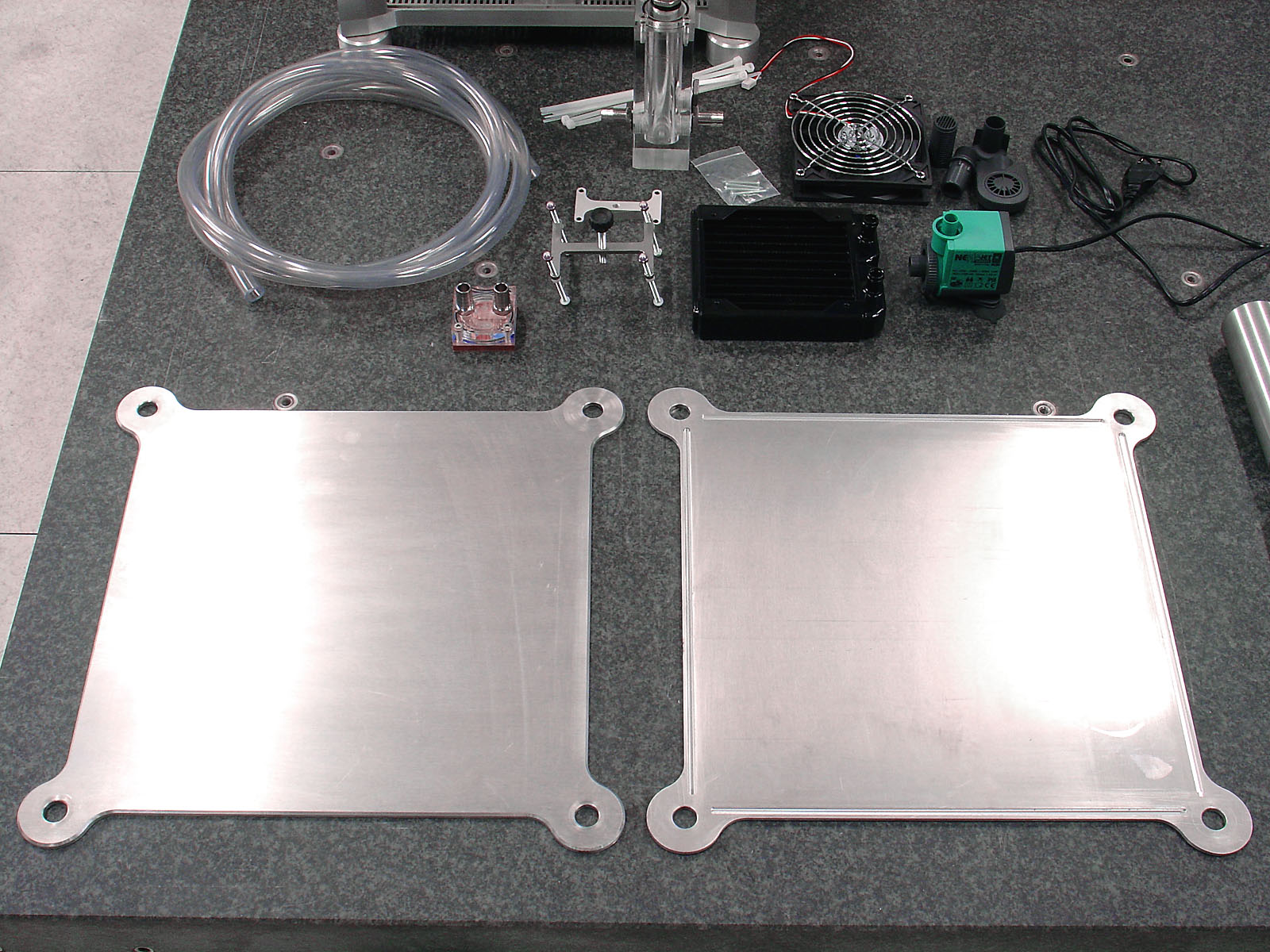

Some pictures about the workships of the Dark Blade Water Station.
Base and top: detailes.

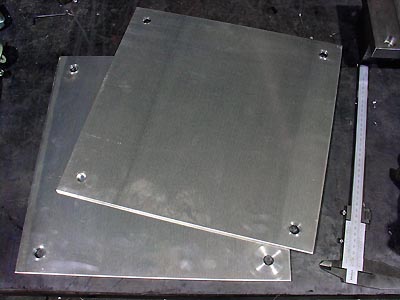

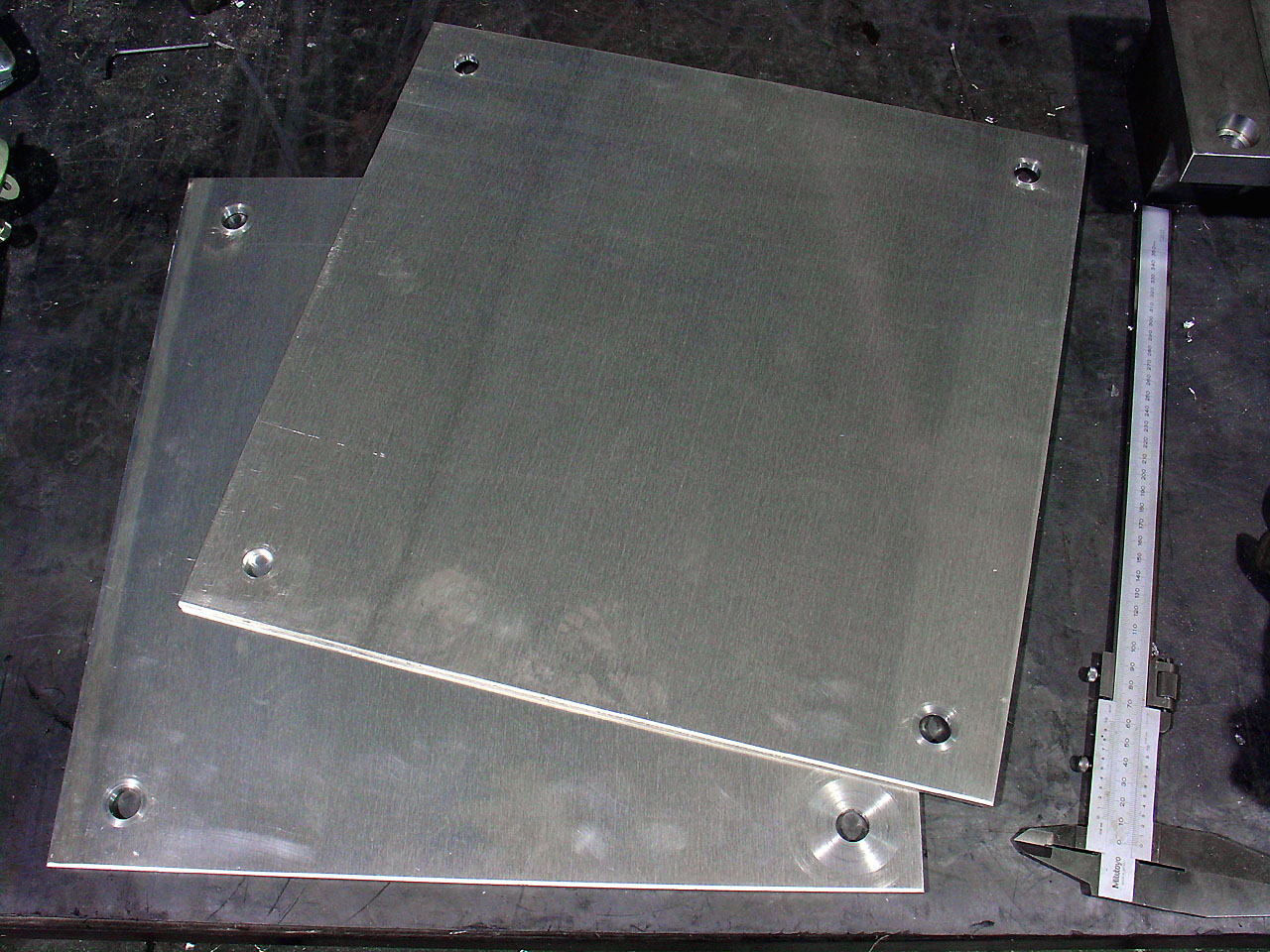

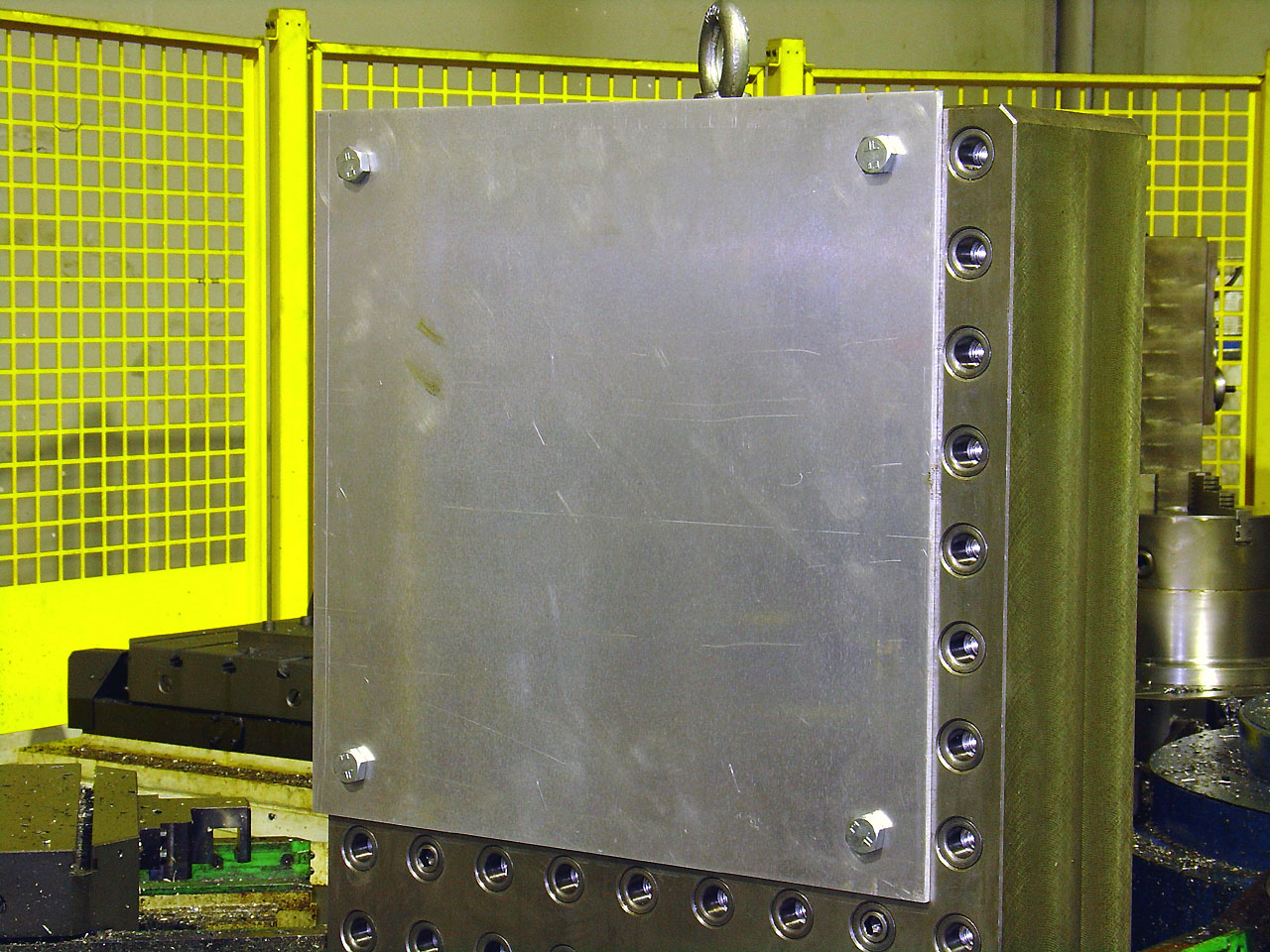

Zoom Two Alu flats - 5 mm, with 4 holes.


Zoom

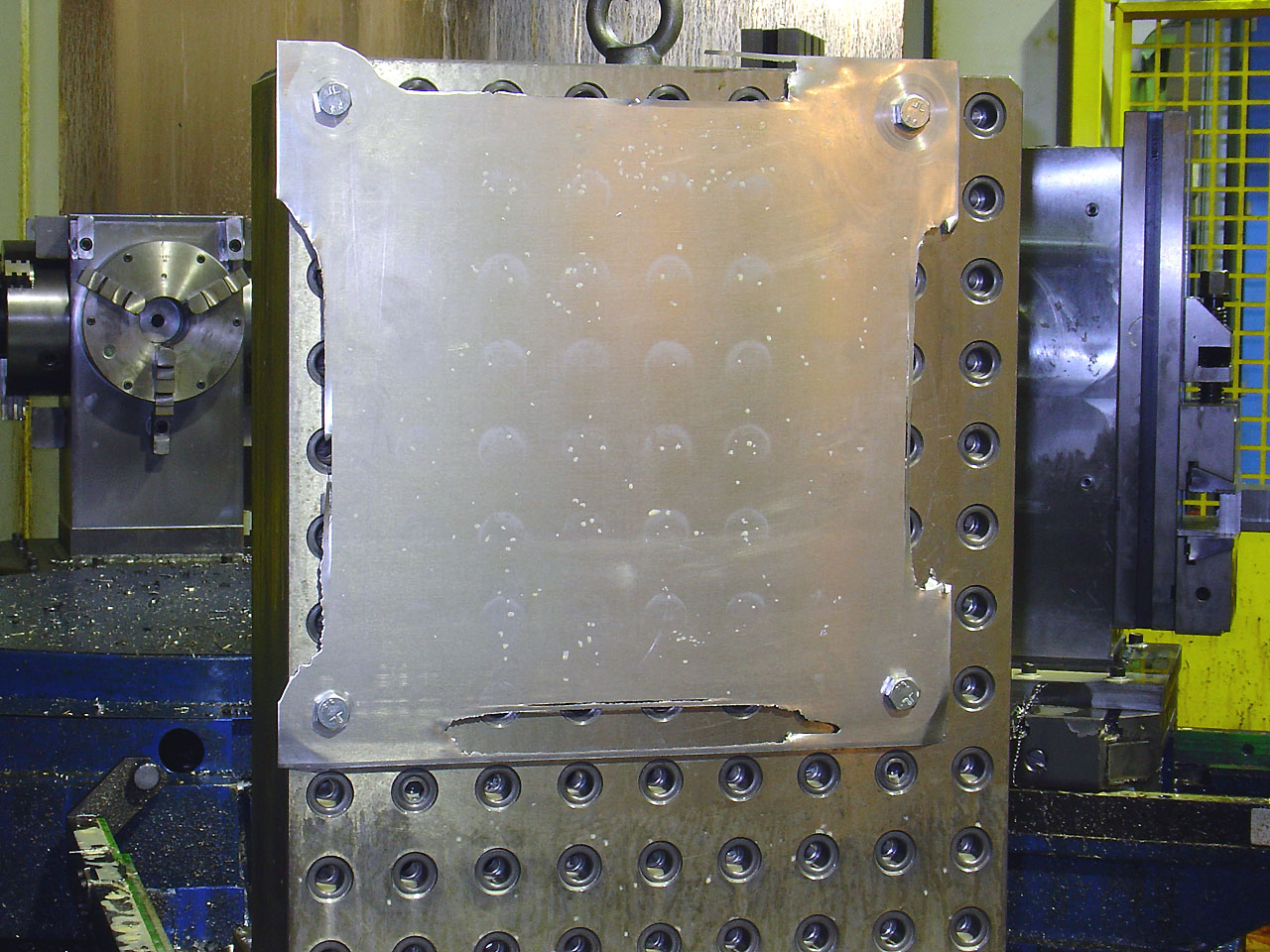

We'are locking for the firs flat mounting on the machine, ready to be worked.

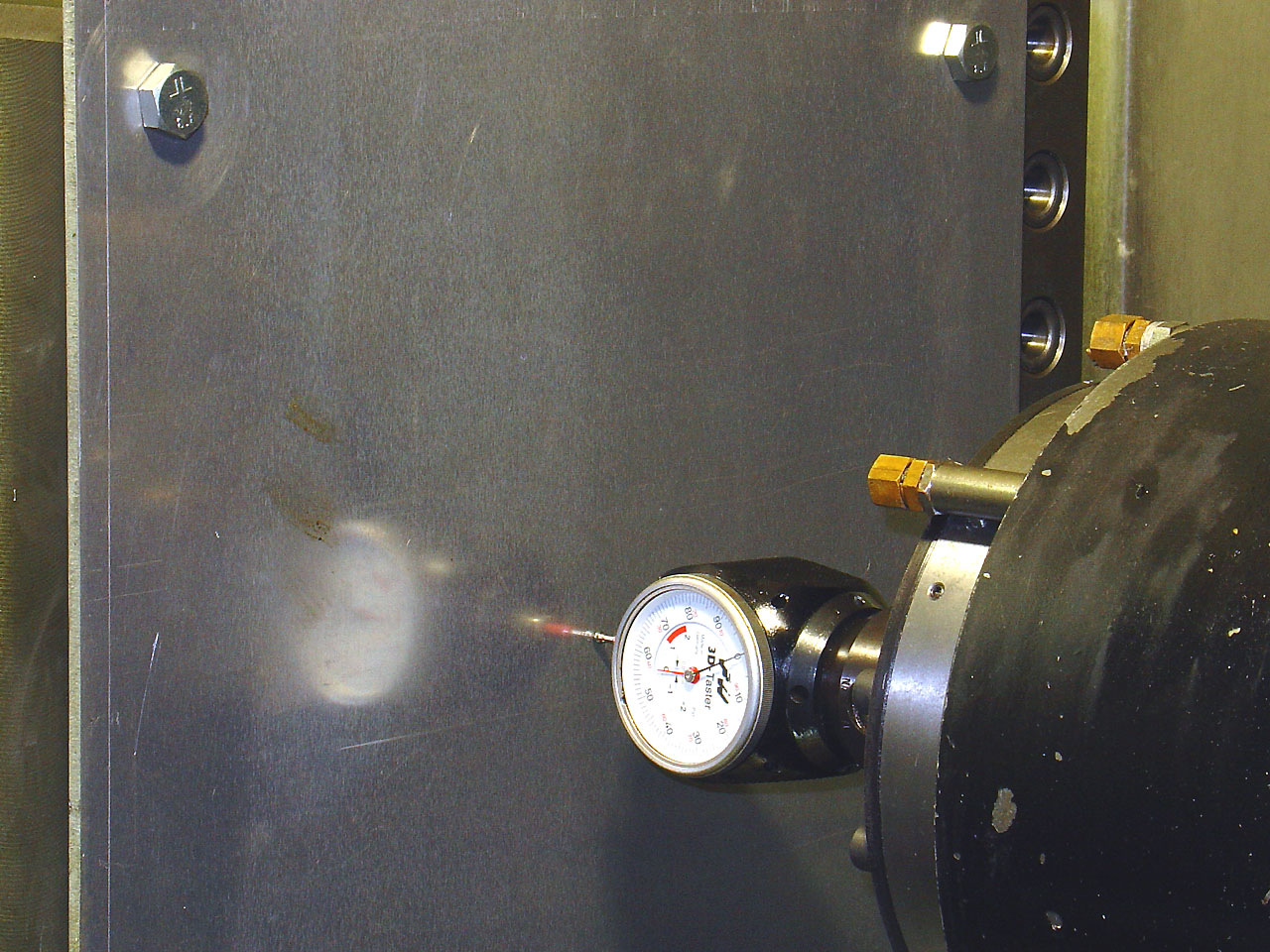

Zoom Controlling and misuring for the offset machine with a tracer point.


Zoom


Zoom

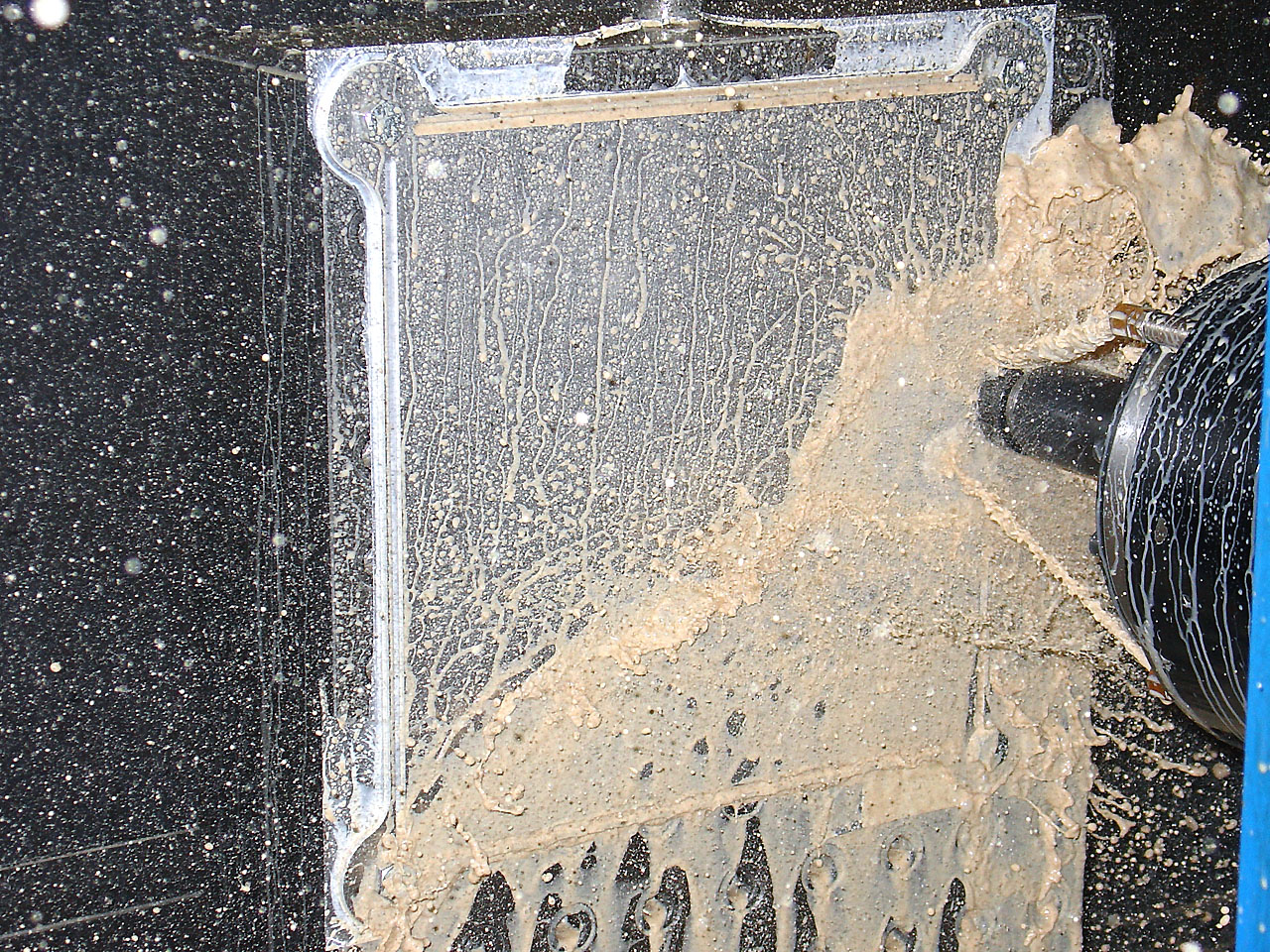

Zoom

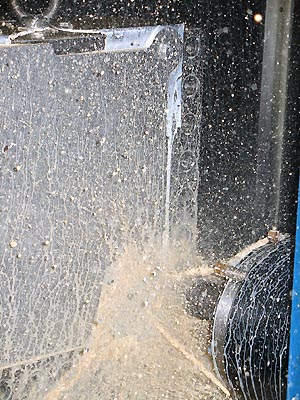

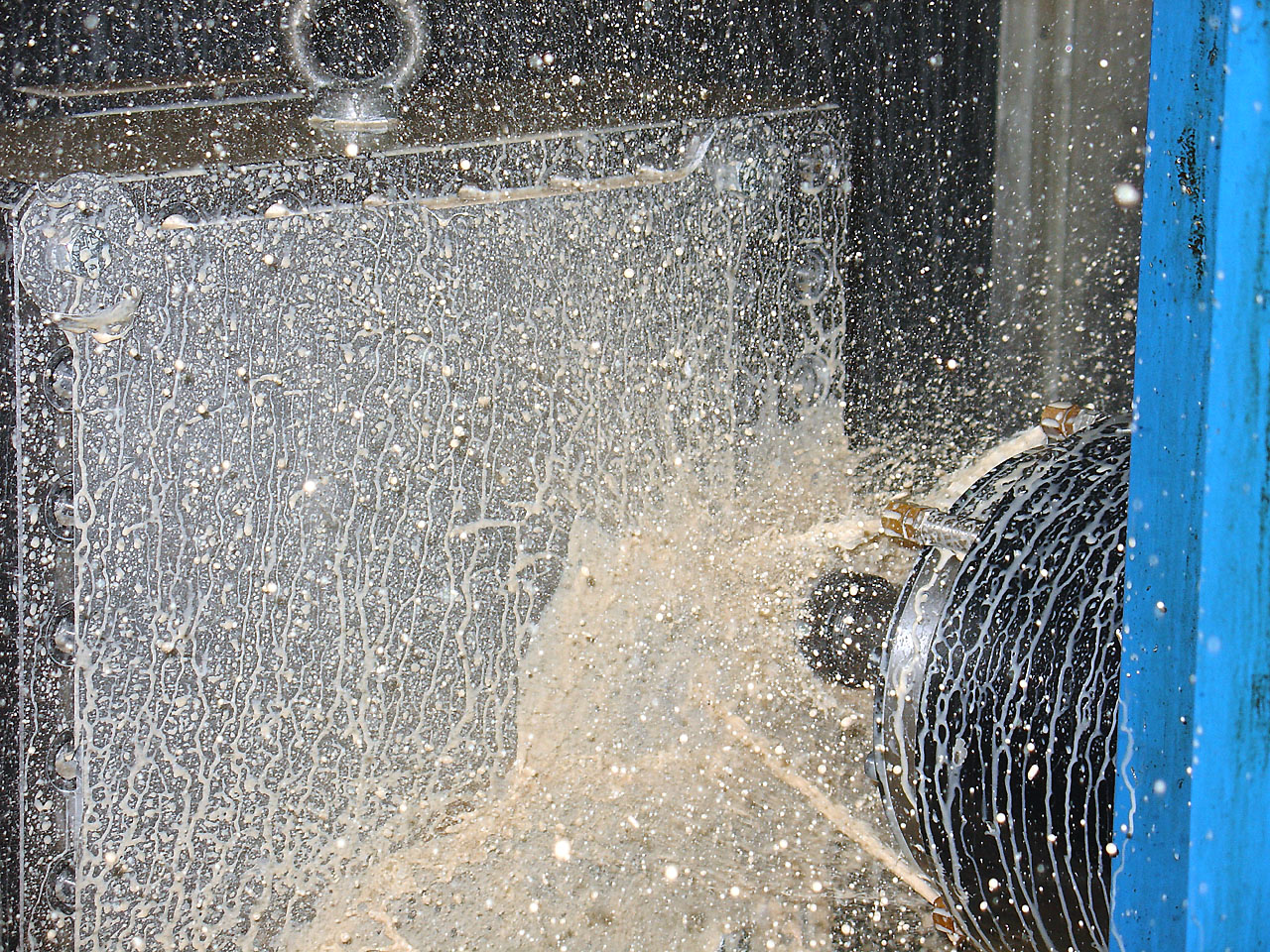

Zoom After the first working phase, we'll rotate for the second one.


Zoom Last working phase.

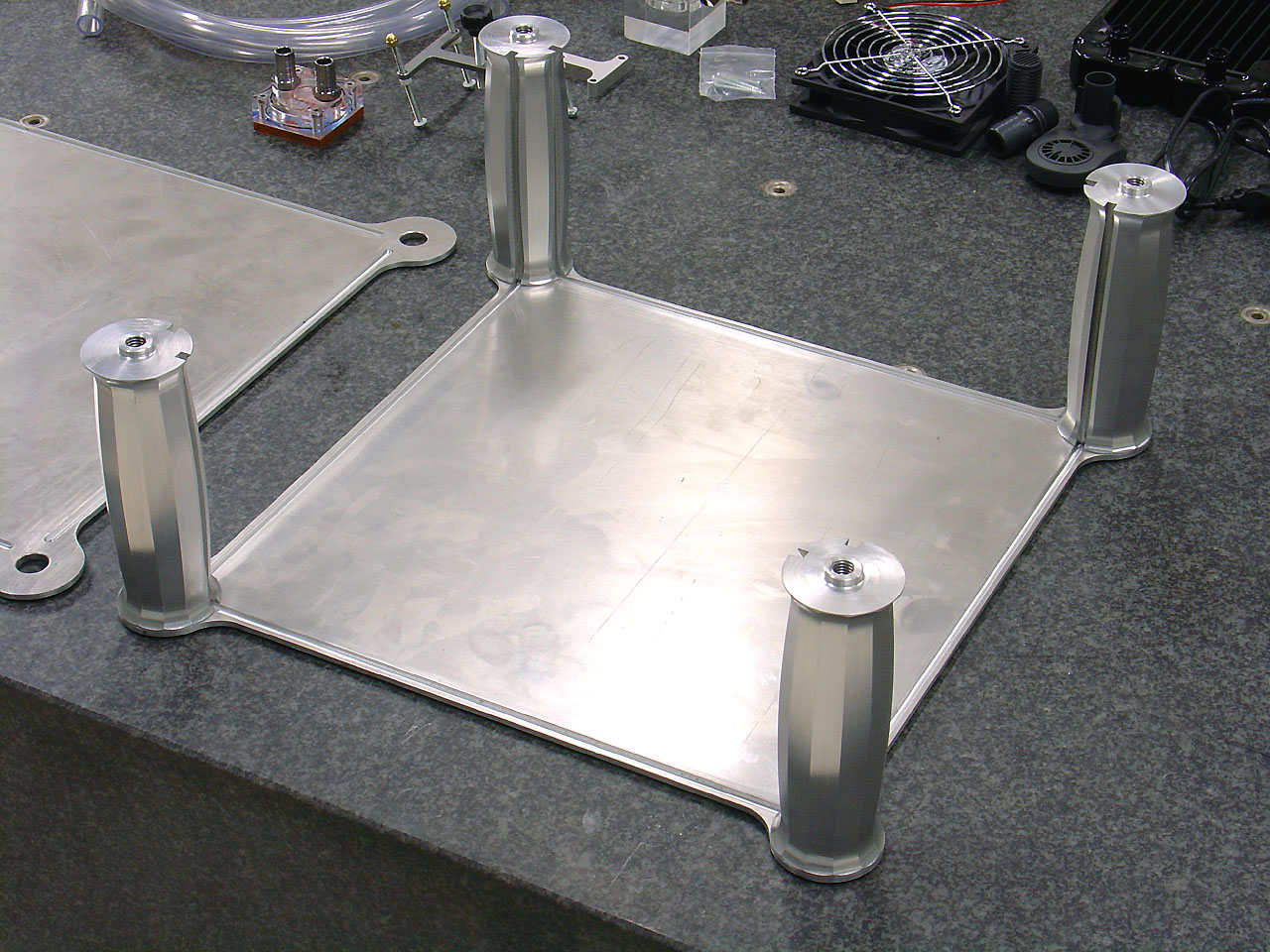

Zoom Top and base are finished.

See You soon... - work in progress.

bye bye
__________________
My Modding Spider's Web - Dark Blade - DBRS Project
Dark Blade - Winner of the Bit-Tech and A.C.Ryan Mod of the Year 2006
Dark Blade Sponsored by Ybris Cooling - AMD - ASUSTeK - OCZ Technology - Cooler Master

DBRS Project - Winner of the MoTM of November 2009

G69T is offline   Reply With Quote
Old 25th Jan 2005, 22:00   #70
G69T
CNC Modder

G69T's Avatar

Join Date: Jun 2004
Location: Trento - ITALY
Posts: 570
G69T has yet to learn the way of the DremelG69T has yet to learn the way of the Dremel

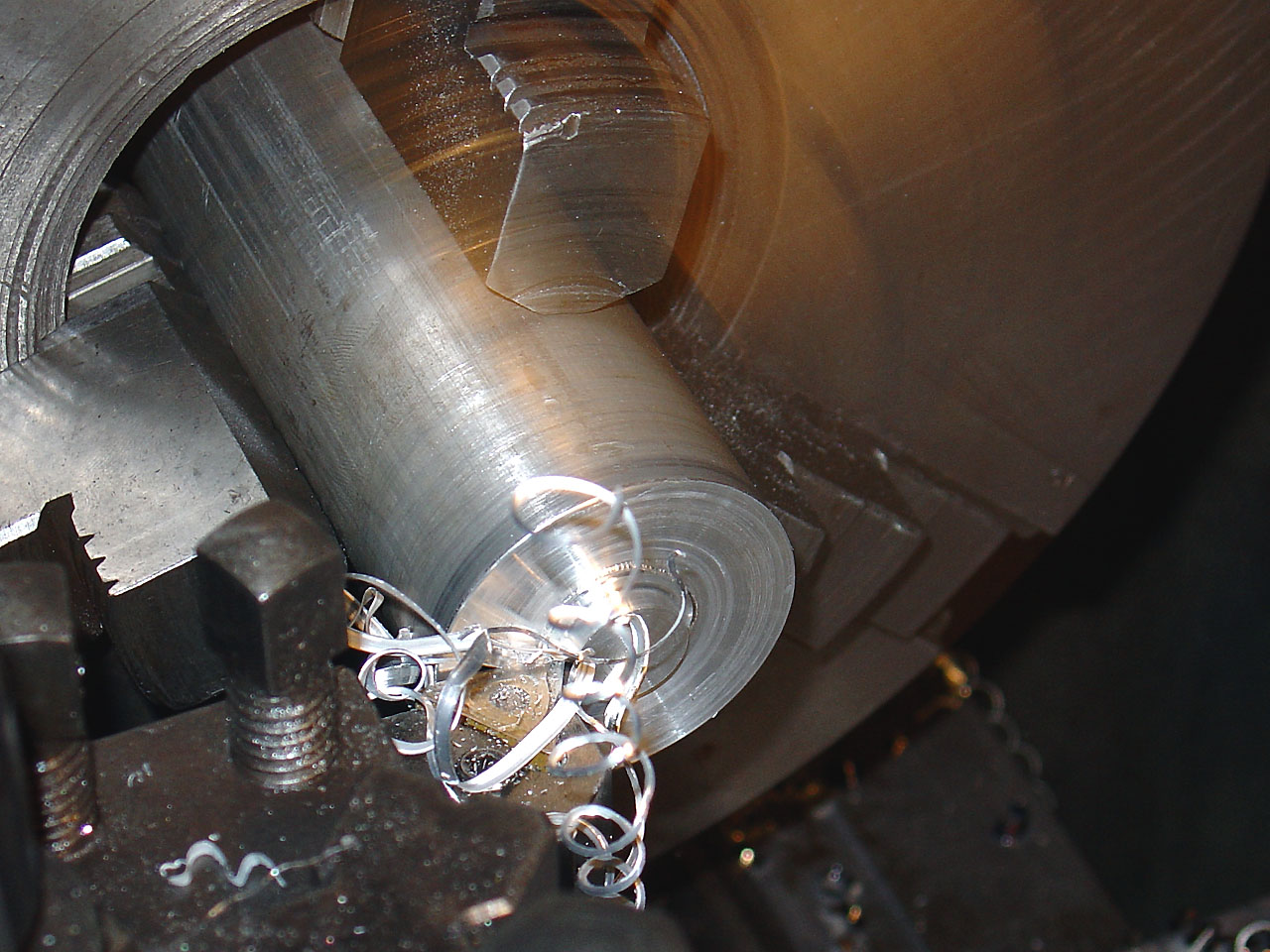

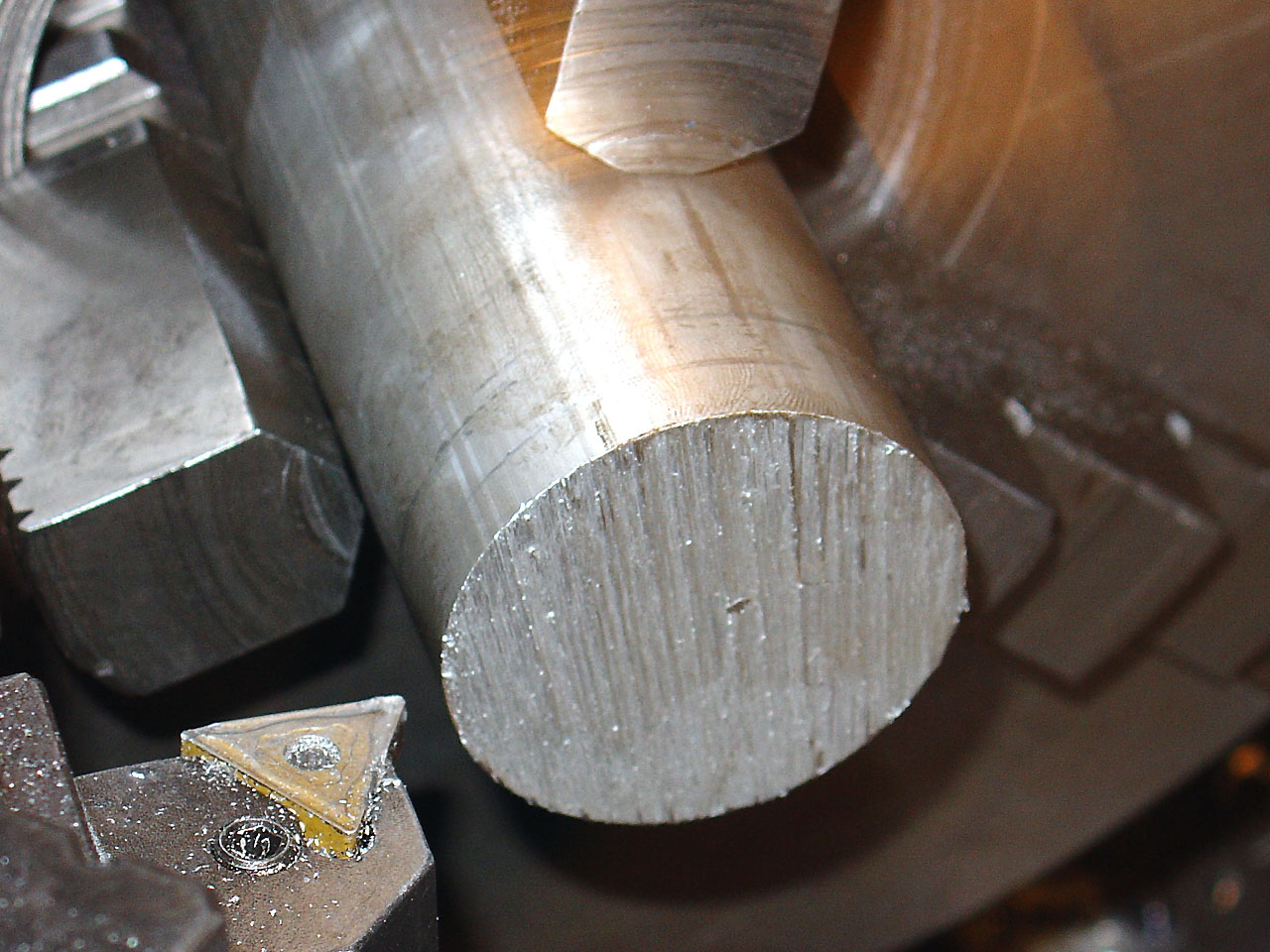

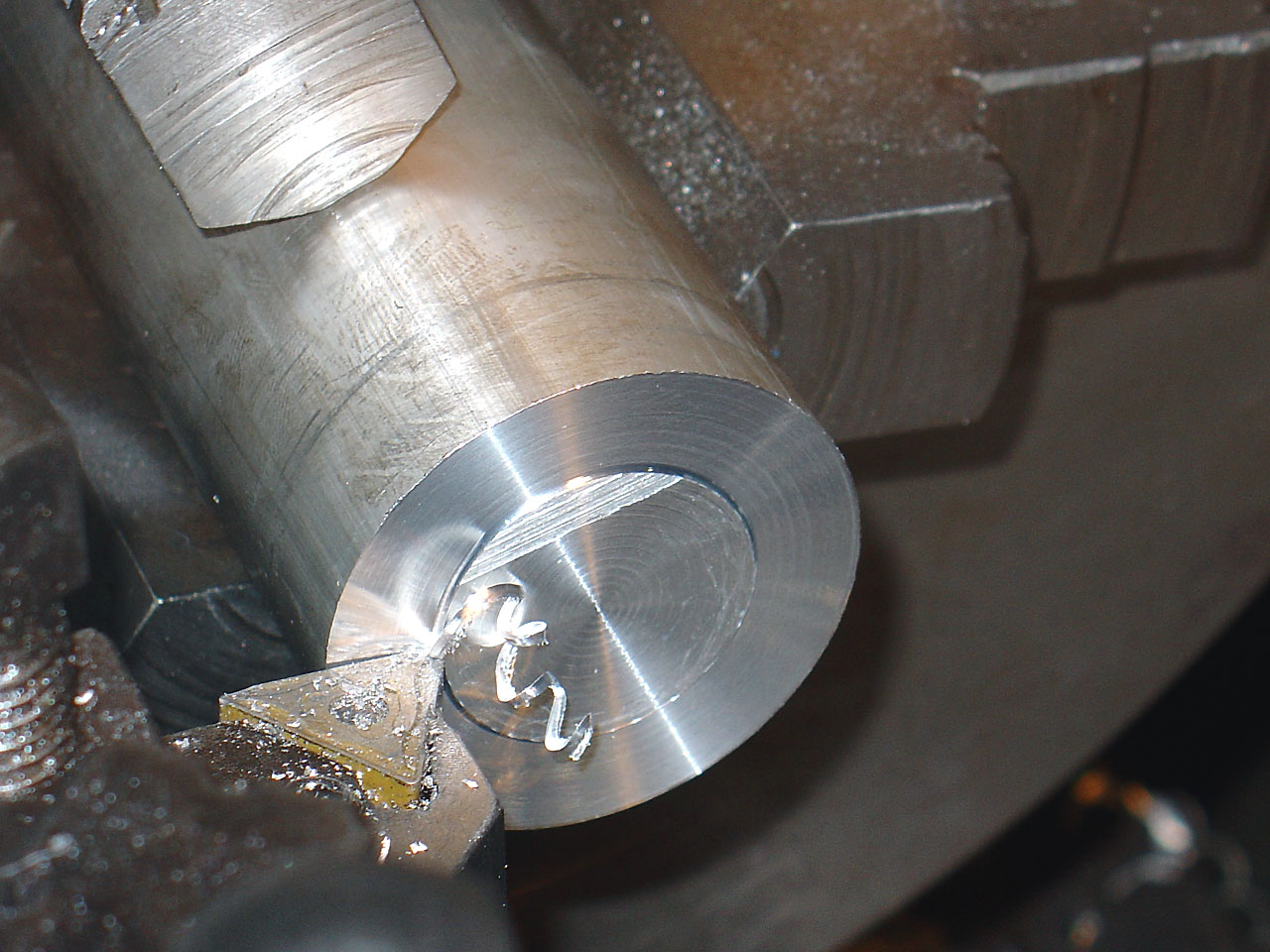

Workship of the 4 WS columns with manuale lathe.


Zoom


Zoom


Zoom


Zoom


Zoom

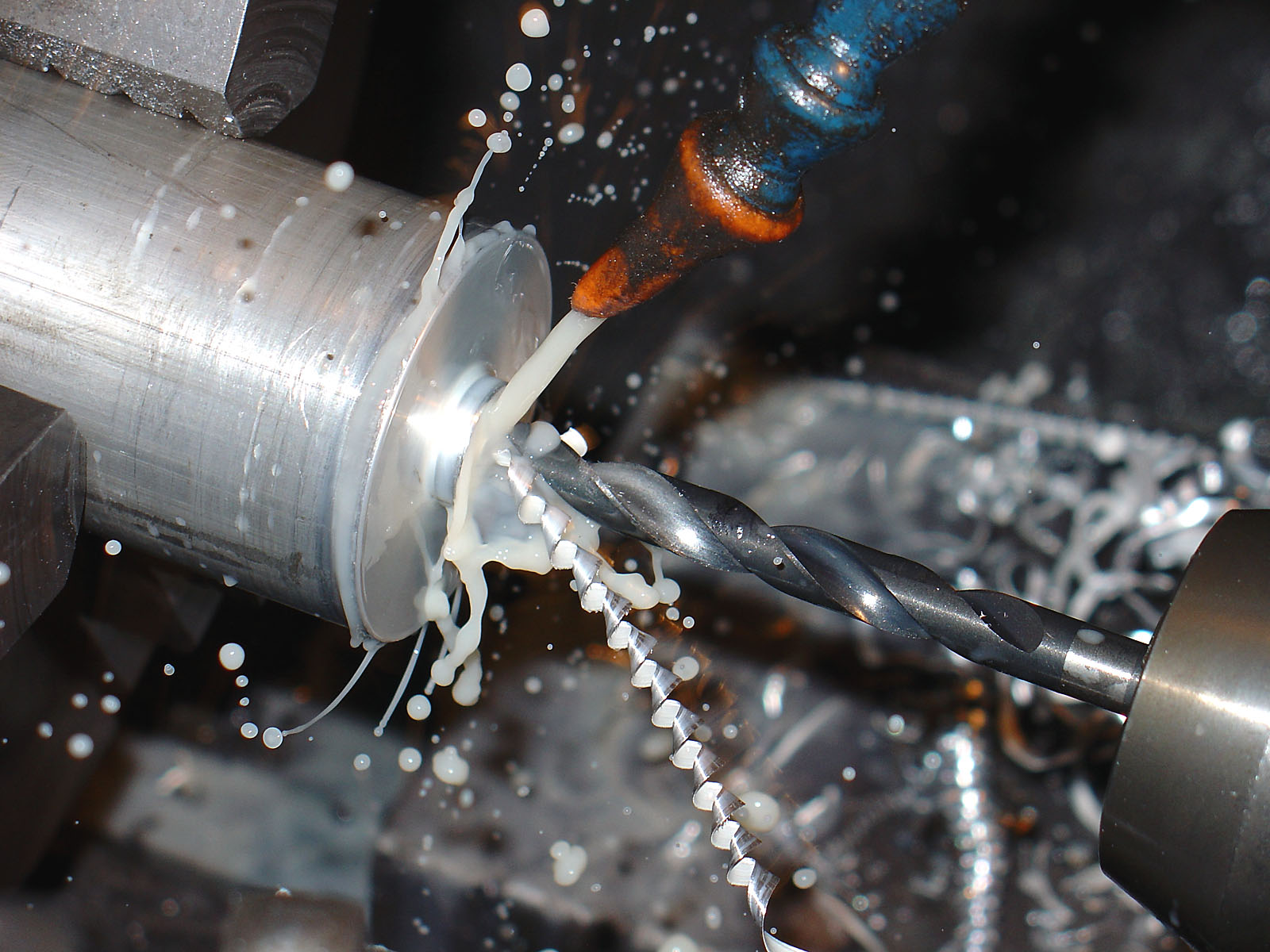

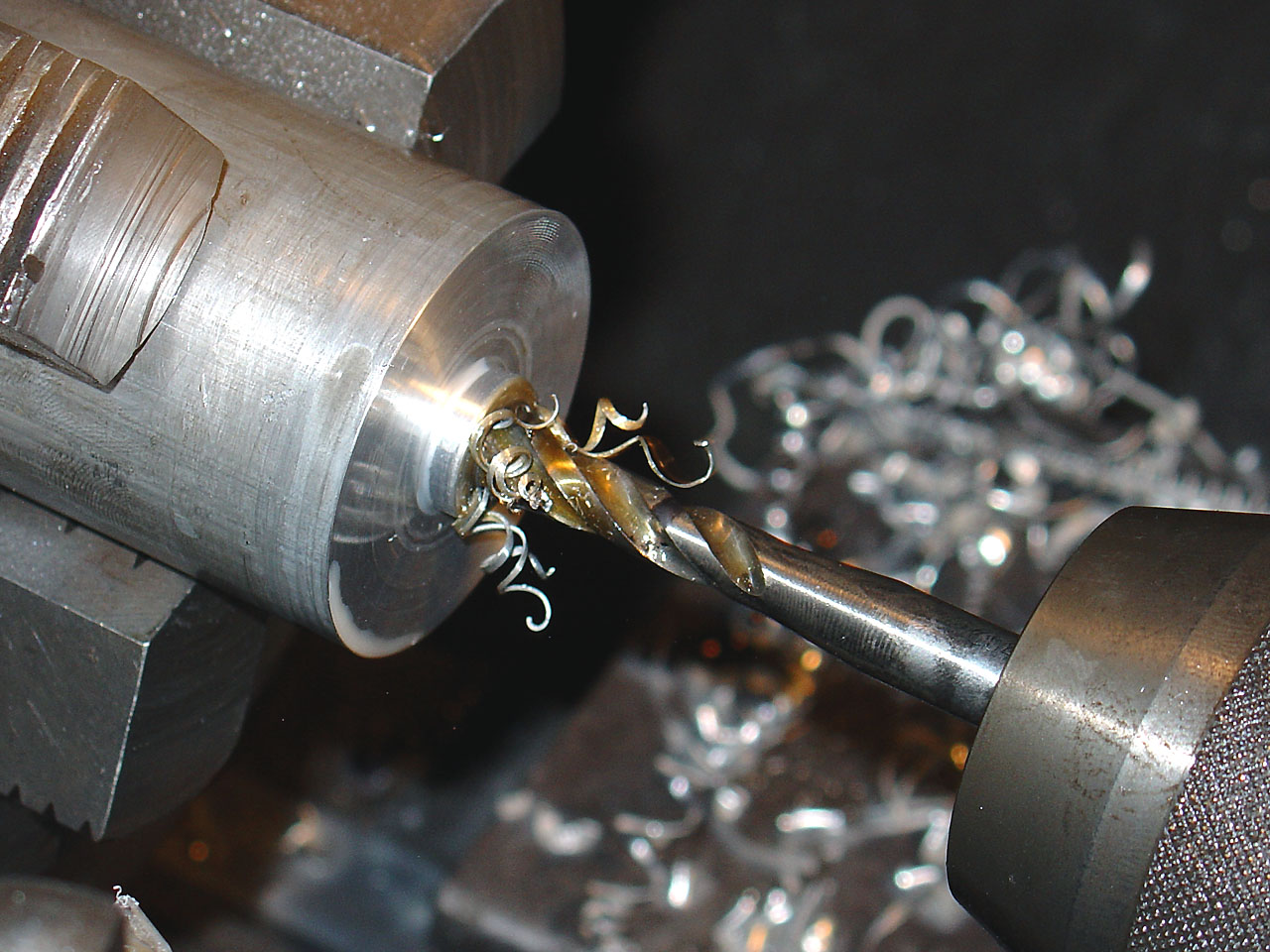

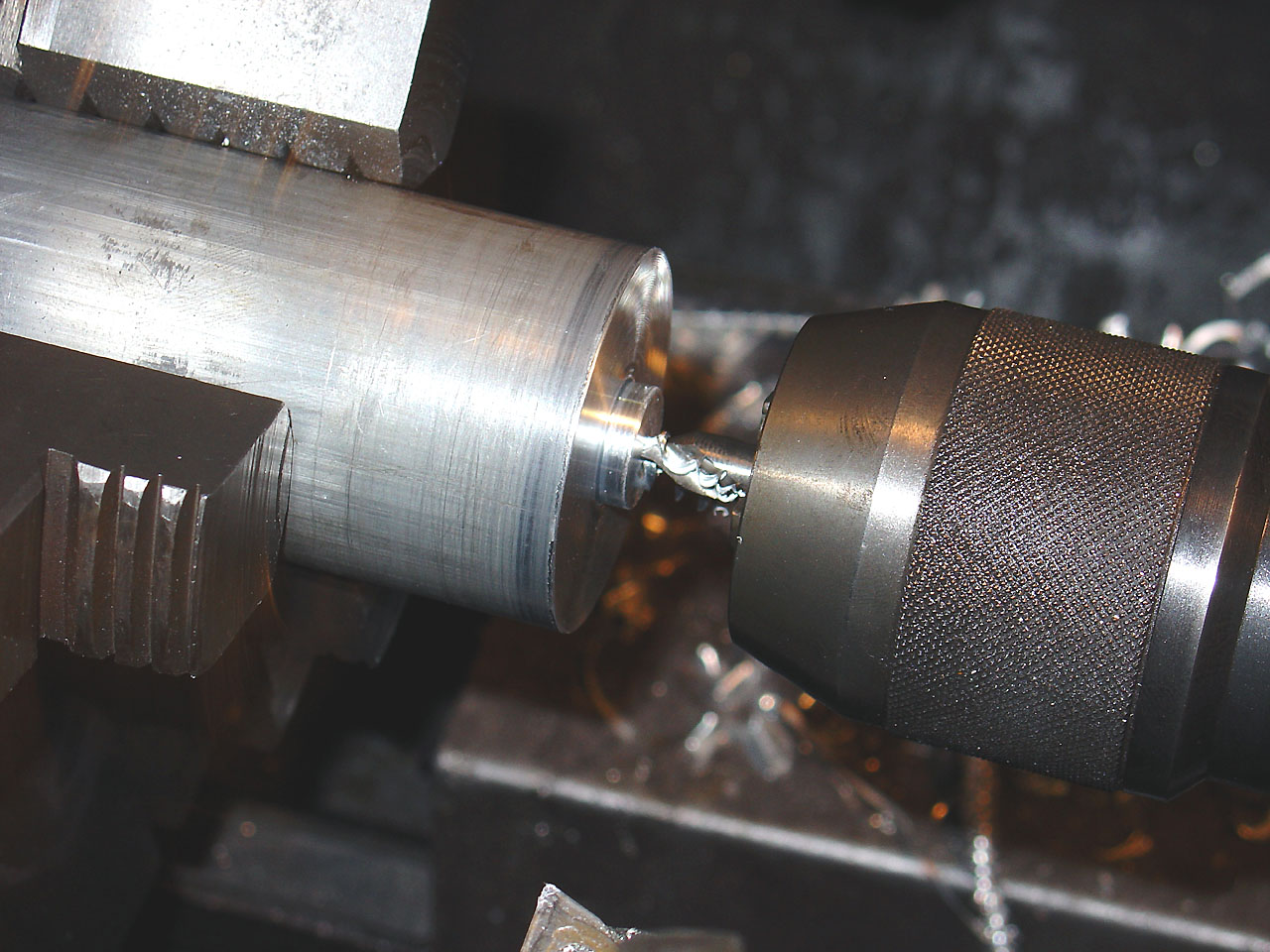

Zoom Drilling with a 8.5 mm.


Zoom Tapping MA10

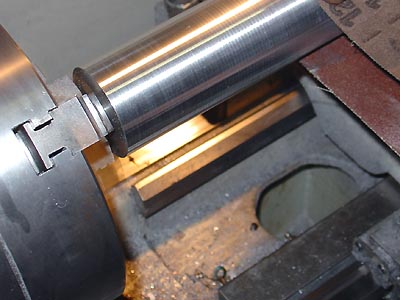

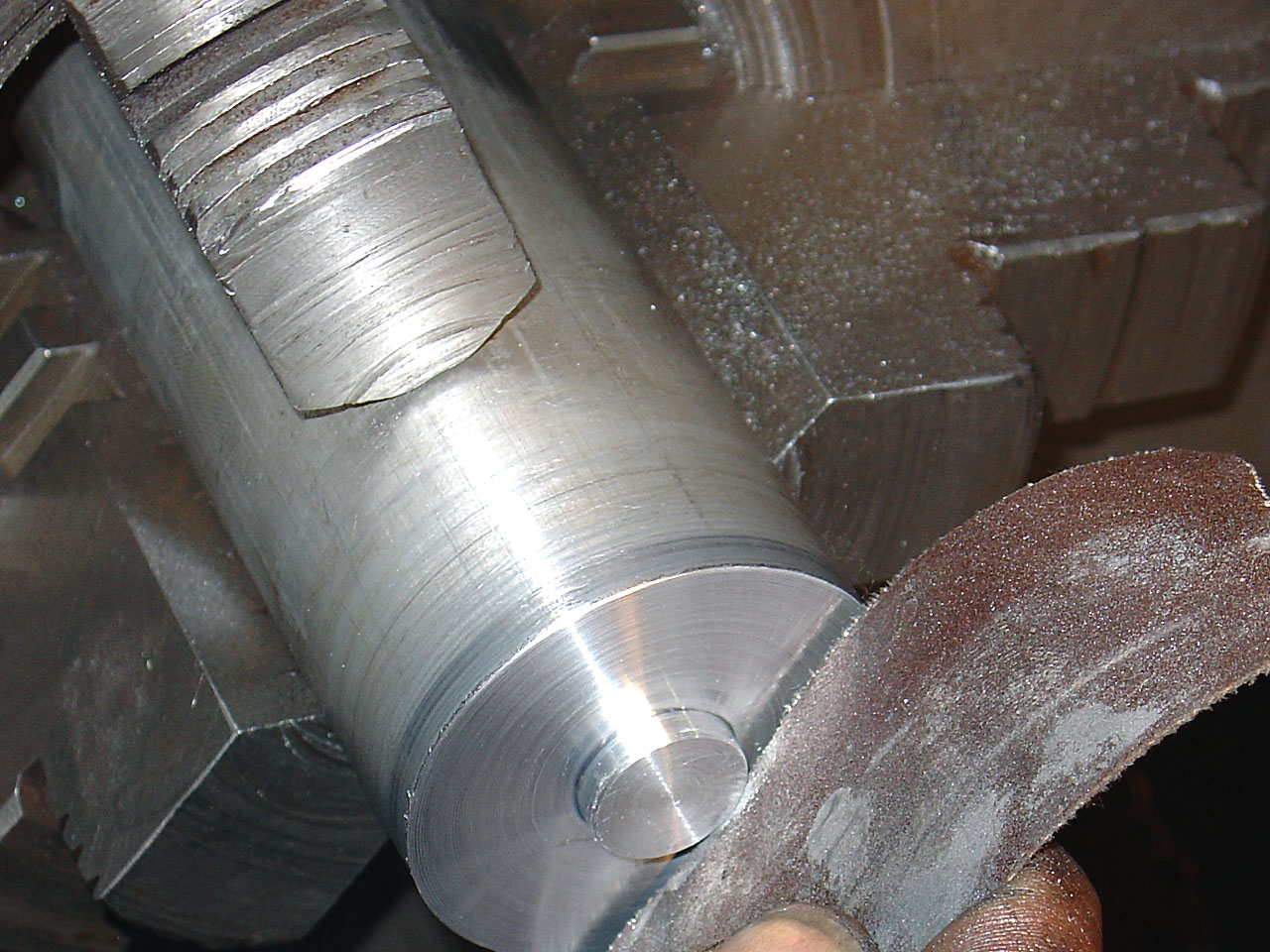

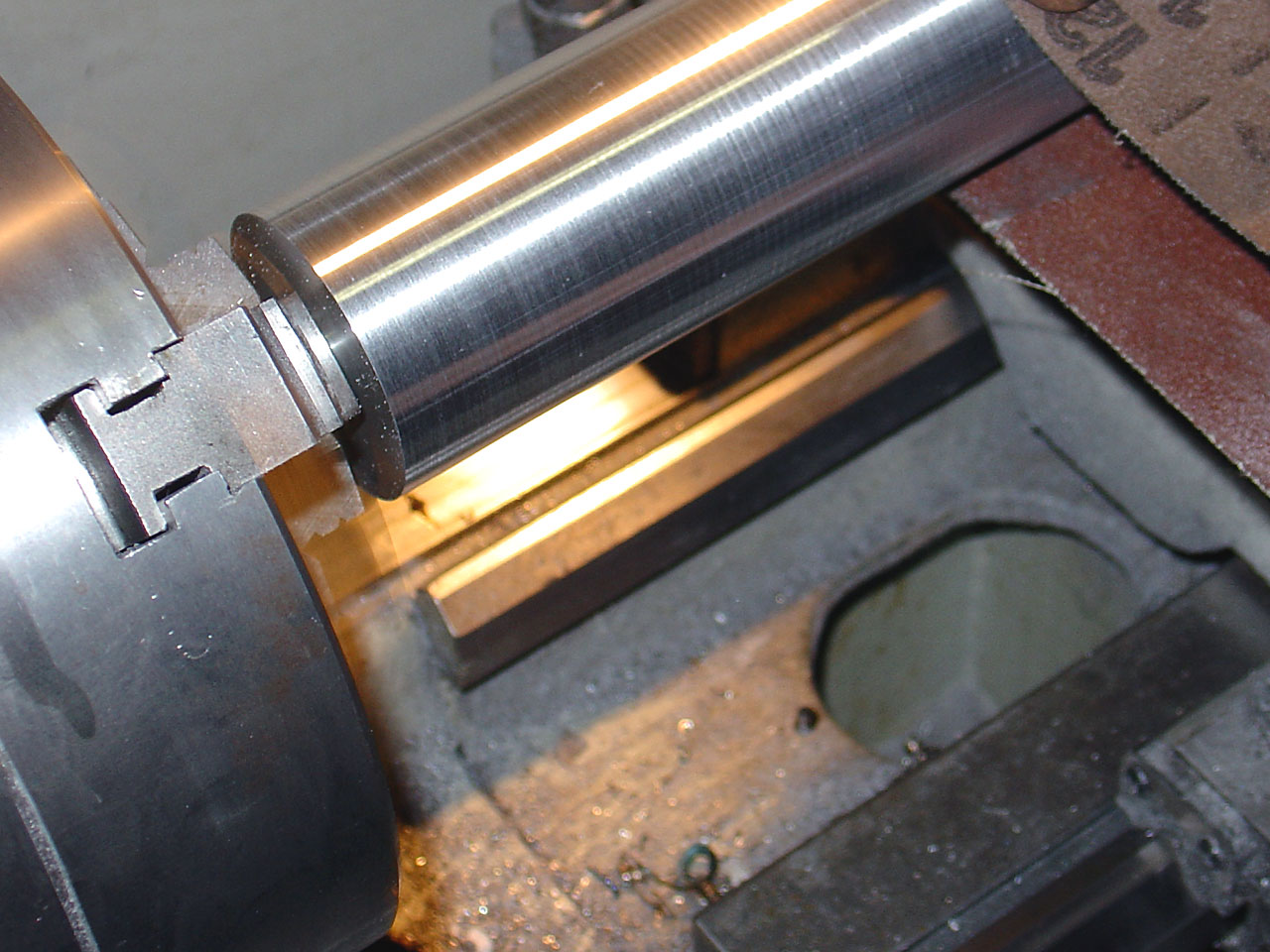

Zoom The column polishing.

See You soon... - work in progress.

bye bye
__________________
My Modding Spider's Web - Dark Blade - DBRS Project
Dark Blade - Winner of the Bit-Tech and A.C.Ryan Mod of the Year 2006
Dark Blade Sponsored by Ybris Cooling - AMD - ASUSTeK - OCZ Technology - Cooler Master

DBRS Project - Winner of the MoTM of November 2009

G69T is offline   Reply With Quote
Old 25th Jan 2005, 22:08   #71
G69T
CNC Modder

G69T's Avatar

Join Date: Jun 2004
Location: Trento - ITALY
Posts: 570
G69T has yet to learn the way of the DremelG69T has yet to learn the way of the Dremel

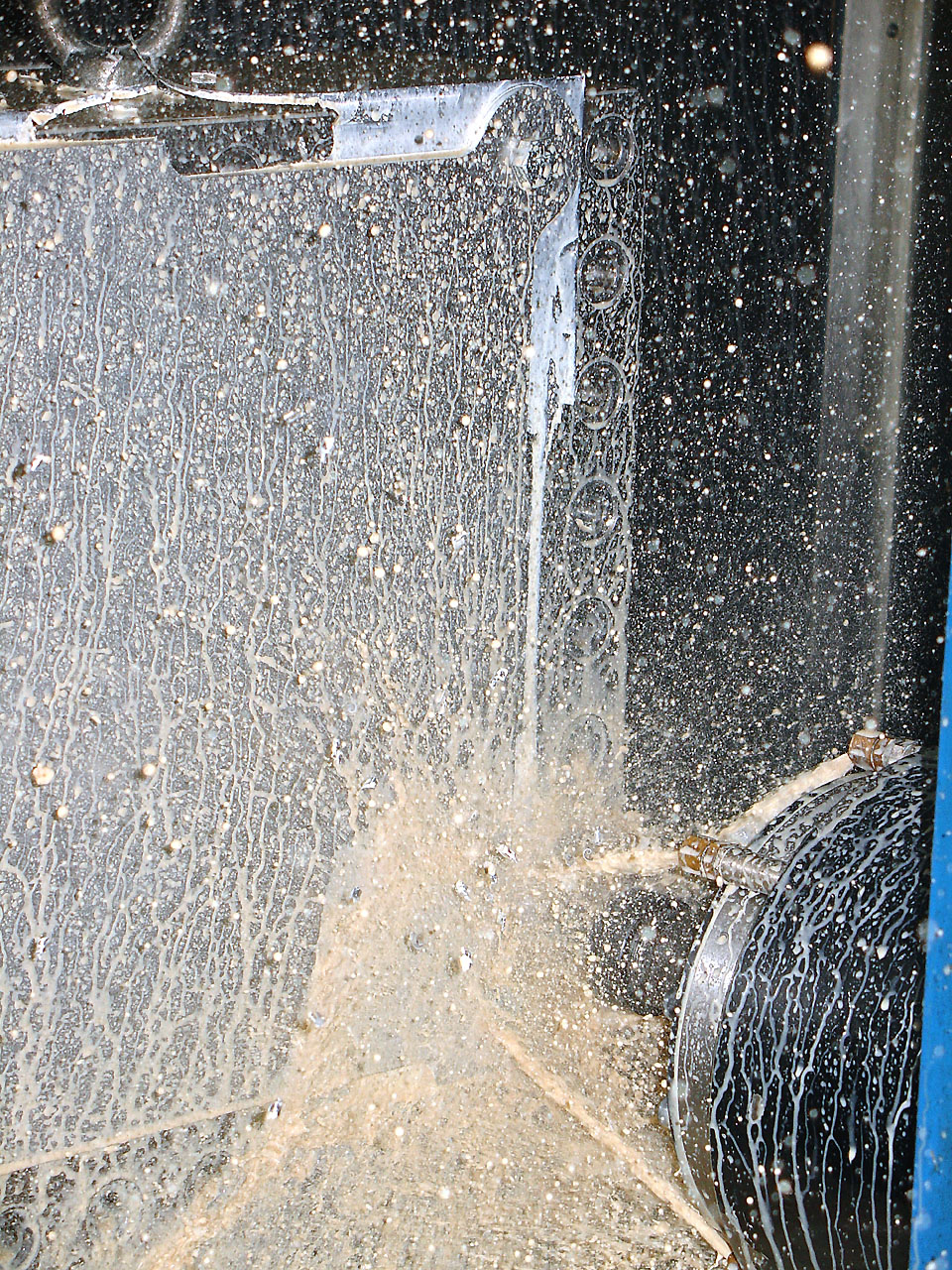

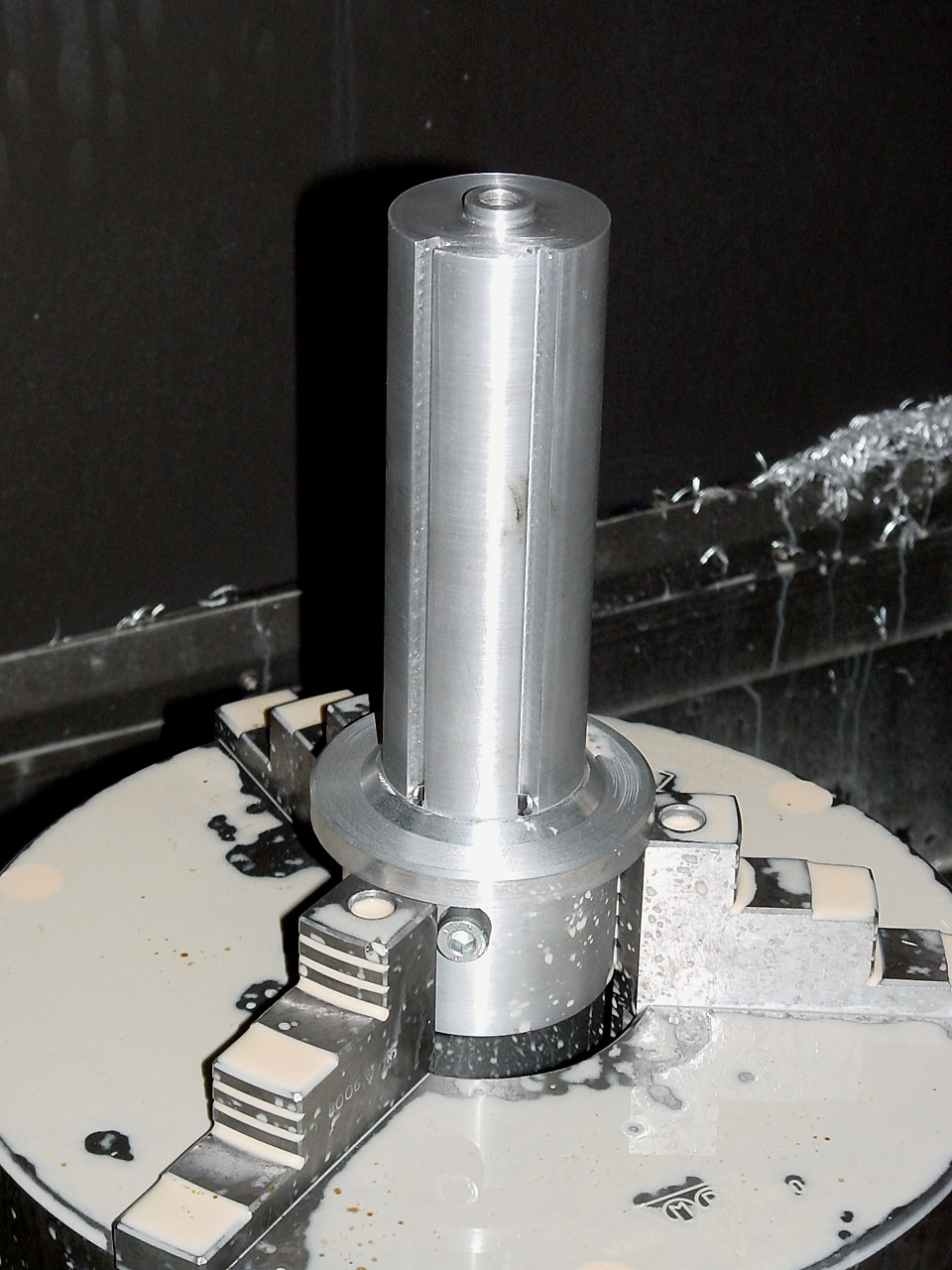

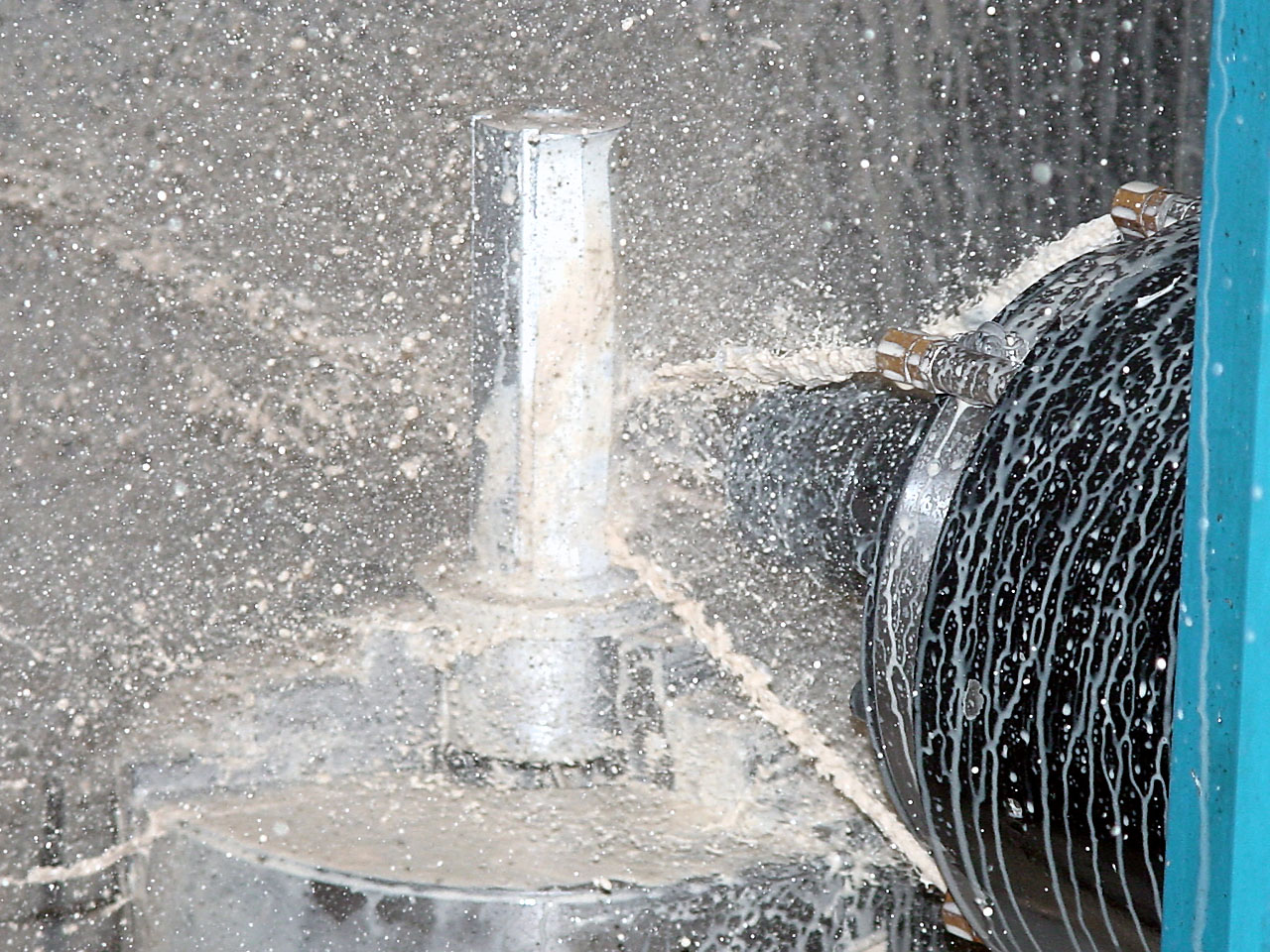

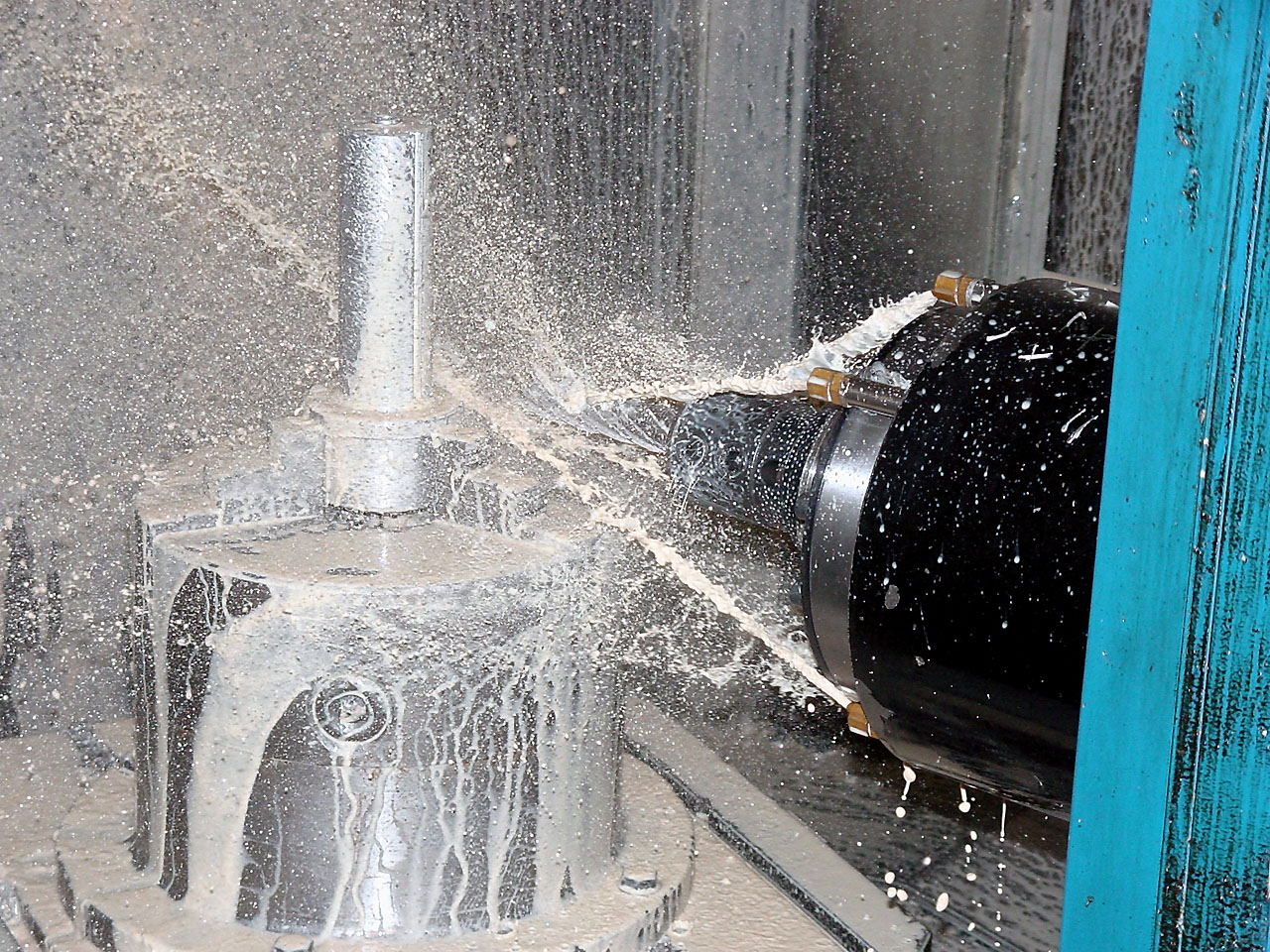

Some pictures about columns working on a CNC milling machine.


Zoom


Zoom

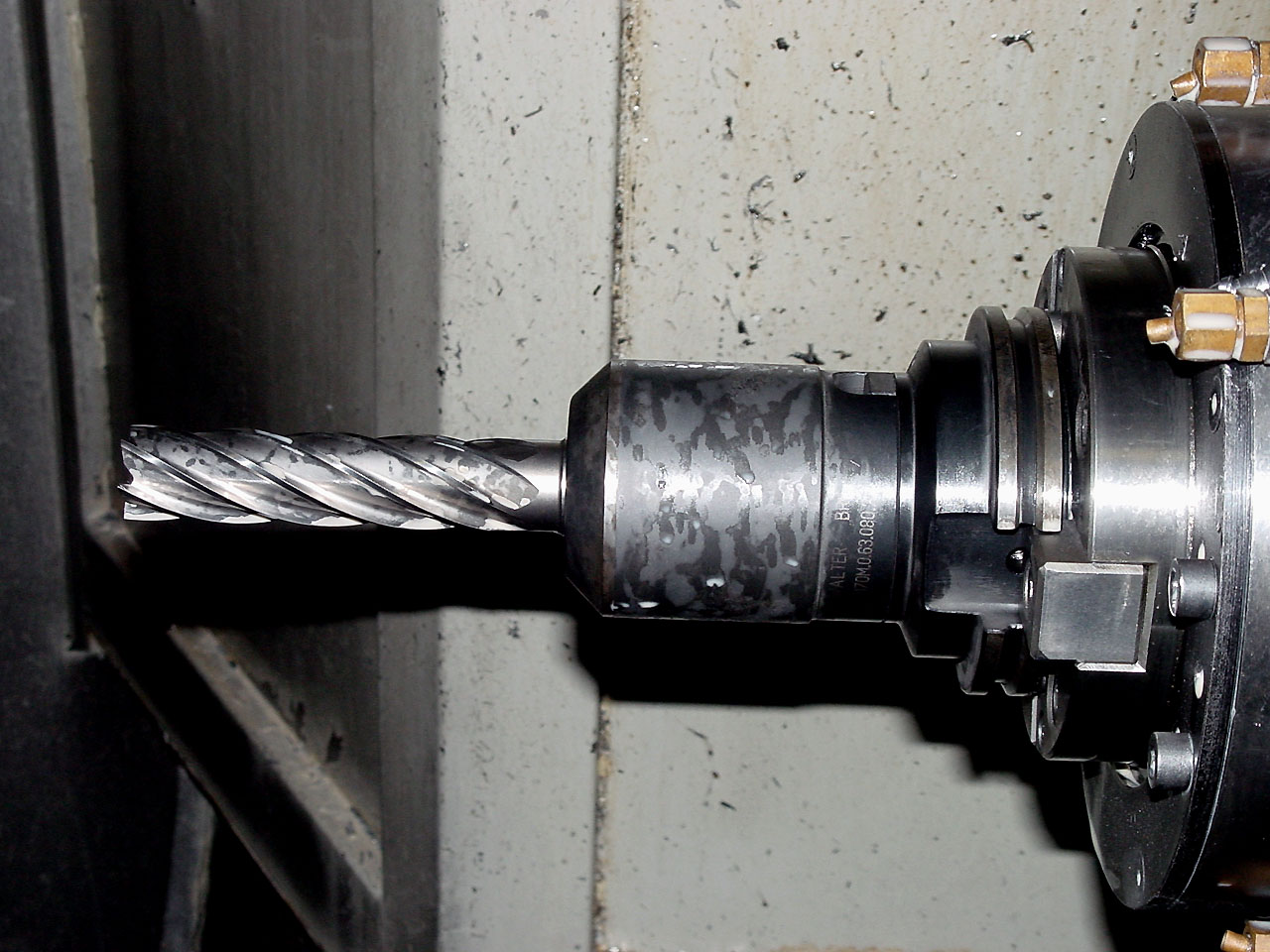

Mill D 24 mm. multicutter used for external columns profile.


Zoom

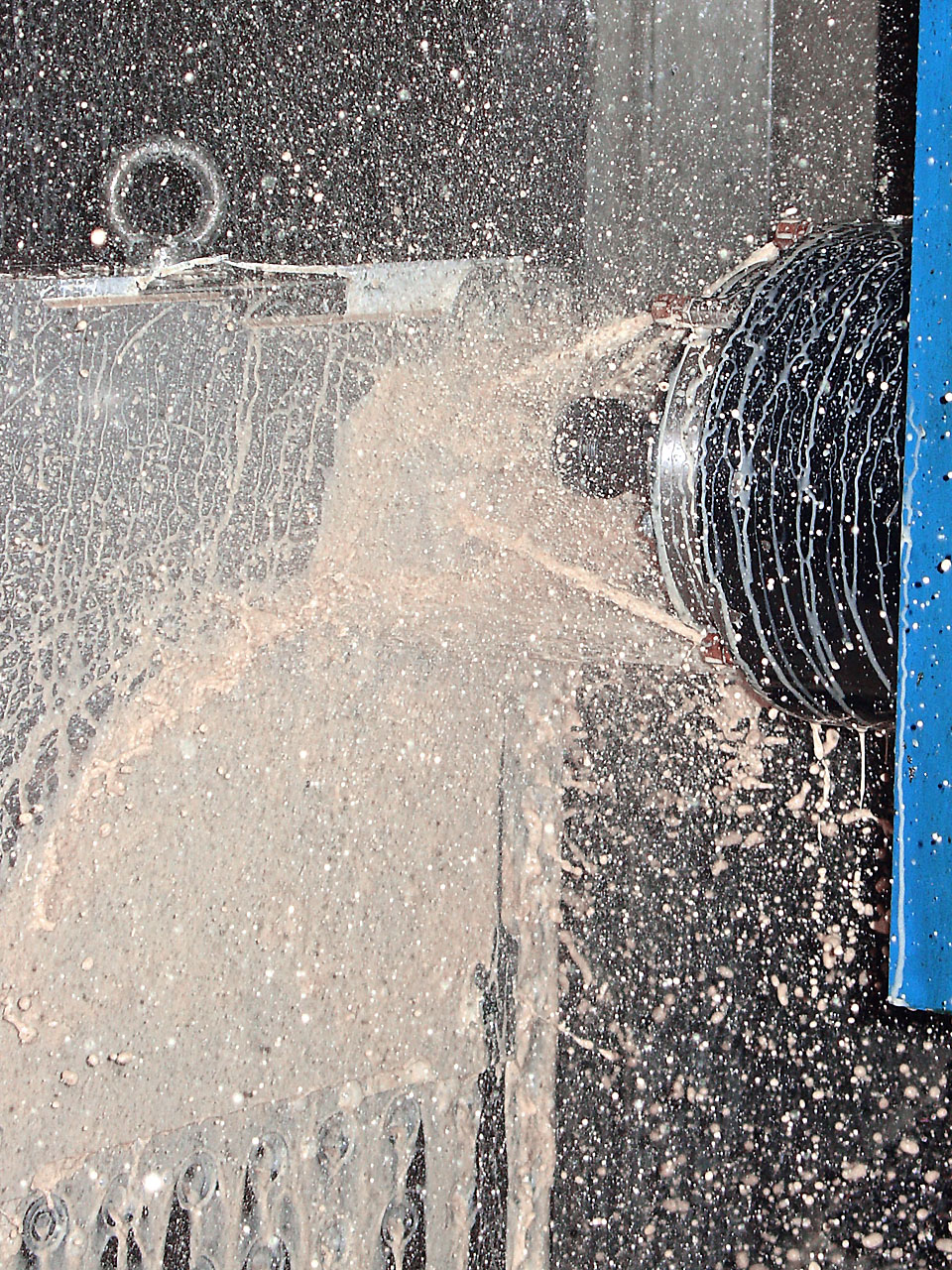

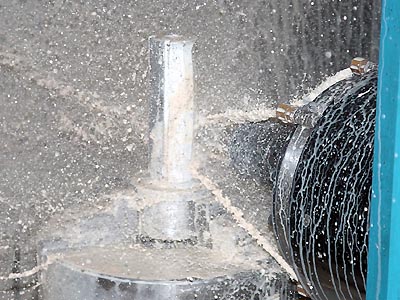

Zoom Working phase: the columns will have a profile recalling the form of a sword handle.

See You soon... - work in progress.

bye bye
__________________
My Modding Spider's Web - Dark Blade - DBRS Project
Dark Blade - Winner of the Bit-Tech and A.C.Ryan Mod of the Year 2006
Dark Blade Sponsored by Ybris Cooling - AMD - ASUSTeK - OCZ Technology - Cooler Master

DBRS Project - Winner of the MoTM of November 2009

G69T is offline   Reply With Quote
Old 25th Jan 2005, 22:23   #72
Jokkocze
Hypermodder

Jokkocze's Avatar

Join Date: Dec 2004
Location: Sweden
Posts: 817
Jokkocze has yet to learn the way of the Dremel
hmm.. I can say one thing.. It sure will be heavy!
__________________
Main rig: Intel C2D E8400 @ 3.91ghz | 6GB Corsair Dominator | EVGA GTX 280 SSC | ASUS P5E | 1x150gb Raptor & 3tb storage | 550w Corsair PSU | 2x Samsung T220
HTPC: Intel C2D E8400 | 2GB Corsair XMS | XFX 8800GT 512mb (Passive) | ASUS P5Q-VM | 4x1.5TB | 550w Corsair PSU | Sony 46V4500
Jokkocze is offline   Reply With Quote
Old 25th Jan 2005, 22:25   #73
G69T
CNC Modder

G69T's Avatar

Join Date: Jun 2004
Location: Trento - ITALY
Posts: 570
G69T has yet to learn the way of the DremelG69T has yet to learn the way of the Dremel

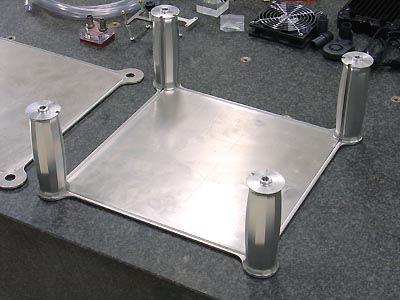

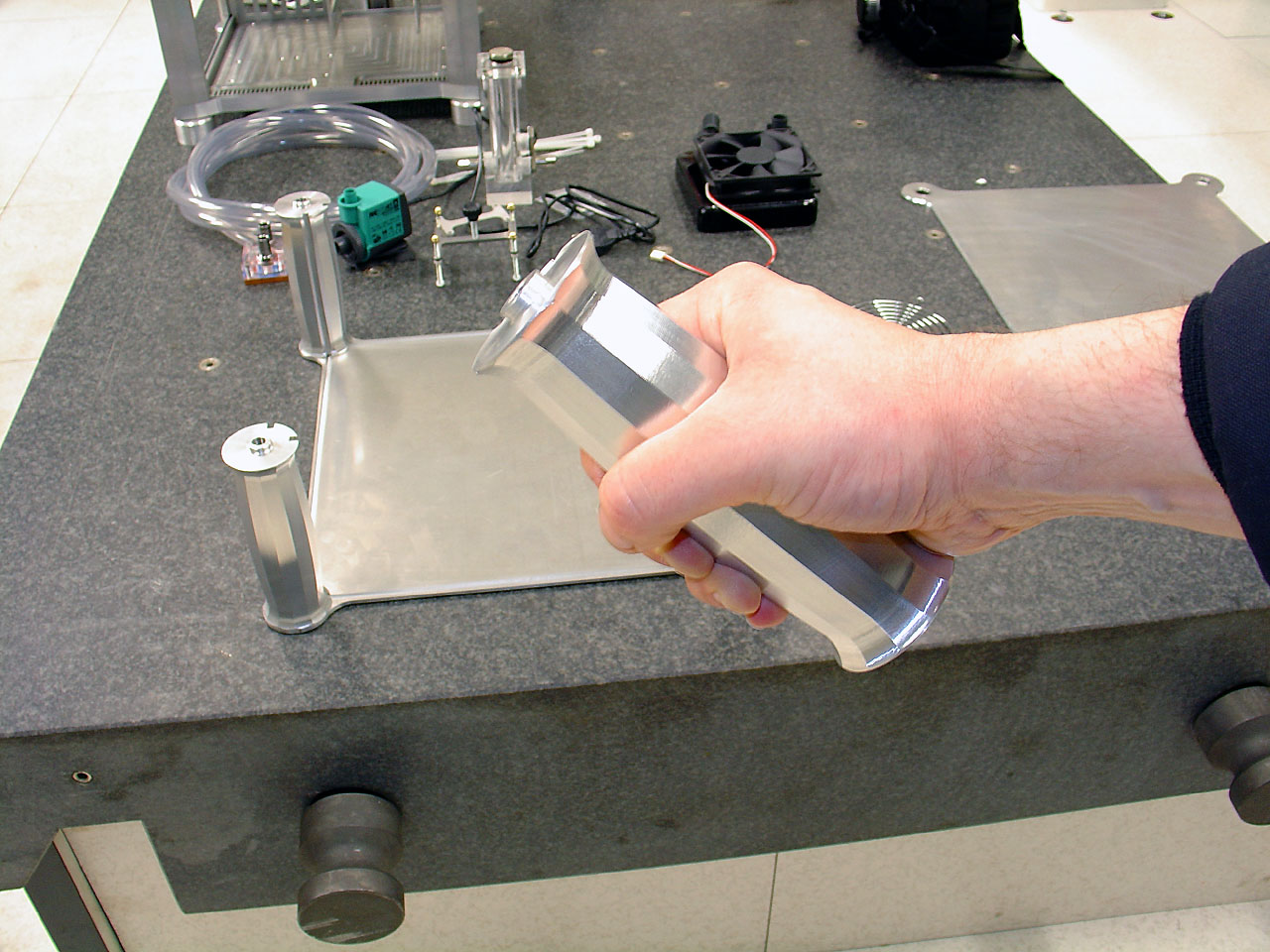

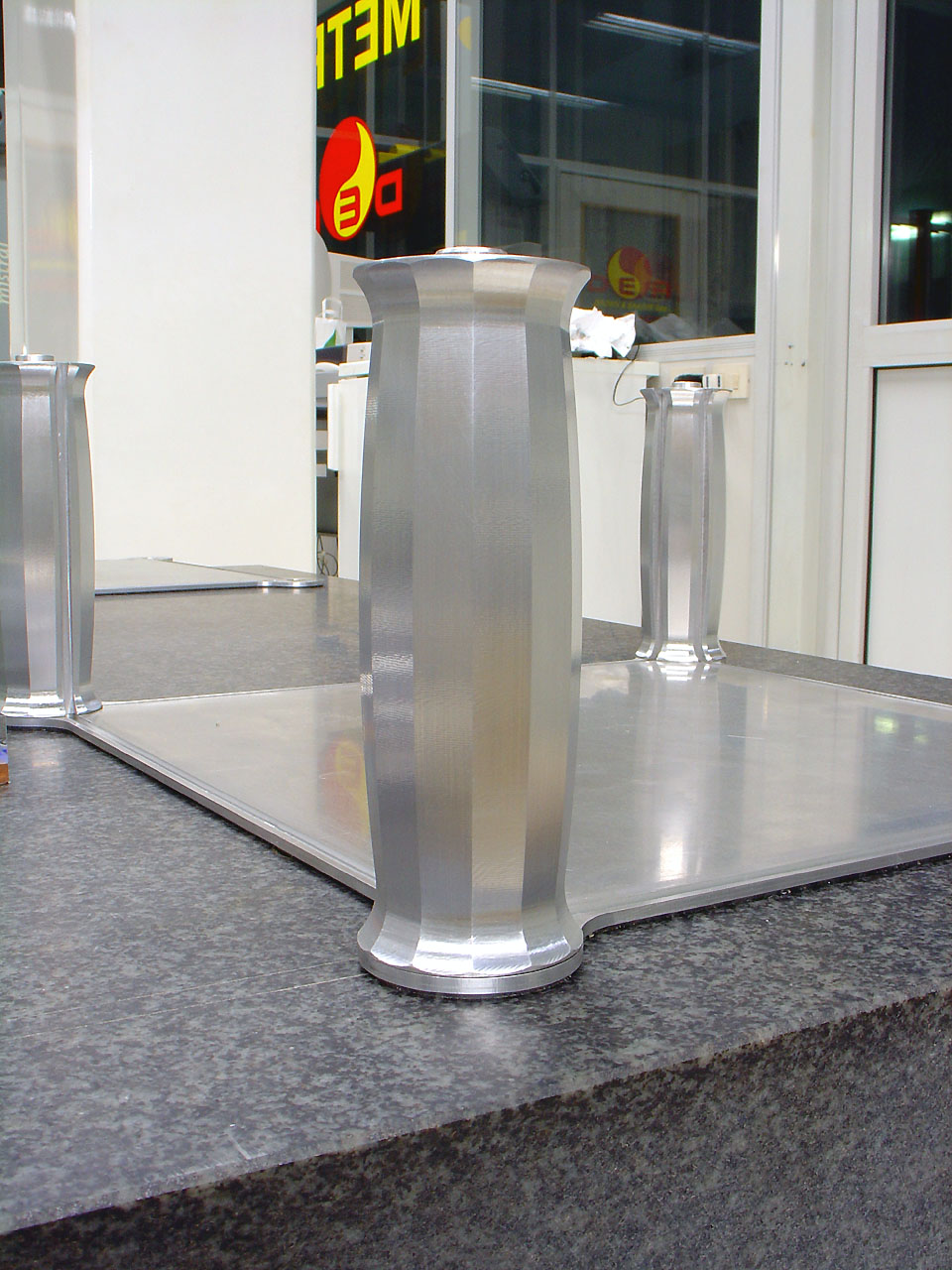

Following you'll see the last pictures about the finished columns. For the first time we try to put them together.


Zoom


Zoom


Zoom


Zoom

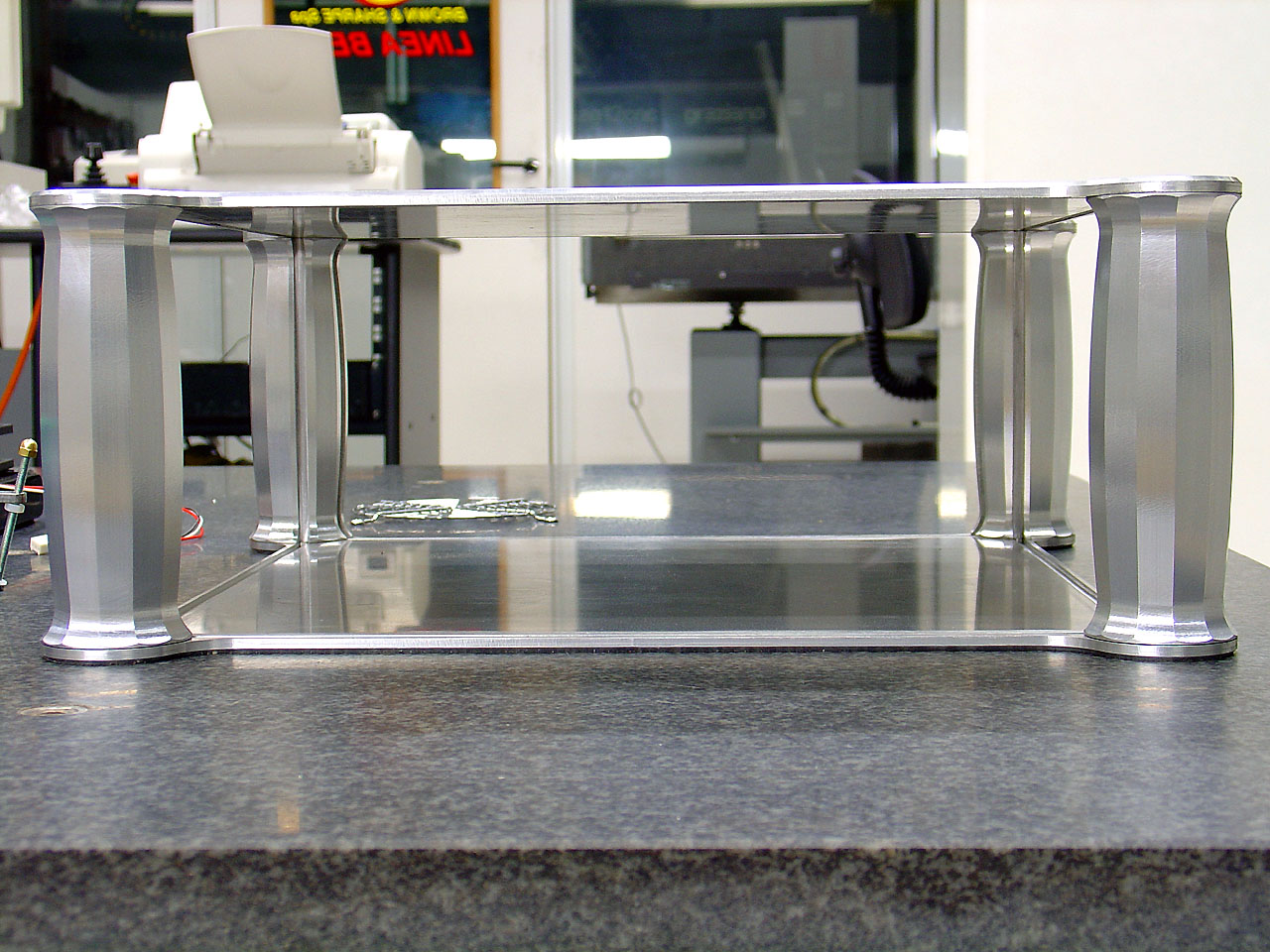

Zoom I decided to create 2 comunicating water tanks. There will be located in the front part, viewable from outside. The water tank form still remain a surprise.
