G69T · 21st Jan 2006, 20:09

Thanks all guys, very thanks!!

Quote:

Originally Posted by phuzz

ahhhh, it makes a lot more sense now, and they really do make the bottom and top parts of the case look like part of a whole

Quote:

Originally Posted by GuardianStorm

Holy Moly! that looks good! as phuzz said, it really does tie the two parts together. nice job man

Quote:

Originally Posted by zub

oh so that is what you were up to when you made those spaceships, it all fits together very nicely, top notch work.

This is the core of the Dark Blade Project, THE SWORDS. I'm very pleased of the partial result, for the moment.

Quote:

Originally Posted by AlexB

Excellent - that's looking amazing.
Looking forward to the next installment already.

I have polished all the case pieces for the black anodization in the next week.

Quote:

Originally Posted by Soundstorm

I finally see it too now. Looks great, like you can take the swords out on a lanparty and do some real gaming. They do need some sharpening!

So everything is going to be black except for the blades?

Keep up the great work!

Yes, all the pieces will be anodized in black color except the 4 swords (standard oxidation in silver color).

Tulatin · 21st Jan 2006, 20:19

It'd be so nice to see the swords kept silver, maybe polished to a nice mirror maybe?

G69T · 21st Jan 2006, 20:22

Quote:

Originally Posted by Sheldog23

YOWZA. Thats pretty magnificent. It's just insane really. How tall is that? Sorry if thats been asked before but WOW.

The measure of the sword+guard structure are 458mm.

Quote:

Originally Posted by Starbuck3733T

Horry crap!

the big picture is starting to come together!

Question: why the large gap between the top of the agua-station and the top bit?

The space is required for the grid aspiration and for a sufficient swords proportionality.

G69T · 21st Jan 2006, 21:18

Quote:

Originally Posted by Hal

that is going to be sooooo awesome. wow, your gonna need a UH-60 and sling load that thing to move it! haha

Sorry? What's the UH-60?

Quote:

Originally Posted by Tulatin

It'd be so nice to see the swords kept silver, maybe polished to a nice mirror maybe?

The polished aluminium isn't protect from the surface oxide.

Quote:

Originally Posted by Big SturL

First of all, I would like to say that the massive amount of attention to the tiniest detail is what really make this case special, and not just the shere looks of it. But, there's a but...
I'm not to sure of the colorscheme, what I mean is that the blue and green CCFL's kind of make the case remind me of something like this

(yeah, she ain't no beauty). So, in my mind, either green or blue would fit nice. Also, removing both colors and replacing them with some lovely white CCFL's would definately be the best.

But over to something else, what hardware are you planning on? Am I guessing a nice black and blue Asus motherboard, complimented by a blue 7800GT from either Asus or XFX?

This is something that is personal preference, I have chosen the green / blue colors in contrast of the structure black color. For the hardware, I haven't still chosen.

<A88> · 21st Jan 2006, 21:22

Quote:

Originally Posted by G69T

Sorry? What's the UH-60?

Military helicopter

<A88>

G69T · 21st Jan 2006, 21:25

Quote:

Originally Posted by <A88>

Military helicopter

<A88>

Thank you <A88>

MikeK · 22nd Jan 2006, 08:02

This is just fantastic. If this is not a work of art, I don´t know what that is.

G69T: Great work!!

perplekks45 · 22nd Jan 2006, 11:55

To be accurate THIS is an UH-60.

Do I have to mention like the 10th time how much I love your work? Yea, I have to!
A-W-E-S-O-M-E !!!

<A88> · 22nd Jan 2006, 12:08

Quote:

Originally Posted by aon`aTv.gsus666

To be accurate THIS is an UH-60.

Oooh nice, illegal URL in Opera- never had that one before

Sounds naughty...

<A88>

GuardianStorm · 22nd Jan 2006, 12:29

here is the proper URL: http://www.fas.org/man/dod-101/sys/ac/uh-60.htm

perplekks45 · 22nd Jan 2006, 20:34

Quote:

Originally Posted by GuardianStorm

here is the proper URL: http://www.fas.org/man/dod-101/sys/ac/uh-60.htm

Thanks... was a typo.

GuardianStorm · 22nd Jan 2006, 20:40

sorry, no offence meant

perplekks45 · 22nd Jan 2006, 20:51

Didn't feel offended at all. Just hadn't realised myself. (Memo to myself: Test links you code before posting them.)

BlackMan · 24th Jan 2006, 07:49

What is manufactured in the factory where you work?, What do they make with the CNC machine? i love you case so far, i cant wait to see what the finished product looks like

G69T · 24th Jan 2006, 19:51

Quote:

Originally Posted by BlackMan

What is manufactured in the factory where you work?, What do they make with the CNC machine? i love you case so far, i cant wait to see what the finished product looks like

I work in a precision mechanical factory, from the raw materials by the ended mechanical piece, from the single piece to the assembled machine. I hope to show to you some images about this.

Bye bye

G69T · 25th Jan 2006, 14:05

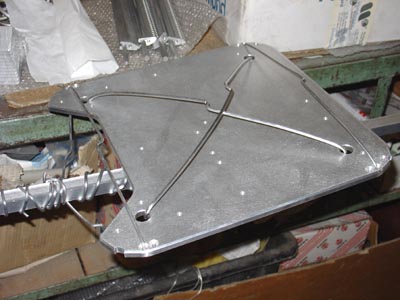

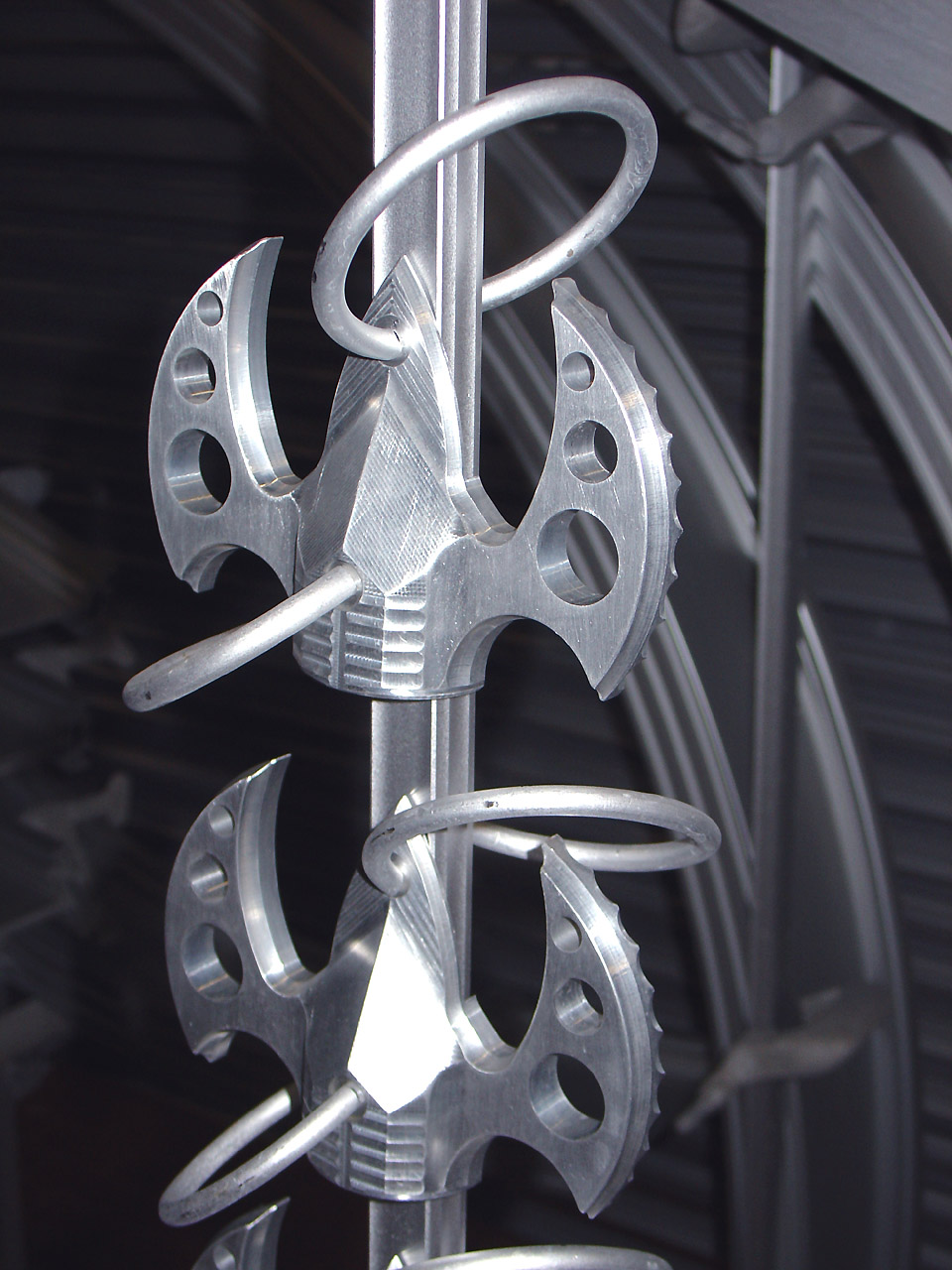

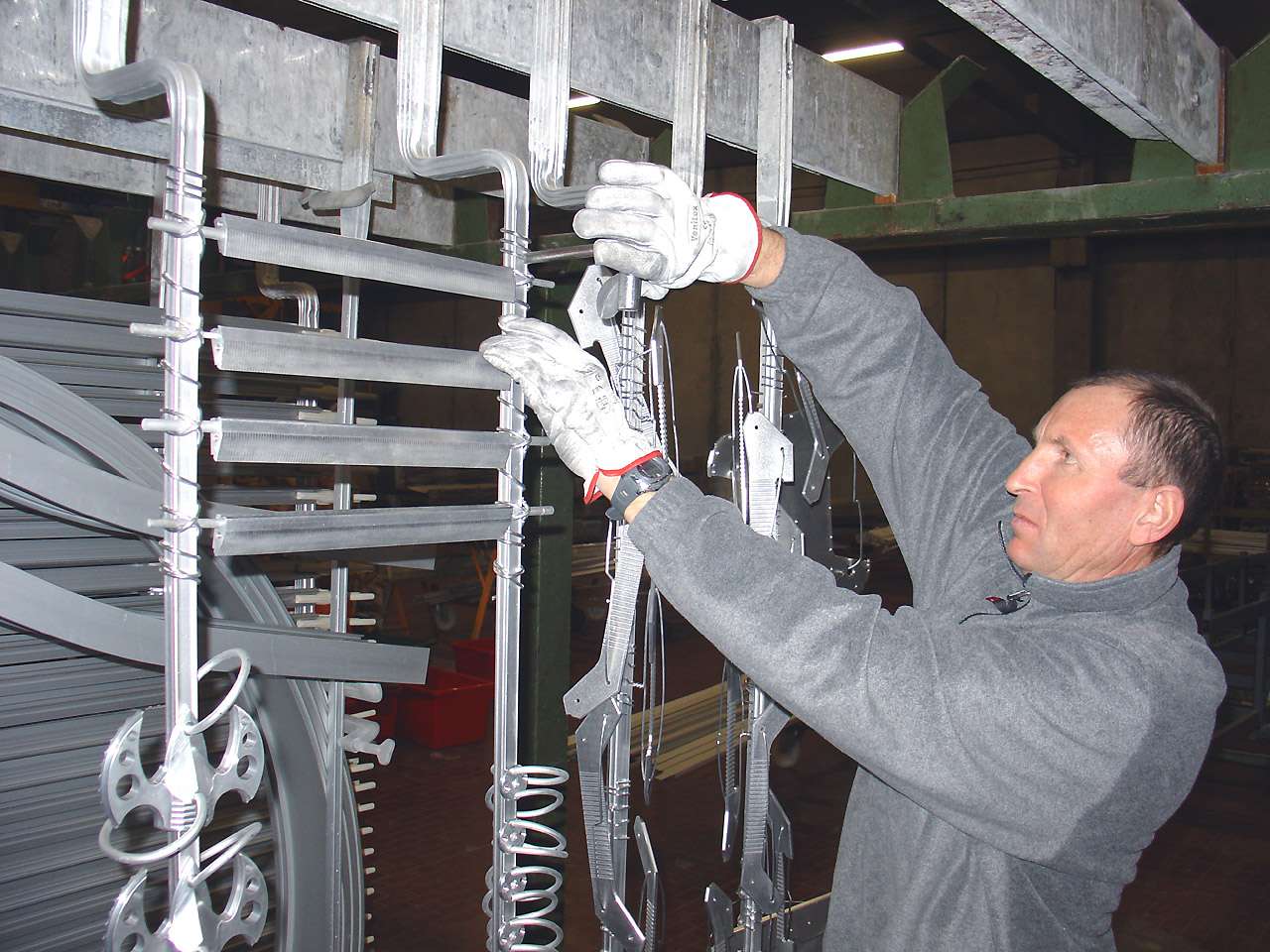

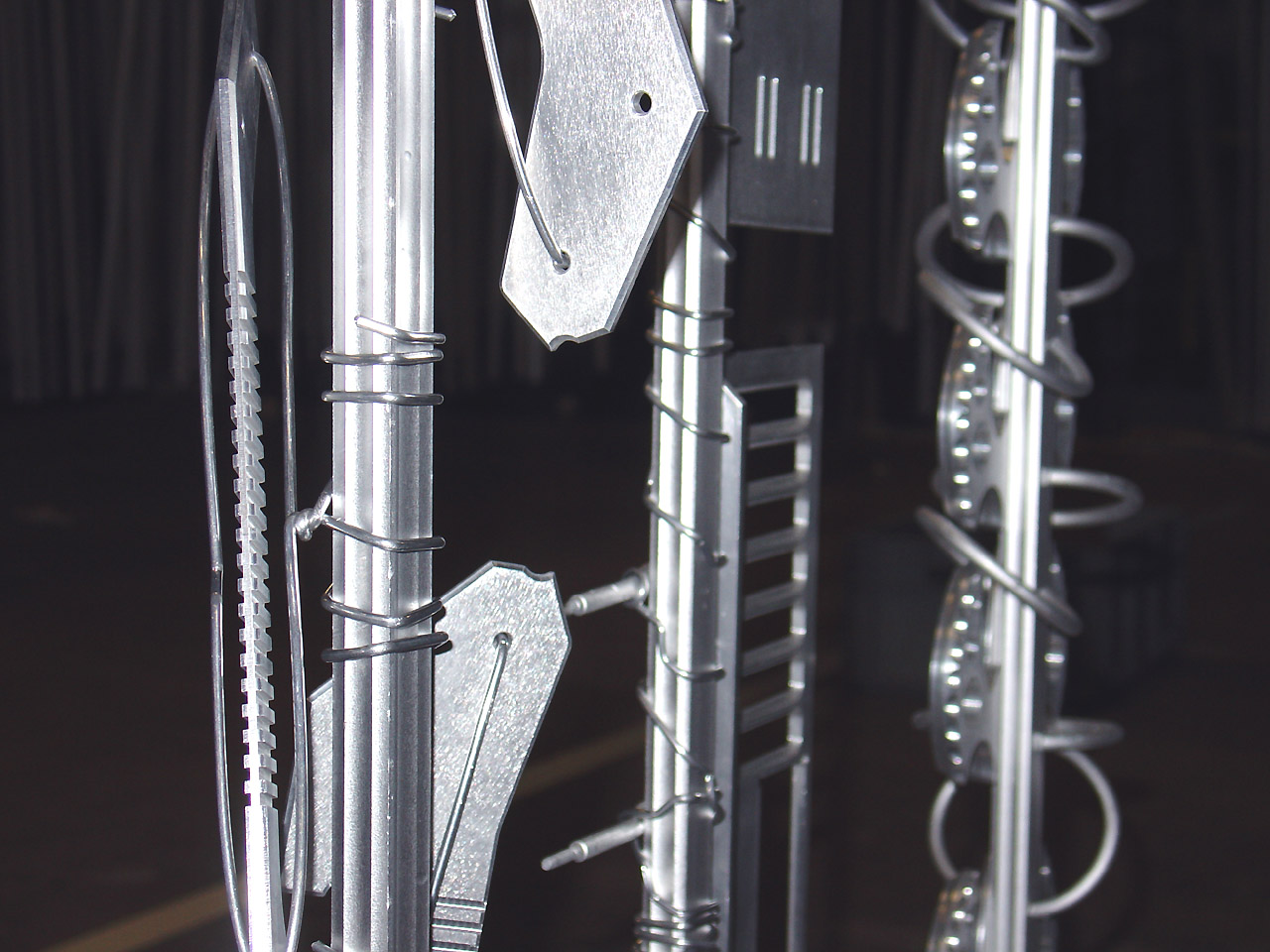

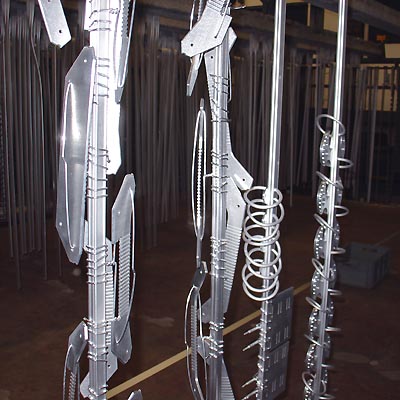

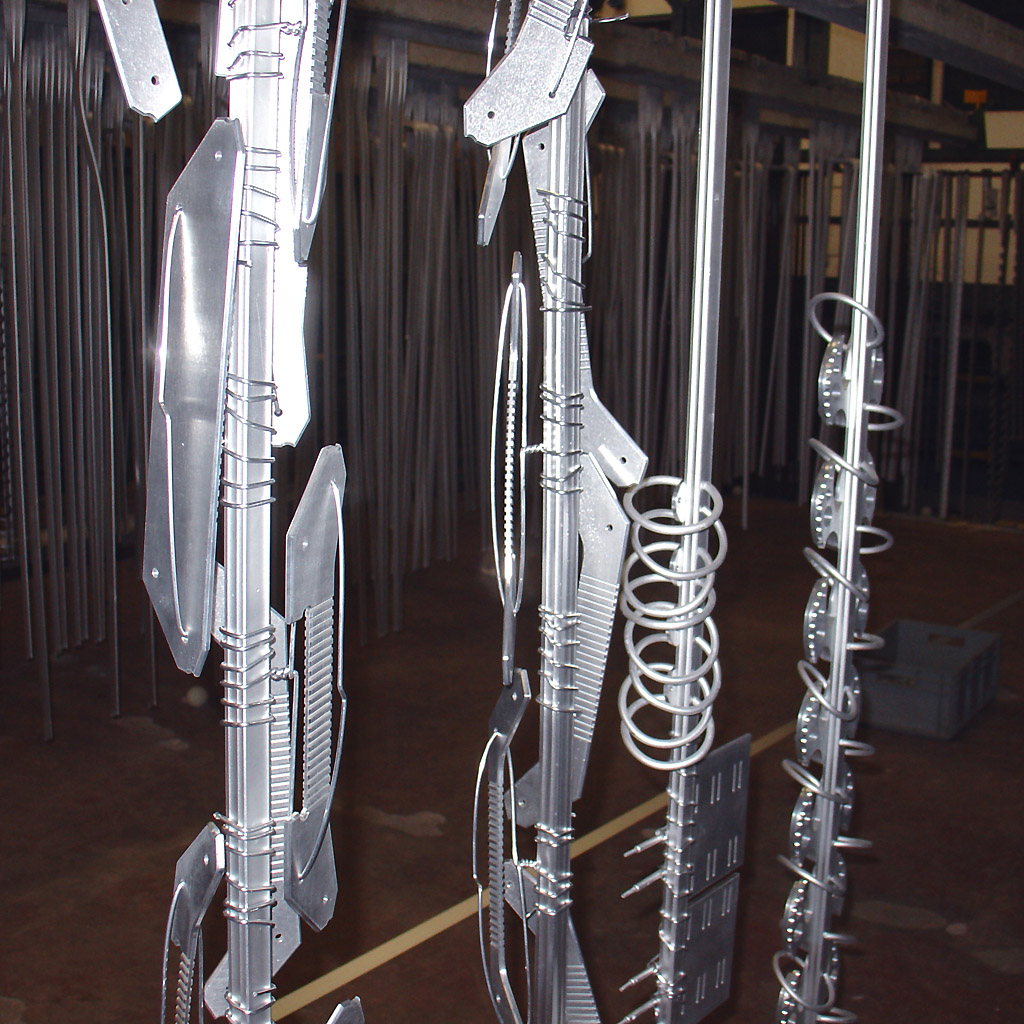

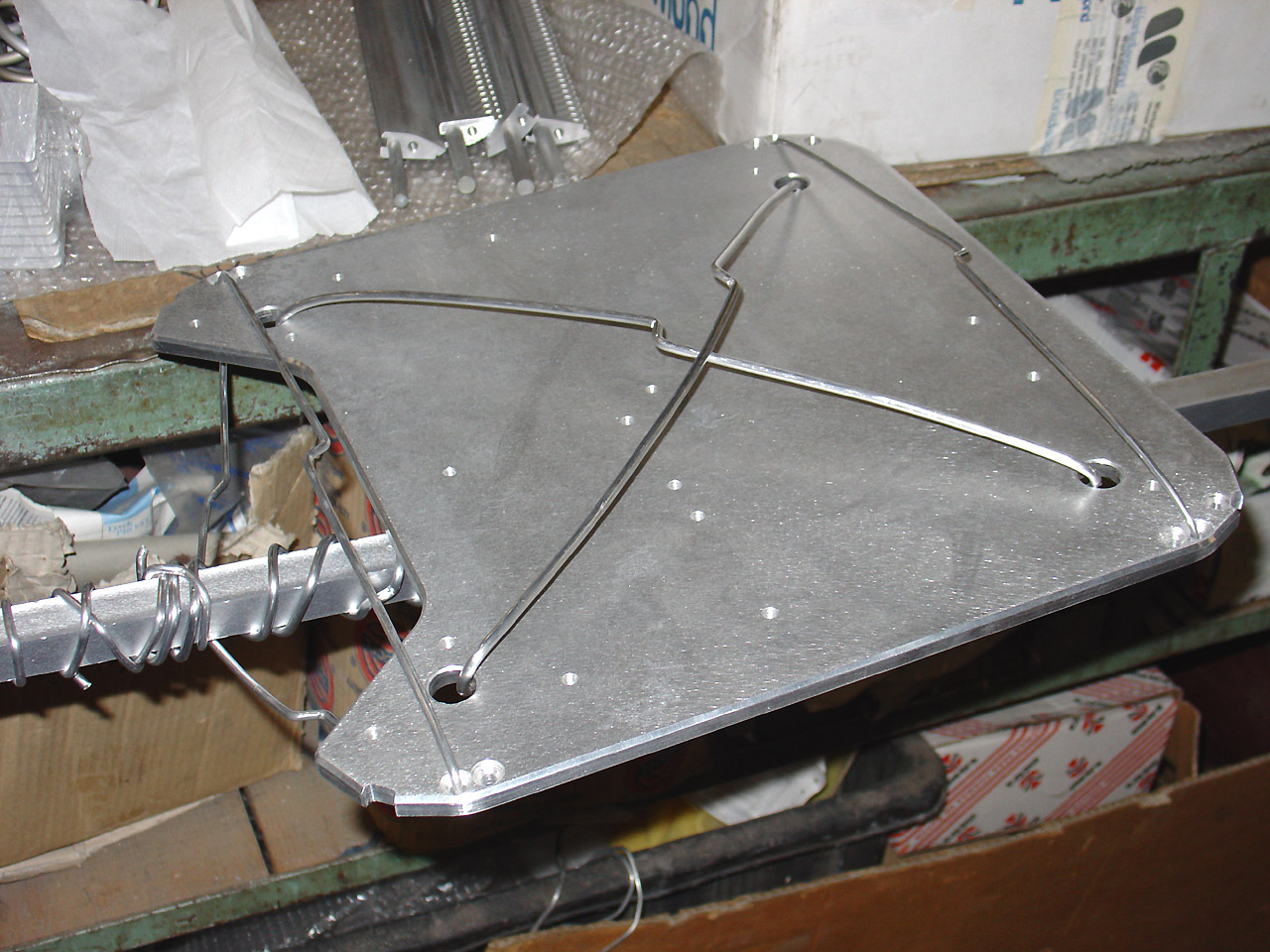

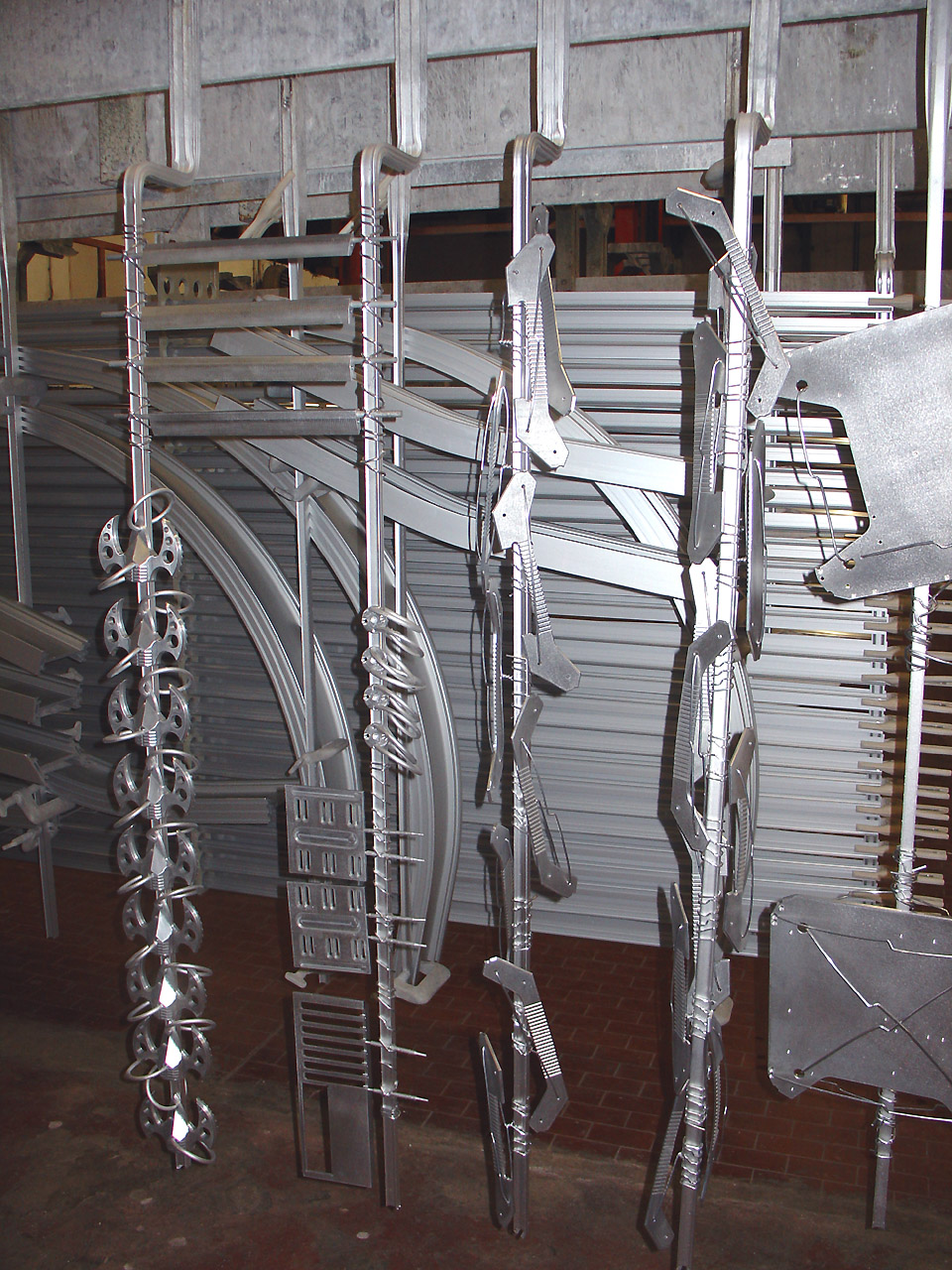

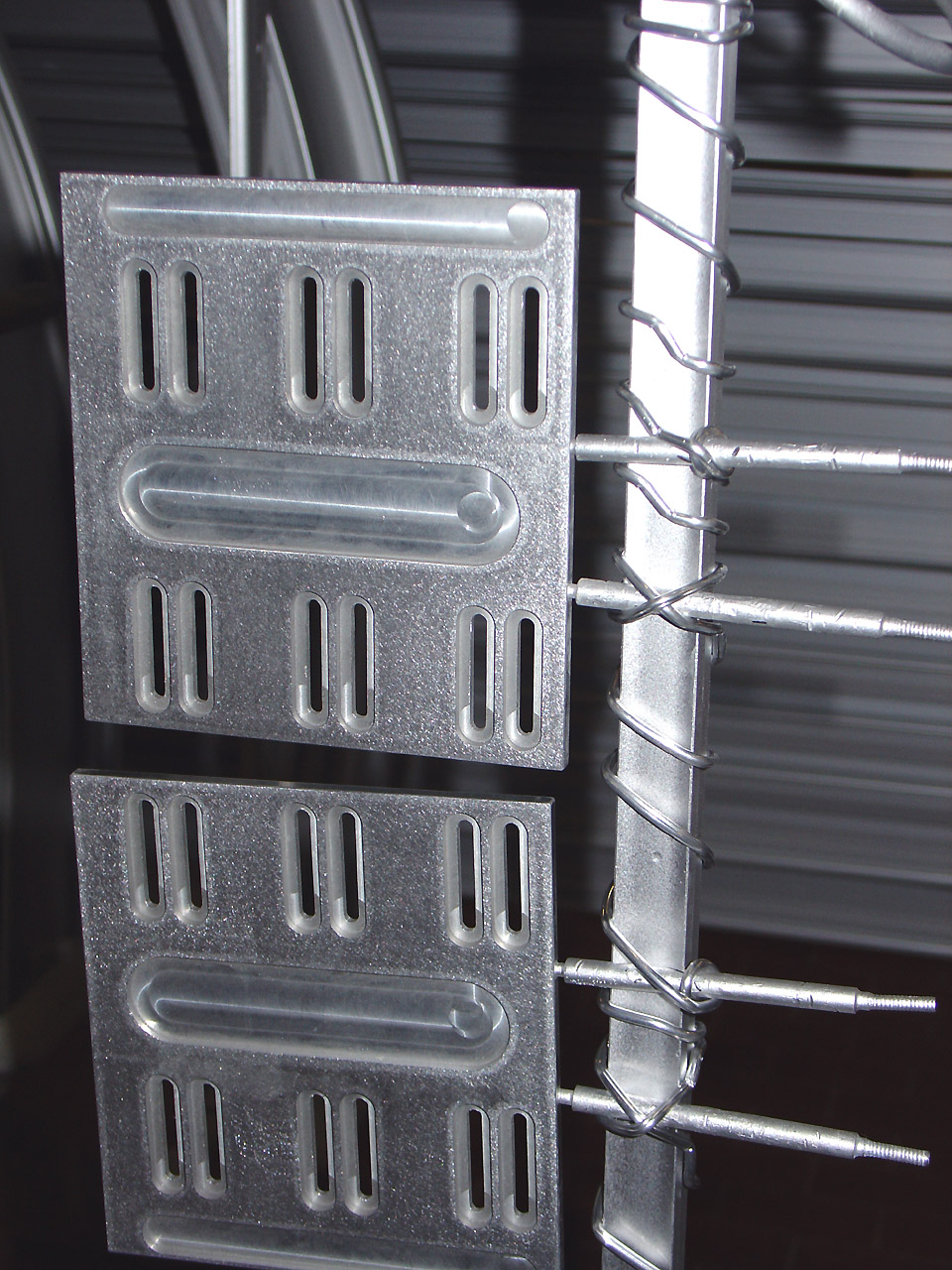

The preparing phase of the anodization process is very complex. The friend "ciano" (look the bottom images) has fixed all pieces with the pure aluminium wire. Two hours for this phase.

Some images of the preparing phases.

Z O O M !

Z O O M !

See you soon with the images of the assembled anodized pieces.

Bye bye

Liquid · 25th Jan 2006, 14:19

we need more piscture...

amazing

AlexB · 25th Jan 2006, 15:44

Yes, we do!

Looks cool. you can really see the scale when its next to people!

G69T · 26th Jan 2006, 10:23

Thanks

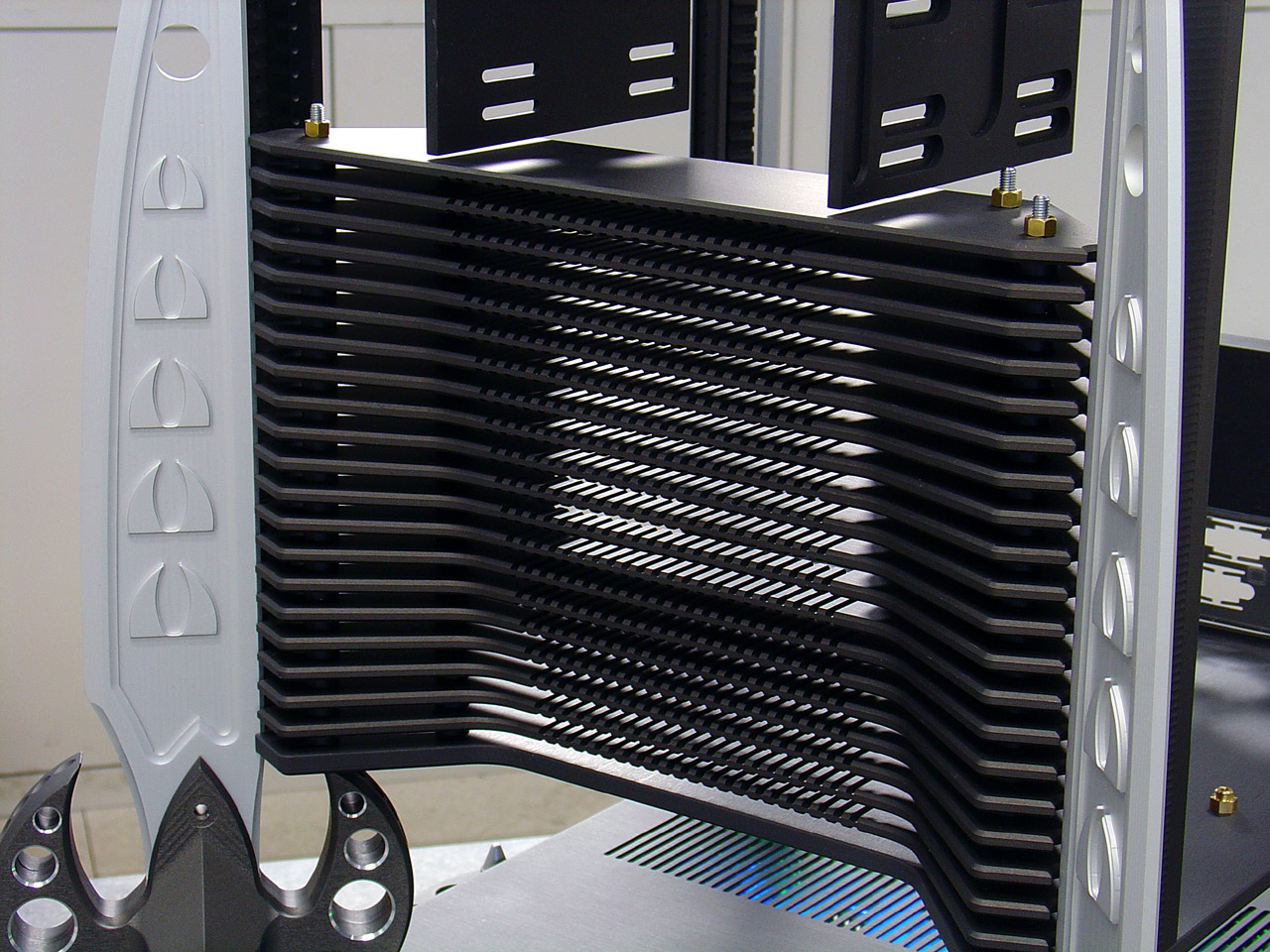

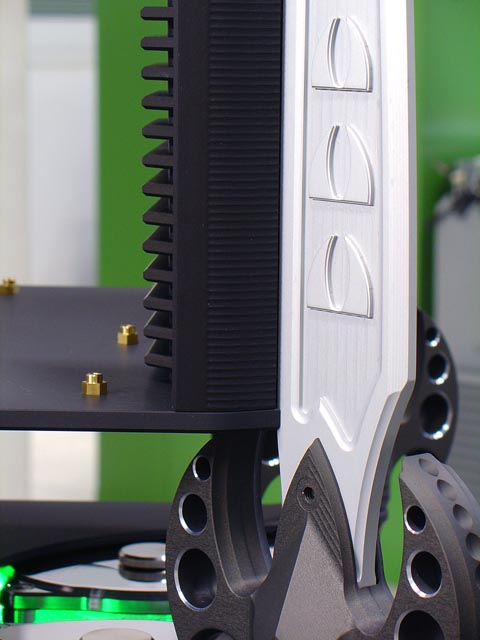

The images of the anodized pieces, black color for the structure components and silver color for the swords. I have used a different time for the guards oxidation obtaining a different black color, carbon effect??

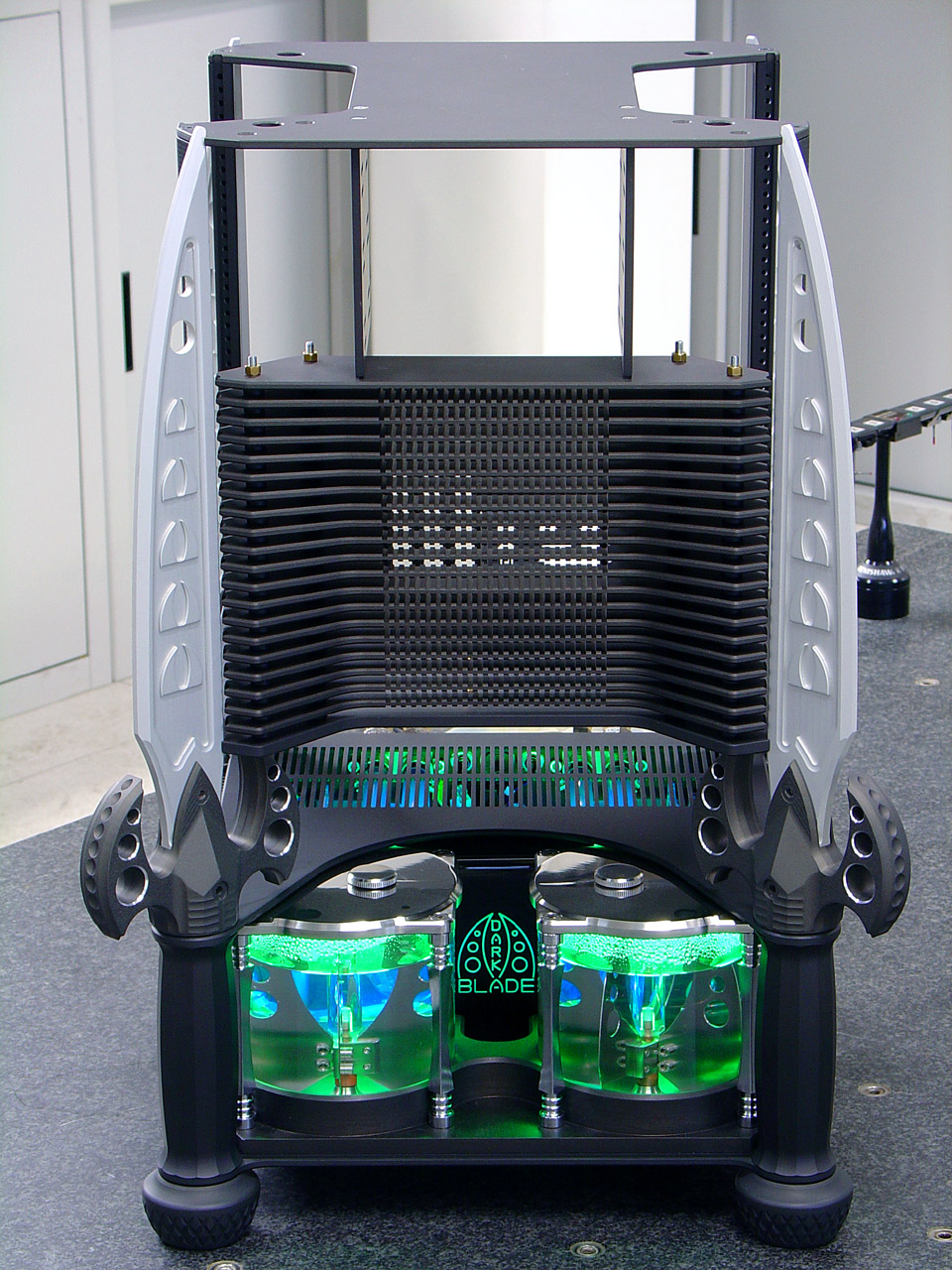

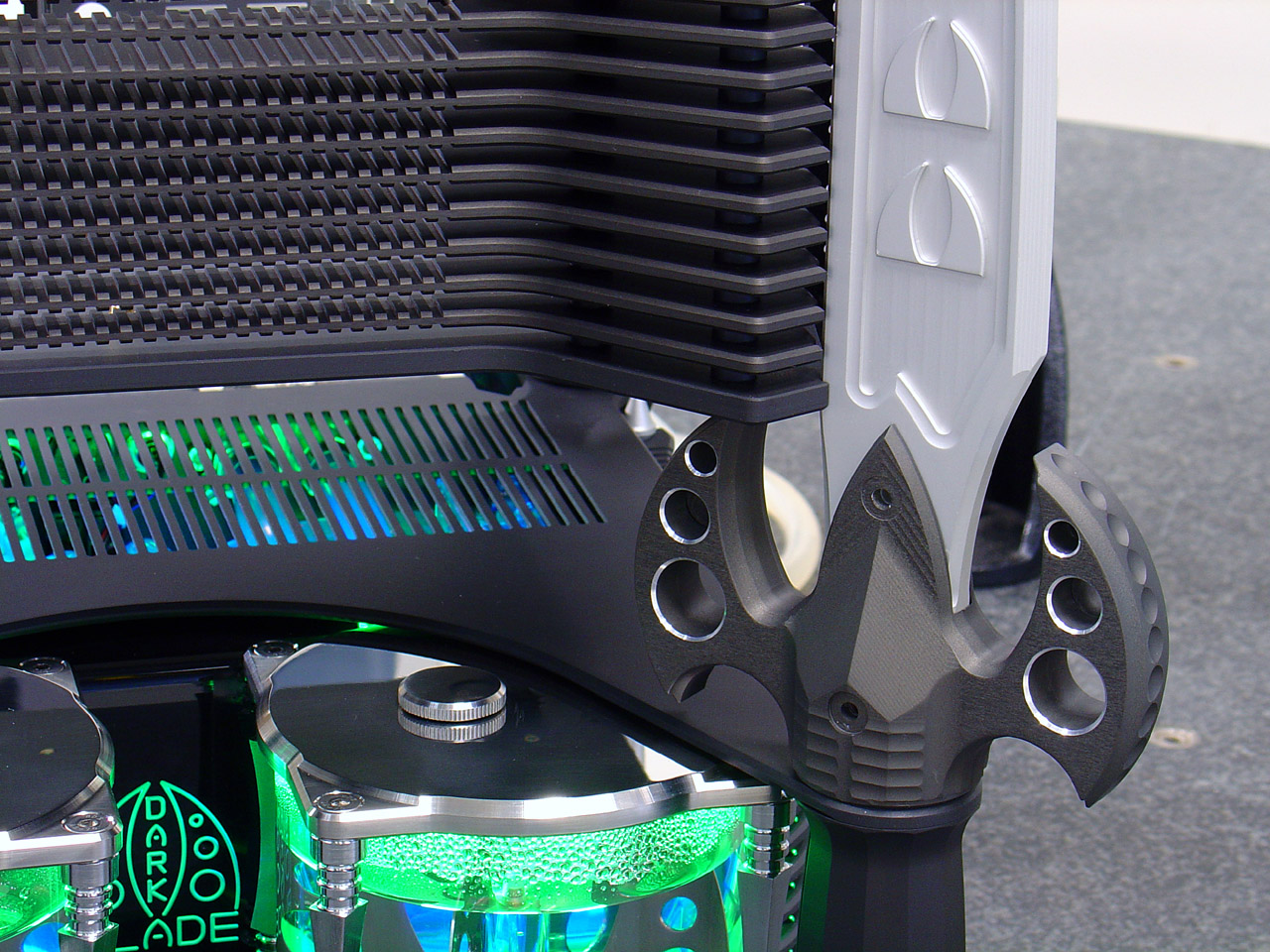

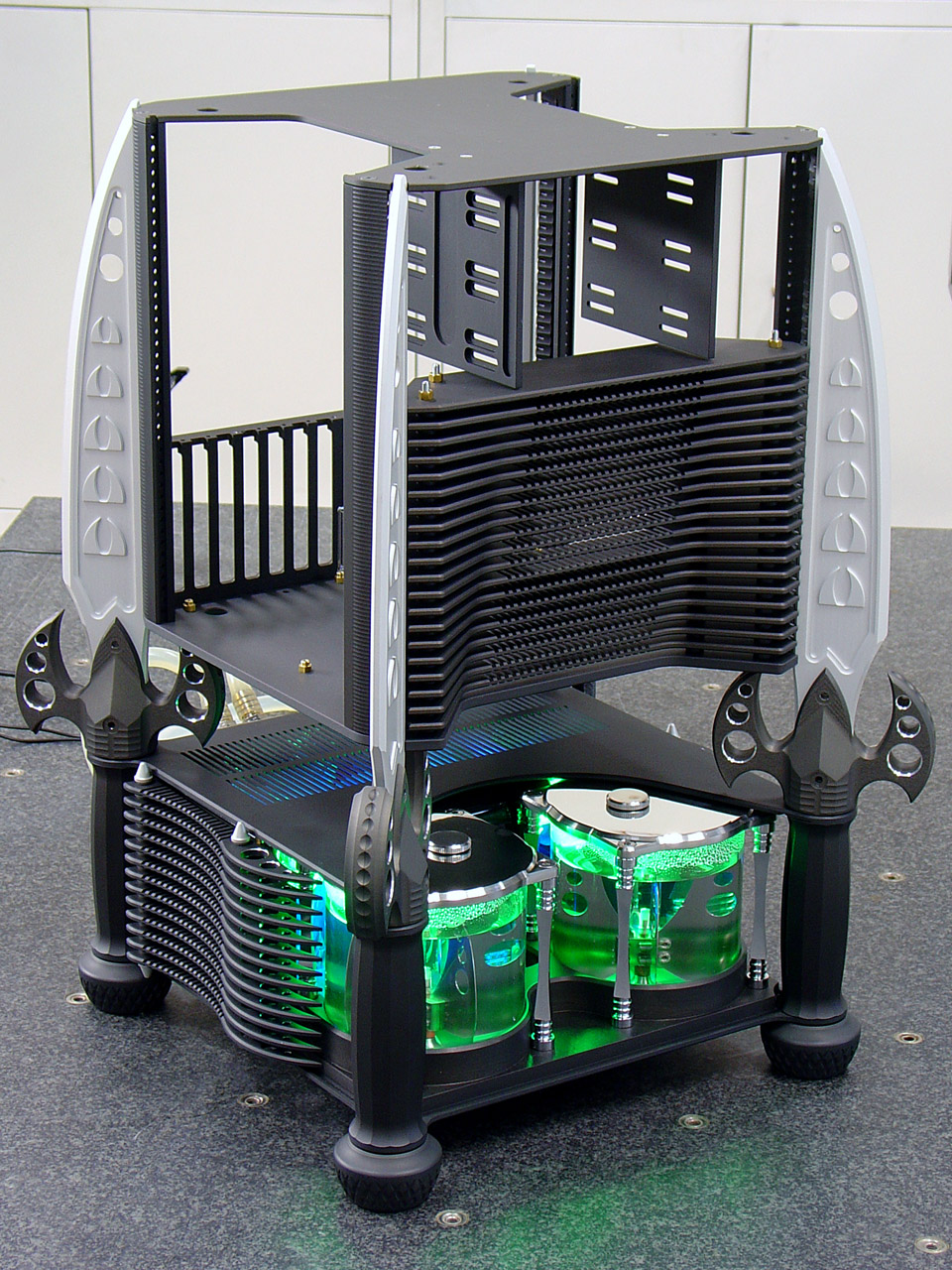

These are the images of the anodized and assembled pieces.

Z O O M !

Z O O M !

What is your opinion about that?

Bye bye

yatesy · 26th Jan 2006, 10:25

Words just dont describe this project!!!!

Yatesy
