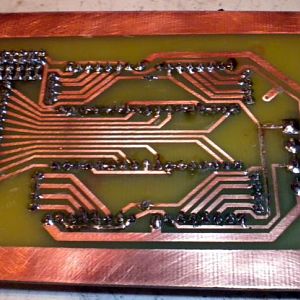

Not the best soldering job, but not bad considering it was done with a junk iron.
Sea Shadow

Sea Shadow

Prometheus

Not the best soldering job, but not bad considering it was done with a junk iron.

0
54
0
27 Sep 2010

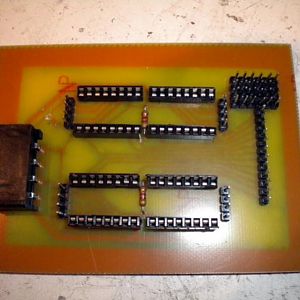

The sockets make it easy to replace the drivers, should I ever manage to burn one out or need to replace it.
Sea Shadow

Sea Shadow

Prometheus

The sockets make it easy to replace the drivers, should I ever manage to burn one out or need to replace it.

0
58
0
27 Sep 2010
4 pin Molex connector
Sea Shadow

Sea Shadow

Prometheus

4 pin Molex connector

0
67
0
27 Sep 2010

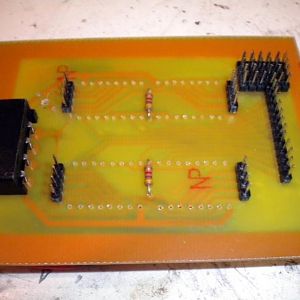

4 pin Molex connector for power (12v for the motors, and 5v for the IC logic.
Sea Shadow

Sea Shadow

Prometheus

4 pin Molex connector for power (12v for the motors, and 5v for the IC logic.

0
53
0
27 Sep 2010

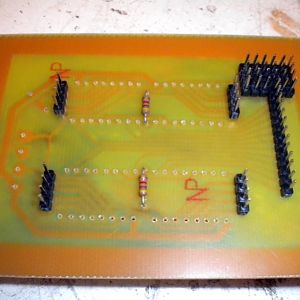

The strip of pins down the right side are the enable/step/direction control lines for each driver chip.
Sea Shadow

Sea Shadow

Prometheus

The strip of pins down the right side are the enable/step/direction control lines for each driver chip.

0
57
0
27 Sep 2010
The header in the top right is for the minimum and maximum endstops for the axes.
Sea Shadow

Sea Shadow

Prometheus

The header in the top right is for the minimum and maximum endstops for the axes.

0
56
0
27 Sep 2010
These headers are for the motor drive lines.
Sea Shadow

Sea Shadow

Prometheus

These headers are for the motor drive lines.

0
61
0
27 Sep 2010

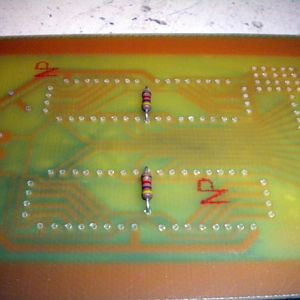

These are pull up resistors to define the stepping configuration of the driver chips (in this case 1/16th micro-stepping).
Sea Shadow

Sea Shadow

Prometheus

These are pull up resistors to define the stepping configuration of the driver chips (in this case 1/16th micro-stepping).

0
51
0
27 Sep 2010

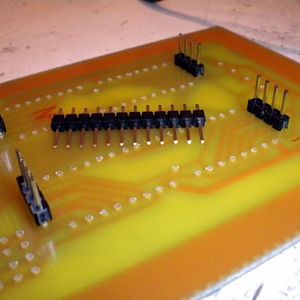

I almost started with the tall parts on the board, whoops.
Sea Shadow

Sea Shadow

Prometheus

I almost started with the tall parts on the board, whoops.

0
62
0
27 Sep 2010
