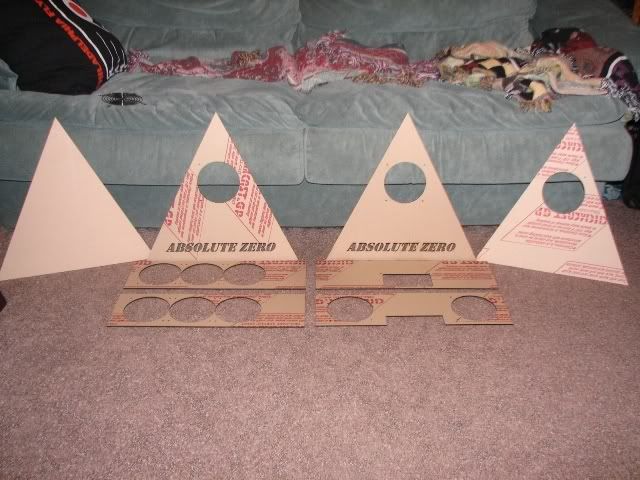

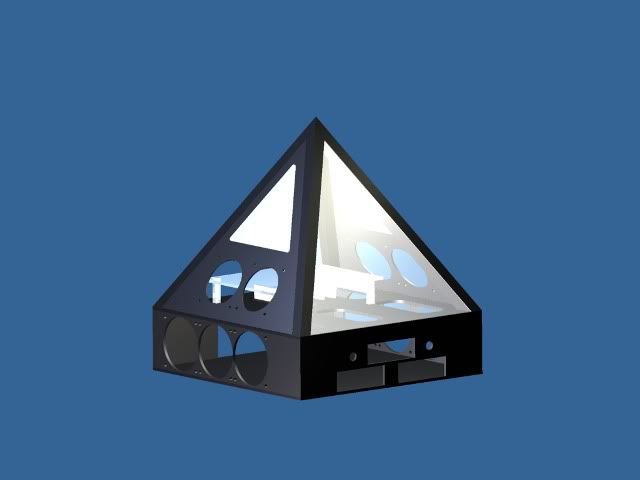

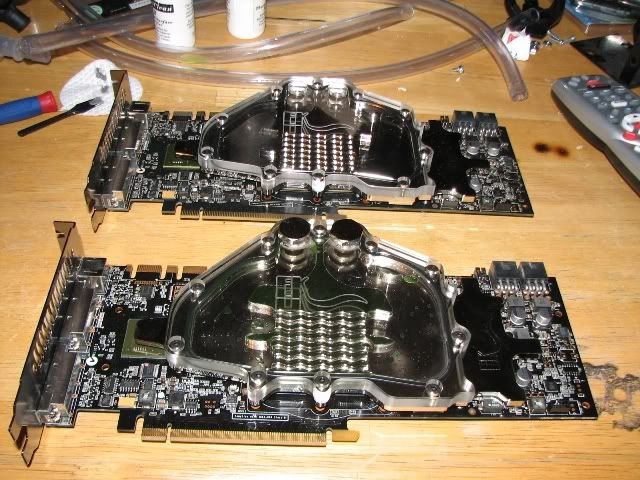

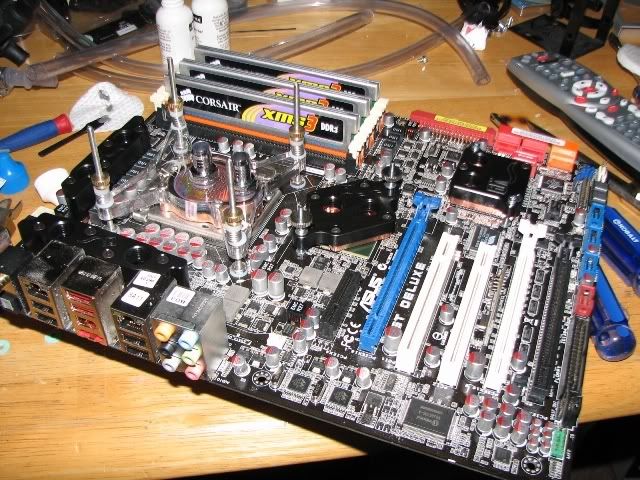

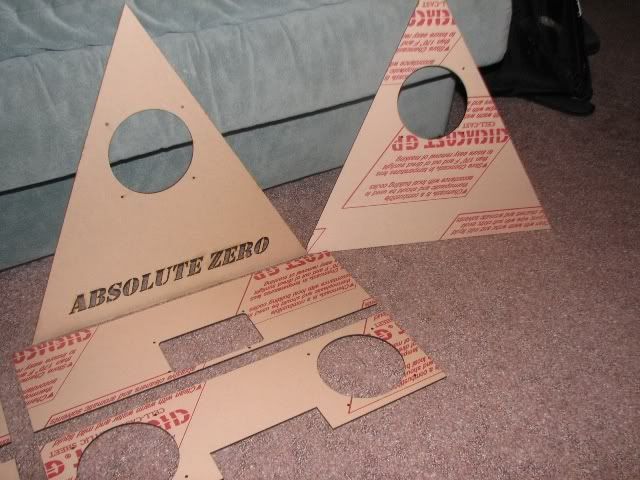

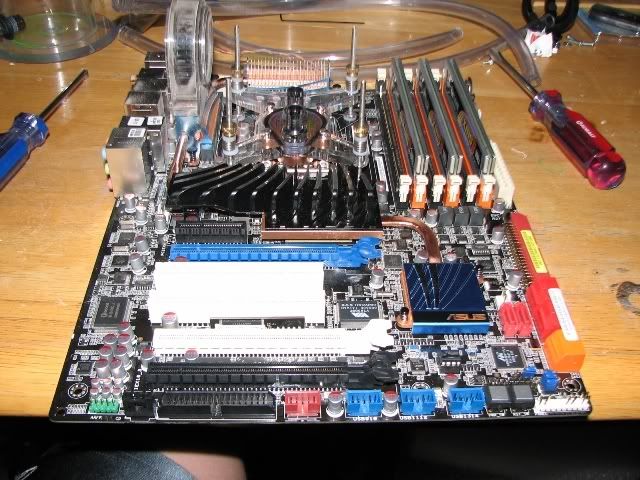

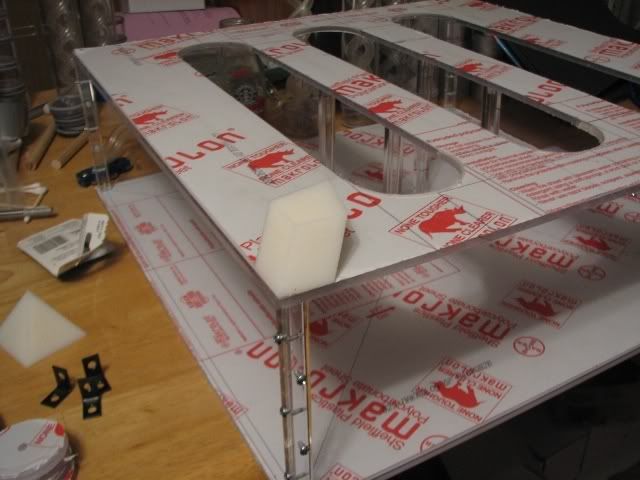

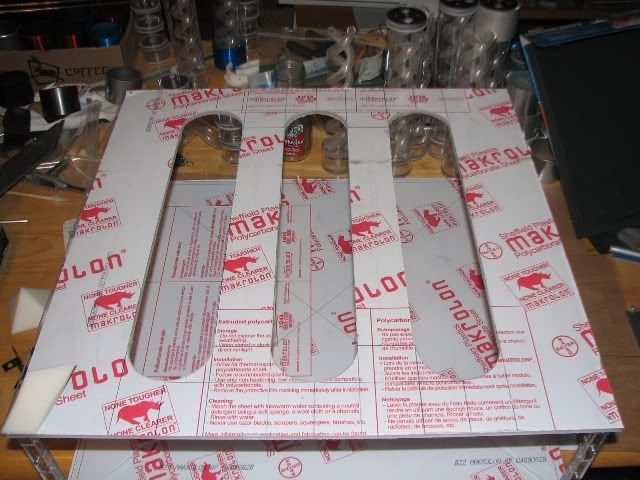

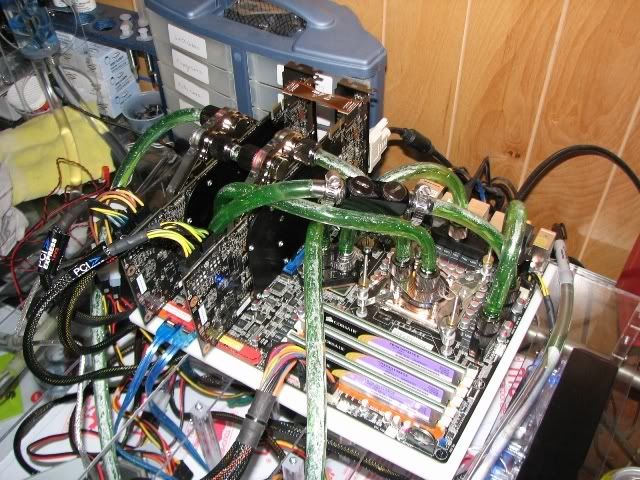

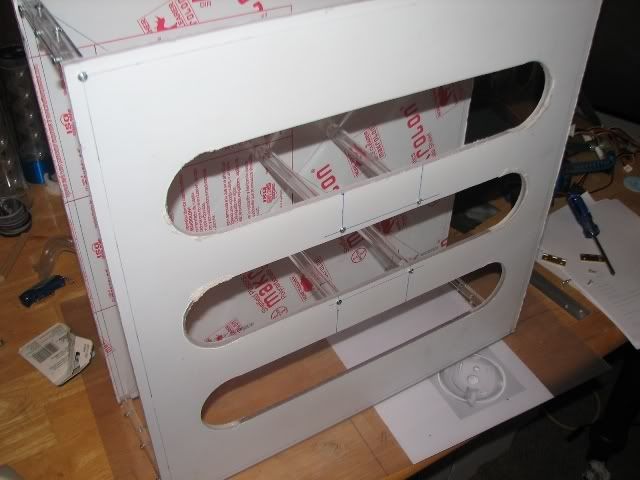

I have decided to scratch my original idea for a scratch build case since I have come up with something far better. I was really interested in doing a pyramid style computer. This was going to be my entry for the case mod competition, but I never got close to finishing it. Parts for Build: ASUS P6T x58 Motherboard Intel Core i7 920 6GB Corsair Dominator GT 2 EVGA GTX260 Core216's SLI G.Skill 64GB SSD 2x Thermochill PA120.3 Rads 2x FrozenQ Liquid Fusion (New name for inverse T-Virus) Reservoirs 1x Danger Den MC-TDX 2x EK GTX280 Full Coverage Waterblocks All the EK waterblocks for the ASUS P6T Motherboard Here is the initial rendering of the case. The system will house dual water cooling loops, cooling two gtx260's, a Core i7 920, and the components of a P6T mobo. The bottom two rectangular holes are for CD drives while the one above them is going to be for a fan controller. The two small holes to the left and right of that will be the power and reset switches. Most like going to be illuminated vandal switches. Everything else is pretty much self explanatory. Metal frame, a ton of black mirrored acrylic and some clear polycarbonate. A few of my reservoirs will show up in this as well. Added: I have a new sponsor for the Absolute Zero build. Lamptron will be providing me with a plethora of accessories to make this build truly stand out. Please check out their website by clicking the image below. The base with the four corner support columns attached. A support column that will help secure the black mirrored acrylic side panels. The base, columns, and mid-shelf, which still needs cut out. Some angle braces that are all painted up to mount the HDD/CD drive rails Cut the three slots for cables and tubes and such to go to the bottom. Tomorrow I am going to round them off with the table router. Just finished putting the center columns in. This frame is ridiculously strong and rigid, while still relatively light. It can be held straight out while grabbing onto one the side support columns, and not even flex. Got my EK blocks finally, and I must say these are amazing. Brilliant brilliant quality. MCP655... MCP655 w/ EK Top Two GTX260 Core 216s with nickel plated full coverage EK blocks ASUS P6T Deluxe ASUS P6T Deluxe w/ EK waterblocks Fail cable and tube management, just simply to try and see how things are fitting together. I've never been so excited to see FedEx at my door. The panels for the case are finally here. I must say Danger Den did a FANTASTIC job laser cutting these. Everything is perfect, and it was packaged even better so nothing arrived damaged. All the case panels laid out. The one on the left is the clear front window. The one on the right is a side. The two in the front are my bottom sides for the radiators. The one on the left is a side and the one on the right is the back panel. The two in the front are the bottom front, and bottom back.
While I'm fascinated with mATX and HTPC builds, I prefer the Full ATX scratch builds. Looking good and a nice concept.
Looks like a sweet build mate Can you do me a fav and let me know the model numbers of the north/south bridge and mosfet water blocks? Cheers
