Scratch Build – In Progress Arc3D

Discussion in 'Project Logs' started by Drysofar, 18 Nov 2014.

  1. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Hi guys, been awhile since I built my last PC and it's getting a little tired. The new one has been in planning stage for aaages, but finally started building so thought I would post some pics.

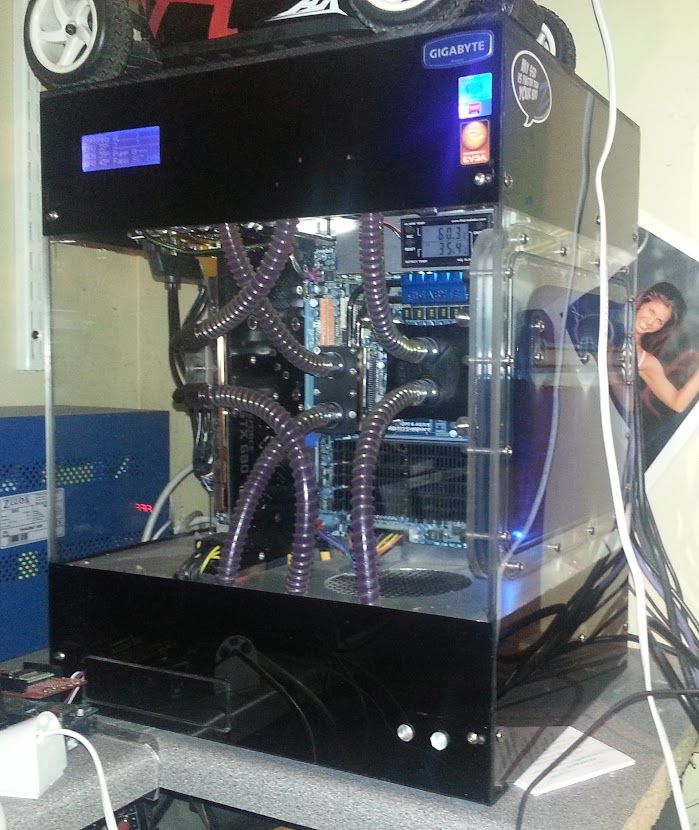

    My last build was all scratch built, acrylic and aluminium blocks.

    [​IMG]

    This time I am going for something a little rounder. And use my 3D printer to best effect.

    [​IMG]
    [​IMG]
    [​IMG]

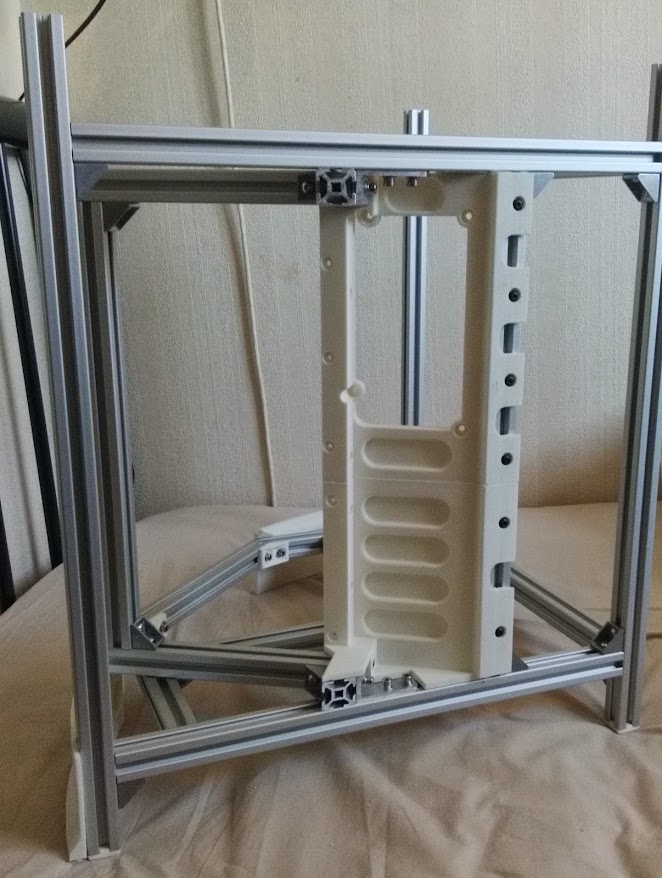

    The white parts are all printed, the black is 5mm acrylic and it sits on a 20mm aluminium extrusion frame.

    And to prove it's not just vapour ware.

    [​IMG]

    Frame and fixings from KJN really good cuts and they did not charge for them like a lot of places.

    [​IMG]

    brackets from angle aluminium.

    [​IMG]
    [​IMG]

    And some printed in polymakr extra strong PLA.

    [​IMG]

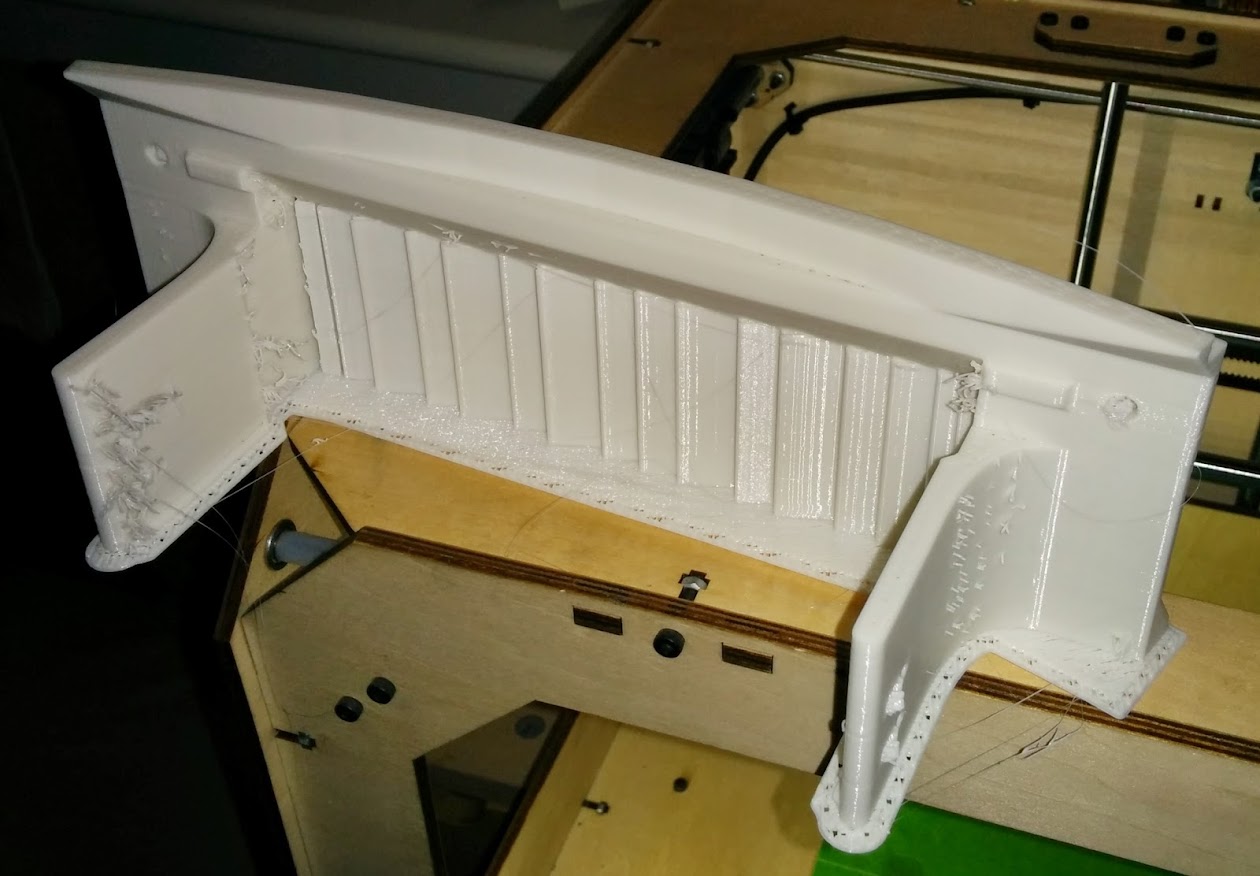

    First two parts of bodywork printed and test fit to frame. they still need some tidying up.

    [​IMG]

    Lower internal cover print just starting. took nearly 8 hours.

    Hopefully I have sized all the bits to print out on my Replicator Dual clone machine, about 250mm x 150mm x 150mm.

    [​IMG]

    Here is the PSU bracket. It just fitted on the print bed

    [​IMG]

    and the lower half, pre clean-up and still on its raft.

    Now I in no way promise to update on a regular basis as I am pretty much just building at the weekends and I am bad at remembering to take lots of pics but if anyone is interested I will do my best.

  2. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,714
    Likes Received:
    228
    Ooooh, corner PC, looks good. :)

  3. Bartacus

    Bartacus Minimodder

    Joined:
    30 Oct 2014
    Posts:
    606
    Likes Received:
    13
    Sweet, I love seeing 3D printed stuff! IN!

  4. storm-83

    storm-83 Minimodder

    Joined:
    7 Nov 2014
    Posts:
    452
    Likes Received:
    14
    this looks like fun, count me in!

  5. siliconfanatic

    siliconfanatic Johny-come-Lately

    Joined:
    10 Sep 2012
    Posts:
    2,317
    Likes Received:
    344
    Well this is new!
    New is good.
    I'm in!

  6. Hukkel

    Hukkel James' minion

    Joined:
    20 Dec 2012
    Posts:
    1,284
    Likes Received:
    26
    Looks great! Too bad not custom reservoir, that would really finish this design :) And apparently you can do it!

  7. Nexxo

    Nexxo * Prefab Sprout – The King of Rock 'n' Roll

    Joined:
    23 Oct 2001
    Posts:
    34,731
    Likes Received:
    2,210
    SWEEEEEEEEEEEEET!!! :eeek:

  8. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Yes I must admit I chickened out on the reservoir. But I already have the XSPC Photon Tube sat in its box. My early early plans did have a custom reservoir on the right side of the arc where the covers are but in a bid to actually get something built I settled for a combo res/pump.

    [​IMG]

    And I also have my Radiator also an XSPC model.

    [​IMG]

    And that is my trusty printer it's sitting on.

  9. Bartacus

    Bartacus Minimodder

    Joined:
    30 Oct 2014
    Posts:
    606
    Likes Received:
    13
    Can you 3D print a replacement collar for that D5 pump? :D XSPC should pair those Photons up with a nicer pump collar.

  10. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Iffy print

    Little update.

    Picture of the two parts of the PSU support backplate fitted.

    [​IMG]

    I printed a middle section, just under 7 hours, this isn't a fast process by any means, but something happened round the mounting holes, I think it retracted to change between main body and supports and had difficulty getting the plastic flowing again. Trying another print now with a slight re-design and some changed settings in the slicer.

    [​IMG]
    [​IMG]

    The old drive is just for sizing :D

  11. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Aaannnnndd 6 hours 48 minutes later mk 2. much better.

    [​IMG]

    Just needs a good tidy up.

    [​IMG]

    laters.

  12. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,410
    Likes Received:
    1,967
    Looks promising. Some kind of hand-operated version of the print head would be nice for screw-ups or fusing individual parts together. -Kinda like a hot glue gun.

  13. siliconfanatic

    siliconfanatic Johny-come-Lately

    Joined:
    10 Sep 2012
    Posts:
    2,317
    Likes Received:
    344
    Like a manual drill press that spits plastic somewhere OTHER than in your face? :lol:

  14. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Closest would probably be the 3Doodler

    http://the3doodler.com/

    The other option would be to use car repair paste like Bondo and paint it afterwards. There is also an epoxy paint just come on the market that goes on and fills all the small grooves setting flat and smooth. Only available in the US I think atm though.

  15. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    Ok noobie question, more a general question, how do you edit the title? I have tried all the buttons and nothing seems to let me change the very top line. ie Arc3D. I see updates appearing in other posts but for the life of me I cant find it.

  16. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    some updates

    Here are some update pictures. I managed to kill my printer so that's put a cramp in things. A new one ordered (ummm new toys), so hopefully will pick up again soon. been slowly getting the perspex parts into shape.

    Power supply test fit. not the final supply.
    [​IMG]

    Backplane
    [​IMG]
    [​IMG]

    thank goodness for the power fret saw.
    [​IMG]

    Pretty much decided to get a Rampage V. So I need that and my water fittings before I can get much more done. Need to get all the spacings right.

  17. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,410
    Likes Received:
    1,967
    Looking good. I like how the I/O doubles as a corner bracket.

  18. Drysofar

    Drysofar What's a Dremel?

    Joined:
    5 Nov 2006
    Posts:
    66
    Likes Received:
    0
    New Pictures

    Hi Guys my updating skill is lousy, I have been slowly completing my project. There have been some changes and re-doos, I have moved across to Autodesk Fusion 360 instead of Sketchup for designing, a much better output when printed, especially on curved parts. I have water in and am just waiting on some more bits before powering up for the first time.

    I thought I would just drop some pictures to show where I am at.

    No particular order.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    All for now, I will try to update more often.

    Last edited: 7 Sep 2015
  19. Vetalar

    Vetalar *learning english*

    Joined:
    21 Jun 2011
    Posts:
    577
    Likes Received:
    9
    no pics on last update

  20. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,410
    Likes Received:
    1,967
    Yeah, Just some mile-long google links that wanted me to log in. :(
