Storage Are these figures right for a Samsung F3

Discussion in 'Hardware' started by CrapBag, 5 Jan 2010.

  1. CrapBag

    CrapBag Multimodder

    Joined:
    17 Jul 2008
    Posts:
    7,986
    Likes Received:
    509
    I have recently fitted my F3 1TB and installed Win 7.

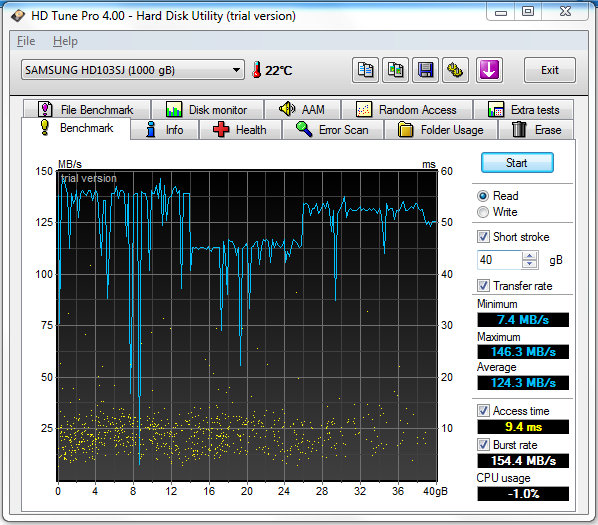

    I have ran HDtune (several versions) and the scores seem rather erratic, can anyone tell me if they look okay. They seem all over the place to me.

    I have set the bios to AHCI and I have installed the chipset drivers.

    Thanks

    [​IMG]

    CrapBag, 5 Jan 2010
    #1
  2. Cupboard

    Cupboard I'm not a modder.

    Joined:
    30 Jan 2007
    Posts:
    2,148
    Likes Received:
    30
    lolol -1.0% CPU usage!
    I can't be much help but I do agree they look odd. Speeds are usually different towards the edges of the disk (as for the same RPM they need to move faster than the inner parts) but you have only shown the first 40GB.

    Cupboard, 5 Jan 2010
    #2
  3. CrapBag

    CrapBag Multimodder

    Joined:
    17 Jul 2008
    Posts:
    7,986
    Likes Received:
    509
    Ah those scores were when I chose the short stroke option.

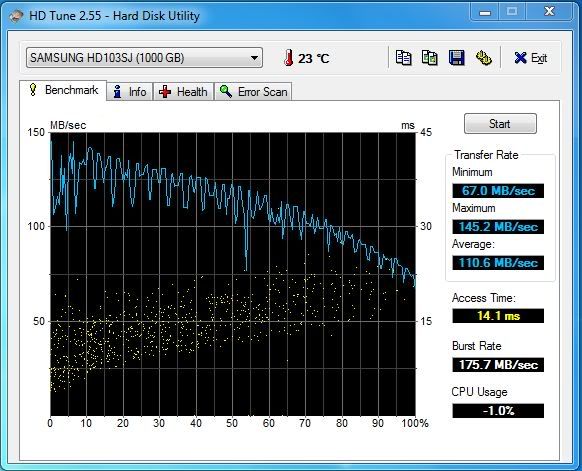

    The graph below was after I defragged and ran the test again.

    [​IMG]

    CrapBag, 5 Jan 2010
    #3
  4. Pookeyhead

    Pookeyhead It's big, and it's clever.

    Joined:
    30 Jan 2004
    Posts:
    10,937
    Likes Received:
    536
    Access time is a bit high... and burst rate very low. Your sustained read speed is healthy however.

    Pookeyhead, 5 Jan 2010
    #4
  5. CrapBag

    CrapBag Multimodder

    Joined:
    17 Jul 2008
    Posts:
    7,986
    Likes Received:
    509
    The burst score that bit tech got was around 220 if I'm right but was that done testing an empty drive as I'm testing with the OS on the drive. Does that make a difference.

    The actual drive seems a little slower than my present F1 which shouldn't be right at all.

    Would it make any difference that I'm running it in AHCI as I read somewhere that it can lower performance slightly.

    CrapBag, 6 Jan 2010
    #5
  6. yakyb

    yakyb i hate the person above me

    Joined:
    10 Oct 2006
    Posts:
    2,064
    Likes Received:
    36
    having your os on the drive will indeed impeed performance of this bench as the os will be doing various reads etc on it whilst the bench is running (i think this may be what your seeing on the fist bench)

    yakyb, 6 Jan 2010
    #6
  7. krazykid035

    krazykid035 Entrepreneur

    Joined:
    13 May 2009
    Posts:
    398
    Likes Received:
    10
    I just ran this today on my F3 drives, both are 1TB and the first one has my OS and files, the 2nd one I didn't use yet as it is going to be my high def video dump hard drive.

    [​IMG]


    [​IMG]

    krazykid035, 6 Jan 2010
    #7
  8. CrapBag

    CrapBag Multimodder

    Joined:
    17 Jul 2008
    Posts:
    7,986
    Likes Received:
    509
    Hmm seems to be behaving the same....interesting.

    CrapBag, 6 Jan 2010
    #8
  9. Jipa

    Jipa Avoiding the "I guess.." since 2004

    Joined:
    5 Feb 2004
    Posts:
    6,364
    Likes Received:
    125
    The numbers are just fine.

    Jipa, 6 Jan 2010
    #9
  10. kenco_uk

    kenco_uk I unsuccessfully then tried again

    Joined:
    28 Nov 2003
    Posts:
    9,696
    Likes Received:
    308
    Are you running AHCI or ide/sata? Chipset drivers up to date?

    kenco_uk, 6 Jan 2010
    #10
  11. CrapBag

    CrapBag Multimodder

    Joined:
    17 Jul 2008
    Posts:
    7,986
    Likes Received:
    509
    I have tried it both ways, AHCI and IDE/sata, at present I have gone back to IDE/Sata but haven't decided which would be better to use.

    I know AHCI allows the use of NCQ(I believe) but I couldn't find anyway to see if it was being used or how to activate it. If someone could clear that issue up for me as well it would be good :)

    CrapBag, 6 Jan 2010
    #11
