Case Mod - In Progress Asus ROG Line mod FINISHED!

Discussion in 'Project Logs' started by jones-965, 3 May 2015.

  1. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    Hi everybody!

    My sponsors:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]




    Today I started my next project, which gave the name ROG line, of course thanks to my sponsor.
    The components used:

    Corsair Air 240 white case.
    Asus Maximus VII Impact
    Intel i7 4790K
    Asus GTX 970 OC Mini
    Corsair Dominator

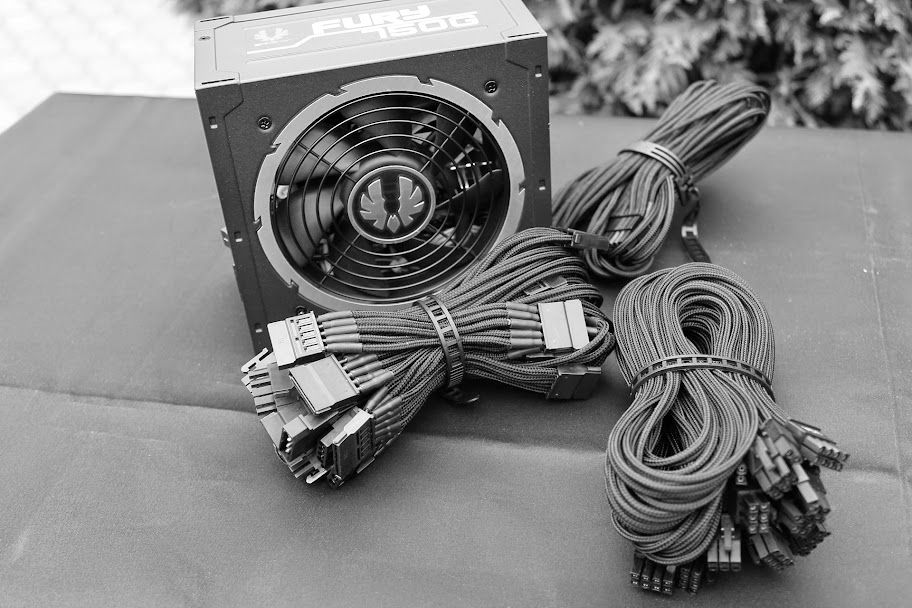

    Bitfenix Fury 750G

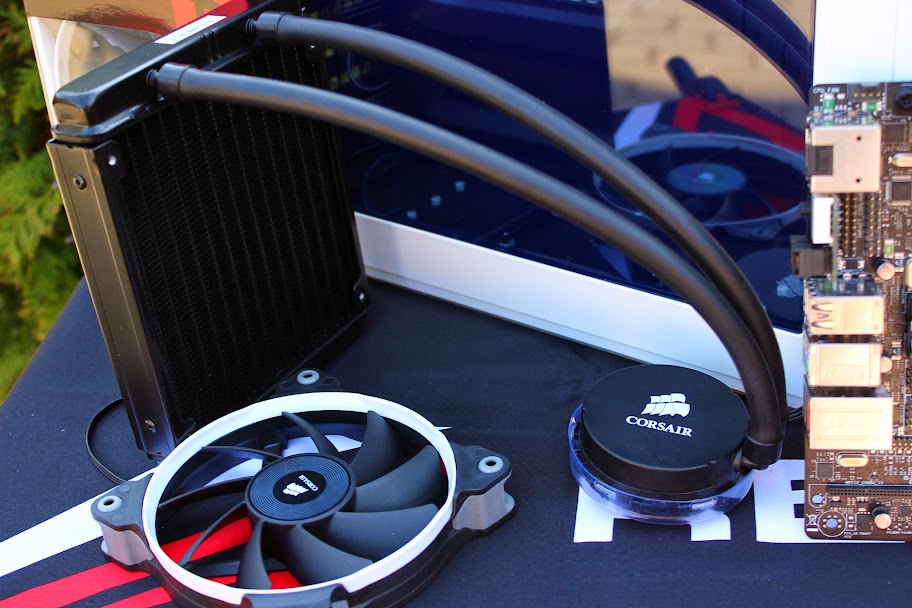

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

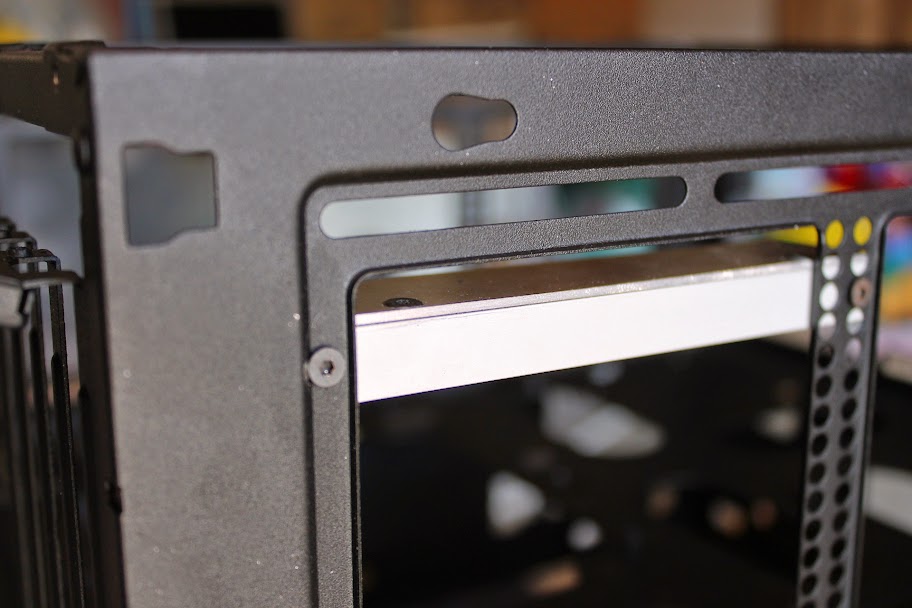

    The first step in the transformation of the front cover.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Installation of the cut-out grille.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

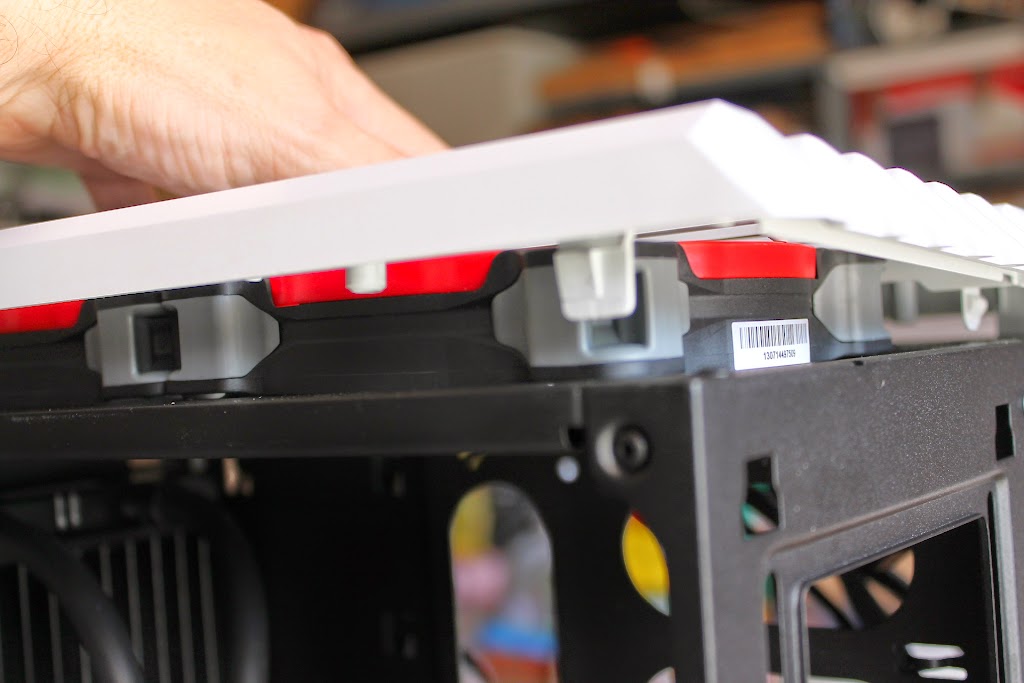

    The top panel modification.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    My idea!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 23 Jun 2015
  2. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

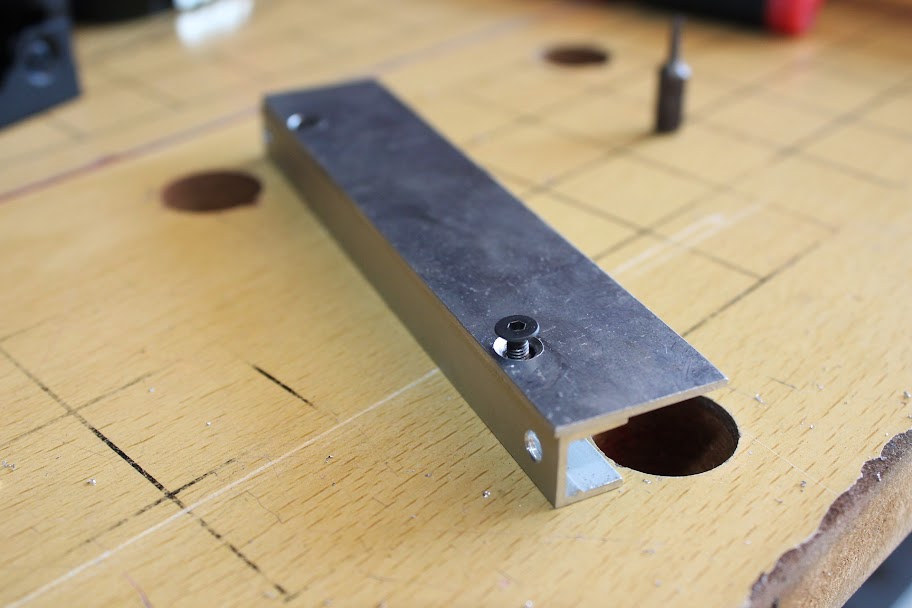

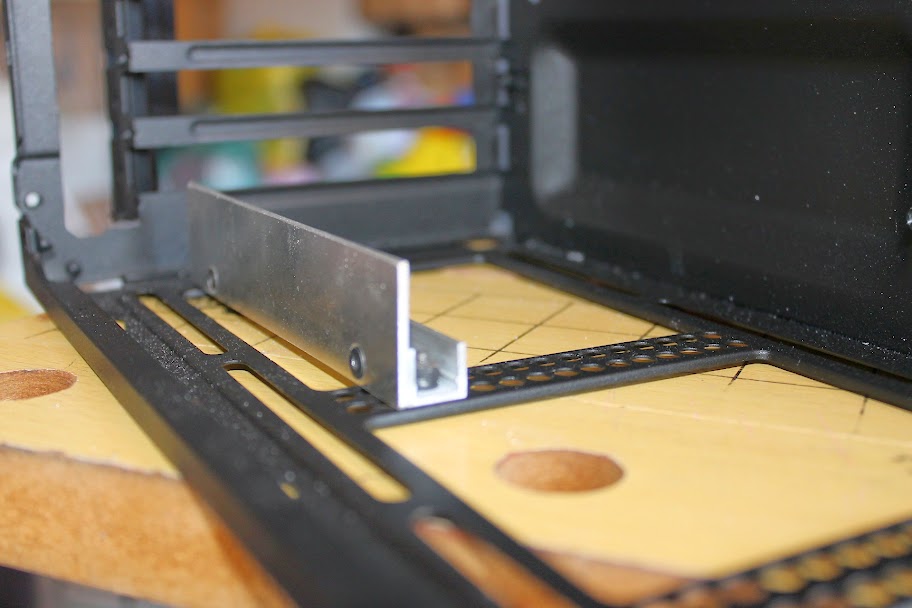

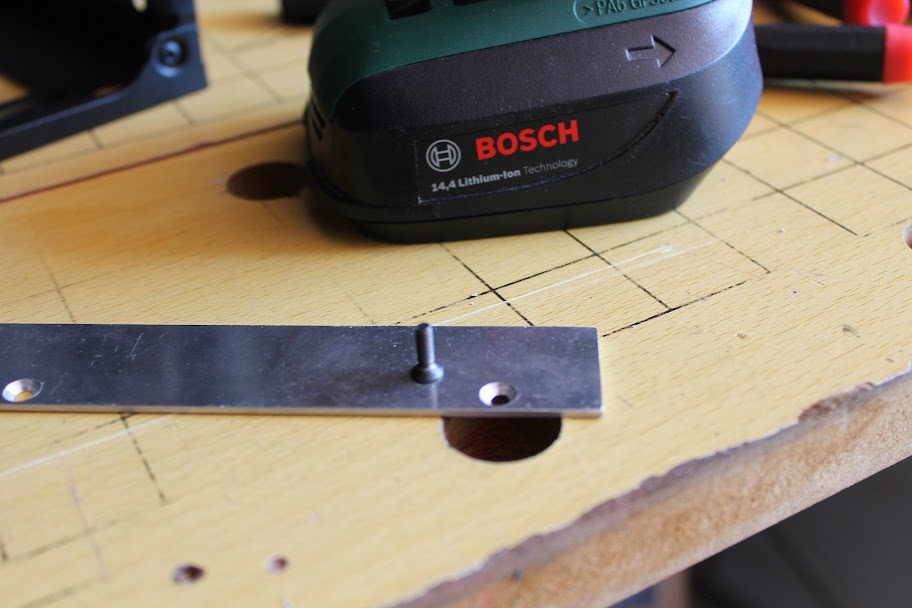

    Today I continued my work with PCI-E video card riser cable connection fixture.

    To do so, 10x10 mm aluminum profile and plate were used.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  3. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

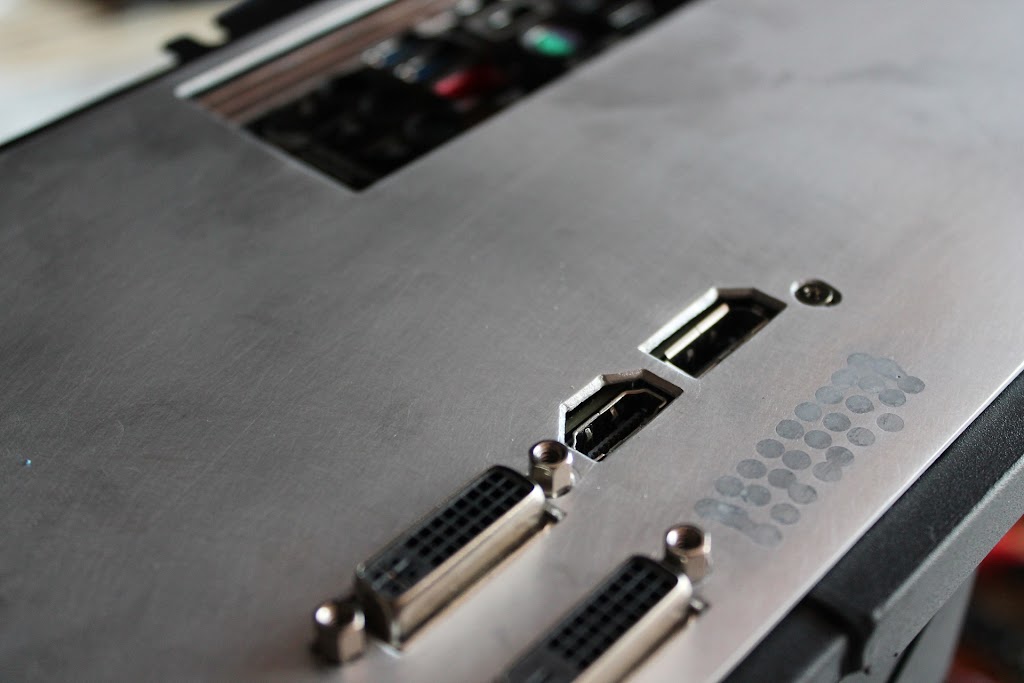

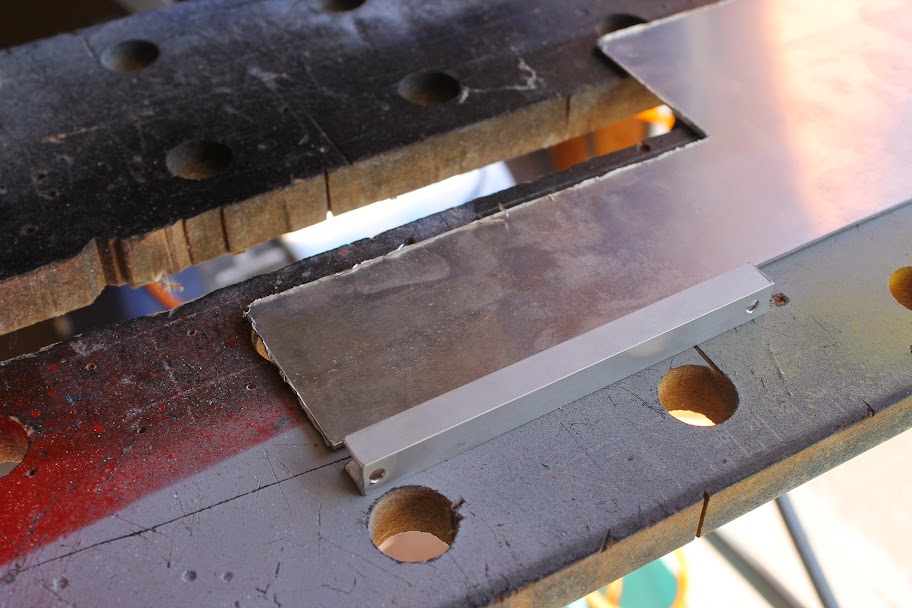

    The new rear I/O panel of aluminium plate.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  4. HandMadeAndroid

    HandMadeAndroid That's handy.

    Joined:
    18 Feb 2005
    Posts:
    741
    Likes Received:
    10
    nice work, like what you've done with the case so far

  5. Noob?

    Noob? What's a Dremel?

    Joined:
    18 Oct 2009
    Posts:
    3,349
    Likes Received:
    159
    Quite like where this is going, can't wait to see the end product! :thumb:

  6. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    Thanks guys! :)

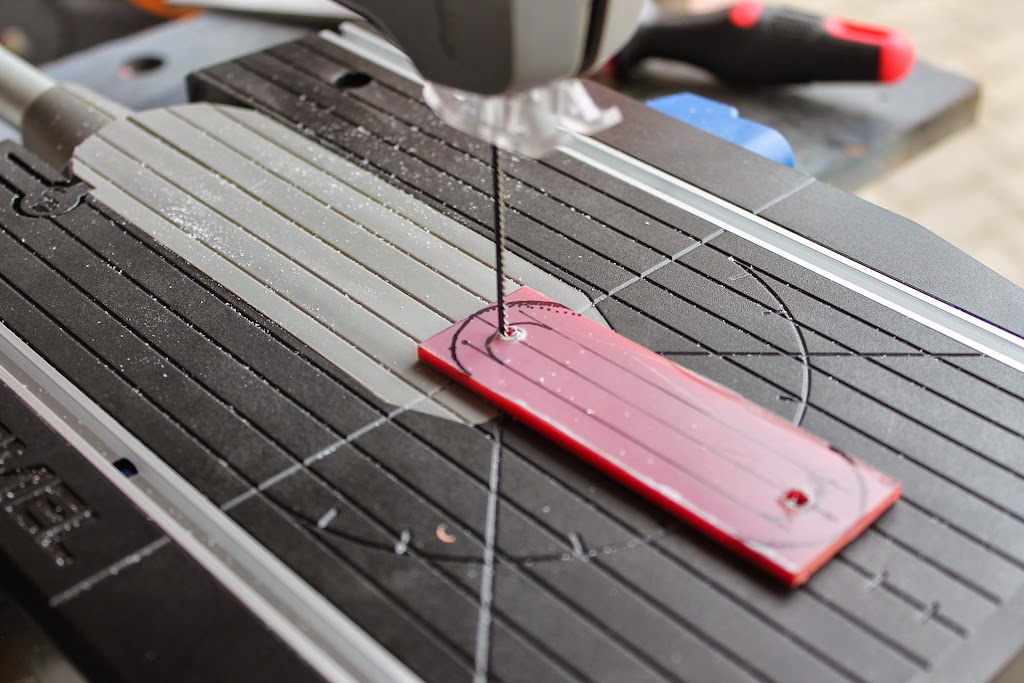

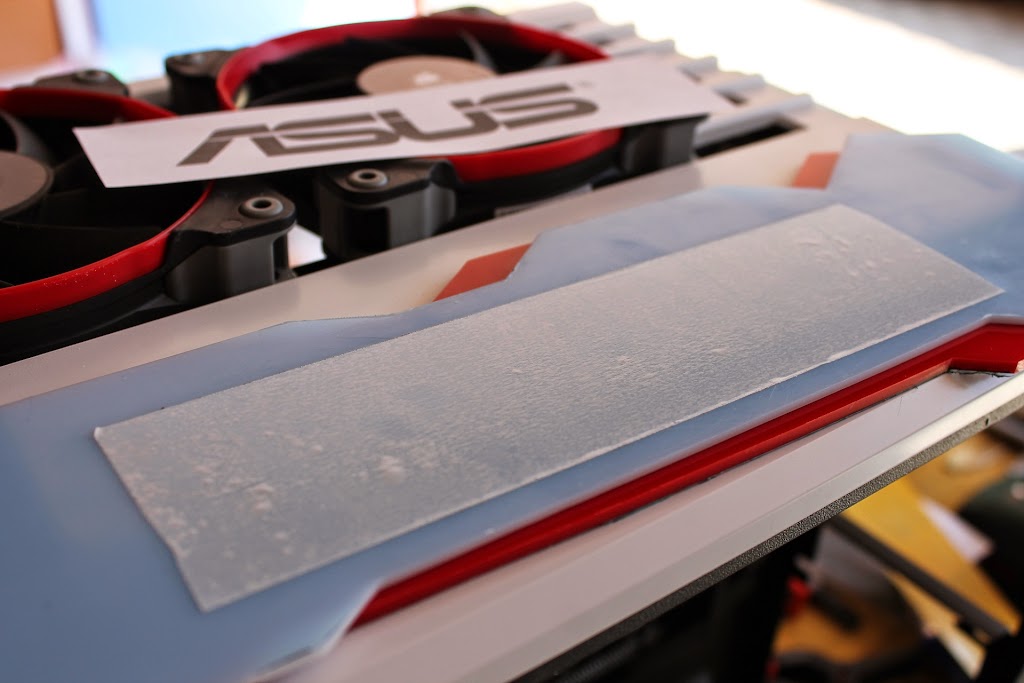

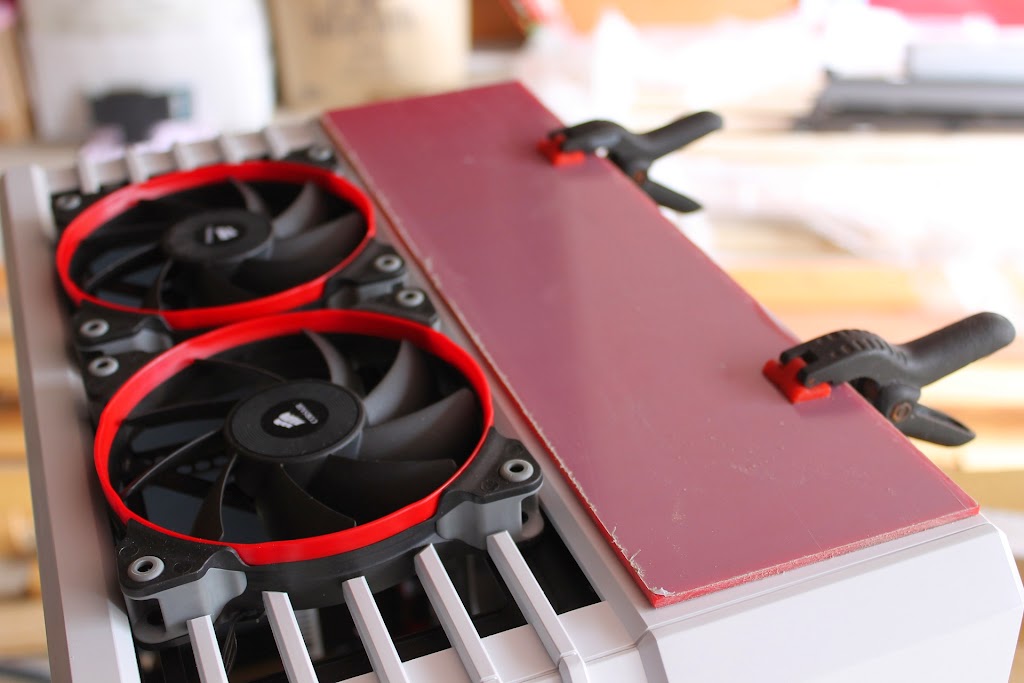

    Today the exterior decorative elements made it. The materials of 2-3 mm plexiglass .

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Double-sided adhesive tape

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 16 May 2015
  7. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

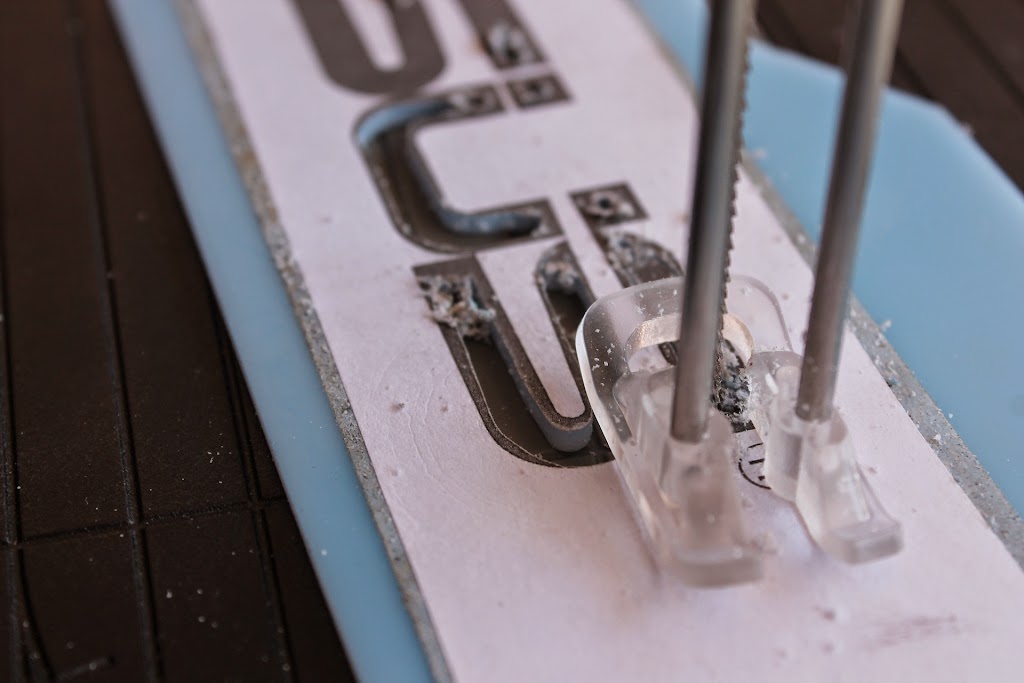

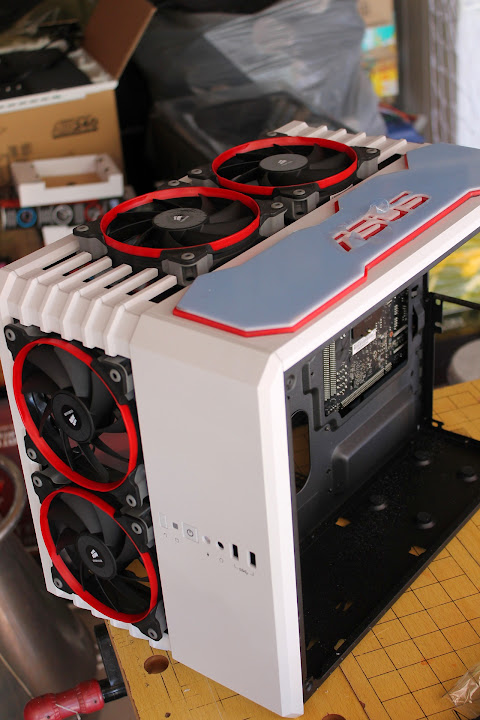

    Today the ROG logo were completed.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  8. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    Today the package arrived courtesy of EK water blocks .
    Thanks for the support!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  9. Mads1

    Mads1 What's a Dremel?

    Joined:
    2 Apr 2015
    Posts:
    8
    Likes Received:
    0
    Looking great so far. :)

  10. guitarhero23

    guitarhero23 What's a Dremel?

    Joined:
    27 Mar 2015
    Posts:
    79
    Likes Received:
    0
    You must of had fun filing acrylic by hand, I've done it. 1/10 would not do again, but will probably have to do again.

  11. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    Thanks mans! The Dremel Saw machine easy to work with.

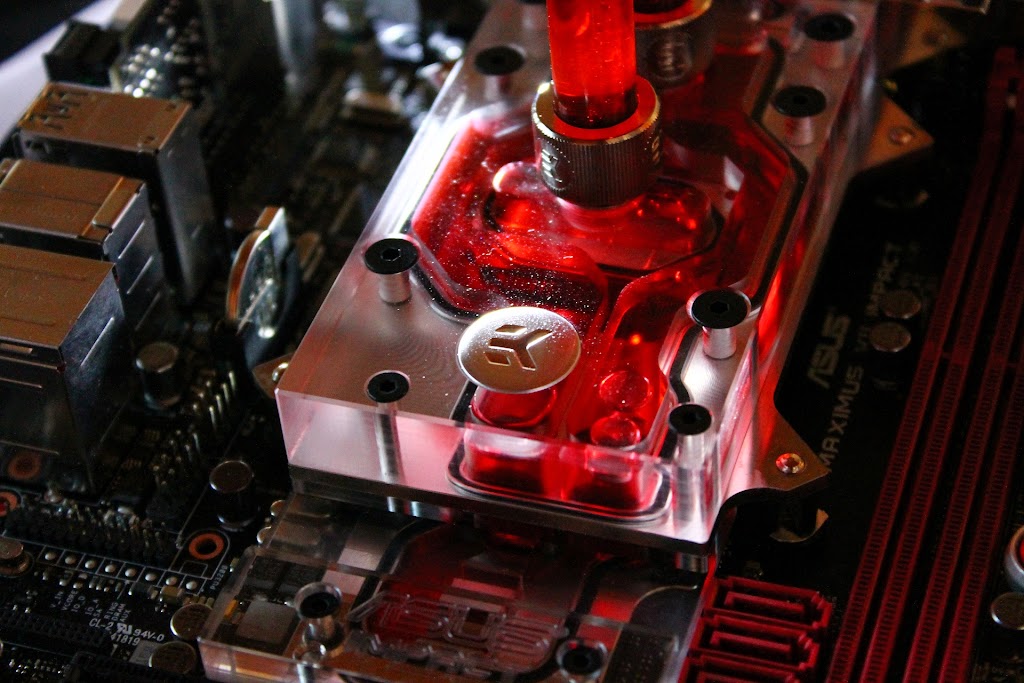

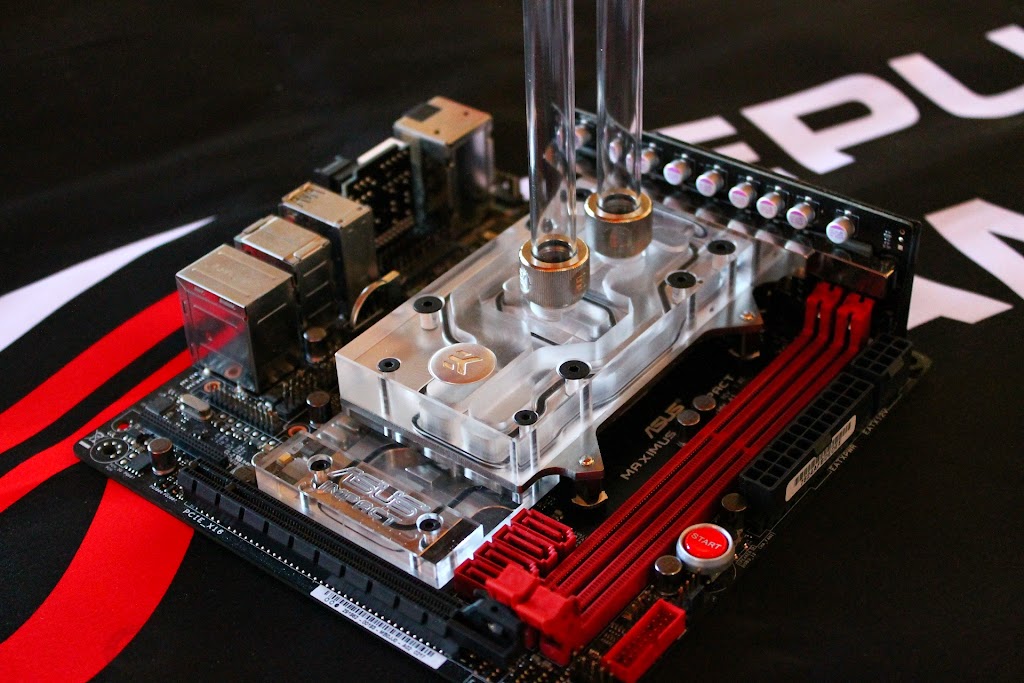

    Newly arrived water blocks installed the asus maximus VII Impact motherboard.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  12. bulldogjeff

    bulldogjeff The modding head is firmly back on.

    Joined:
    2 Mar 2010
    Posts:
    8,403
    Likes Received:
    634
    Thats looking very nice. I really like the layered effect on the logos and the case... Nice work.

  13. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    The big ATX sized cases after now the little ones favored.

  14. wst

    wst Minimodder

    Joined:
    30 Aug 2009
    Posts:
    822
    Likes Received:
    89
    Wouldn't a blowtorch simplify the edge-dressing process on those cut edges to smooth them down easily? Not sure how acrylic behaves under heat but when I was working on polycarbonate (for supermarket fridges) we used to have a little blowtorch that would melt the CNC routed edges and make them lovely and shiny in seconds!

  15. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
    Of course, the plexiglass edge to be processed. Thanks for the tip!

  16. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

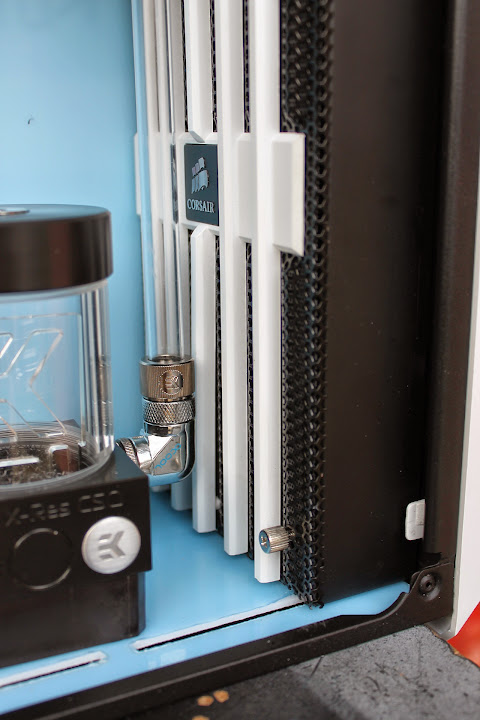

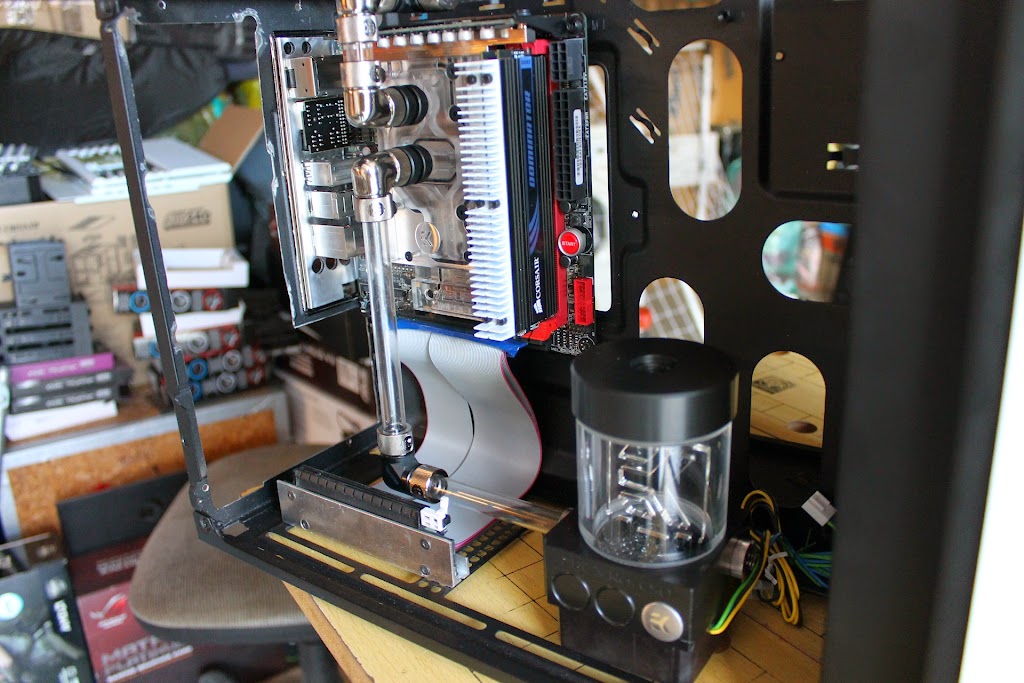

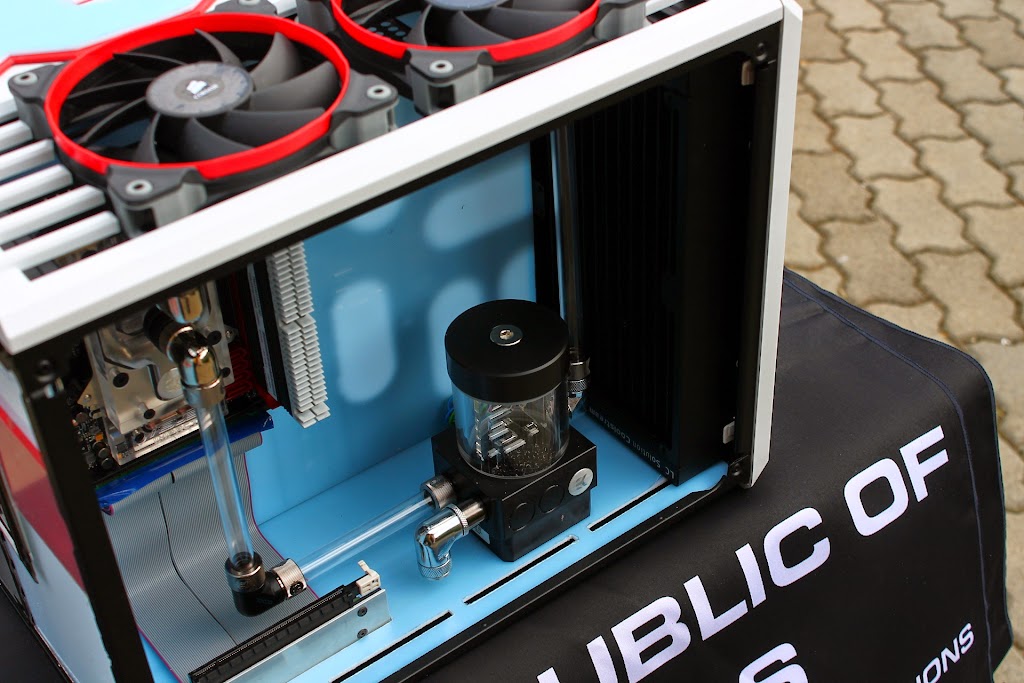

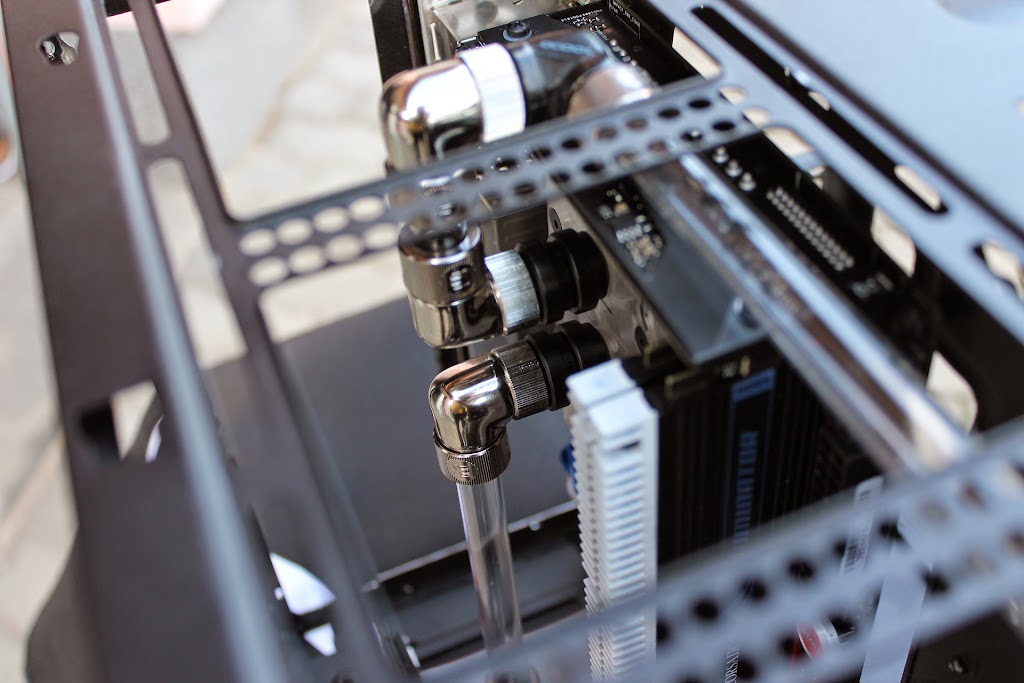

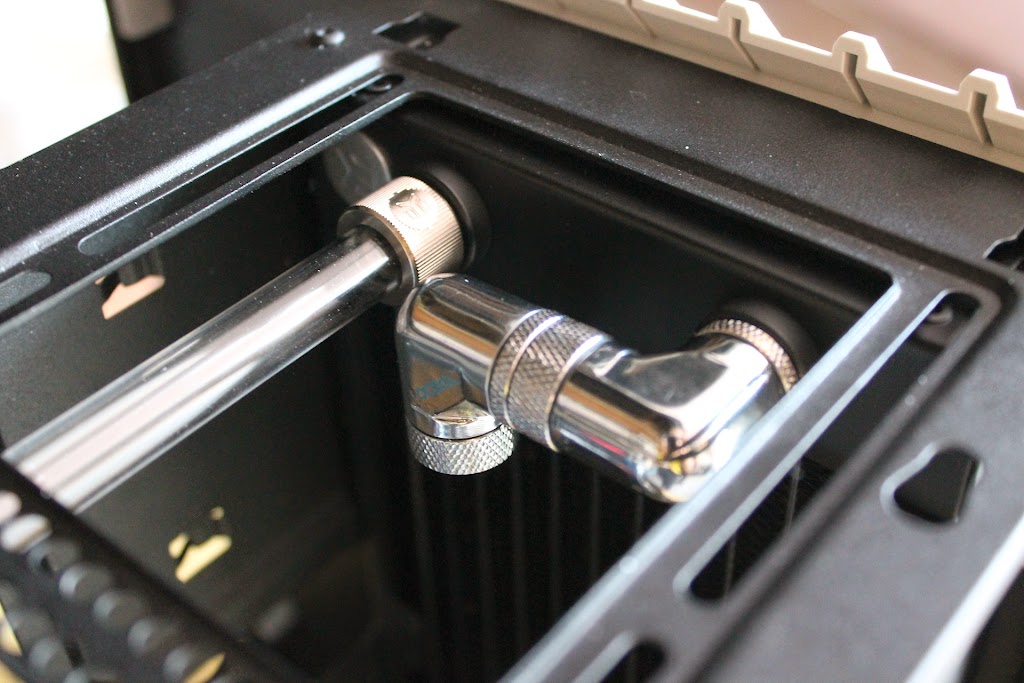

    Today I continued the project, the water cooling components were installed.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  17. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

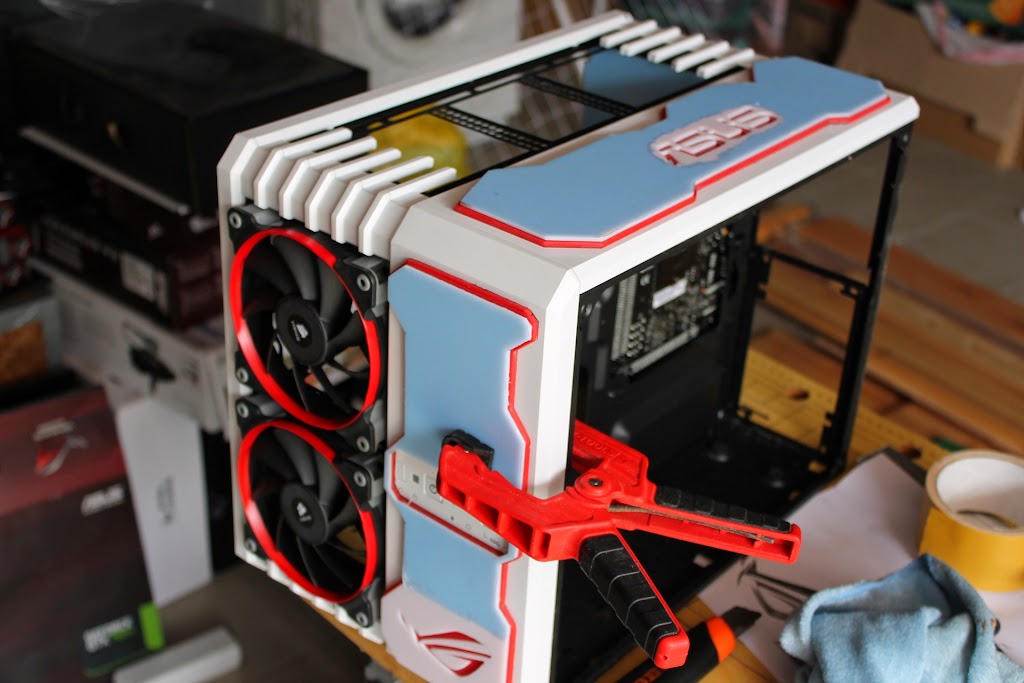

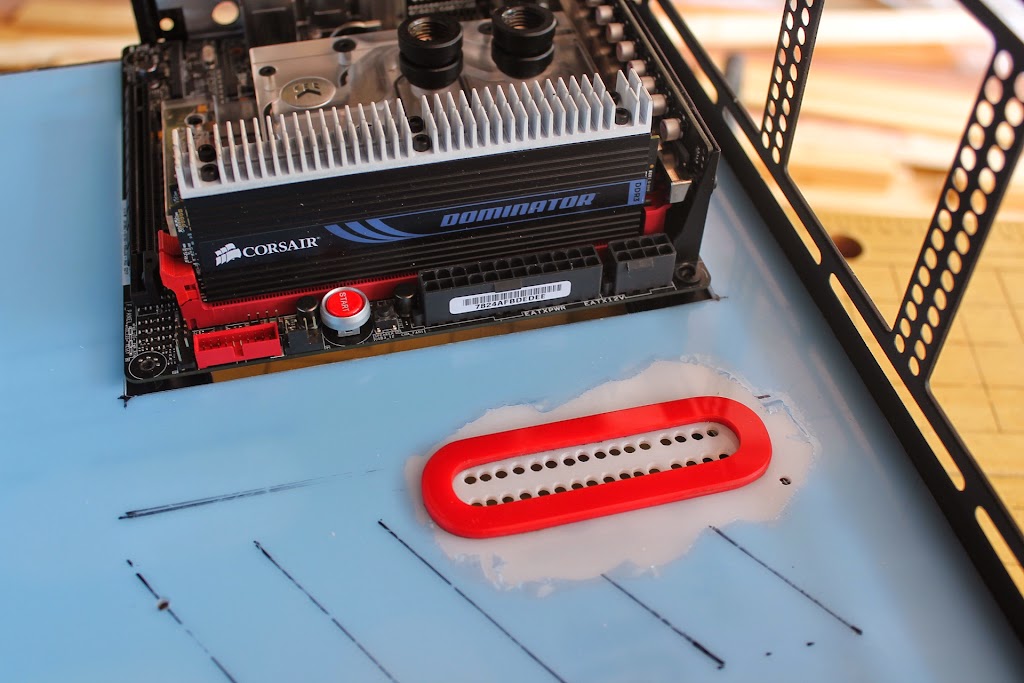

    Today they finished the inside panels and a test of the system are built up.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

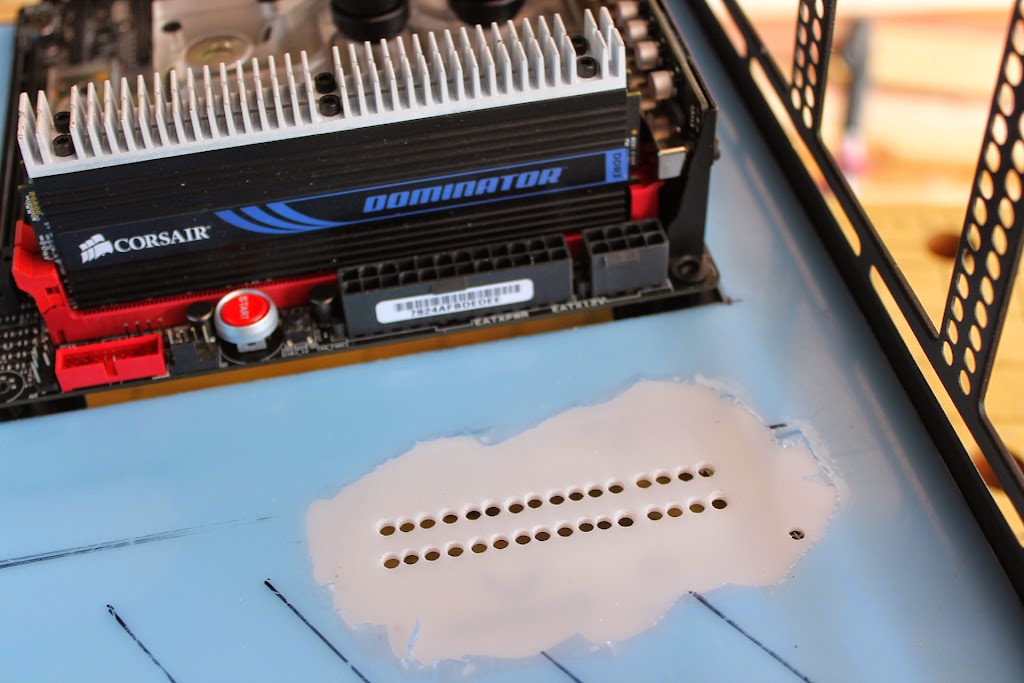

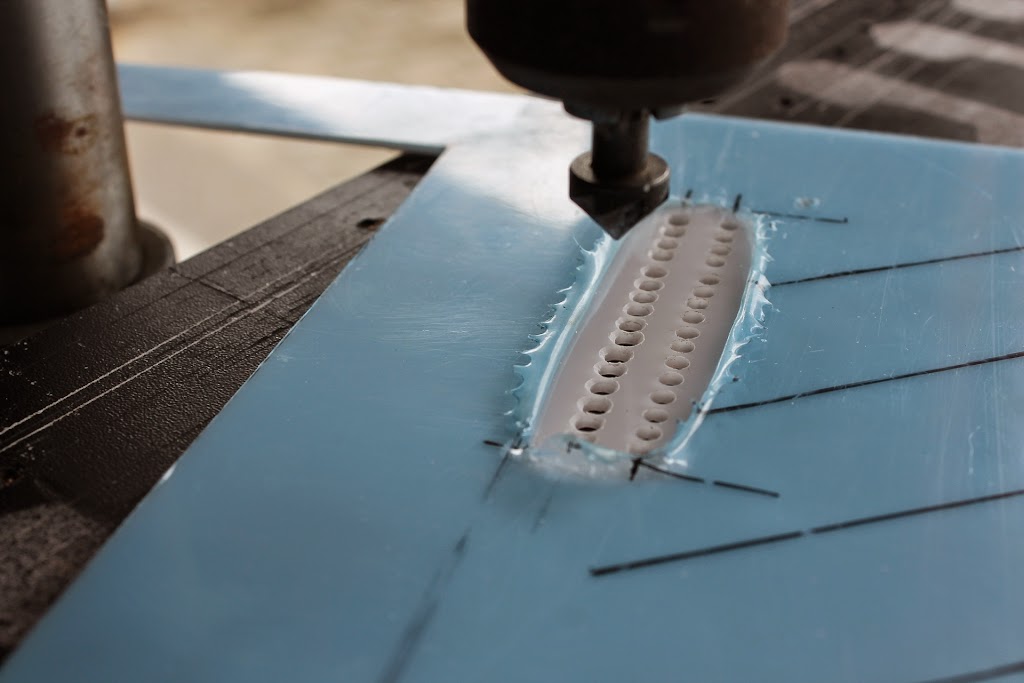

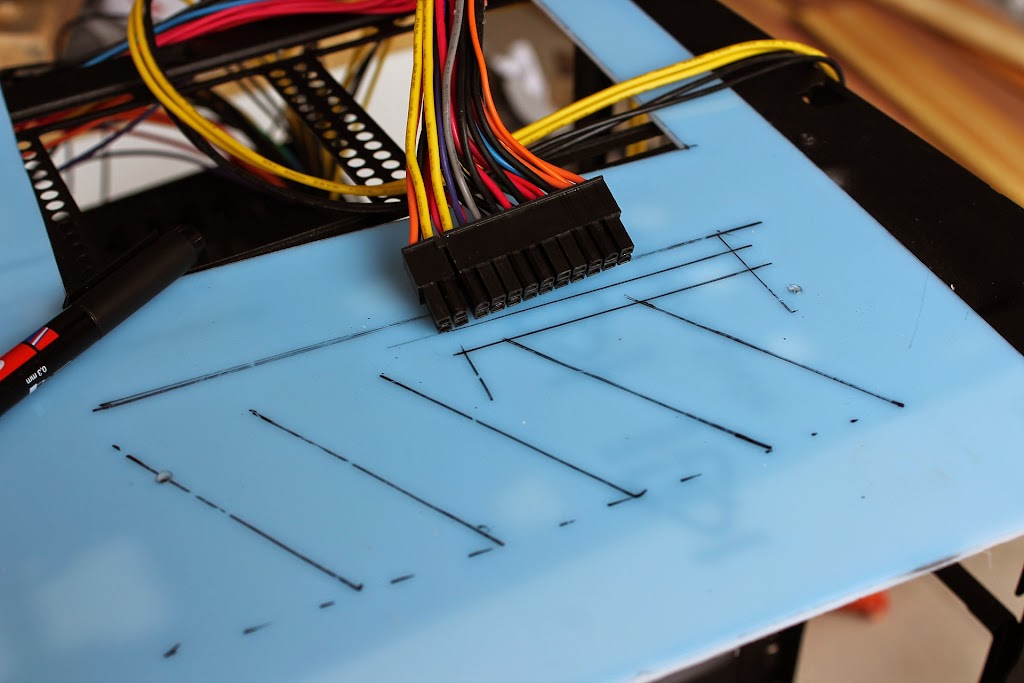

    The top panel cutout grid. :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  18. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36
  19. jones-965

    jones-965 Modding & tuning

    Joined:
    13 Jul 2011
    Posts:
    296
    Likes Received:
    36

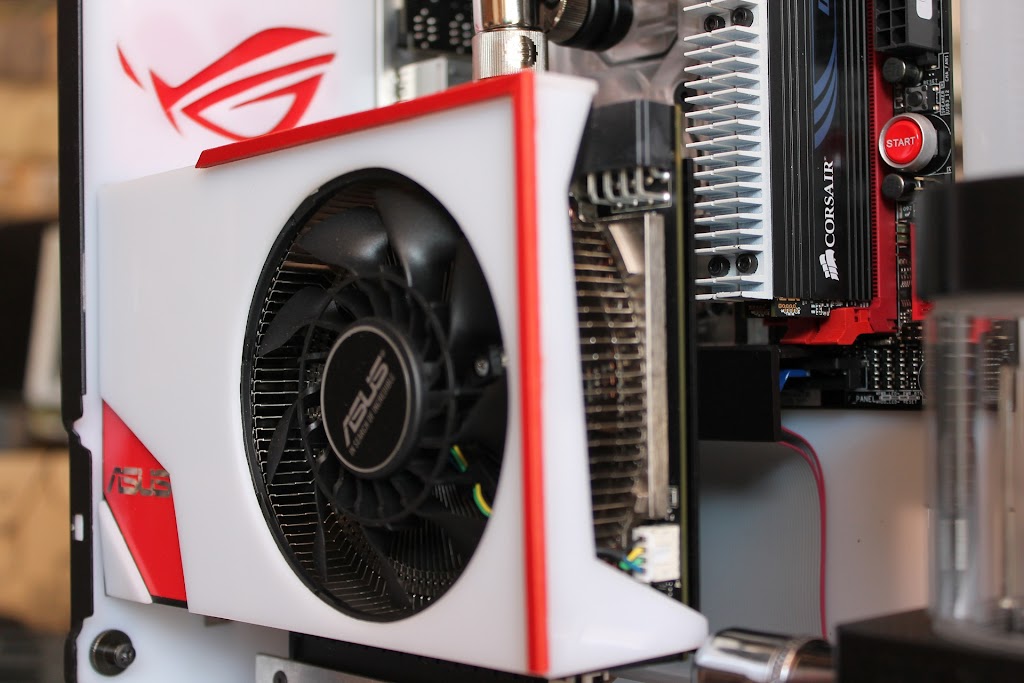

    Update!

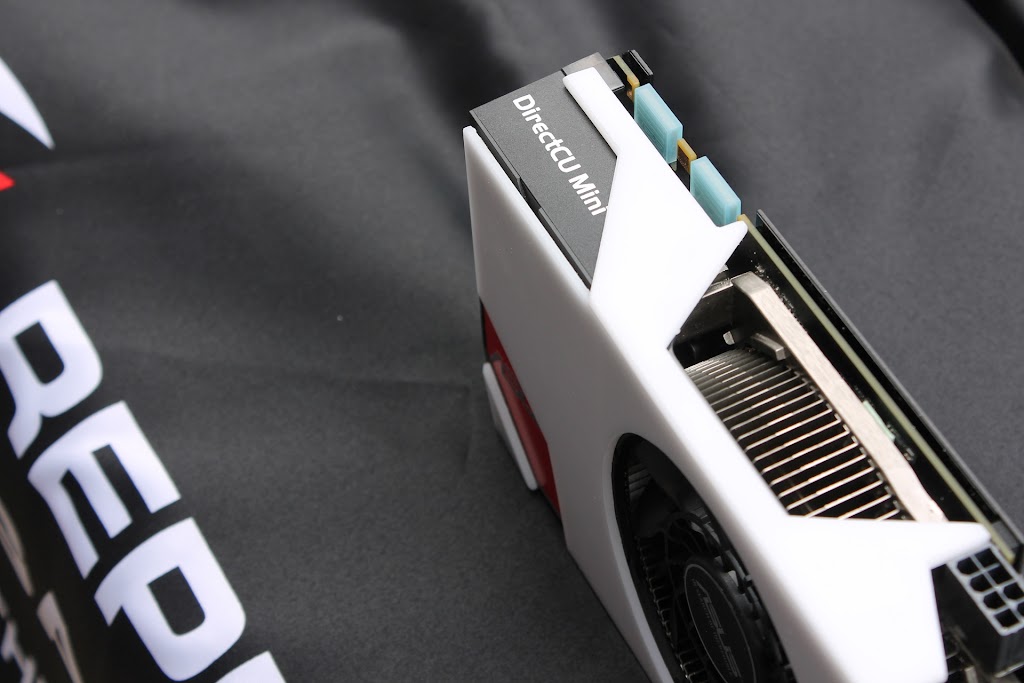

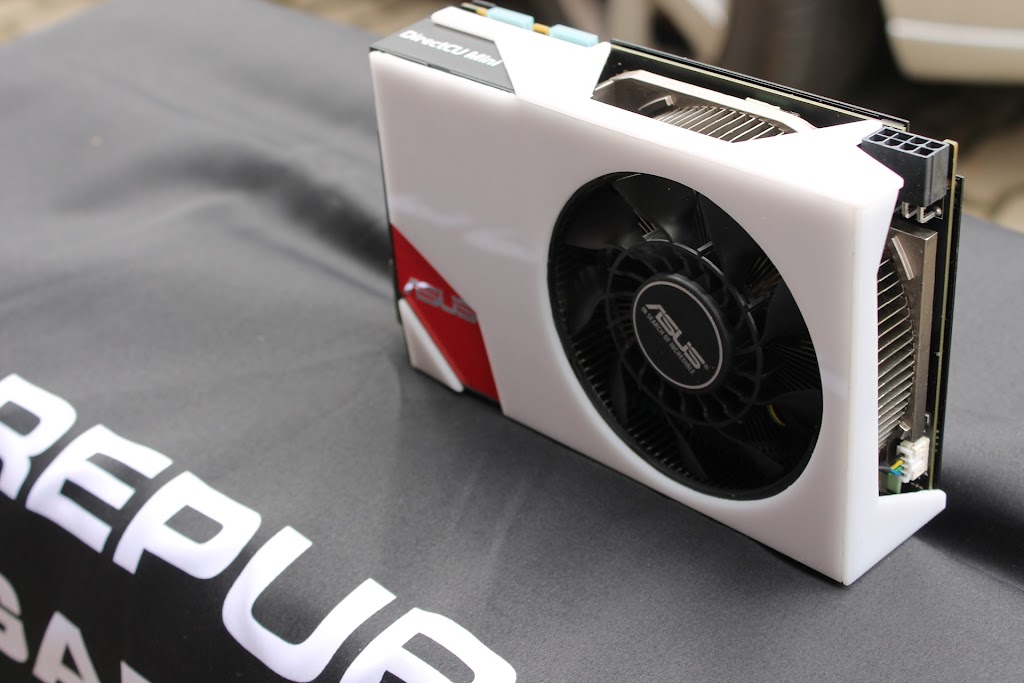

    Arriving at the VGA, and got into the place and was given a new covering.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  20. TheL4mka

    TheL4mka Minimodder

    Joined:
    3 Oct 2013
    Posts:
    152
    Likes Received:
    2
    This is going very well! Looking forward to see it finished :thumb: :naughty:
