Scratch Build – In Progress [Bit-Tech/Intel NUC Competition] Intranuc - Complete --- Final pictures

Discussion in 'Project Logs' started by Waynio, 4 Aug 2013.

  1. jokkos

    jokkos too busy to mod *sigh*

    Joined:
    10 May 2005
    Posts:
    1,052
    Likes Received:
    7
    Oh my... it's looking great now! :clap:

    Great job with the seams, they're quite perfect judging from the pics!

    I would also paint the fan wires, seems a bit out of place with the bright colors.

  2. quizz_kid

    quizz_kid Squid

    Joined:
    19 Jun 2011
    Posts:
    808
    Likes Received:
    51
    Wow, waynio, edges looks great now! The hours, the hours man...

  3. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    965
    Likes Received:
    61
    It looks amazing so far. Great work

  4. Furball Zen

    Furball Zen Shut up and Mod

    Joined:
    25 Jan 2012
    Posts:
    662
    Likes Received:
    13
    Your cooler cooler looks cooler and here i was thinking i would offer up one of the HD4890 triple heat pipe coolers i have. So if anyone else wants one for shipping costs, PM me.

  5. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,039
    Likes Received:
    1,058
    Looking tasty.:D The power button is almost invisible.
    :worried: I painted all my wires black too.

  6. Mechh69

    Mechh69 I think we can make that fit

    Joined:
    16 Sep 2009
    Posts:
    1,298
    Likes Received:
    59
    Personally I like the old top panel with the brass I thought it looked much better and gave the case a little contrast. But your new work is top notch as always.

  7. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    Been awhile since I popped by, really nice work Wayne. :thumb: Great detailing as always. :)

    Good luck with the lacqodizing, also think getting rid of the brass was a good choice.

  8. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    Thanks jokkos, the fan wire was too rainbowy so is all black now. :D

    Thanks quizz :) main thing that held this up was getting it wrong a couple times needing re makes, got the latest one done in quite a short time but I took it easy with having so much spare time. :D

    Thanks Mos. :)

    :D Think I've got the bug for making custom heat sinks now, wanted to make 1 for ages but always put it off, not anymore but some heat sinks are good as they are so just a little modding can make them better.
    Nice offer Zen. :)

    :D The button head screws are almost as big as it, :lol: just needs a faint push to trigger the switch, cut the spring down a little so it doesn't need pressing so hard.
    The rainbow wire had to go. :D

    It did give it a nice glow but I'm lacquodising it all so the brass would have made the colours really different to what I colour them as, this new version accounts for 1.5mm panels instead of 1.7mm, as crazy as it seems 0.2mm x 2 causes problems & lapping the brass mesh would take forever. :lol:

    Thanks Craig. :)
    Just about to start spraying the parts with metal lacquer. :dremel:

  9. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    Update.

    Better look at the battery space in the base.
    [​IMG]

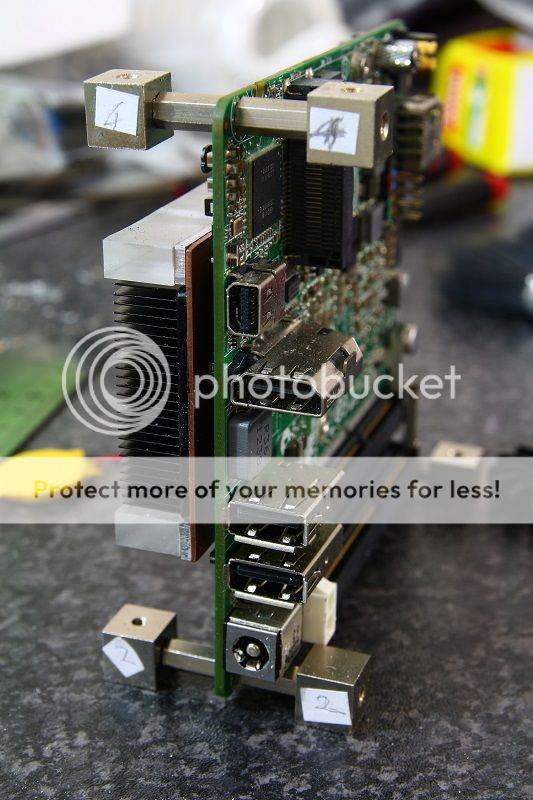

    Numbered the cube spacers & scratched lines to indicate the number so it goes back together nicely.
    [​IMG]

    24L Air compressor I bought a few weeks ago so I don't have to do the lacquering in the garage.
    [​IMG]

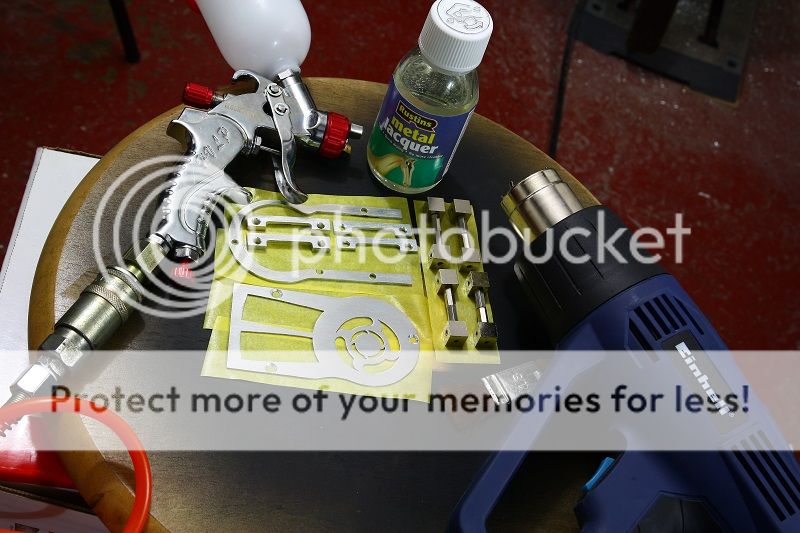

    Spray gun, metal lacquer, heat gun & first parts ready for lacquering on the lazy susan for ease of spraying from all angles, heat gun is for drying it faster.
    [​IMG]

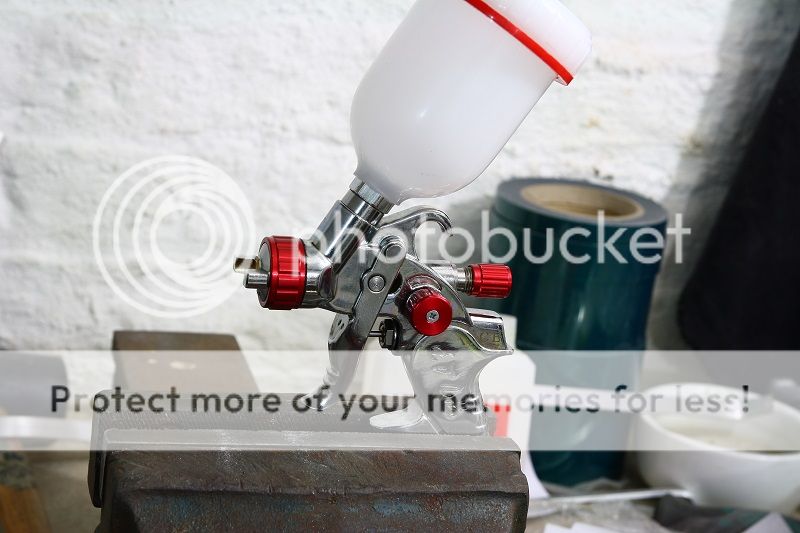

    Spray gun holder. :lol:
    [​IMG]

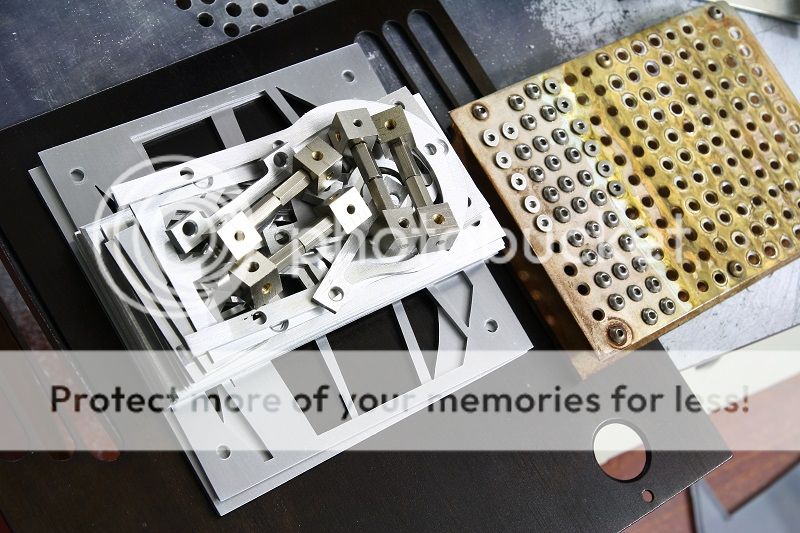

    More parts ready for lacquering.
    [​IMG]

    Lacquered screw heads, spacers & panels, not doing the internal sides because I need a dyeing tank to hang parts in, I'm using kitchen pans so can only do 1 side at a time.
    [​IMG]

    Dye time next, doing 2 colours, 1 for the panels & fixings & 1 for the hex mesh, if you have suggestions on what colour scheme I do then now is the time to say, I'll dye the parts on Friday. :)

    This brown is a possible colour I might use that I already have prepared but I can do any colour with the dyes I have now so suggest away. :)
    [​IMG]

    Next update will be in the completed project, I broke 1 of my bulbs again so need to order a new one before I can do the final photo shoot.

  10. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    Colours :idea: that render on page 4 looks nice, but how about a dark green, that will blend in the mobo and be unique. :naughty:

  11. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    Sorry about that with the colours, I continued after I did midlag crisis & am almost done dyeing Intranuc. :lol:
    Thanks for the feedback though Craig & fortunately I went with those colours in the concept, other than the green. :D

  12. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    That will look great. :thumb:

  13. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    :D

    Sneaky peeky. :)

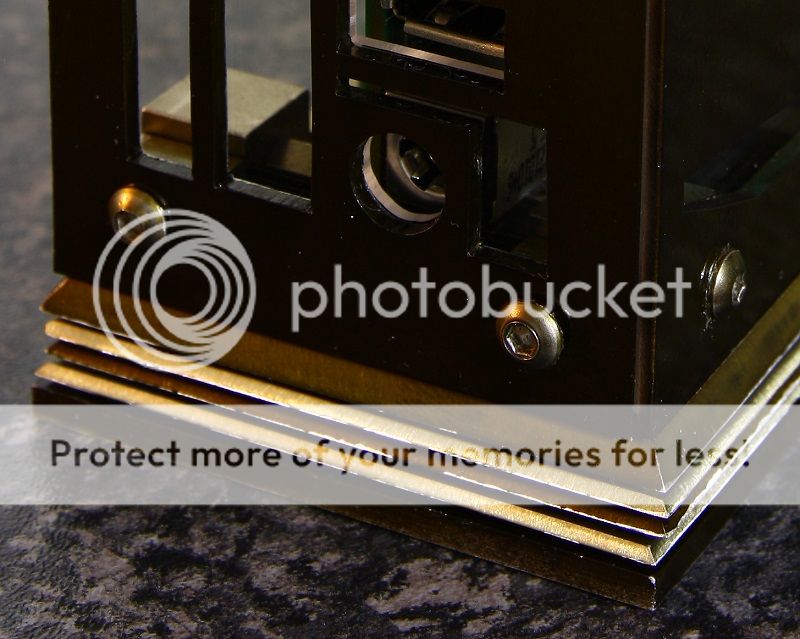

    [​IMG]

    [​IMG]

    [​IMG]

  14. Boorach

    Boorach Member

    Joined:
    16 Feb 2013
    Posts:
    356
    Likes Received:
    16
    Colour and finish look great. Lacqodising is working really well now that you have worked out the teething problems.

  15. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,039
    Likes Received:
    1,058
    Finishing up nicely.:D
    -Still with the puns...

  16. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    965
    Likes Received:
    61
    So much awesome Waynio. Excellent work :thumb:

  17. The_Crapman

    The_Crapman Don't phone it's just for fun.

    Joined:
    5 Dec 2011
    Posts:
    5,166
    Likes Received:
    1,745
    Sweeeeeeet! Came out so nice. Bit gutted the brass went though.

  18. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    Thanks Boorach, happy with it now but a new problem was introduced but it will all go into making the method work so good. :D

    Almost, tripped over another pebble. :D

    Thanks Mos :) I'll upload a few shots of how it looks roughly assembled in a mo.

    It was shinier :D but the pattern was so inconsistent & is why I had big trouble modeling it for the top panel, the custom one fits the pattern perfect as well as having a more stable base for the cube spacers, cheers crappy, will always seem crazy saying crappy when your a decent dude. :hehe:

    I'll post a few shots of the roughly assembled system along with the flaws in a mo. :)

  19. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211

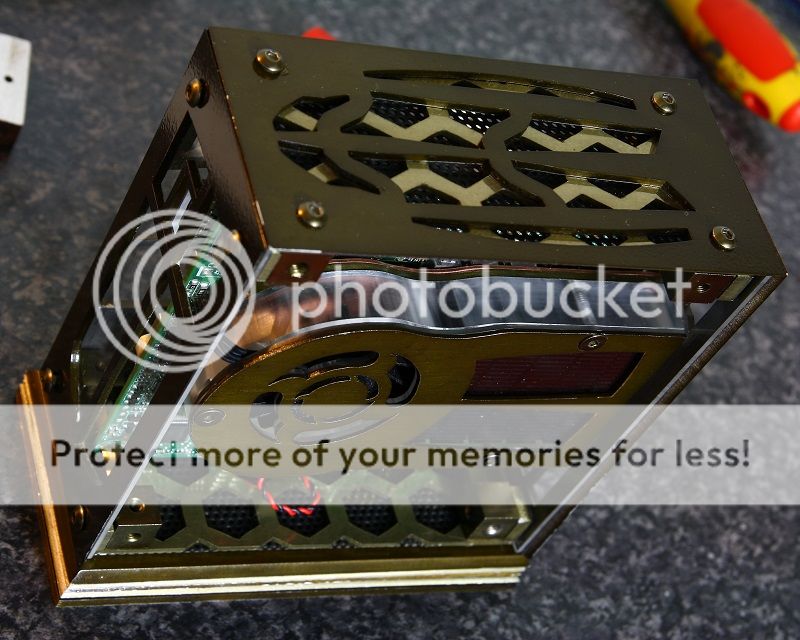

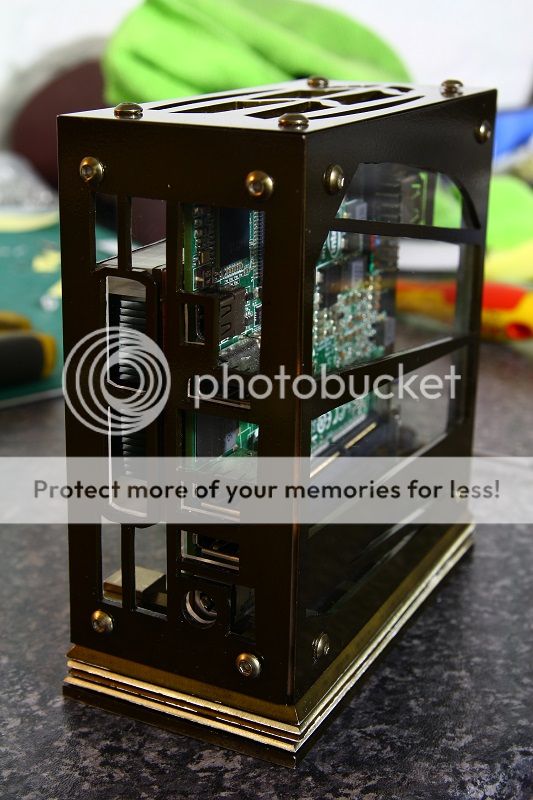

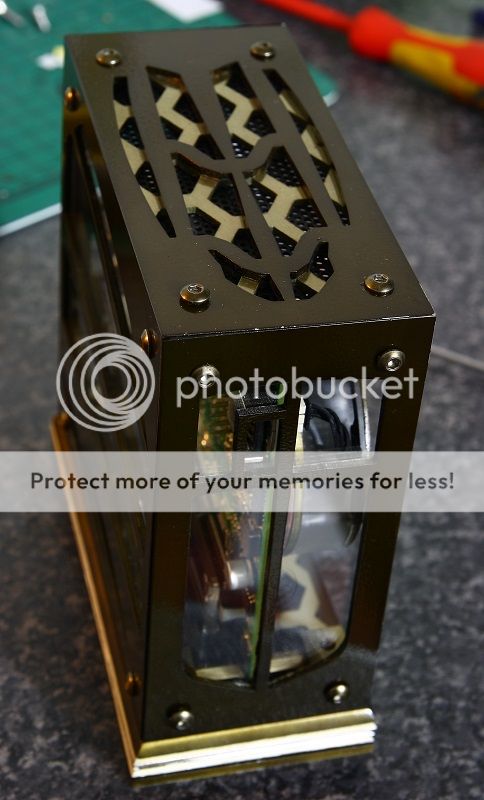

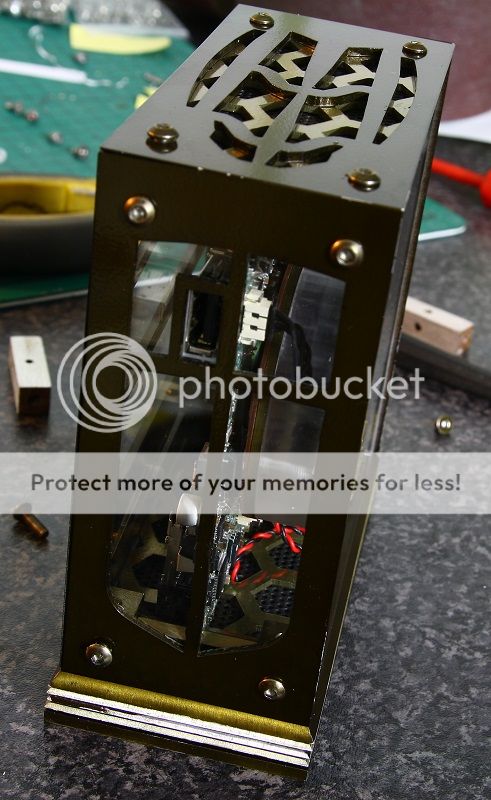

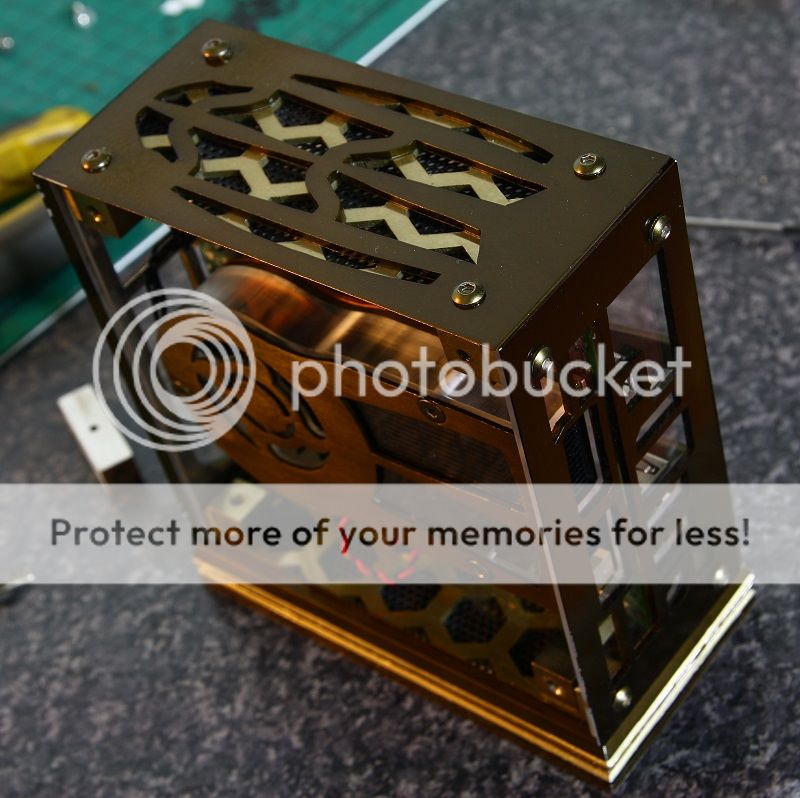

    Here's the few pictures I said I'd post.

    Looks pretty sweet to the eye, not bad on camera but will be better on final photos with backdrop stand & lighting done right.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

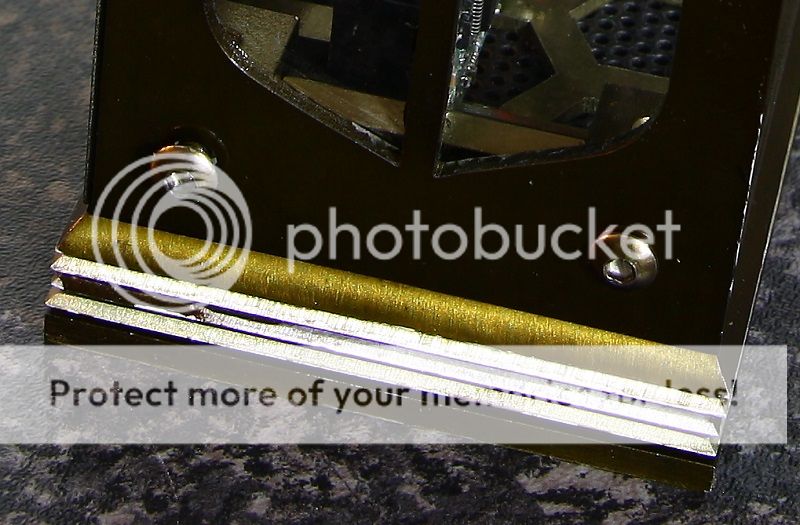

    But there are some flaws with the sharpest edges not taking the lacquer, well everything took the lacquer but I made a mistake on the application where I had to cut the panels away to free them & while cleaning off the fray bits with a brush quite a bit came off some bevels so I'll re finish them, this also means the internals will now get coated too but only lightly.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Getting the cube & hex spacers to align correct is tricky but I think I'll get it right, first I need to sort out the flaked bits & round the very sharp edges so the lacquer can grip better, I'll get them ready for spraying in the morning.

  20. Maki role

    Maki role Dale you're on a roll... Staff

    Joined:
    9 Jan 2012
    Posts:
    1,709
    Likes Received:
    124
    Wow that's really come out with an interesting finish. It's amazing how everybody's works are now beginning to look eerily similar to their initial concept renders too!
