Guide Blueprints Collection

Discussion in 'Modding' started by Djayness, 13 Oct 2009.

  1. Flibblebot

    Flibblebot Smile with me

    Joined:
    19 Apr 2005
    Posts:
    4,739
    Likes Received:
    213
    Can I suggest that you set a few guidelines for the drawings - with different things on different layers?

    Having dimensions, mounting holes and outlines on separate layers makes things much easier when it comes to using the DXF file for CAM purposes as you can set a whole layer to be ignored or machined in a particular way. If everything's on the default layer, it makes it much more difficult to manage.

  2. Interloper

    Interloper Faux Pro Modder

    Joined:
    17 Jul 2009
    Posts:
    89
    Likes Received:
    2
    +1

  3. denis6902

    denis6902 deathbox

    Joined:
    28 Sep 2008
    Posts:
    49
    Likes Received:
    0
    you know what? i just wish i could build myself a 2axis table, something like 1.5m by 1.5m with my dremel to do some basic cutting on acrilic, wood and light alu cutting

    It would be perfect and a time save when it comes in terms of hand sanding and accuracy! Then i would make a little pc to put some dfx files to do some testing

    problem is i have no idea where to start :)

    If anyone know a link of a self made little cnc with dremel router, please let me know!!!! :)

  4. Javerh

    Javerh Topiary Golem

    Joined:
    5 Sep 2006
    Posts:
    1,045
    Likes Received:
    26
  5. Flibblebot

    Flibblebot Smile with me

    Joined:
    19 Apr 2005
    Posts:
    4,739
    Likes Received:
    213
    Or here. Very good plans, I've built the 24x48 machine, just need to finish it off. The plans are very detailed, step-by-step instructions of how to build your machine using relatively easy to find parts (mostly from hardware stores). The only problem is that measurements are in imperial not metric, so there was quite a bit of conversion involved.

    Can't recommend them highly enough, though.

  6. denis6902

    denis6902 deathbox

    Joined:
    28 Sep 2008
    Posts:
    49
    Likes Received:
    0
    nice guys, thanks a lot for that!!!!

  7. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    Theres quite a few homemade ones that sell on ebay for cheap, look up zenbot cnc.

  8. denis6902

    denis6902 deathbox

    Joined:
    28 Sep 2008
    Posts:
    49
    Likes Received:
    0
    what does cheap mean to you? :)

    i like making things, and it would an amazing mod to make too, besides the learning process which will be just unforgetable! :rock:

  9. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    I should have said cheap in comparison, the ones on ebay range from 500 to 1500 for a cnc, the 1500 dollar ones usually cost 30k plus commercially so I guess you could call that cheap yeah?

  10. denis6902

    denis6902 deathbox

    Joined:
    28 Sep 2008
    Posts:
    49
    Likes Received:
    0
    definitely cheap!! i agree!!!

    i managed to check some pics and videos from the links, and i am impressed, such little beasts!

    has anyone build one similar using sketchup/dfx?

  11. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    Well my cnc machine is in the port, wont be out till next week.

    On the layer thing, whats the standard with layer colours? kinda hoping to get some form of sharing going on in the next few weeks.


    If you want a part, just request one and hopefully someone can send the file to you.

  12. Interloper

    Interloper Faux Pro Modder

    Joined:
    17 Jul 2009
    Posts:
    89
    Likes Received:
    2
    AFAIK, there really isn't a 'standard' for colors.

    Most companies will likely have their own designations for each line type and expect their drafters to follow them. That's why when I do my drawings I give each layer a distinct name.

  13. Roboduck

    Roboduck 01110001 01110101 01100001 01100011

    Joined:
    1 Dec 2009
    Posts:
    549
    Likes Received:
    24
    I just created a thread for SolidWorks parts but guess they could go here if there aren't any objections? I only have a few parts of my own right now but as soon as I can get them up Ill upload them to 3dcontentcentral.com otherwise you can PM me and I can send you the models.

    Anyone know of a good way to convert SketchUp files to SolidWorks?

    Thermalright ULTRA-120
    [​IMG]

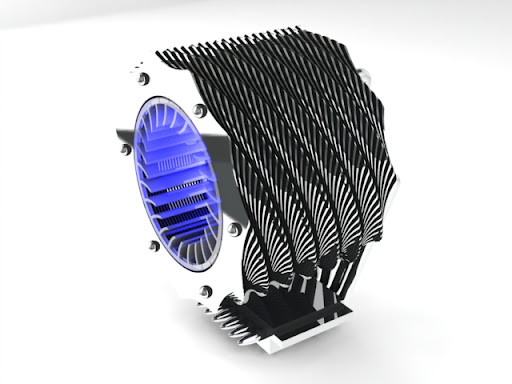

    Thermaltake SpinQ
    [​IMG]

    Last edited: 4 Jan 2010
    Djayness likes this.
  14. jezmck

    jezmck Minimodder

    Joined:
    25 Sep 2003
    Posts:
    4,456
    Likes Received:
    36
    Wow, great work.

    I'd love these, and any other models to go in the collection.
    I wish I could hurry up with coding the site, I just haven't had time recently, and won't do so for a while.

  15. GinoTheCop

    GinoTheCop MKA

    Joined:
    10 Oct 2006
    Posts:
    61
    Likes Received:
    5
    I dont know if this applies to some of you guys but for laser cutting in 2D I was always asked for a corel drawing from most of the shops around here..

    And when it comes to measuring i would say corel draw is very accurate and easy to use. Also it comes as free (version 9) with some hardware like printers or scanners.

  16. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    [​IMG]

    [​IMG]

    It has arrived.....

    BTW roboduck those are incredible drawings, amazing skill +rep

  17. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    Show me the models! Im ready to start cutting :p


  18. Dark~3nergy

    Dark~3nergy what was dat sandvich ?

    Joined:
    14 Jan 2007
    Posts:
    1,424
    Likes Received:
    45
    nice cnc, can you mill aluminium with it ?

    and how much did it cost ? :eek:

  19. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,932
    Likes Received:
    1,599
    Laser+CNC+Asian girlfriend= me hating you now.:(

    Also, get a fireplace bellows or something. Long hair/ eyes shouldn't get that close to anything spinning 10,000 RPMs!

  20. bigkingfun

    bigkingfun Tinkering addict

    Joined:
    27 Jul 2008
    Posts:
    988
    Likes Received:
    59
    Just saw this thread.

    I would like to contribute with some standart components.
    2.5" and 3.5" HDDs, SFF optical drive, PSU mounting holes and a mATX board for starters.
