  1. Yo-DUH_87

    Yo-DUH_87 Who you calling tiny?

    Joined:
    6 Mar 2002
    Posts:
    3,712
    Likes Received:
    1
    Welcome to the forums, Rezostat, enjoy your stay.

  2. Rezostat

    Rezostat What's a Dremel?

    Joined:
    20 Apr 2002
    Posts:
    2
    Likes Received:
    0
    Thanks Yo-Duh! I can't remember who said it, but I was told, that I would come for the forums, but stay for the style. I think they are right.

  3. knightlight3

    knightlight3 What's a Dremel?

    Joined:
    26 Apr 2002
    Posts:
    8
    Likes Received:
    0
    Great mod,

    I have made up the circuit but only seems to start working after 30 secionds, does it do this on yours? I tried a smaller capacitor and it speeded up the startup but also the wavefore too.

    Dan.

  4. M1CUZ

    M1CUZ What's a Dremel?

    Joined:
    5 Mar 2002
    Posts:
    56
    Likes Received:
    0
    Just wondering if anyone has tried using this thing to power their neon string inverter, if so how well did it work if at all?

    I would try it but i have no neon string :(

  5. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    Welcome to the forum.
    Mine starts immediately. Sure you don't just have it set on a very slow speed setting?

  6. Walpurgis

    Walpurgis What's a Dremel?

    Joined:
    17 Apr 2002
    Posts:
    7
    Likes Received:
    0
    Just a few ideas/thoughts
    How easy would it be to add to the circuit to be able to control the phase of the second invertor in relation to the first?
    Instead of/in addition to VR1 could a thermistor be used to control the rate dependant on temp readings eg flashing faster as case/CPU gets hotter? I have a flat temp probe from an old ASUS mobo lying around, might that work?

  7. Meblin

    Meblin Supposed IR God!

    Joined:
    5 Mar 2002
    Posts:
    1,018
    Likes Received:
    0
    Well my throbber won't throb :(

    I can control the brightness of the cathodes with V2 and V3 but V1 does nothing, nada, zilch :cries:

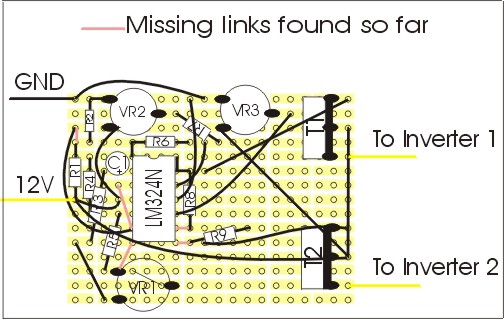

    I have used strip board where the strips are split into 3 hole sections. here is a schmatic of how I have wired it:

    [​IMG]

    Where am I going wrong?

    Also the TIP3055s that I got from Mappers are bigger than the ones you used. They span 5 holes instead os 3 and I had to increase the hole size to 1.5mm. Is that a problem?

    Meblin

  8. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    IC1 pin 7 is unconnected, pin 3 should be connected to pin 6. Pins 8 and 9 are unconnected (I am assuming the gaps in the tracks represent breaks). Pin 3 should be connected to the R1/R2 junction.

    I will leave checking, there for now. ;)

  9. Meblin

    Meblin Supposed IR God!

    Joined:
    5 Mar 2002
    Posts:
    1,018
    Likes Received:
    0
    I have ammended the picture. I missed off the links of pins 7, 8, 9 and the link between R1/R2 Pin 6 junction.

    I did forget to link pins 3 and 6 and have connected them together and still no joy :(

    Meblin

  10. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    There is a break between R4 and pin 1, and R4 and pin 5 which shouldn't be

  11. Meblin

    Meblin Supposed IR God!

    Joined:
    5 Mar 2002
    Posts:
    1,018
    Likes Received:
    0
    WOOT WOOT WOOT!!!

    Those last two connections did the trick :D:hehe: :lol:

    Just one last question, one of the channels does not get as bright as the other (think it's inverter 1). What is the reason behind this? I have used the same inverter and cathode on both outputs.

    Meblin

    Now my hard drive is about to kick the buccket :cries:

    Last edited: 1 May 2002
  12. Meblin

    Meblin Supposed IR God!

    Joined:
    5 Mar 2002
    Posts:
    1,018
    Likes Received:
    0
    Will R7 decrease the voltage going to inverter 1?

    What will hapen if I remove the resistor and replace with a direct link from VR2 ro R6 and pin 12?

    Meblin

  13. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    It will probably stop throbbing ;)
    The range of VR2 and VR3 should allow adjustment for maximum output on either channel.

    Which channel is producing the lower voltage?

  14. Meblin

    Meblin Supposed IR God!

    Joined:
    5 Mar 2002
    Posts:
    1,018
    Likes Received:
    0

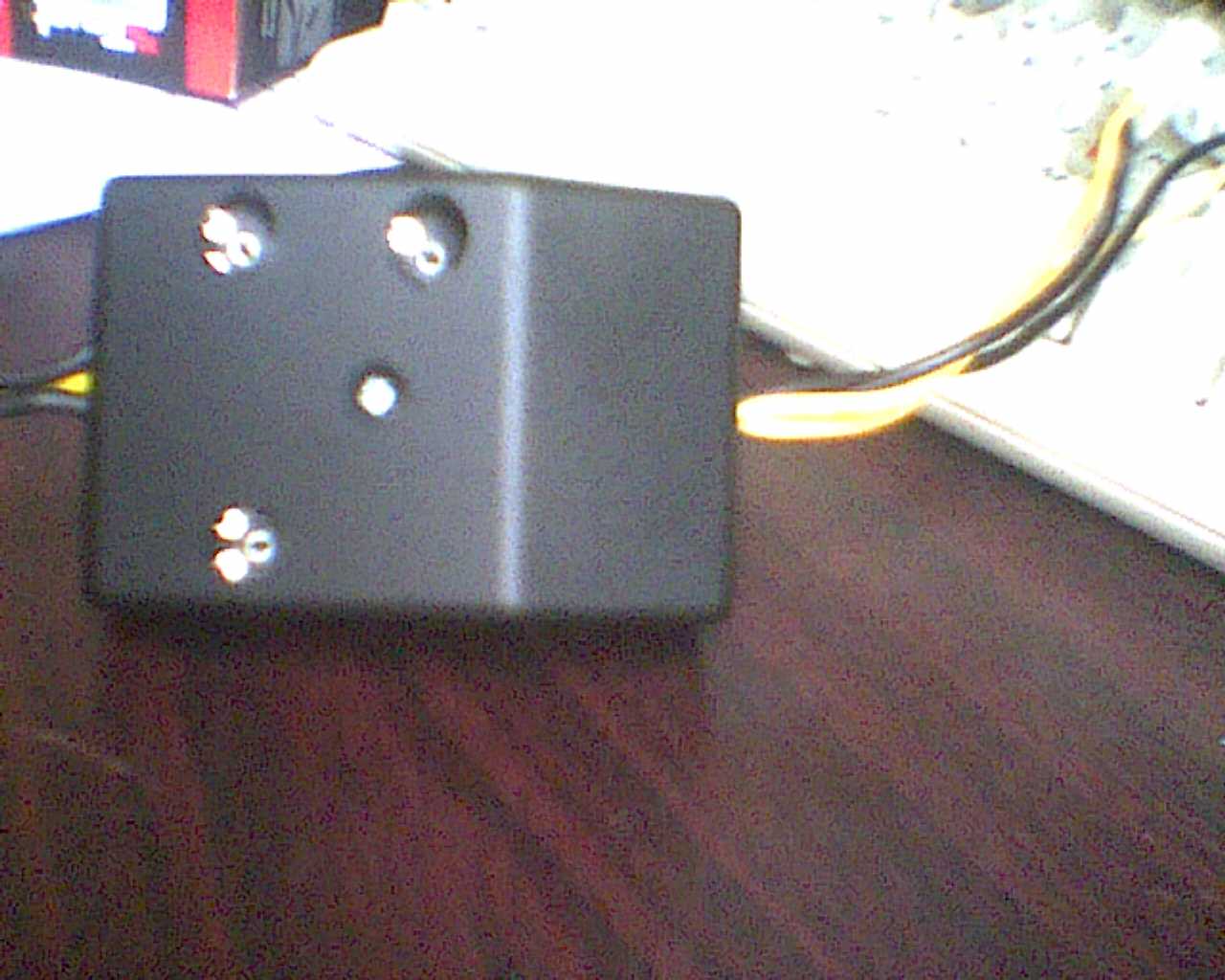

    Well I got my throbber working and here it is in a little case :D

    [​IMG]

    The controls are very sensitive and the second one that I built does take a while to warm up.

    There were a few people interested in getting me to build them one. Email me if you still want one.

    Meblin

    Last edited: 3 May 2002
  15. Telkman

    Telkman What's a Dremel?

    Joined:
    22 Apr 2002
    Posts:
    332
    Likes Received:
    0
    is it possible to have the videos from the article uploaded temporarily to an http source for download, or emailed to me, as I can't get them to work. I have all the latest codecs etc for windows media player

  16. FragSyndrome

    FragSyndrome What's a Dremel?

    Joined:
    13 Jan 2002
    Posts:
    93
    Likes Received:
    0
    Which program did you use to make this PCB negative? I tried Eagle and StripboardMagic, and a few other programs so far, and I couldn't get a negative printed from either of them!

    This is very frusturating to say the least!!! could someone PLEASE tell me how to get the damn layout on paper!?!?

  17. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    Ok, just to clear up any confusion. The PCB foil is a positive and should be printed out from a decent paint package that can do accurate resizing such as Paint Shop Pro or Photoshop. The board was designed using Eagle but the image has been saved as a bitmap since most people have a painting program. Positives are used for UV exposure photo sensitive boards.

    I assume that since you want a negative you are using thermal transfer etch resist. Again most paint packages, including PSP will produce a negative with a mouse click. Mainy printer drivers also include the option to print as a negative.

    Hope this helps.

  18. DETN8R

    DETN8R What's a Dremel?

    Joined:
    27 Oct 2001
    Posts:
    1,010
    Likes Received:
    0
    does this shorten the life expectancy of the cold cathode?

  19. cpemma

    cpemma Ecky thump

    Joined:
    27 Nov 2001
    Posts:
    12,328
    Likes Received:
    55
    I can play/download the files OK now, haven't the link urls changed?

    Great effect, but some of us are a bit old for disco stuff :cries:

  20. macroman

    macroman The One

    Joined:
    3 Sep 2001
    Posts:
    1,859
    Likes Received:
    9
    Yes they have changed.
    You are never too old to get down and party :D (It's all in the mind ;))
