    LOL>
    Its a weird paint job in most pictures but its okay when you have it person.

    :D

    dakota67, 15 Dec 2009
    #21
  2. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    I do not want to cut into the sides to wire the HDs.

    I am using two SATA extensions and extending them. I will wire them in because the connectors are too large to go thru any existing holes.

    I sleeved only one extension and it is shorter than what is in the pictures.

    [​IMG]

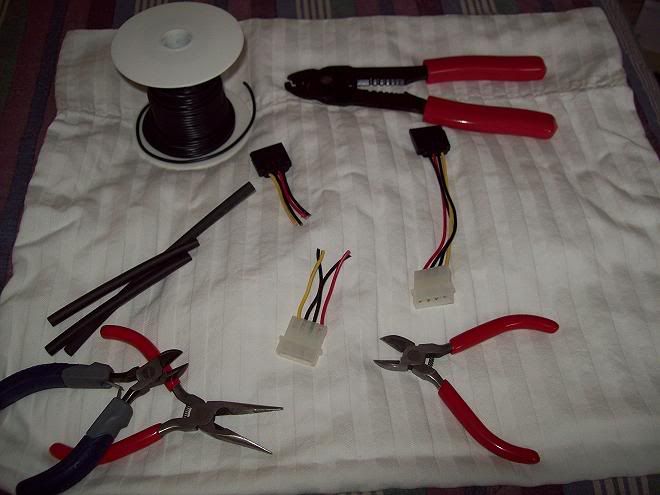

    Picture 1 is the sata extension

    [​IMG]

    [​IMG]

    [​IMG]

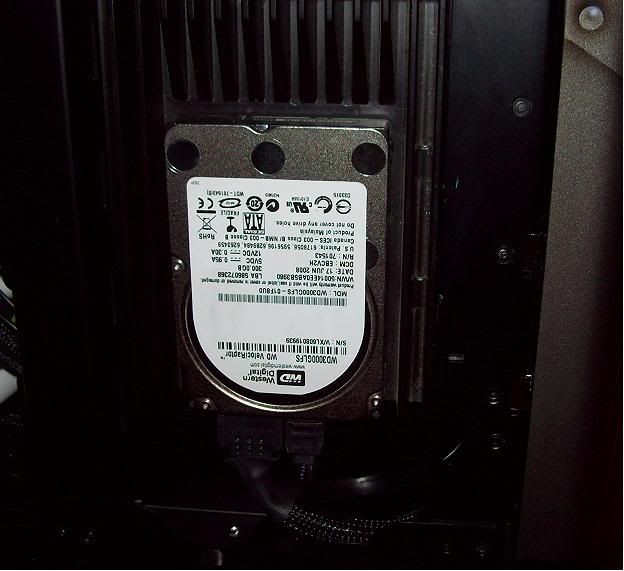

    Cables were shortened.

    dakota67, 15 Dec 2009
    #22
  3. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    FANS MOD>>>

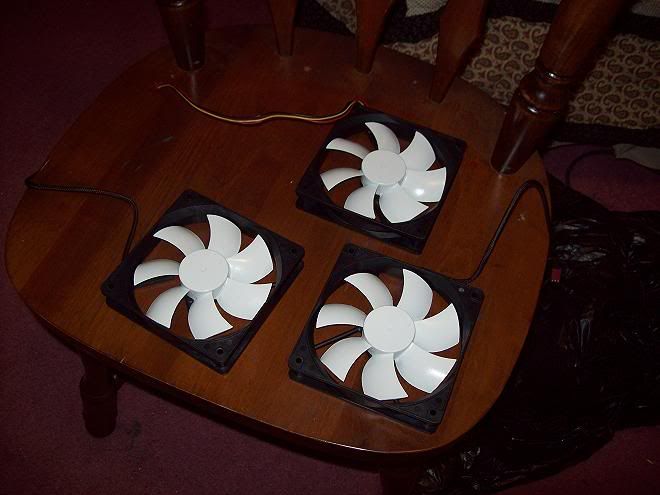

    Purchased three Cooler Master case fans Silent...120mm fans
    Spray painted them white.

    [​IMG]

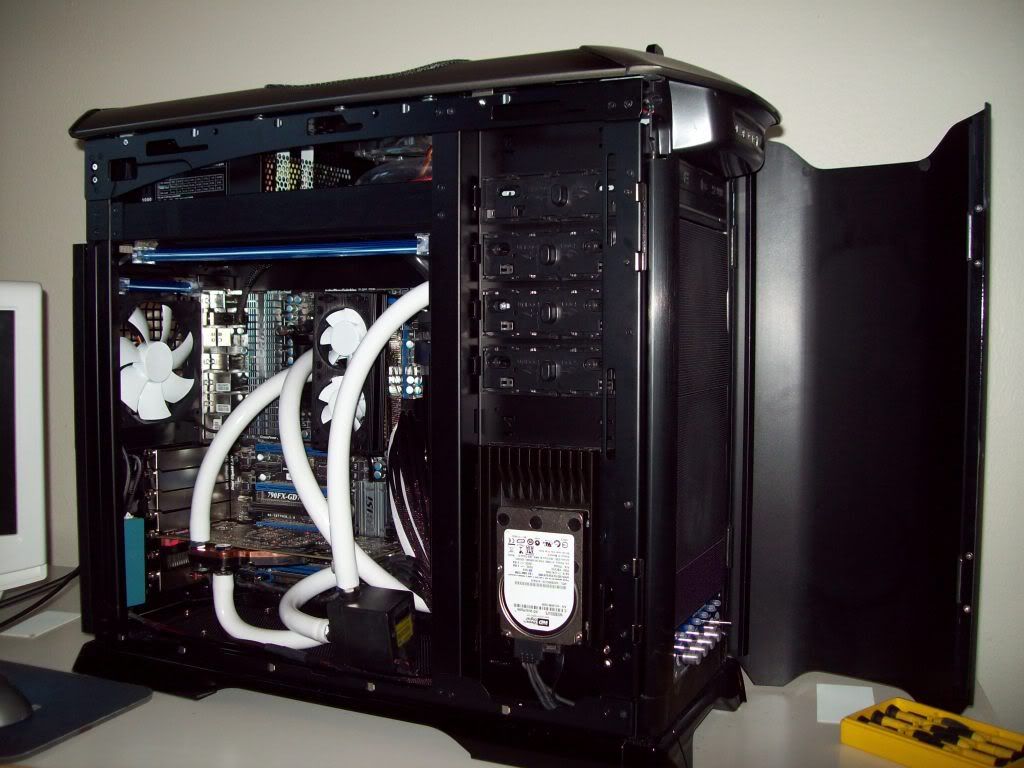

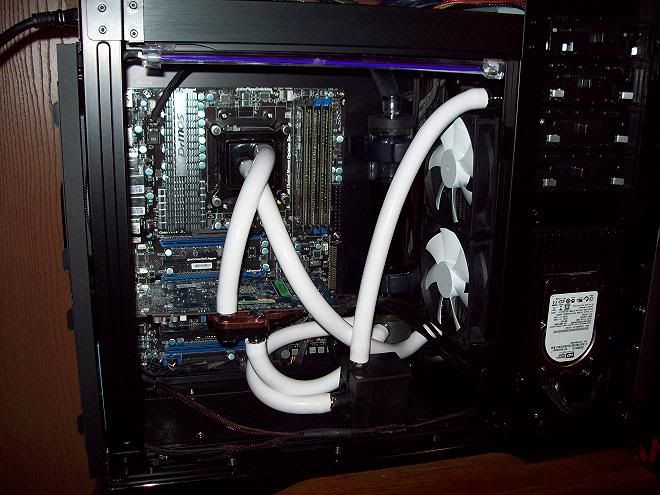

    Installed fans but still waiting on the ram cooler...

    [​IMG]

    dakota67, 22 Dec 2009
    #23
  4. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    Purchased two Blue LED 120mm Cooler Master fans for the front panel.

    Installed the BluRay Drive (LG).

    Installed my old fan controller.

    [​IMG]

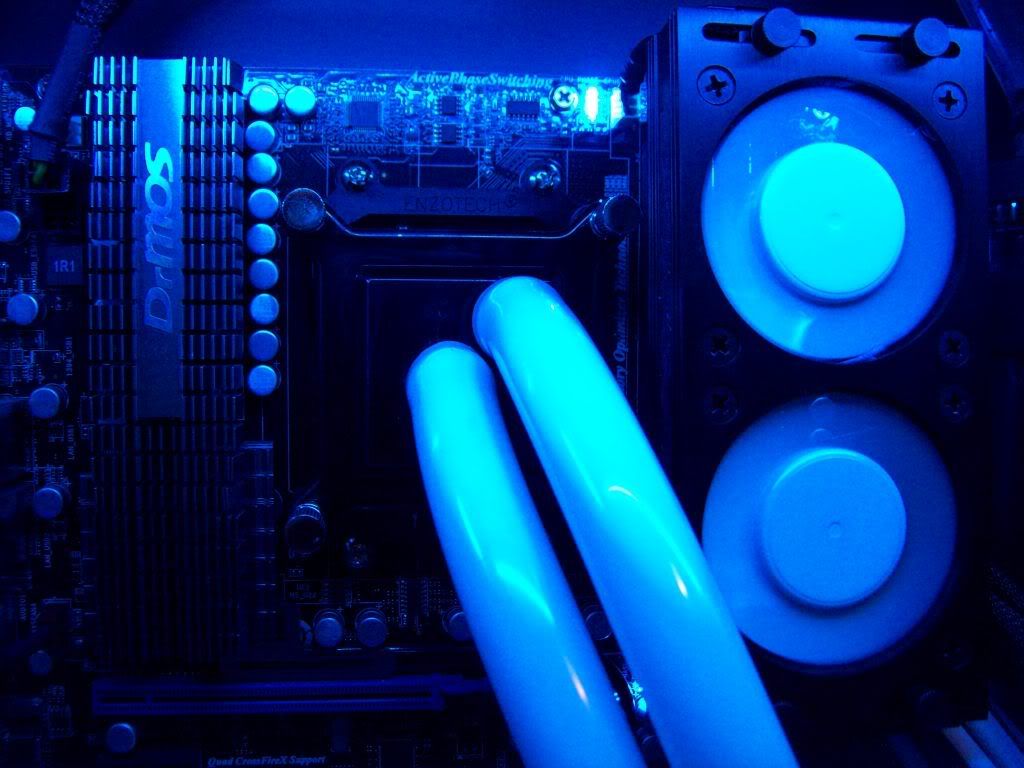

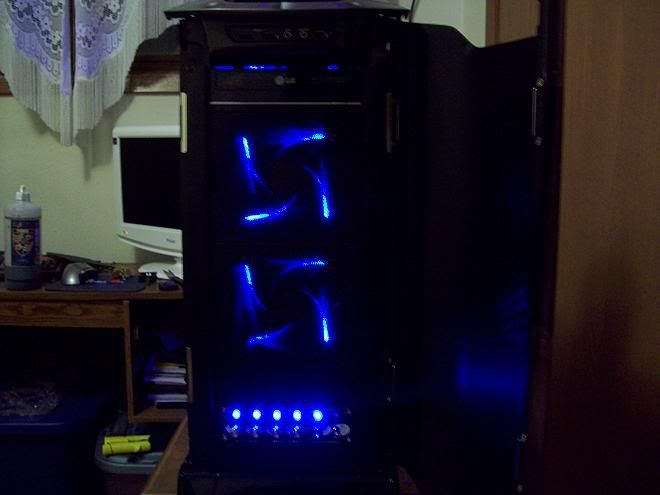

    LIGHTS OFF>......

    [​IMG]

    dakota67, 22 Dec 2009
    #24
  5. subby

    subby Me...just like you...only better

    Joined:
    5 May 2009
    Posts:
    97
    Likes Received:
    0
    are you venting the warm air from the CPU and GPU, out the front or top of your rig?

    subby, 22 Dec 2009
    #25
  6. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    there is a top fan (blue LED venting air out)
    There is a rear fan (white and black) venting air out.
    two fans front venting air into the case...

    however...the two fans on the radiator are venting the radiator.

    I know its not in the same flow but id rather have something blowing on the radiator directly.

    I didnt think anyone would catch my fan flow

    dakota67, 22 Dec 2009
    #26
  7. Edge102030

    Edge102030 Son, i am disappoint.

    Joined:
    21 Aug 2009
    Posts:
    568
    Likes Received:
    28
    This really is sparta.. :)

    Edge102030, 22 Dec 2009
    #27
  8. Sushi Warrior

    Sushi Warrior What's a Dremel?

    Joined:
    20 Mar 2009
    Posts:
    137
    Likes Received:
    2
    THE CAPS REALLY SETS AN ATMOSPHERE/MOOD. LOOKING GOOD.

    Sushi Warrior, 22 Dec 2009
    #28
  9. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    THANKS. :rock:

    dakota67, 23 Dec 2009
    #29
  10. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0

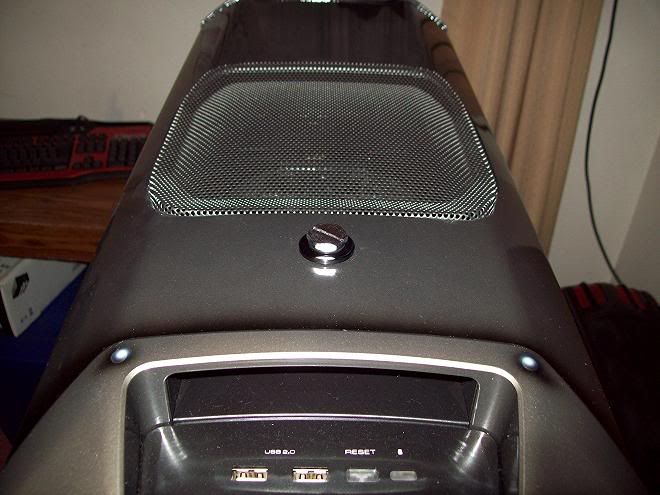

    FILL PORT MOD

    INSTALLED.........
    BEFORE
    [​IMG]

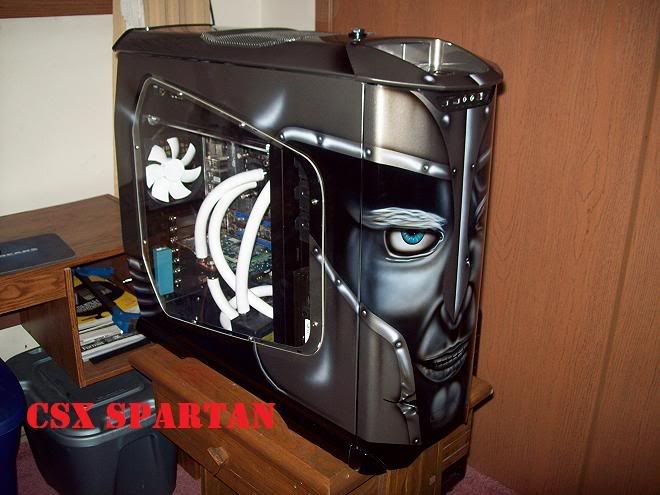

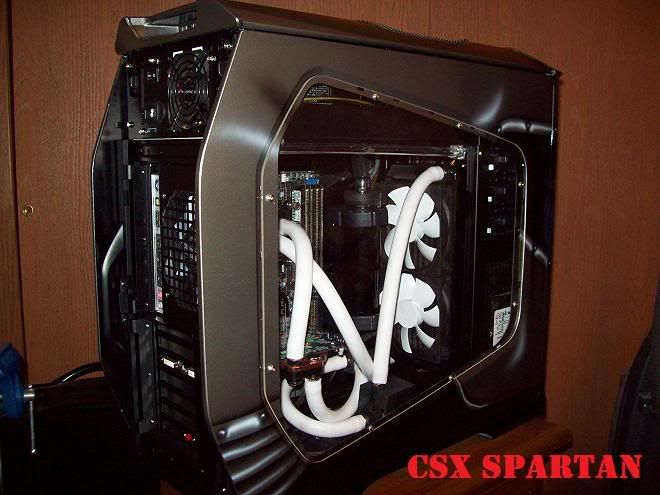

    AFTER
    [​IMG]

    dakota67, 24 Dec 2009
    #30
  11. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    CORSAIR MEMORY FAN
    [​IMG]

    Getting ready for paint...
    [​IMG]
    [​IMG]

    dakota67, 24 Dec 2009
    #31
  12. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    [​IMG]

    [​IMG]

    dakota67, 24 Dec 2009
    #32
  13. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0

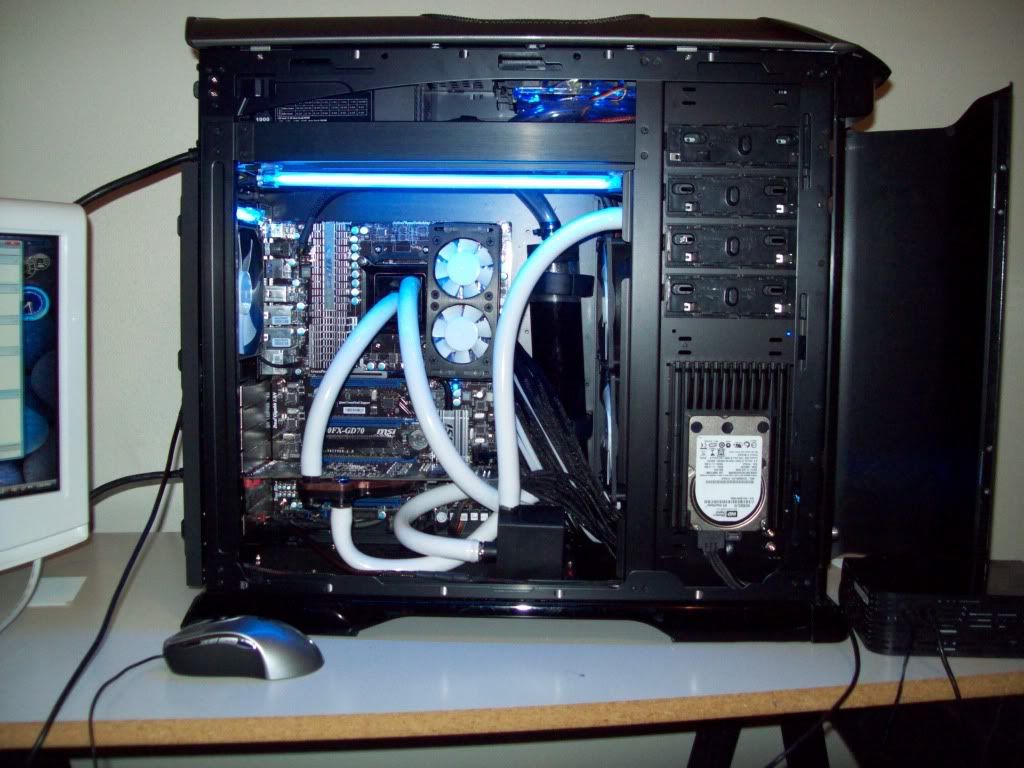

    CSX Spartan Finished.

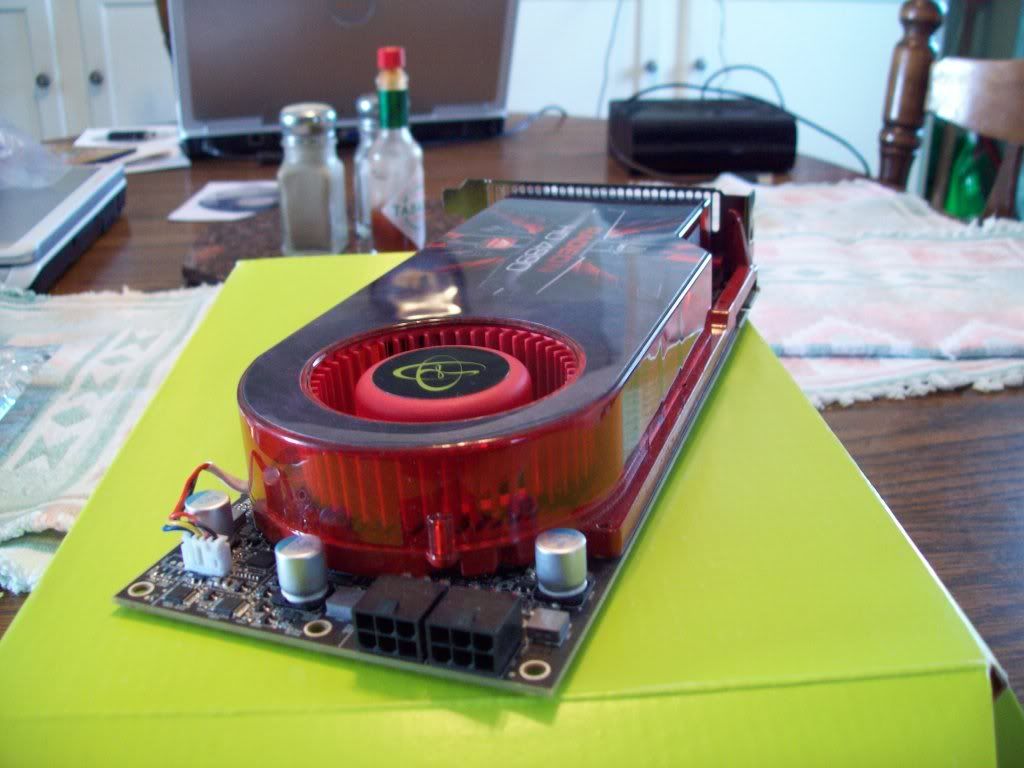

    HD 4890 Extreme Video Card with HD 4850 water block (modded).

    [​IMG]

    dakota67, 17 Jan 2010
    #33
  14. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0

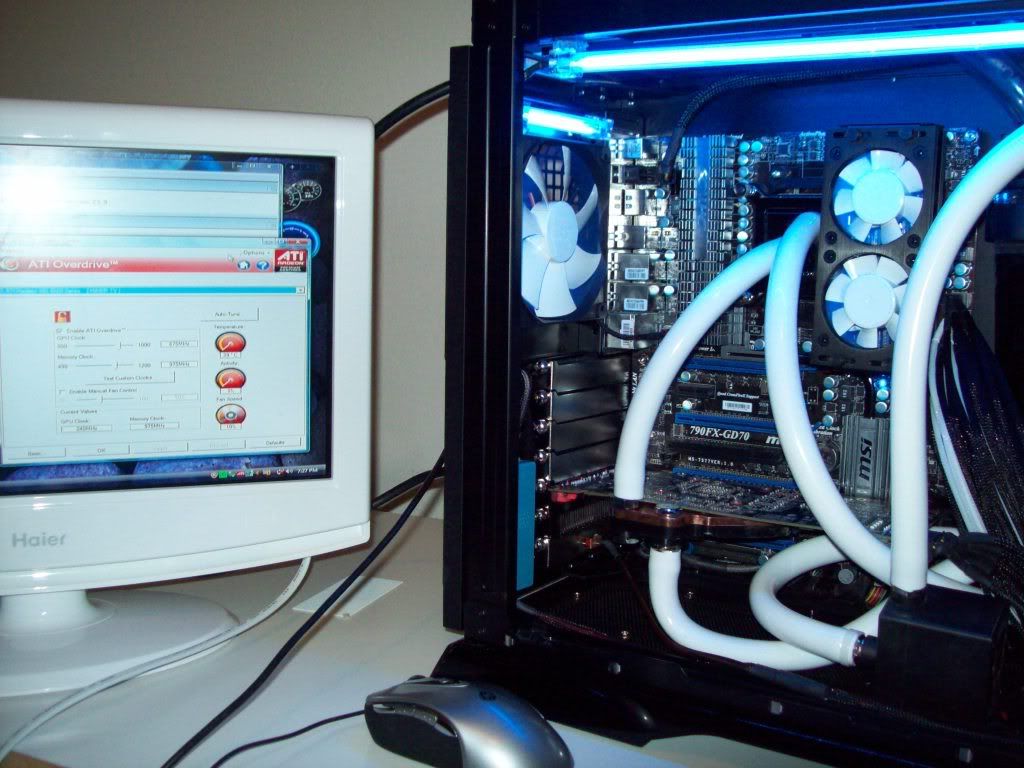

    ADDED BLUE LED

    ADDED White and Black Braided 24 pin extension for PSU

    ADDED water block to video card

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    dakota67, 17 Jan 2010
    #34
  15. dakota67

    dakota67 SOUTH DAKOTA MODDER!!!

    Joined:
    19 Nov 2009
    Posts:
    142
    Likes Received:
    0
    The HD 4850 block does not cover everything for the HD 4890 extreme so I will be getting a new water block for the card. The temps are fine but I want it to run even cooler than it is now. The temps range from 38C to 63C. Because I am running 8GB memory, I think that is the reason for a slower 3D Mark score. Its scores around 10824 3DMARK AND to me thats too slow. I know this can do better but it has to do with the timings of the memory. Right now its overclocked to 3.4Ghz.

    dakota67, 17 Jan 2010
    #35
