Modding Custom Water Block with pics :)

Discussion in 'Modding' started by jcb121, 11 Jun 2010.

  1. jcb121

    jcb121 What's a Dremel?

    Joined:
    27 Dec 2009
    Posts:
    69
    Likes Received:
    6
    The Plan: During my time off from school, i will venture into school to build water blocks for my pc :)

    Firstly the GPU:

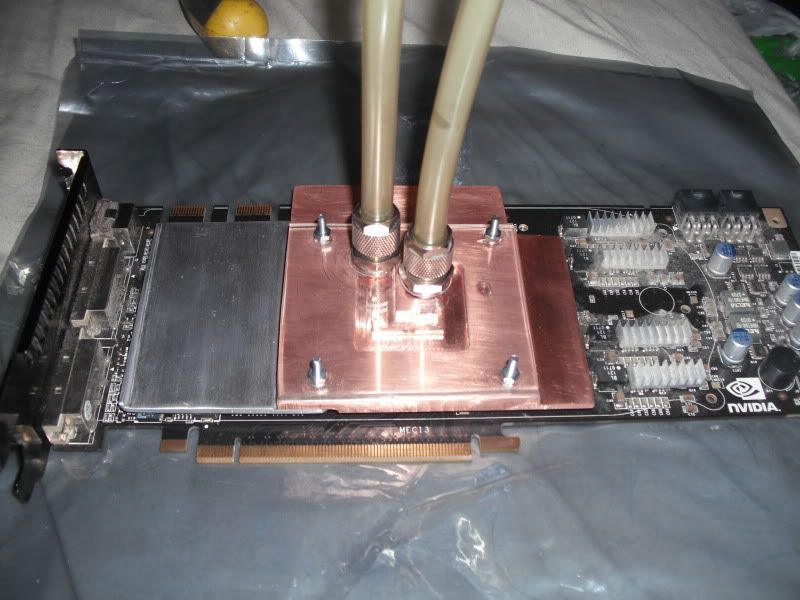

    I Picked up a 100x100x10mm chunk of Copper from FromStock and after many drawings on Google SketchUp i decided to get cracking. This is hopefully going to silence my noisy 8800 ultra and probably not make it cooler. So far, using my schools 1950s Mill i have created this:

    [​IMG]

    or you can see my entire almbum

    Last Night i snapped the acrylic and cut the aluminium too short. luckily i have a almost unlimited supply of those thing in my school :) i am planning on getting a thin sheet of copper to replace the Alu and was thinking about a copper top as well but have kinda decided against it at the moment.

    all that needs doing to it now is for the copper to be milled out a bit more as the barbs push the acrylic away from the copper, make a new Alu and Acrylic bit and find a G1/4 Tap as the barbs leak like no tomorrow when they are just jammed in a acrylic hole! :dremel:

    Last edited: 13 Jun 2010
    jcb121, 11 Jun 2010
    #1
  2. Ternix

    Ternix What's a Dremel?

    Joined:
    5 Nov 2009
    Posts:
    92
    Likes Received:
    0
    Nice work, have you got results for heat tests? Be interesting to see how well this block performs.

    Ternix, 14 Jun 2010
    #2
  3. Shadow703793

    Shadow703793 What's a Dremel?

    Joined:
    5 May 2009
    Posts:
    331
    Likes Received:
    5
    Not trying to be a d1ck but you need more surface area for water contact on that block imo. Also, don't use Acrylic. Use 1/4" Polycarbonate or better for the top cover. Also, how are you preventing water from coming out? Just plain pressure with the screws or are you using some O Rings or Epoxy, silicone,etc?

    Shadow703793, 15 Jun 2010
    #3
  4. jcb121

    jcb121 What's a Dremel?

    Joined:
    27 Dec 2009
    Posts:
    69
    Likes Received:
    6
    i did just try putting water in the block and putting the top on and it didn't leak at all :)
    i am going to use clear instant gasket or something like that, (instant gasket because i have it at hand and it does the job well)

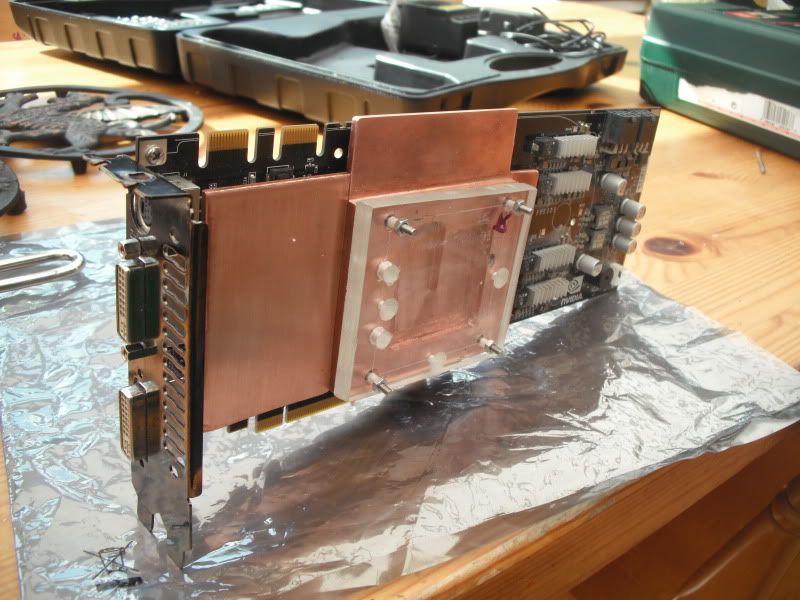

    i am thinking about tracking down some copper heat sinks and soldering them down to increase the surface area a bit. i have made the channels bigger as well and it isn't G shape any more. :(


    [​IMG]

    that is it at the current state. i haven't update this thread in a while because everyone was just gunna let it die alone! :p

    all of my pics are ion my album btw!

    jcb121, 16 Jun 2010
    #4
  5. talladega

    talladega I'm Squidward

    Joined:
    18 Aug 2007
    Posts:
    5,258
    Likes Received:
    495
    Please don't use any aluminum! It will cause corrosion.

    Otherwise good work!

    :thumb:

    talladega, 17 Jun 2010
    #5
  6. asura

    asura jack of all trades

    Joined:
    22 Apr 2009
    Posts:
    1,747
    Likes Received:
    78
    Be sure to use a hard solder (silver solder, or brazing rod) not a soft solder (Tin solder, Lead solder, etc.)

    asura, 17 Jun 2010
    #6
  7. jcb121

    jcb121 What's a Dremel?

    Joined:
    27 Dec 2009
    Posts:
    69
    Likes Received:
    6
    Thanks all,

    i just lapped the copper to about 1500 grit and it is looking good :)

    also, the alu was a prototype :)

    jcb121, 17 Jun 2010
