Scratch Build – In Progress Dark Blade by G69T

Discussion in 'Project Logs' started by G69T, 30 Nov 2004.

  1. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Greetings by G69T.

    Following I'll describe you, what I'm thinking to do: my way of modding.
    Starting from my first project (born in 2003), I'll arrived to this new modding: The Dark Blade

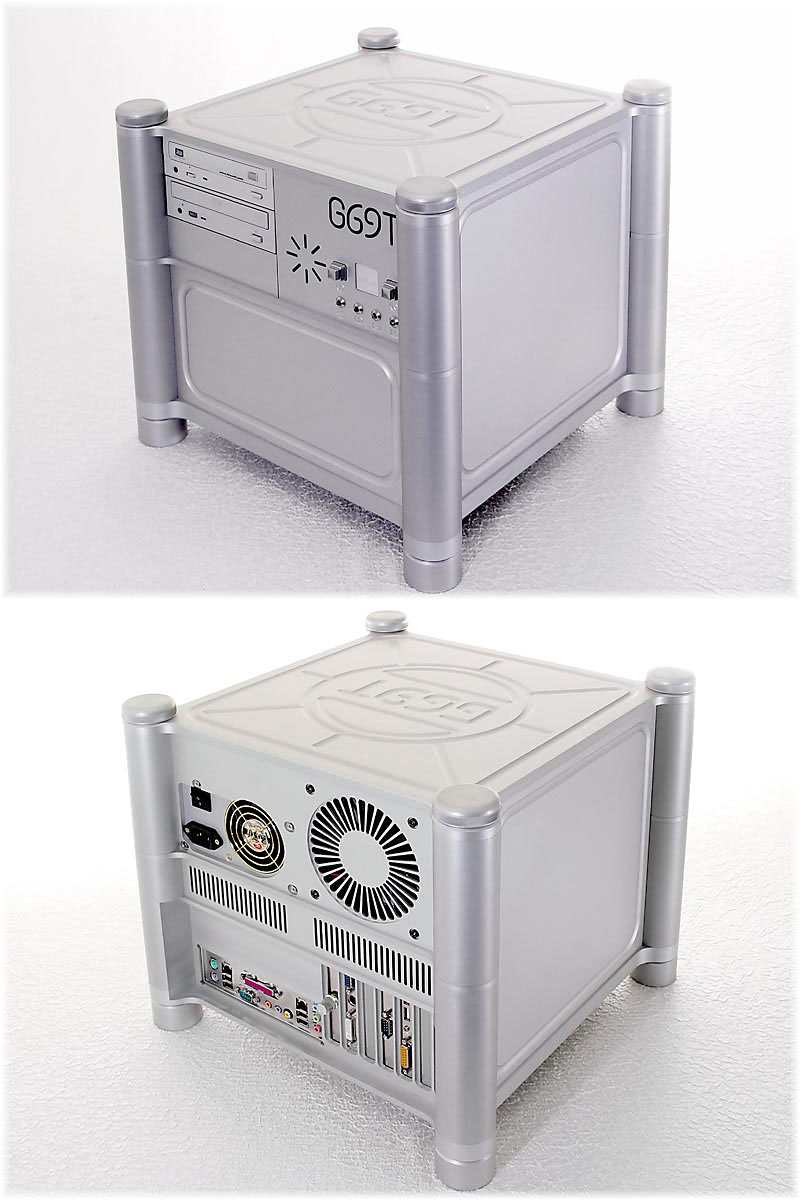

    My original case mod: The very first one.

    [​IMG]
    ZOOM!

    CNC milling machine.

    [​IMG]

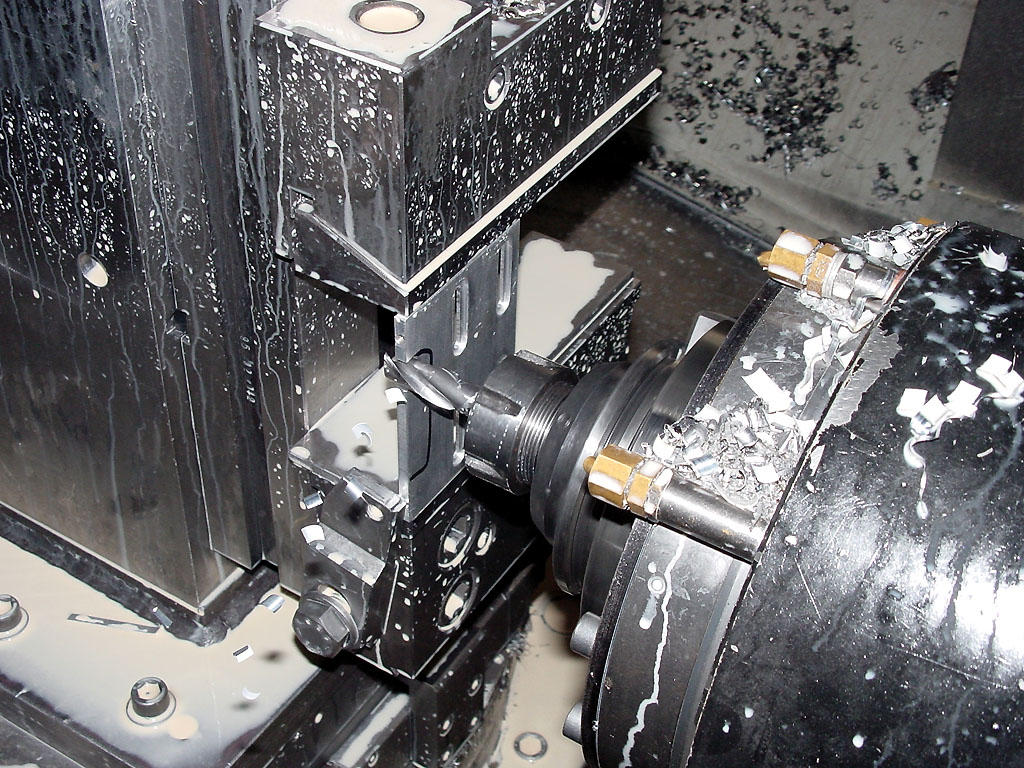

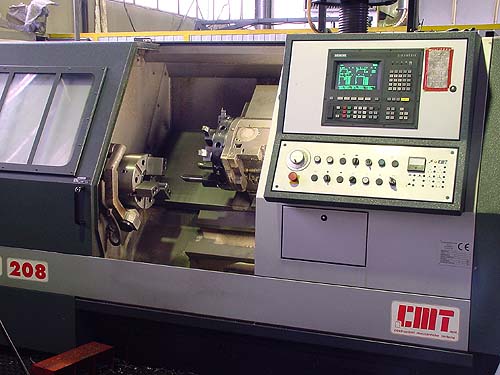

    CNC automatic lathe.

    [​IMG]


    The columns of the Dark Blade are very particular; they have a cuttering profile, like the top and the bottom.
    There also will be a water cooling system.

    At the bottom there will be a led system, lightening the entire case.

    That's an image of the original plan.

    [​IMG]

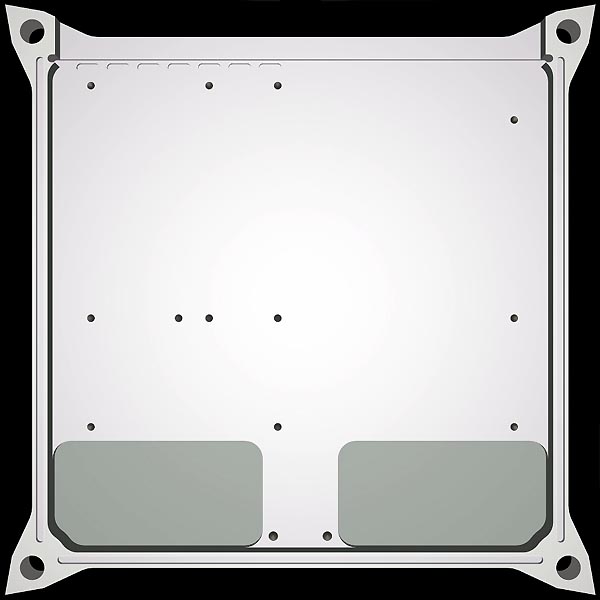

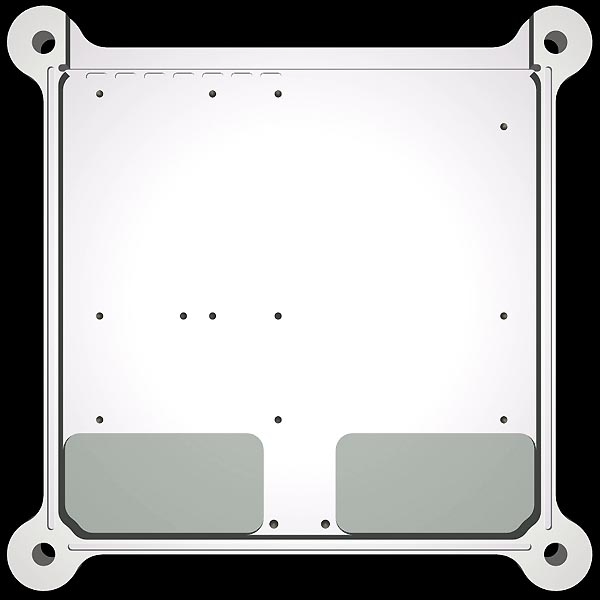

    The image of the Dark Blade new base.

    [​IMG]

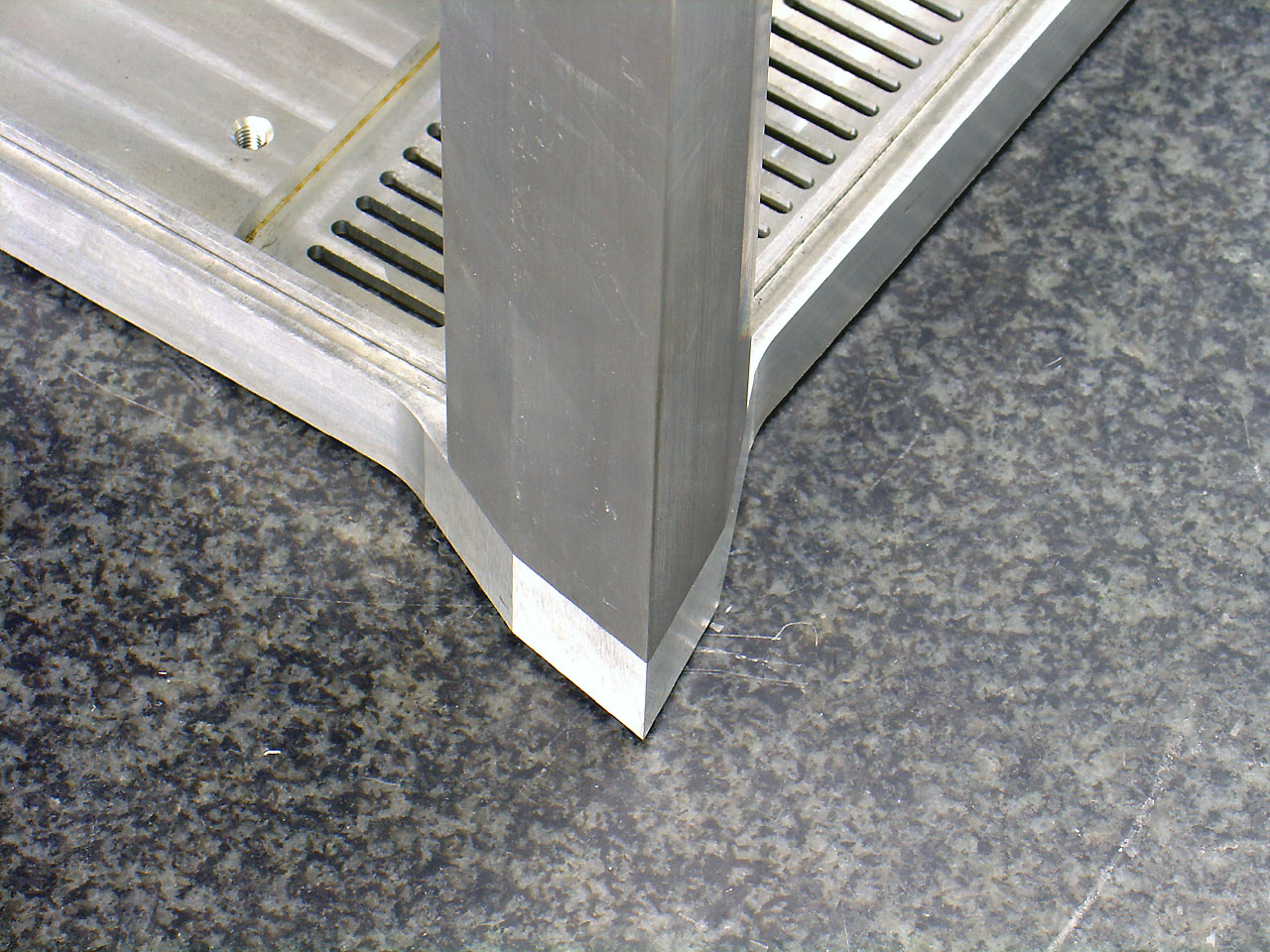

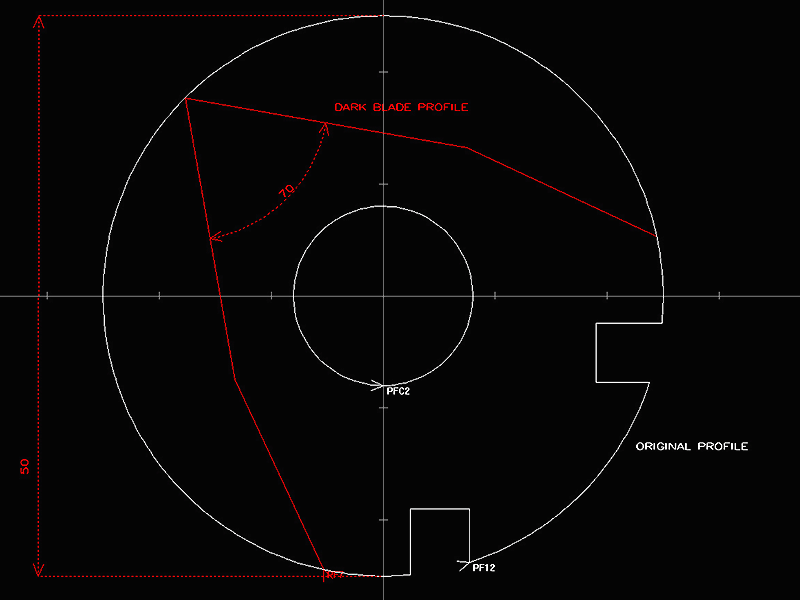

    This picture shows the difference beetween the columns profile.

    [​IMG]

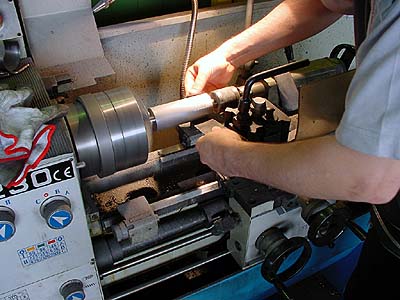

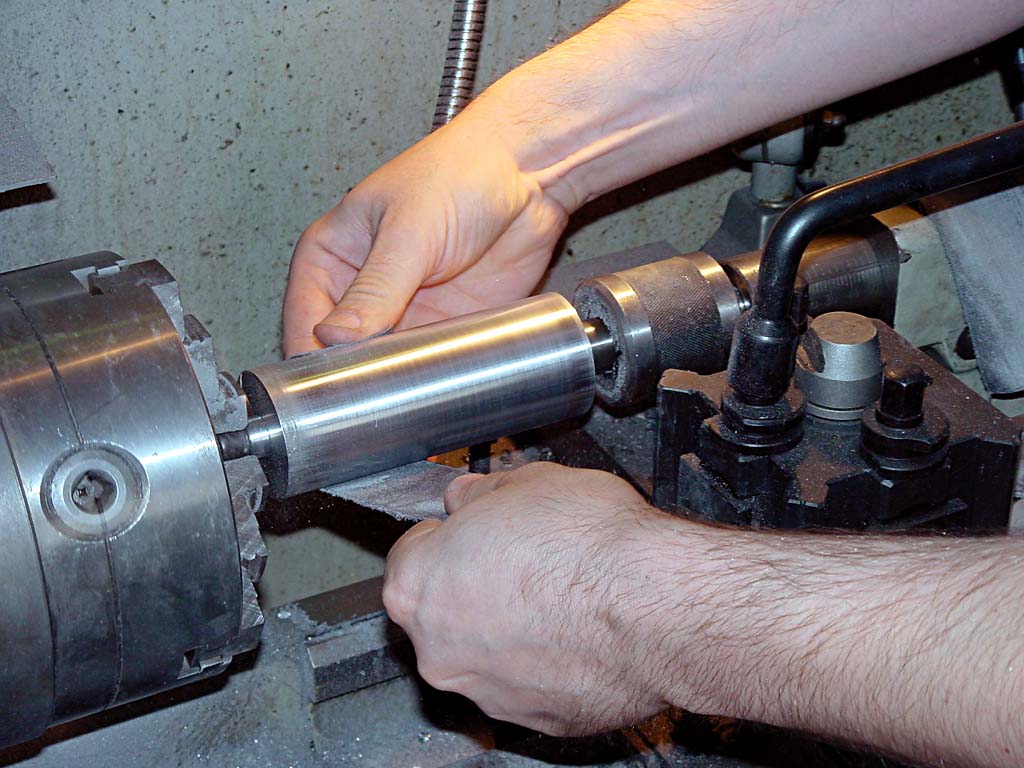

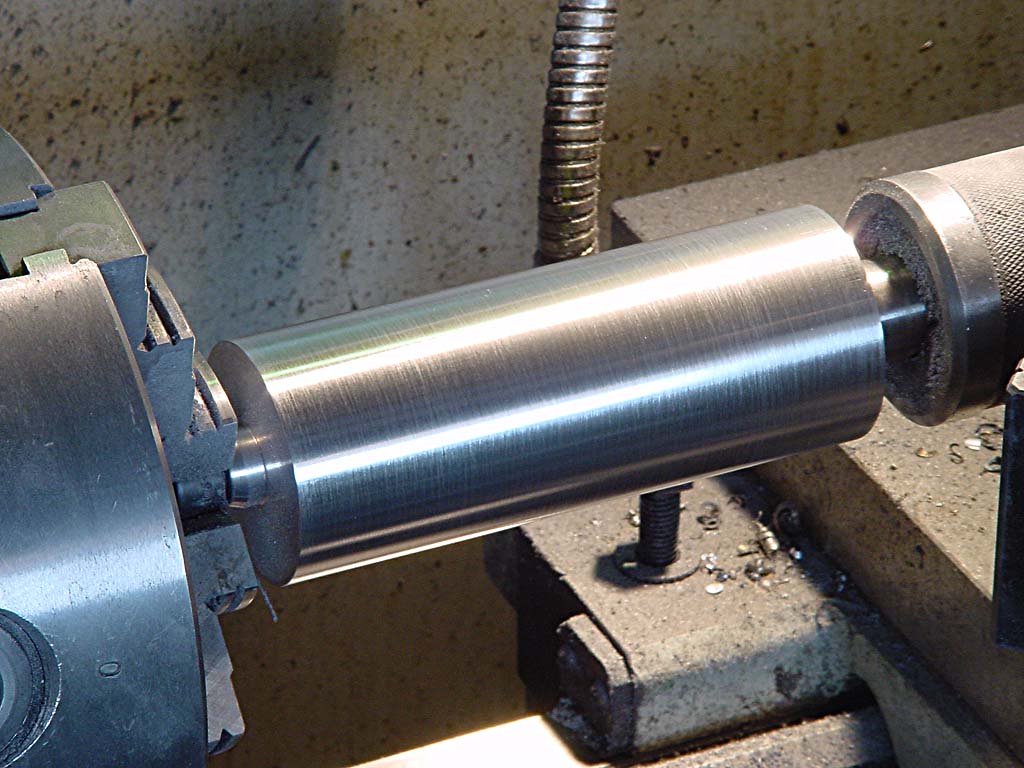

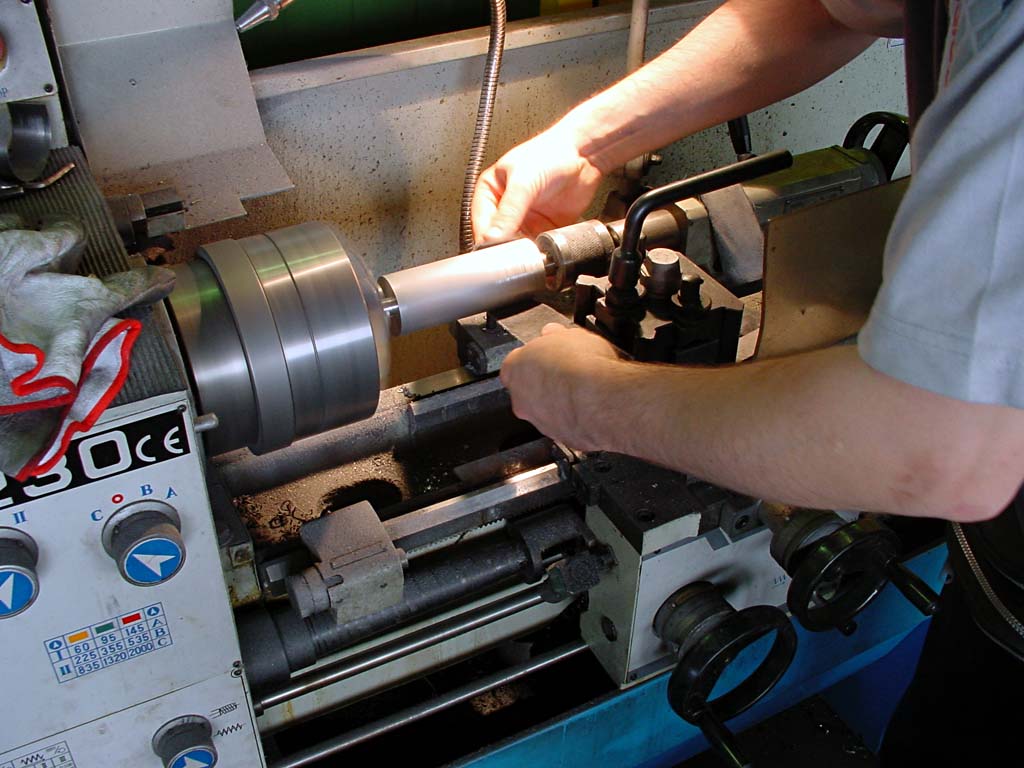

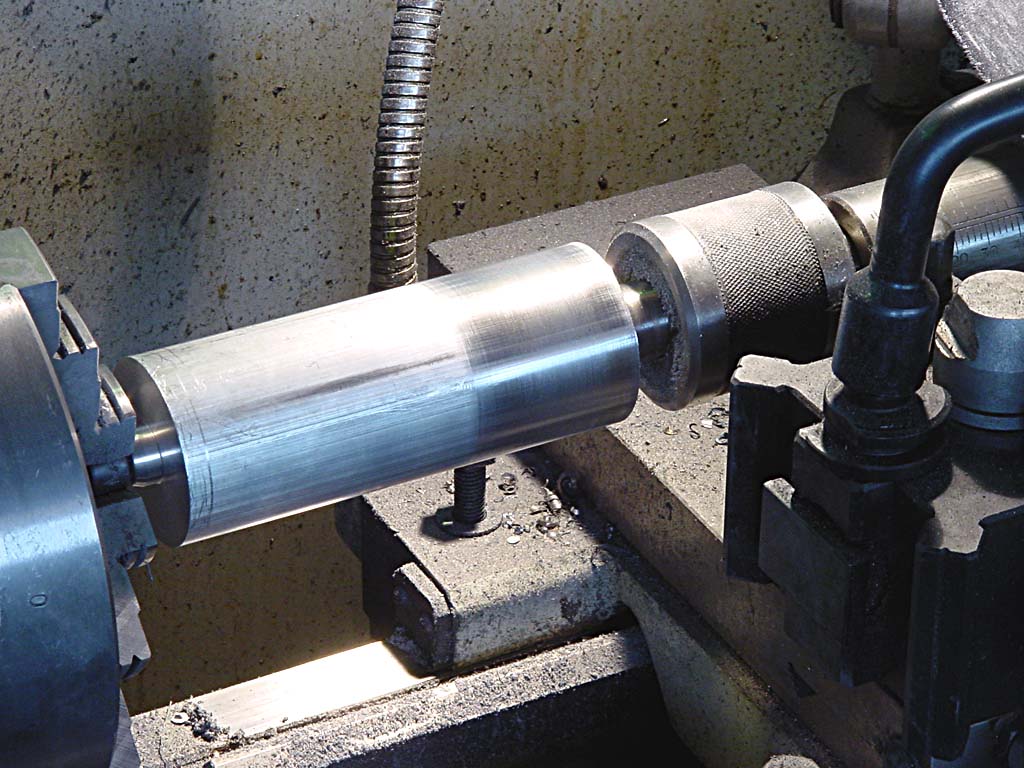

    The column polishing with a traditional lathe.
    Some pictures about that :)

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

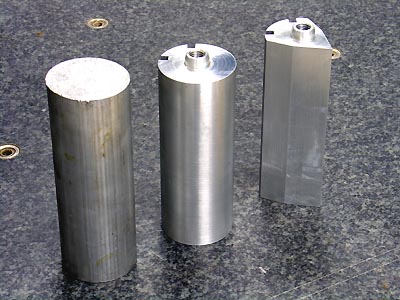

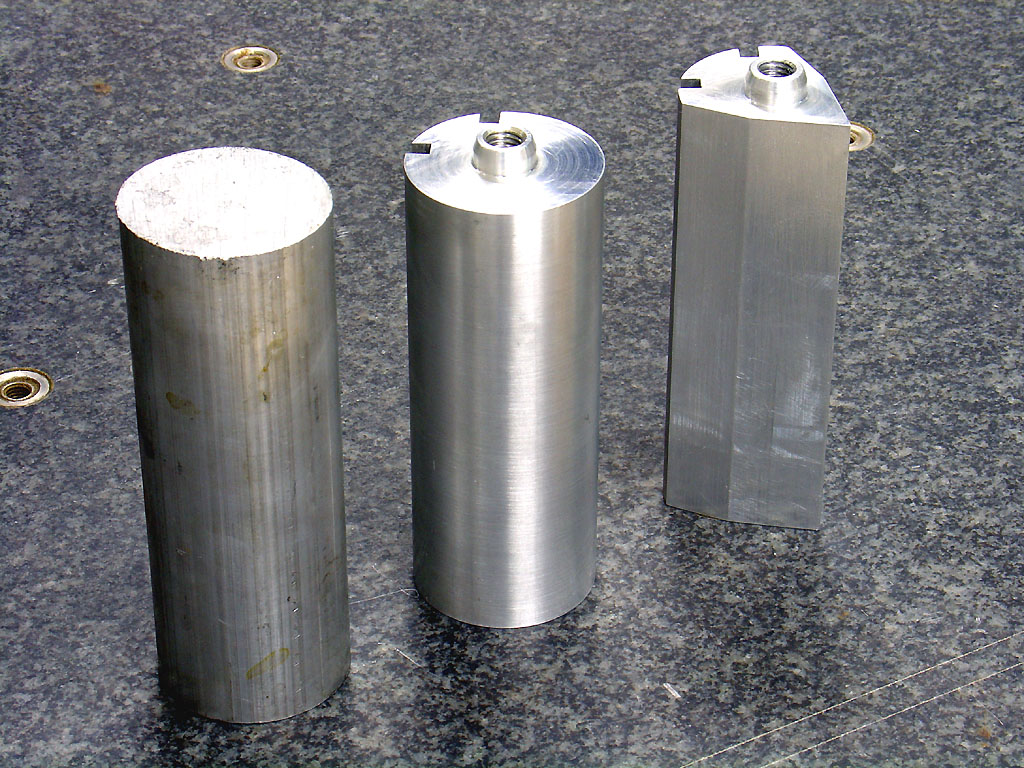

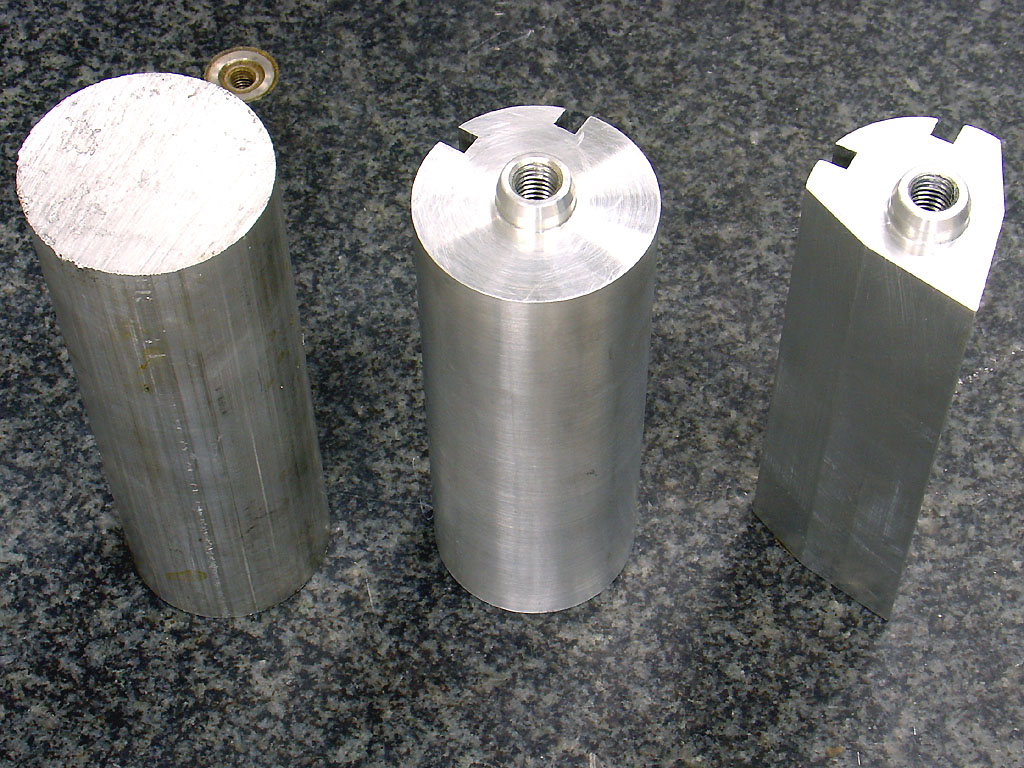

    Three are the columns: row (Alu D 50 mm.) - Original (G69T Classic) - Dark Blade

    [​IMG]
    Zoom

    [​IMG]
    Zoom

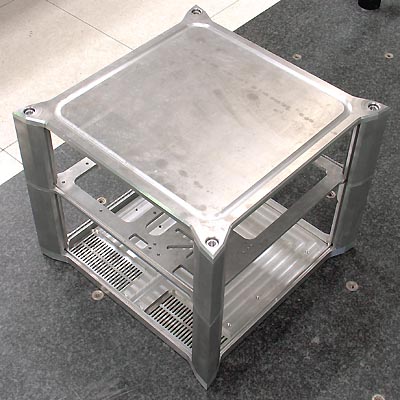

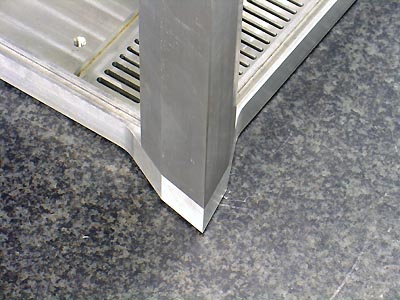

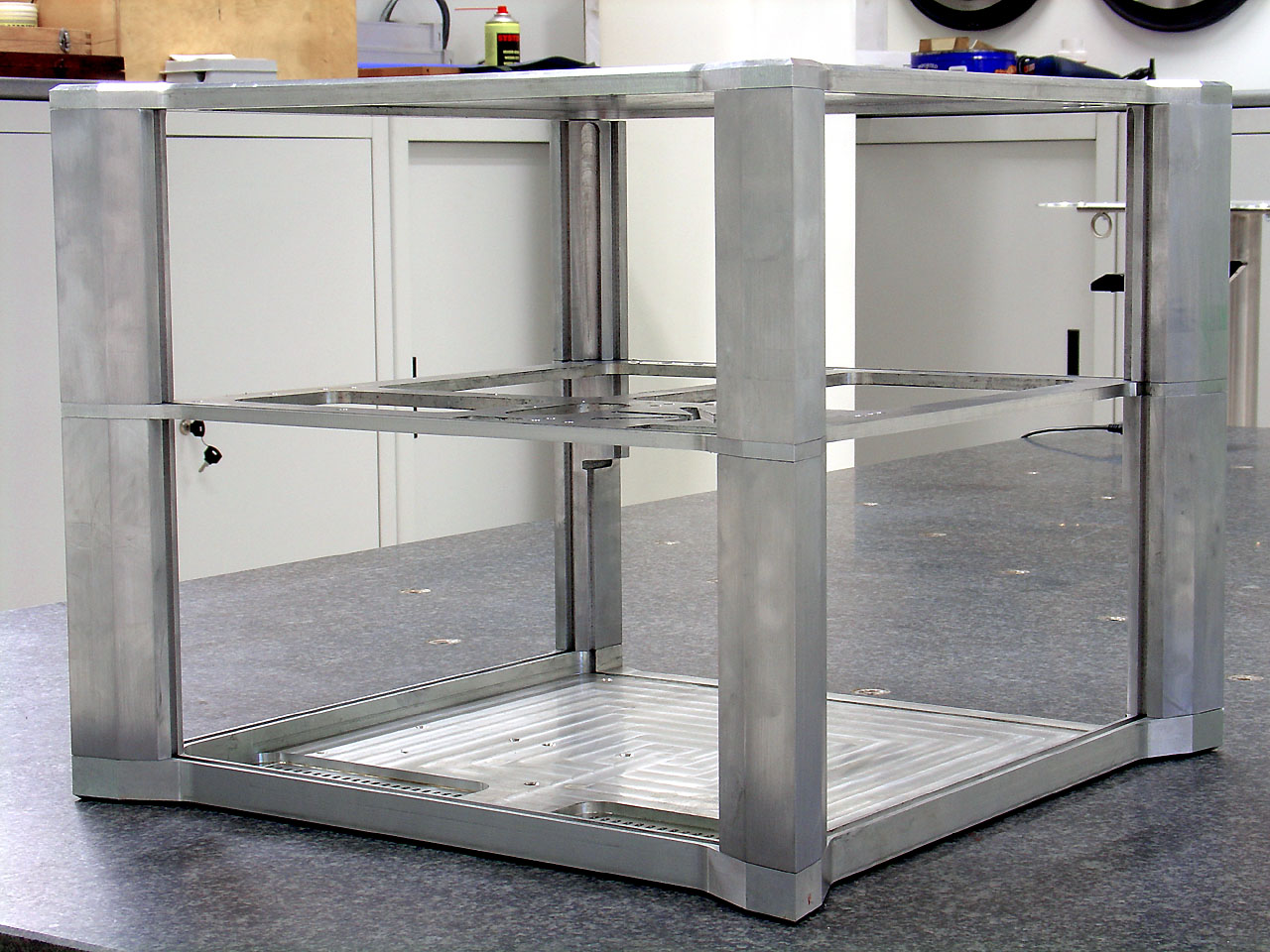

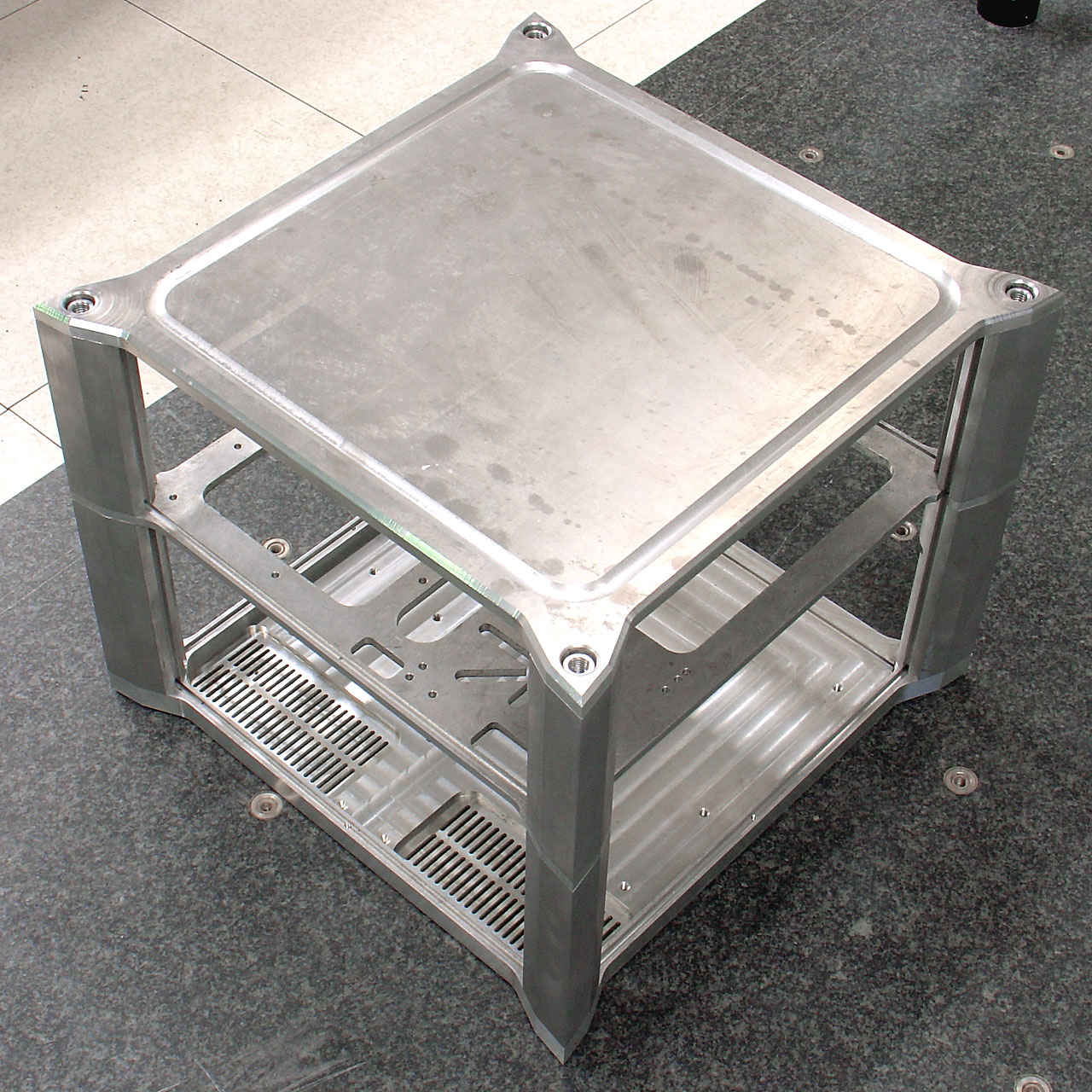

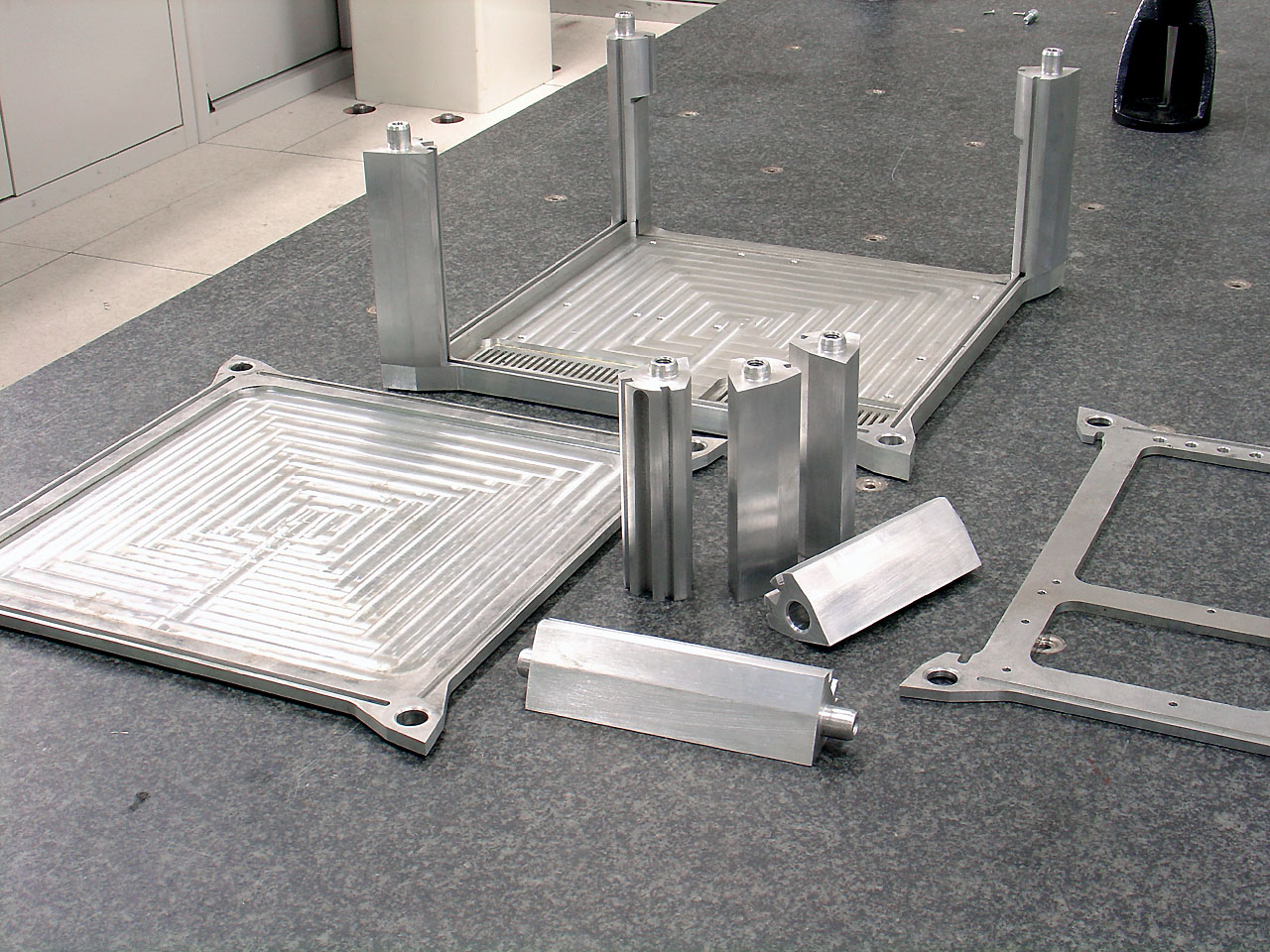

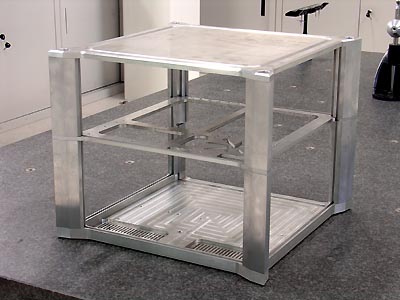

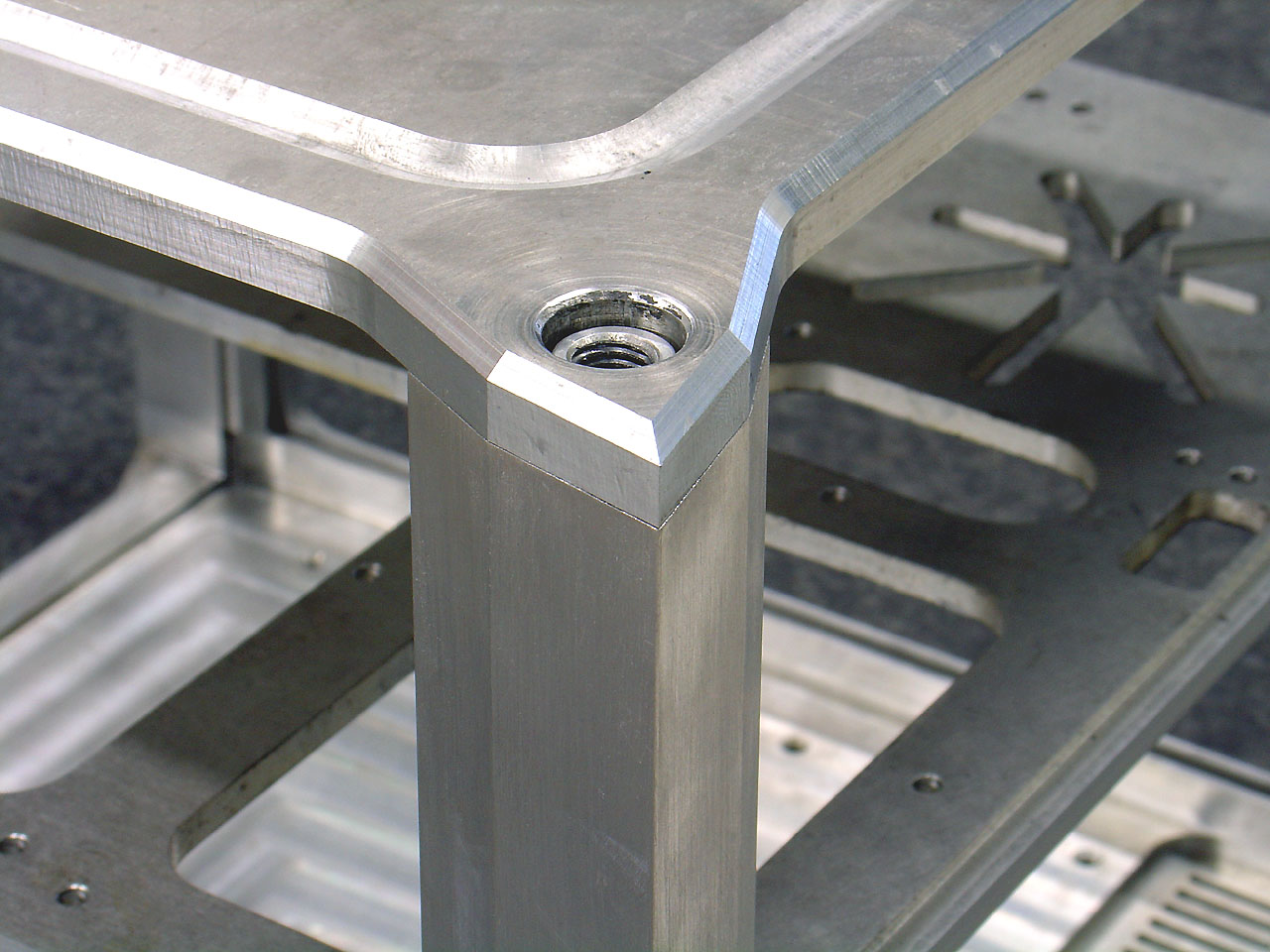

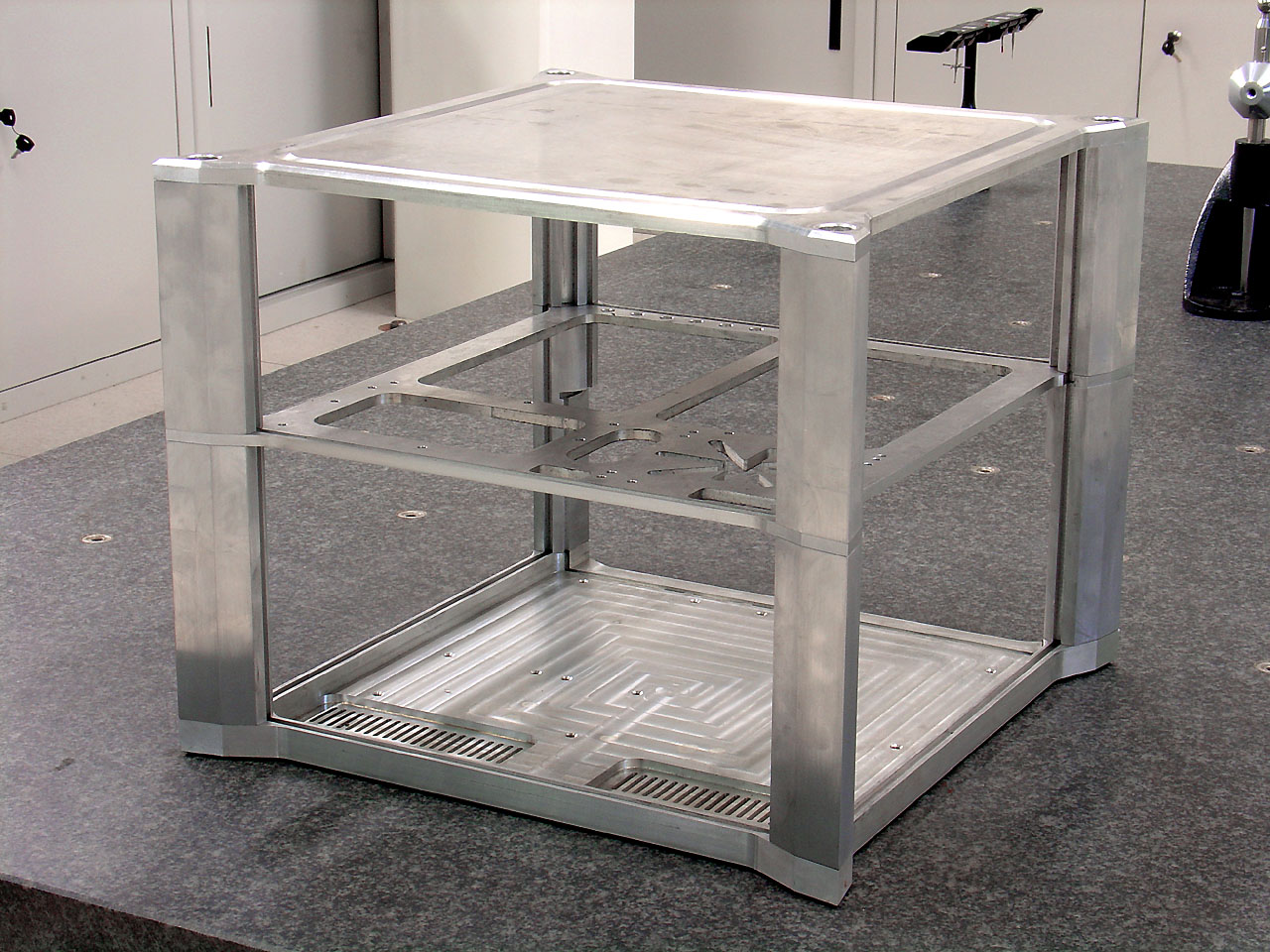

    The 8 columns, the base profile, Central support and the top.

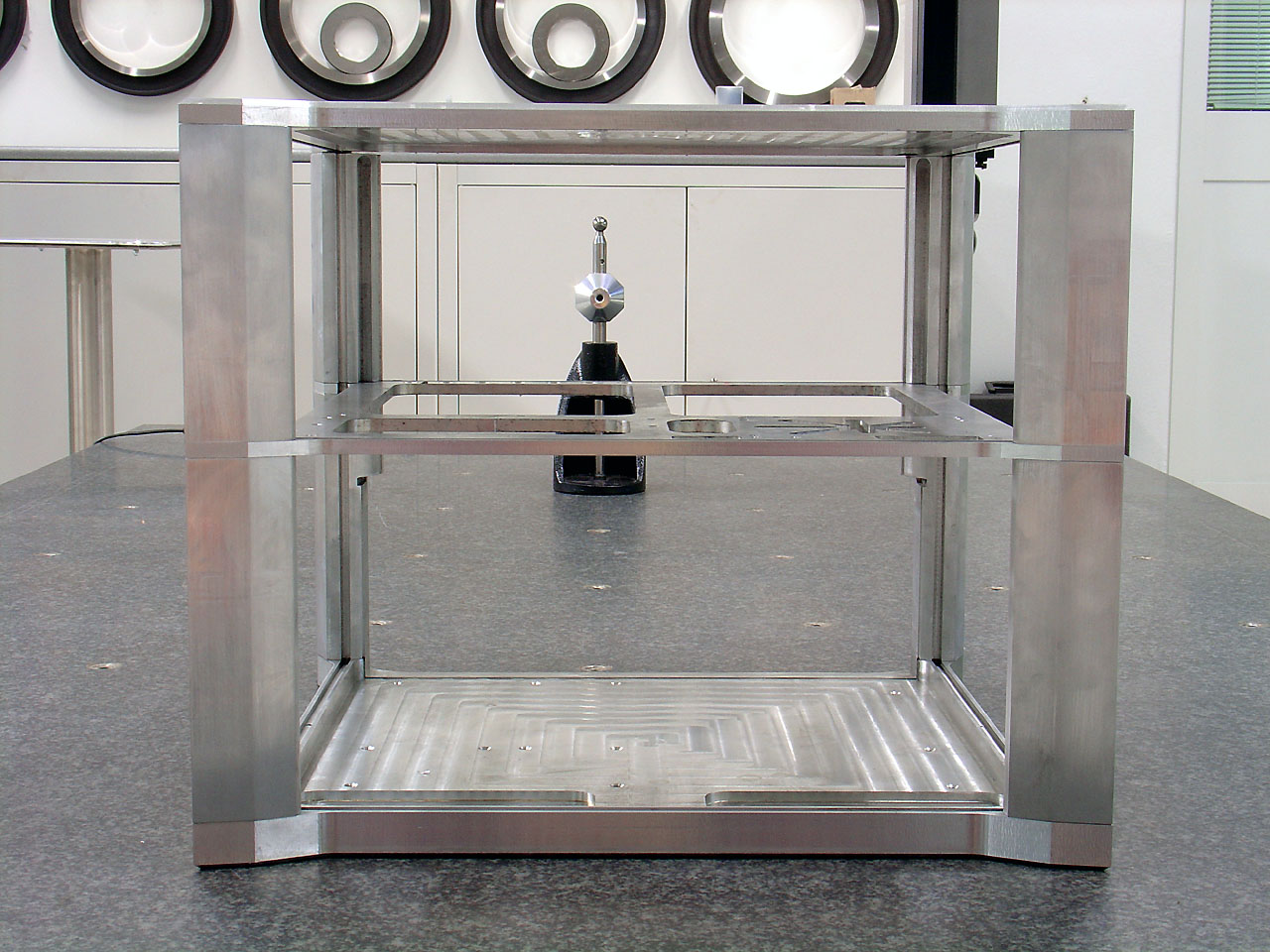

    That's an assembled test - even not polished - to have an idea of the outcome.

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    [​IMG]
    Z O O M !

    see you soon... - work in progress.

    Bye Bye :thumb:

  2. Sea Shadow

    Sea Shadow aka "Panda"

    Joined:
    15 Jan 2004
    Posts:
    614
    Likes Received:
    13
    I have one thing to say:
    WOW!!
    That is an amazing project you have going there, you are so lucky to have access to such nice machinery too!

  3. Acid Burn

    Acid Burn ..look but don't touch..

    Joined:
    14 Mar 2004
    Posts:
    976
    Likes Received:
    0
    that looks great!! man i wish i had access to that kind of equipment. you sure know how to use it :naughty: good job

  4. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Something to explain working phases about the HD support: the no vibration system.

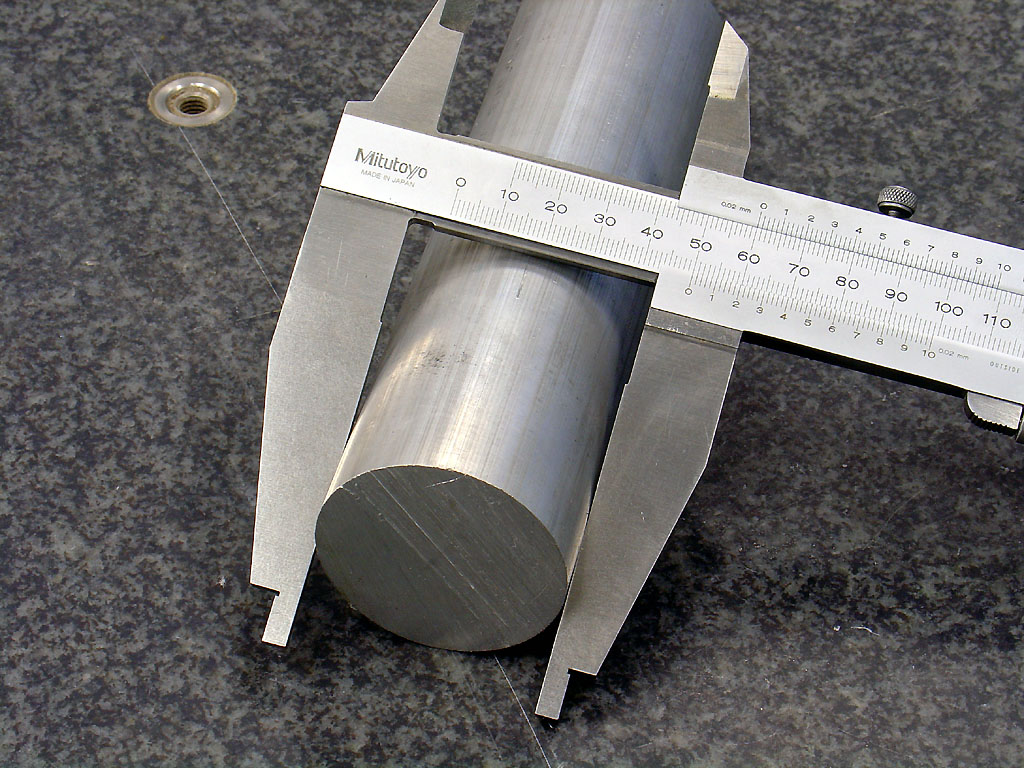

    The Alu bar D 50 mm.

    [​IMG]
    Zoom

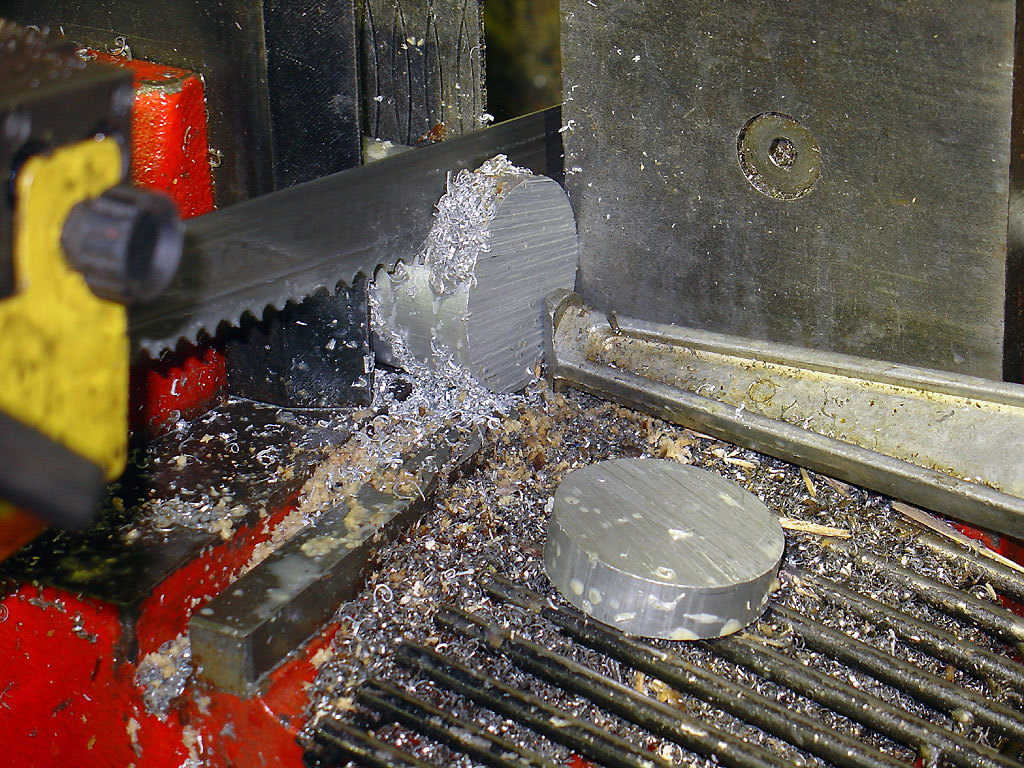

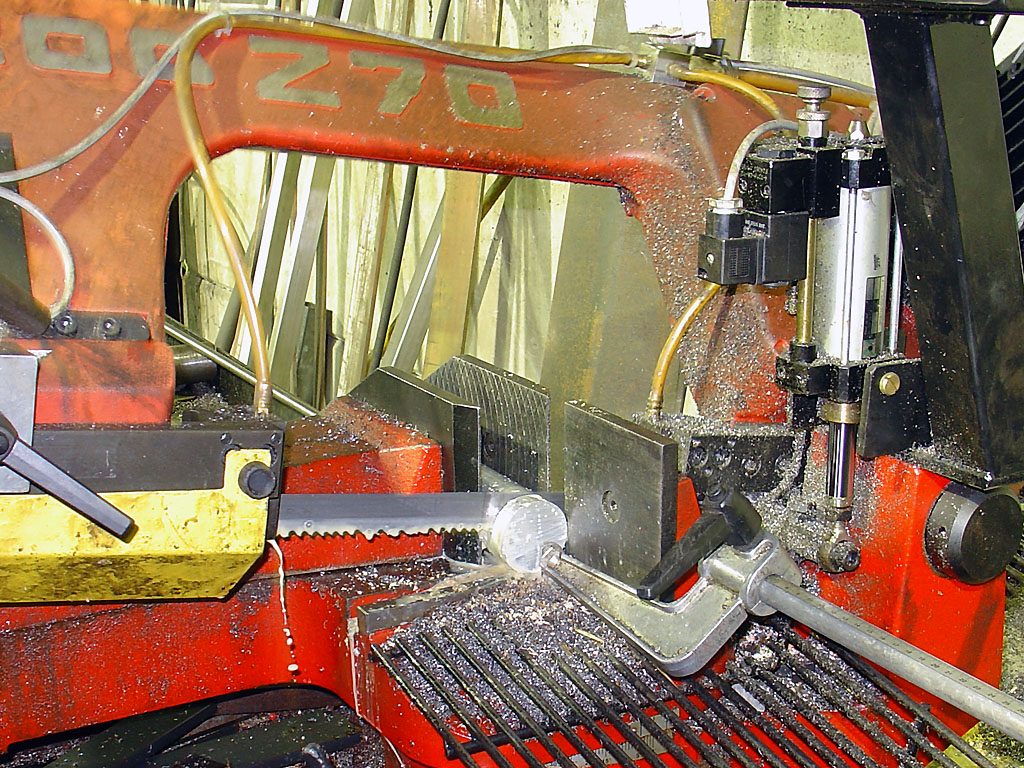

    2 particulars cutting by a band saw.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

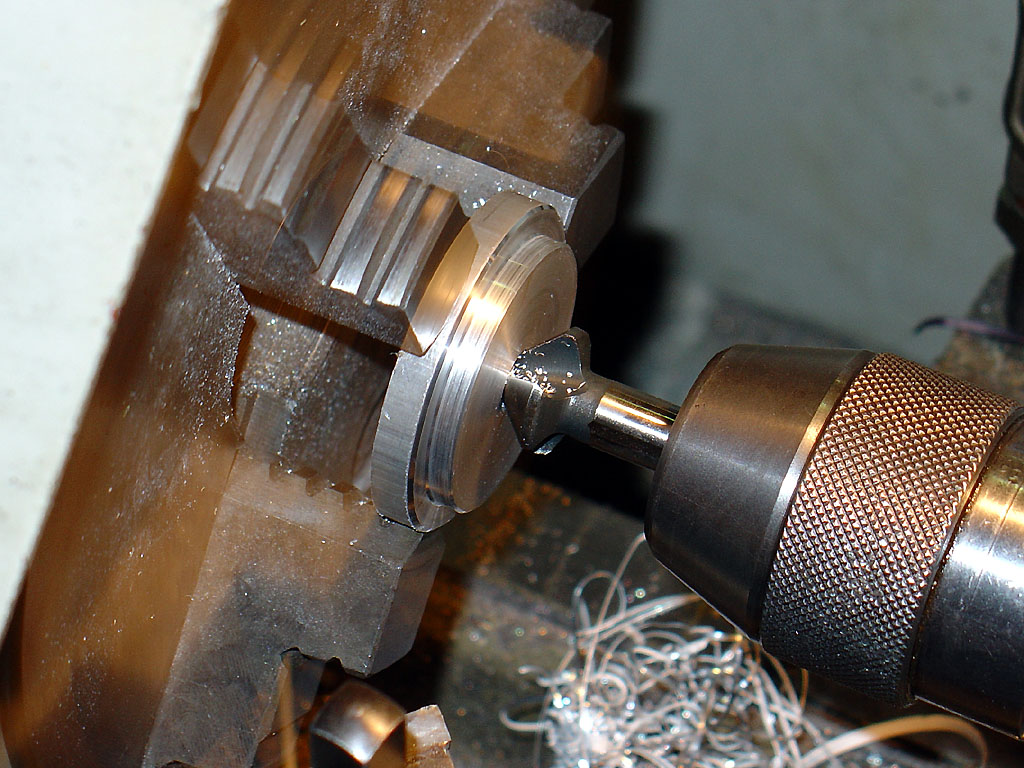

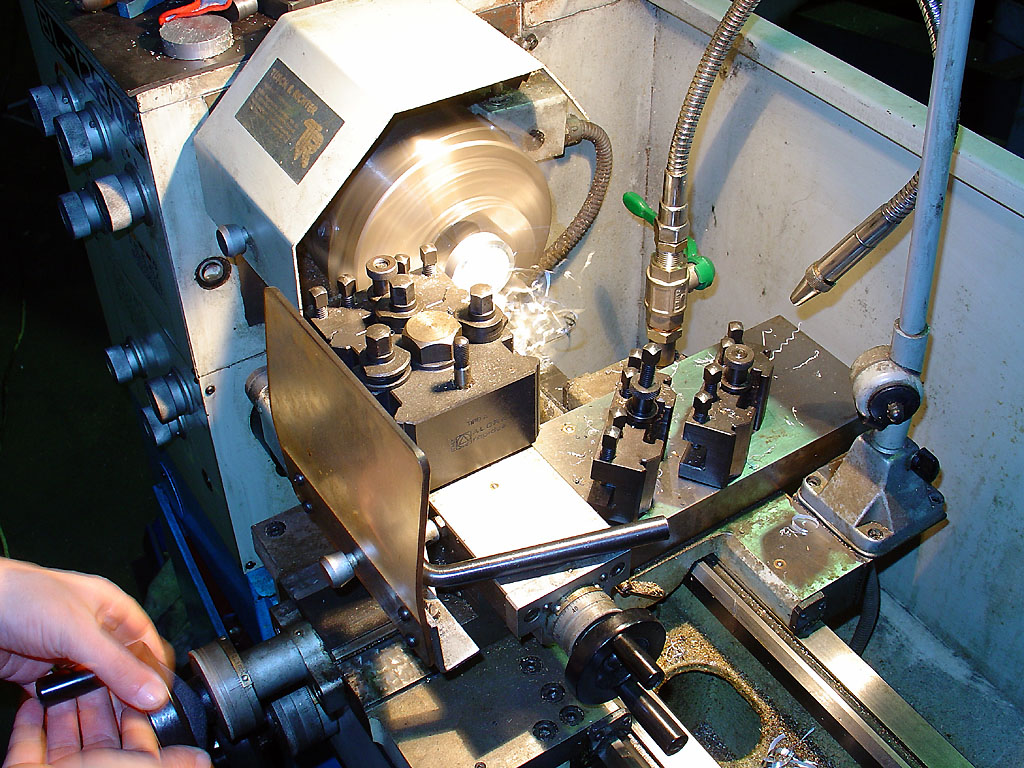

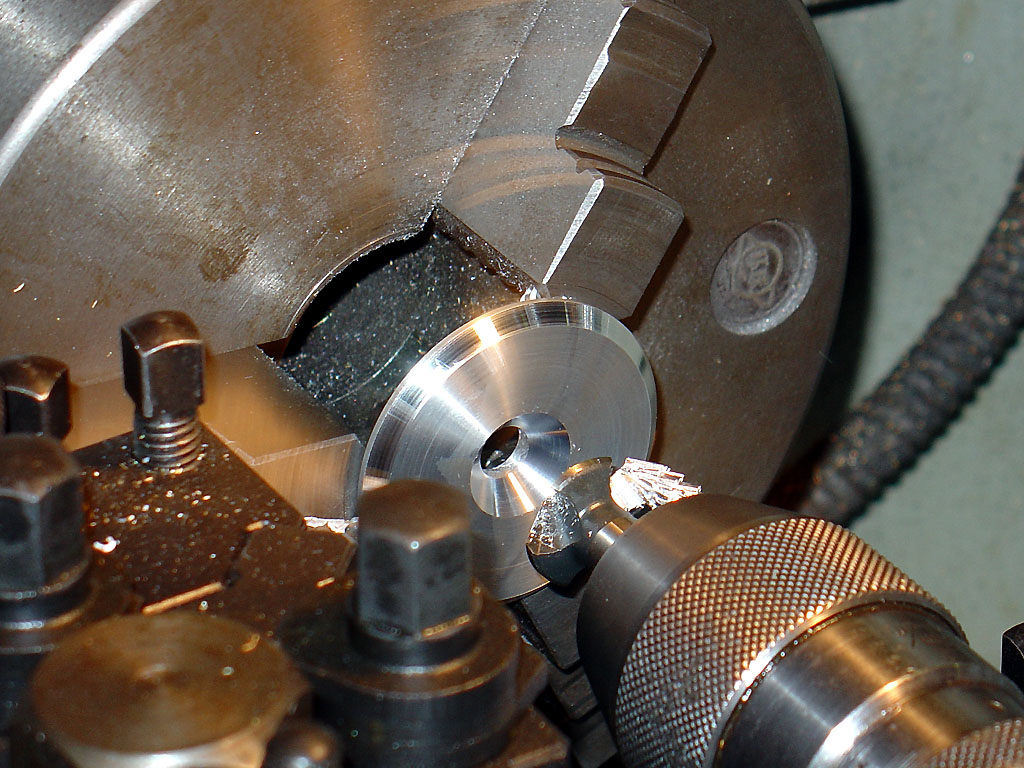

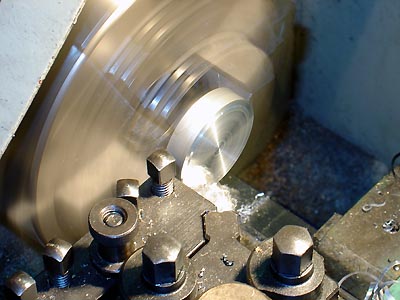

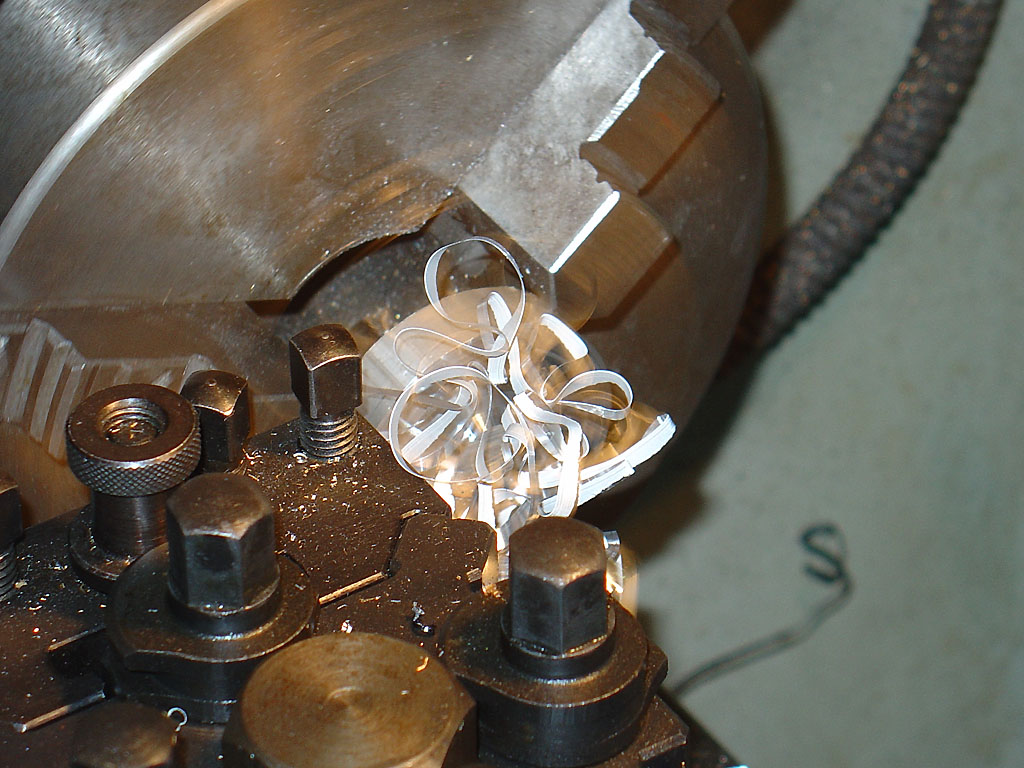

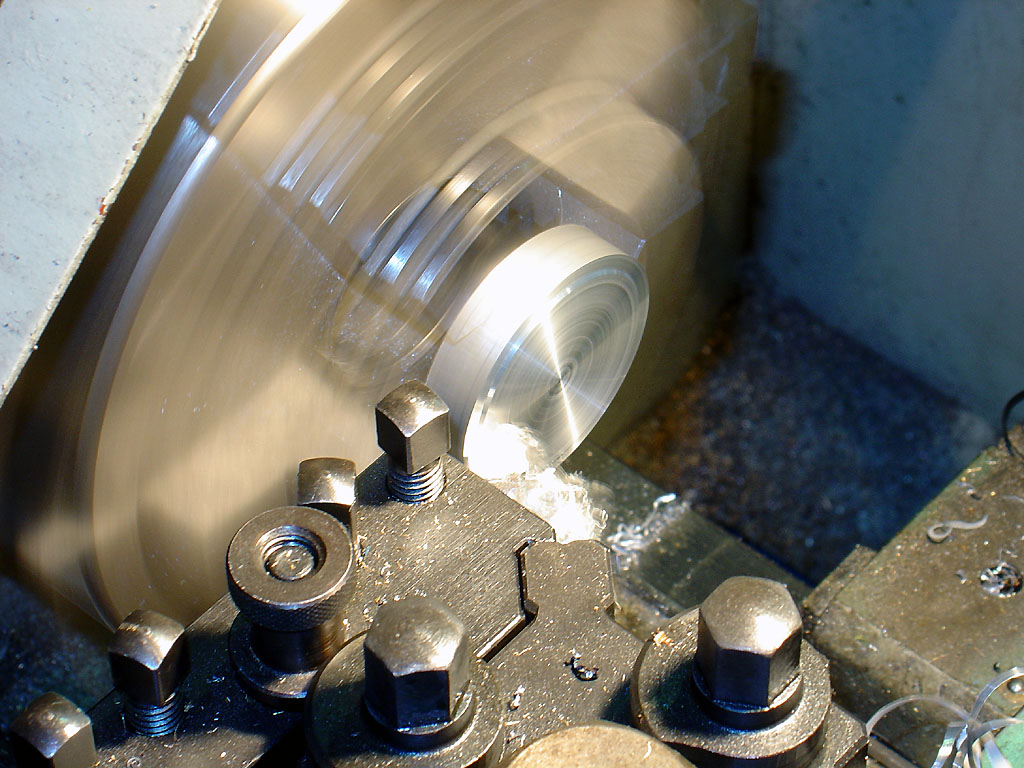

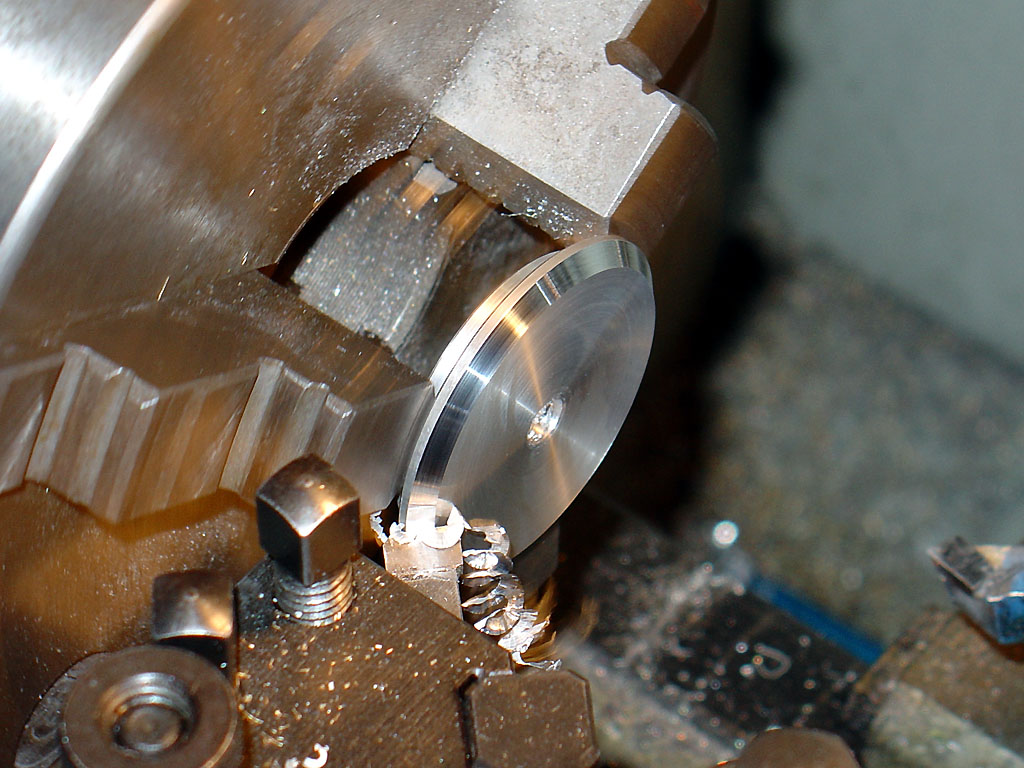

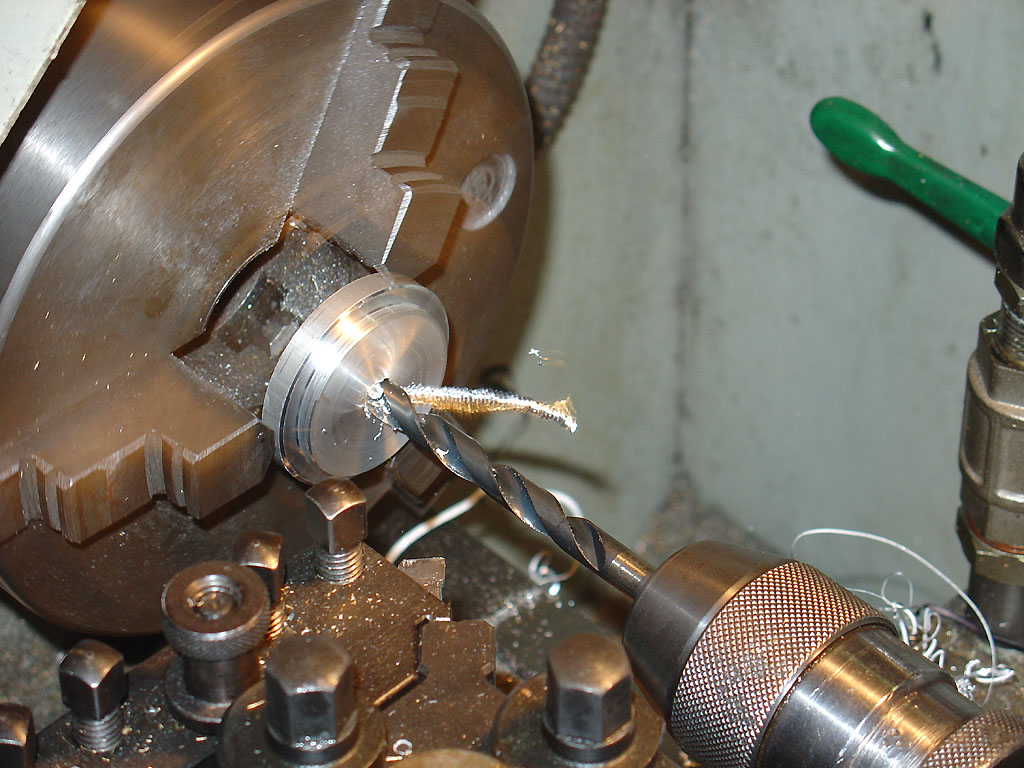

    Some images of the working phases with a parallel lathe.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

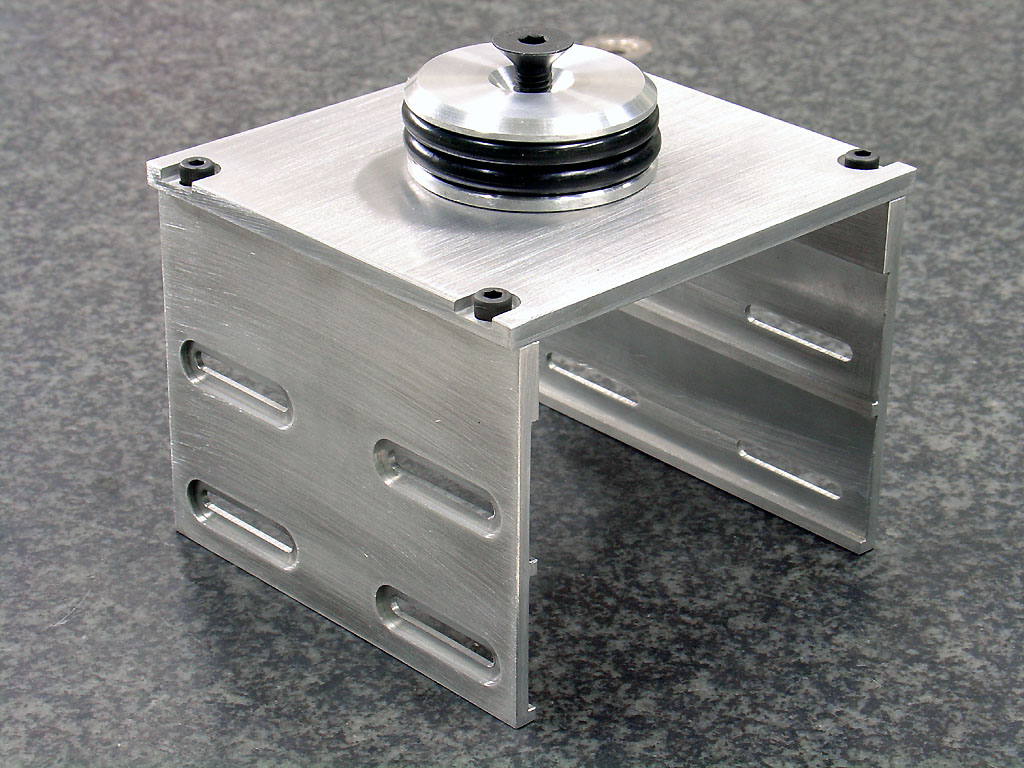

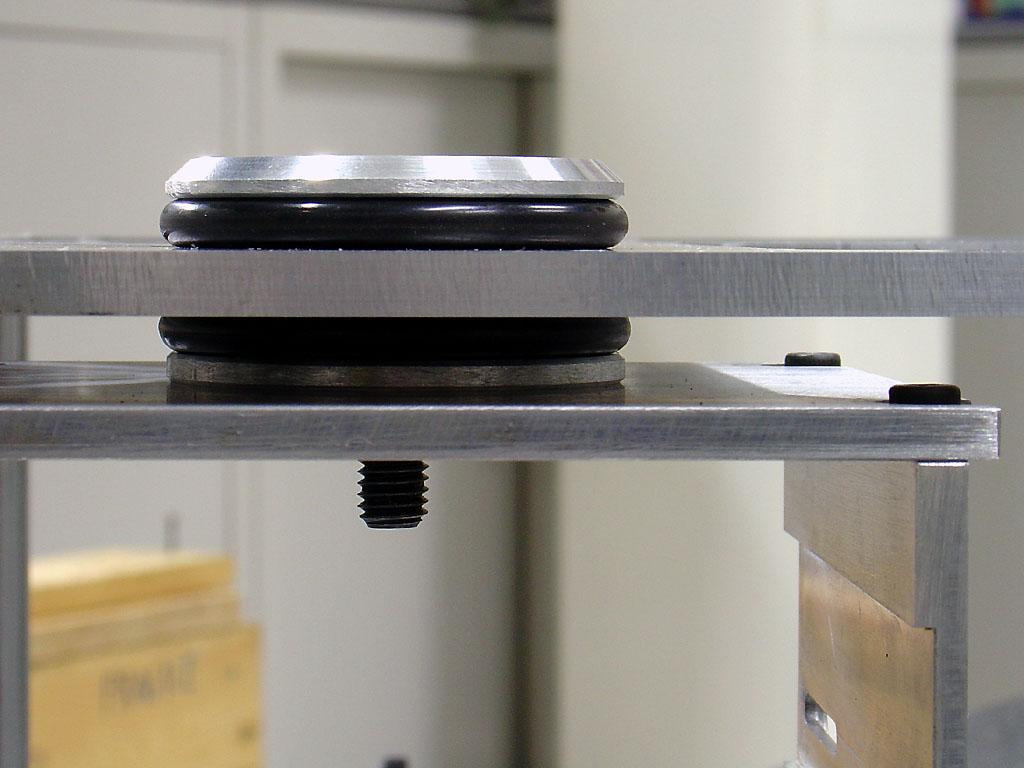

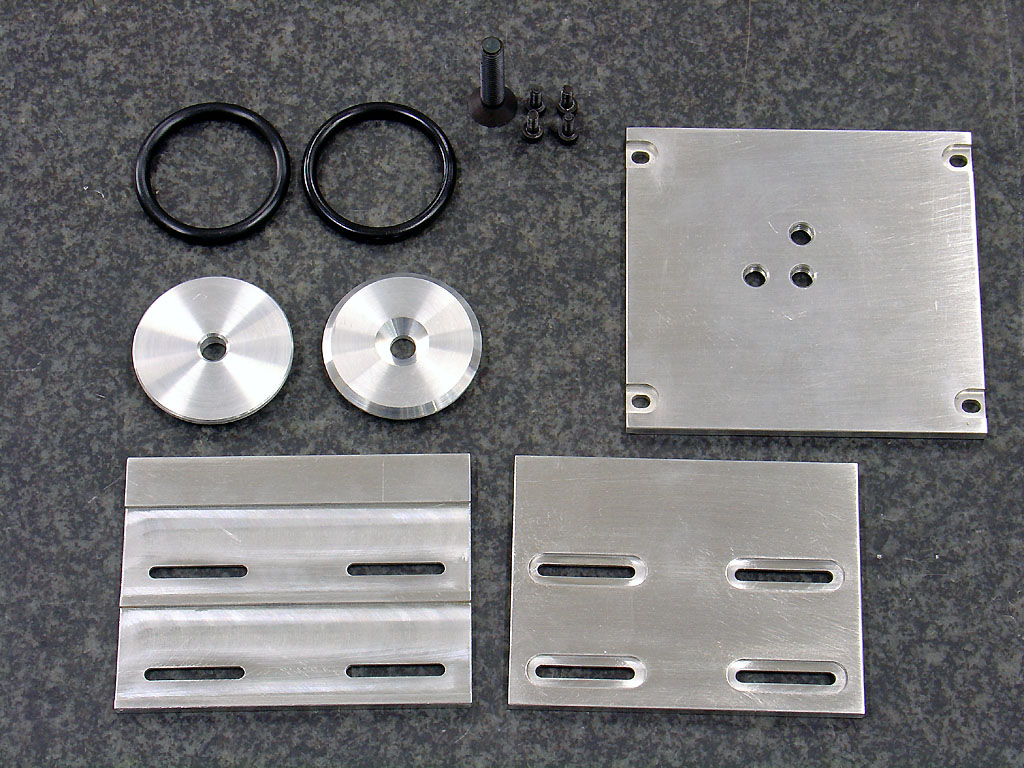

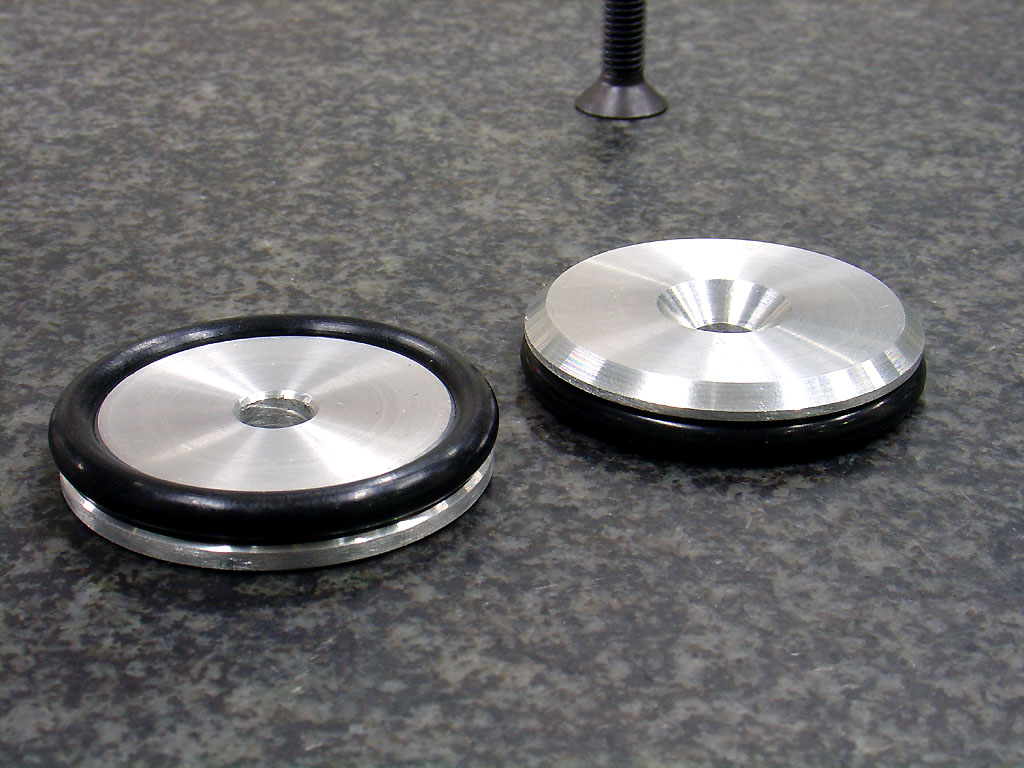

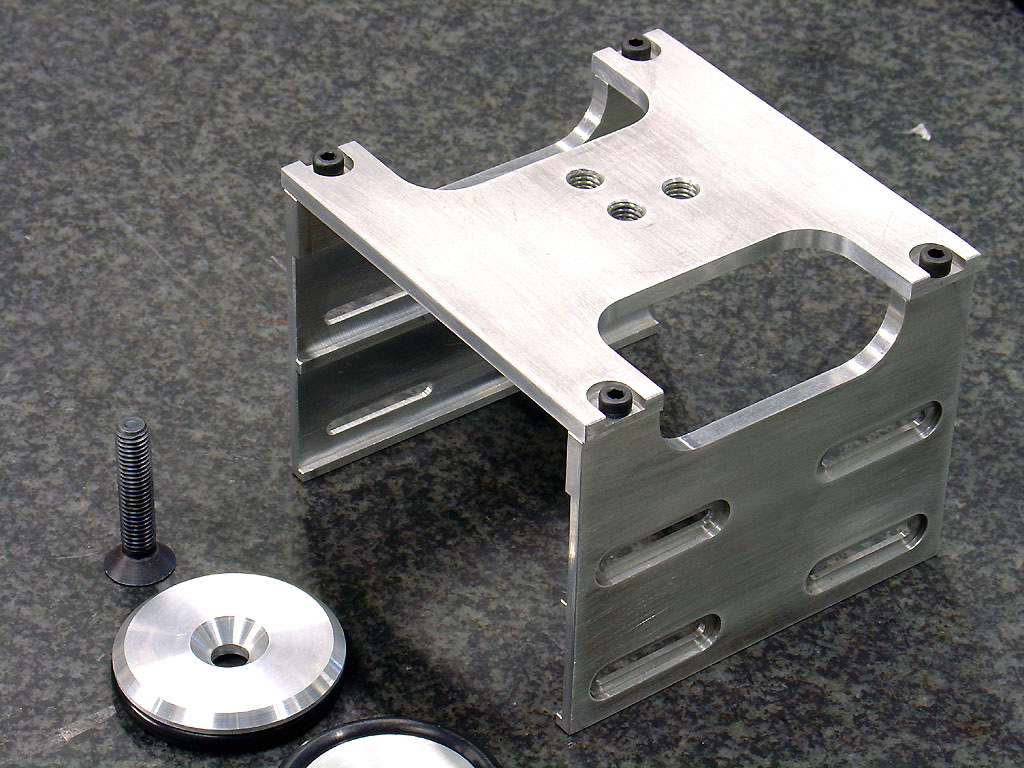

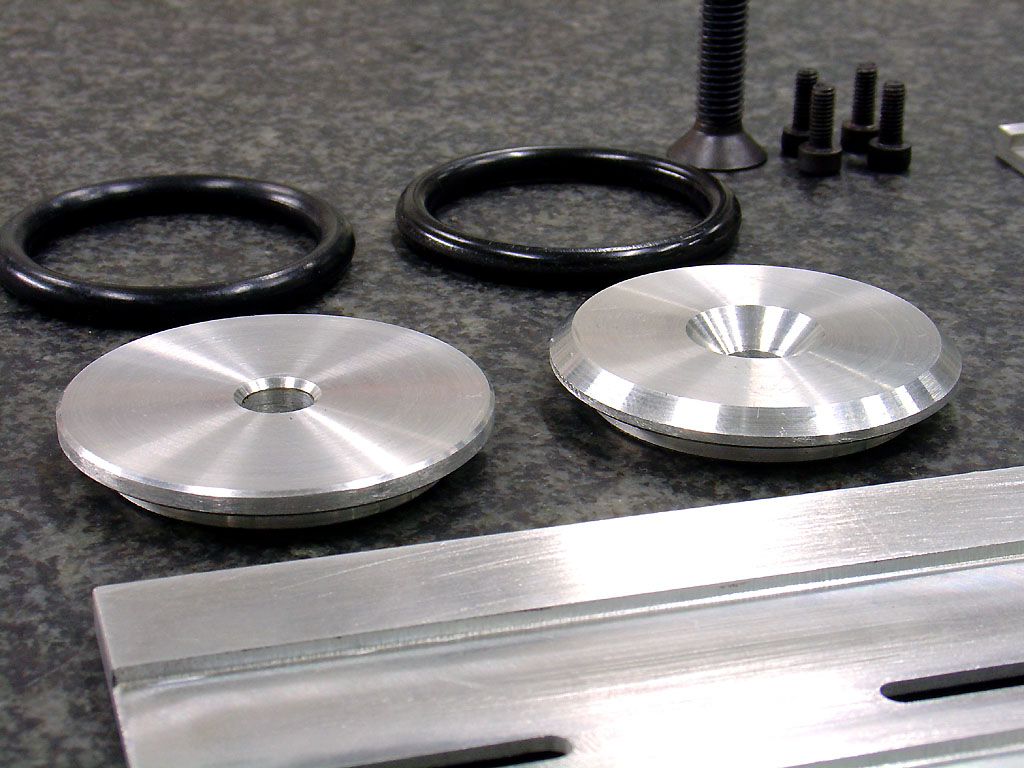

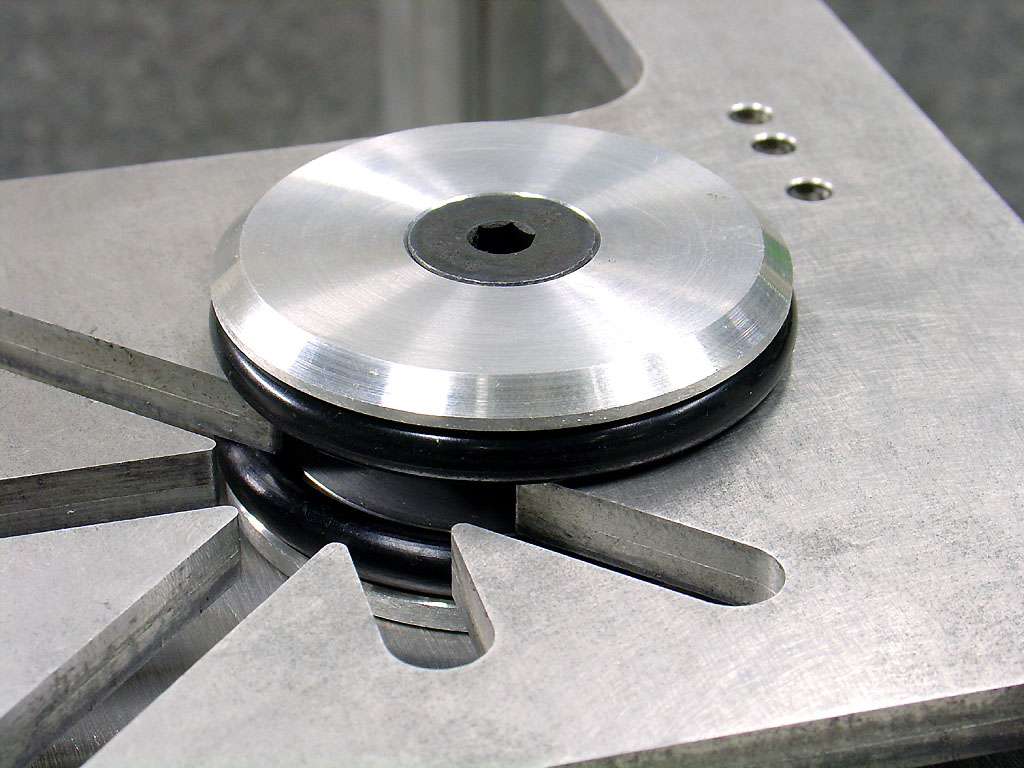

    At least the parts of the adjustable HD. A look to the O-ring to reduce the vibrations.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

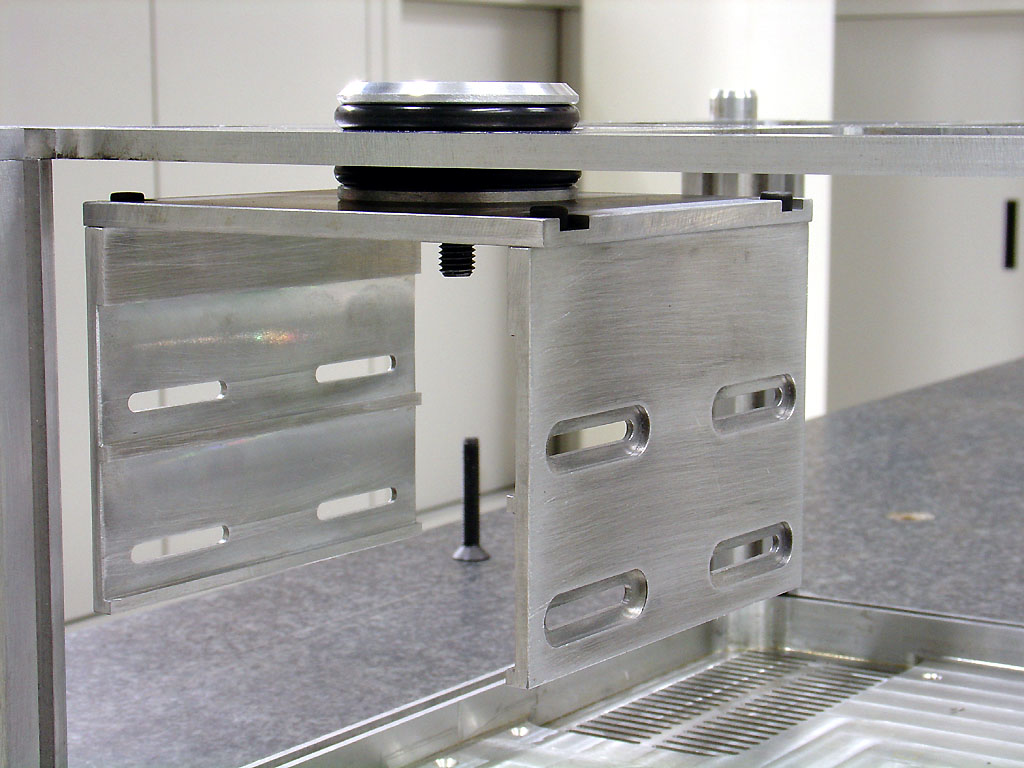

    This modify to permite a good placing of the cables.

    Working.

    [​IMG]
    Zoom

    The rack is modified and assembled.

    [​IMG]
    Zoom

    A low quality even interesting short.

    WORKING SHORT( 15 MB )

    See You soon... - work in progress.

    bye bye :thumb:
