Scratch Build – In Progress Dark Blade by G69T

Discussion in 'Project Logs' started by G69T, 30 Nov 2004.

  1. kergareth

    kergareth New Member

    Joined:
    6 Jul 2004
    Posts:
    366
    Likes Received:
    0
    Build some extras and sell them :thumb: I'd buy one.
    Totally amazing work :jawdrop:
    Subscribed.

  2. cfuk

    cfuk New Member

    Joined:
    9 Jul 2004
    Posts:
    711
    Likes Received:
    0
    that is one nice looking case :jawdrop:

  3. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15

    All the alu components will be anodized. The base, you've seen in the picture, is not in contact with the water; on it I'll put the bottom in stainless steel (AISI 316L).

    Bye Bye :thumb:

  4. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Approximatly it can cost €4,00/Kg. ;)

  5. Derelict

    Derelict New Member

    Joined:
    29 Jan 2005
    Posts:
    111
    Likes Received:
    0
    Seriously incredible stuff... :eeek:

  6. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    That's the first fase of workship of the two bottom pieces in AISI 316

    [​IMG]

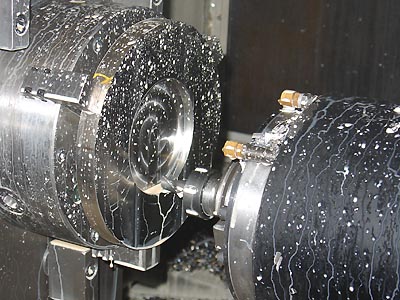

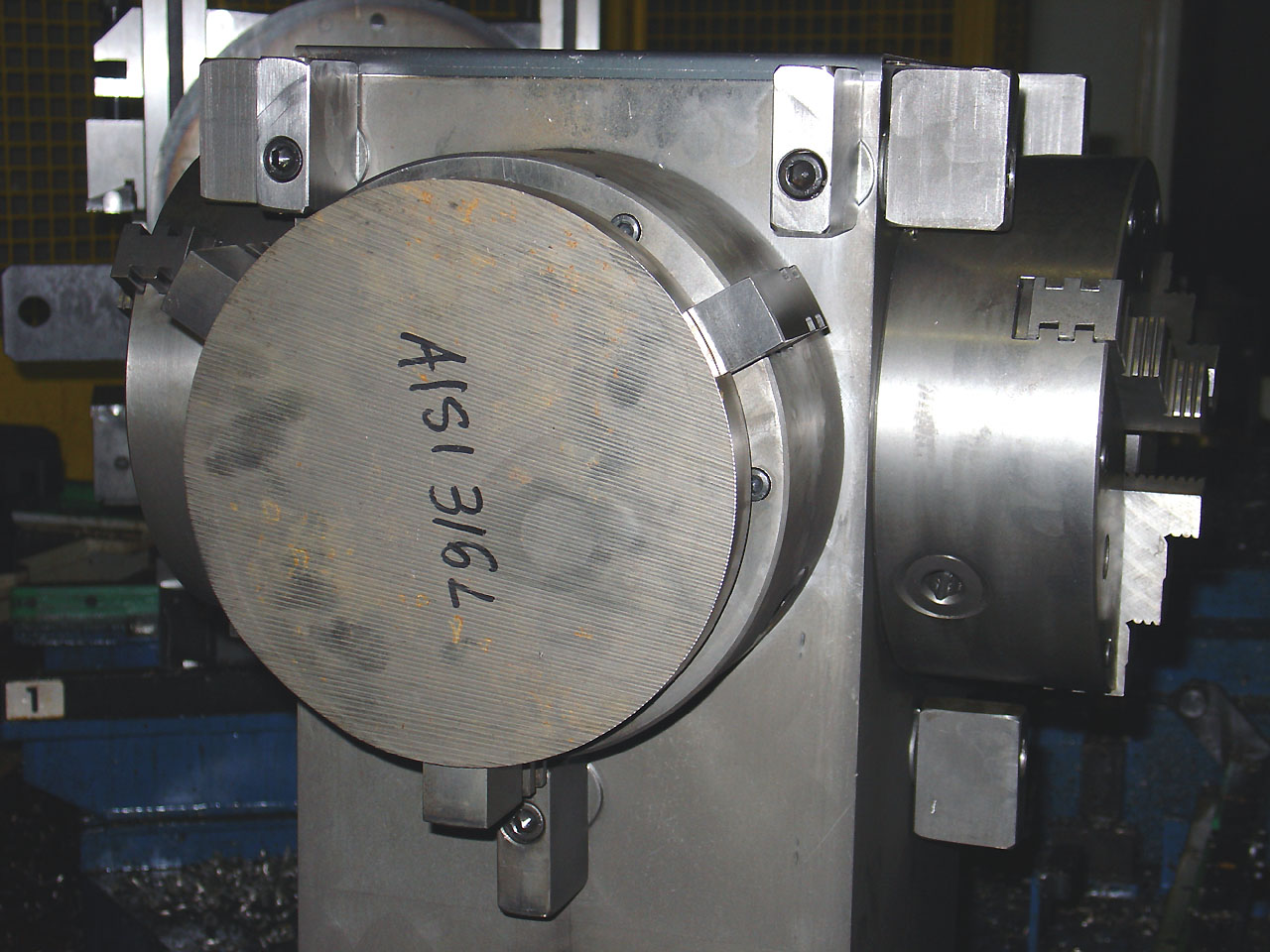

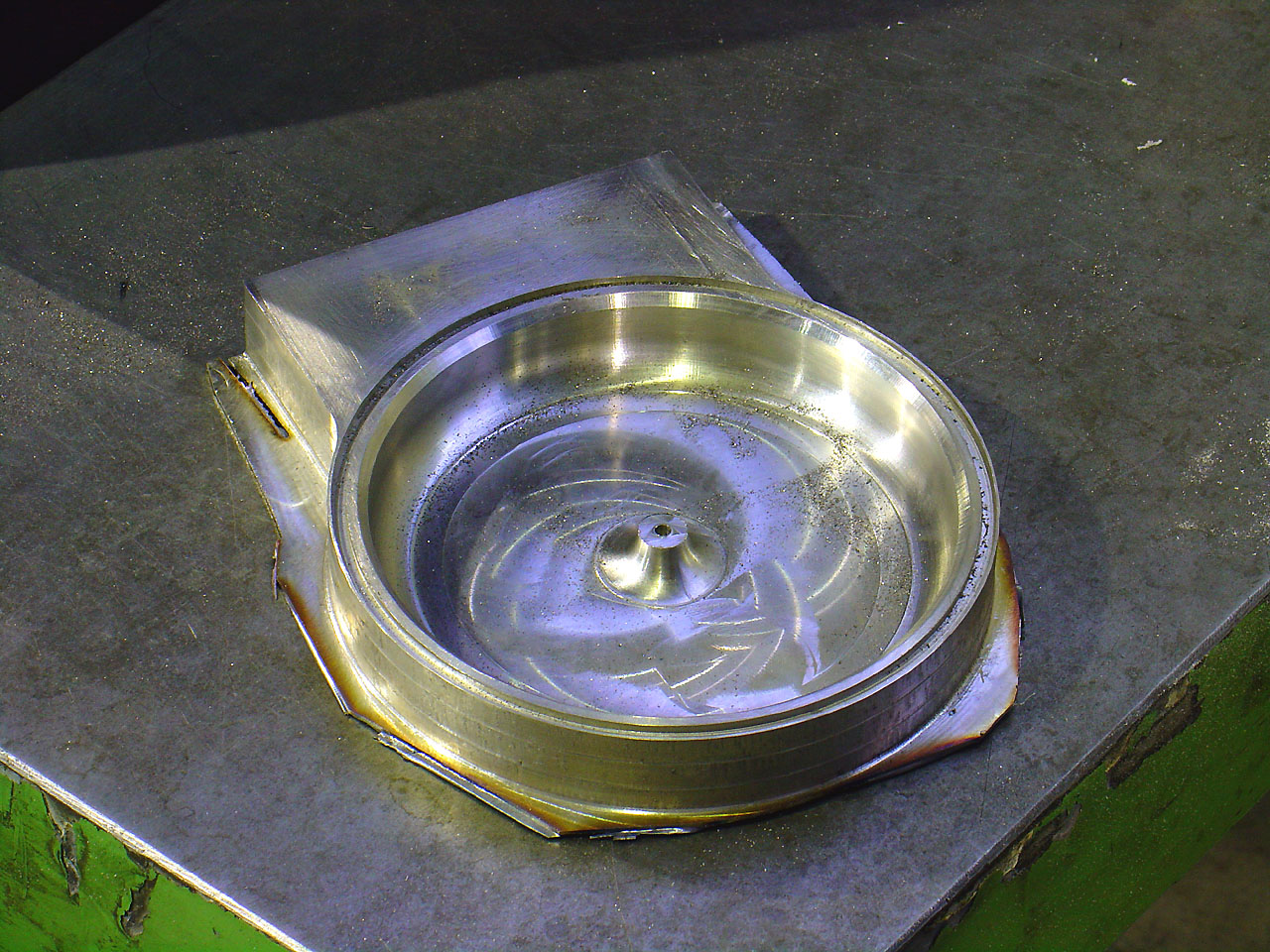

    Zoom Raw stainless steel ring, ready for CNC work.

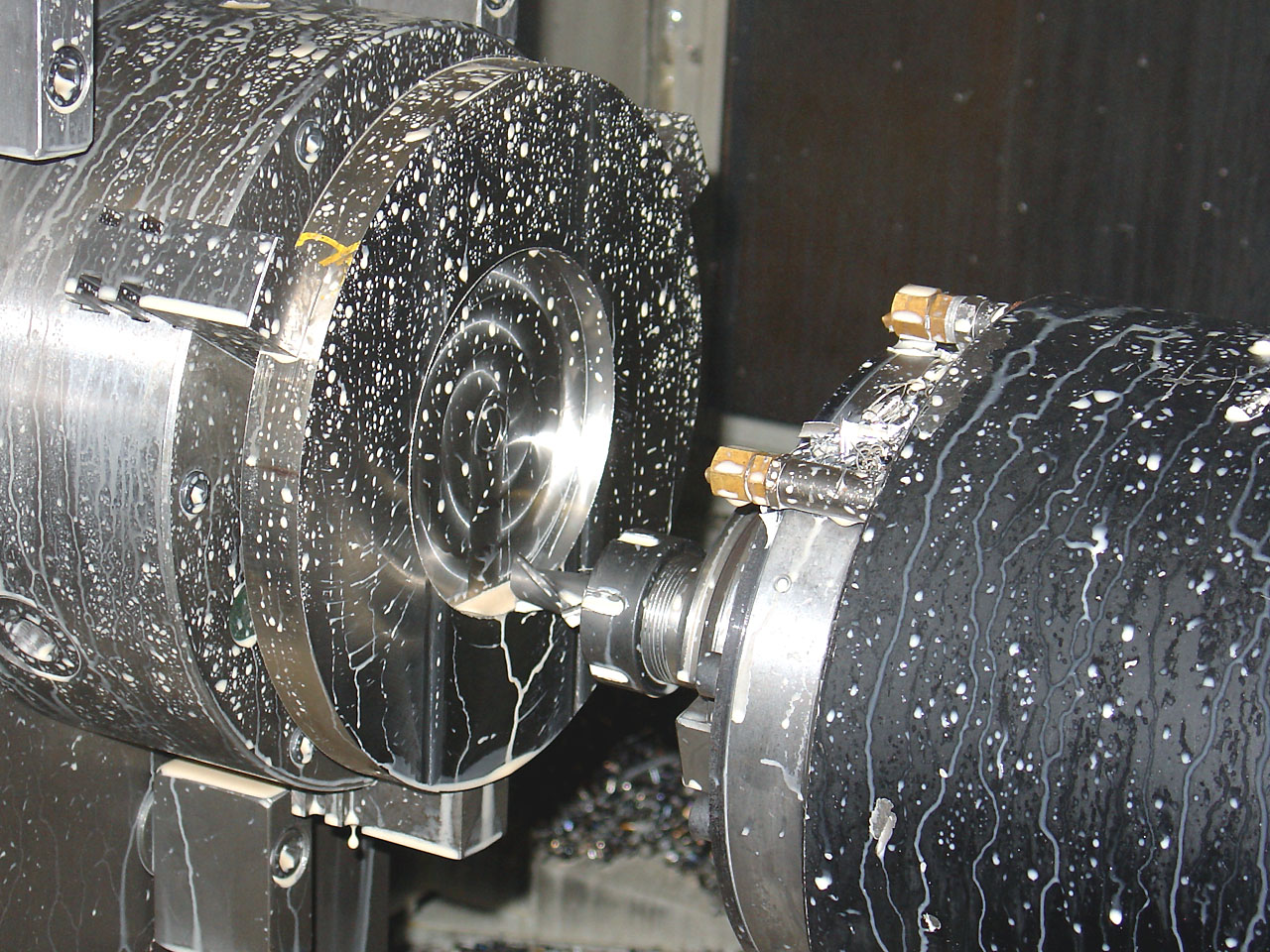

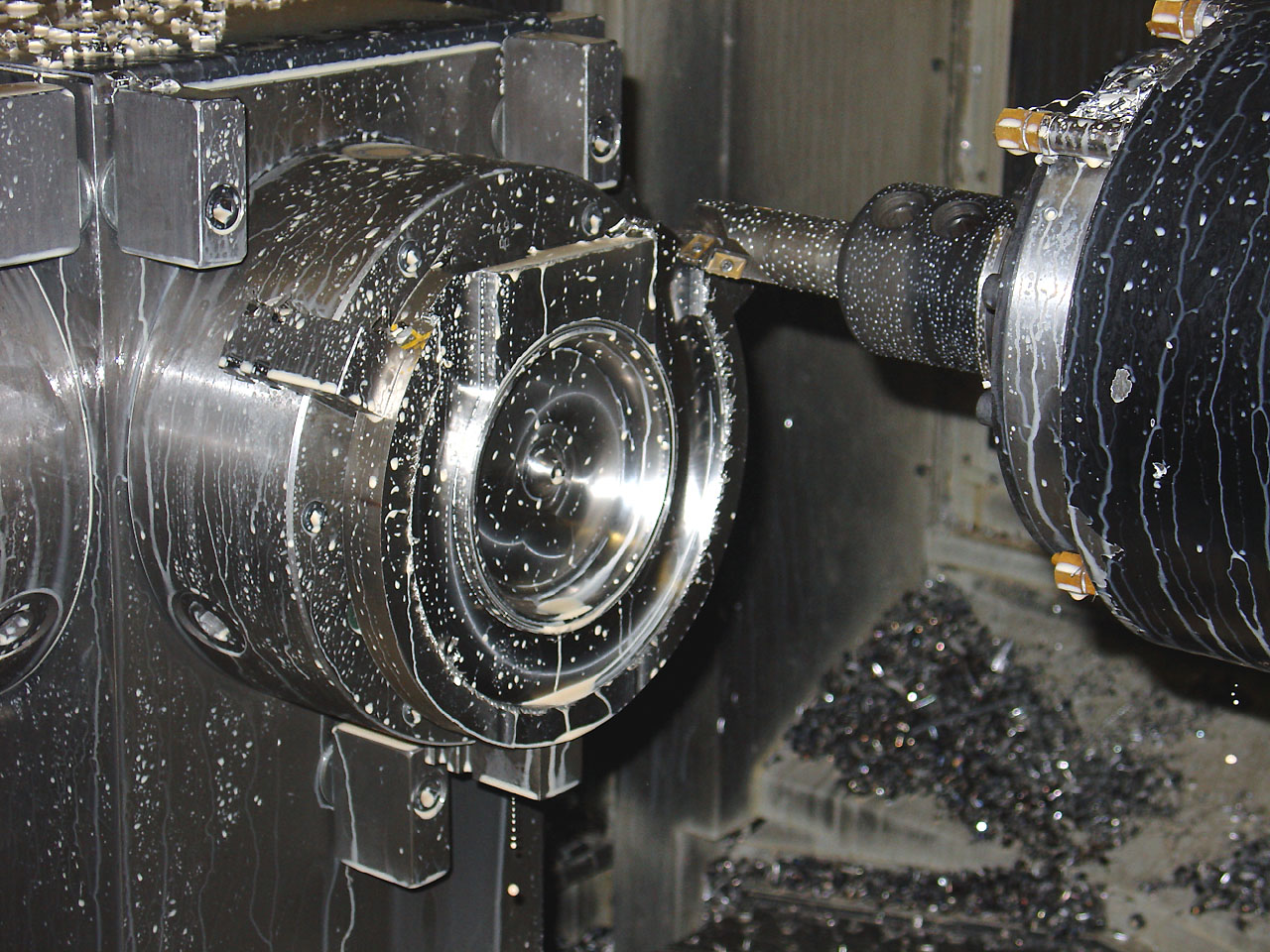

    Some work fases.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]

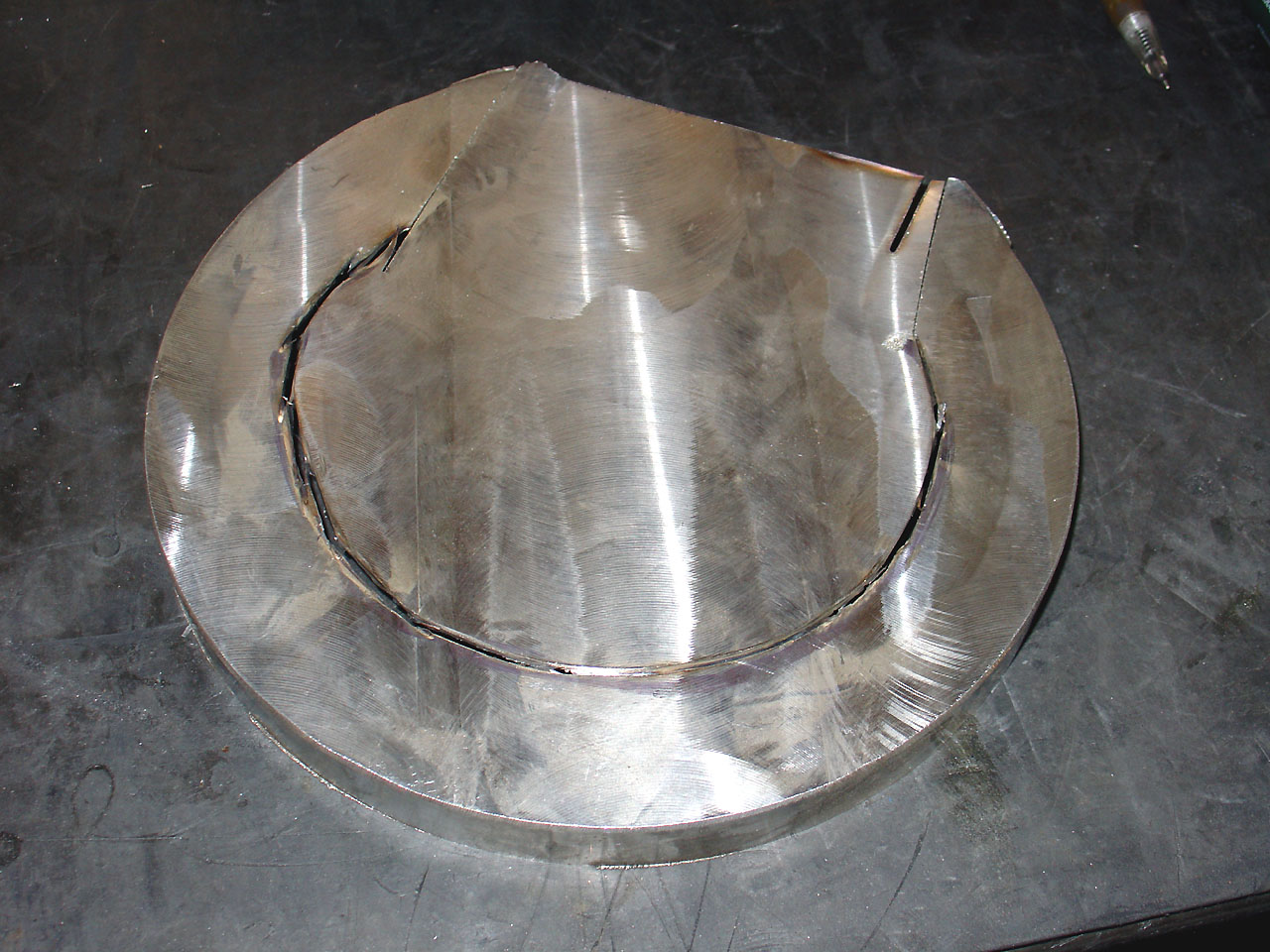

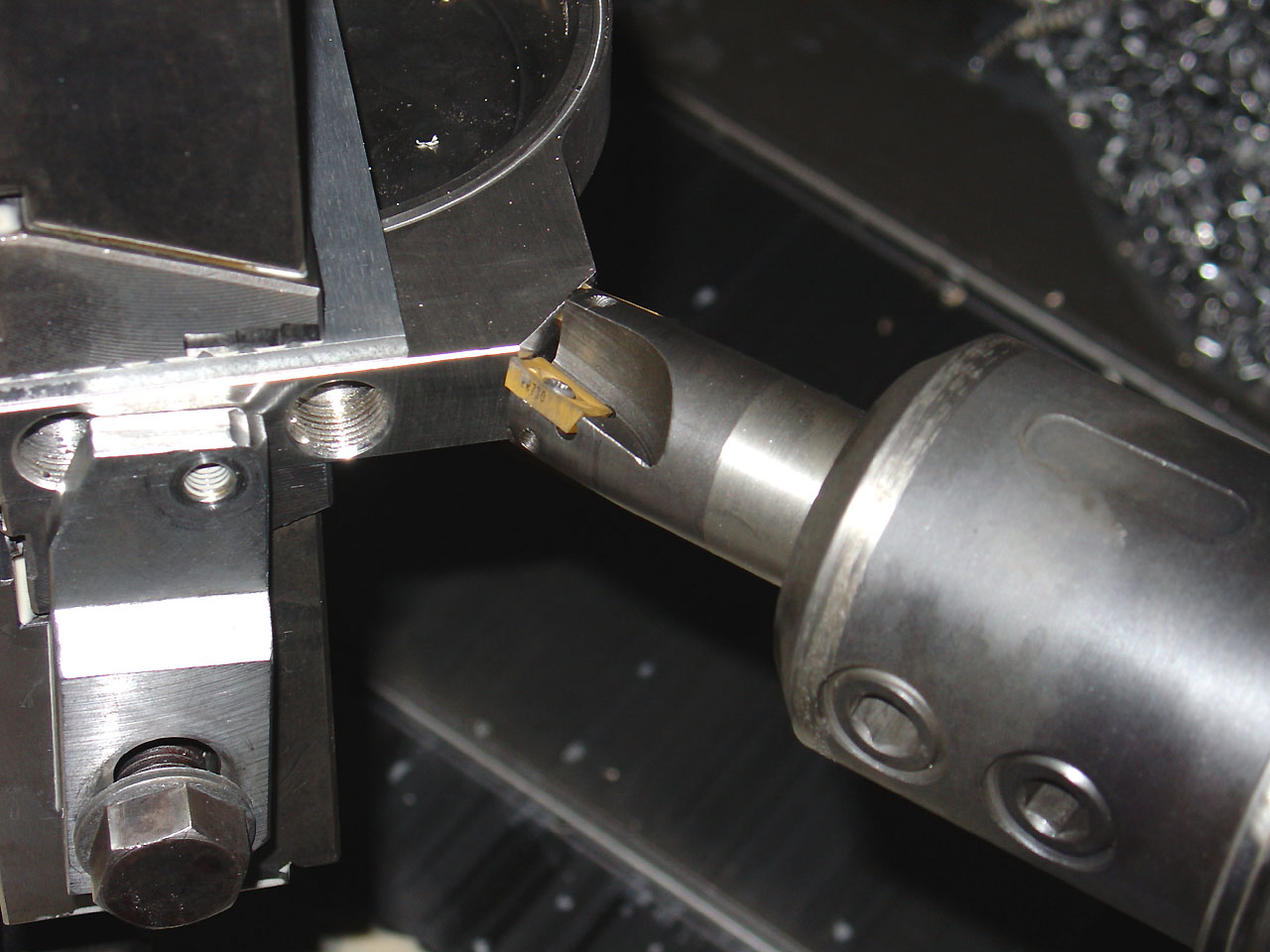

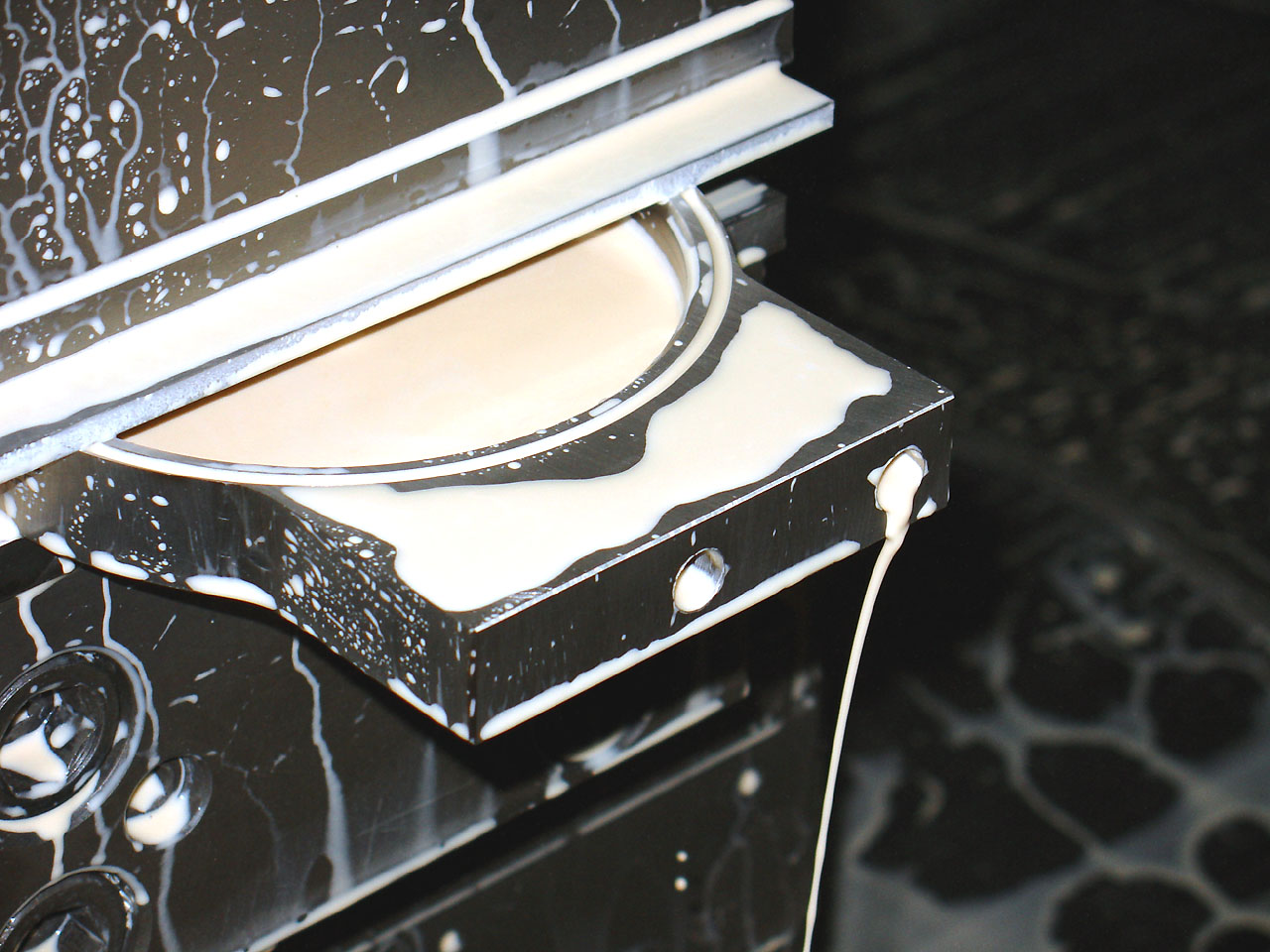

    Zoom Only one of the faces was milled. The mill working, obtain the wished part leaving only 0.5 mm. of residual material, that I worked out with a traditional cut-off mill.

    [​IMG]
    Zoom

    [​IMG]

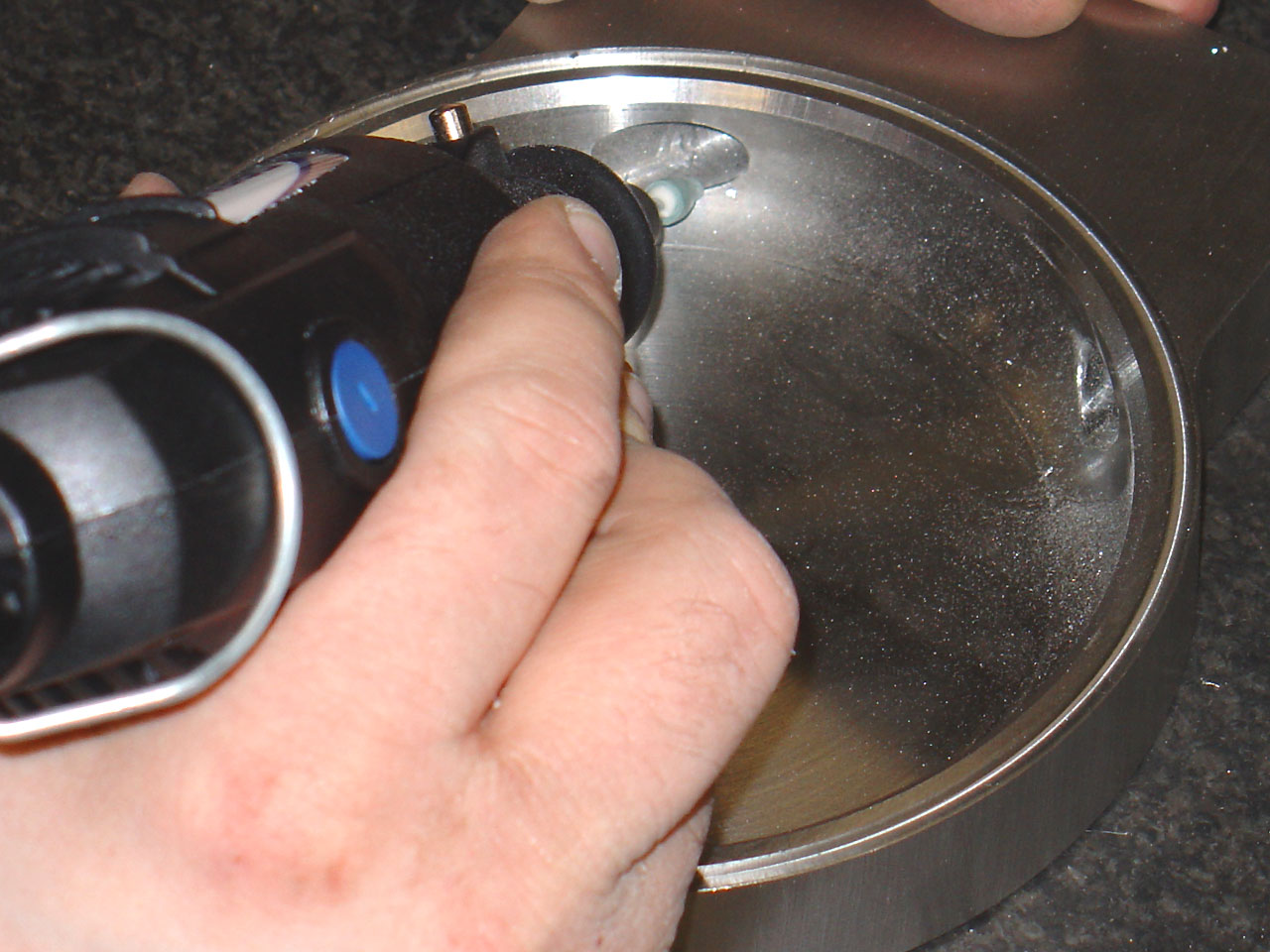

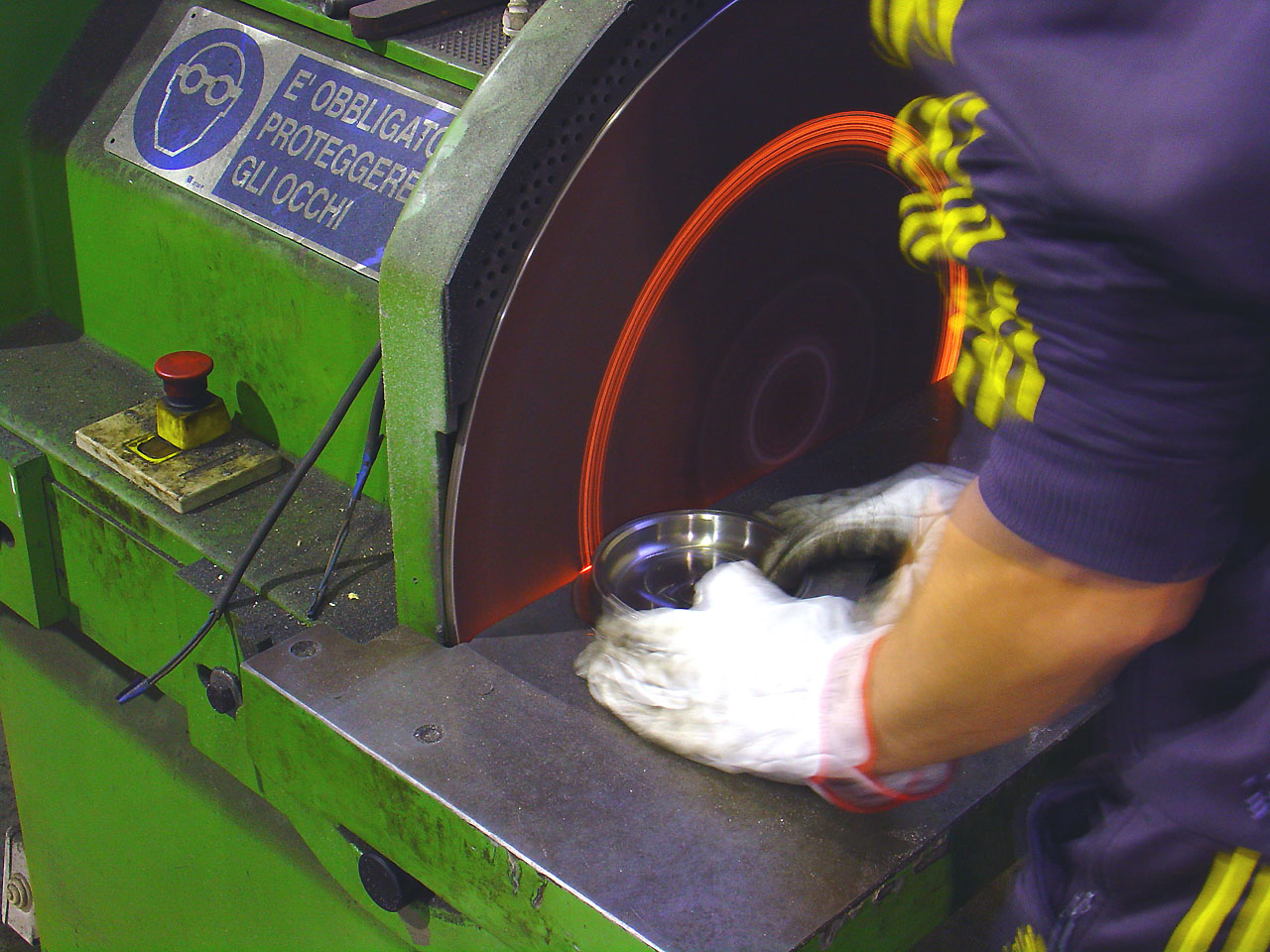

    Zoom The external perimeter surface was worked with abrasive disk.

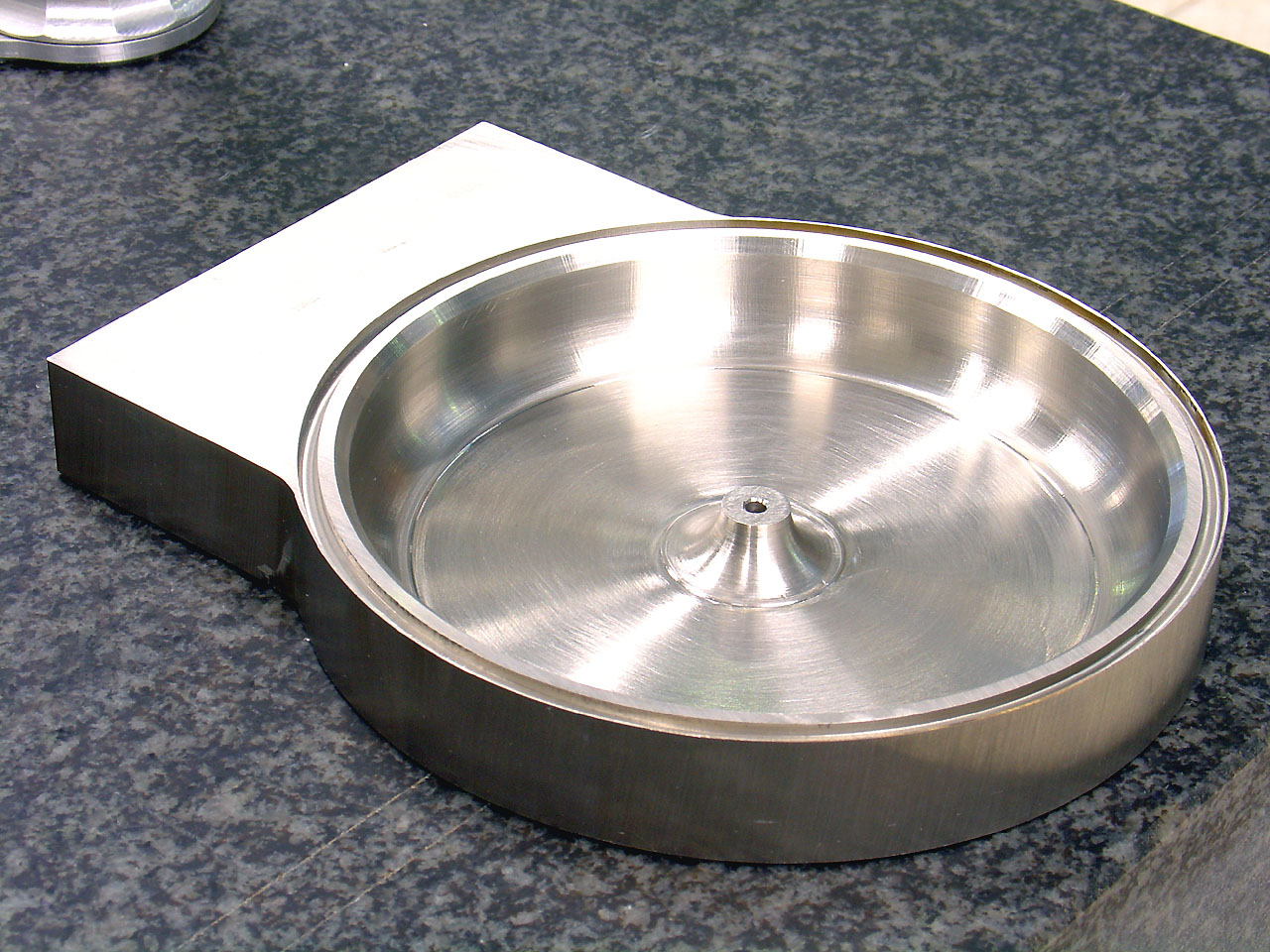

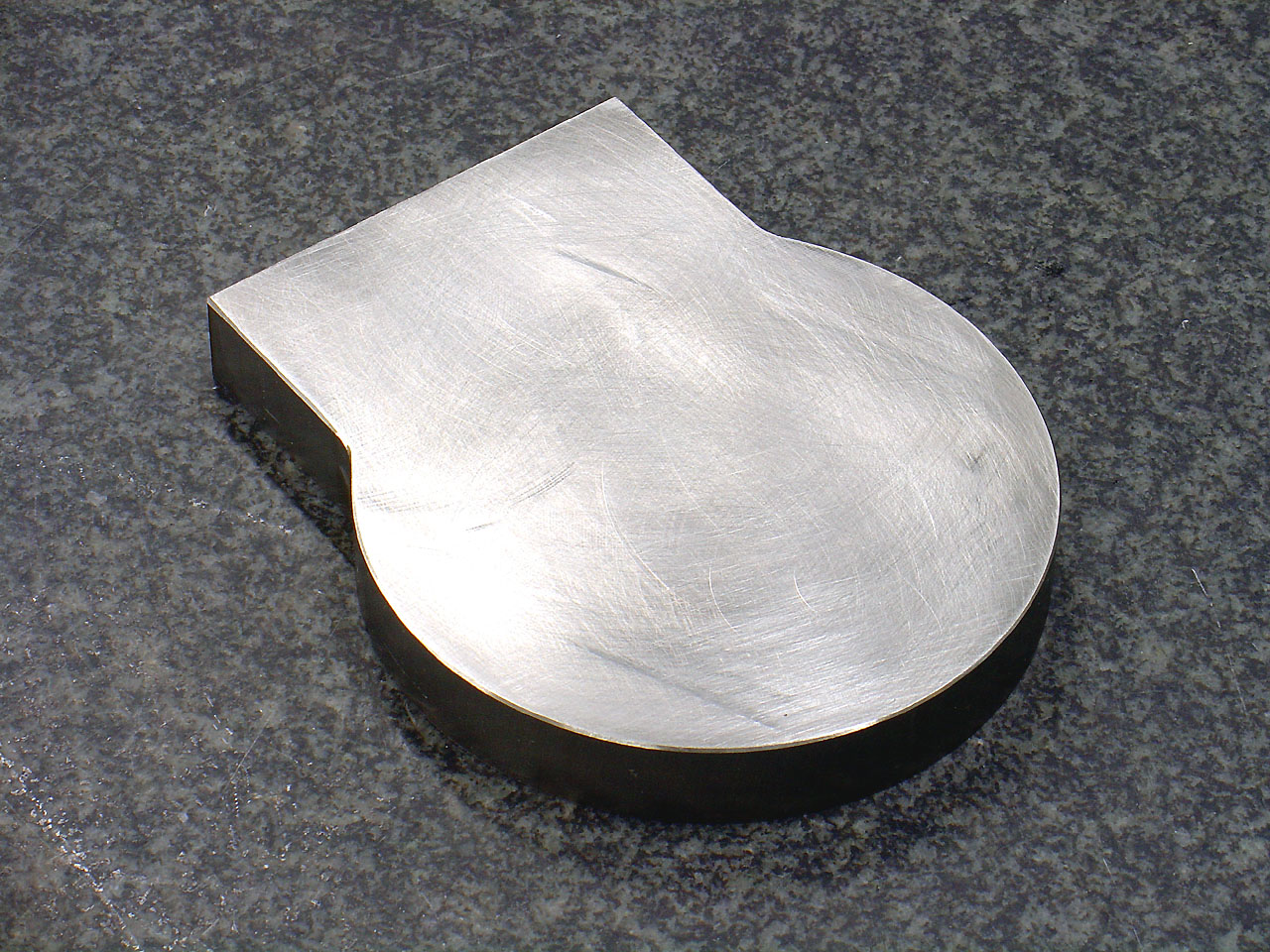

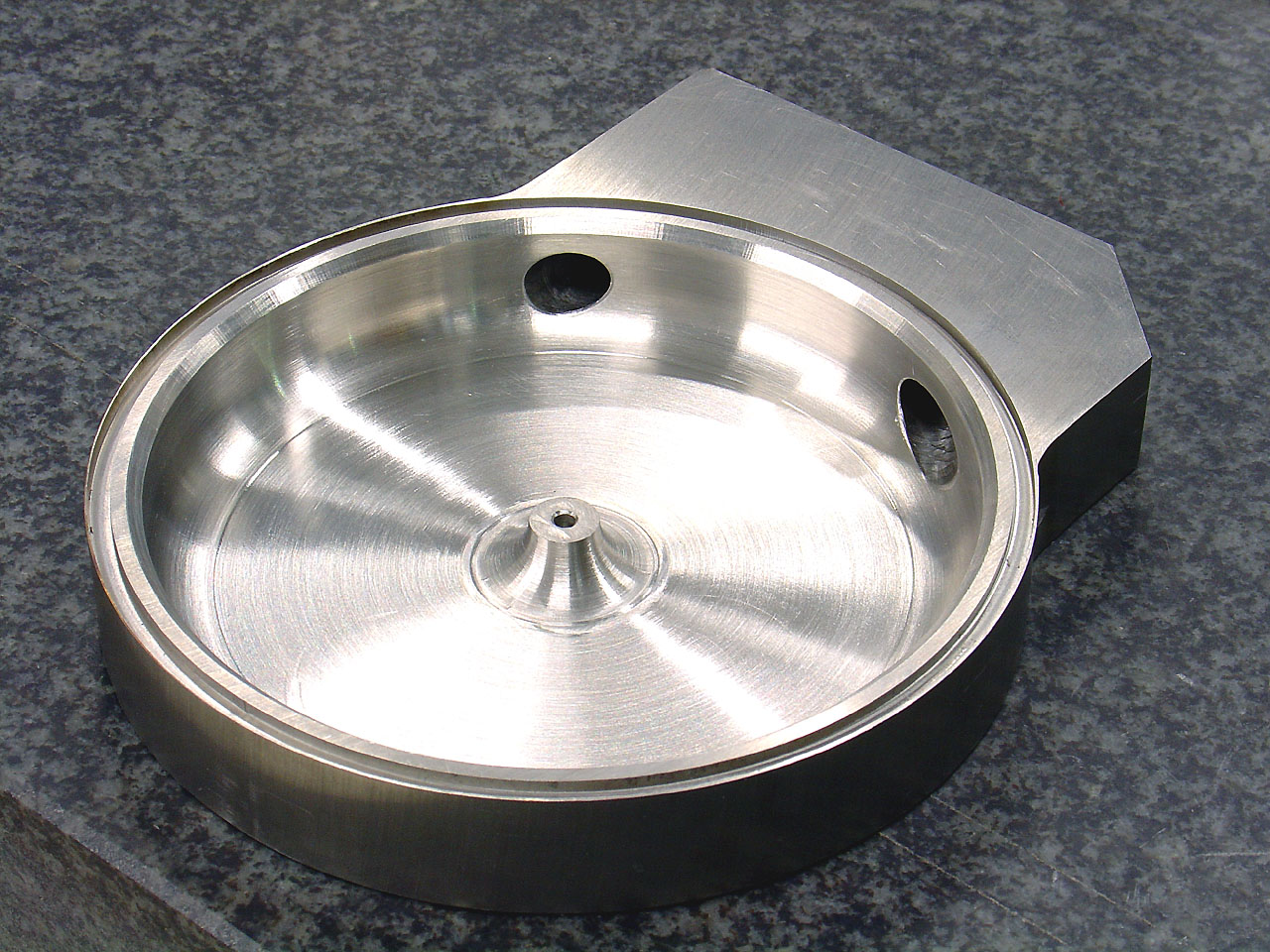

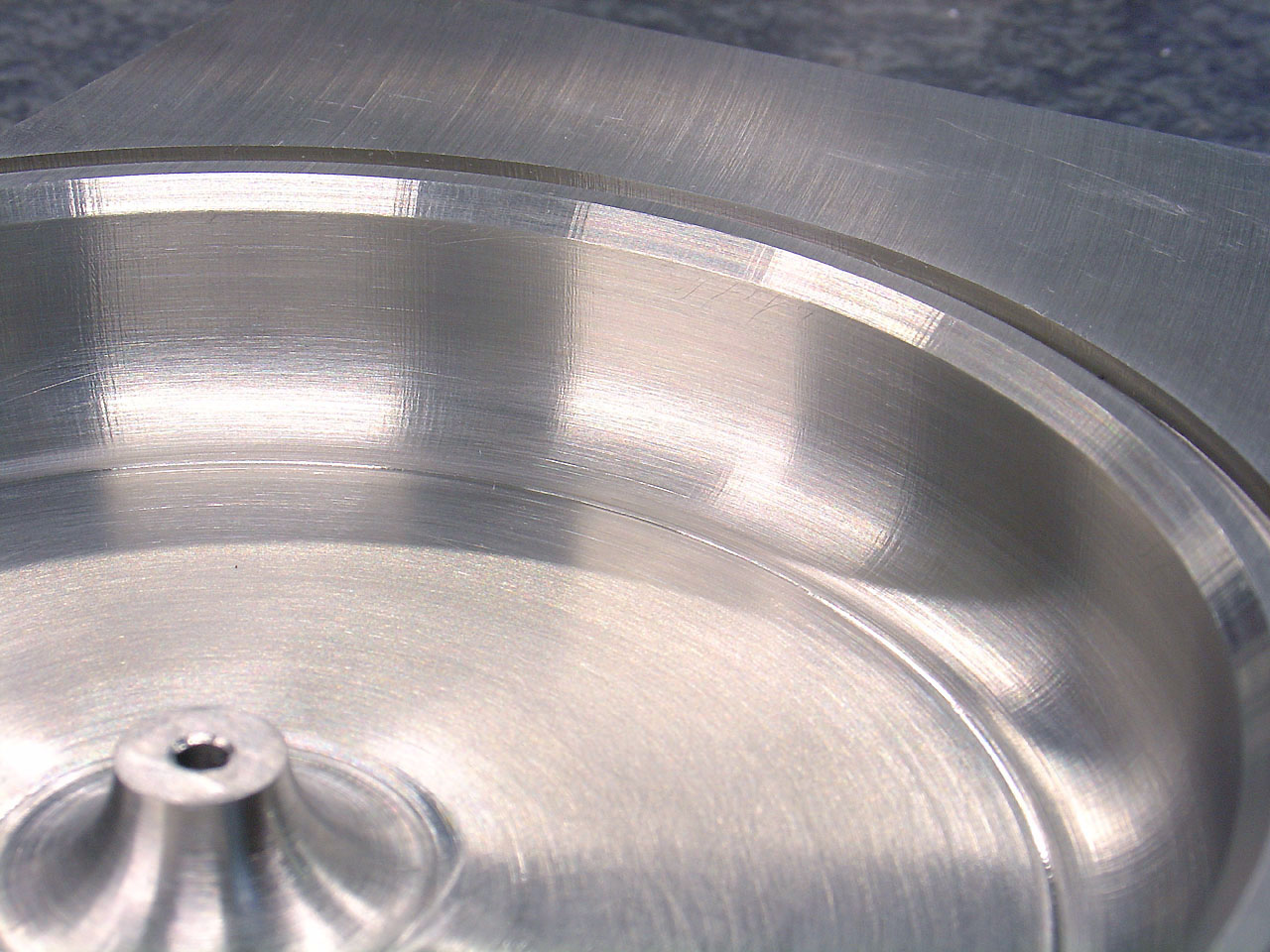

    Some images of the first fase result. :)

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    See you soon speaking about the 2nd fase. :D

    Bye Bye :thumb:

  7. Anthony

    Anthony New Member

    Joined:
    6 Jan 2005
    Posts:
    203
    Likes Received:
    0
    Gosh! Your work is reaally professional!! :eeek: :eeek: :eeek: :eeek:
    Way to go, pal!

  8. jaguarking11

    jaguarking11 Peterbilt-strong

    Joined:
    10 Dec 2003
    Posts:
    2,039
    Likes Received:
    0
    good work man... Very good work. keep it up and dont let us hang im on the edge of my seat.

  9. raaaaaa

    raaaaaa New Member

    Joined:
    6 Feb 2005
    Posts:
    13
    Likes Received:
    0
    can I ask a question? why is the stock or raw material so thick? is the thick alluminum material easier to work with?

    also, I am in AHHHH!!! with the workmanship this project has.

  10. Tanaban

    Tanaban New Member

    Joined:
    6 Aug 2002
    Posts:
    74
    Likes Received:
    0
    I think the answer you're looking for is because the CNC machines that he is using to make these parts actually carve out the desired shape from it. No bending of the material, just like a wood carving or a marble statue.
    ... and just as beautiful as a marble statue too :rock:

  11. Snood

    Snood New Member

    Joined:
    27 Feb 2003
    Posts:
    366
    Likes Received:
    0
    with one difference........ITS SHINEY!!! :rock:

    Great job so far.

    i assume that those machines are at ure work?... if so howcome they let you use them for personal use?

    Snood

  12. ynema

    ynema New Member

    Joined:
    27 Oct 2003
    Posts:
    153
    Likes Received:
    0
    Mummy can you buy me some equipment like that man! Pleeeeaaassee.


    My hat goes off to you thats some very fine work. I wish my lathe and routers were at that level I'm still using manually controlled ones so it's a lot harder to do that level of work but I will try one day.

    Looking forward to the next update.

  13. mircea

    mircea New Member

    Joined:
    27 Jan 2005
    Posts:
    9
    Likes Received:
    0


    Are you nuts?
    This kind of steel is very difficult to mill.You need machine tools made exactly for this type of material because it’s a hard work
    ANYWAY,nice work!
    MIRCEA

  14. ModKid

    ModKid New Member

    Joined:
    5 Jul 2002
    Posts:
    106
    Likes Received:
    0
    It sure looks nice, but what did you actually modify with your own hands, everything done by machines, this would be no competition compared to some cases out there made mostly using tools instead of computers and cnc machines.

    nice work though,

  15. adamjones01101

    adamjones01101 New Member

    Joined:
    29 Jul 2004
    Posts:
    306
    Likes Received:
    0
    I'm not sure if the CNCs are CAD based in his case, but even if they are, it still takes a crapload of skill to know not only how to design exactly what you have in your head from scratch, but also to know how to use the machine! It's not as easy as it looks. Especially if they AREN'T CAD-based.

  16. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    The thickness of raw material depends exclusive from the object, I want obtain. Particularly I can tranquillize you about the thickness: a great or a small piece are worked out with the same machine.

    What you say is right; I THANK YOU for your compliments... a statue... (isn't too much)?

    bye bye, :thumb:

  17. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks everyone for interesting

    Those are the pictures of the 2nd fase of workship of AISI little bottom.

    In this fase will worked out two threaded holes (3/8" gas).

    [​IMG]
    Zoom

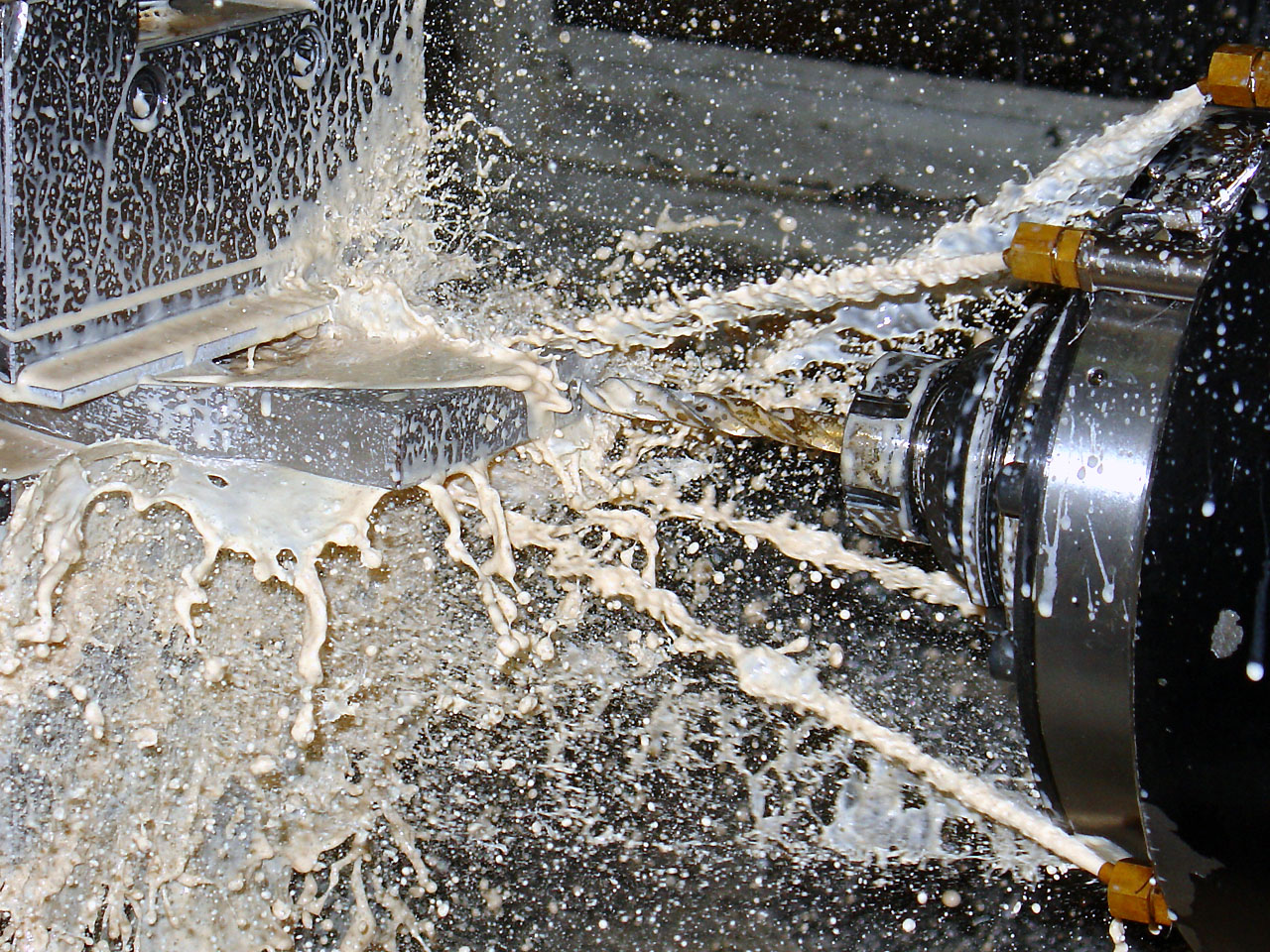

    The first hole with a twist drill (D 10mm.).

    [​IMG]
    Zoom

    [​IMG]
    Zoom

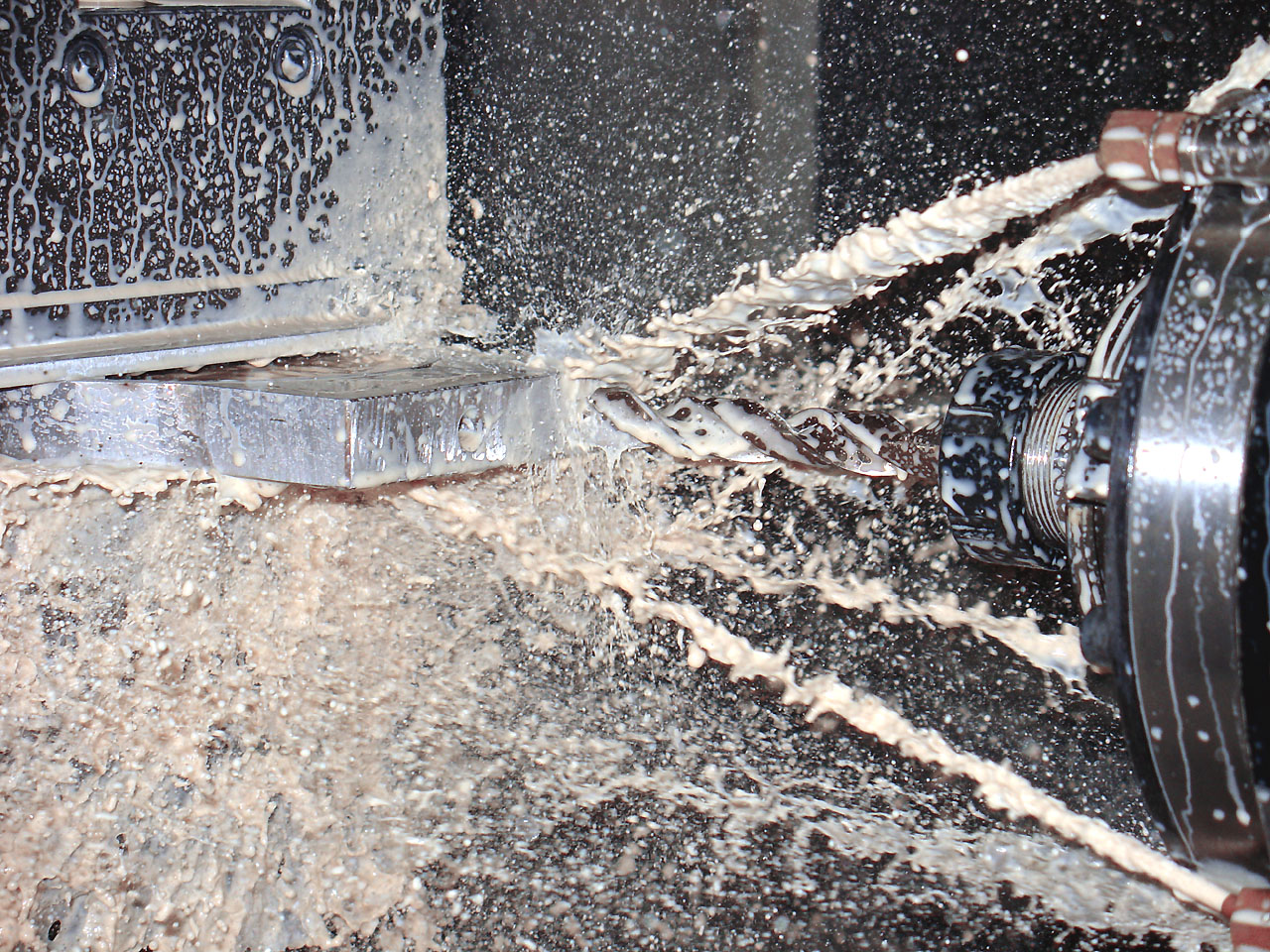

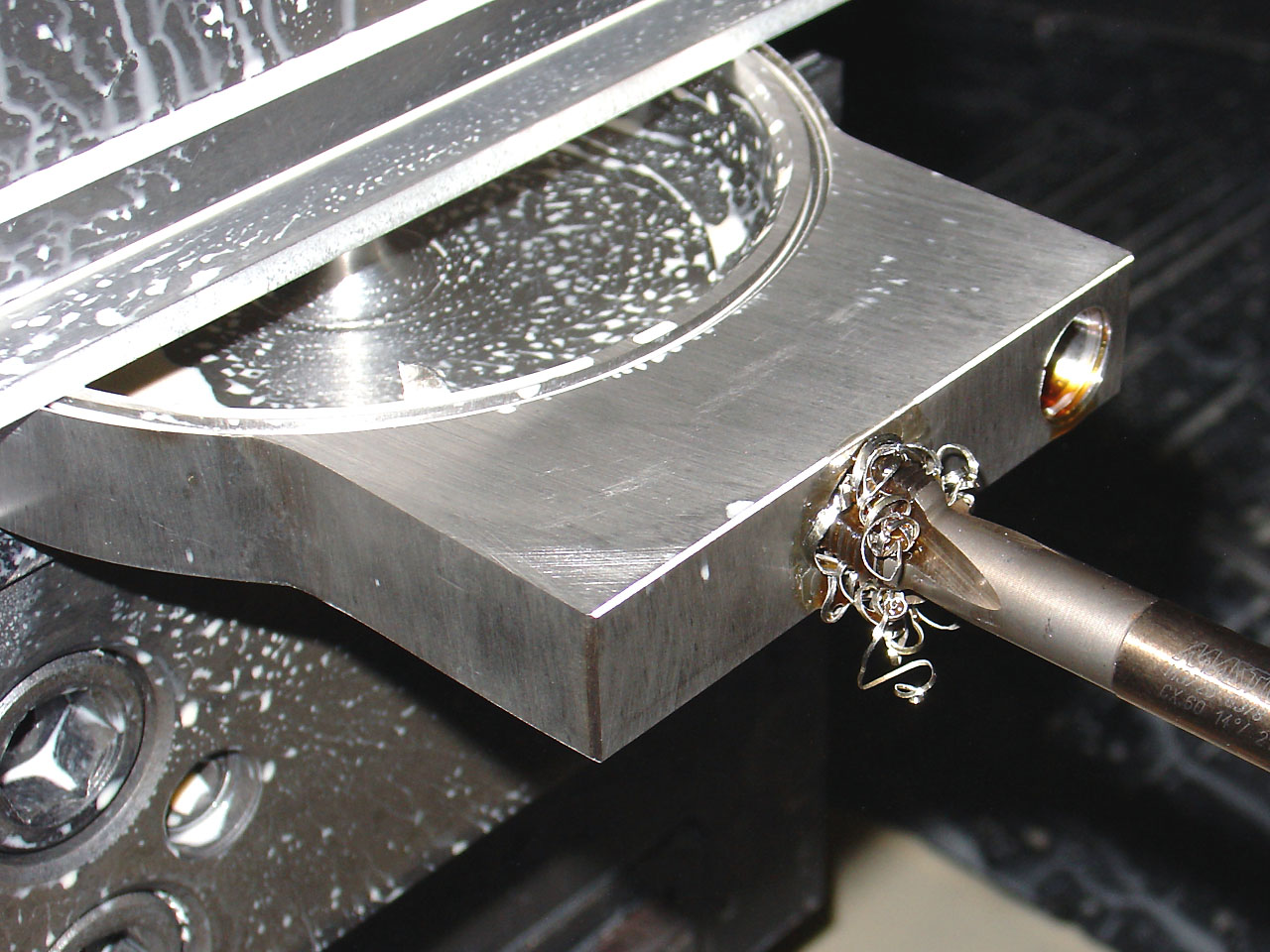

    The drilling with a twist drill (D 15mm.).

    [​IMG]
    Zoom

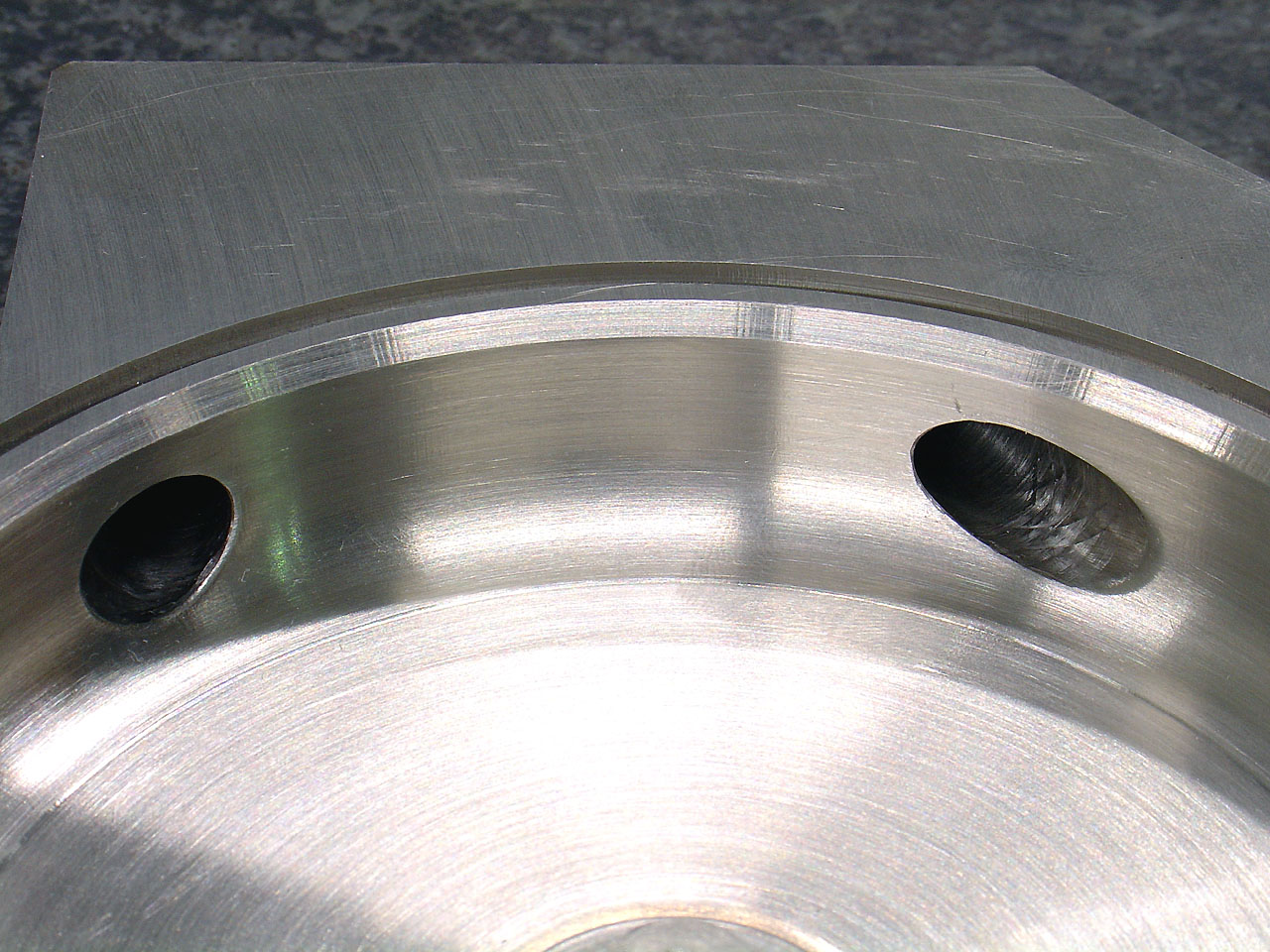

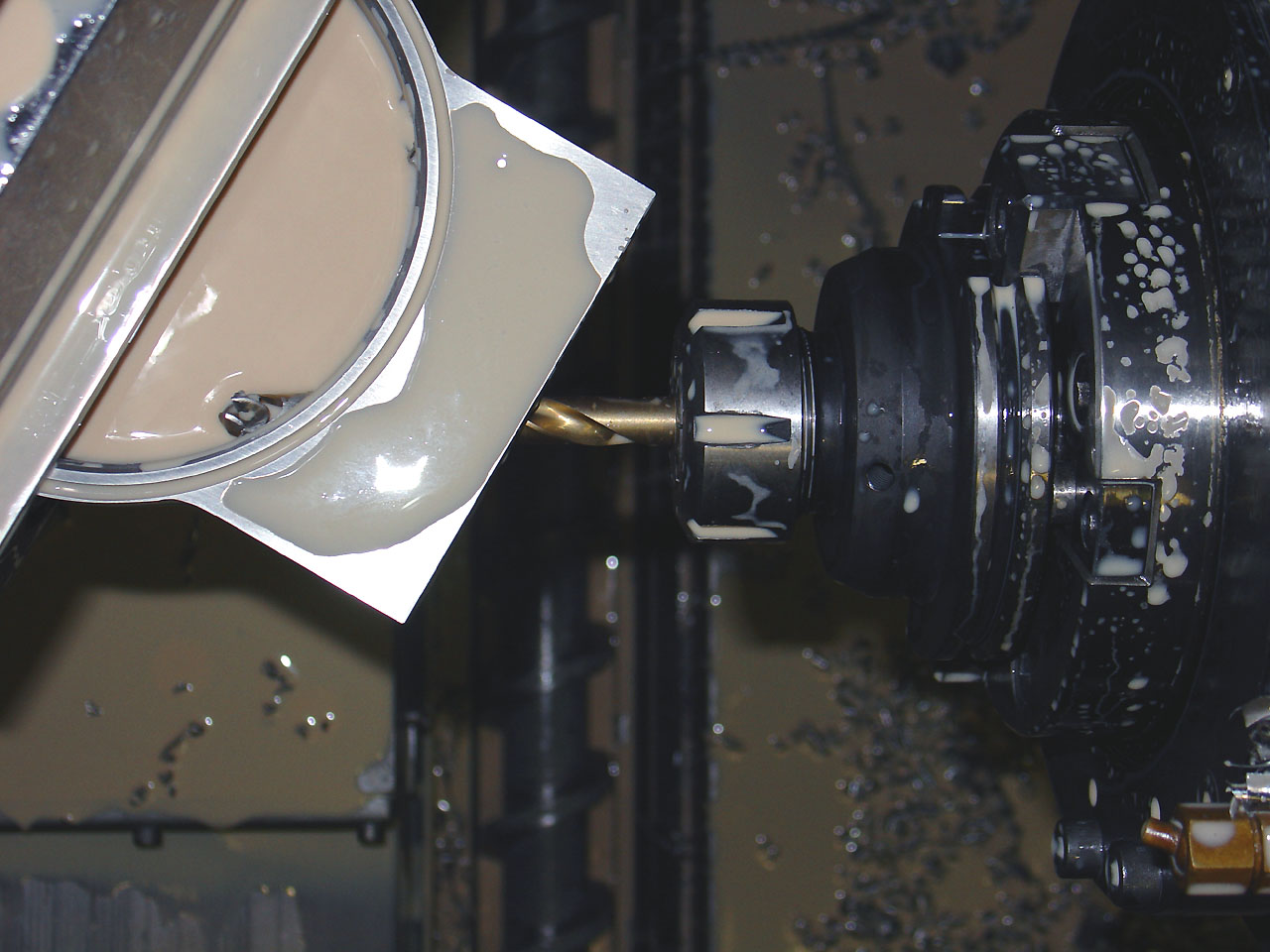

    Drilling (D. 10 mm.) tangent to the inside circle.

    [​IMG]

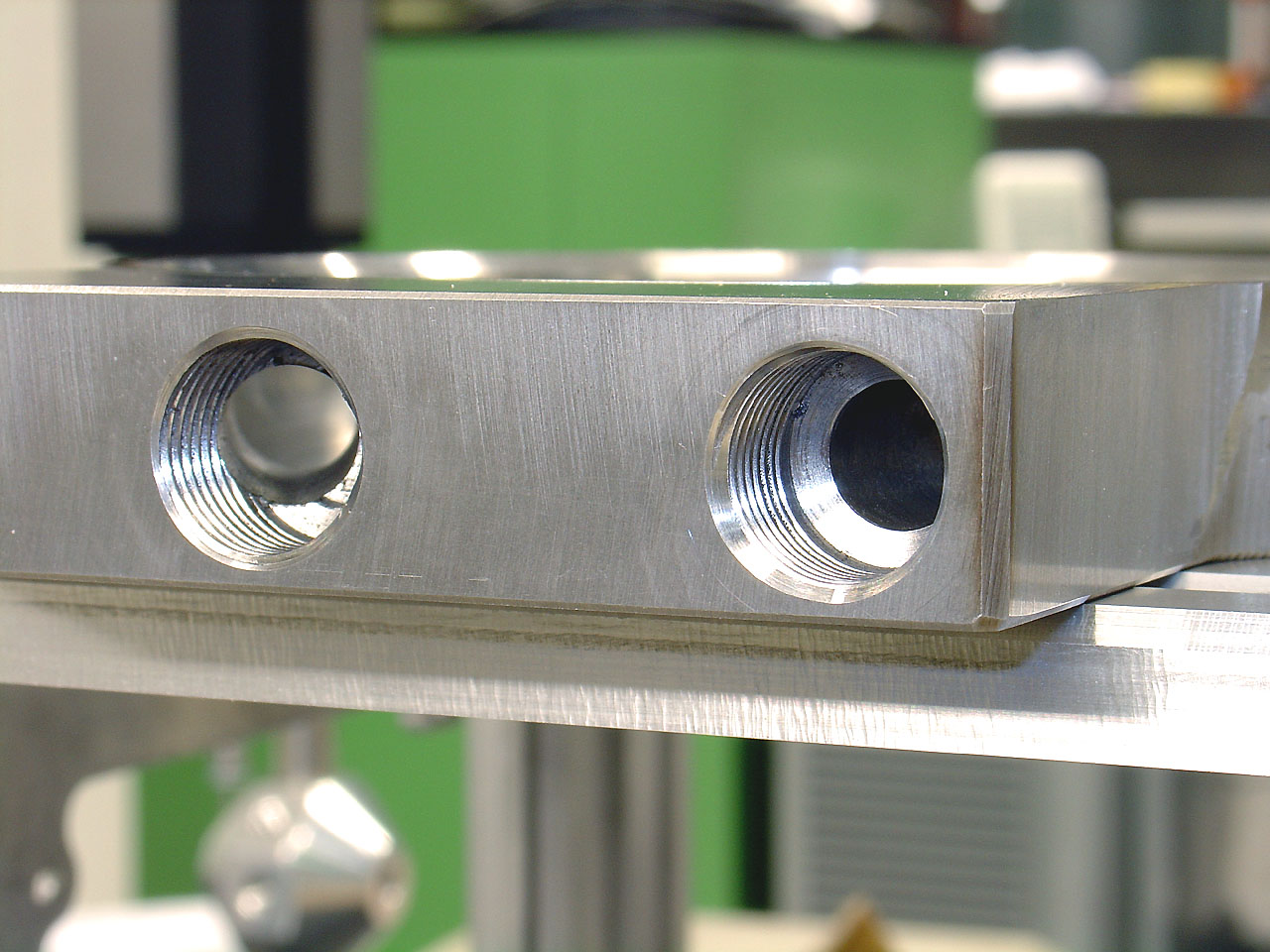

    Zoom Tapping 3/8" Gas.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]

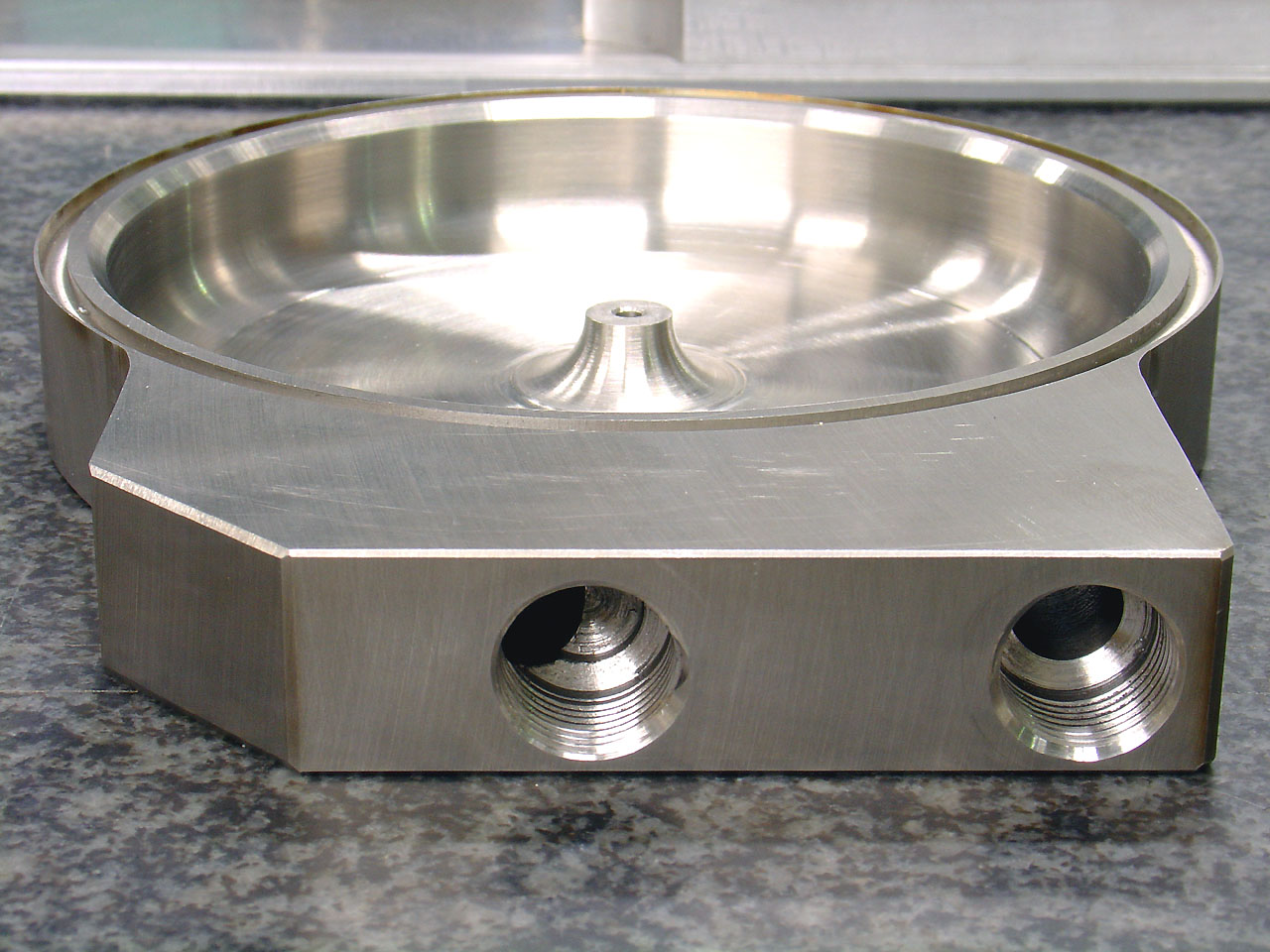

    Zoom The bottom is over! :D

    See you soon with the next step.

    bye bye; :thumb:

  18. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15

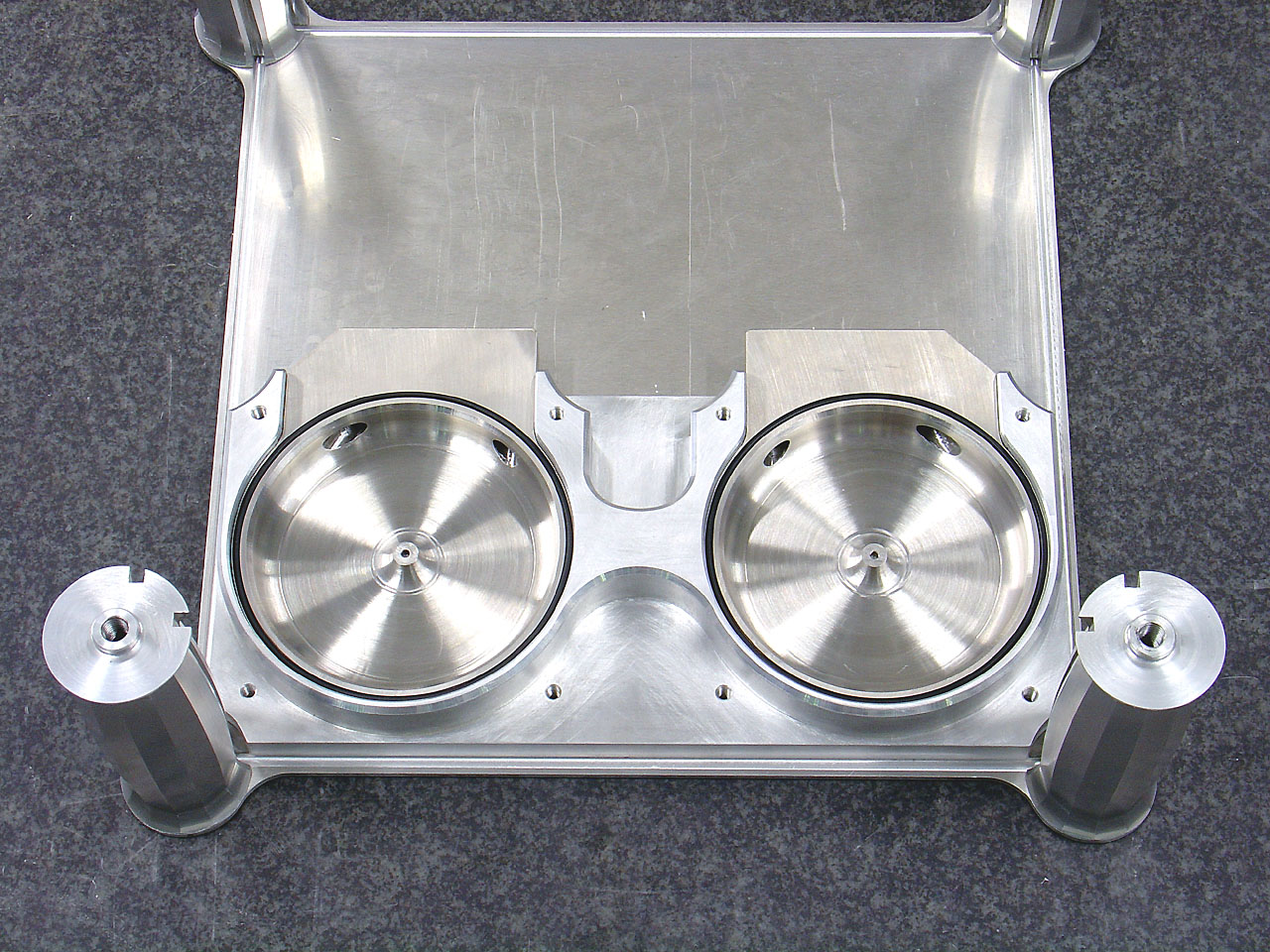

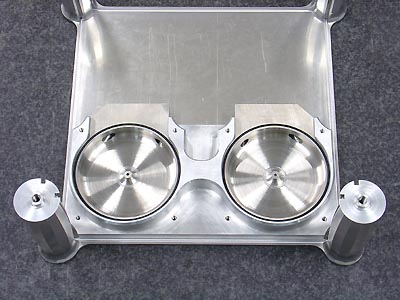

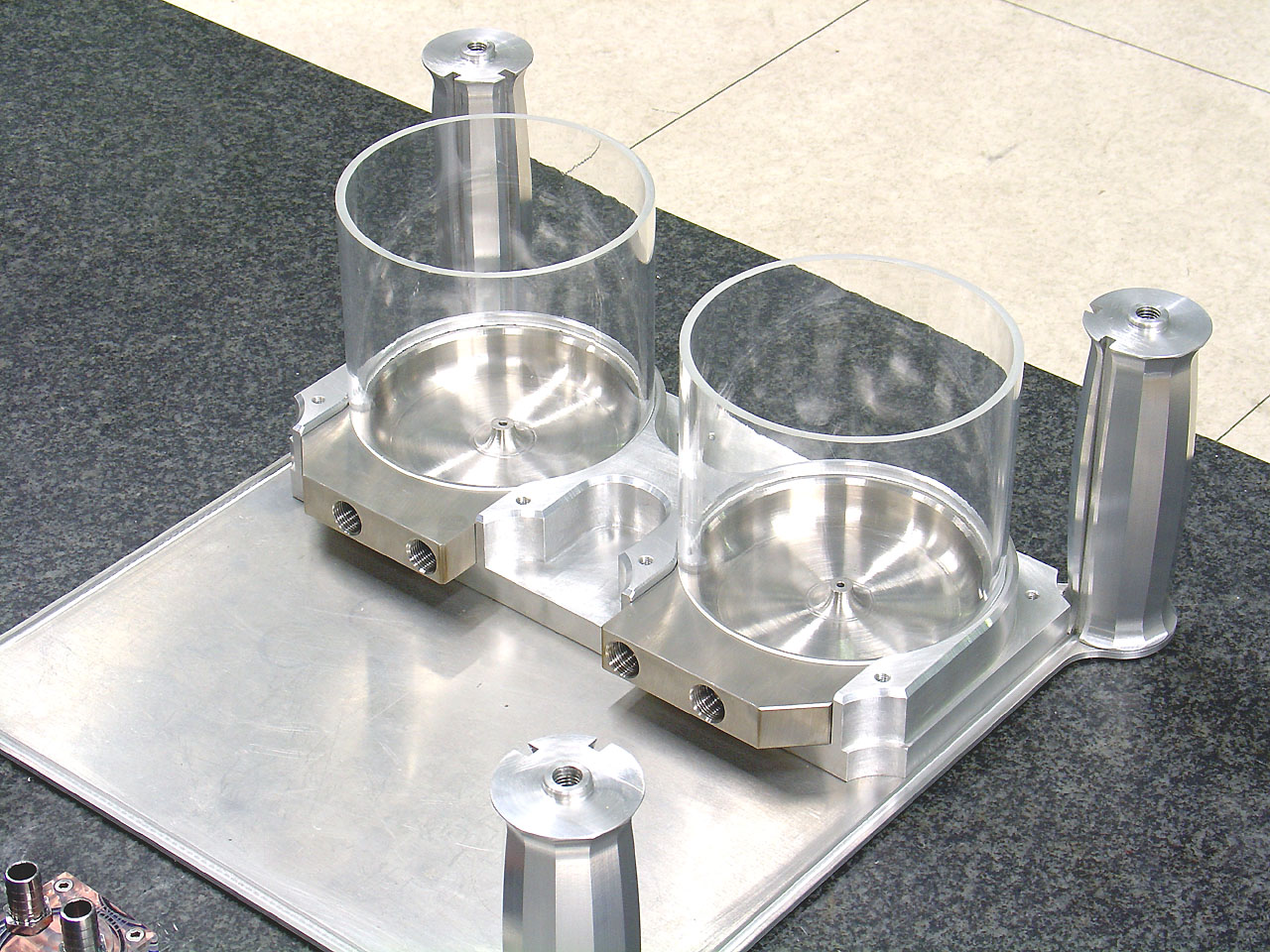

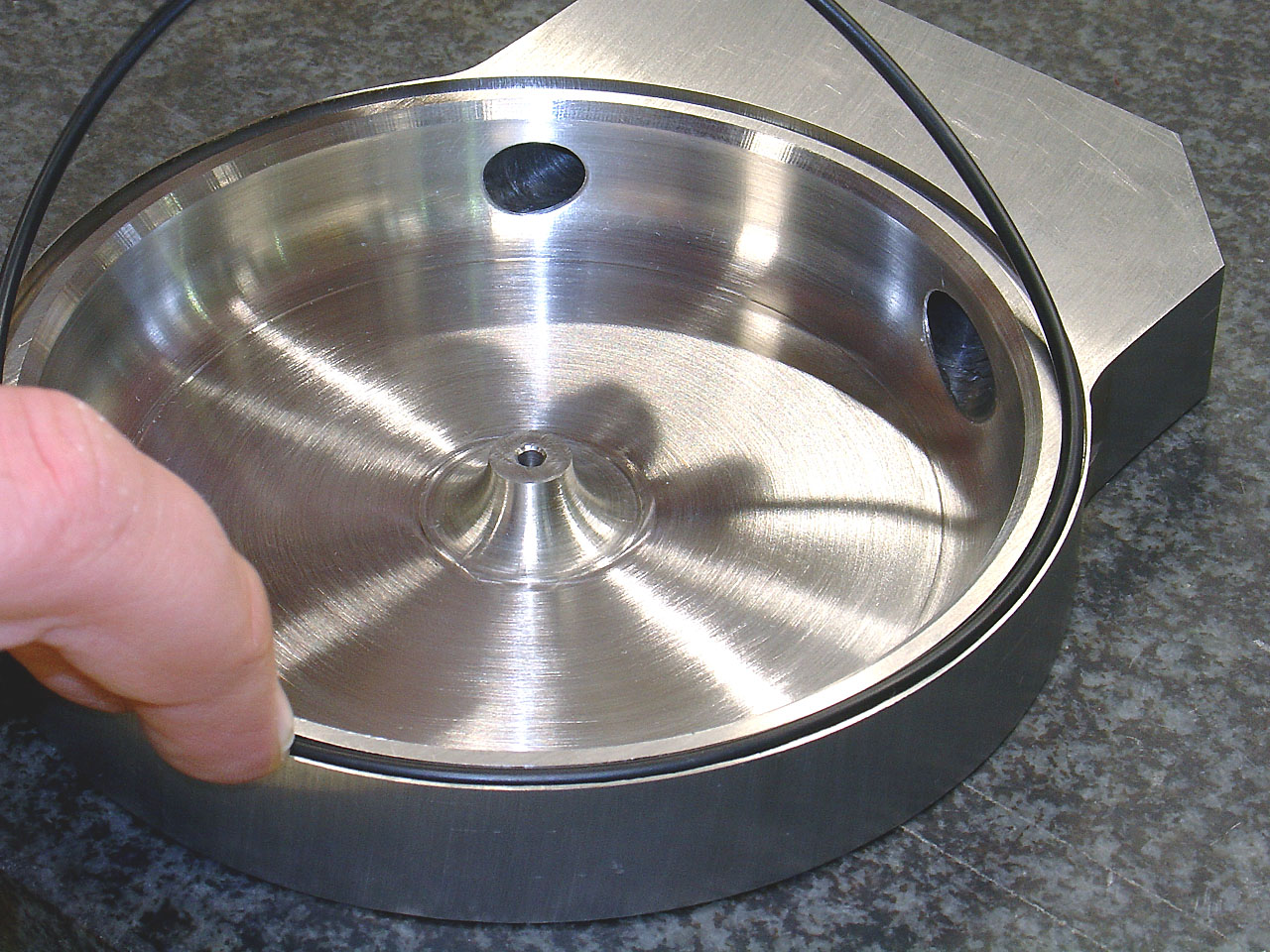

    Some pictures of the firts reservoirs pieces and a assembly test.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    Finally the ideas become to have a form.

    bye bye :thumb:

  19. 3.5SE

    3.5SE New Member

    Joined:
    21 Nov 2003
    Posts:
    88
    Likes Received:
    0
    Absolutely beautiful work.
    Makes me wish I had a CNC machine and the skill to use one.

  20. Atomic

    Atomic Gerwaff

    Joined:
    6 May 2002
    Posts:
    9,646
    Likes Received:
    94
    bejesus thats some excellent work, Im actually looking forward to the next installment of this work log.

    Very interesting.
