Scratch Build – In Progress DBRS Project by G69T

Discussion in 'Project Logs' started by G69T, 1 May 2009.

  1. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    That is some very nice machining.

    Happy Birthday, hope you have a good one :D.

  2. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks friends! ;)

  3. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15

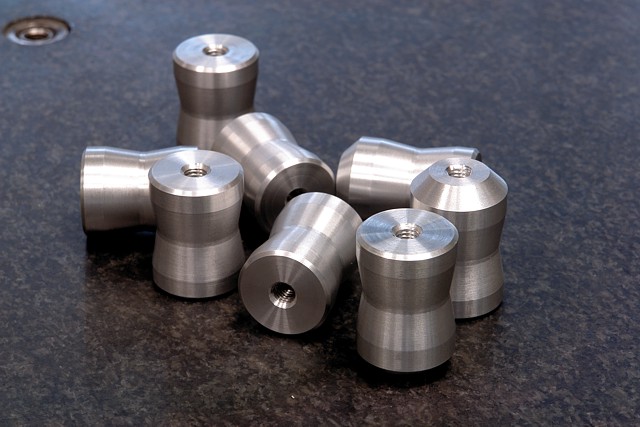

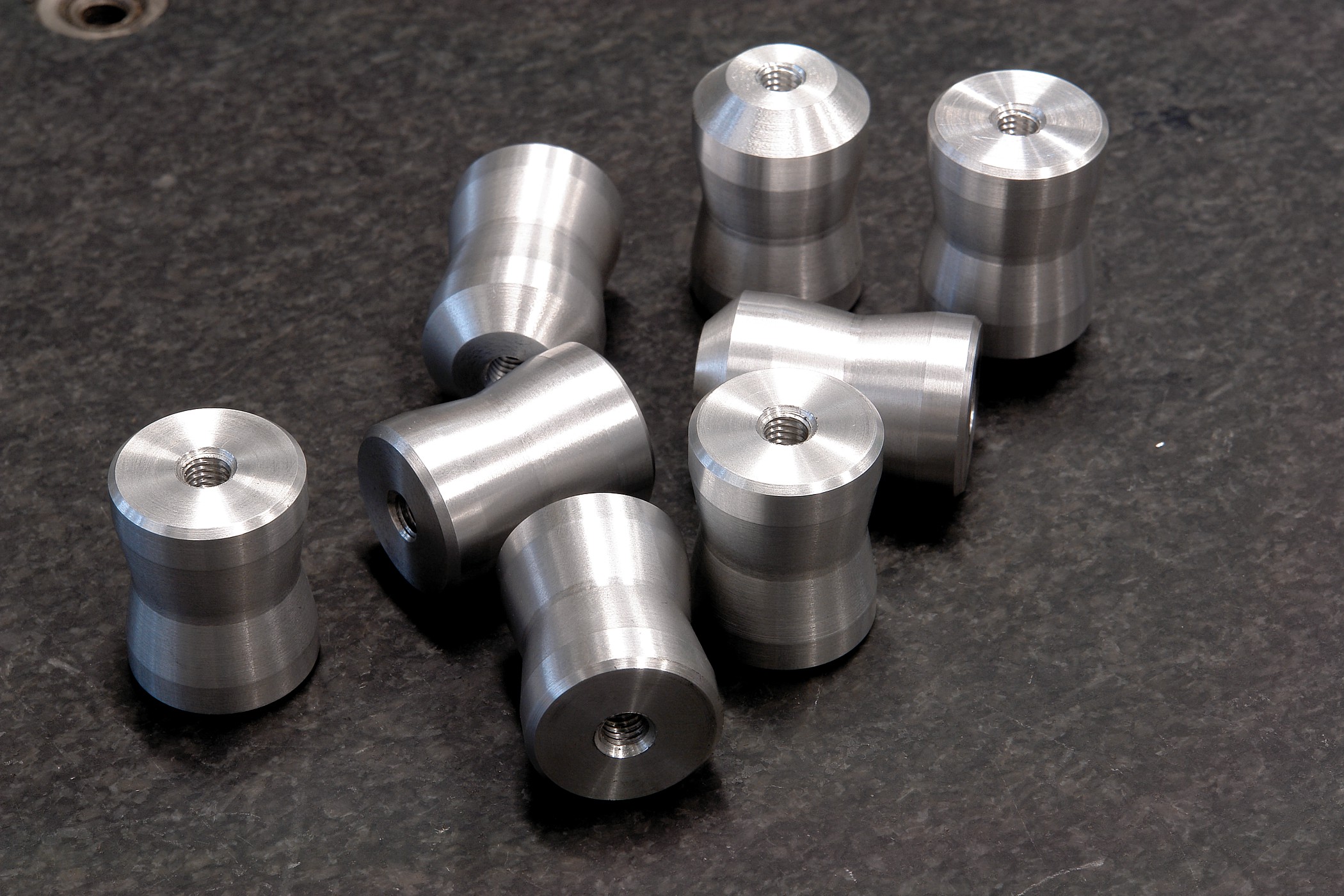

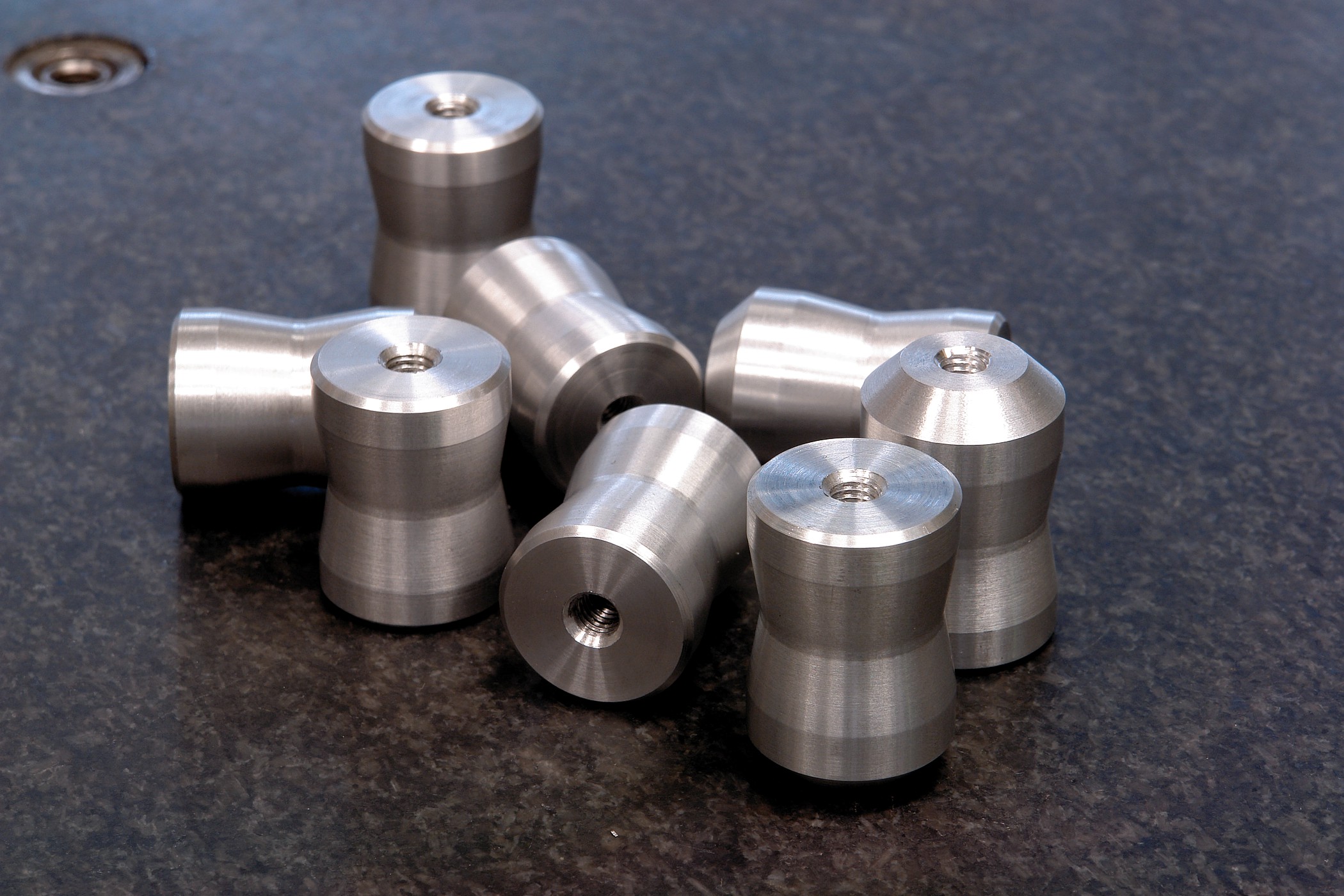

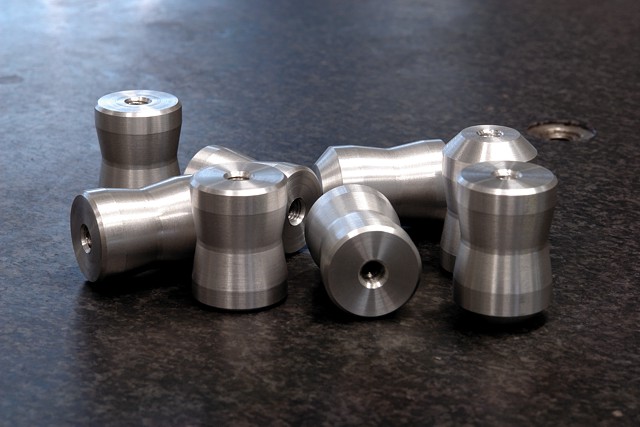

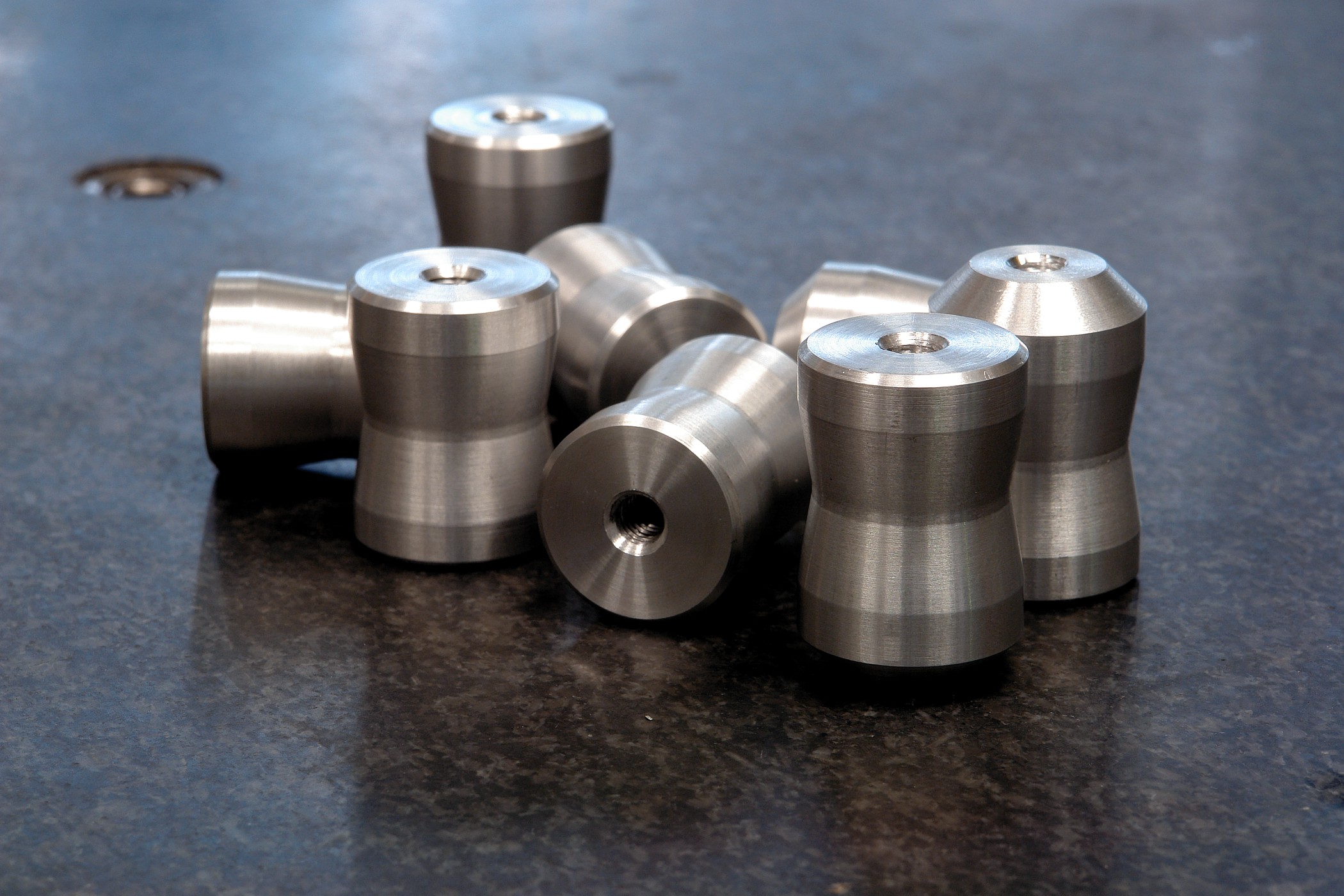

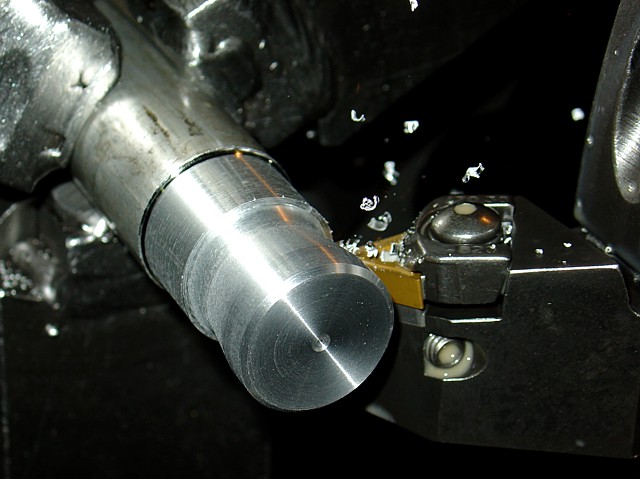

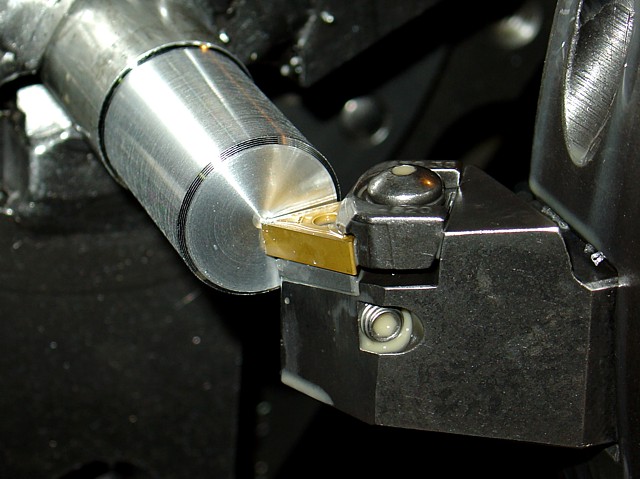

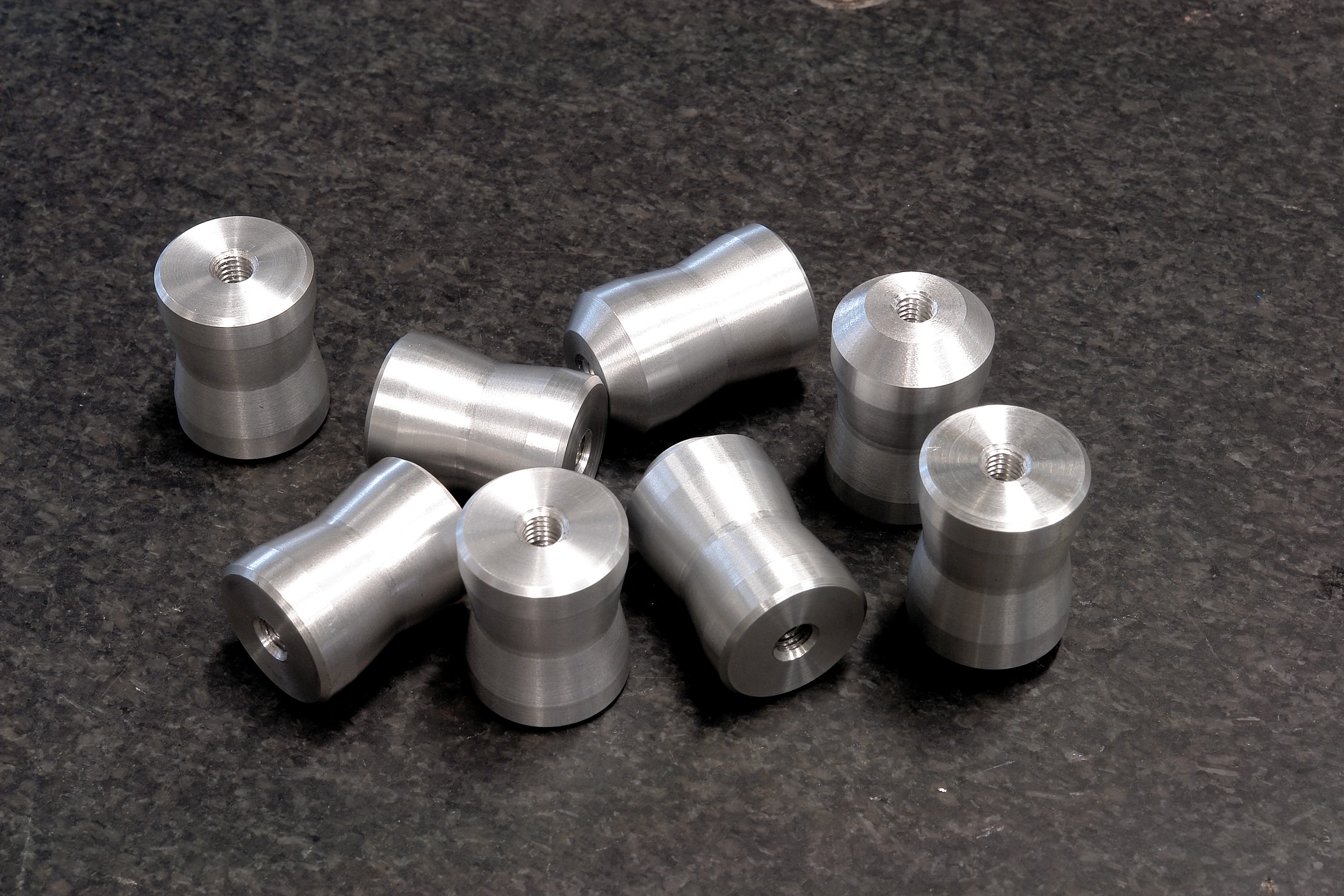

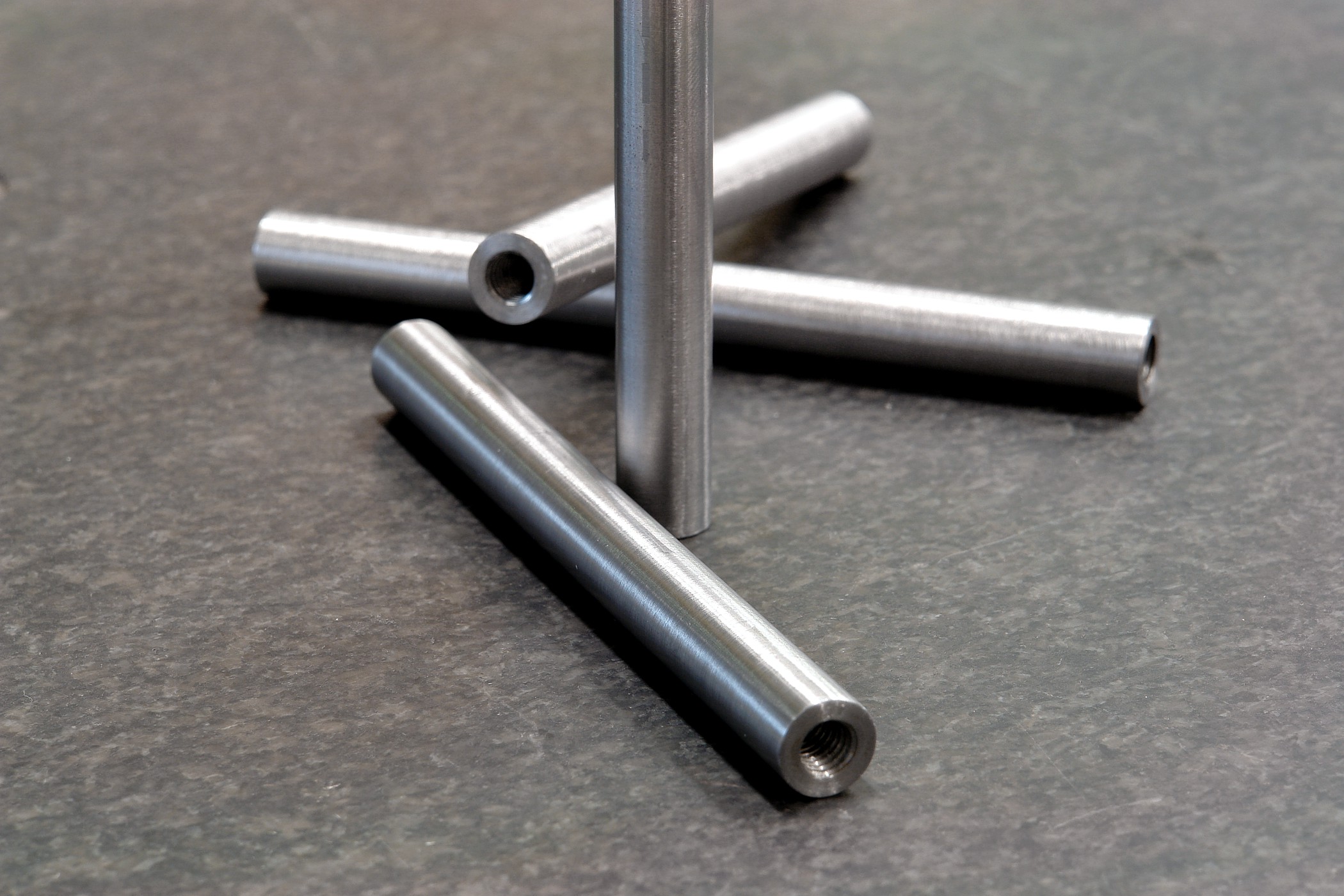

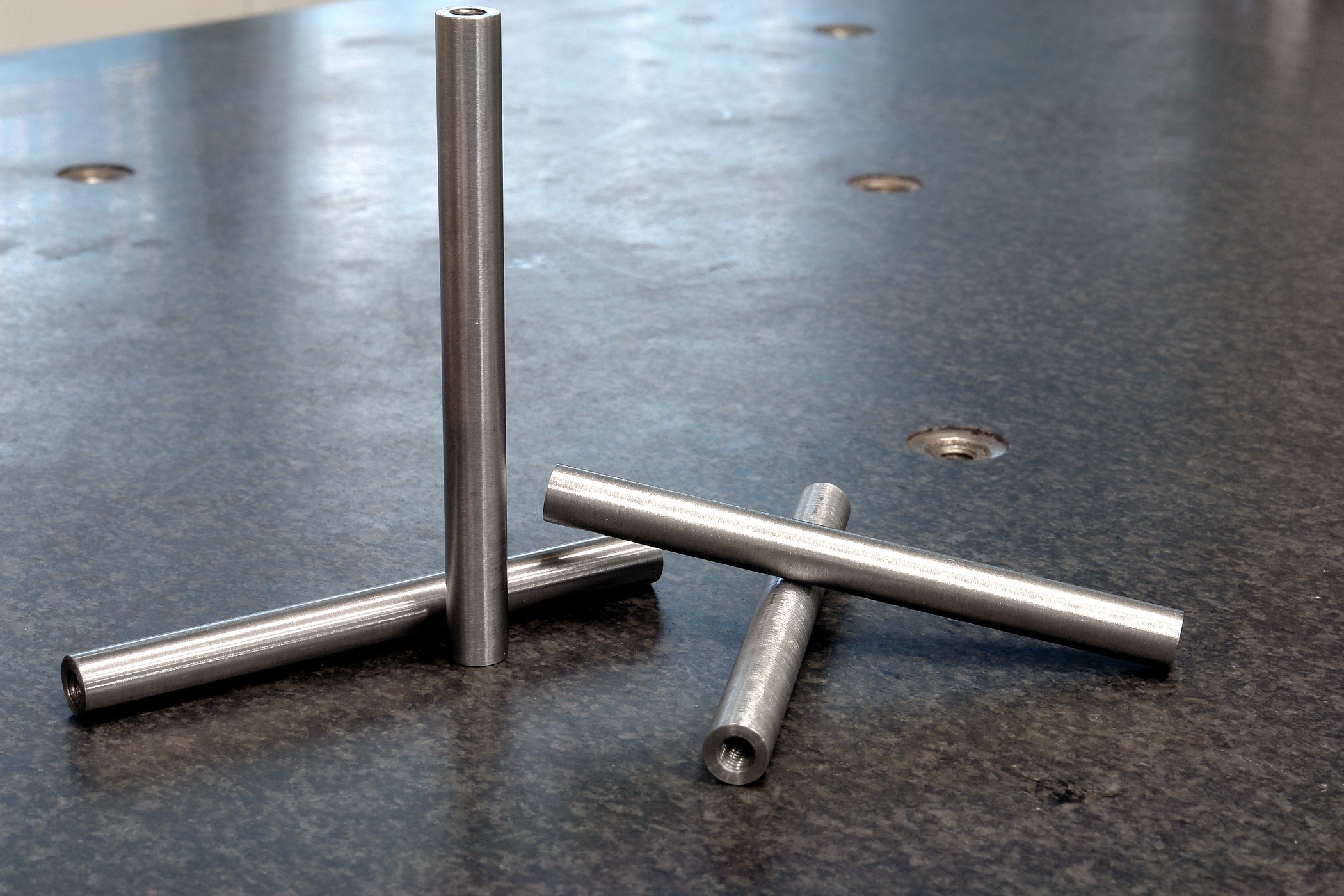

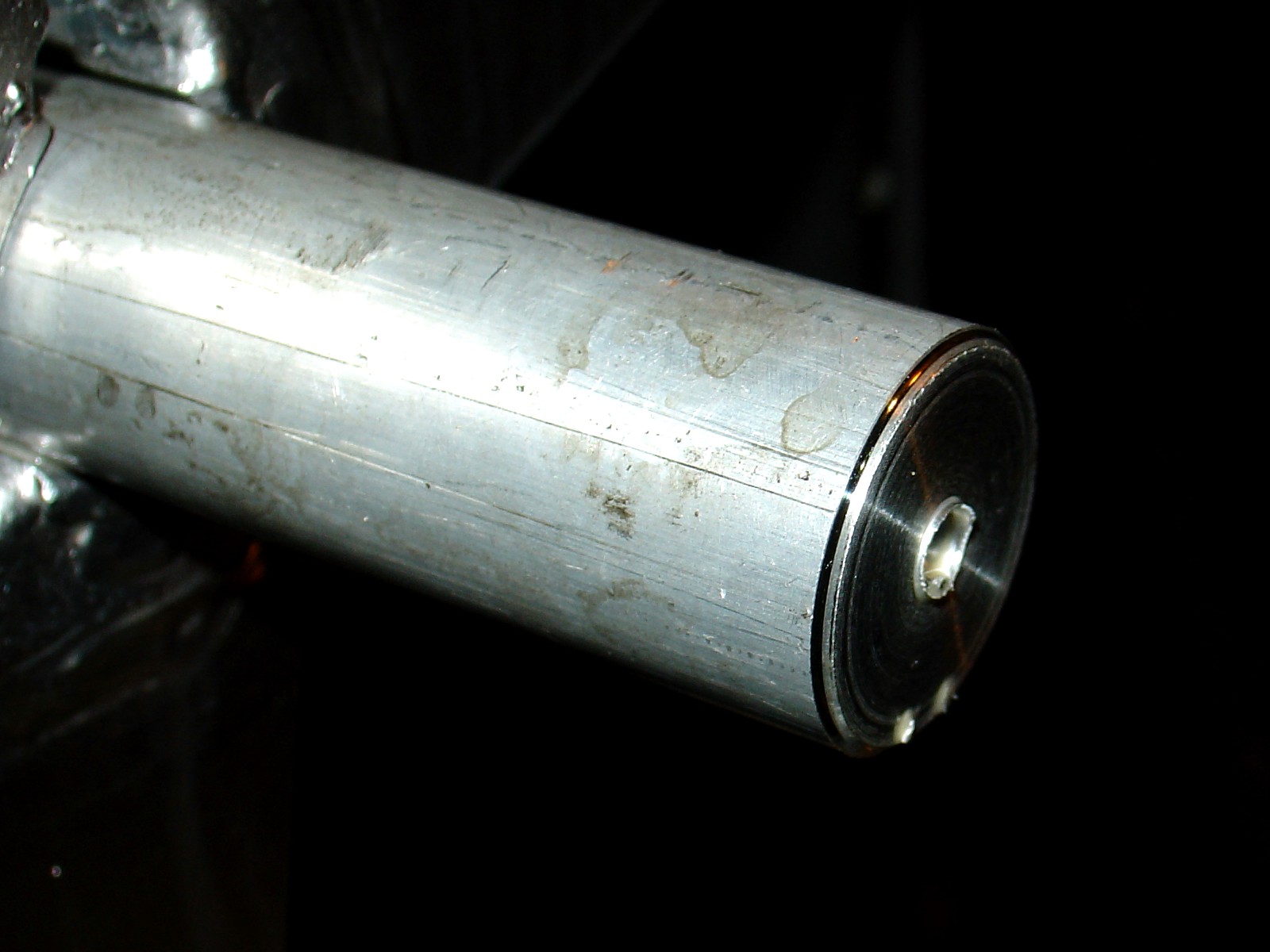

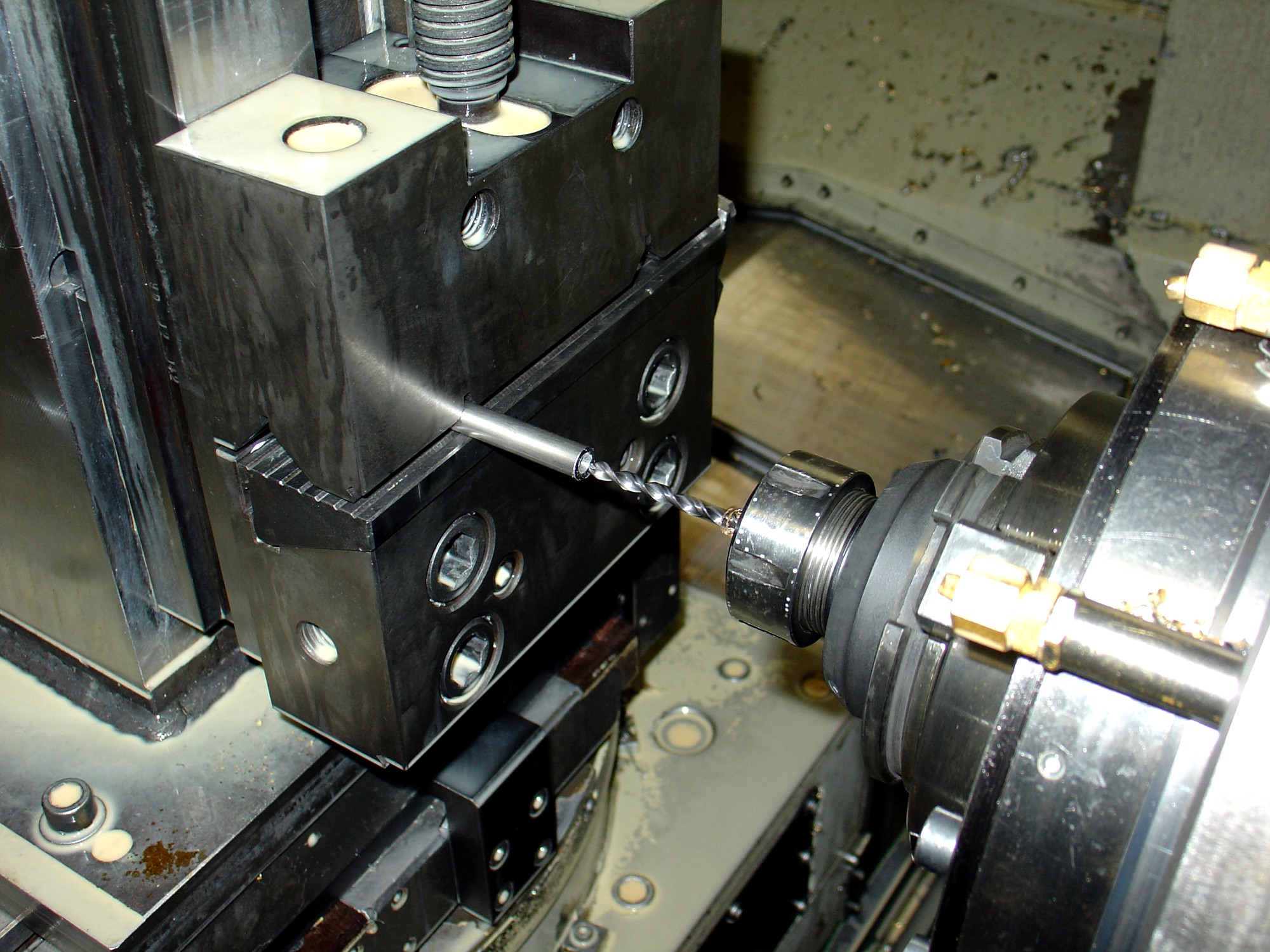

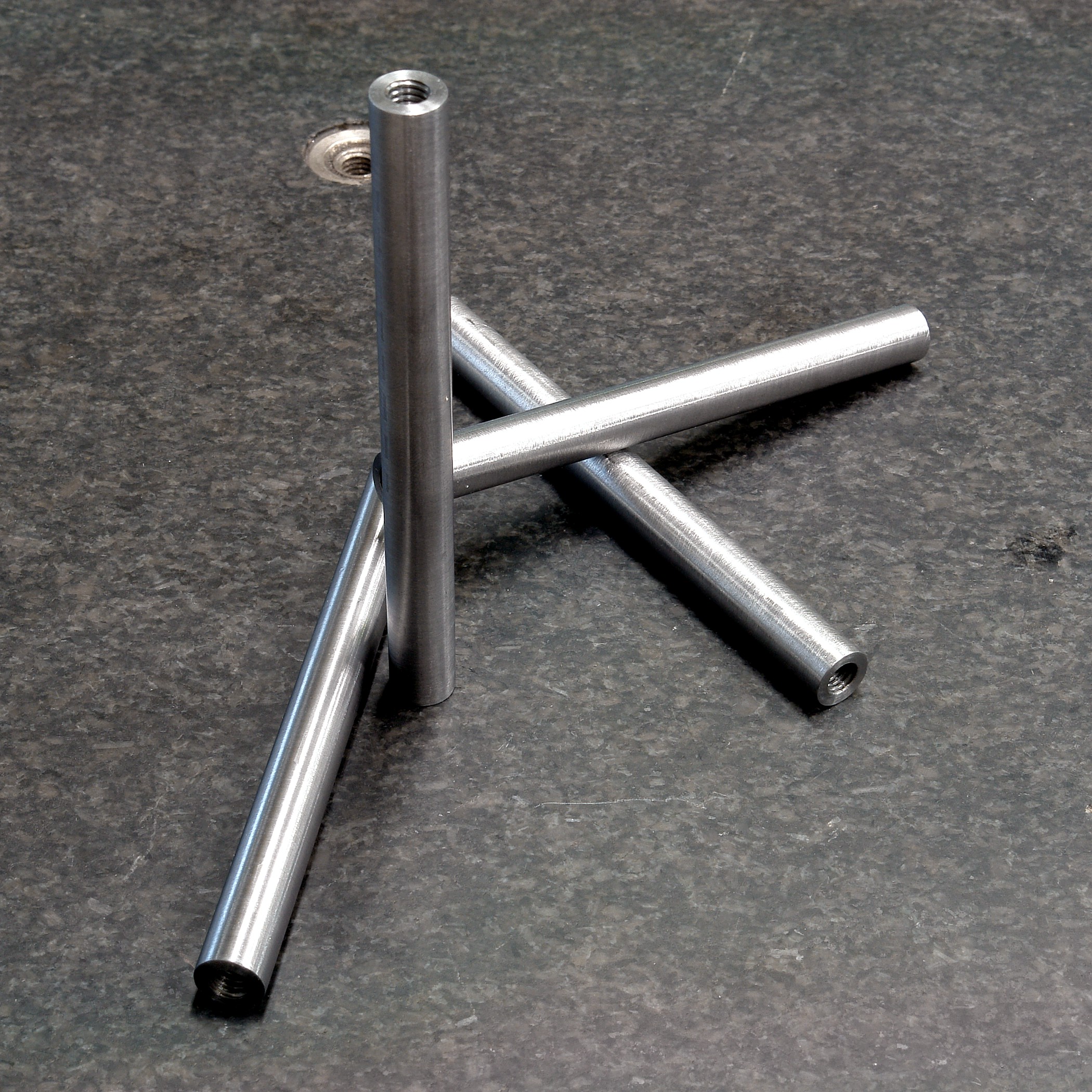

    Spacers. Rods - Adjustment levers

    For the construction of the eight details, I used a raw bar in aluminum AC100 material.

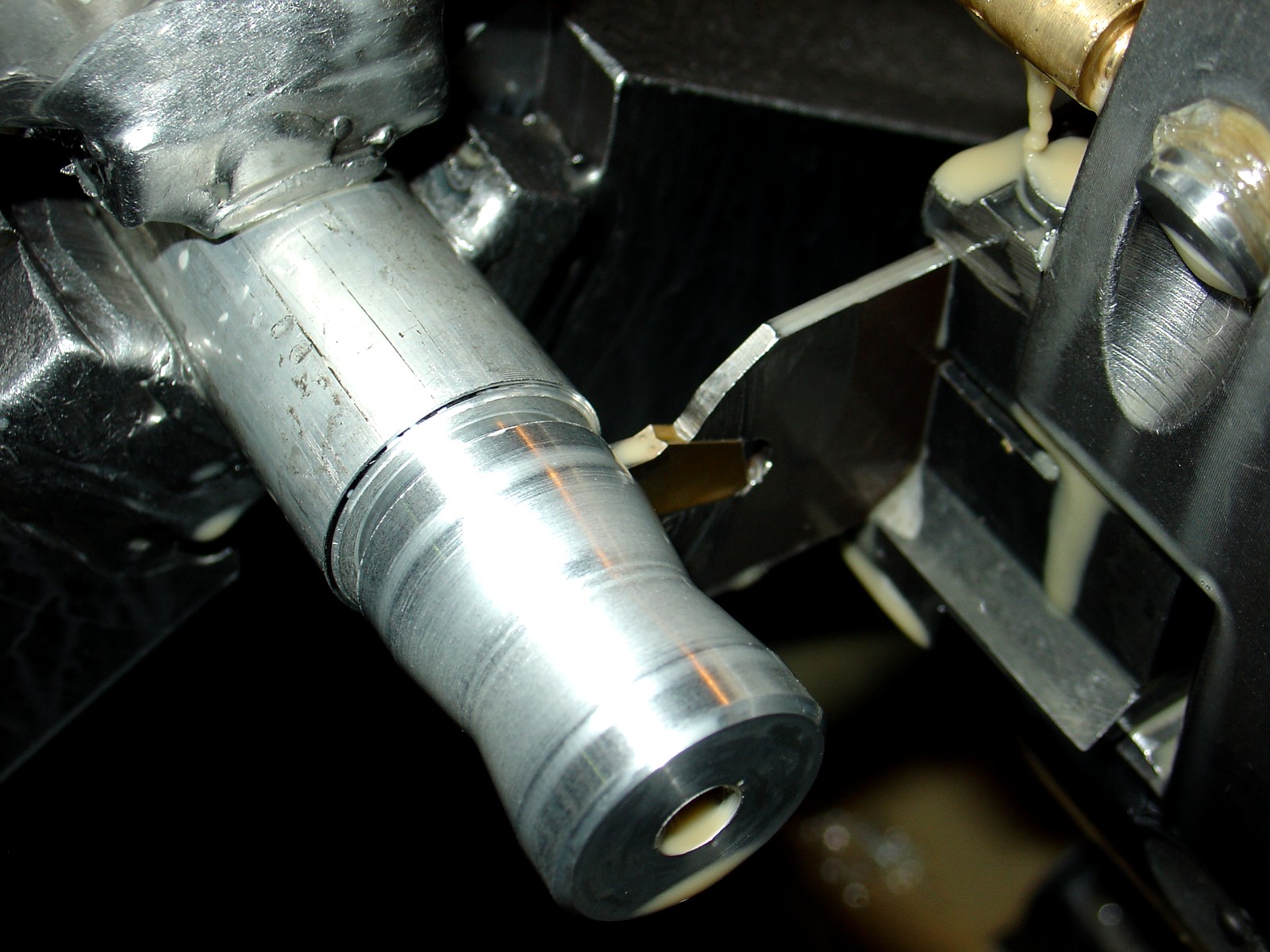

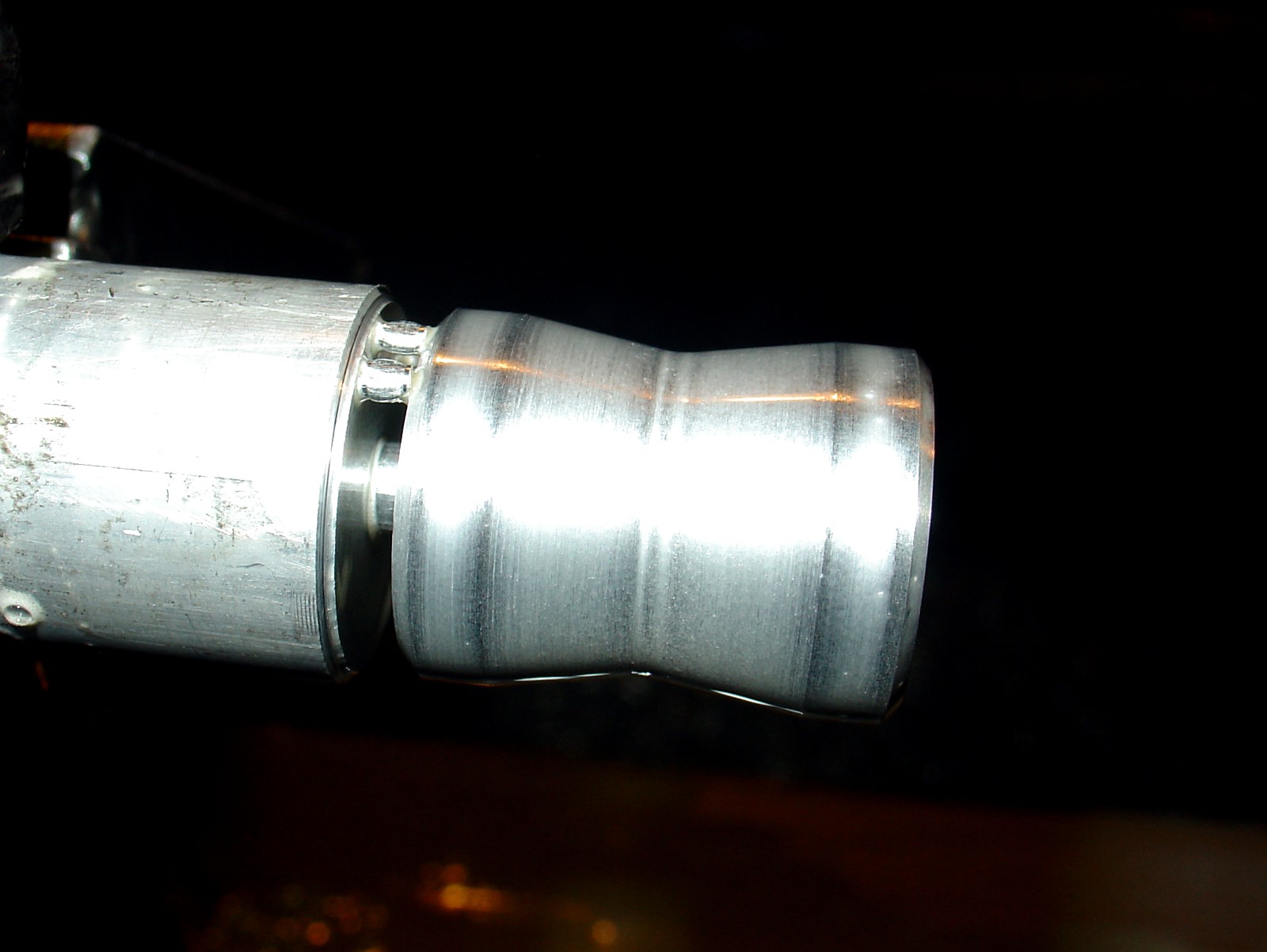

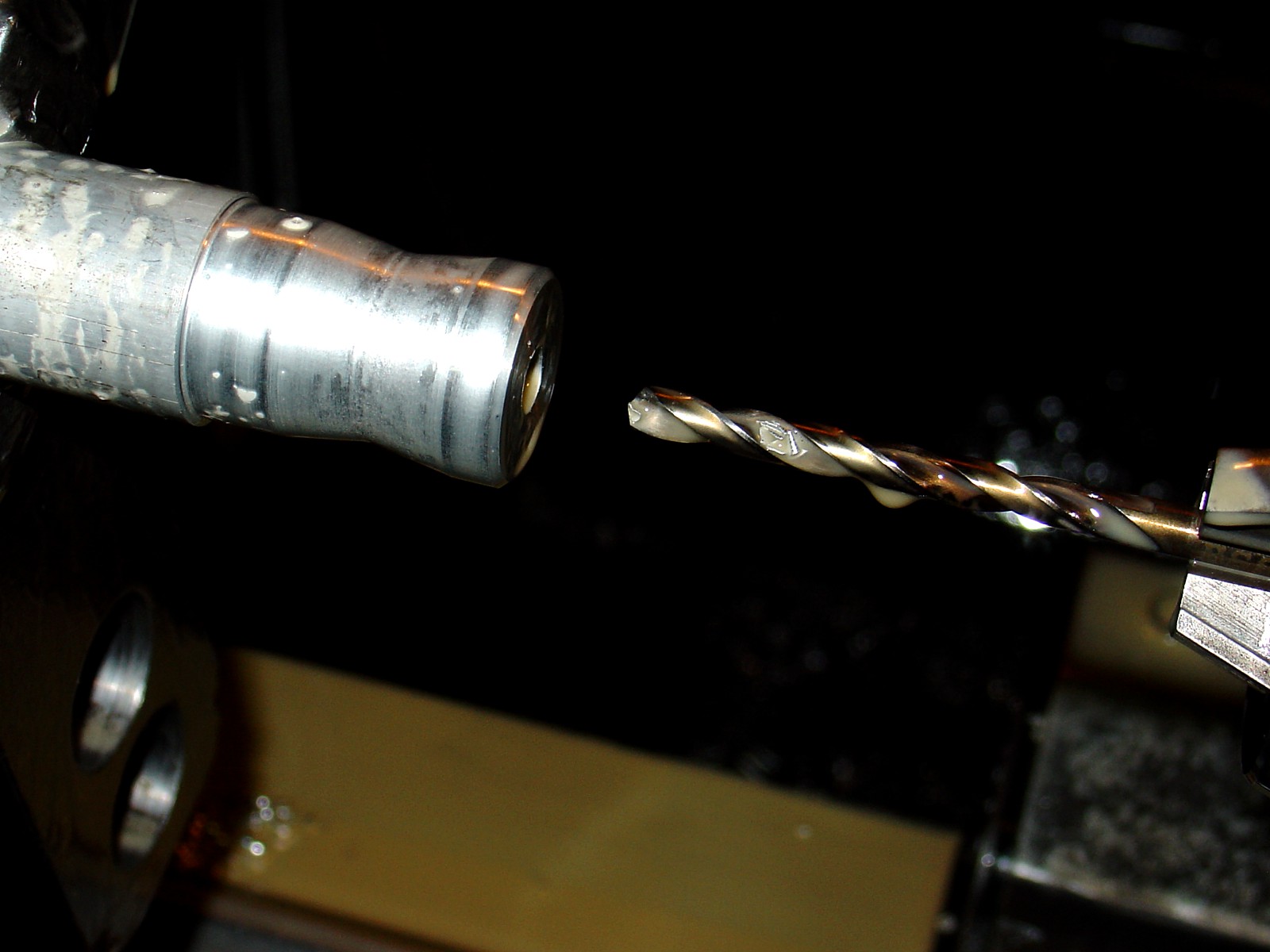

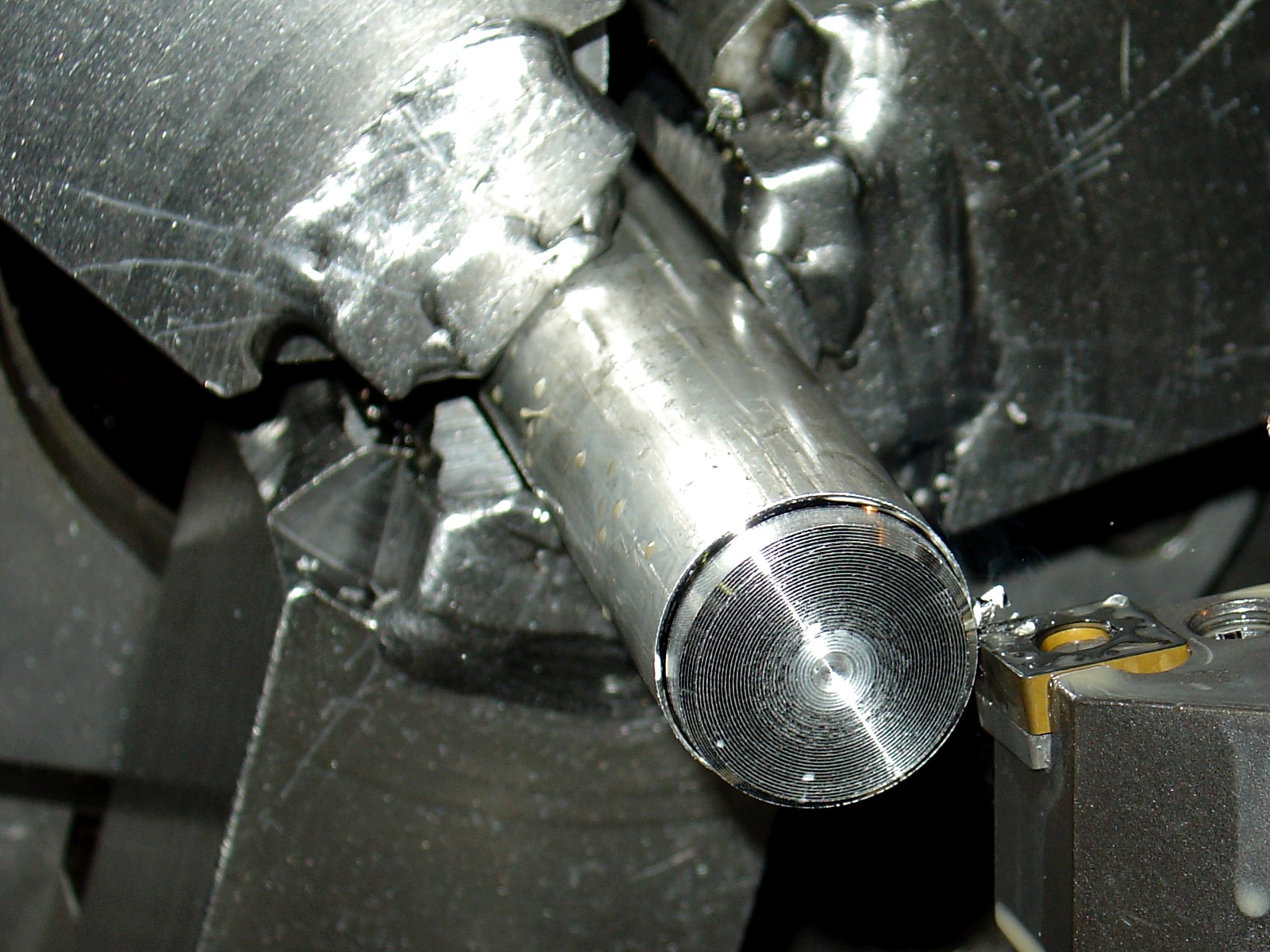

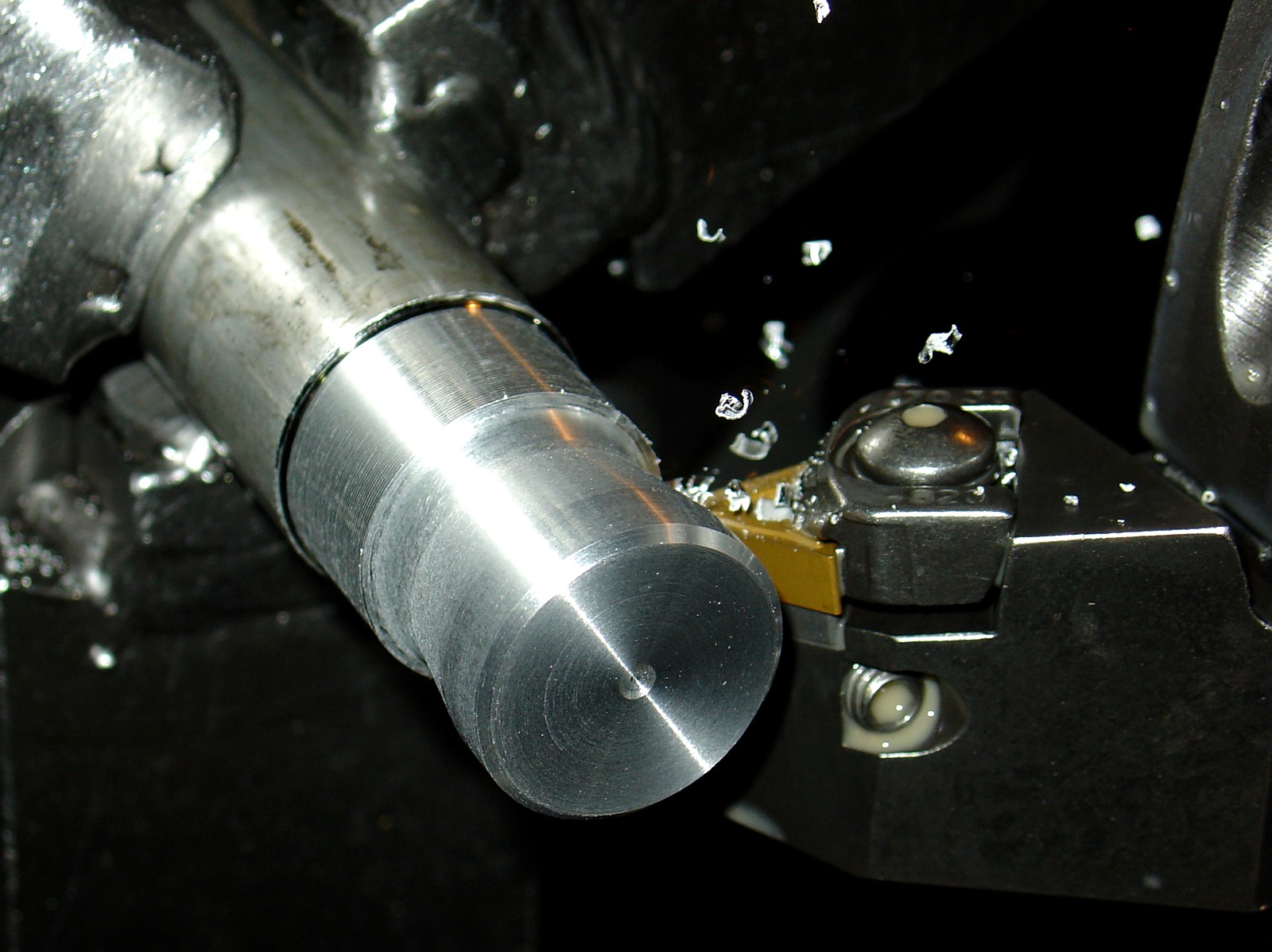

    Some photos of the working phases on CNC lathe.

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    ModMinded likes this.
  4. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  5. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
  6. Oreon_237

    Oreon_237 CHEA BRO!

    Joined:
    11 Dec 2007
    Posts:
    1,170
    Likes Received:
    1
    ^ what he said

  7. Cleveland216

    Cleveland216 Carbon Fiber King

    Joined:
    30 Dec 2007
    Posts:
    529
    Likes Received:
    19
    If there was a Da-Vinci of the moddin community, You would be it!

  8. ModMinded

    ModMinded Are you throwing that away?

    Joined:
    26 Aug 2008
    Posts:
    1,378
    Likes Received:
    43
    Wow indeed! Nice work, and great pics of the lathe and cutting tools (and final parts of course!)
    :thumb:


    And Happy (belated) Birthday!

  9. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,162
    Likes Received:
    1,770
    :clap:
    Sorry I missed your birthday.

  10. olddaphon

    olddaphon MADMODDER

    Joined:
    4 Aug 2007
    Posts:
    12
    Likes Received:
    0
    what do you use to get the great looking tapped holes?:jawdrop:

  11. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks to all of you, guys! ;)

    I used a standard tap tool with a special oil.

    UPDATE

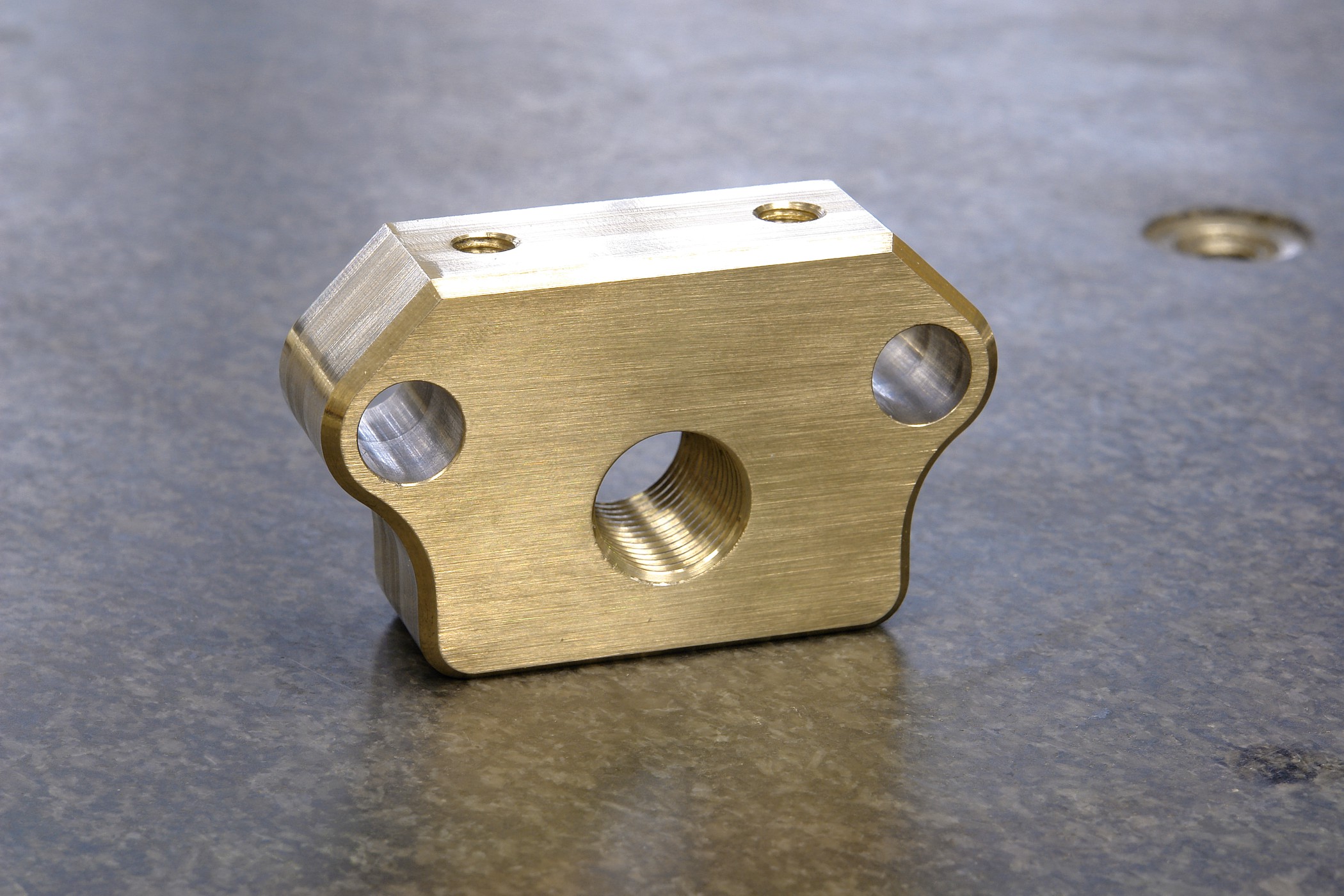

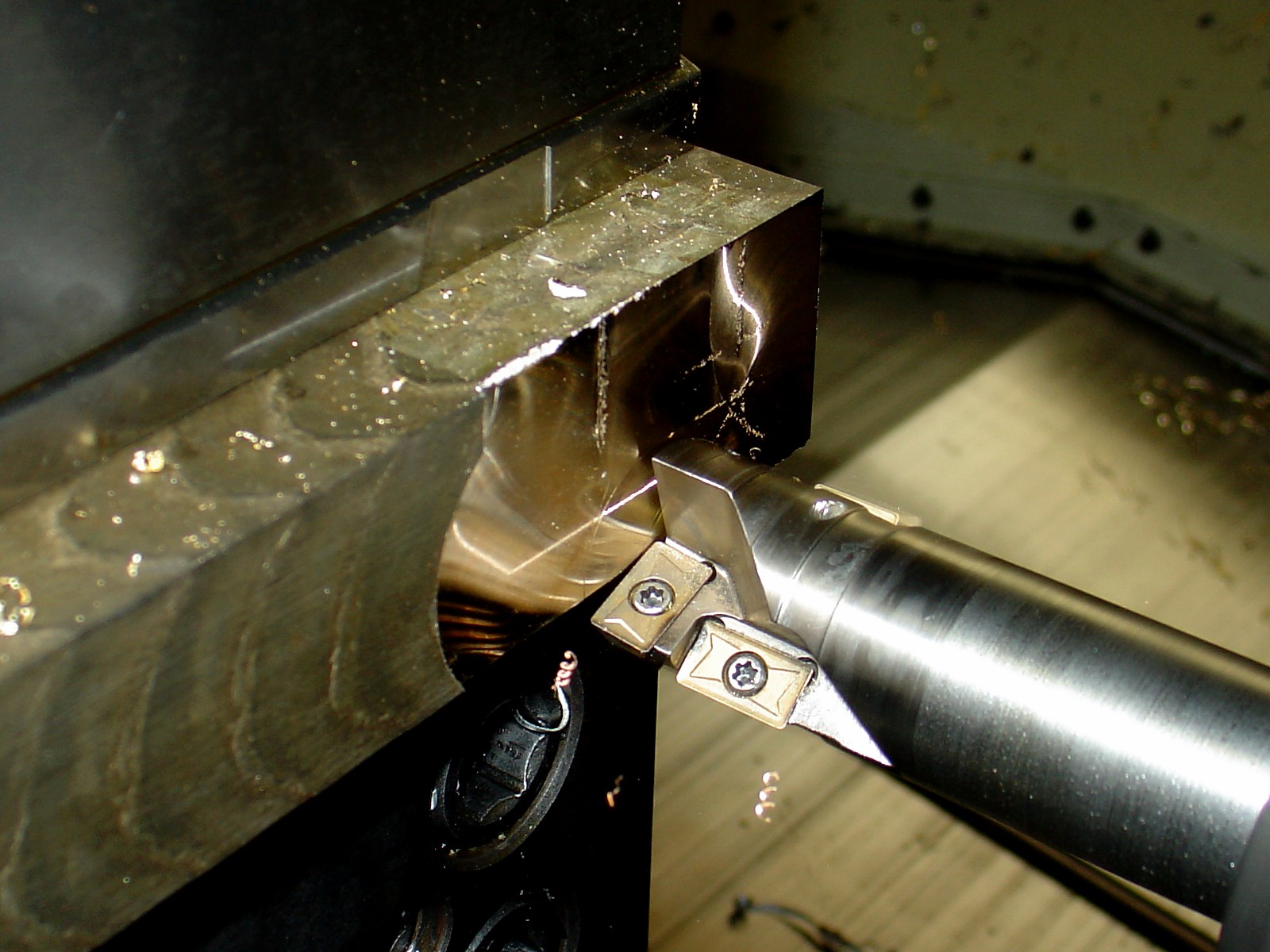

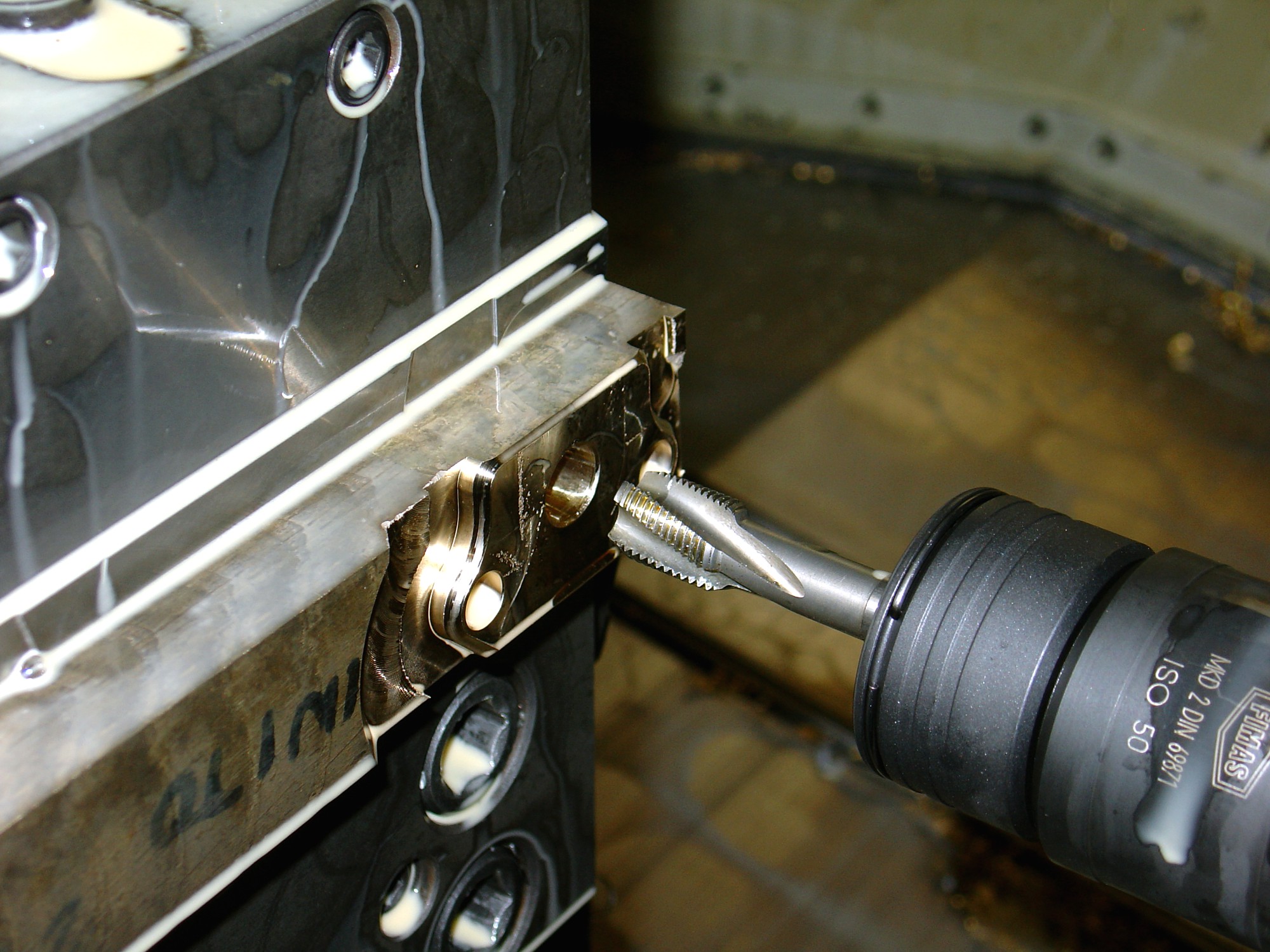

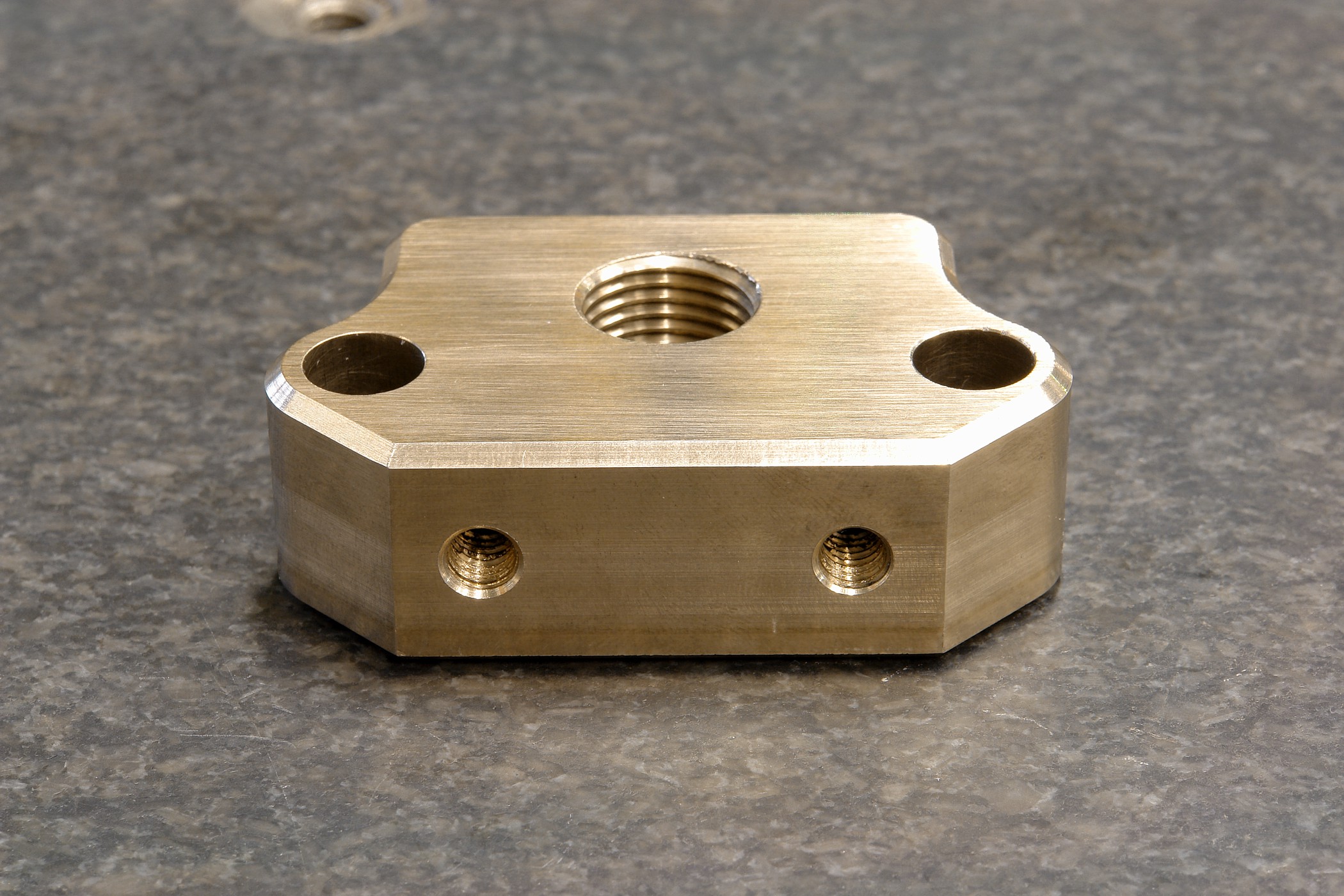

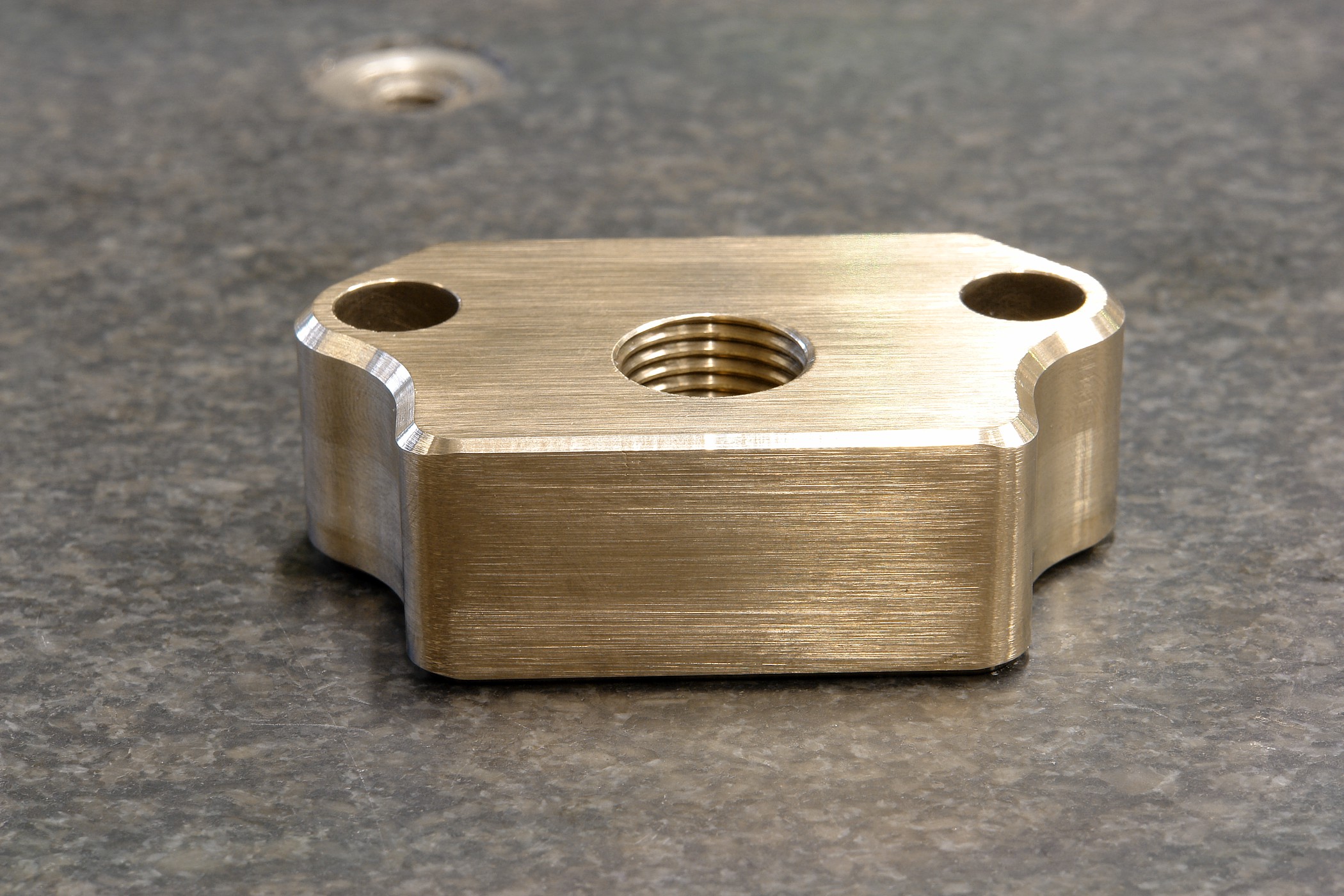

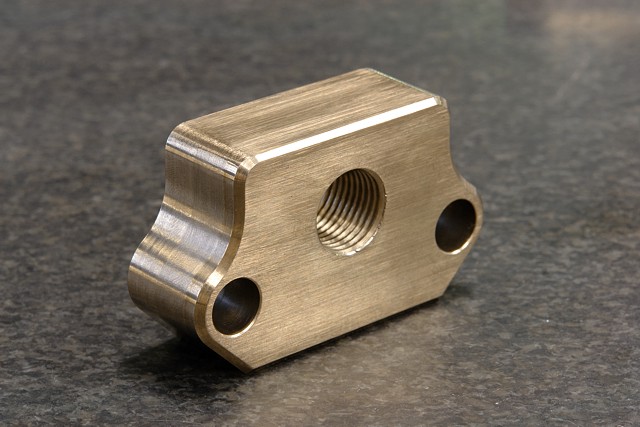

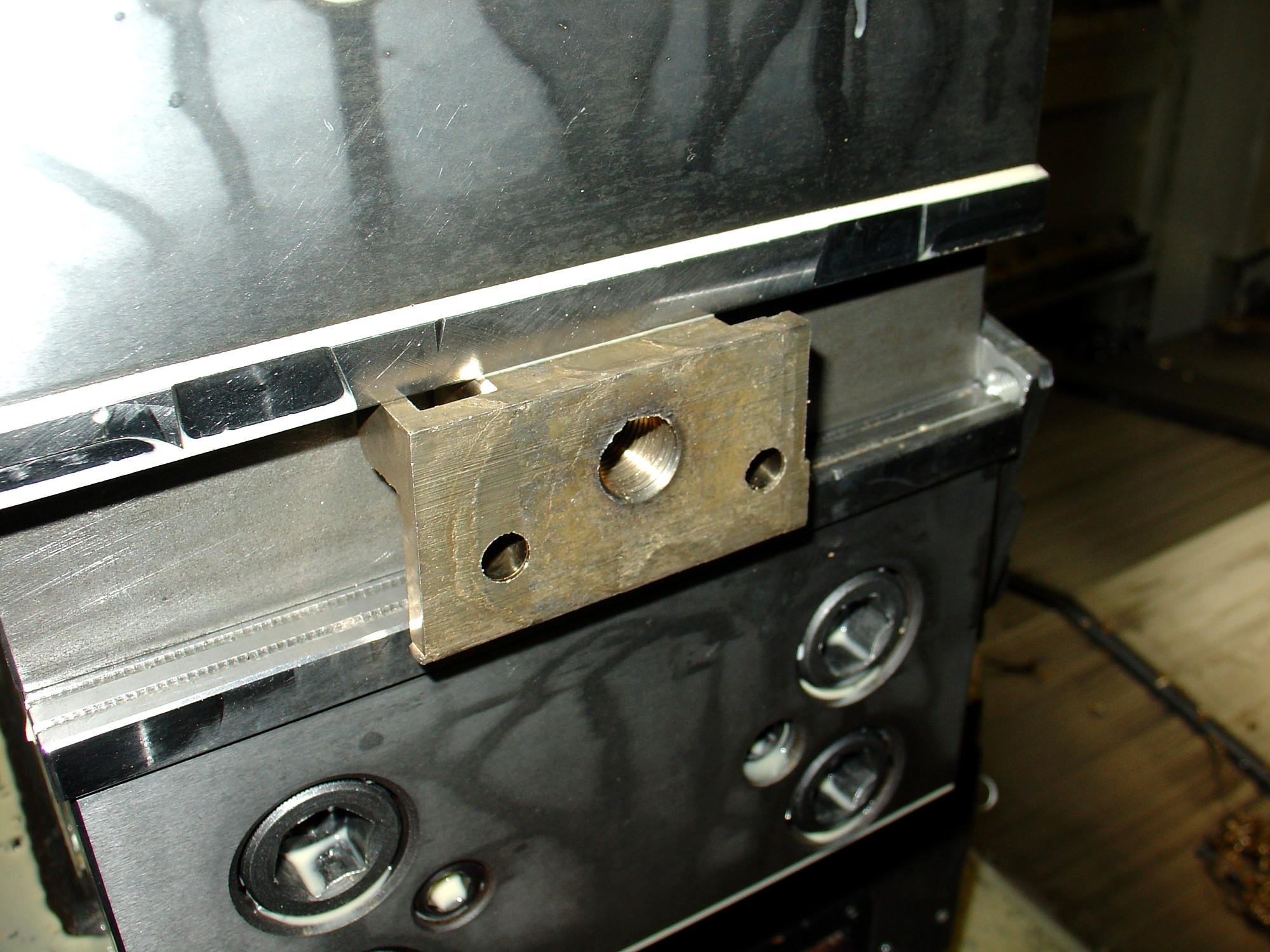

    Cross Slide

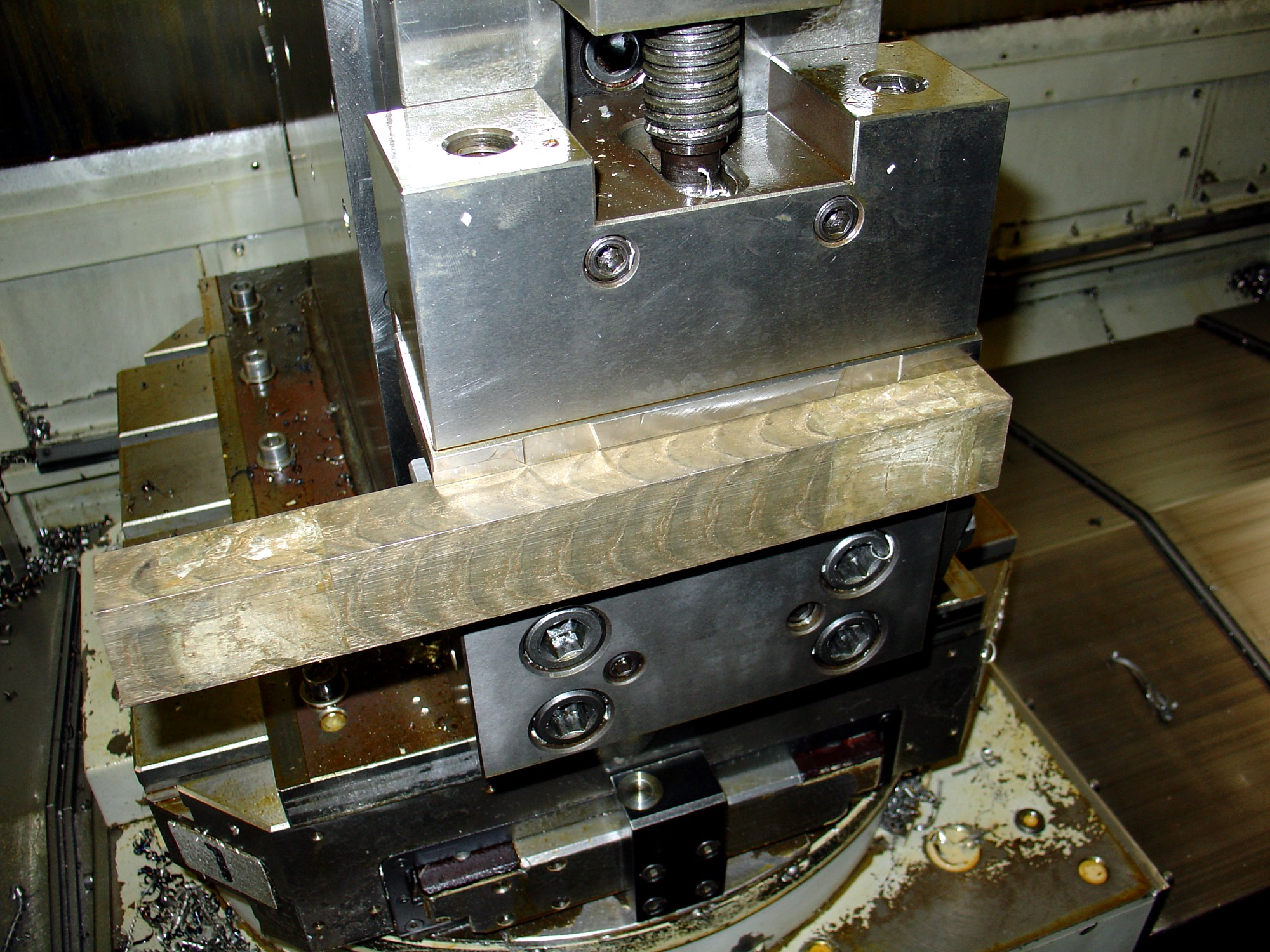

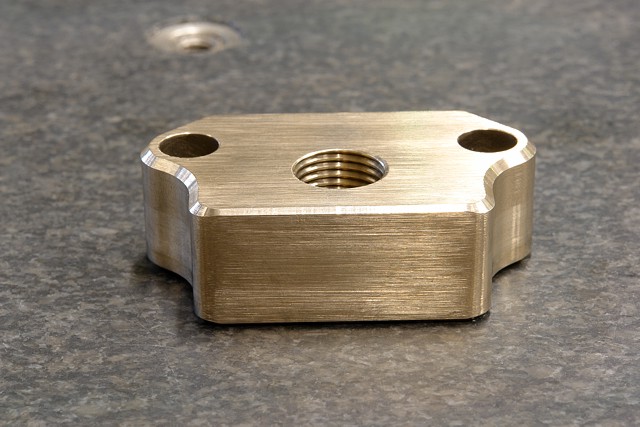

    The cross slide will be united to the command screw and the 2+2 guides. For the piece construction I used a bar of the manganese bronze.

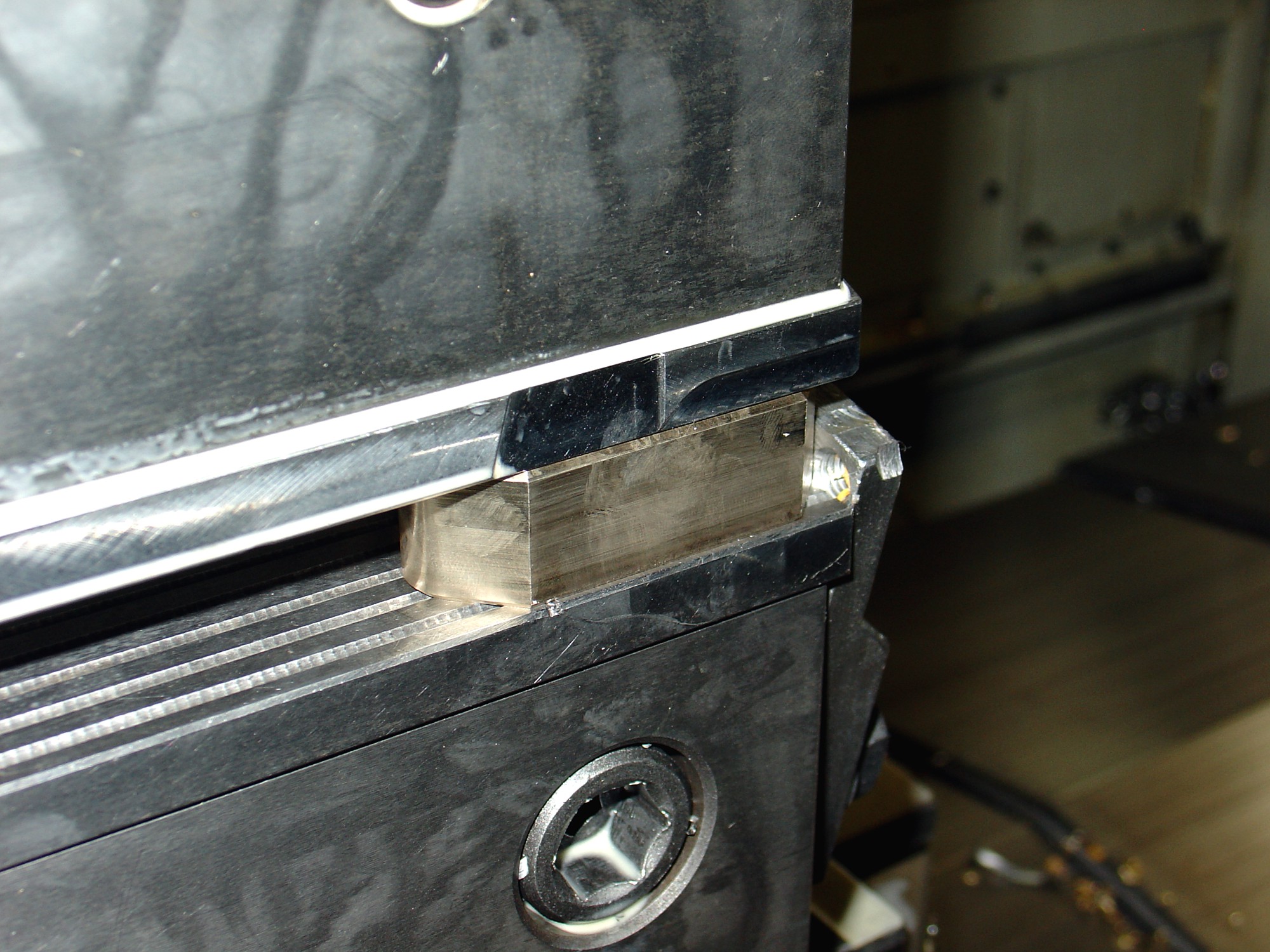

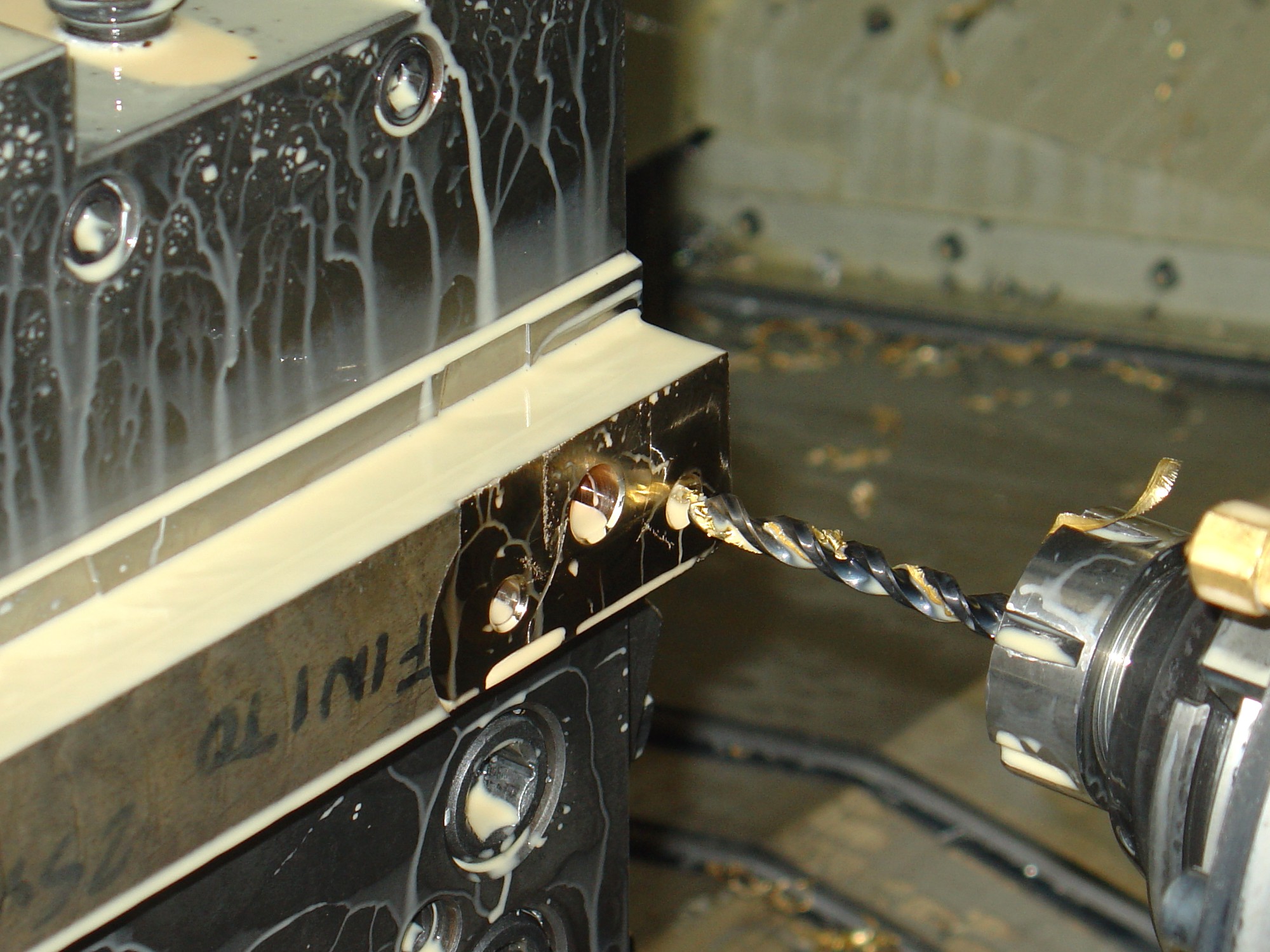

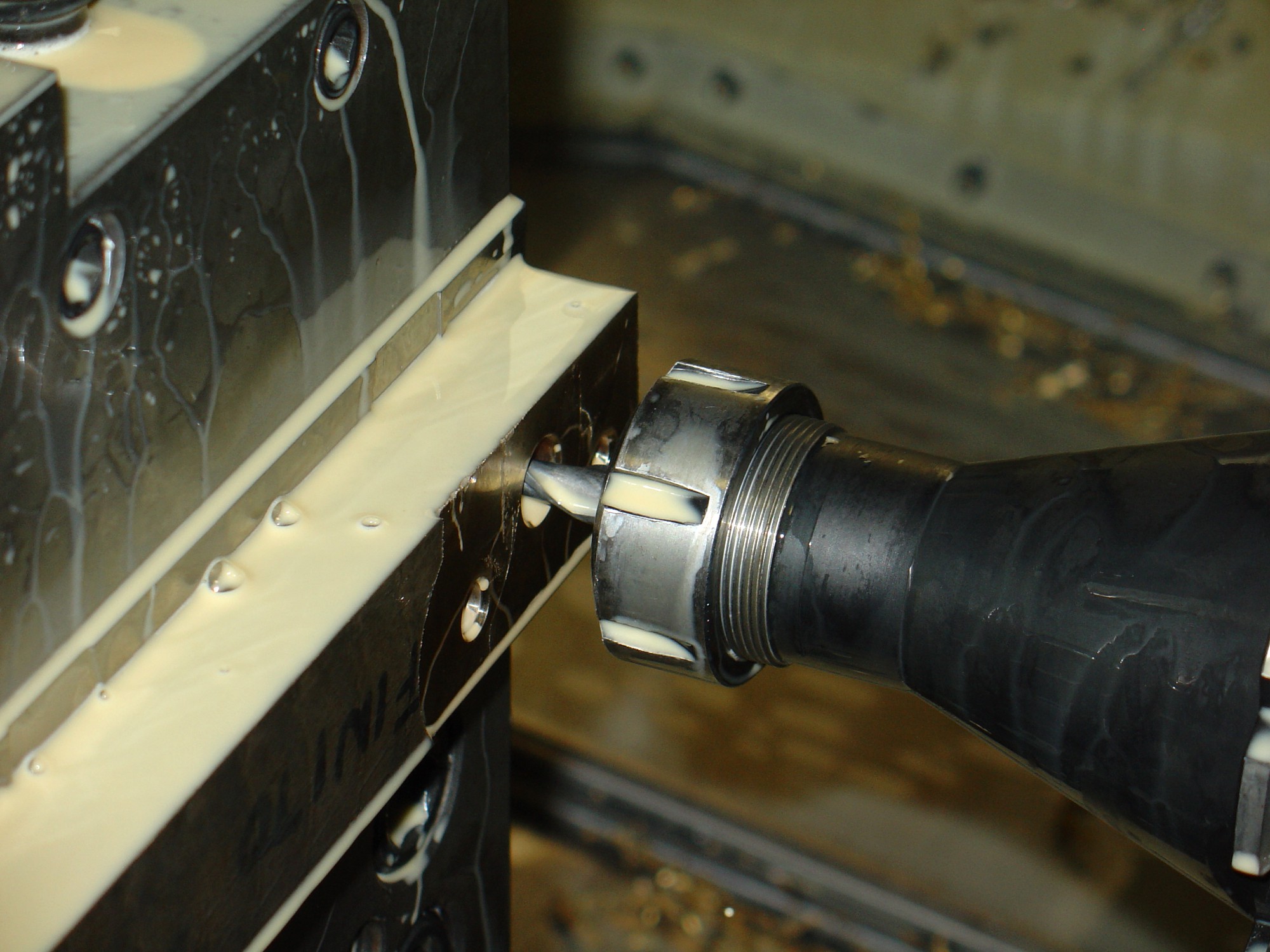

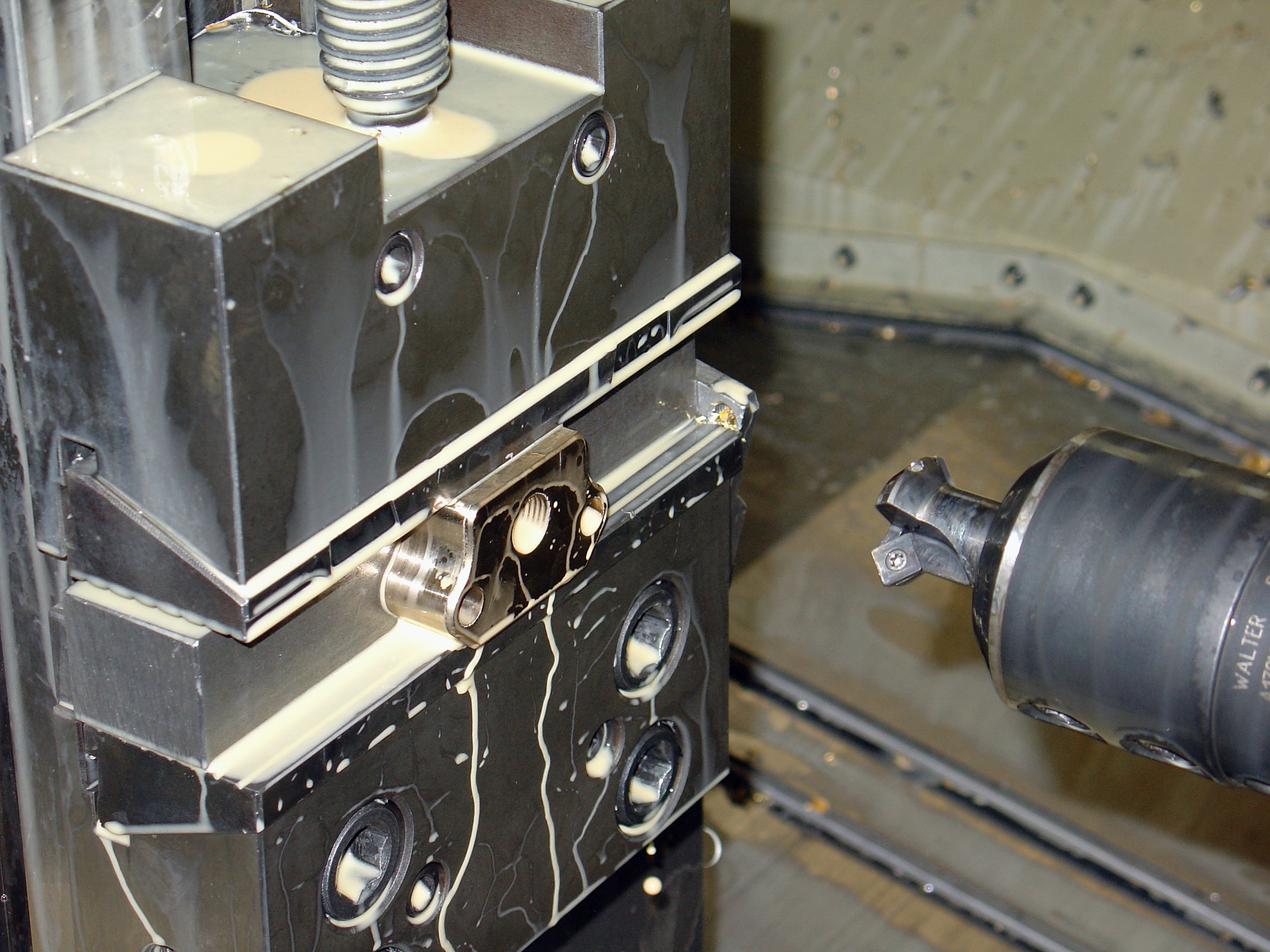

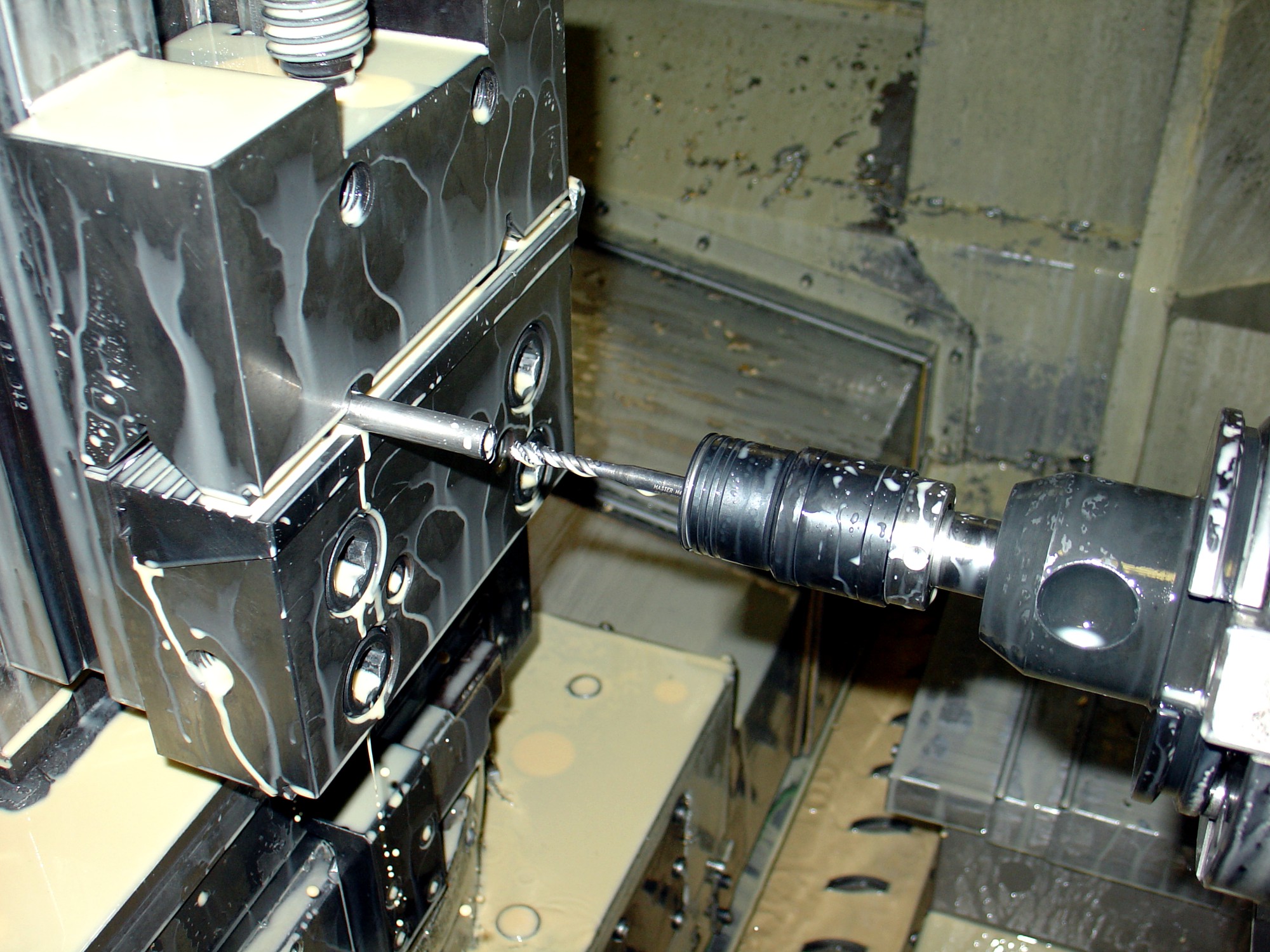

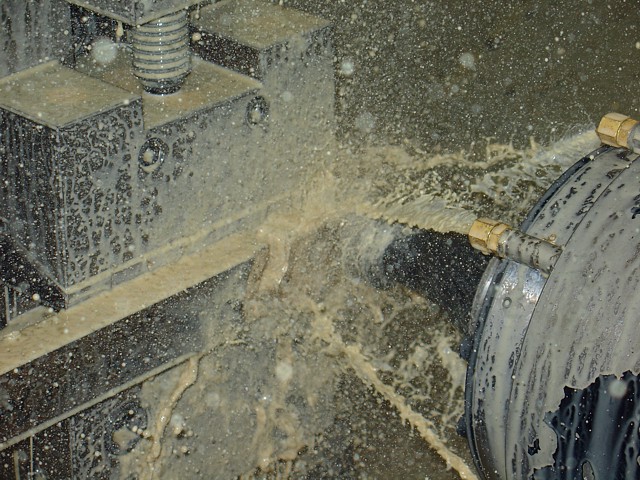

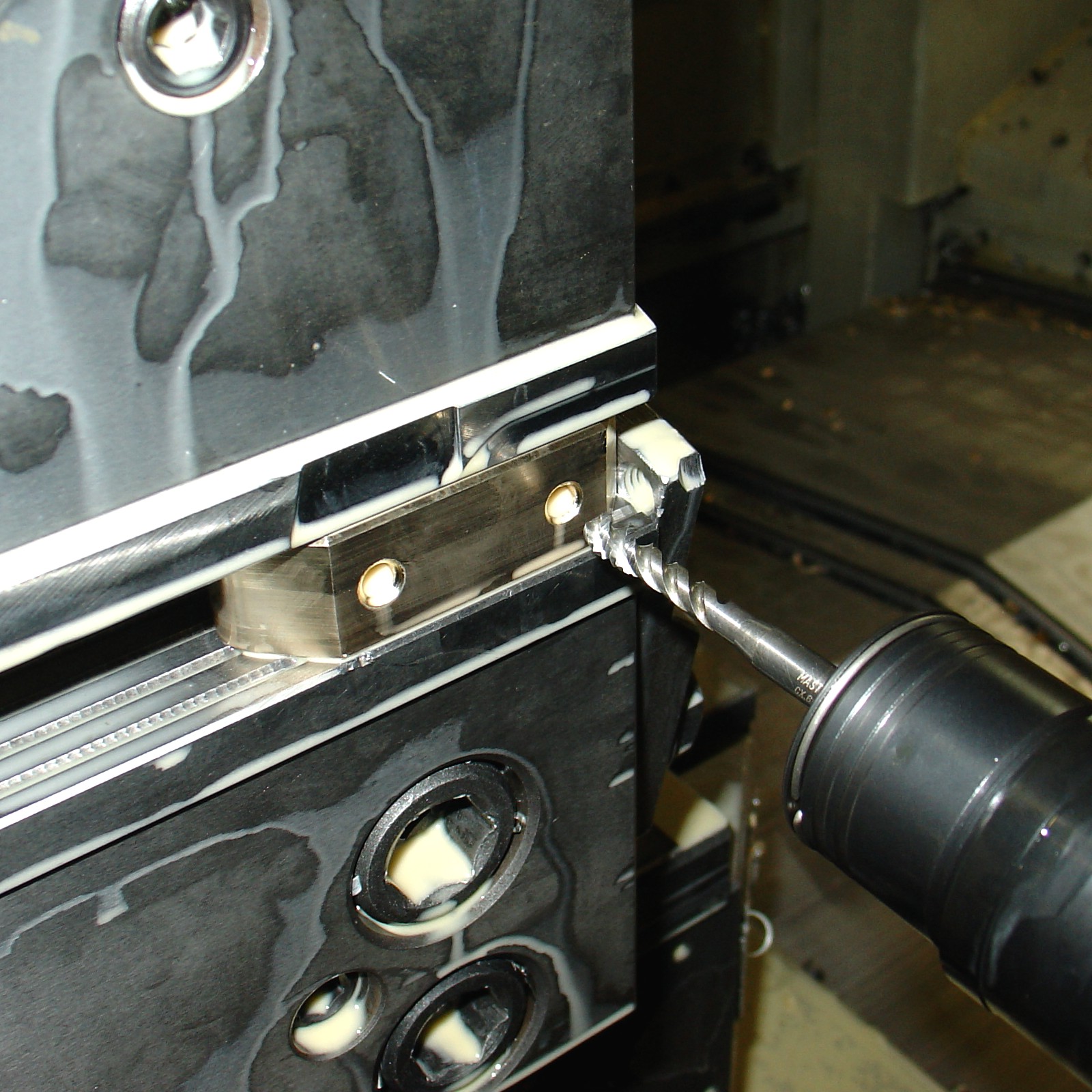

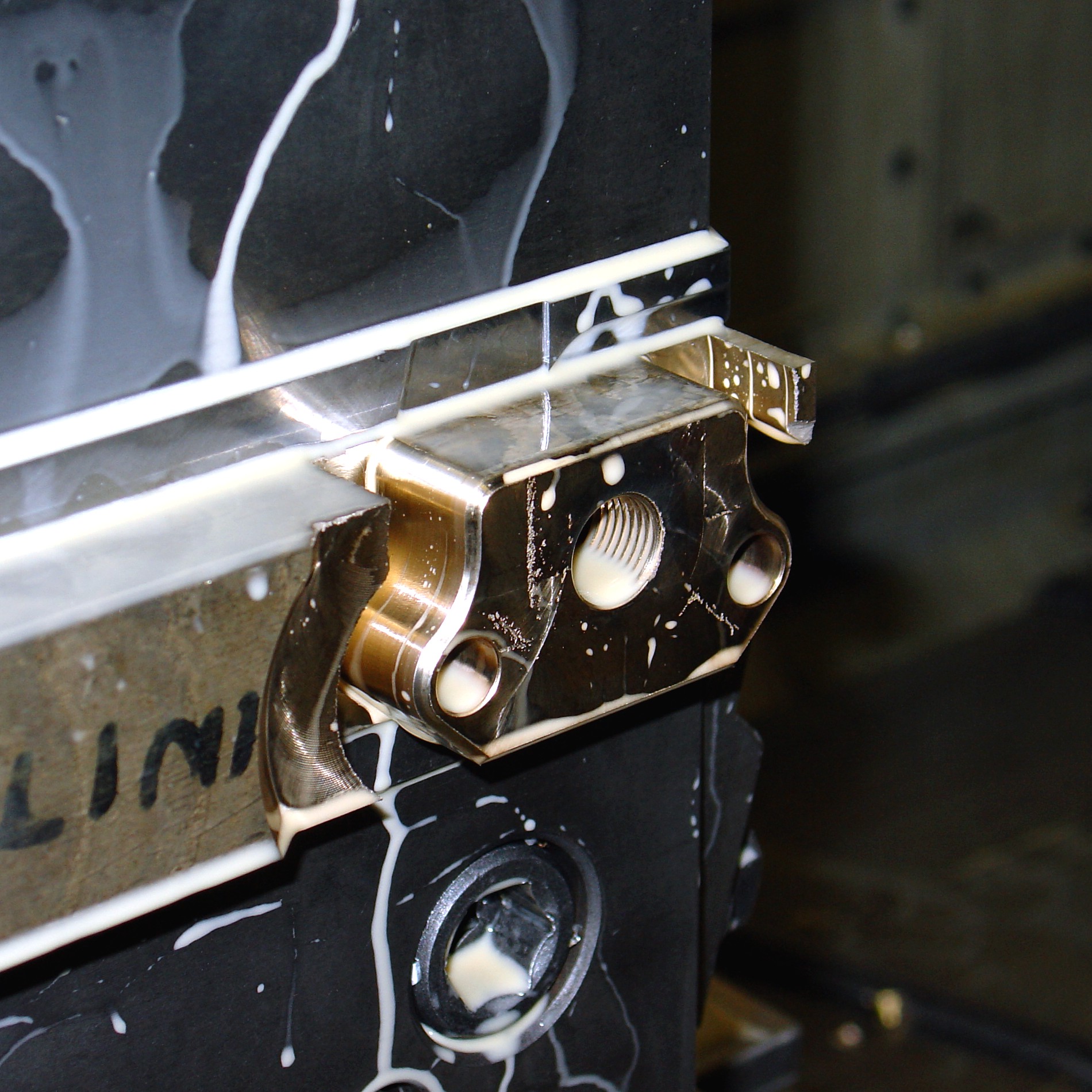

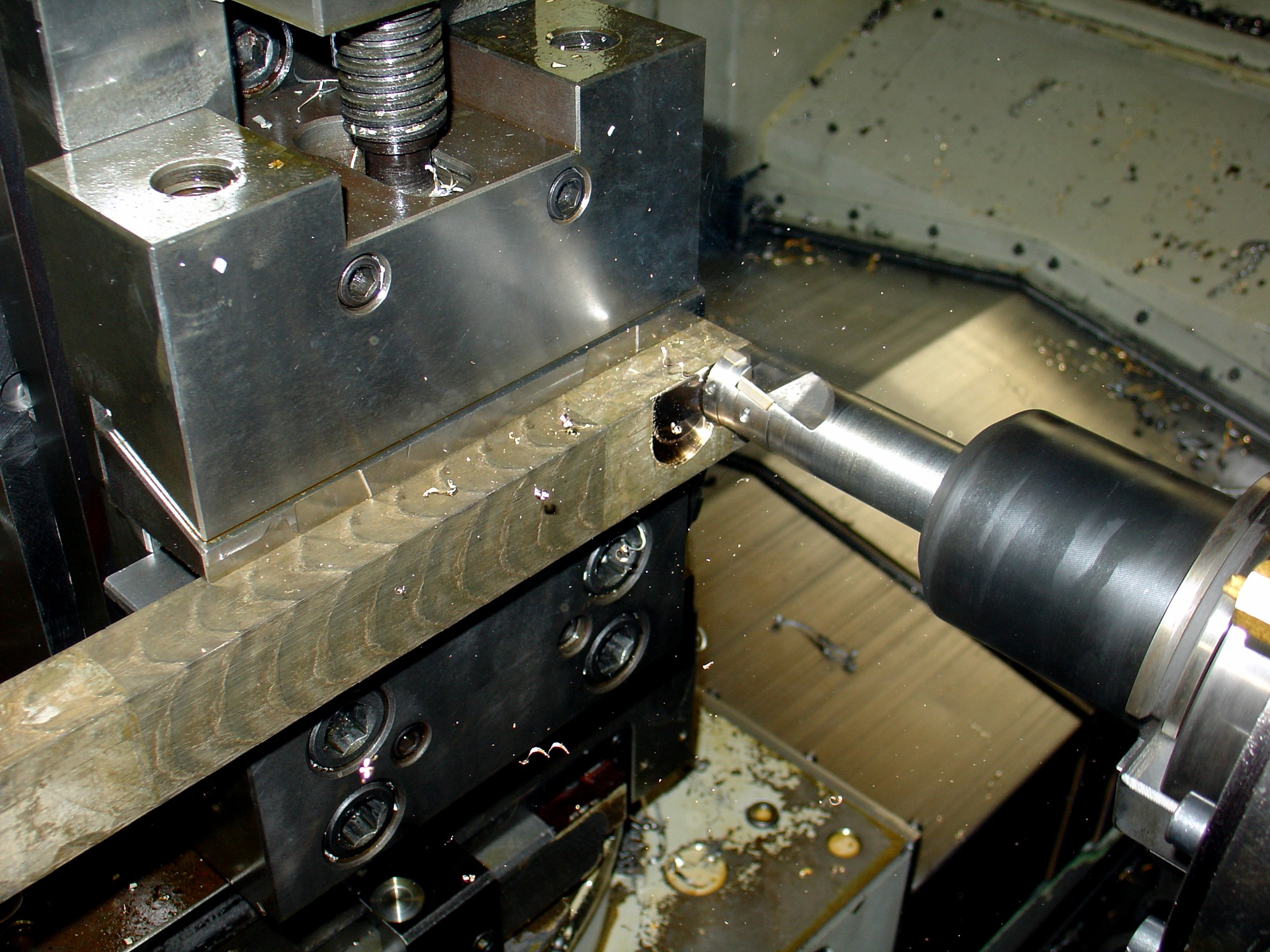

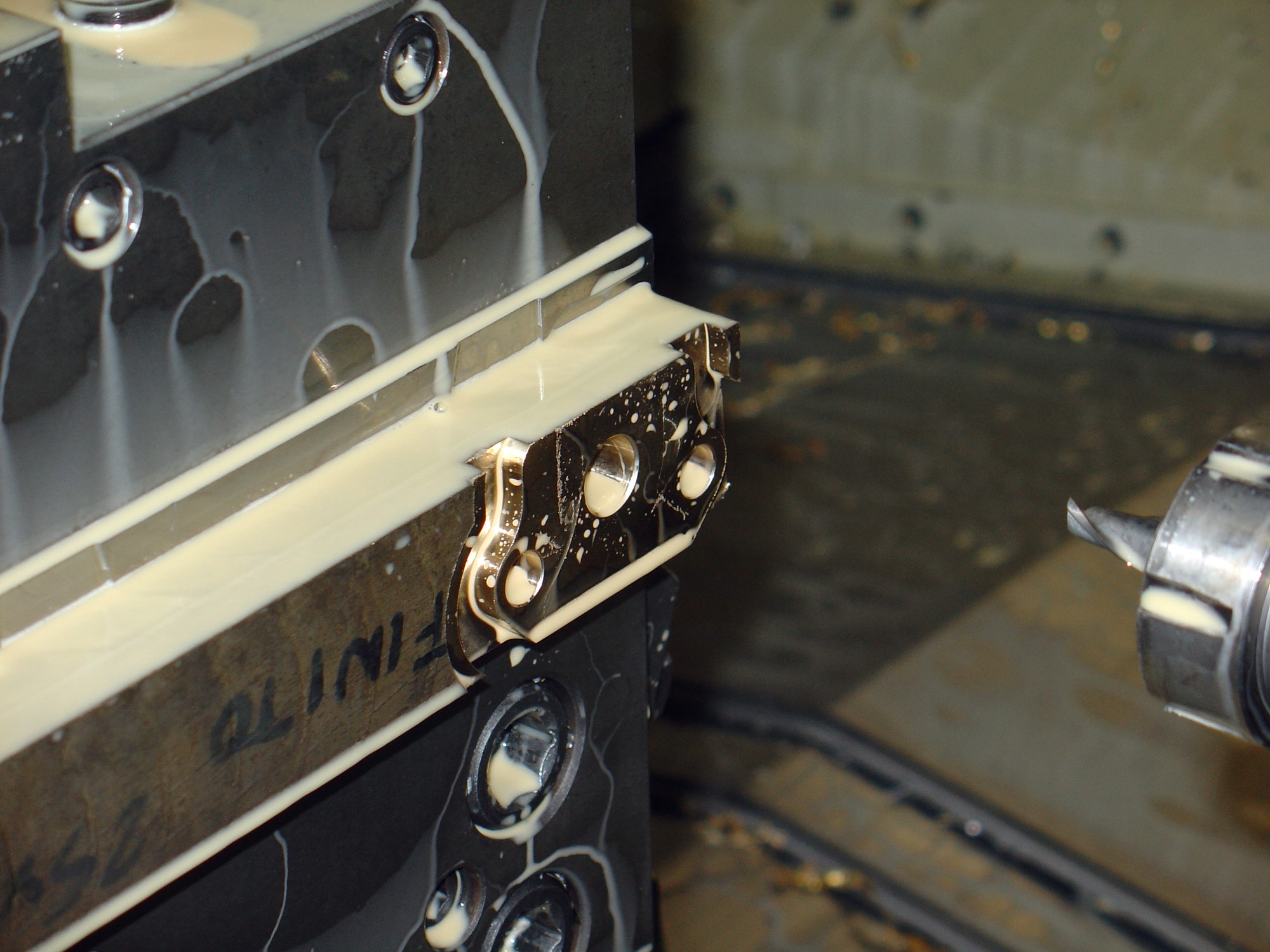

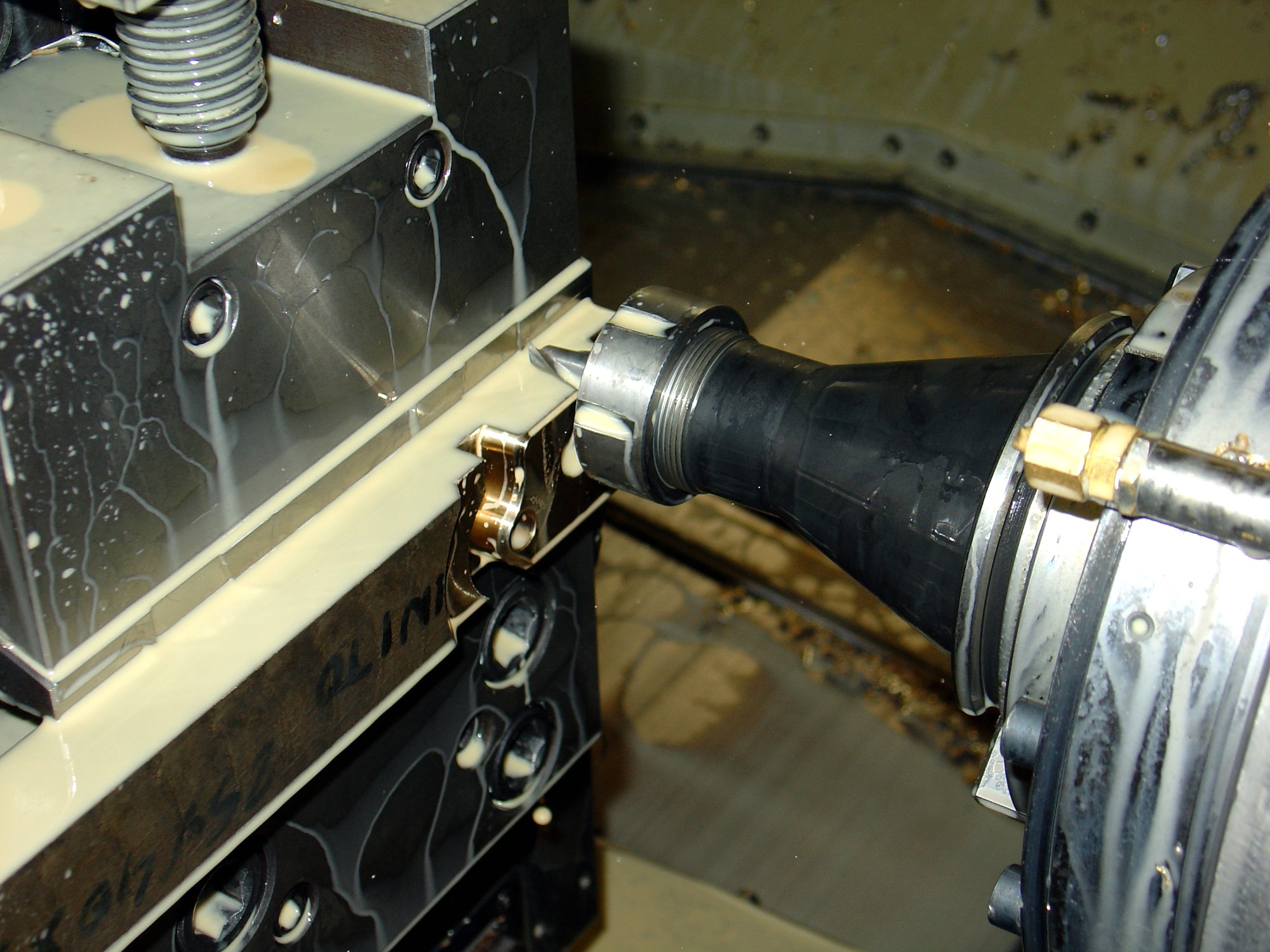

    Some images of the working phases on the CNC milling machine.

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

  12. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  13. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  14. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15

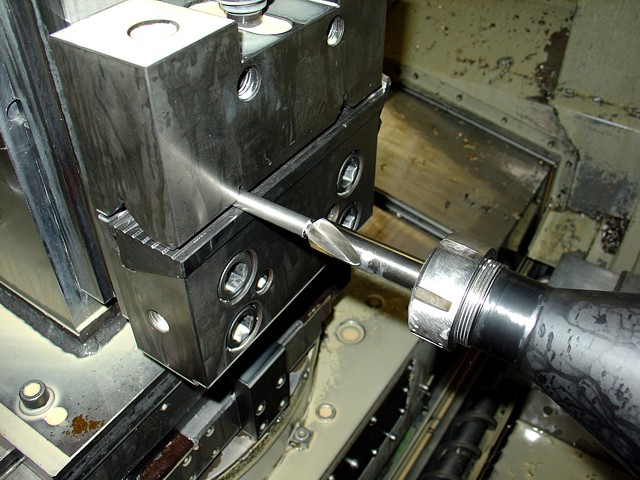

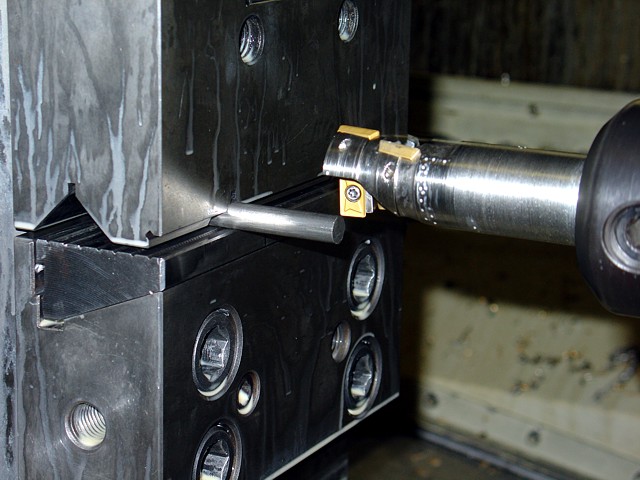

    The Slides

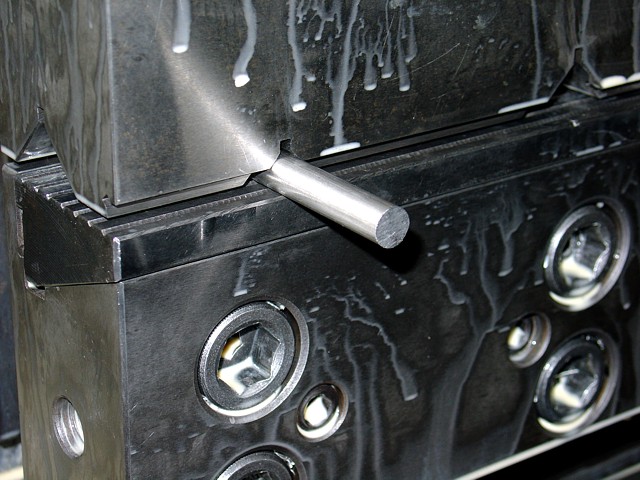

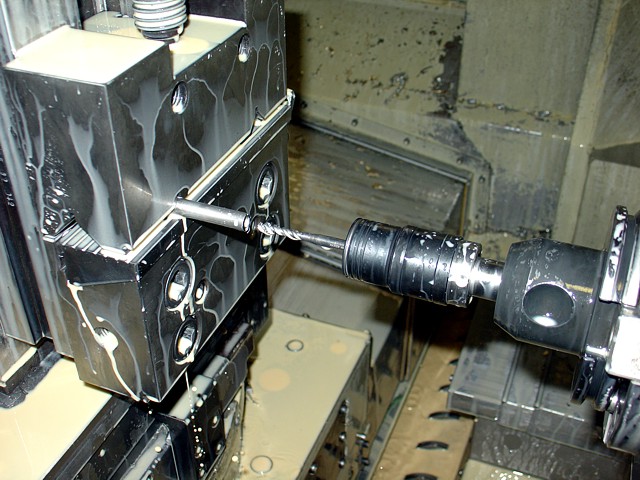

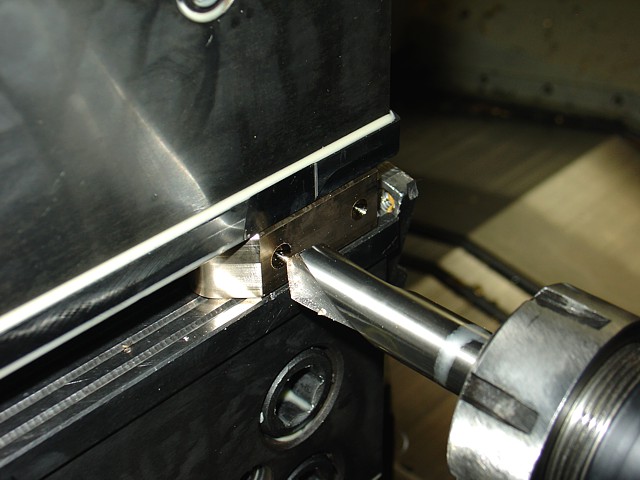

    For this details I use a bar of carbon steel.

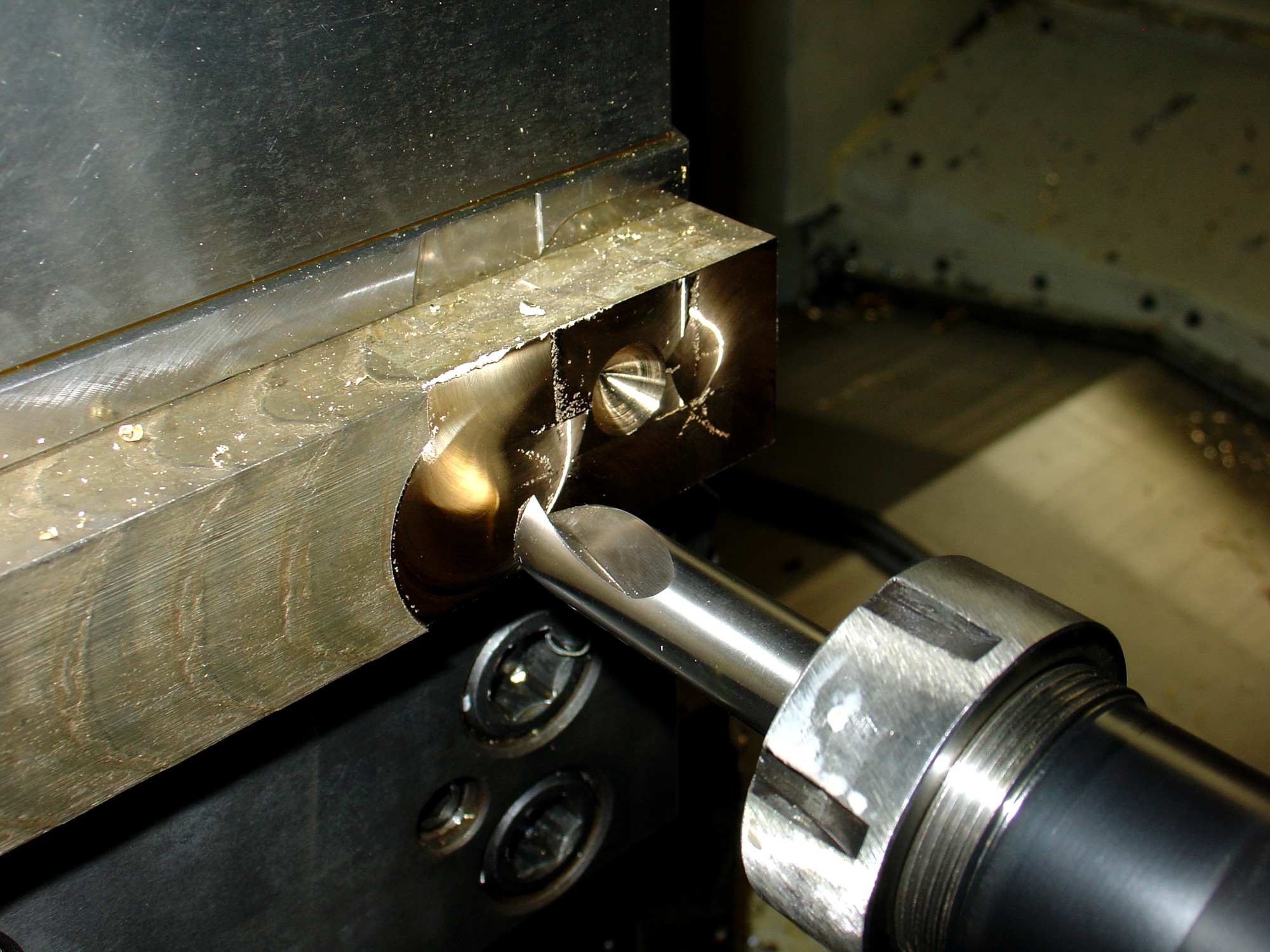

    Some photos of the working on the cnc milling machines and the foto of finished pieces.

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    See you soon to the photos of assembly.

    Bye ;)

  15. maRiio

    maRiio What's a Dremel?

    Joined:
    27 Jul 2009
    Posts:
    202
    Likes Received:
    7
    I'm speechless as always when I see your pics...

    I would kill to get access to such kind of machinery... (only literally :) )

  16. perplekks45

    perplekks45 LIKE AN ANIMAL!

    Joined:
    9 May 2004
    Posts:
    7,277
    Likes Received:
    1,348
    Fixed that for you. :thumb:

  17. MIGUI

    MIGUI What's a Dremel?

    Joined:
    27 Feb 2009
    Posts:
    188
    Likes Received:
    17
    Nice job. :D:thumb:

  18. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,162
    Likes Received:
    1,770
    I love this project. Even if you are teasing us with only a hint of the design.:D

  19. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks to all, guys! :thumb:

  20. bagman

    bagman Minimodder

    Joined:
    18 Apr 2009
    Posts:
    3,658
    Likes Received:
    78
    really liking this project it is :jawdrop:ing what you can get out of thoses lathes
