Scratch Build – In Progress DBRS Project by G69T

Discussion in 'Project Logs' started by G69T, 1 May 2009.

  1. HourBeforeDawn

    HourBeforeDawn a.k.a KazeModz

    Joined:
    26 Oct 2006
    Posts:
    2,637
    Likes Received:
    6
    well I dont see this topping your last mod but still very awesome, I look forward to seeing the results and partially hoping that I am proved wrong ^__^

  2. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks to all again, I'm very happy for your great partecipation! :jawdrop:

    I use the measuring table of my Dea Brown & Sharpe measuring machine only for the photos. ;)


    I work by night when I have a free time for the modding.


    Yes! :D
    The method of this project is similar to the method of plan of the Dark Blade casemod. I don't have the complessive plan.
    Some component are a mistery also for me. :naughty:

    It's only a support. :)

    stonedsurd likes this.
  3. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    The MODcat! lol :D

    Very nice to meet the old friends again. ;)
    and thanks to the new friends too.


    The lenght of the particular on the photo is 300 mm.

    [​IMG]
    ZOOM!

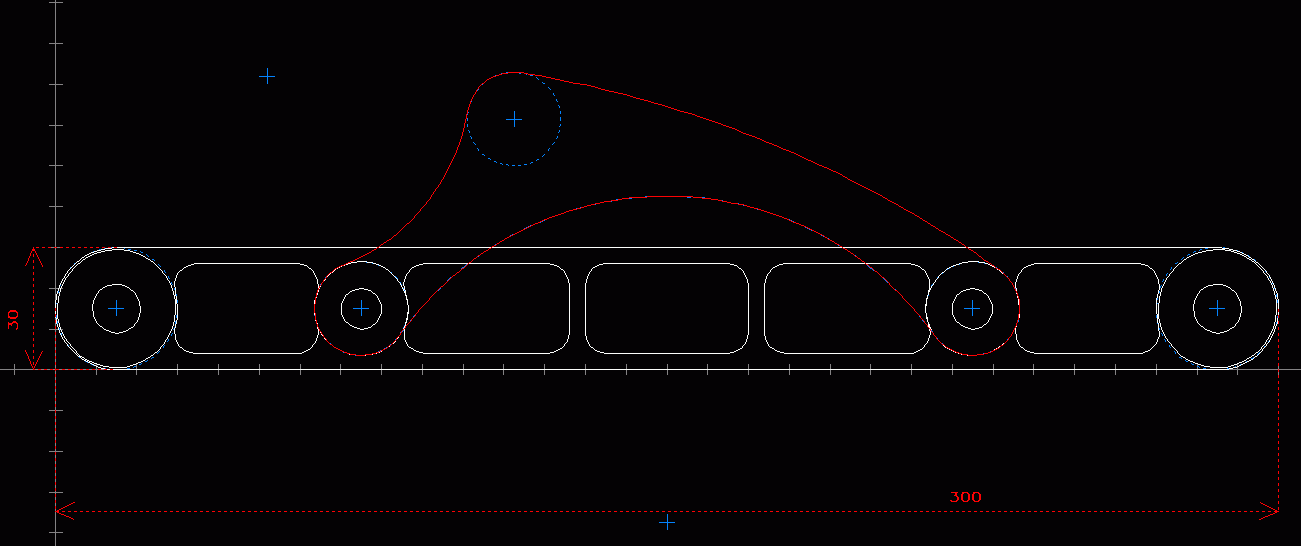

    The red profile on the image is the next piece of the support. ;)



    Thanks to you for the explanation post. ;)

    The adjustable support is one part of the DBRS Project, it's only my construction way of the traditional mechanical parts. I love the mechanical elements! ;)

    Last edited: 8 May 2009
  4. x06jsp

    x06jsp da ginger monkey!!!!

    Joined:
    2 Apr 2007
    Posts:
    1,651
    Likes Received:
    1
    Wow great to see another awesome project from you G69t :D ill be following this one!

  5. AlexB

    AlexB Web Nerd and WC Addict

    Joined:
    22 Dec 2005
    Posts:
    2,352
    Likes Received:
    40
    Bookmarked. Can't wait to see this one unfold - as I'm a hardcore sim-racer as well as a case-modder.

    Lovely stuff. Keep up the good work.

  6. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks guys! ;)

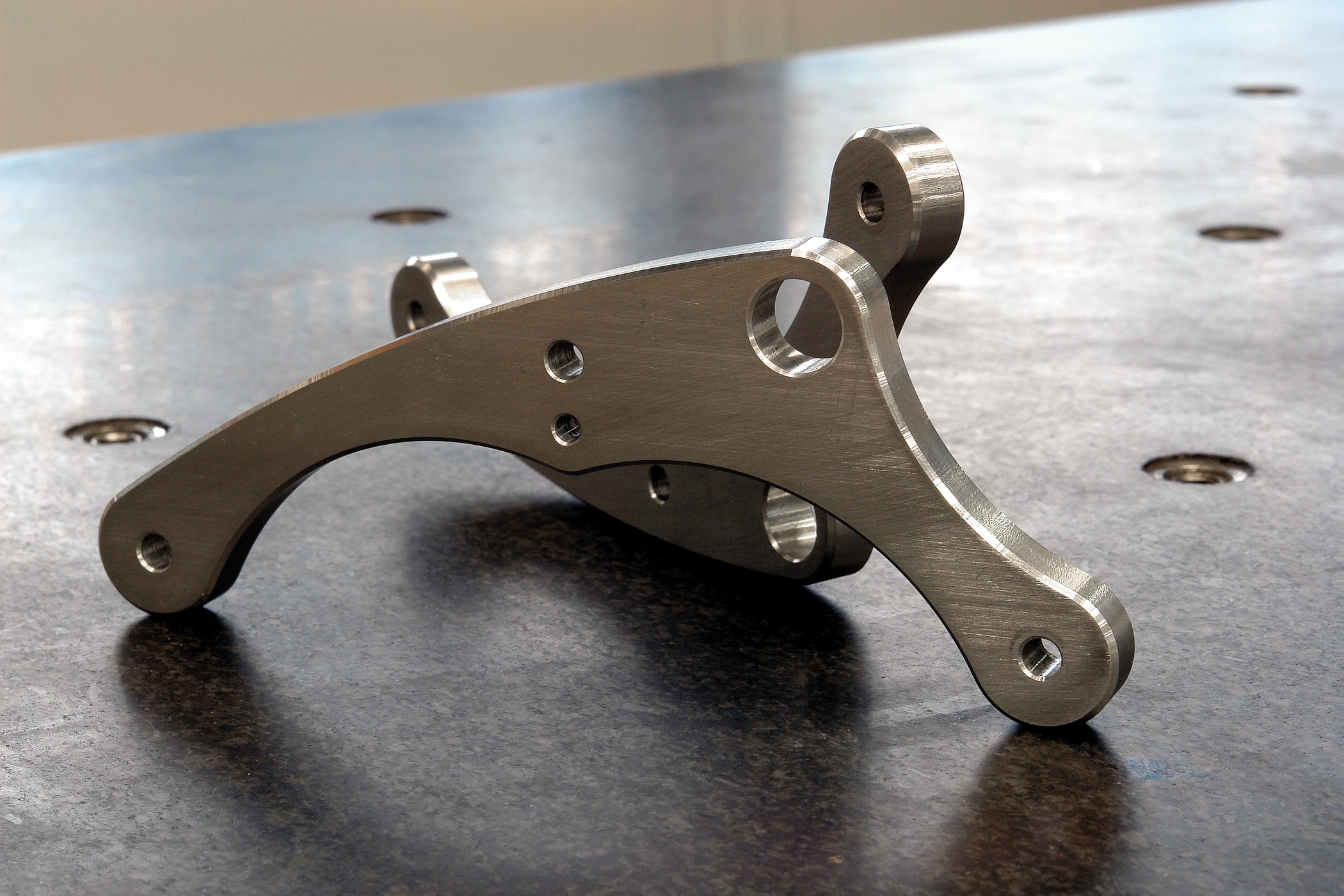

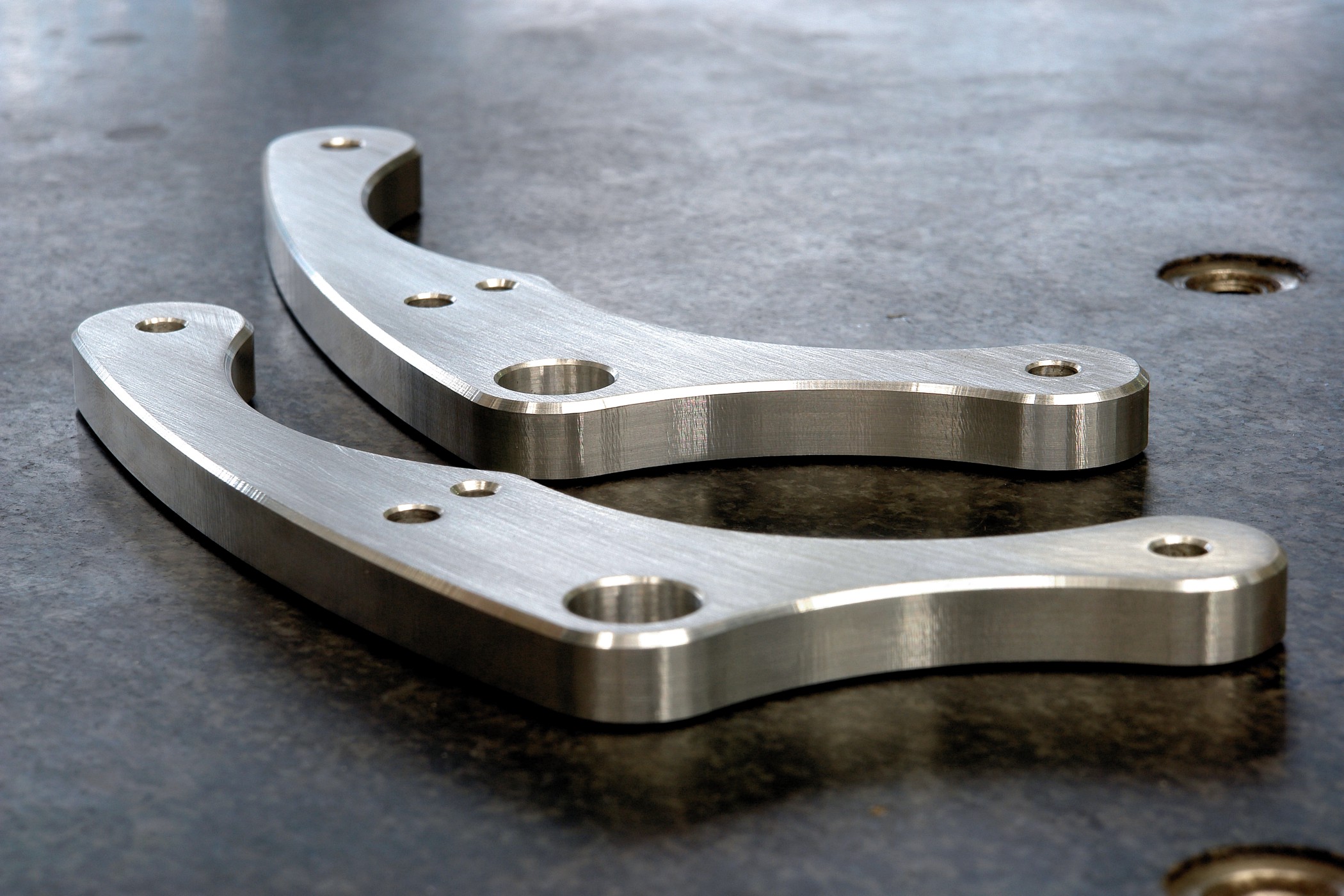

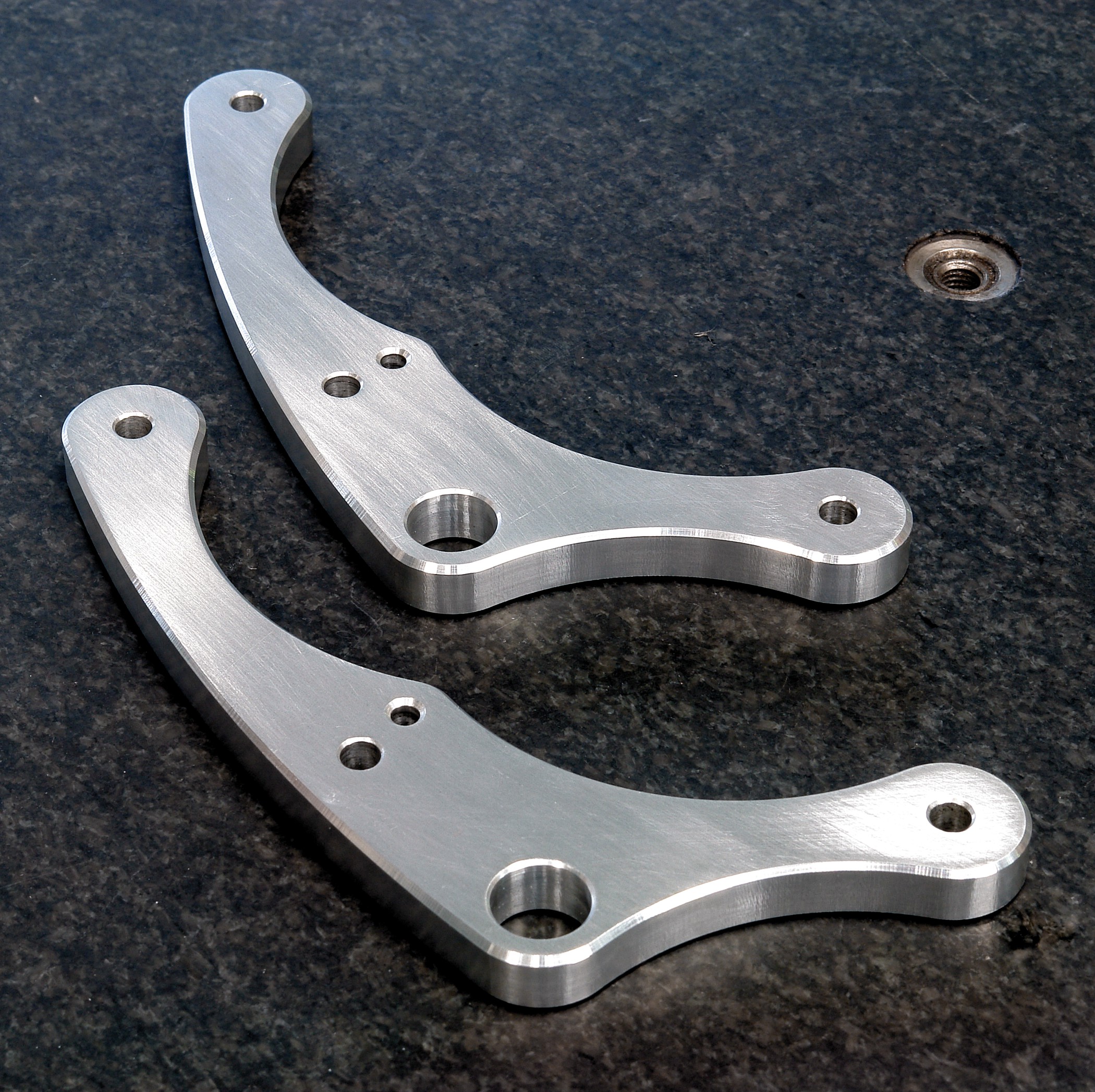

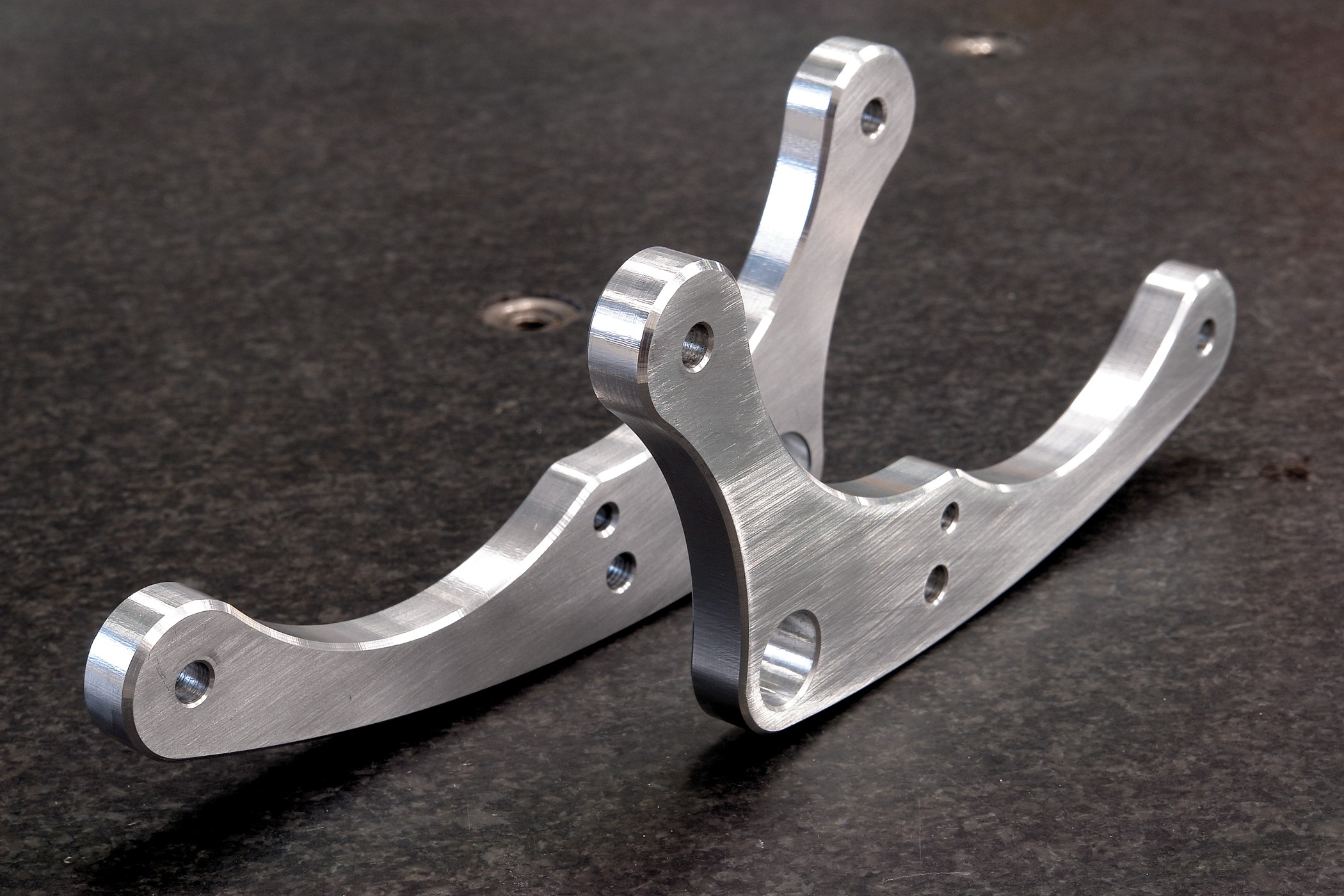

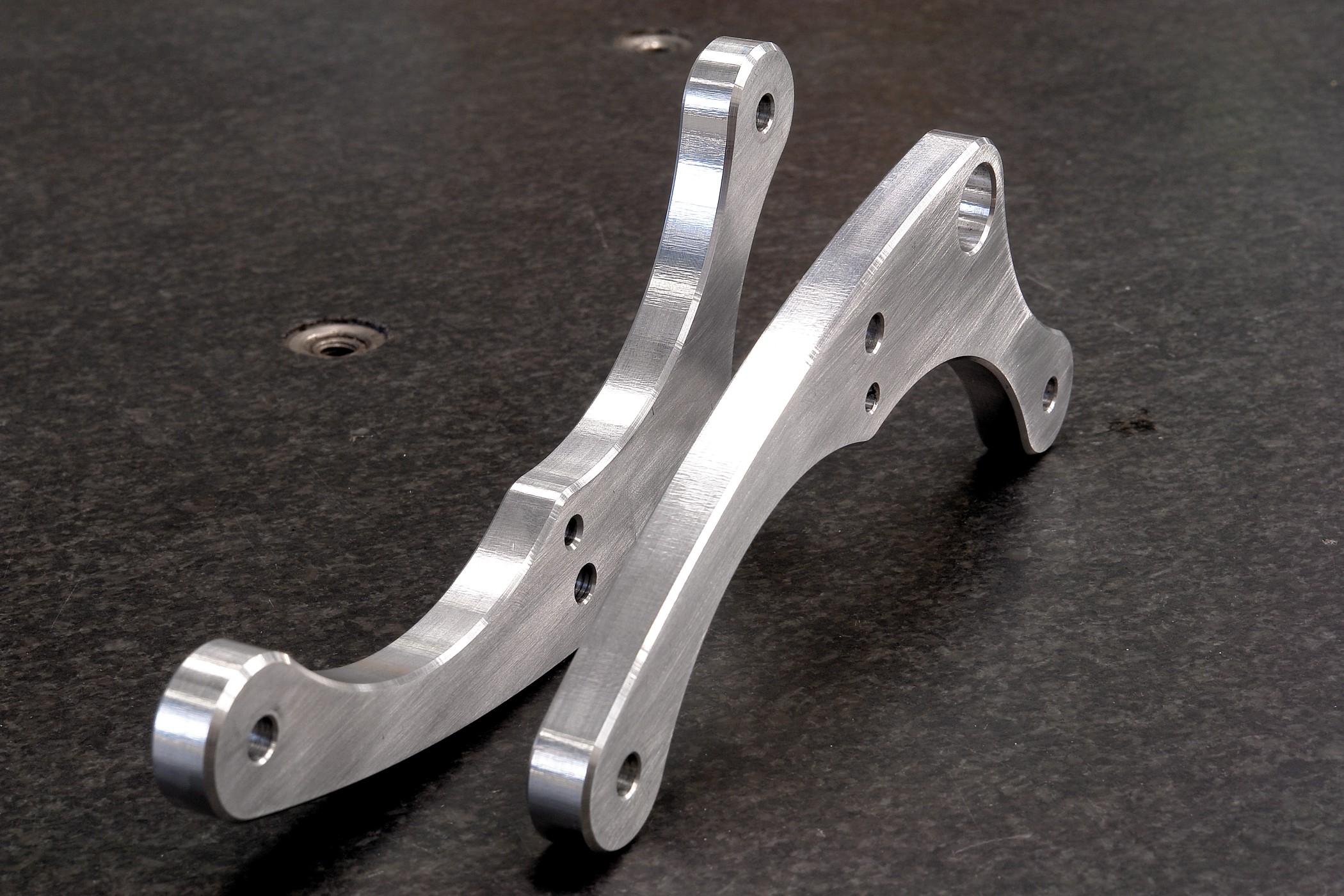

    Adjustment levers of the support.

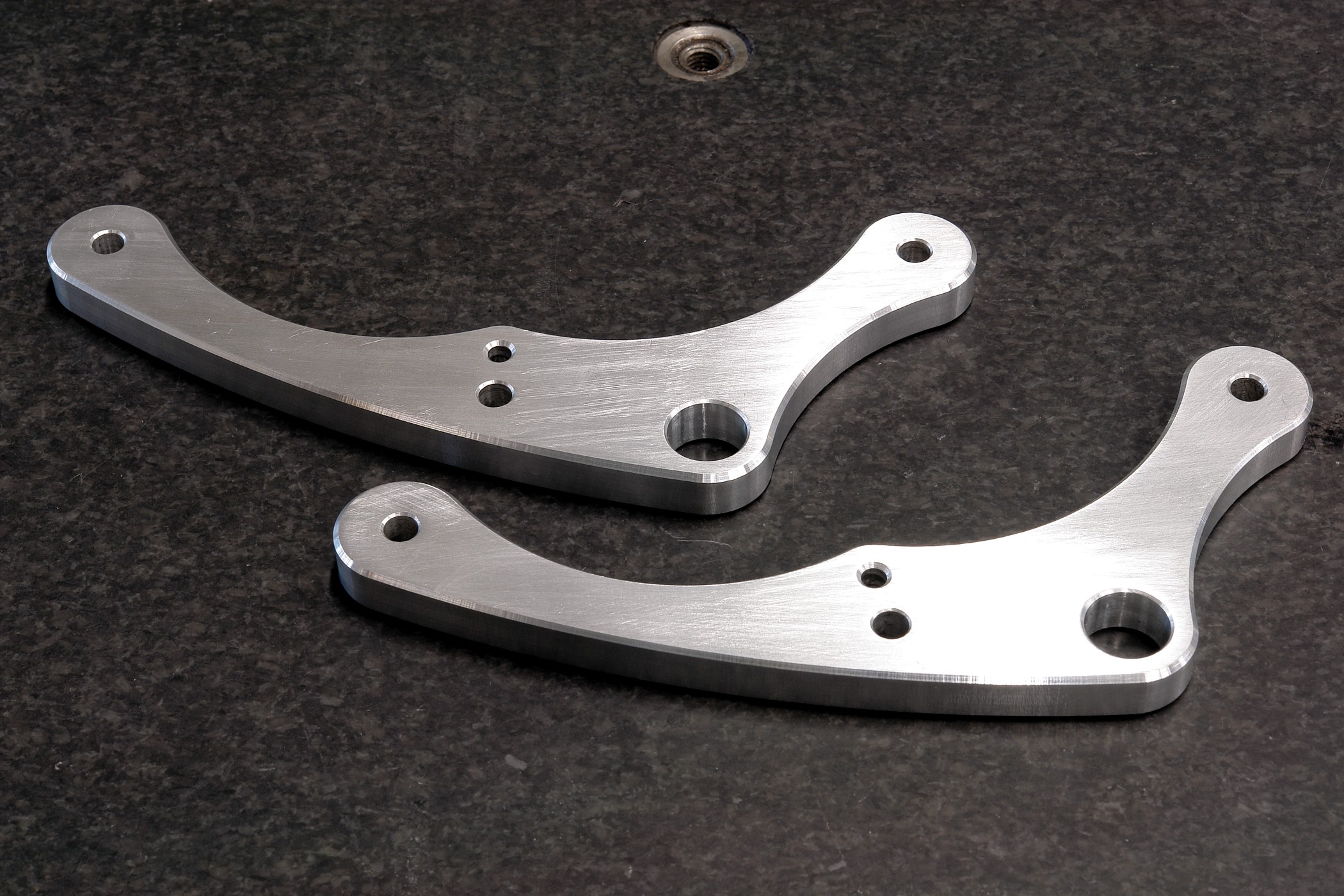

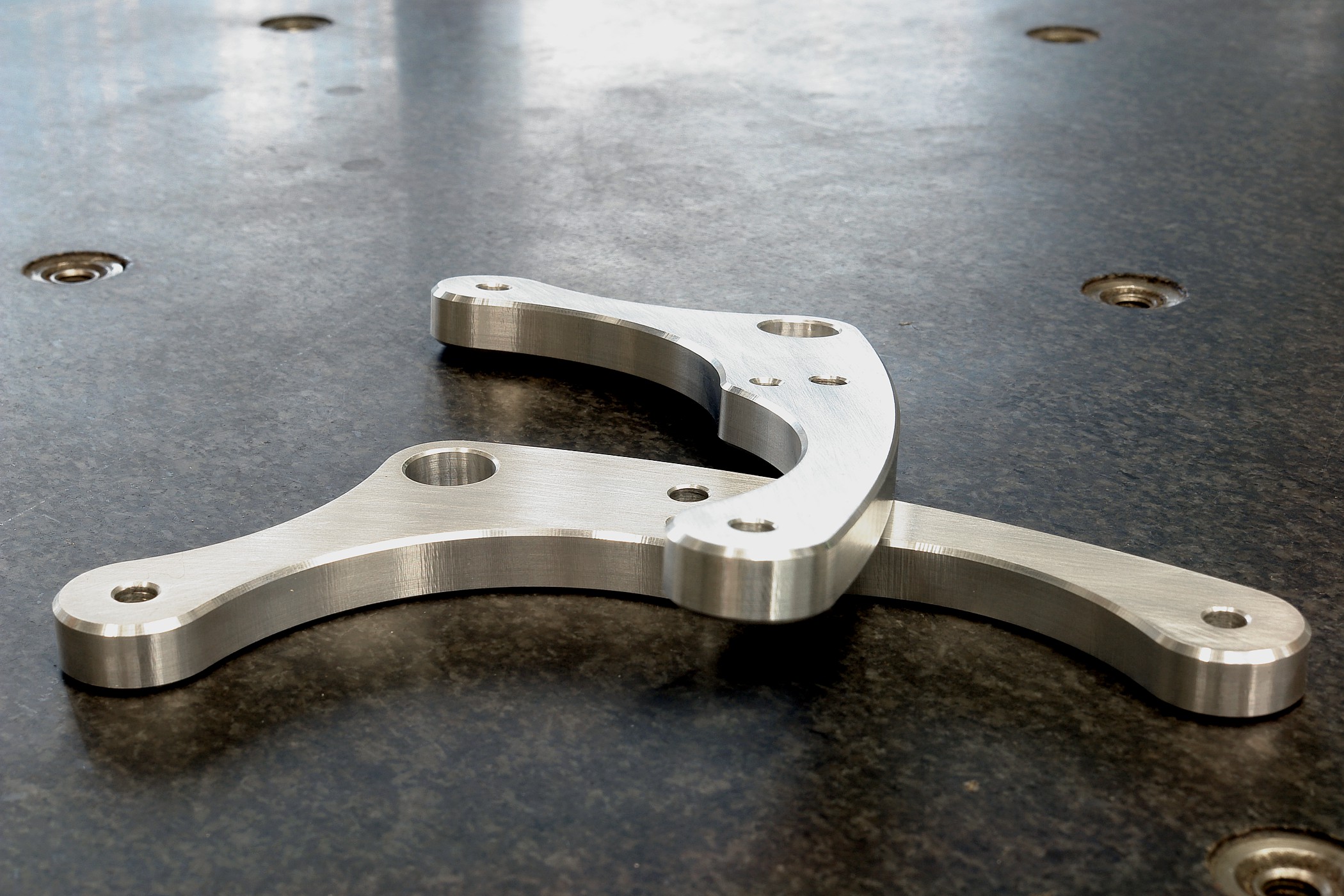

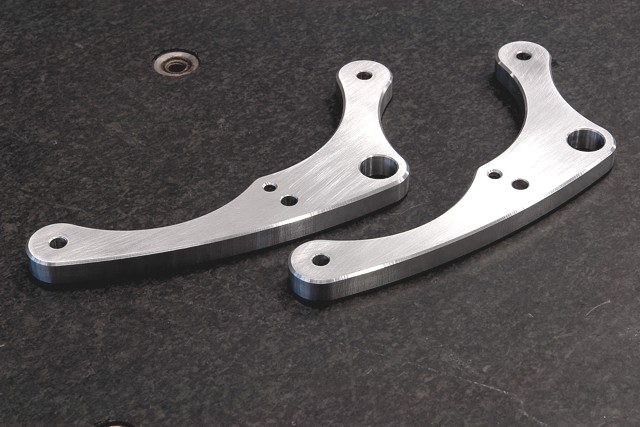

    Another small update. The two levers of the support in raw aluminum 10mm thickness, two important parts of the manual adjustment system.

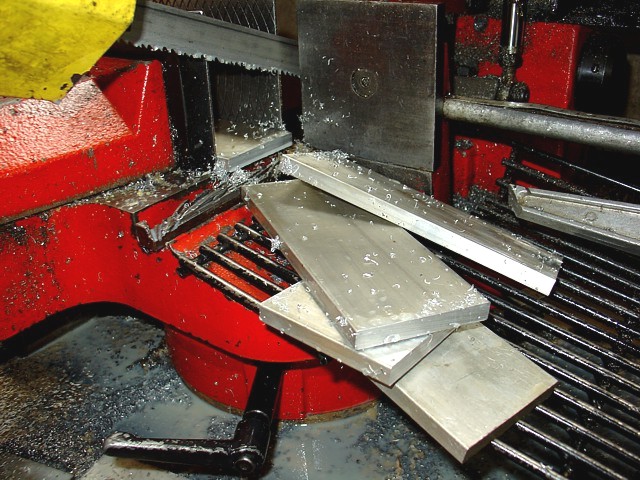

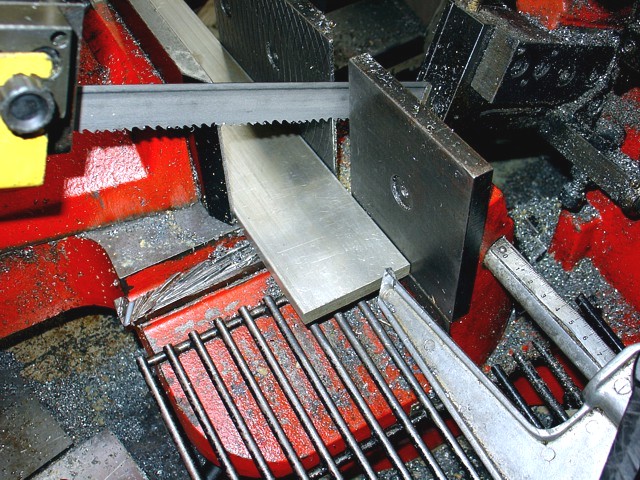

    Some images about the cutting of the aluminum flat with band saw (Aluminium type AC100 70x10mm)

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

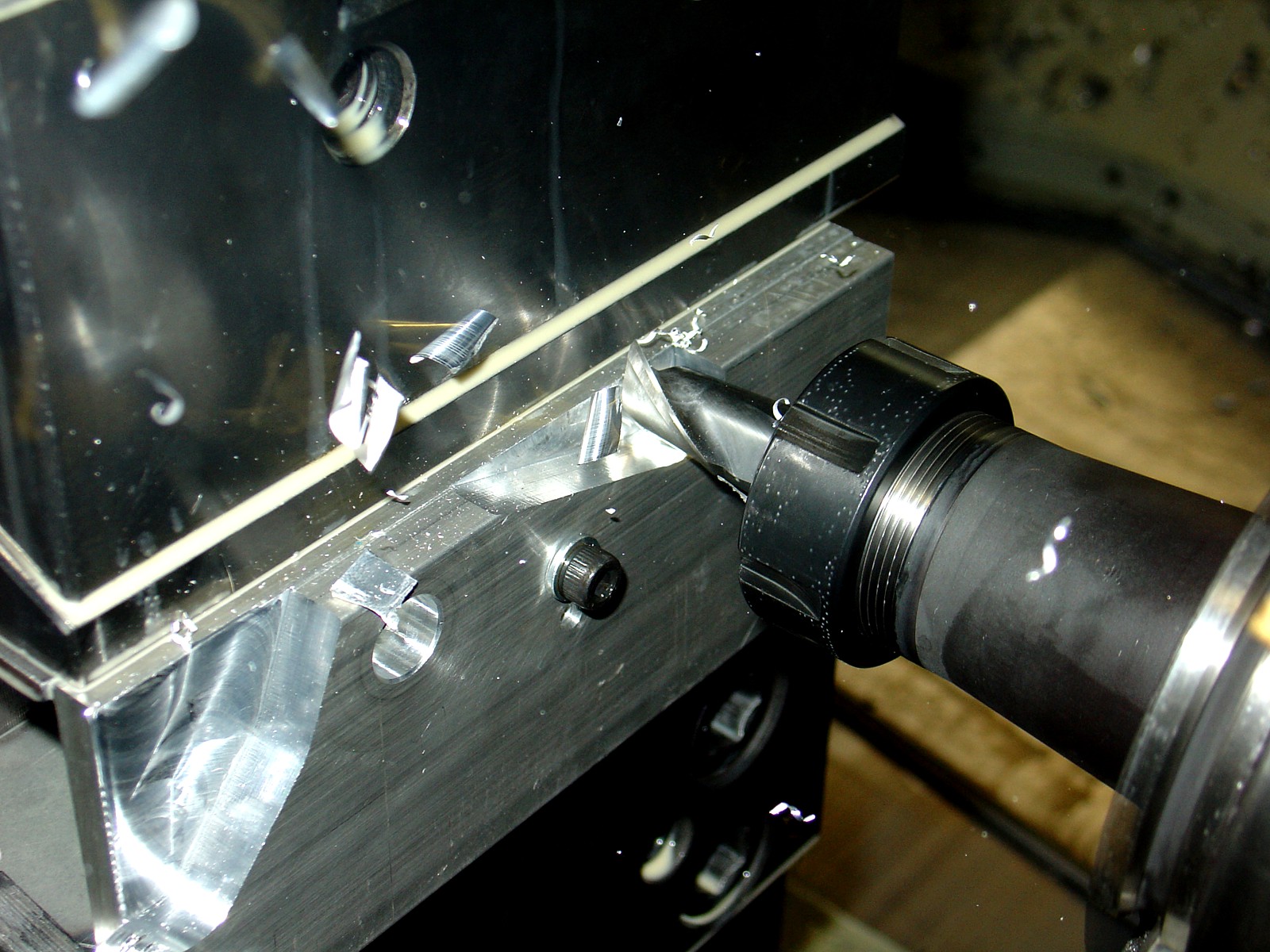

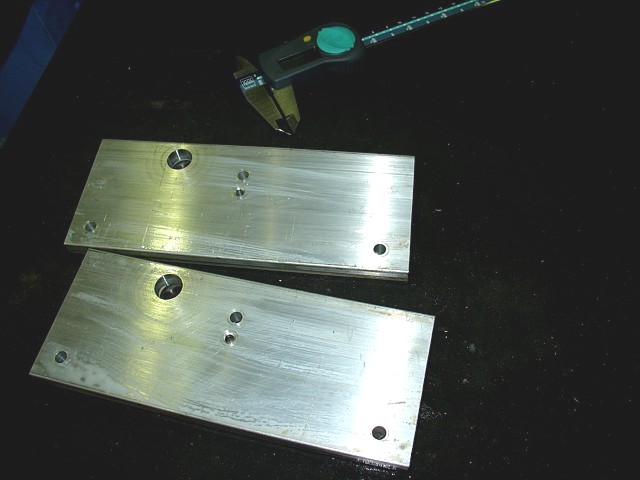

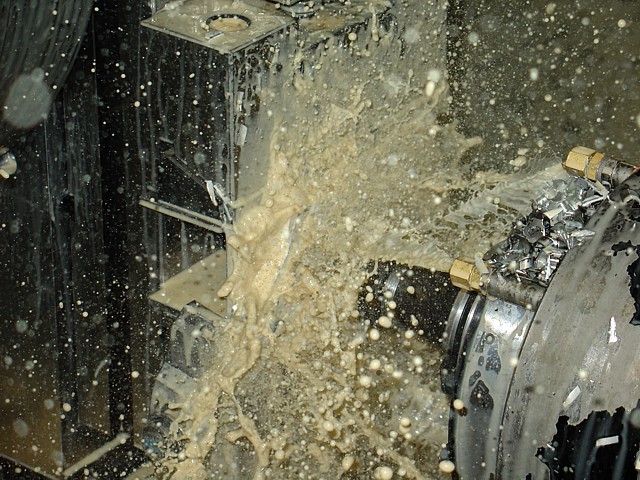

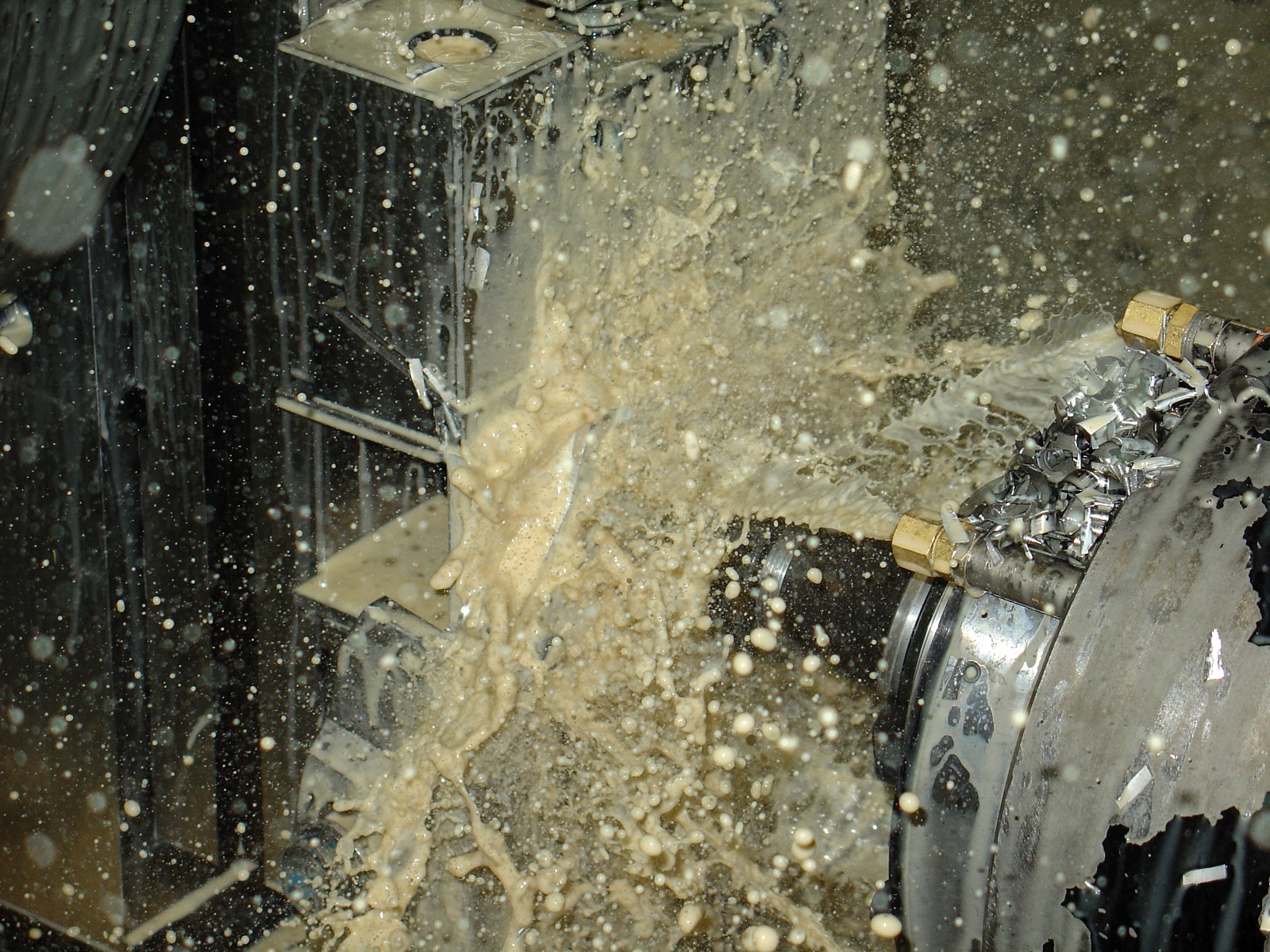

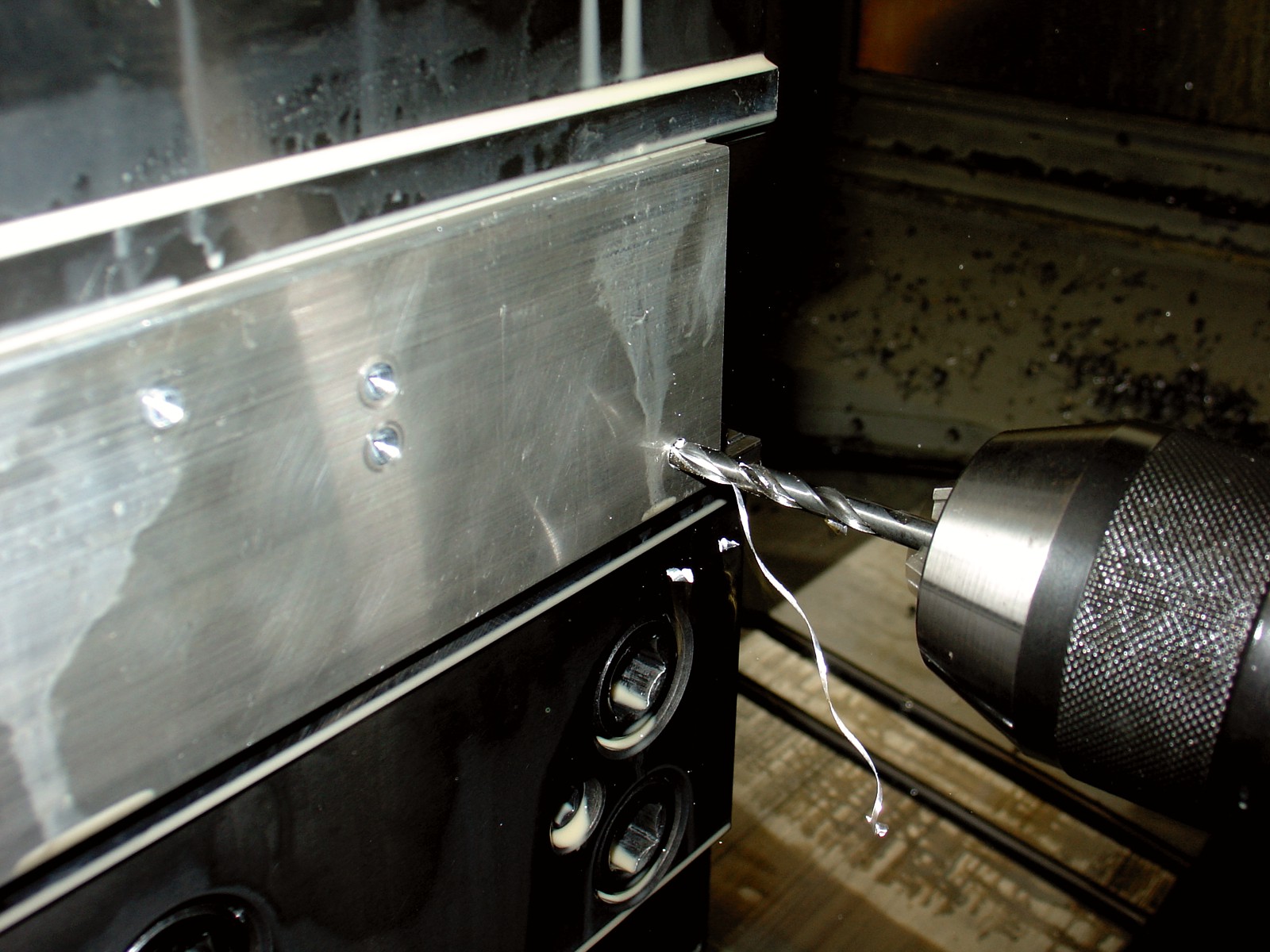

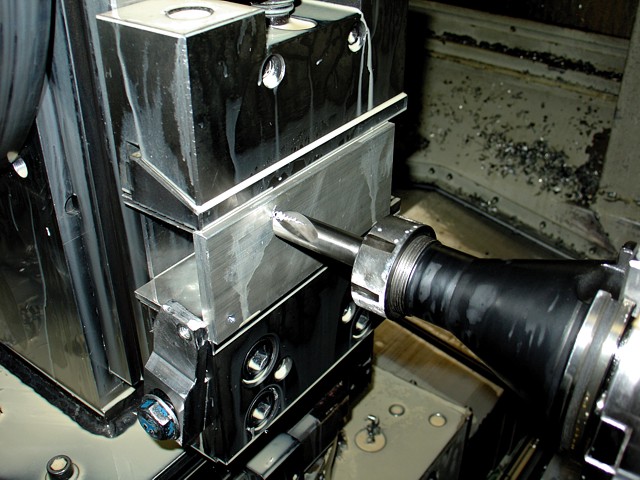

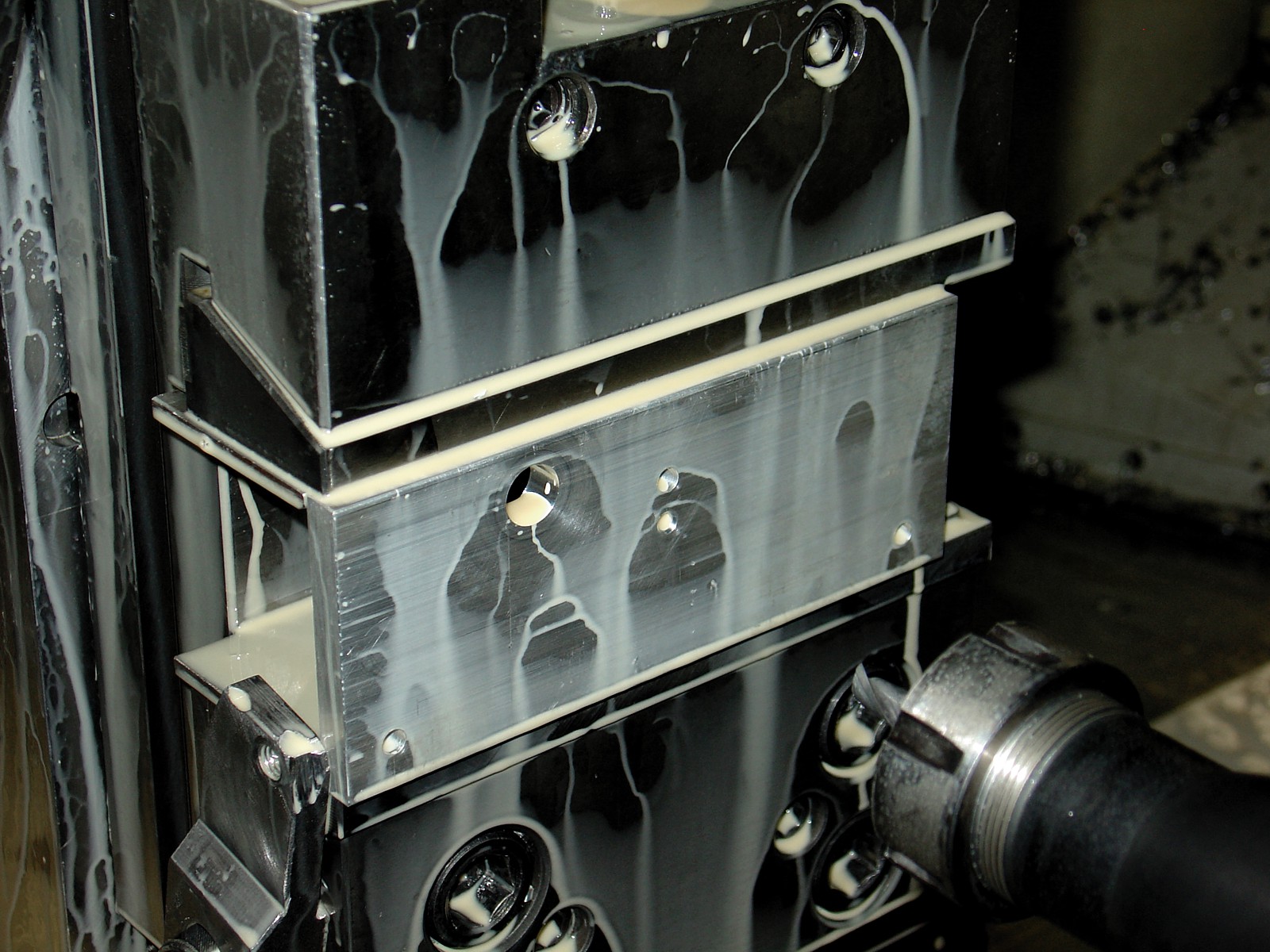

    Some images of the first working phase.

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

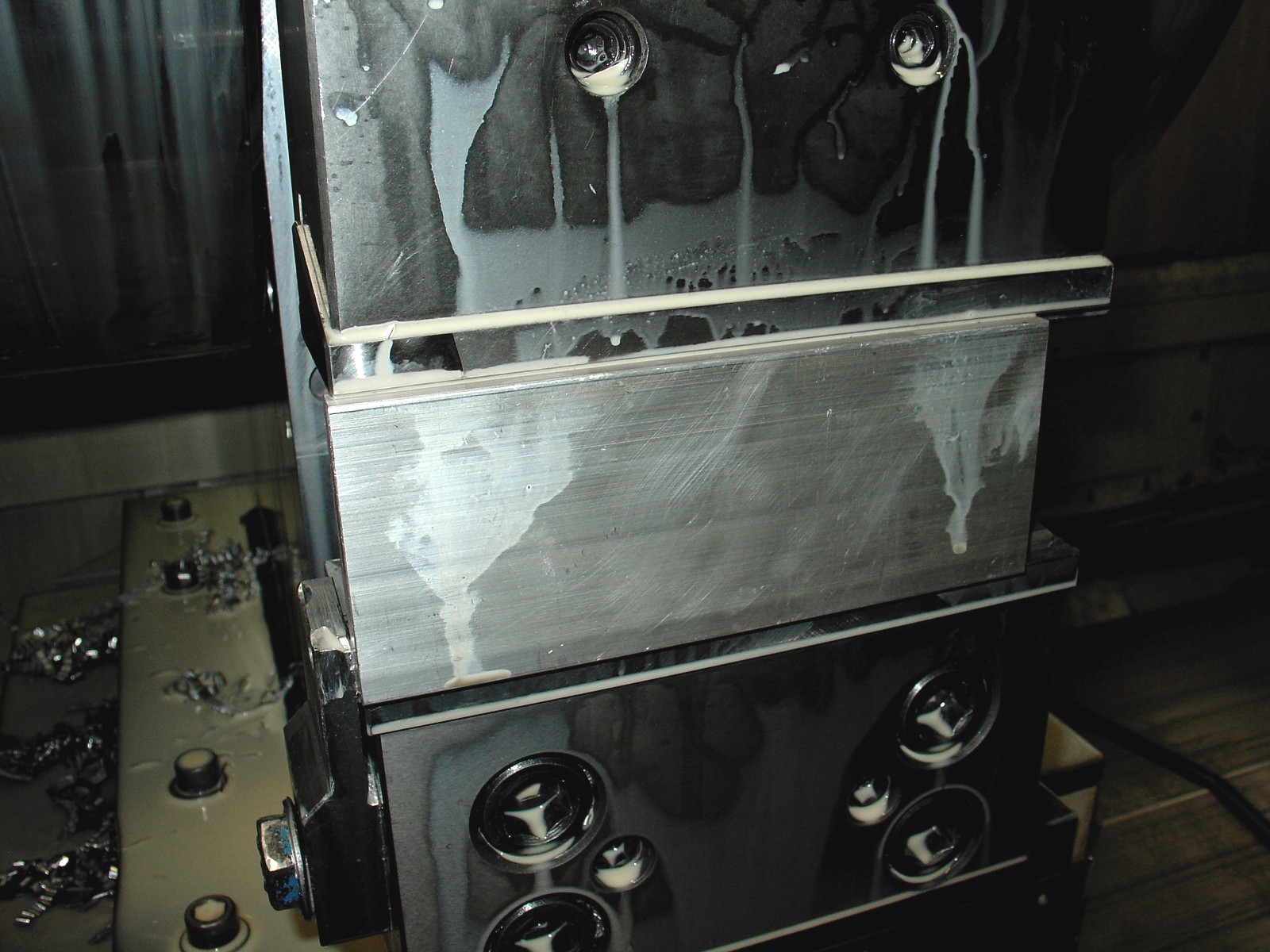

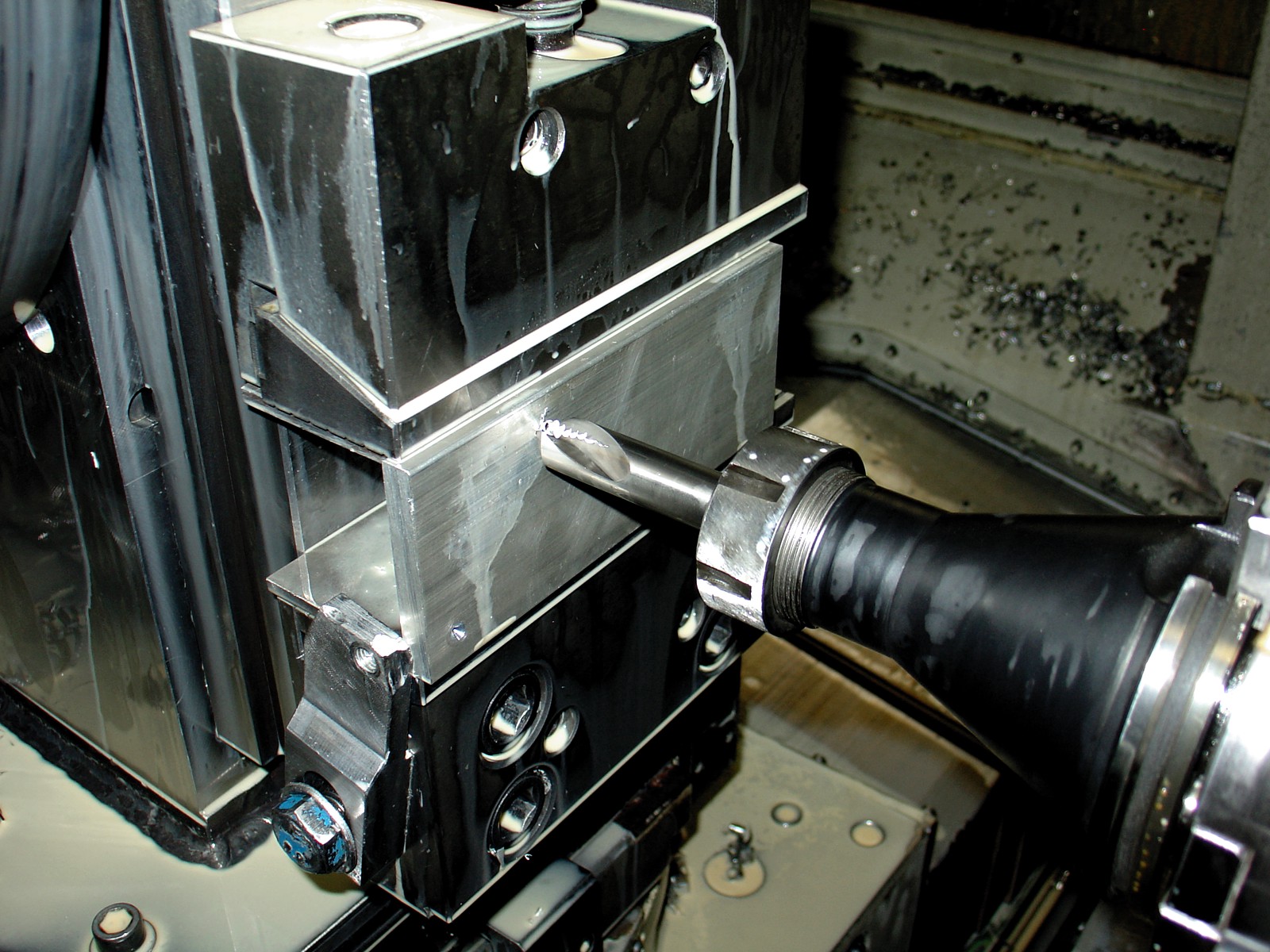

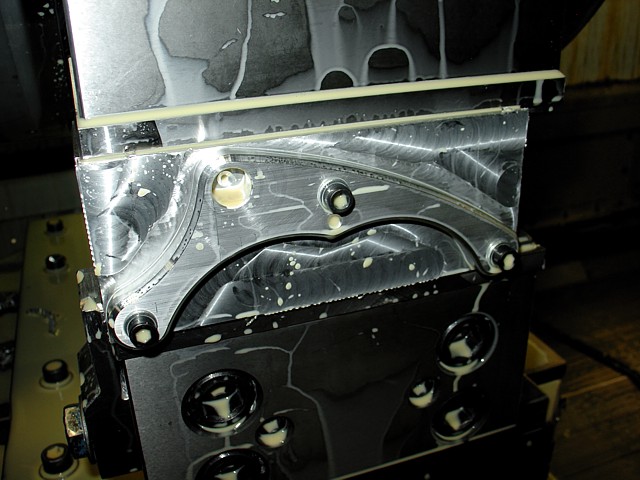

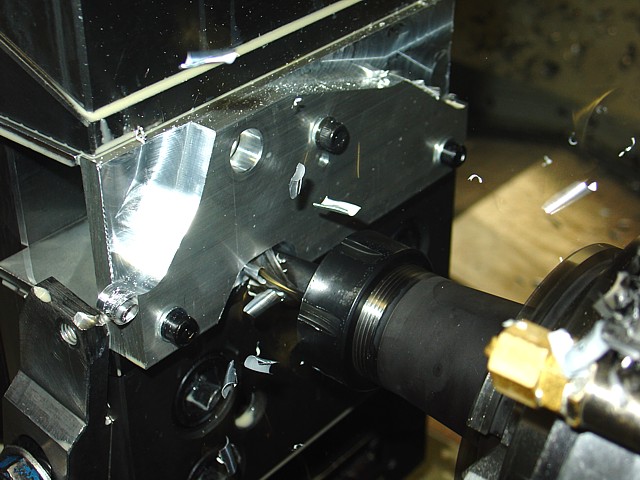

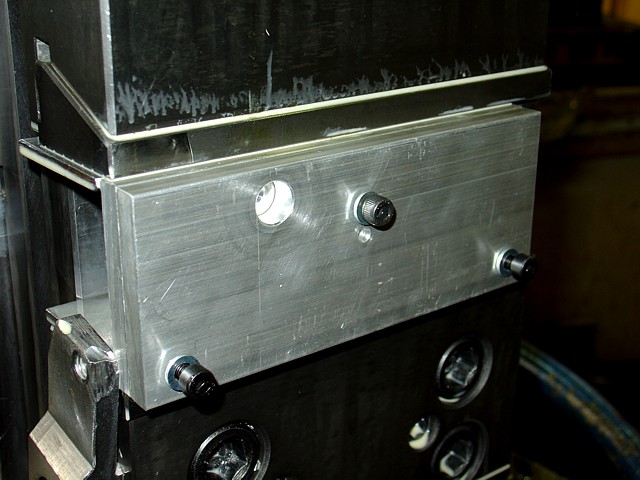

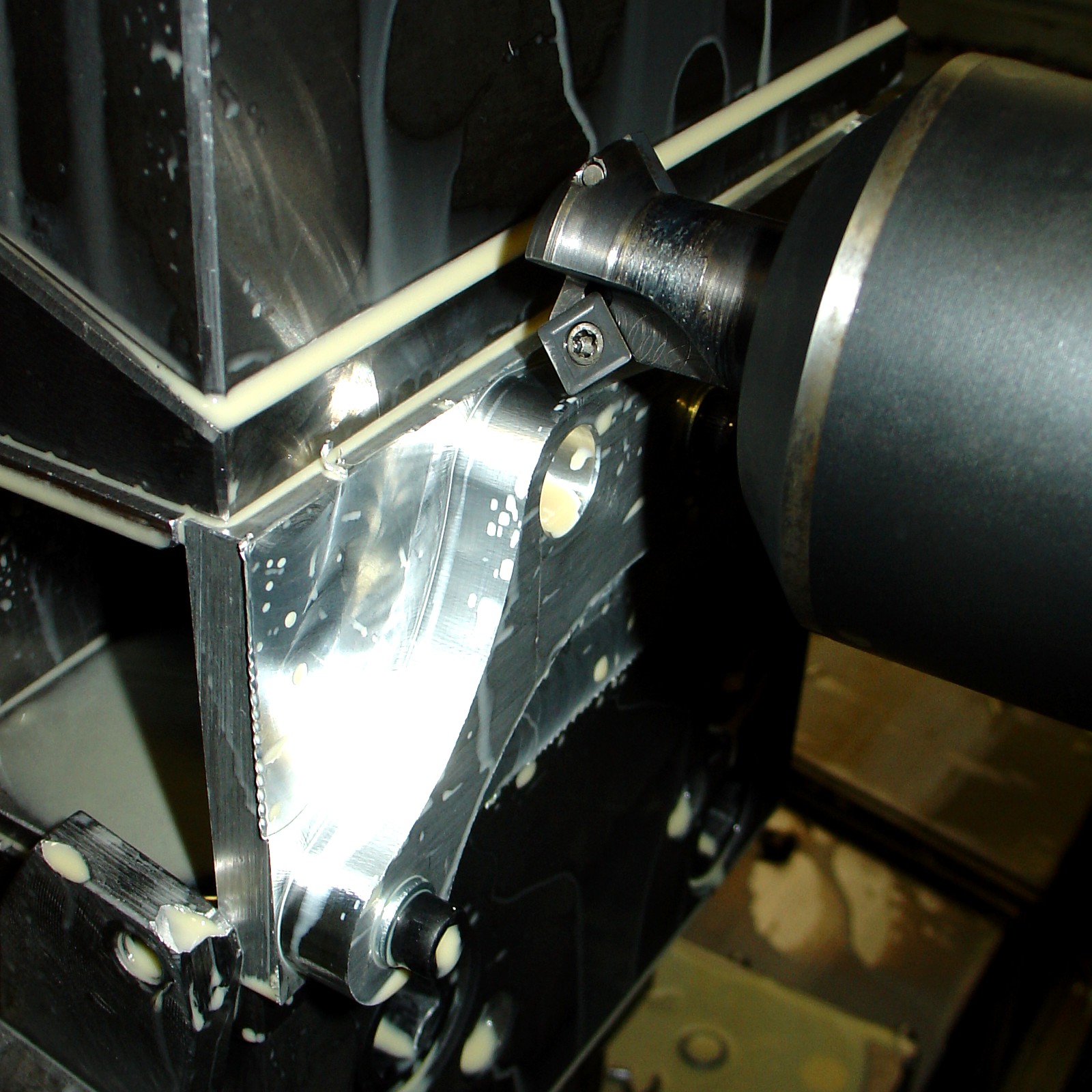

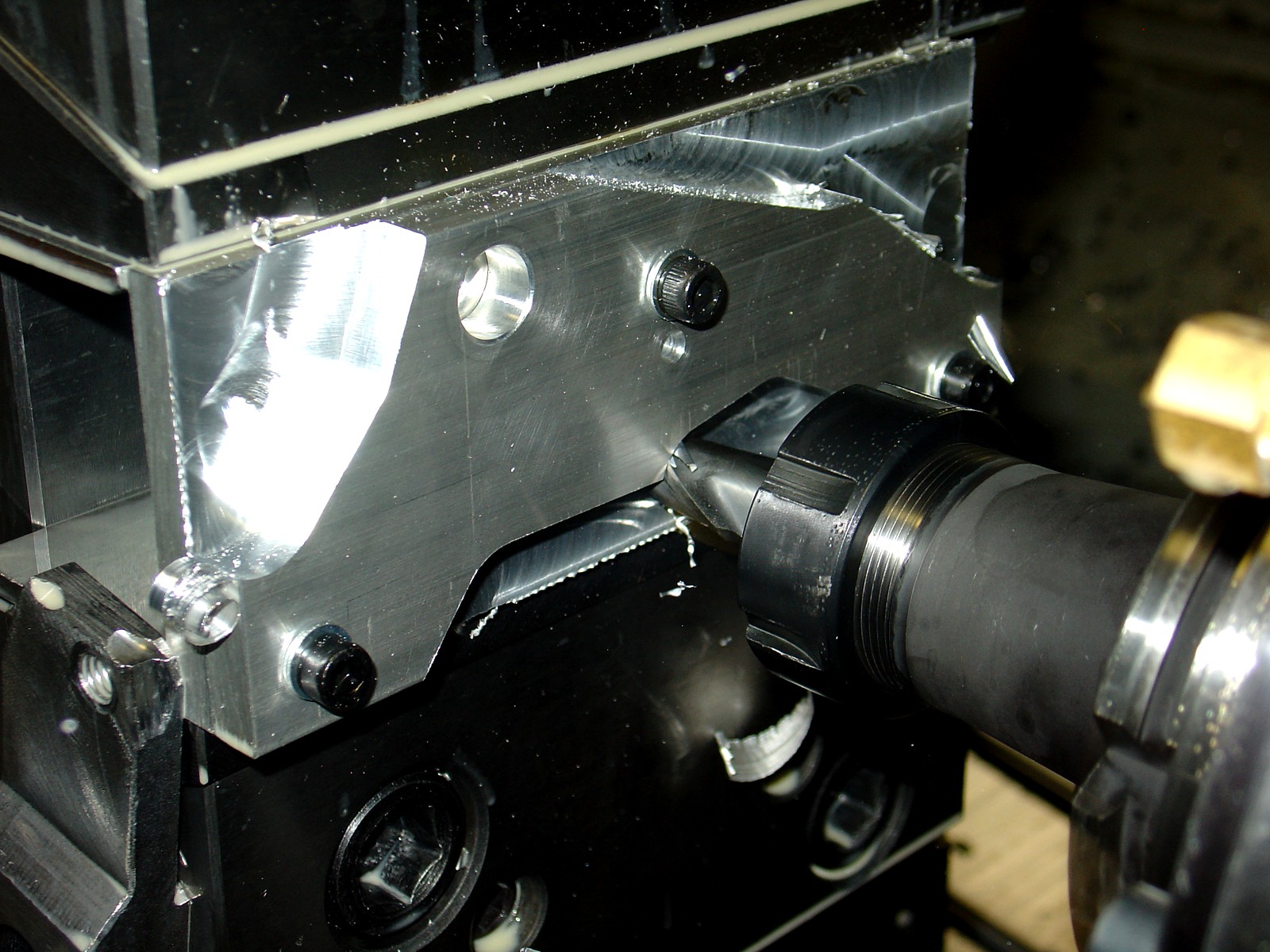

    Some images of the second working phase.

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

    [​IMG]
    ZOOM!

  7. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  8. Stickeh

    Stickeh Help me , Help you.

    Joined:
    20 Jul 2003
    Posts:
    3,574
    Likes Received:
    89
    I really wish you would show us the working diagrams or mockups or ideas, but on the other hand, i am so glad you have not, makes each update confusing yet interesting!

    Love the fabrication work, so tidy. Wanted to have a go at doing something like this for a while and now i can never match your quality!

  9. stonedsurd

    stonedsurd Is a cackling Yuletide Belgian

    Joined:
    11 Mar 2009
    Posts:
    7,715
    Likes Received:
    272
    Beautiful.
    How about a pic with them attached where they're supposed to be?

  10. Dark~3nergy

    Dark~3nergy what was dat sandvich ?

    Joined:
    14 Jan 2007
    Posts:
    1,424
    Likes Received:
    45
    that's amazing, I really like the machining videos.

    could you post a large picture of the CNC machine you are using ? :)

  11. SkiDave

    SkiDave Active Member

    Joined:
    16 Mar 2008
    Posts:
    660
    Likes Received:
    29
    Awesome as always! I envy your machines and CNC skills!

  12. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks to all! ;)

    Yes, it's right.

    [​IMG]
    ZOOM!

    I use a Italian CNC machine, the horizontal machining center Mandelli type 5.

    [​IMG]

    10 pallet changer and tool storage capacity for 80 tools.
    6000 rpm rotation tool, 35000 mm/min axis velocity.

    Bye ;)
