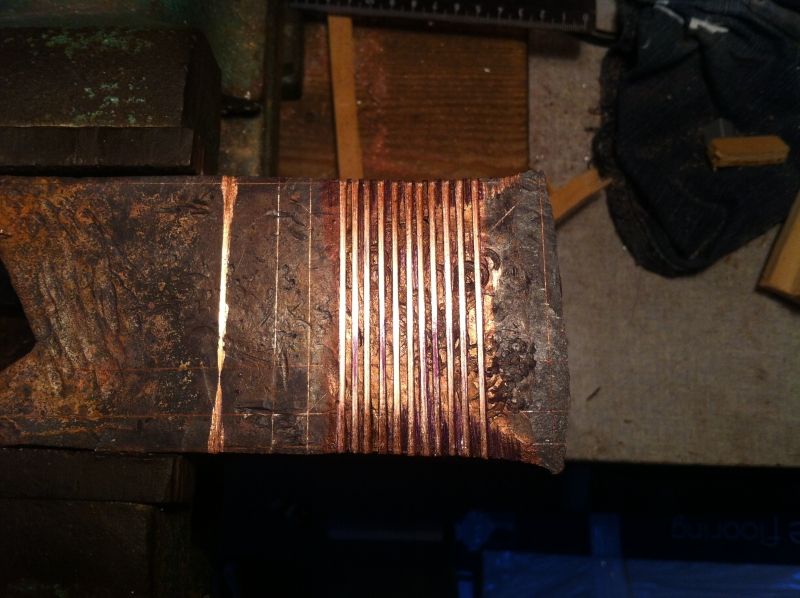

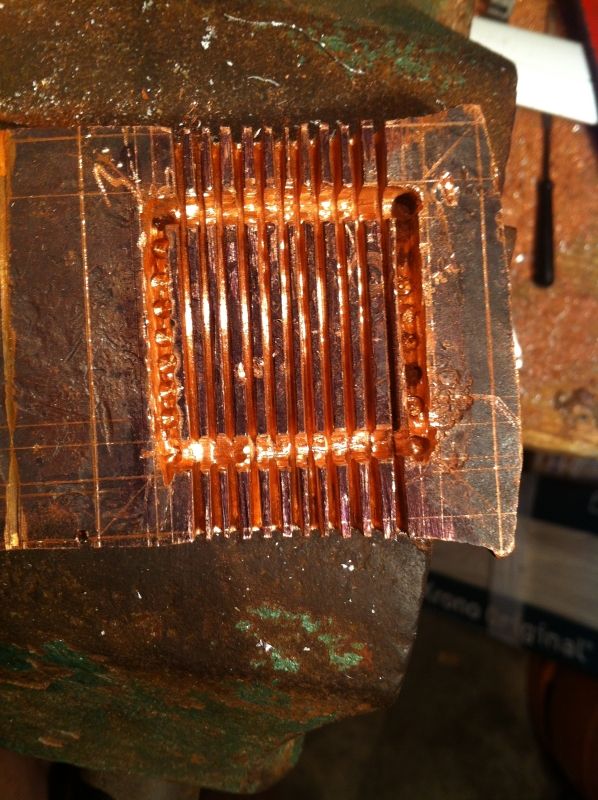

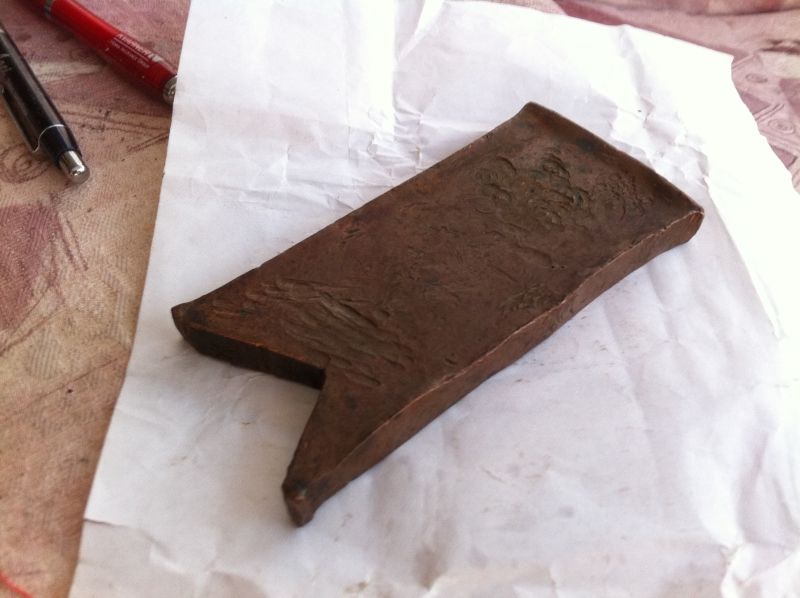

Howdy folks. Long time reader, first time posting since its the first time i have something to post Been juggling with the idea of a do it yourself waterblock but i have been putting it off for a while since i haven't hand anything of worth to stick it on. Since i'm in the process of gathering parts for a rig i dove into making a waterblock of my own. So i got my hands on a piece of copper about 8mm thick. After sketching what i wanted on the piece of copper i used a hacksaw to cut the grooves for the water. After that i depened the grooves untill i had about 3 mm of copper left. And then i made a channel all around the grooves. Next part of the plan is to solder the grooves on the outer rims shut, and start shaping it ito a square and so on. On the top i plan to add a thick piece of acrylic with chanels for the jetplate equivalent. Do you guys think this will work at all?
