Scratch Build – In Progress Feuer und Flamme - [120508:new name, new concept]

Discussion in 'Project Logs' started by thechoozen, 24 Nov 2007.

  1. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    Hi @ all

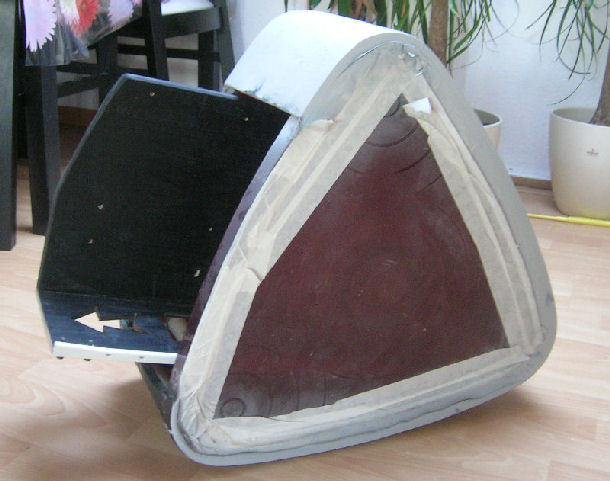

    this is a new build we started a few days ago. When we started we had 2 "old" tables made of acrylic with an identical shape. The legs of the table were only srewed in, so that it was very easy to disassemble them so that we had only the both table plates left.

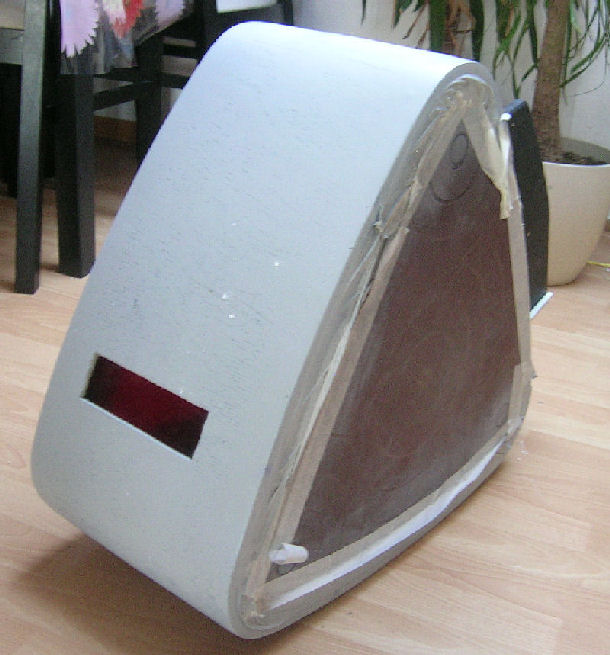

    Then we took 3 1" woodsticks to put them between the plates. After that basic construction was done we took some bendable wood and connected it around the plates to get a nearly closed case. On the backside of the case we left an open part were we later want to mount the backdoor.

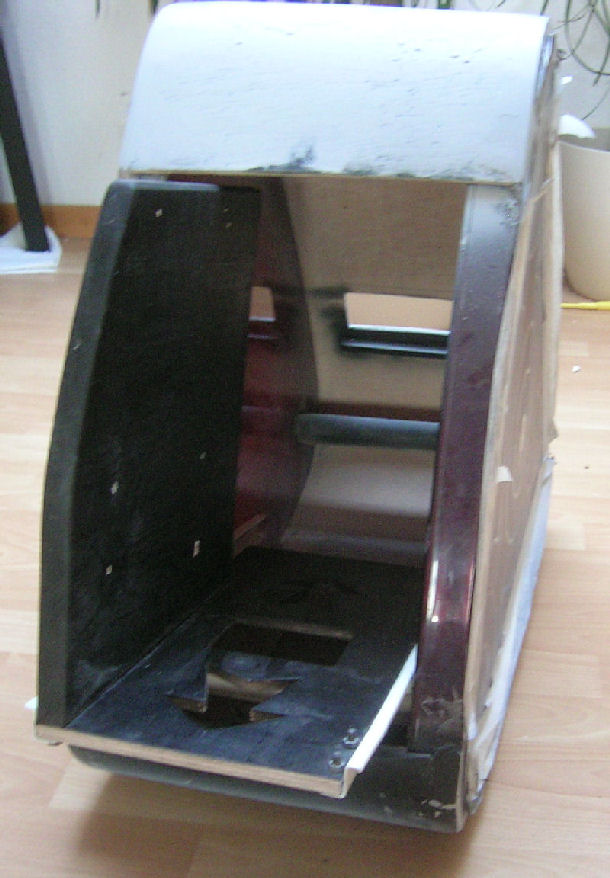

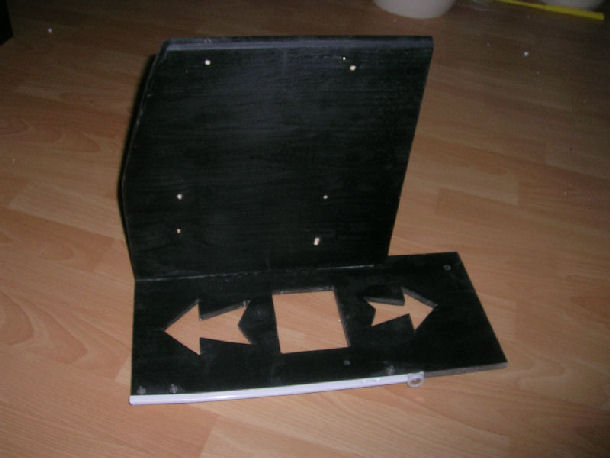

    Inside the case we build a frame on which we mounted some door sliders for furniture which should move the hardware in and out. On the bottom of the case we already integrated a big blowhole for 2 120mm fans.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 12 May 2008
  2. wbdog206

    wbdog206 not me

    Joined:
    15 Jan 2007
    Posts:
    442
    Likes Received:
    1
    looks like a good start to this.
    interesting shape.

  3. FrooP

    FrooP can I eat this?

    Joined:
    24 Oct 2007
    Posts:
    278
    Likes Received:
    7
    i hope ill see this one @ DCMM 2008 ;)

  4. keir

    keir S p i t F i r e

    Joined:
    5 Oct 2003
    Posts:
    4,380
    Likes Received:
    49
    looks like it's designed to roll down stairs.

  5. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thanks for your comments!

    today just a small update:

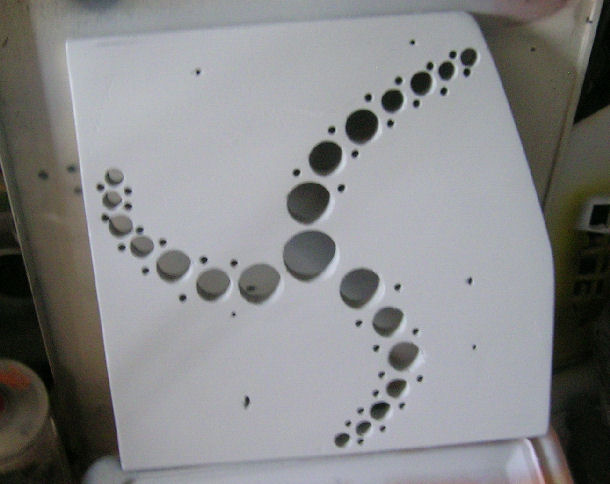

    we thought that the mounting plate should get some details

    before
    [​IMG]
    after
    [​IMG]

    as next we will paint the surface black again. After that we thought on painting the inside of the holes in a contrast color to bring in a little bit more color.....

  6. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    a taste of bling

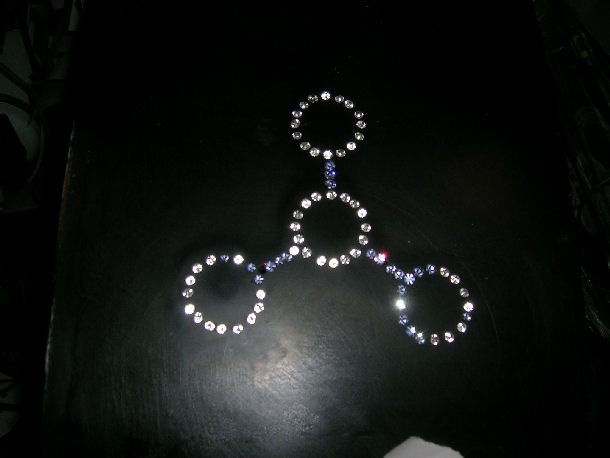

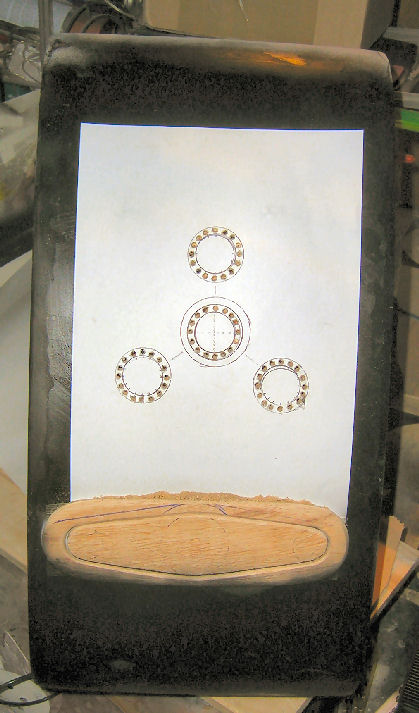

    today we drilled some holes into the front, later when the paintjob is done, we will insert some swarovski crystals inside the holes to bring a little bit bling bling to this case....:D

    but here are two pics of it so that you can see how it will look like,

    [​IMG]
    beside that you could see the cover for the dvd drive in the lower part of the picture
    [​IMG]

  7. AJB2K3

    AJB2K3 What's a Dremel?

    Joined:
    12 Dec 2005
    Posts:
    1,605
    Likes Received:
    4
    [​IMG]

    Hmn that looks like the end view of the triple helix

  8. sik19

    sik19 What's a Dremel?

    Joined:
    2 Jan 2006
    Posts:
    123
    Likes Received:
    0
    Oh very interesting, looking forward to see it finished.

  9. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    Hy @ all :thumb:

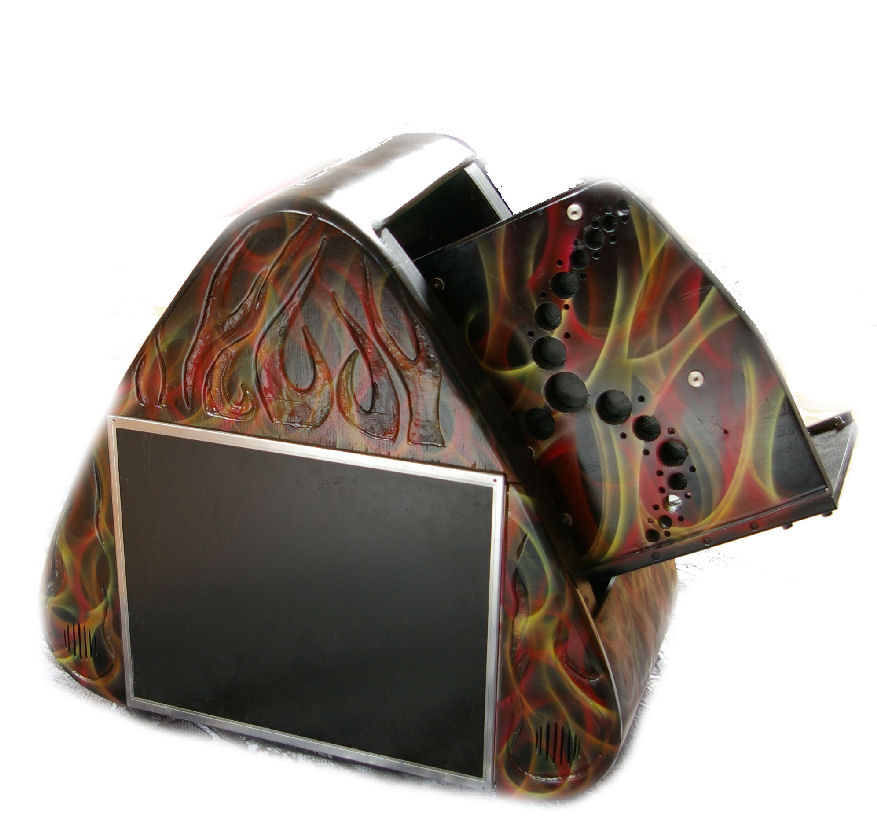

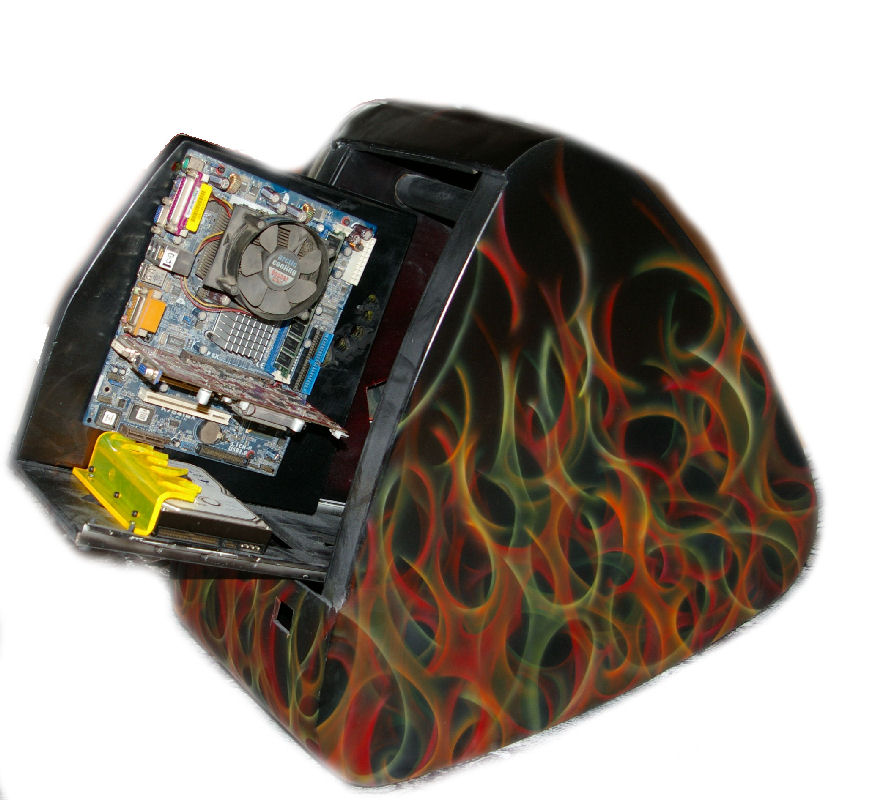

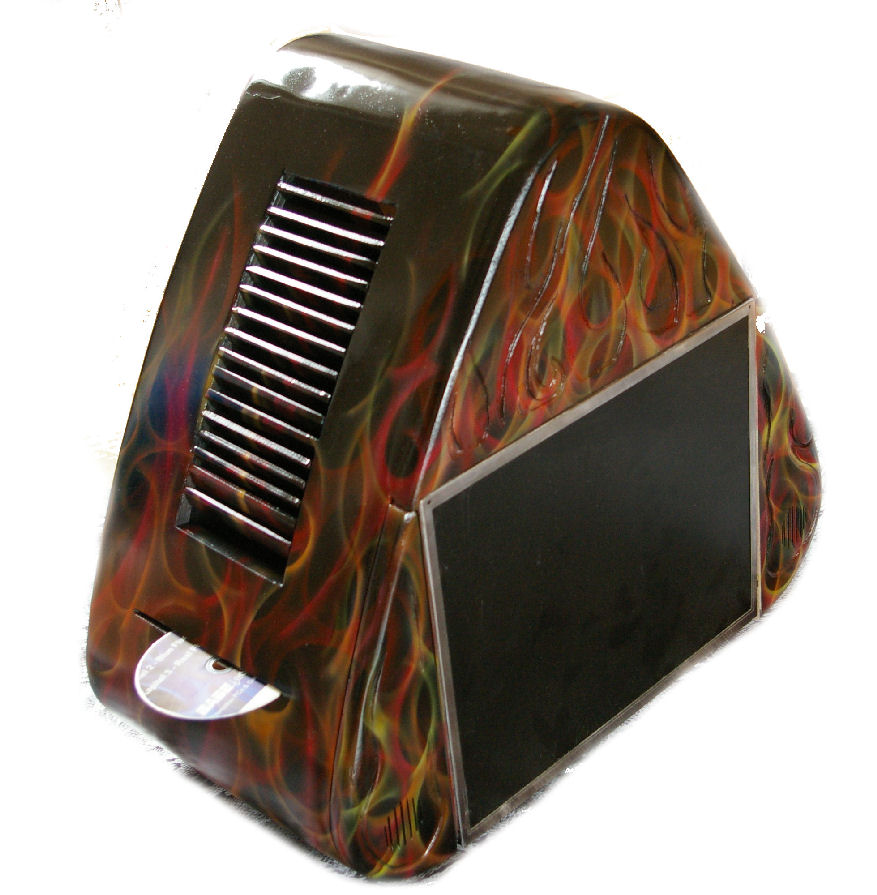

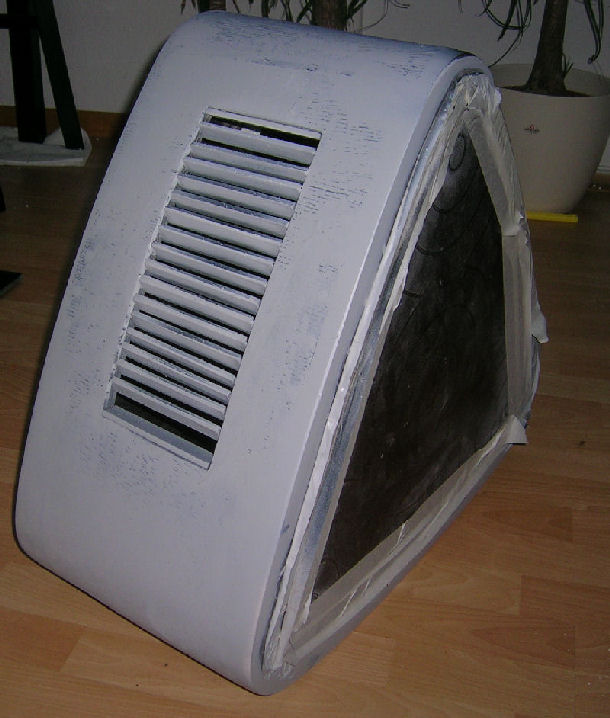

    I wanted to preview you the final result of this project.....

    After several month of doing nothing on this project....we decided to change the whole concept and finished everything just a few days in front of the german casemodding masterships....therefor there was no time for writing a complete worklog...so now there is more time....so i will publish a "complete" log in the next few days.....

    But here are a few pictures first!

    [​IMG]
    [​IMG]
    [​IMG]

  10. Farmboy UK

    Farmboy UK Hungry for knowledge

    Joined:
    19 Apr 2008
    Posts:
    196
    Likes Received:
    0
    Woah. Amazing airbrush skills. Slide out mobo tray. Looks incredible. Well done. How did it do in the competition?

  11. Aterius Gmork

    Aterius Gmork smell the ashes

    Joined:
    25 Sep 2007
    Posts:
    1,823
    Likes Received:
    73
    Mobo looks extremely dusty.

    The flame effect and the case are really nice!
