    Progress:
    Today its big assembly day, and finishing up the last cables, hopefully I got some stuff to show you tonight/tomorrow.

    yassarikhan786 likes this.
  2. RedManc

    RedManc New Member

    Joined:
    30 Jul 2011
    Posts:
    338
    Likes Received:
    11
    Corrected your mistakes, have fun with the assembly.

    The_Gnu likes this.
  3. The_Gnu

    The_Gnu 8-bit addict

    Joined:
    12 Sep 2005
    Posts:
    746
    Likes Received:
    93
    Hahaha nice one:thumb:

  4. riekmaharg2

    riekmaharg2 has started the PowerCore scratch build

    Joined:
    22 Feb 2009
    Posts:
    1,300
    Likes Received:
    153
    Nice finish on those parts, looks great in silver and black :thumb:

  5. Angel OD

    Angel OD Pump Killer

    Joined:
    16 Sep 2007
    Posts:
    1,610
    Likes Received:
    114
    Stop rolling thumbs again Swede! :thumb:

  6. The_Gnu

    The_Gnu 8-bit addict

    Joined:
    12 Sep 2005
    Posts:
    746
    Likes Received:
    93
    Thanks riekmaharg2, Glad you like the colors, looking forward to seeing your anodizing results aswell:thumb:

    You again....you, you master of waterblocks.:thumb:

    Hold your horses, Im in the middle of taking photos of the assembly process so far, working as fast as I can.
    (change fast to painstakingly)

  7. Angel OD

    Angel OD Pump Killer

    Joined:
    16 Sep 2007
    Posts:
    1,610
    Likes Received:
    114
    I'm not gonna bother you then, just make looooooooads of pics! :thumb:

  8. AnG3L

    AnG3L Ultimate Modder

    Joined:
    19 Mar 2009
    Posts:
    2,634
    Likes Received:
    153
    Thats a pretty good price bro! In my place there is only one company and they charge a looooooot like its gold or something. And the other problem is that you have to get them a certain quantity as they only do massive production..... It sucks! Powder coating though has good prices and also laser and cnc so I shouldnt be whining that much looolz :p :)

  9. The_Gnu

    The_Gnu 8-bit addict

    Joined:
    12 Sep 2005
    Posts:
    746
    Likes Received:
    93
    Taking pics is no problem, but sorting them out is the hardest part.;)

    Yeah the price was pretty good, I'll be using them a lot in the future :) Its sad when companys only take on large quantitys, the small firms are always the easiest ones, luckely mine was small enough to take on my project.

    At first I was thinking of giving DIY anodizing a try but got to scared when I saw what acids that are needed. One mistake and your life can be ruined. One thing I really respect is acids.

    Yeah, your lucky on the cnc service instead, I've never used one so I don't know what It would cost me. But I might know in the future.:naughty:





    And now, on with the show.
    [​IMG]

    [​IMG]

    [​IMG]

    Silver screws wouldn't look good on the cpu block so I decided to paint them black. They were sprayed with a black heat resistant car engine paint often found at auto shops. The color can withstand temps of 600°C and fully cures at 250°C. So I put them in the oven for baking. The surface gets really thin and it captures every detail, sticks in the m3 threads without any problems when screwing. It's also very durable as it can withstand the torque from a screw driver. Good solution if you want black screws but can only find silver ones.
    [​IMG]

    The black screws turned out nice but hey... it's time to bring out the designer in me and scream at those copper pipes that doesn't go well with the green and black theme. The right pipe is not messed up.. well it is, but it's for a reason as you will se in the next update.
    [​IMG]


    [​IMG]


    Oh yeah.. now that is much nicer. Don't worry, I didn't cover up any important contact area so this shouldn't effect its cooling ability.
    [​IMG]


    I got hold of some nice m3x6mm screws aswell. Since I will be using a lot of these, It was really nice to not have to paint my own :)
    [​IMG]


    [​IMG]


    We are getting there...
    [​IMG]


    ..Almost....done
    [​IMG]


    ..Just ned a few black ones..
    [​IMG]


    ..Done :p, You'll just have to wait till the finish to see the front all together since now I need to remove some of them to mount the walls. It might look as if this was a simple process to just screw the pieces inplace, but it's a pain in the ass to align all the cubes together and get the lines inbetween as straight as possible. You move one piece a tiny bit and then you have to move all the others aswell.
    [​IMG]


    [​IMG]

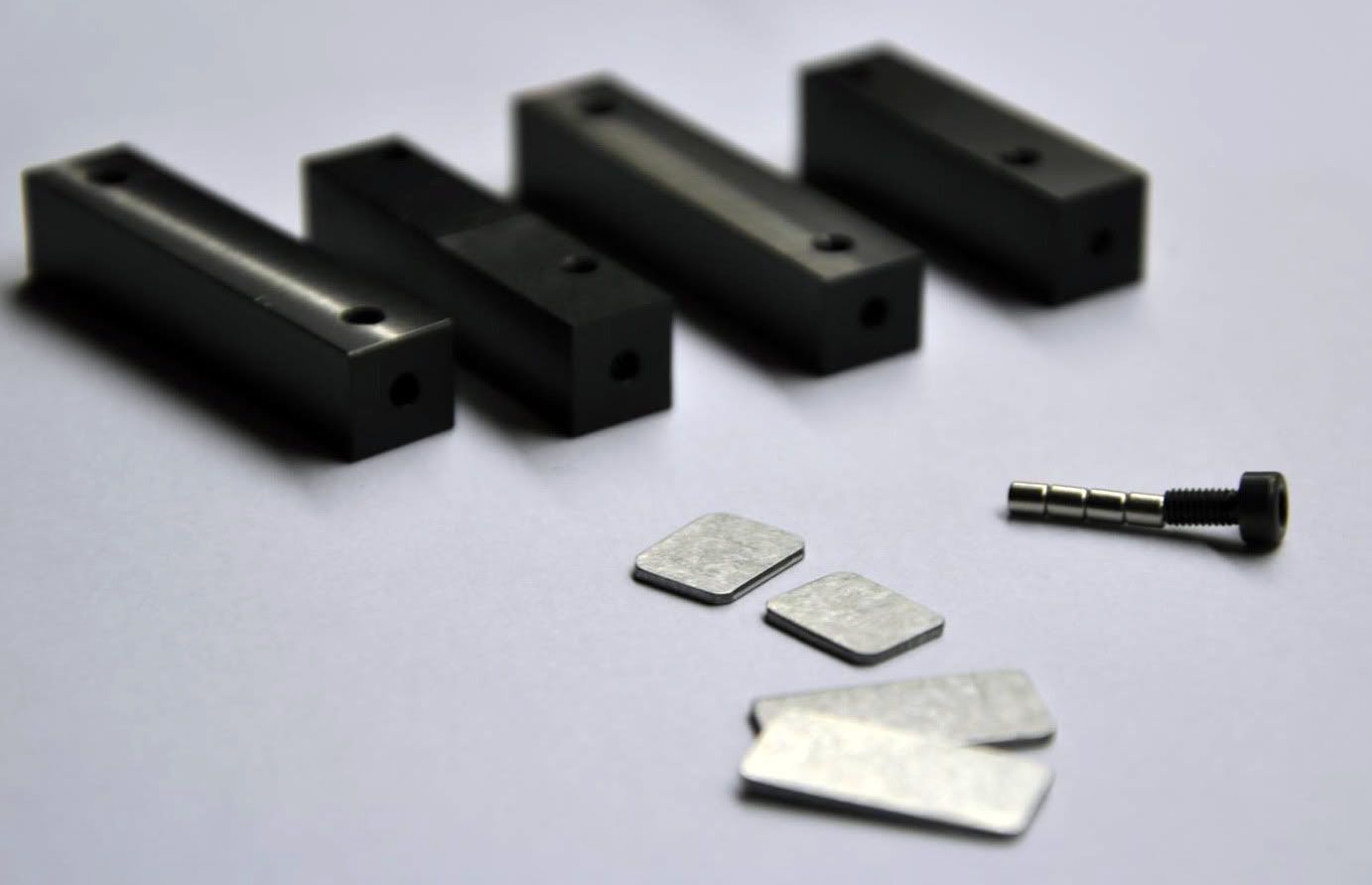

    And some new parts I havn't shown before, the function of these I'll give you a chance to figure out yourself. But I can give you a tip, those four puny puny things attached to that M3 screw are über strong Neodym magnets. I don't know their exact lifting ability but they were able to hold a medium size plier :)
