And now....
..It's ime to play with some fiber optics

Since there will be no moving parts in this computer it will be dead silent. When I first powered it up earlier this year I thought it was dead since there was no sign of life at all. After a few secs, suddenly there was a picture on the screen. Thats when I relised what dead silent really sounds like

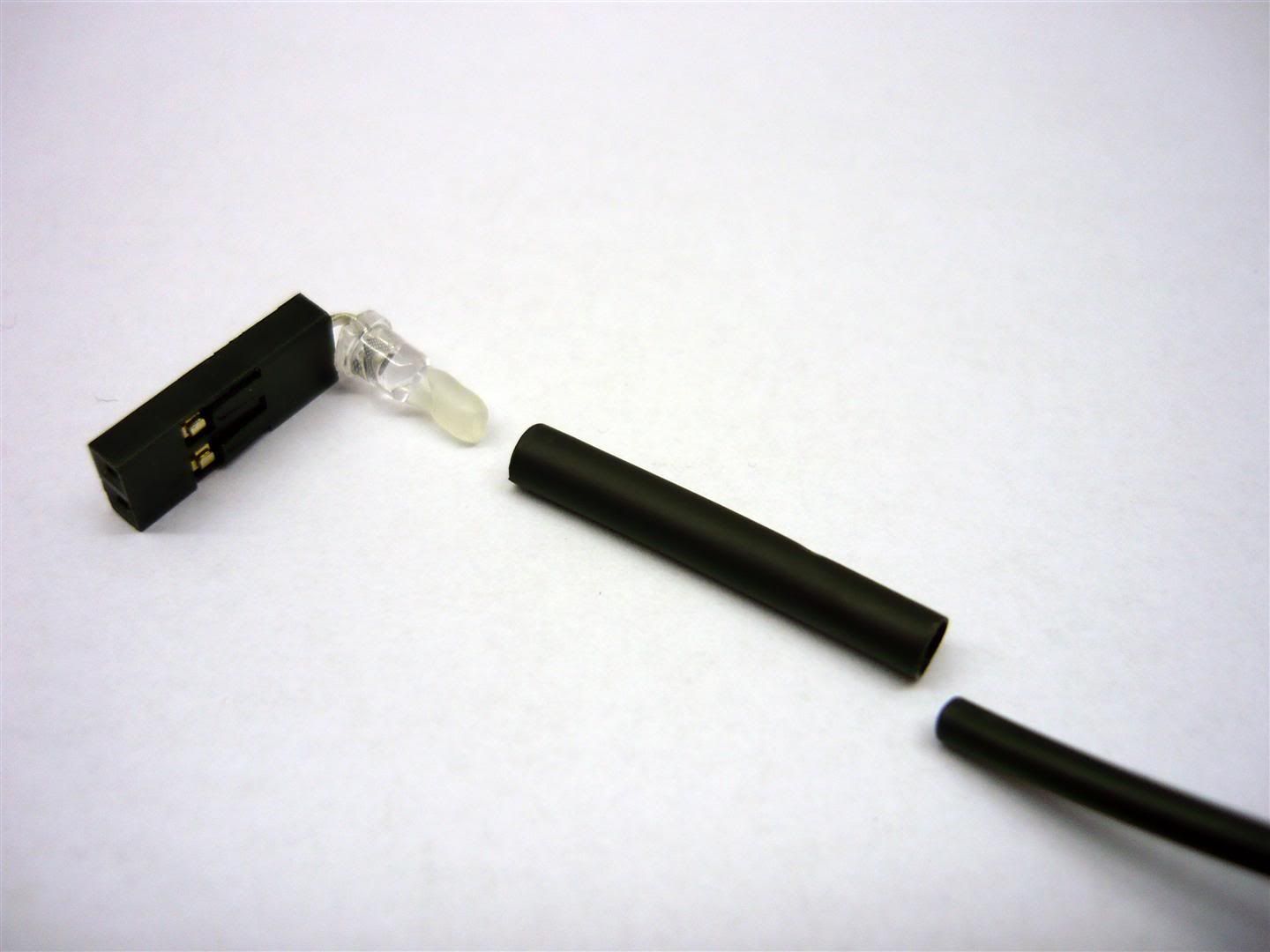

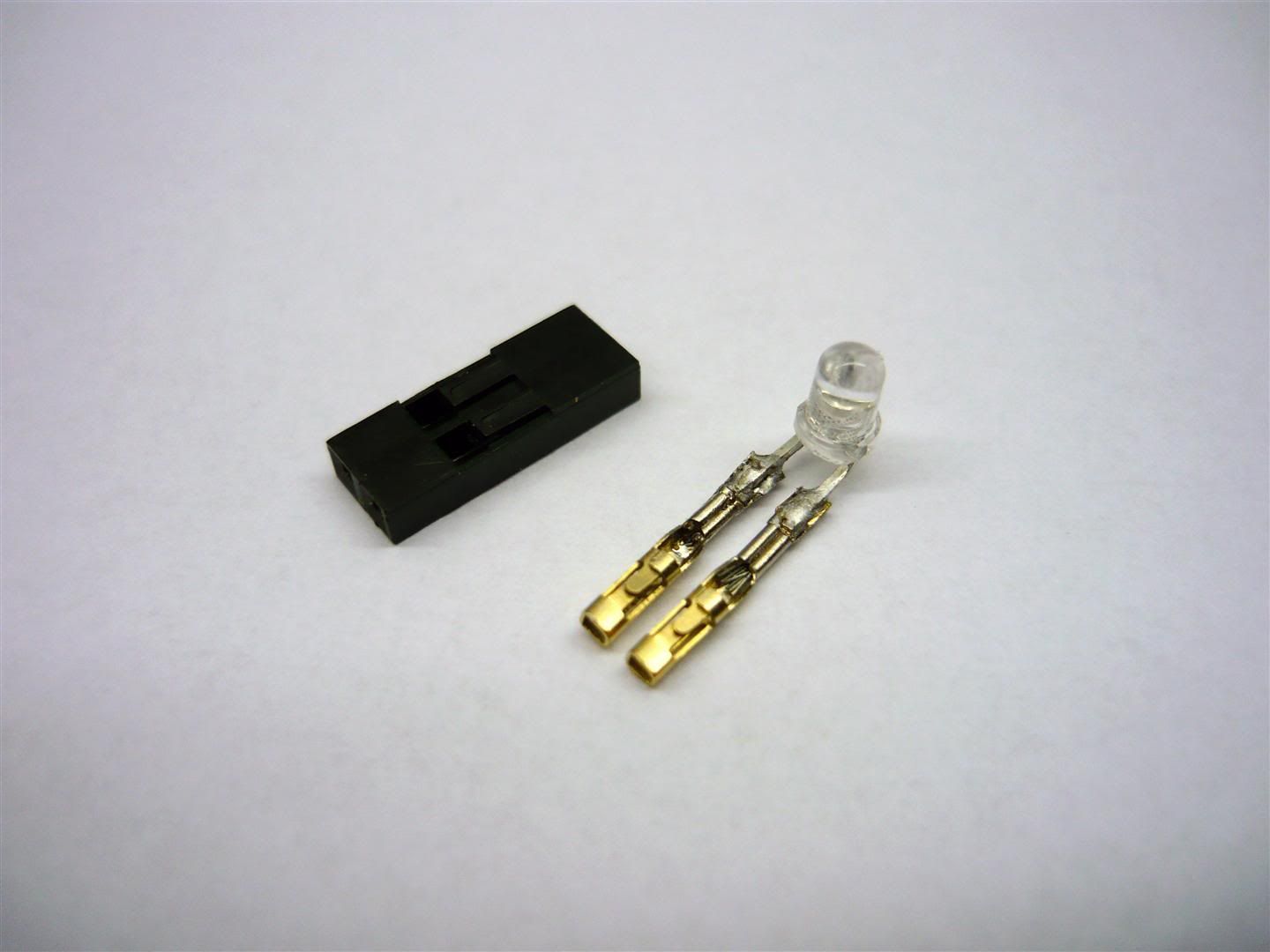

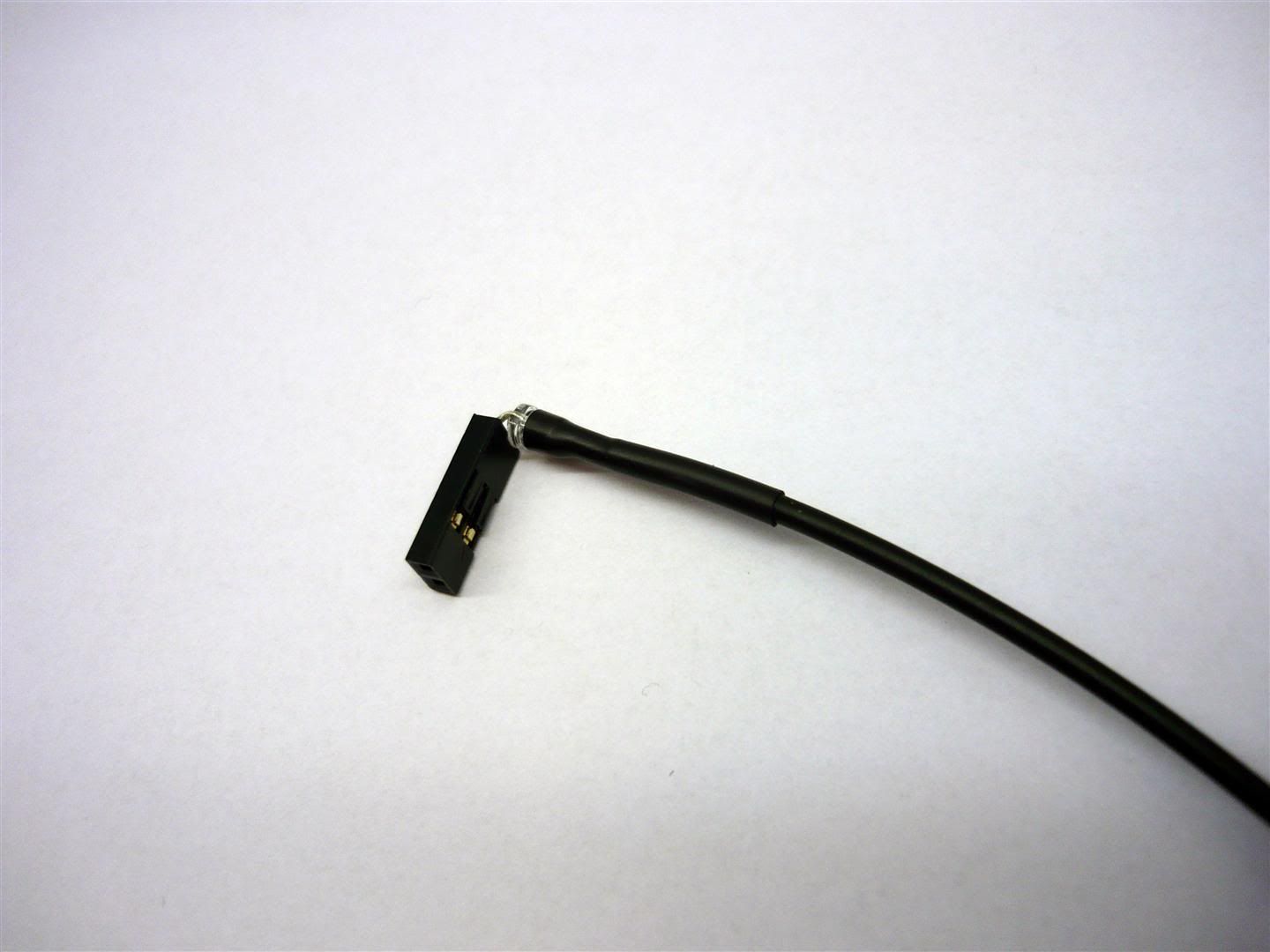

So it would be good to have some LEDs to show that it's up and running. And I hate those long black/red wires Can you guess the LED color?

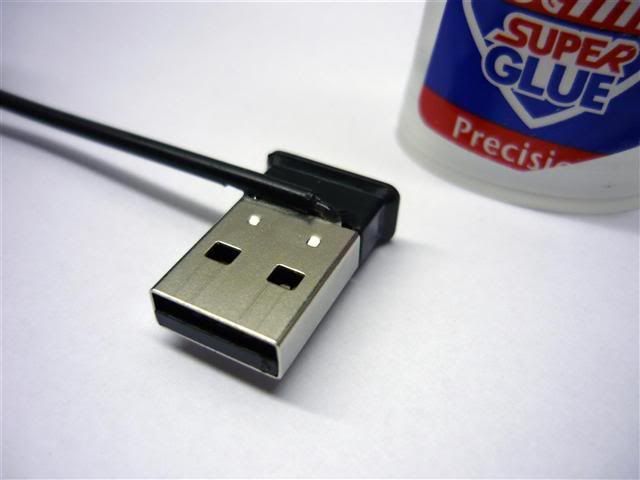

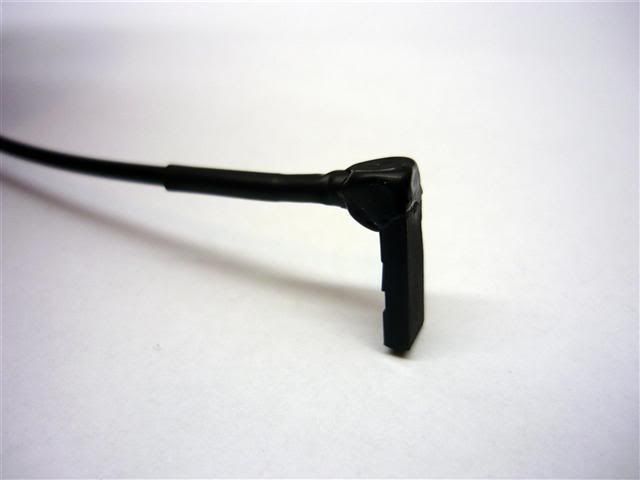

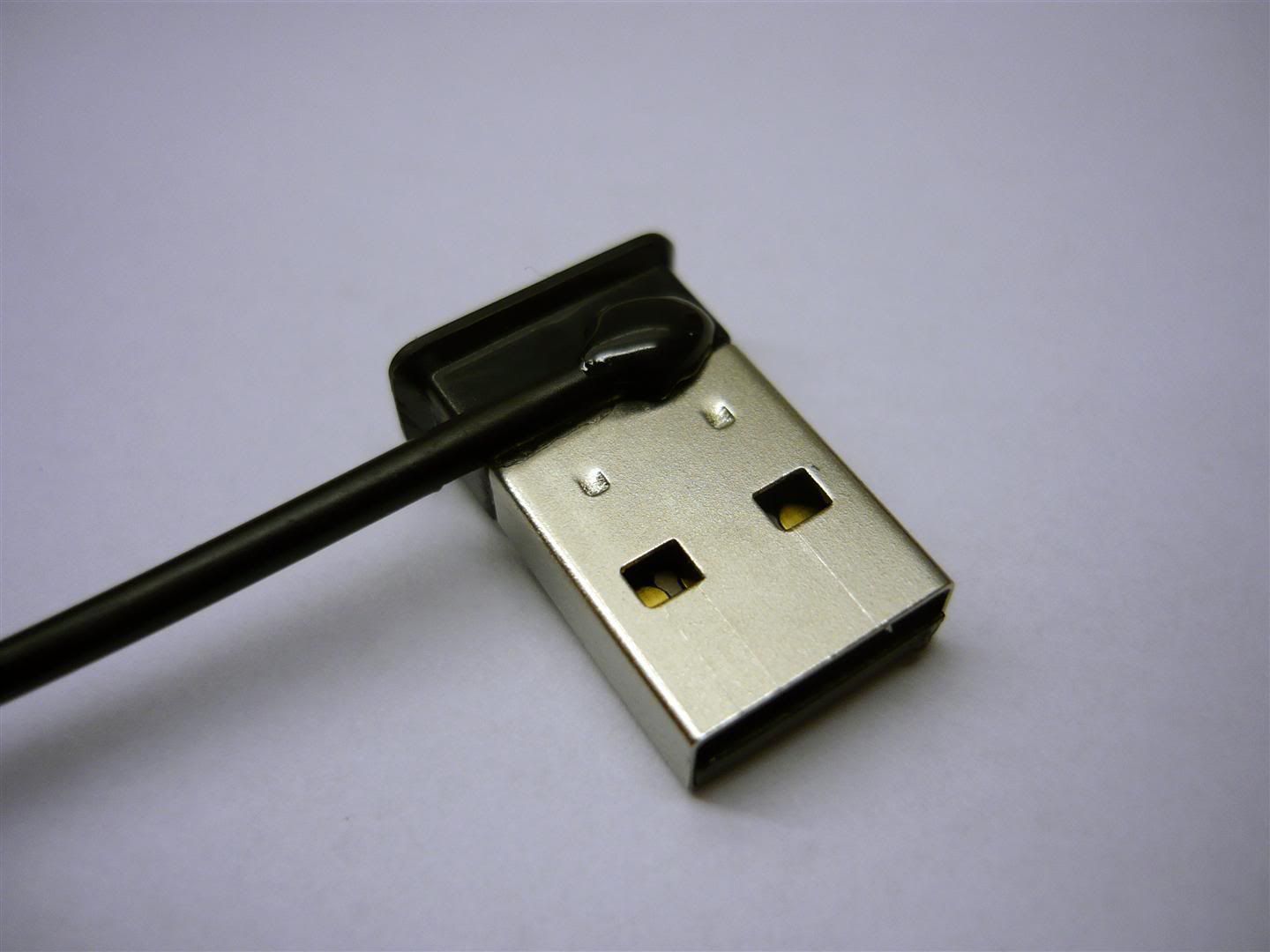

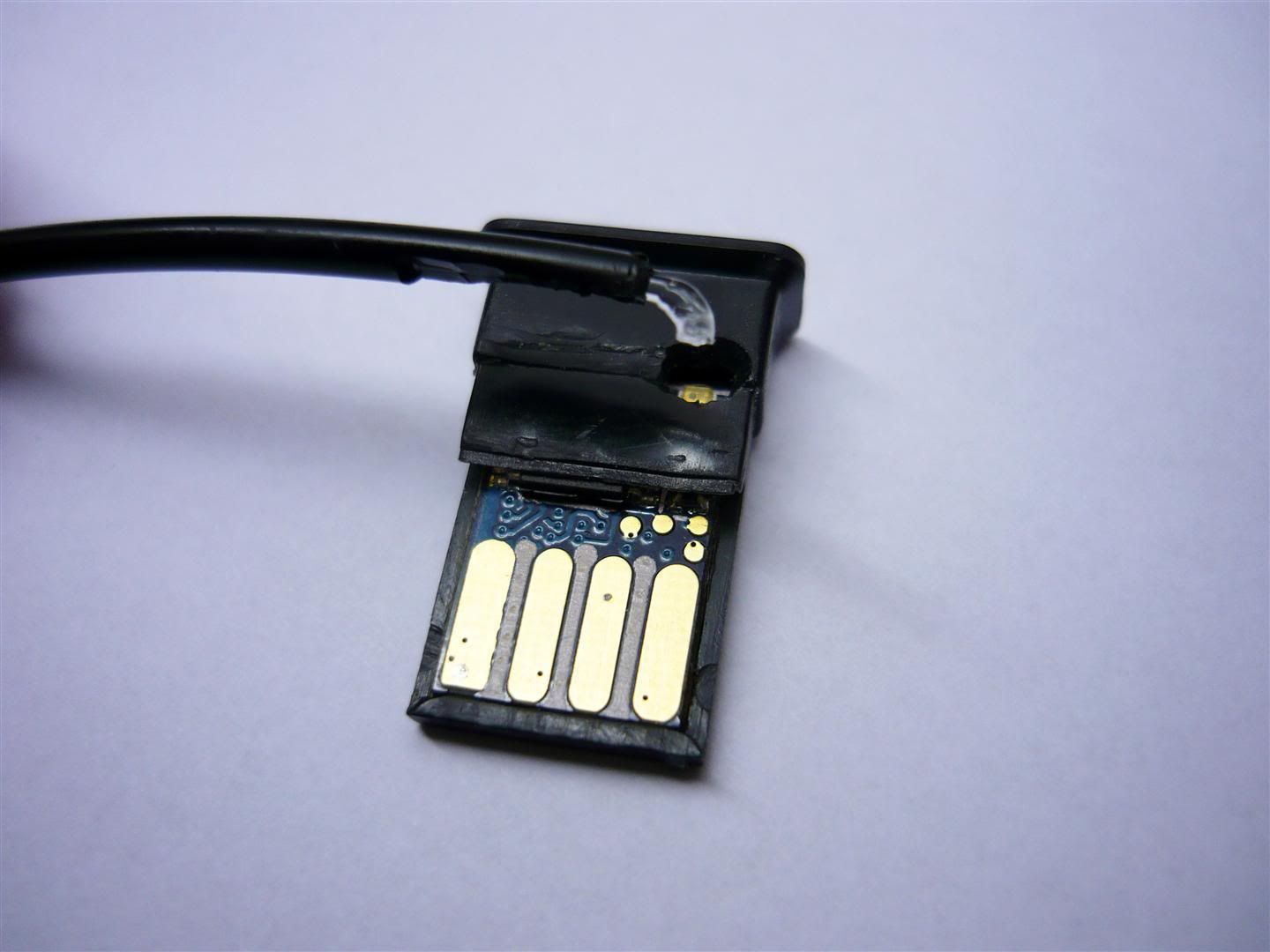

And it would be nice to see when the bluetooth is active aswell.

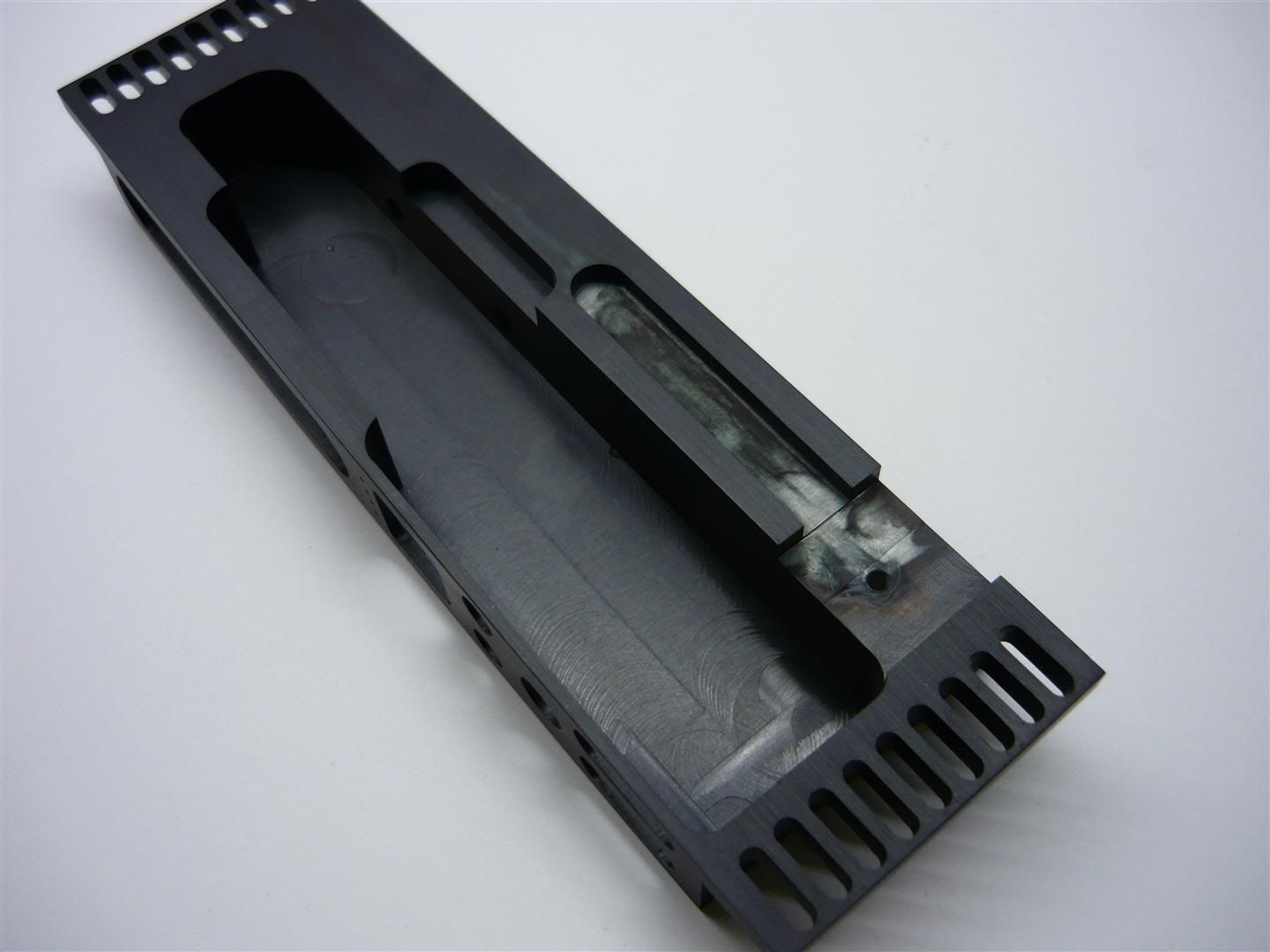

Here you can see one of the possible flaws you can get when anodizing. This happened because the hole you see isn't all the way through. And because of that, it will hold some remains from the previous bath in the anodizing that can leak out. Luckely this flaw was on the best place possible as it won't be vissible in the end

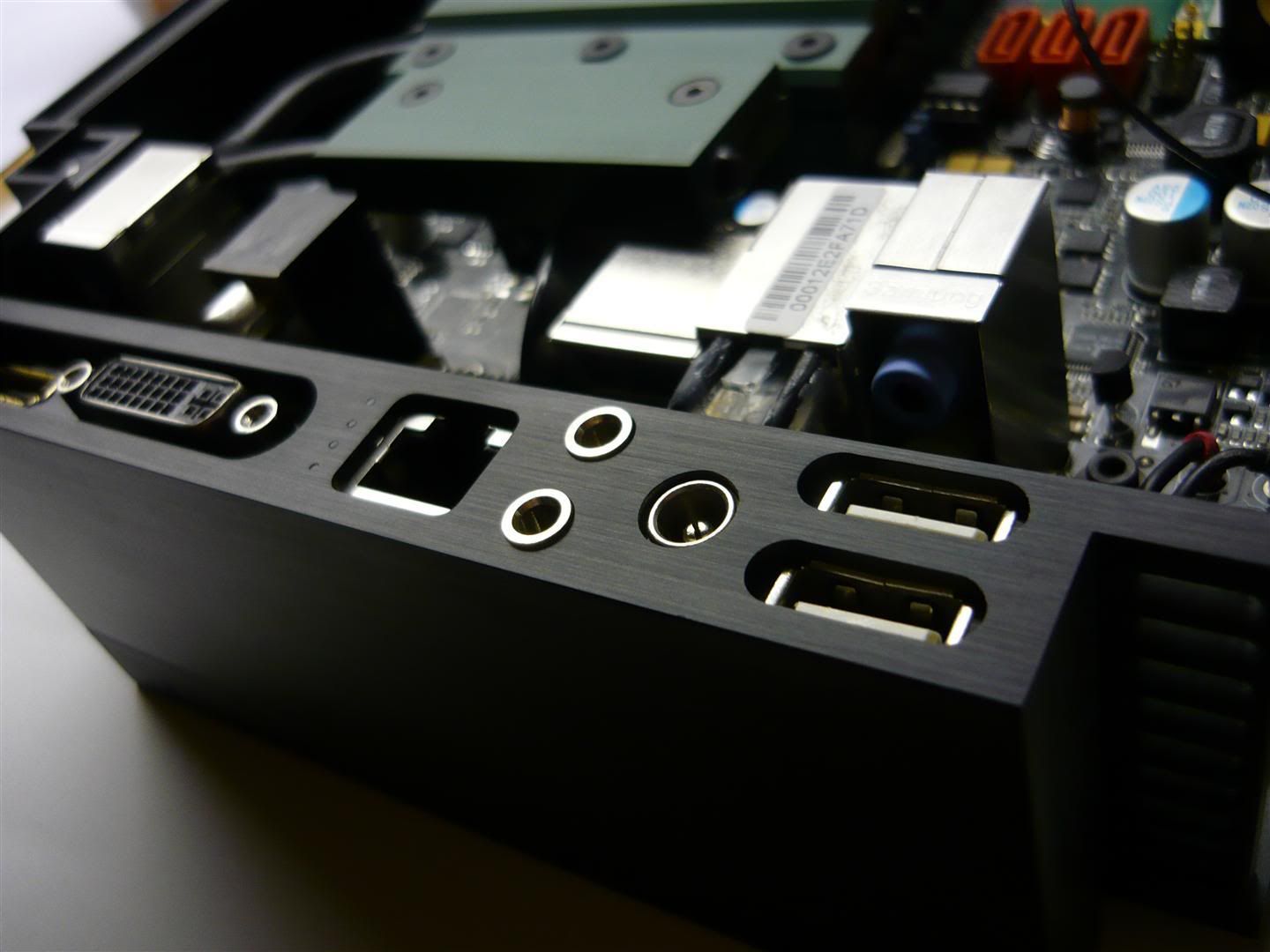

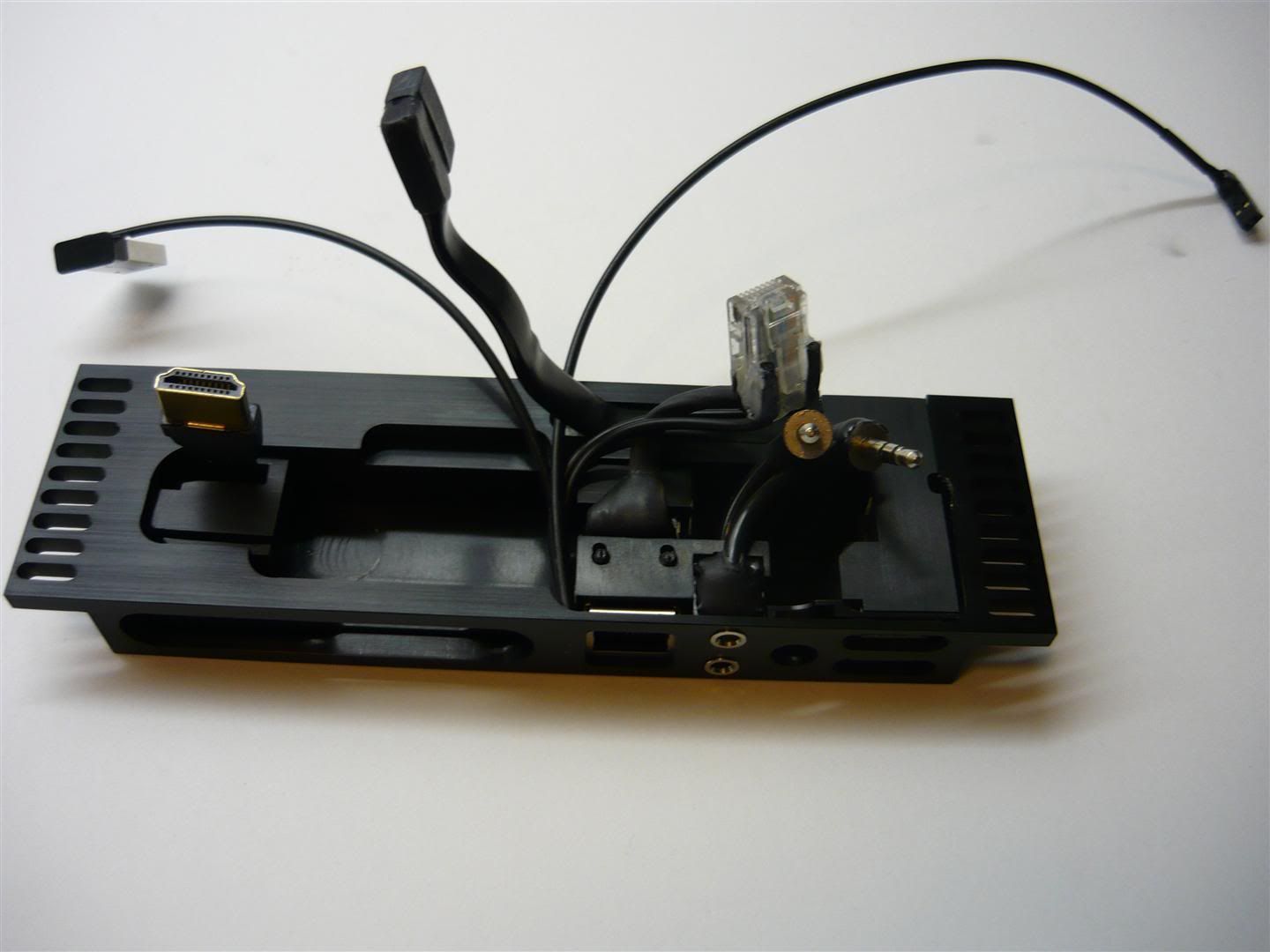

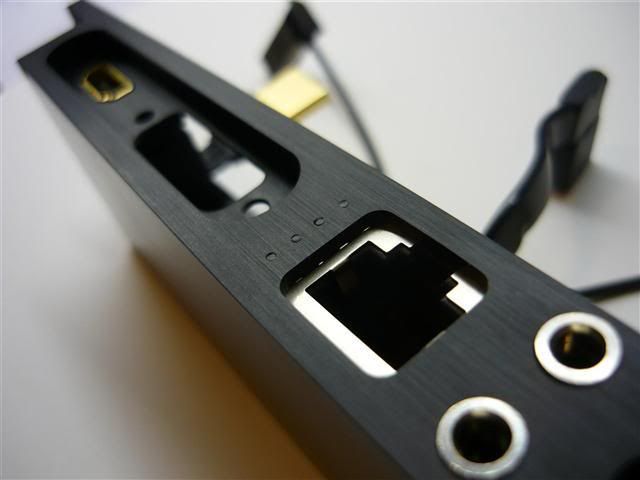

I decided to use fiberoptics on the network connector aswell. The ends are just glued onto the connector and when it's pushed in, they are resting against the original leds mounted on the mobo and the light is transfered to where I want it.

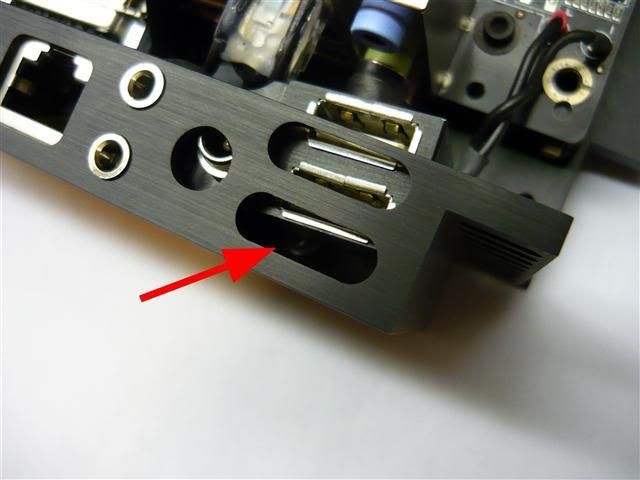

And here is the mounting of the fiber optic ends. The fiber is pretty stiff and the same size (1mm) as the hole istelf so Its own tension will hold it inplace, won't need any glue once pushed in.

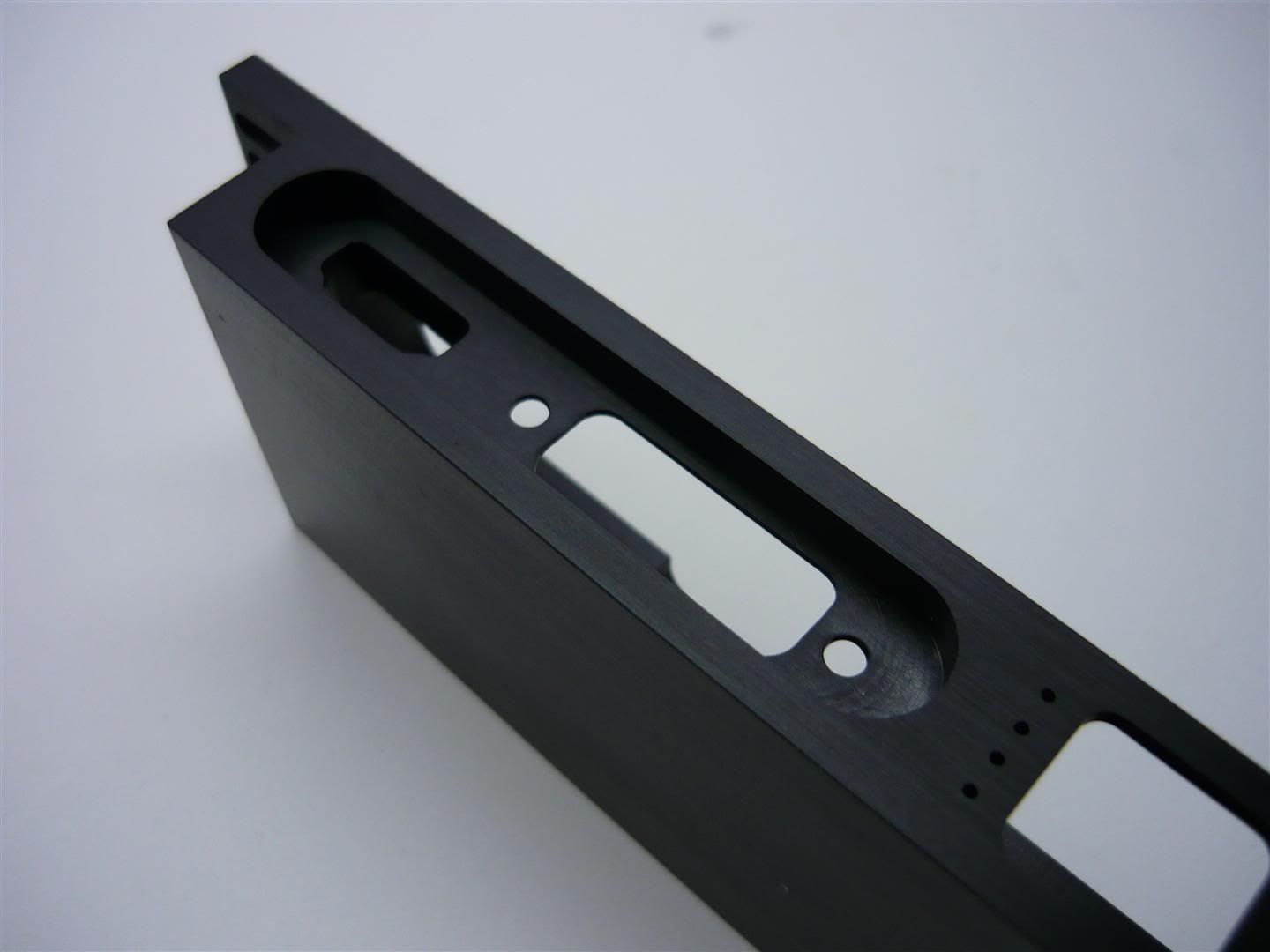

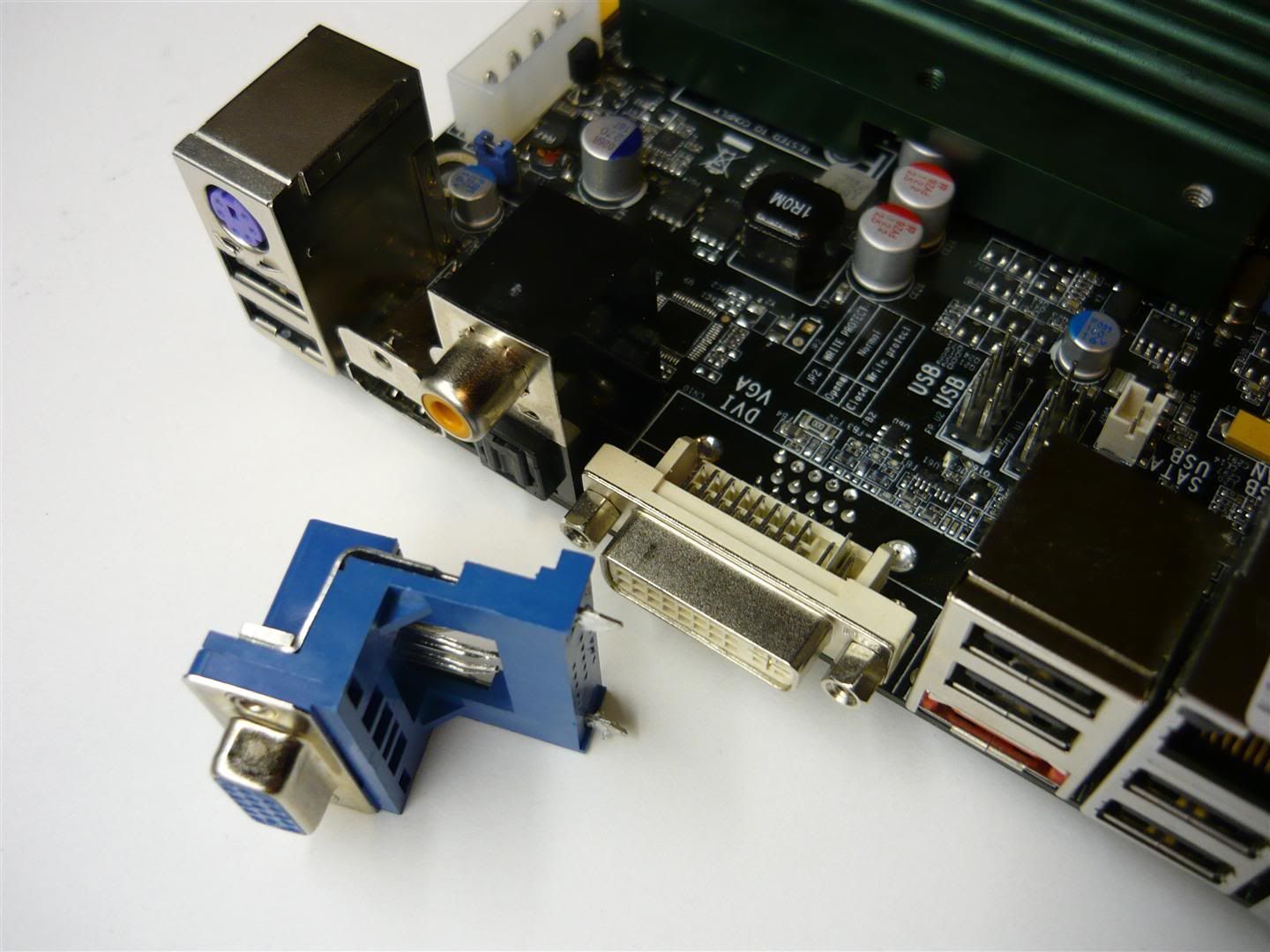

..who uses VGA port nowadays?... some extra space is more usefull to me so ...snip..snip goes the cutter.

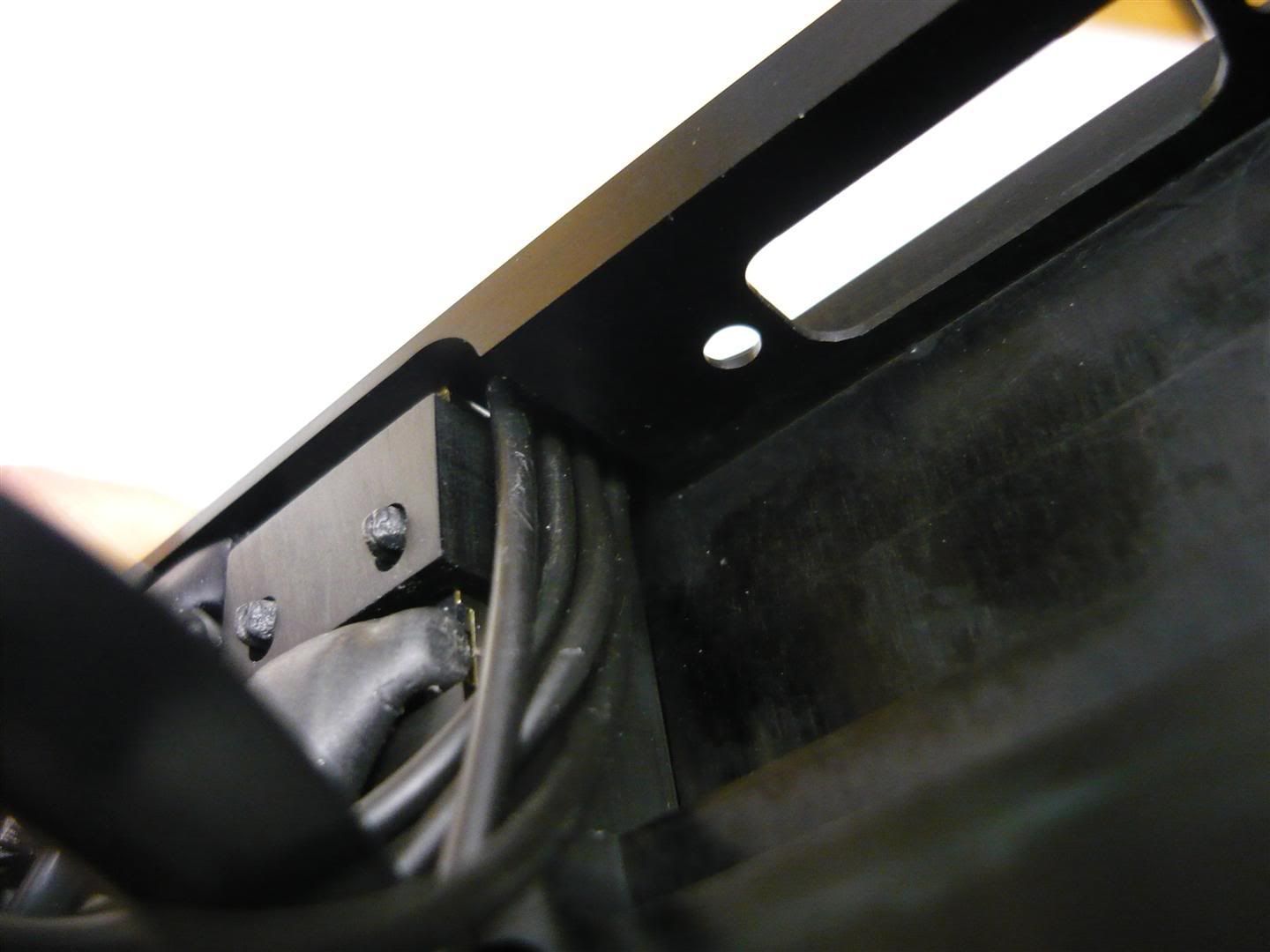

This was the biggest setback I've encountered so far on this project, Since most of the drawings are in my head I havn't done a virtuall assembly other than in my mind. This was one of the hard to reach screws I was a bit conserned about. I wouldn't know if it worked untill final assembly. And it turned out I would need an allan key shaped like and "S" to tighten it. I knew there would had to be one way of tightening it but couldn't find it and was staring myself blind at this screw for several hours.
And then my girlfriend comes home take a look at the problem and solves the problem in notime... That's when you need a brake.

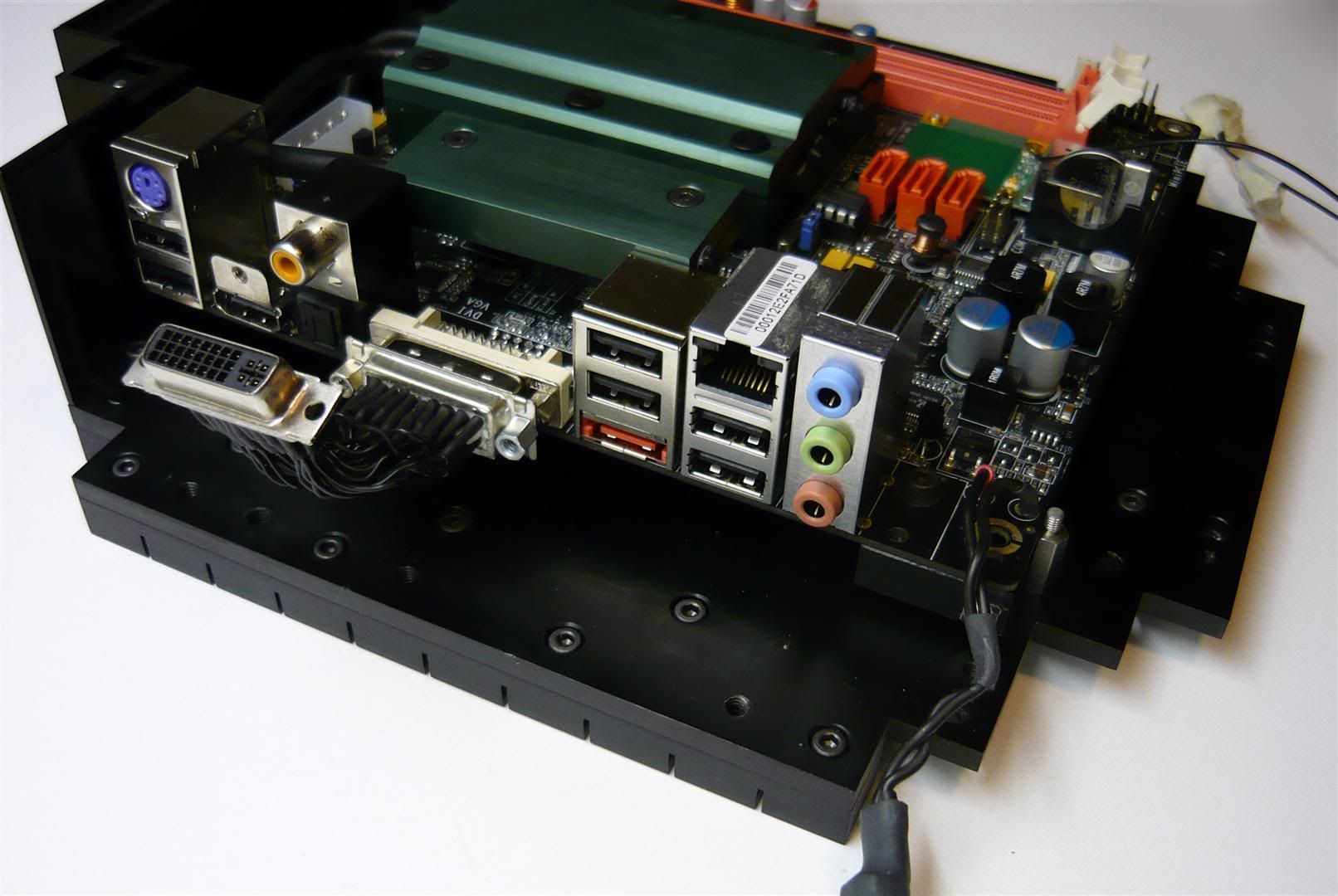

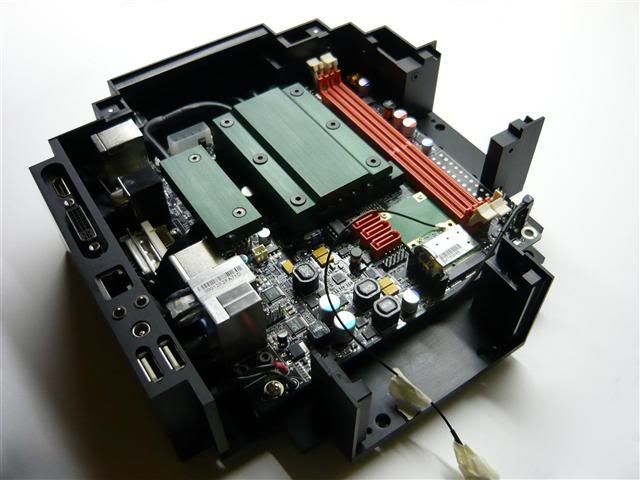

Mounting the mobo and the foot took a whole day because it was so fricking cramped by the connectors. The whole case feels like some kind of rubiks cube since you can only mount the parts in one perticular order. I guess thats what you pay for not allowing any screws to be vissible from the outside. Luckely we are not talking mass production on this one
