Guide Headphone splitter out of old soundcard

Discussion in 'Modding' started by mobius9, 2 Apr 2006.

  1. mobius9

    mobius9 Minimodder

    Joined:
    4 May 2004
    Posts:
    348
    Likes Received:
    0
    My goal for this project was to create a headphone splitter for my speaker systems... this wouldn't be any normal headphone splitter though, it would split 1 port into 5 (vs the normal 2)... I'm also almost flat broke right now, so with great ambition and a bunch of free time on my hands I set to work.

    [​IMG]

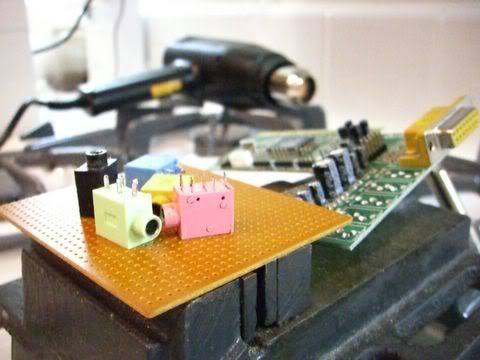

    step 1: board mounted headphone jacks are taken off of an old soundcard. I heated up the board with the heatgun you see in the background and they fell right off... sorry sound card, but you won't work in my computer anyways (all of my pci don't work).

    [​IMG]

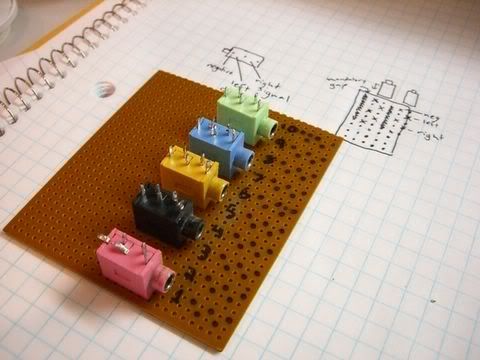

    Step 2: Using my mp3 player and headphones, I analyzed the jacks and found out which pins were for the ground, left and right wires. A diagram was drawn of the plugs and a plan of attack for the circut board was drawn. I needed to drill the holes larger to accomodate the size of the pins on the headphone jacks. I also started to bend off the unneeded pins, as you can see on the pink one.

    [​IMG]

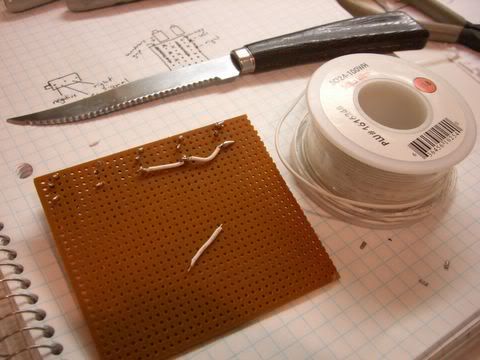

    Step 3: The jacks are soldered onto the board. Using 15 strips of wire, all ghetto stripped with a kitchen knife the jacks are wired up in parallel.

    [​IMG]

    Step 4: The board is all finished and ready to be tested. All 5 jacks are working perfectly, so I applied a coat of hot glue to the soldered area (not pictured) to protect the exposed contacts. Hot glue is not conductive, and is a fantastic way to cover up large exposed areas like this.

    [​IMG]

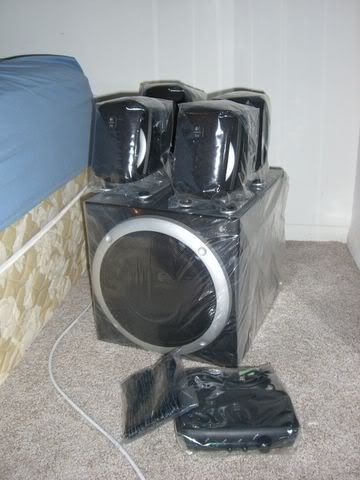

    Step 5: Unwrapping the Logitech Z-560... what you are looking at here is 400watts RMS output, and I have 3 of these systems (good deal for under $100 each), so 1200watts total. This is very unnecessary for a room in a house, but I'm a monster hehe :D

    [​IMG]

    Finished setup... 3 subwoofers and 12 satellites...... the result:

    [​IMG]

    hahahaha, actually more of something like this:

    [​IMG]

    hopefully this could give a few people some good ideas... until my next audio project, later guys!

  2. Agamer

    Agamer Minimodder

    Joined:
    10 Mar 2005
    Posts:
    437
    Likes Received:
    4
    Your flat broke yet you can aford 3 of those speaker systems?
    [Edit] Spose you could of got it before you were flat broke.

    Any way cool idea, Poor sound card though

  3. mobius9

    mobius9 Minimodder

    Joined:
    4 May 2004
    Posts:
    348
    Likes Received:
    0
    yeah, thats pretty much what happened, I bought the speakers then had like $2 left, heh.

  4. Orca

    Orca What's a Dremel?

    Joined:
    2 Dec 2005
    Posts:
    1,064
    Likes Received:
    13
    Three Z-560's?!?! You're sir, are insane lol :p Great guide nonetheless :)

  5. gideon

    gideon What's a Dremel?

    Joined:
    27 Feb 2006
    Posts:
    135
    Likes Received:
    0
    this could be usefull for my mp3 but than i need a car battery or we can listen only half and hour with 5 ppl :duh:

  6. mobius9

    mobius9 Minimodder

    Joined:
    4 May 2004
    Posts:
    348
    Likes Received:
    0
    it wouldn't drain your battery anymore... lets say your volume's on 20... thats going to remain the same... the volume might not be so high on the headphones though if you have 5 of them plugged in... I'll give it a test soon... if you're talking about running the z-560s from a car battery, its possible...

    lets say you have a 50AH battery (I haven't done this in a while, so bear with me if I'm wrong)...

    50 amps x 12v = 600w... so it would run about an hour and a half on full power... this isn't counting power loss from the dc>ac converter.

    why thank you! :D :rock:

  7. r4tch3t

    r4tch3t hmmmm....

    Joined:
    17 Aug 2005
    Posts:
    3,166
    Likes Received:
    48
    Great guide.
    Wired in Parrallel (<-Never can spell that) it would draw more current for each person connected, so if one set of headfones uses 100mA then 5 would use 500mA. Sorry no free music for all your mates.

  8. kickarse

    kickarse What's a Dremel?

    Joined:
    6 Oct 2004
    Posts:
    1,281
    Likes Received:
    0
    Not really... It all depends on the impedence level of the speakers...

    Serial or Parallel, in this case it shouldn't matter because such low voltage being needed...

    http://www.termpro.com/articles/spkrz.html

  9. gideon

    gideon What's a Dremel?

    Joined:
    27 Feb 2006
    Posts:
    135
    Likes Received:
    0
    Well I meant with earphones, you know that problem evrybody want's to hear that song you say that it is great, and a half hour later evryone has heard it, with something like this 5 people could listen at the same time, but it think it will suck your battery. :waah:

    :idea: need solar cell and some transistahs :rock:

  10. kasemodz

    kasemodz What's a Dremel?

    Joined:
    18 Oct 2004
    Posts:
    52
    Likes Received:
    0
    I know that the quality does depricate but it works perfectly on my laptop. I have one input and three outputs. The quality is decent a little bit of loss but so far no damage done.
