Electronics How much power can these "packs" give?

Discussion in 'Modding' started by DAE_JA_VOO, 13 Dec 2006.

  1. DAE_JA_VOO

    DAE_JA_VOO What's a Dremel?

    Joined:
    11 Nov 2005
    Posts:
    341
    Likes Received:
    1

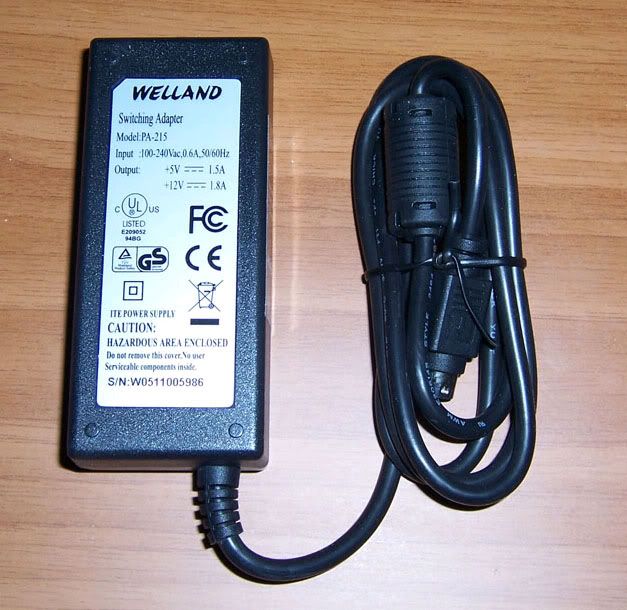

    I have a Vantec NexStar3 External HDD Enclosure, and i noticed the Power Supply it has. Now i'm curious, how much power can these power supplies give?

    I know it was only meant to power a single HDD, but do you think i could run a HDD, DVD Writer, Card reader, and 120mm fan off it?

    [​IMG]

    [​IMG]

    DAE_JA_VOO, 13 Dec 2006
    #1
  2. M4RTIN

    M4RTIN What's a Dremel?

    Joined:
    11 Sep 2006
    Posts:
    1,259
    Likes Received:
    3
    probably not on the 1.8A stated on the case

    M4RTIN, 13 Dec 2006
    #2
  3. SteveyG

    SteveyG Electromodder

    Joined:
    23 Nov 2002
    Posts:
    3,049
    Likes Received:
    8
    29.1W

    SteveyG, 13 Dec 2006
    #3
  4. DAE_JA_VOO

    DAE_JA_VOO What's a Dremel?

    Joined:
    11 Nov 2005
    Posts:
    341
    Likes Received:
    1
    Sick is that all?!

    Are you sure about that?

    DAE_JA_VOO, 13 Dec 2006
    #4
  5. cpemma

    cpemma Ecky thump

    Joined:
    27 Nov 2001
    Posts:
    12,328
    Likes Received:
    55
    Hard drives have a high start-up current; the card reader may be OK but other drives and a fan... :nono:
    It says on it. :duh:

    cpemma, 13 Dec 2006
    #5
  6. SteveyG

    SteveyG Electromodder

    Joined:
    23 Nov 2002
    Posts:
    3,049
    Likes Received:
    8
    :lol:

    SteveyG, 13 Dec 2006
    #6
  7. gbeeby

    gbeeby What's a Dremel?

    Joined:
    6 Dec 2005
    Posts:
    294
    Likes Received:
    0
    Watts = current x voltage

    so:
    5v = 7.5w
    12v = 21.6w

    gbeeby, 13 Dec 2006
    #7
  8. DAE_JA_VOO

    DAE_JA_VOO What's a Dremel?

    Joined:
    11 Nov 2005
    Posts:
    341
    Likes Received:
    1
    hehehe, thanks guys :D

    Damn 29W :( That sucks :(

    I think i'll use a SFF PSU then.

    DAE_JA_VOO, 13 Dec 2006
    #8
  9. bender386

    bender386 What's a Dremel?

    Joined:
    5 Jan 2006
    Posts:
    475
    Likes Received:
    0
    i got one of those with a usb <-> ide converter it sucked big time. broke after like 2 days but meh what do you expect with cheap/free crap like this, at least it didn't catch fire

    bender386, 14 Dec 2006
    #9
  10. M3G4

    M3G4 talkie walkie

    Joined:
    13 Dec 2001
    Posts:
    1,775
    Likes Received:
    2
    Mine had a satisfying pop when I was pulling the plug outta the socket. That was fun.

    M3G4, 17 Dec 2006
    #10
  11. Warrior_Rocker

    Warrior_Rocker Holder of the sacred iron

    Joined:
    26 Jun 2005
    Posts:
    938
    Likes Received:
    1
    I bet the HDD, Card reader, and fan would be just fine running off one of those little external jobs. But keep in mind how much current an optical drive can potientially pull.

    Though 29 watts isnt all that bad. You can run a modestly configured pentium 4 based computer off about ~100 watts.

    Warrior_Rocker, 17 Dec 2006
    #11
  12. LuitvD

    LuitvD What's a Dremel?

    Joined:
    13 Aug 2006
    Posts:
    263
    Likes Received:
    0
    a normal DVD burning device (my AOpen has it's specs on it's label)

    5V @ 1,2A
    12V @ 1,5A

    that leaves you with 0,3A on both 5 and 12 volts to feed your harddisk, card reader and fan... Don't think that'd be enough :p

    LuitvD, 20 Dec 2006
    #12
