Scratch Build – In Progress Just A-PC - Completed - 05 April, 2013

Discussion in 'Project Logs' started by Mosquito, 26 Aug 2012.

  1. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Ok, it's been long enough since I did a computer case... I was waiting for my RasPi to show up, but in the mean time, another little system I was watching came up for sale before I got my RasPi. This is an APC motherboard. It's Neo-ITX. SlipperySkip did a pre-release case for it a little while ago. I wanted to build a case, but I wanted to do something different. I didn't want to be too similar to other things I've seen so I came up with something I like, and set off...


    And speaking of setting off...


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

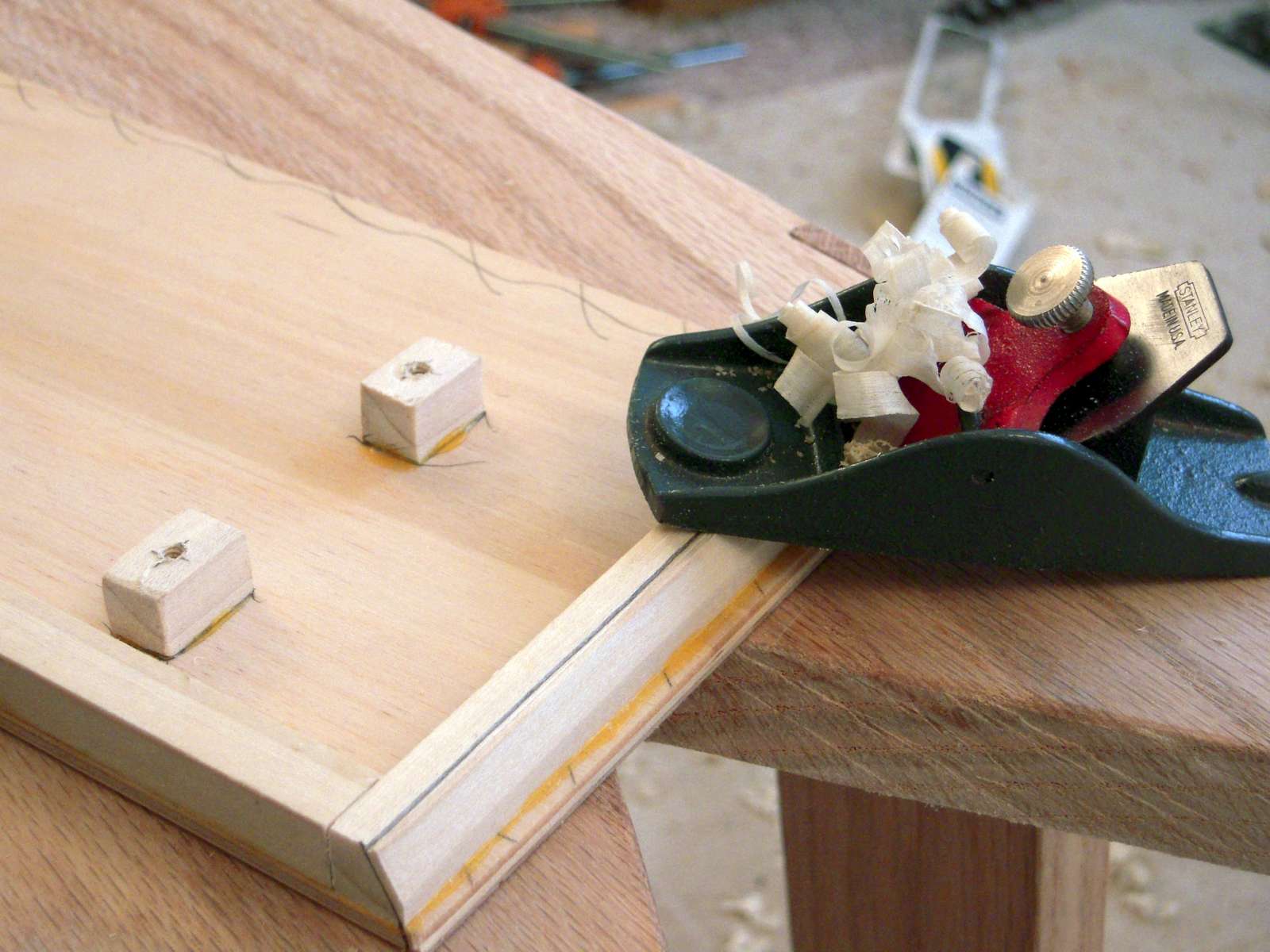

    Used my little Stanley 101 block plane to knock off the corner. It's such a fun little plane, I love using it. It came from my grandfather, and I just cleaned it and sharpened it up a bit.

    [​IMG]

    [​IMG]

    [​IMG]



    That's all I've got to share for now. Thanks for checking it out :dremel:

    Last edited: 5 Apr 2013
  2. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Update 30, Aug 2012

    A few more pictures of progress.


    [​IMG]

    [​IMG]

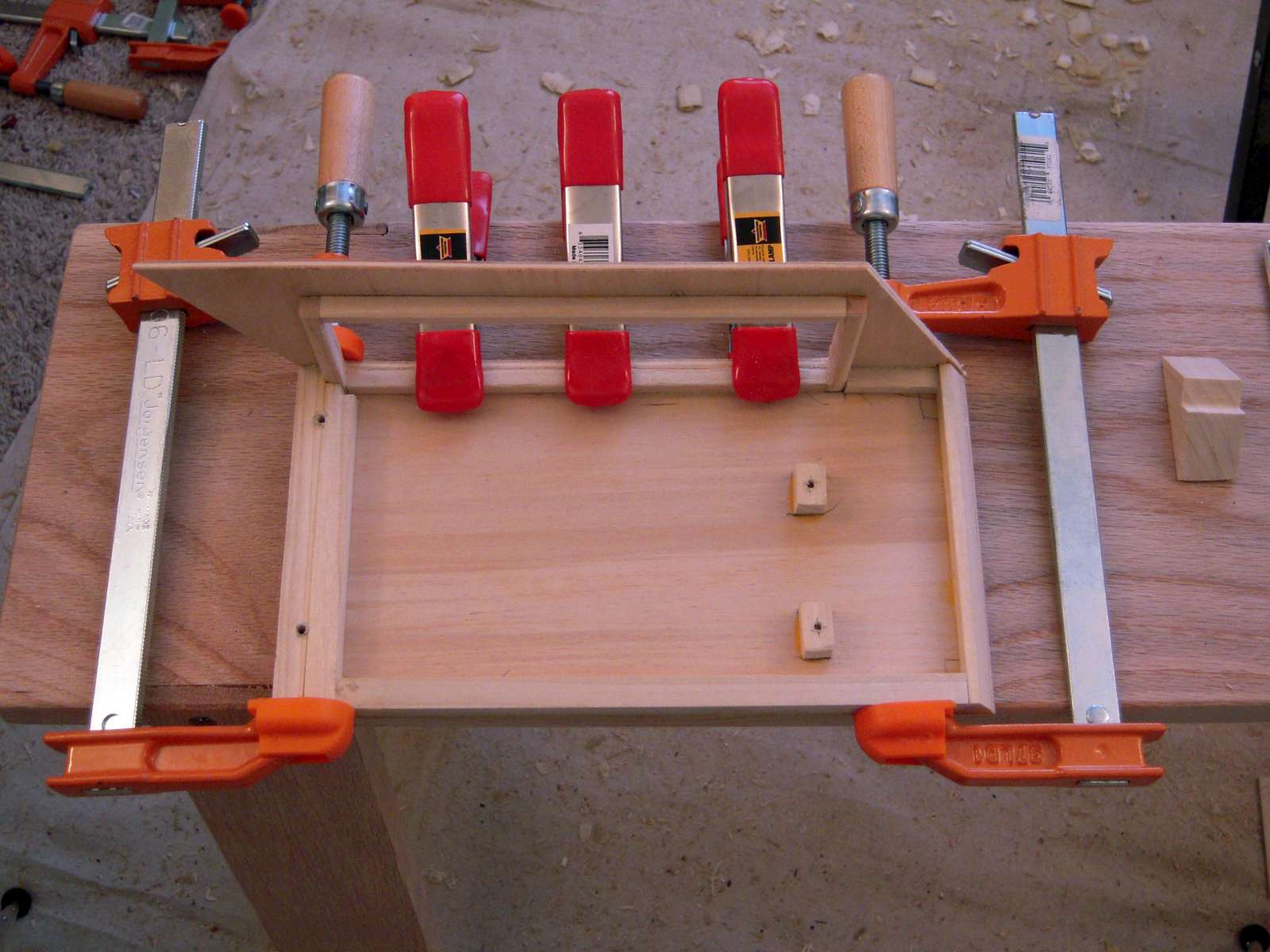

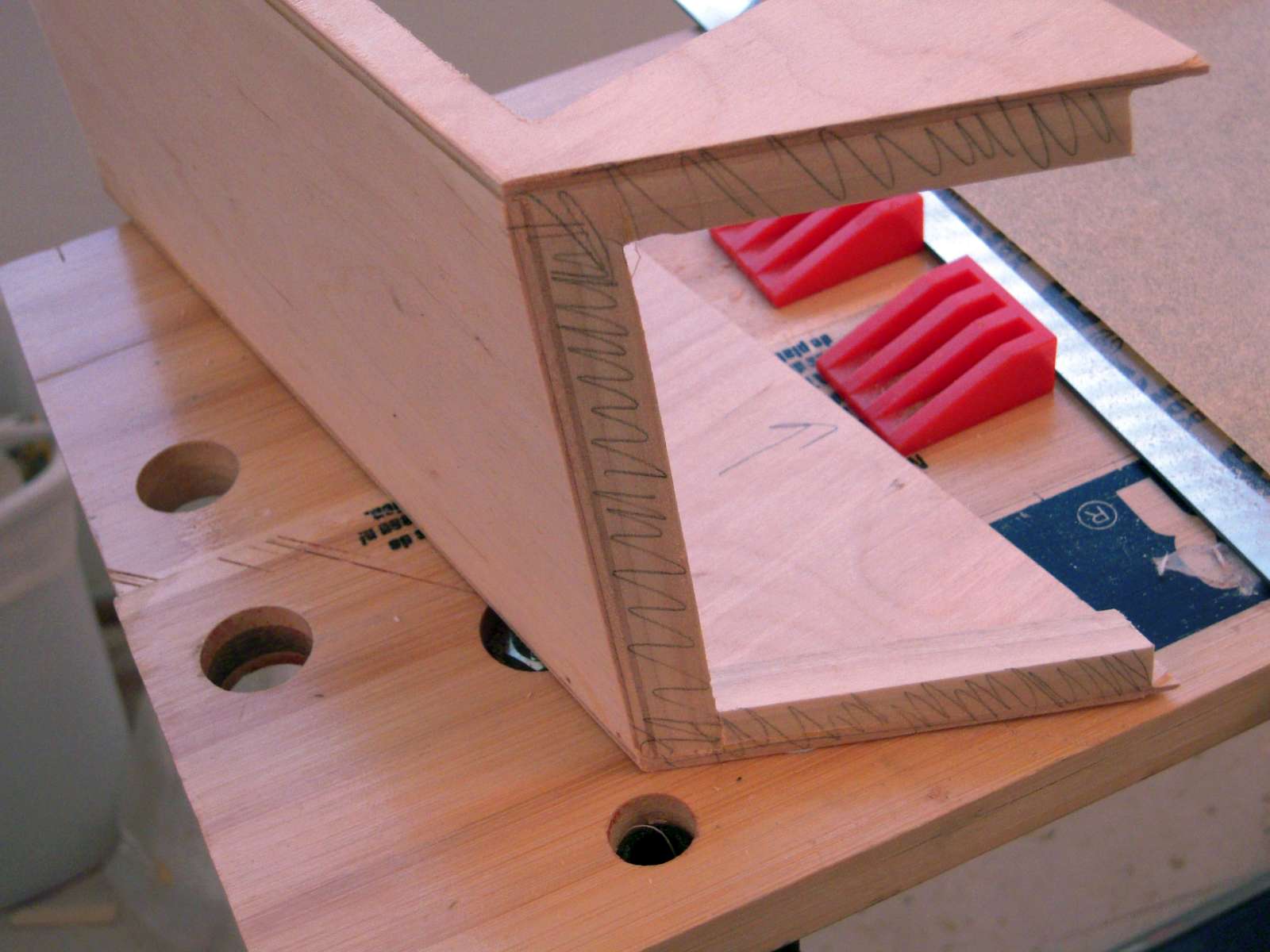

    Here I made some marks on the gluing surfaces so I could make sure I sanded them all even
    [​IMG]

    [​IMG]

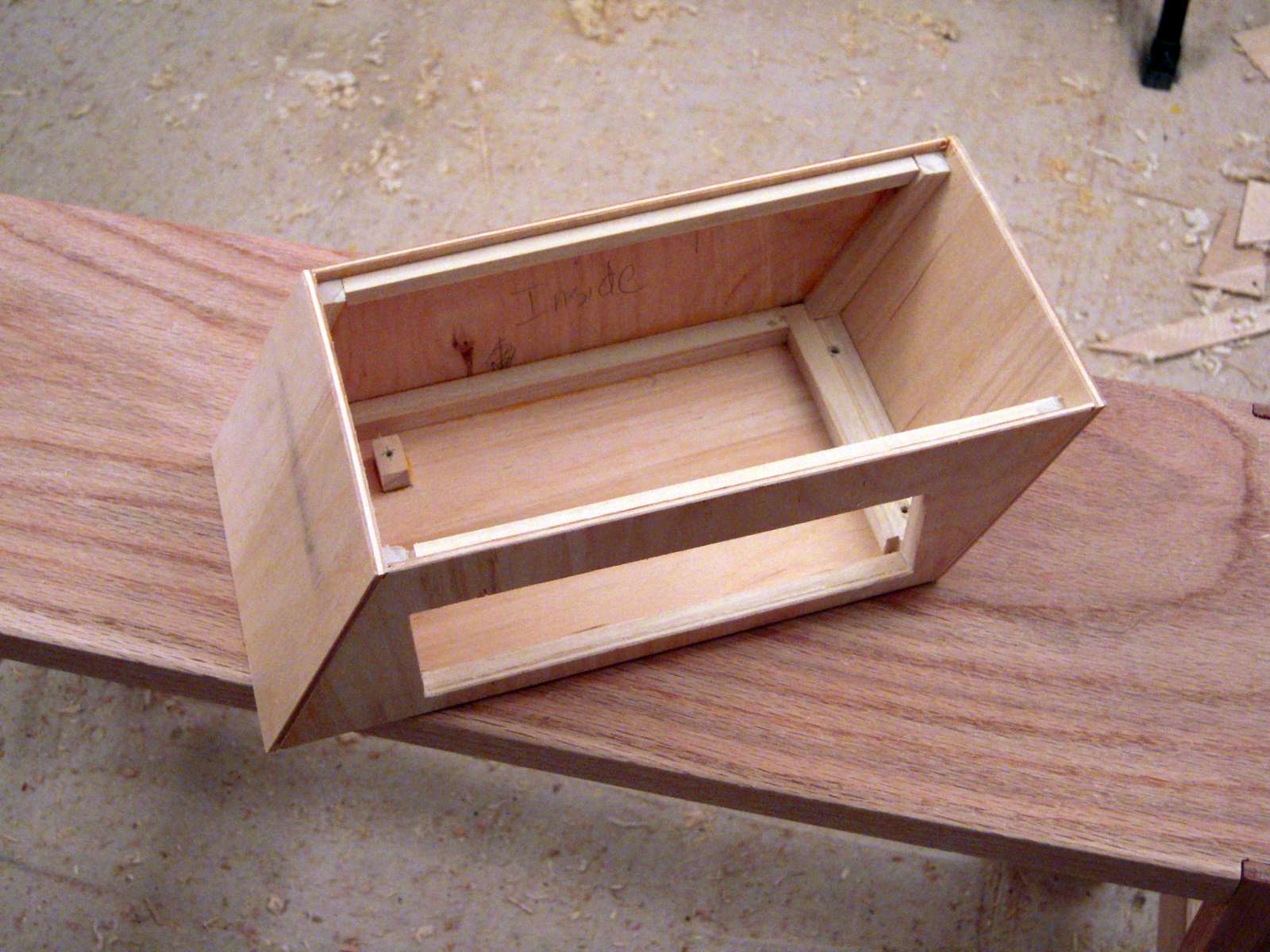

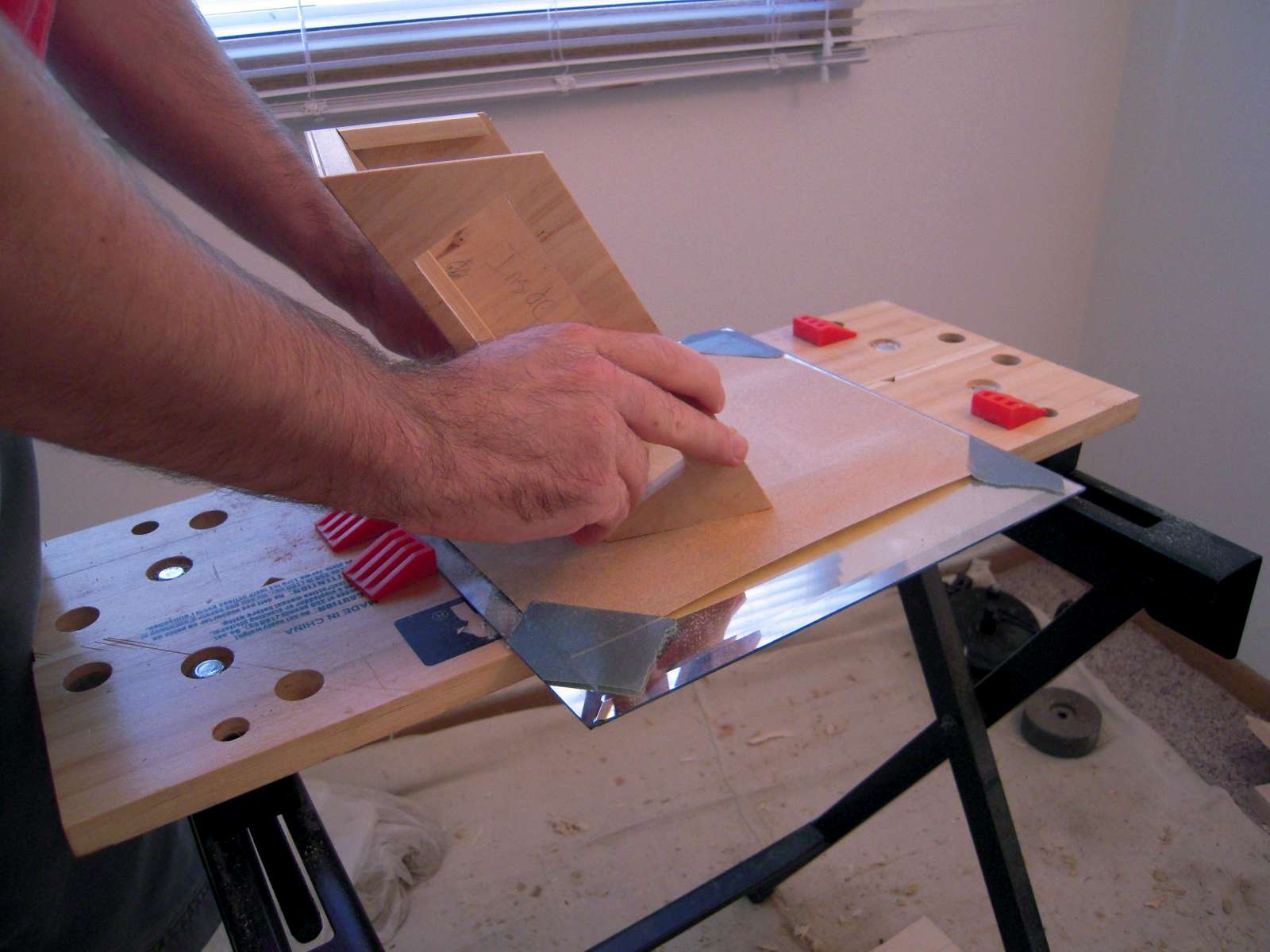

    And this is why I did it. As you can see, it wasn't all flat after gluing (to be expected)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

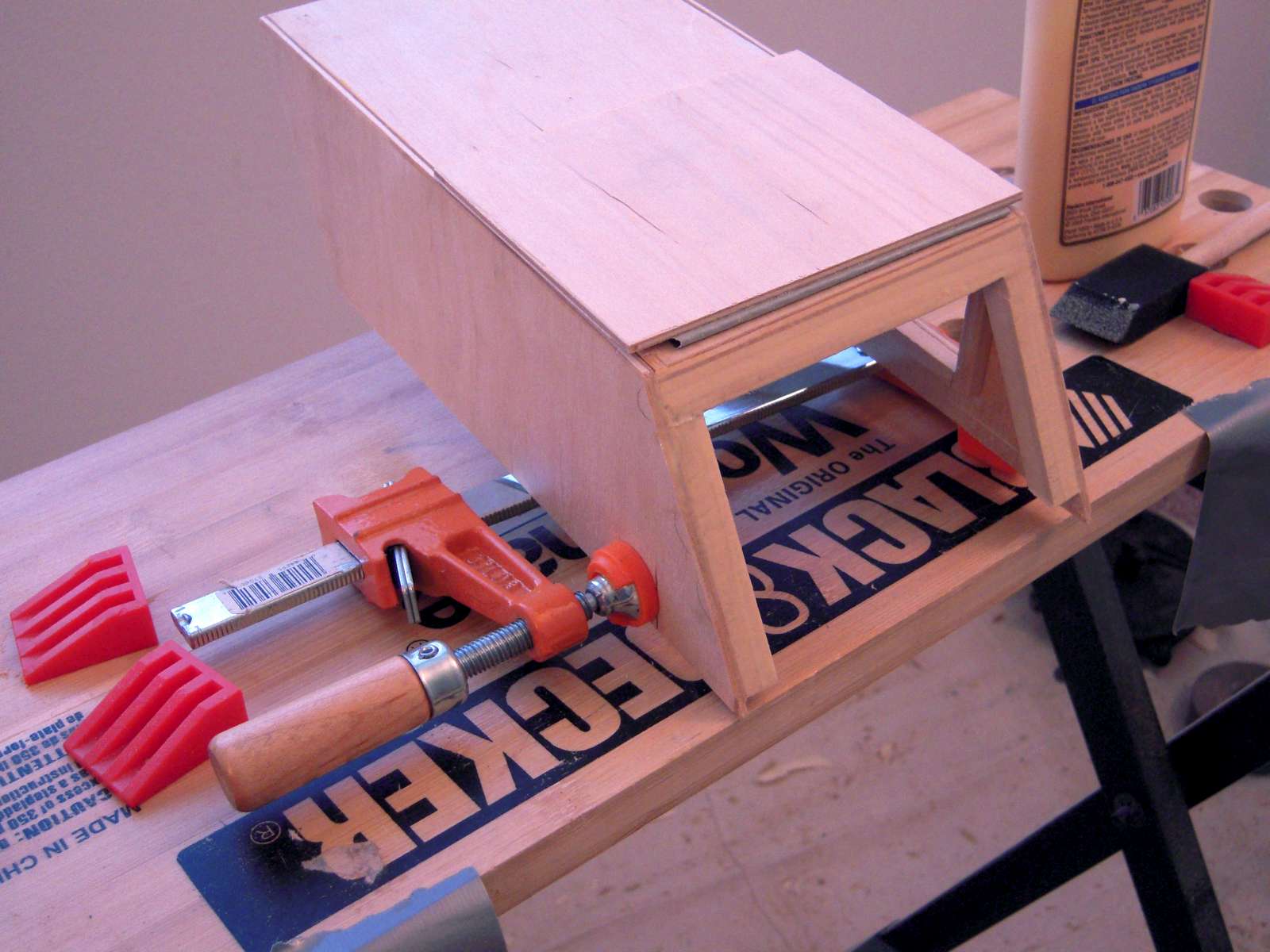

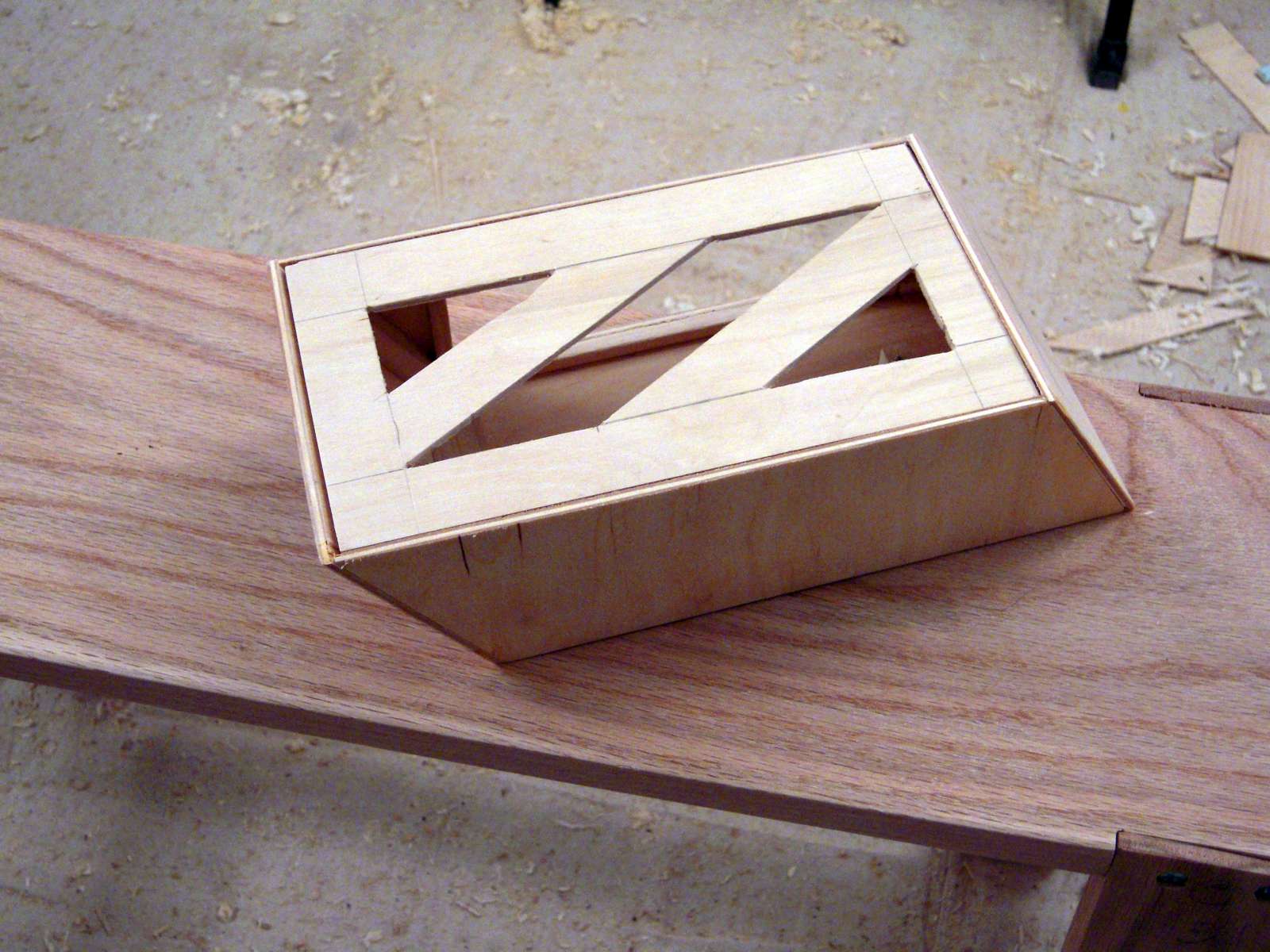

    I also glued in 2 supports for the top piece as well
    [​IMG]

    Waynio likes this.
  3. Karrek

    Karrek Member

    Joined:
    7 Jun 2011
    Posts:
    178
    Likes Received:
    5
    Ha. I like the hand tools! And that you are working in a carpeted room... a true home workshop. :)

  4. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks Karrek. I live in a 2 bedroom apartment by myself. I put a canvas tarp over the carpet in the second bedroom so I can take it outside and shake it out from time to time :) Power tools are at my parents' place, until I have a garage of my own to work in. Even then I think I might stick to hand tools as much as possible... it's more fun and satisfying :)

  5. bluc

    bluc New Member

    Joined:
    4 Apr 2012
    Posts:
    284
    Likes Received:
    3
    Nics start subd:rock:

  6. slipperyskip

    slipperyskip Member

    Joined:
    26 Oct 2003
    Posts:
    1,134
    Likes Received:
    87
  7. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks bluc and SlipperySkip.

    Had a few other little projects crop up (got some fresh 100+ year old tools to clean up and put back to use), so this one was put on the side burner for the past week. I need to come up with a base and a means of keeping the top attached (in the works), then time for the veneer. Busy weekend, so hopefully I'll be able to return to it next week :dremel:

  8. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    New mosquito project :clap: nice start & like the shape. :)

    Awesome blackout modding. :D:clap:

  9. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks Waynio :) I wanted to do something a little different, so I figured instead of 90 degree angles, I'd do 60's and 120's instead

    blackout modding? Not sure what that means :worried:

  10. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    Something I made up a while ago when seeing people do full projects without power tools. :lol:

    :D I want to do one some time as an extra challenging project. :)

  11. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Ok, works for me :D It can make things more interesting, that's for sure...

  12. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Update - 4th, Sept 2012

    I found a little bit of time this weekend, so I decided to get a little work done on the case.

    I spent a little time with the little block plane again to chamfer the edges on some cherry to make the base.

    [​IMG]

    [​IMG]

    [​IMG]

    I then cut a piece off a large oak dowel at the same angles as the sides. I cut it by hand, so I was quite surprised with the results on my first try.

    [​IMG]

    [​IMG]
    About as close a match as I'd probably ever get by hand, with out a miter saw.

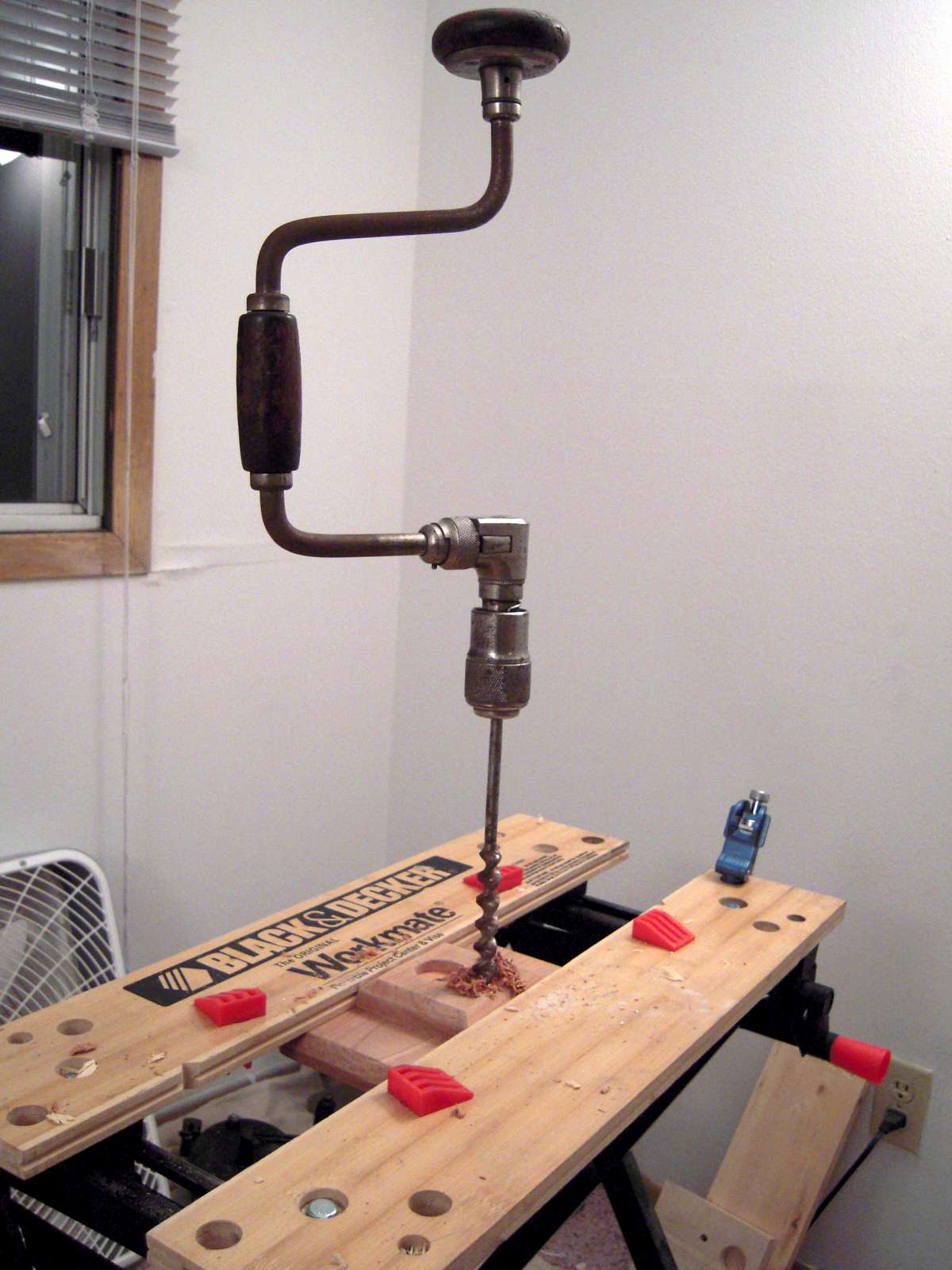

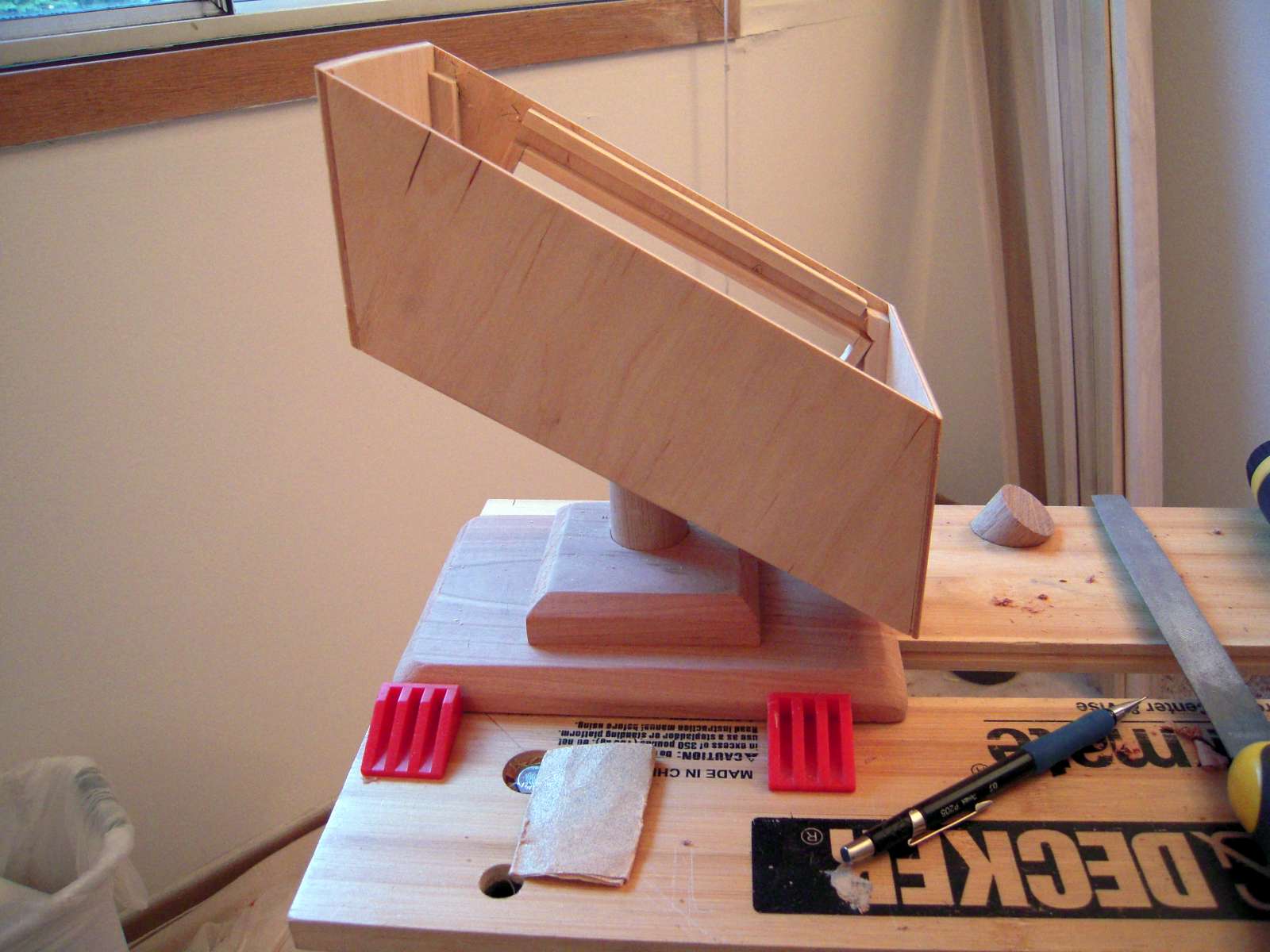

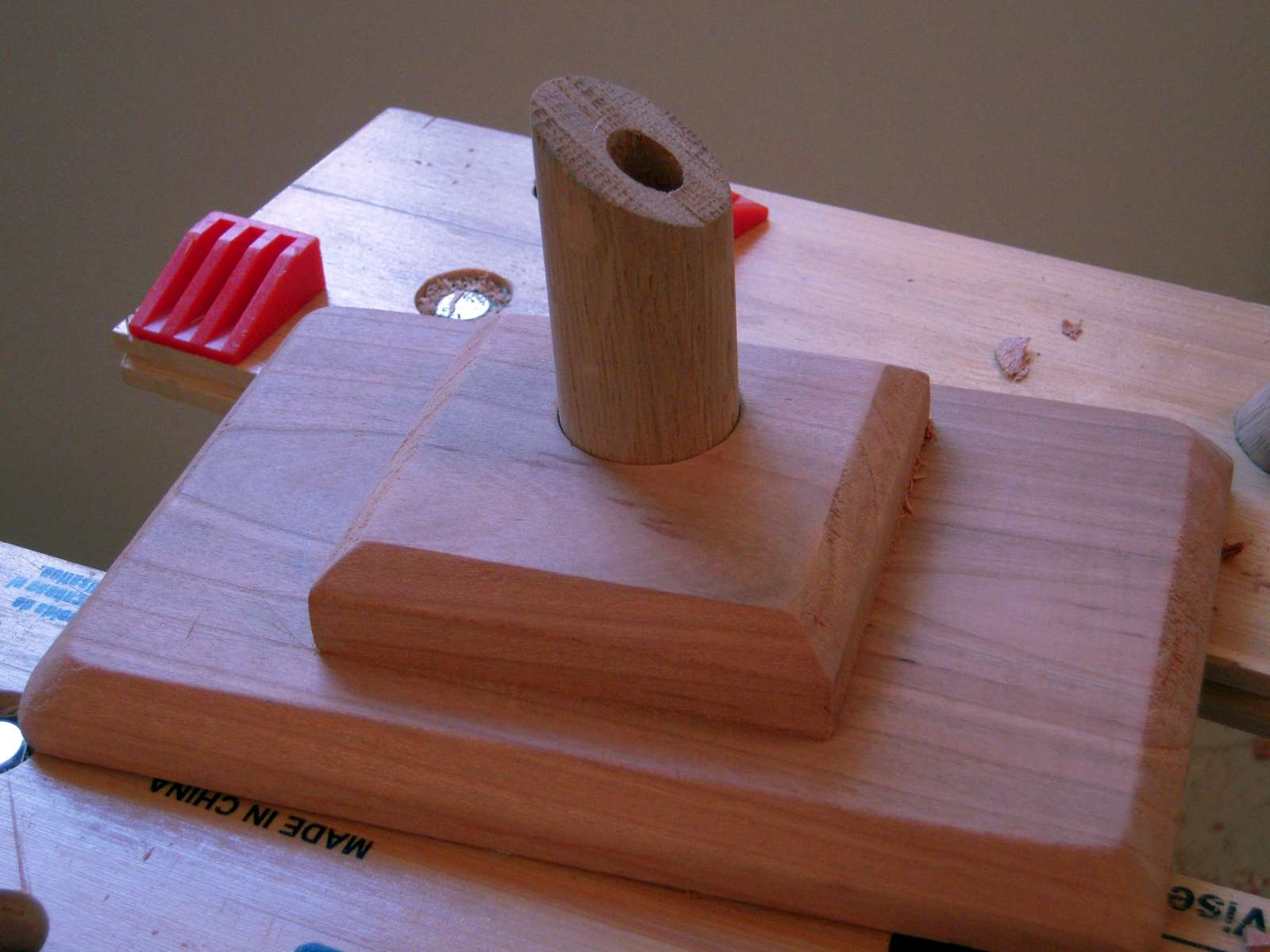

    And finally, I drilled a hole through the oak dowel, and made a recess in the cherry for the dowel to fit. I used my bit and brace for this, so as to keep with the lack of power tools. First time I used my adjustable width bit in my brace... Not sure I'll do that again, I think next time I'd just go with the forstner bit in the cordless drill :lol: The 1/2" hole drilled in the oak wasn't so bad, but the 1 1/4" recess in the cherry was more on the annoying side...

    [​IMG]

    [​IMG]
    It's taped for now, so I could mark the outline of it for drilling holes later.

    Thanks for checking it out. Hope to have more later this week.

  13. avolla

    avolla Mini Water Modder

    Joined:
    26 May 2010
    Posts:
    120
    Likes Received:
    3
    Looks good so far saxy. Do you know how you're doing the power buttons yet? Using your original idea or something new?

  14. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks Austin, I intend to go with my original plan, but it didn't quite fit as would have been ideal, so I made the 2-tier base. I would have already done it, but the bit for my brace in the correct size was not sharp at all, so I have to sharpen that up before I get to it.

  15. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Update 22, Sept

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  16. bluc

    bluc New Member

    Joined:
    4 Apr 2012
    Posts:
    284
    Likes Received:
    3
    Looks great nice work.

  17. Mechh69

    Mechh69 I think we can make that fit

    Joined:
    16 Sep 2009
    Posts:
    1,298
    Likes Received:
    59
    Nice project so far love the use of old tools. How big /small is that board?

  18. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks Bluc.

    Thanks, I've been getting quite into woodworking, and have been spending the last several months doing primarily traditional woodworking with hand tools. It's a challenge at times, but so much more rewarding, at least to me.

    The board is half the size of an ITX board. 6.69" x 3.35" according to their specs. I always struggle with the size comparison pictures... I don't drink anything that comes in a can :lol:

  19. Mechh69

    Mechh69 I think we can make that fit

    Joined:
    16 Sep 2009
    Posts:
    1,298
    Likes Received:
    59
    Lol what about a standard coffee cup the ceramic kind that may do well for comparison. But I applaud you for doing it the old fashioned way with 100+ year old tech. Your skills are a lot better than mine and im sure since working with this project they have gotten better. Are you going to use chisels to carve something in the side or top? Are you going to paint the case or stain it? It would be ashme to paint such pretty wood maybe a wax or stain.

  20. Mosquito

    Mosquito Active Member

    Joined:
    24 Mar 2011
    Posts:
    933
    Likes Received:
    30
    Thanks Mech, I like to think I get better with each project I do, whether or not that's true, I guess I don't know :p

    As for the front, I wasn't planning on doing anything. I can't really carve anything in it, since it's birch plywood with mahogany veneer over it. I haven't really done much carving... I'm not any good at it.

    I was thinking about using cabernet stain on the mahogany, like I did for my other mini HTPC (same veneer, with cabernet stain) and then just an oil based top coat. I might also just leave the mahogany and only use top coat too. I have yet to use mahogany and leave it unstained. I'll have to do some testing on some scrap, to see how the three woods look together (Oak, Mahogany, and Cherry).

    On the "100+ year old tools" I know this is a little off topic, and not really related, but this plane was given to me by my Grandfather, and we believe it came from my mothers-cousins-grandfather, as the wedge had his name on it, and a date. The plane dates back to the late 1800's, and I sharpened it up, and made a few shavings with it. It feels really good, for a reason I can't really describe. Again, sorry of the OT, I just like sharing :)
    [​IMG]
