Cases Looking for as small as possible case for a PFsense build

Discussion in 'Hardware' started by yakyb, 30 Jan 2017.

  1. yakyb

    yakyb i hate the person above me

    Joined:
    10 Oct 2006
    Posts:
    2,064
    Likes Received:
    36
    I'm putting a build together for a pfsense box as per the image below, i'm happy with the hardware,
    however i'm not overly happy in the choice of case.

    [​IMG]


    does anyone have suggestions for smaller cases no requirement for it to be nice at all just something i can fit it all in.

    obviously psu could be an issue and if required could lean towards a pico psu of some description.

  2. faugusztin

    faugusztin I *am* the guy with two left hands

    Joined:
    11 Aug 2008
    Posts:
    6,918
    Likes Received:
    258
    Antec ISK110, if you can get one from somewhere :
    [​IMG]

  3. play_boy_2000

    play_boy_2000 It was funny when I was 12

    Joined:
    25 Mar 2004
    Posts:
    1,455
    Likes Received:
    56
    The more important question is why you're paying for so much horsepower just to run pfsense? Something like the celeron J3455 would be much better suited, although you probably wouldn't find one with dual NICs, so an addon card would be needed.

    Also, please tell me your not planning on running the OS off of a usb flash drive? Pick up a used 32/40/64gb ssd for that.

  4. RedFlames

    RedFlames ...is not a Belgian football team

    Joined:
    23 Apr 2009
    Posts:
    12,557
    Likes Received:
    1,809
    If you're after properly tiny, you're looking at a bit more ££ and a setup like this -

    [​IMG]

    Plus a 2242 or 2260 SSD like this one and a power brick.

    You could possibly save a few quid on the cpu/board/cooler combo and get a thin itx board with a soldered on Celeron, but i couldn't find one that ticked all the right boxes.

    You'll need to break out the dremel though if you want wifi with that case though, the board has an m2 slot for a wifi card but the case has nowhere to mount the antennae.

  5. Kernel

    Kernel Likes cheese

    Joined:
    29 Sep 2003
    Posts:
    1,167
    Likes Received:
    34
    Slightly off thread, I know you said you are happy with the hardware.

    Have you considered using an Ubiquiti Edgerouter instead, smaller, cheaper and well packed with features.

    Nothing wrong with pfSense mind, I have it running my internal network on an old Lenovo desktop I bought for £15 :D

  6. Gareth Halfacree

    Gareth Halfacree WIIGII! Staff Administrator Super Moderator Moderator

    Joined:
    4 Dec 2007
    Posts:
    13,377
    Likes Received:
    2,429
    If you want really small and don't mind paying for it, I can recommend the Compulab Fitlet. Dual Quad core, 64-bit, dual gigabit Ethernet, dual antenna Wi-Fi, and eSATA and USB 3.0 if you wanted to hang storage off it. Look at it! How cute is that?!

    Last edited: 30 Jan 2017
  7. MightyBenihana

    MightyBenihana Do or do not, there is no try

    Joined:
    8 Sep 2011
    Posts:
    1,320
    Likes Received:
    51
    Further derailing the thread, any chance of a review of that?

  8. RedFlames

    RedFlames ...is not a Belgian football team

    Joined:
    23 Apr 2009
    Posts:
    12,557
    Likes Received:
    1,809
    Given it clearly states it was review sample - probably... Just probably not here, but for one of the other sites/magazines Gareth writes for.

  9. Xlog

    Xlog Active Member

    Joined:
    16 Dec 2006
    Posts:
    614
    Likes Received:
    50
    1. Make sure that the Wifi adapter is supported in BSD (it prob. wont be, so don't waste money on one).
    2. Get an SSD, unless you have no desire using clam/snort/ntopng/etc.

    Or alternatively - get whole passive system for 200-300$ from alliexpress.

  10. Gareth Halfacree

    Gareth Halfacree WIIGII! Staff Administrator Super Moderator Moderator

    Joined:
    4 Dec 2007
    Posts:
    13,377
    Likes Received:
    2,429
    Already done: I reviewed it back in Issue 159 of Linux User & Developer and Issue 148 of Custom PC, both back at the tail end of 2015.

    Spoilers: I was pretty impressed. Good performance, booted happily into Linux and supports Windows (but I didn't try that), although coming back to the thread's topic I have to confess I didn't test BSD - but I couldn't see it being a problem, 'cos at its heart it's a bog-standard x86 PC in there.

    Oh, and I misremembered: it's not dual-core but quad-core. It's the A10 Micro-6700T, which was originally made for tablets. Quad-core 1.2GHz boosting to 2.2GHz, 2MB L2 cache, AMD64, hardware virtualisation, and a 500MHz 'Mullins' Radeon R6 GPU - not that the latter matters much for a pfSense box! 4.5W TDP, cooled totally passively - the ridged top of the case acts as a passive heatsink, and you can buy one with bigger fins if you fancy it. You can even overclock the thing from the BIOS, which came as a shock!

    EDIT: Compulab says pfSense works fine on the Fitlet.

    Last edited: 30 Jan 2017
  11. TheStockBroker

    TheStockBroker Well-Known Member

    Joined:
    19 Nov 2009
    Posts:
    1,529
    Likes Received:
    108
    To further dilute the thread, have you considered Sophos UTM over pfsense?

    Equally powerful and far easier to manage IMHO

  12. Byron C

    Byron C Probably isn't Hitler, but definitely a muppet

    Joined:
    12 Apr 2002
    Posts:
    6,124
    Likes Received:
    1,116
    Quite easily :) https://www.scan.co.uk/products/antec-isk-110-vesa-uk-mini-itx-case-with-90w-psu

    I was going to suggest Mini ITX Thin - I've never seen a Mini ITX Thin build in person, but the dimensions are certainly impressive.

    That is cute...

  13. Nexxo

    Nexxo * Prefab Sprout – The King of Rock 'n' Roll

    Joined:
    23 Oct 2001
    Posts:
    34,009
    Likes Received:
    1,545
    [​IMG]

  14. Atomic

    Atomic Gerwaff

    Joined:
    6 May 2002
    Posts:
    9,646
    Likes Received:
    94
  15. Chunkers

    Chunkers Meat Popsicle

    Joined:
    24 Aug 2010
    Posts:
    100
    Likes Received:
    6

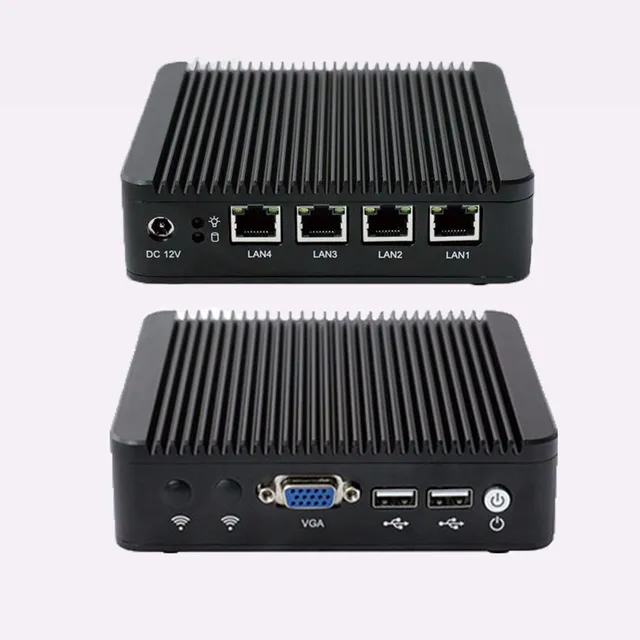

    For pfSense router, in my view, you want low power consumption and Intel NIC's so I would go for either a Qotom (linked in post above) or have you considered a PCEngines APU2C4 based routers, they are tiny and completely silent / passive with plenty of power for home network unless you have Gb internet.

    The PCEngines units are also super easy to assemble and are very power efficient (6W) so will save you money compared to PC hardware based units.

    Chunks

  16. Kernel

    Kernel Likes cheese

    Joined:
    29 Sep 2003
    Posts:
    1,167
    Likes Received:
    34
    Or

    [​IMG]

  17. Chunkers

    Chunkers Meat Popsicle

    Joined:
    24 Aug 2010
    Posts:
    100
    Likes Received:
    6
    Hehe, absolutely, this also works especially if you already have a suitable server and the spare CPU

    With your main router there is something comforting about having a separate box though, with blinky lights and stuff (stupid, I know, but thats how I feel)

    Chunks

  18. Kernel

    Kernel Likes cheese

    Joined:
    29 Sep 2003
    Posts:
    1,167
    Likes Received:
    34
    True, it was just and opportunity to use a great meme. I have ended up virtualising pfSense as the old Lenovo I was using started to make some funny noises. I will eventually have it as a separate box again when I can be bothered to find something, I am liking the fitlet shown above.
