    Hi everyone,

    My name is Rob, I'm new to forum posting in general so i hope i can make a good job of this,
    my first ever build/Log attempt.

    I had some ideas that i put to paper, but most of the ideas were changed over time as i encountered problems,
    I will add some pictures of the design on the forum, Not the best artwork i admit, so i hope they make some sense.

    For most of the build i used my phone to take the pictures for reference,
    as half my project was in the shed and the other half was in the house and as i have a broken leg it was very
    hard to move around with the parts to check they were correct.


    I will add as much info as possible, if i miss anything please just ask and i will do my best to answer asap.


    Reason for build -
    - More desktop space (get shut of the MASSIVE UFO case)
    - Create better airflow
    - Make more space for water cooling parts
    - Have something different & something to do in my spare time :)

    I also want to try make the desk as easy to dismantle as possible, so far i have managed to keep the PC its self contained in a easy to remove 930mm X 560mm box.
    edit - now 940mm x560mm



    My Build Items Are -

    CPU - i5 2500k @4.6
    MB - Gigabyte G1 Sniper 3
    RAM - Avexir Core Extreme Green Series 8GB DDR3 2133MHz
    GPU - Asus Matrix 7970 platinum - Crossfire
    HD's - 2X Seagate Barracuda = 6TB, OCZ Vertex 3 =120gb, OCZ Agility 3 =64gb, WD Green =2TB
    PSU - CoolerMaster v1000
    EK supreme CPU block 1155 Socket
    XSPC 1/2 ID 3/4 OD Tubing UV Green
    Phobya Balancer 450 Reservoir
    NZXT Fan Controller x2
    12x CoolerMaster jet flow Fans
    4x CoolerMaster fans
    Sharkoon Quad Cathode Kit
    LED Strips x Lots
    EK-fc970 Matrix Full Cover water block x2
    EK-CoolStream RAD XTX (360) x2
    EK-D5 Vario X-TOP High-Performance pump

    Thanks for looking,


    [​IMG][​IMG]

    A BIG thank you to EK Water Blocks and Cooler Master/CM-Storm for their support.


    =======================================================================
    UPDATE - 26/04/2014


    facebook link - still needed updating but will be done soon. nice place to just look at the photos.
    https://www.facebook.com/megadeblow

    Im still working in the Vids for my youtube, will upload in the next week hopefully
    https://www.youtube.com/user/MegaDeblow


    FINAL RESULT - YouTube Vid


    Big thank you to everyone, and i hope i get the chance to do something bigger in the future and share it with you all


    Rob (Deblow)

    Last edited: 12 May 2014
  2. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

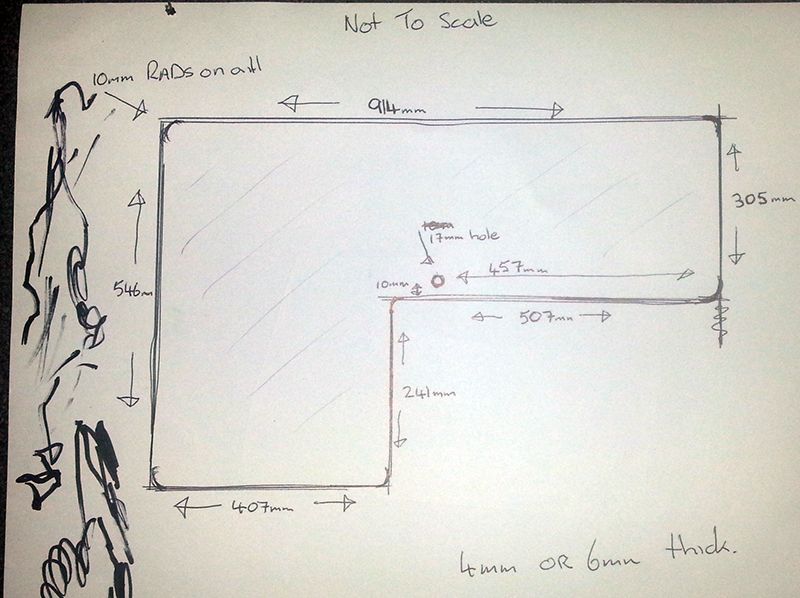

    The reason i went for L shape glass is that i wanted to be able to cover the glass 100% with ease when needed in order to block light and protect.
    [​IMG][/URL][/IMG]
    [​IMG][/URL][/IMG]​
    [​IMG][/URL][/IMG]​
    [​IMG][/URL][/IMG]​

  3. Asouter

    Asouter --------

    Joined:
    18 Jan 2012
    Posts:
    1,031
    Likes Received:
    62
    Nice looking design Rob, You need to post some of the progress too :) I know you have done a fair bit already

  4. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    Thanks Asouter, im working on the build item photos atm,
    also need to redesign parts to accommodate extra triple radiator, more tubing for the GPU's & bigger pulp.

  5. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

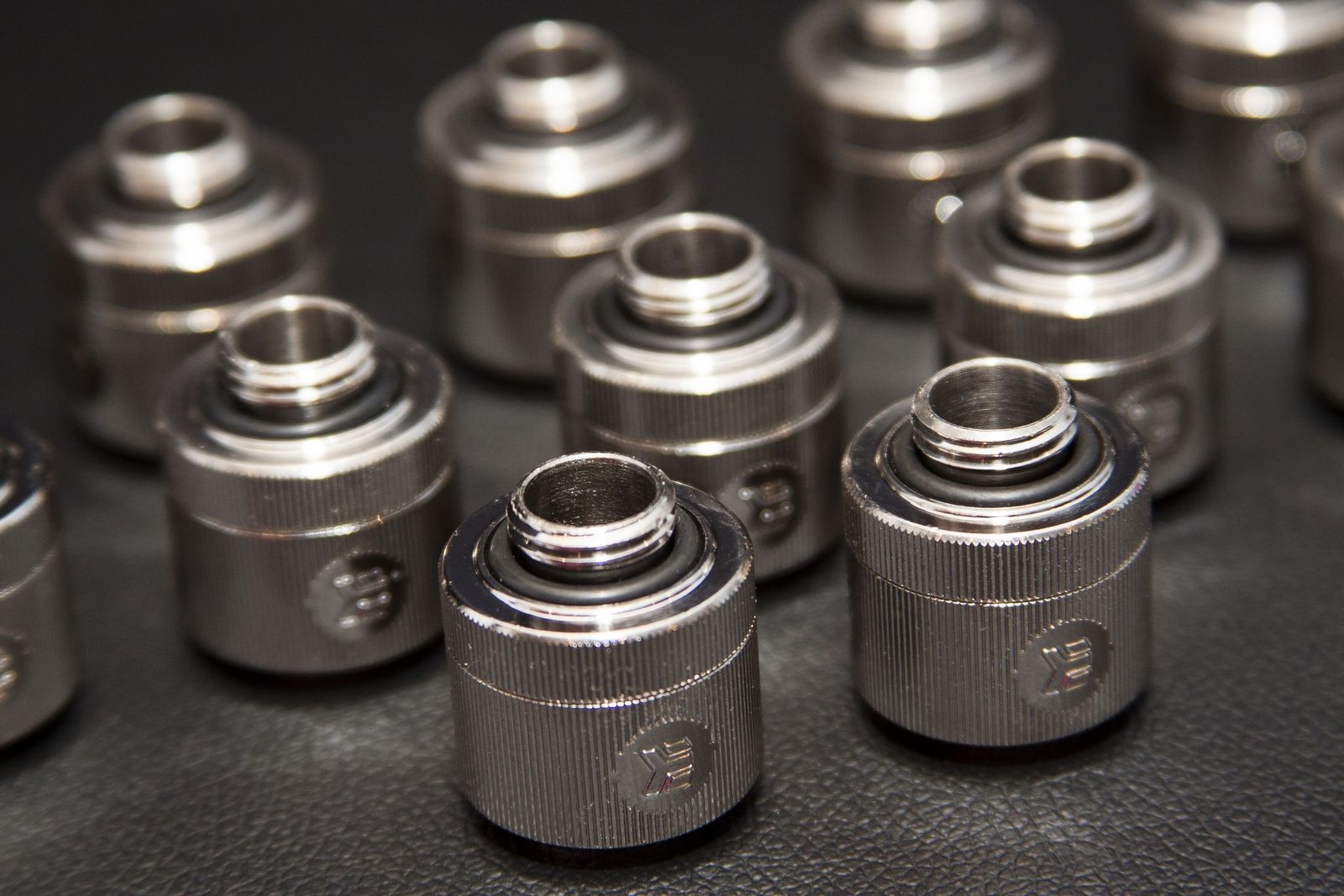

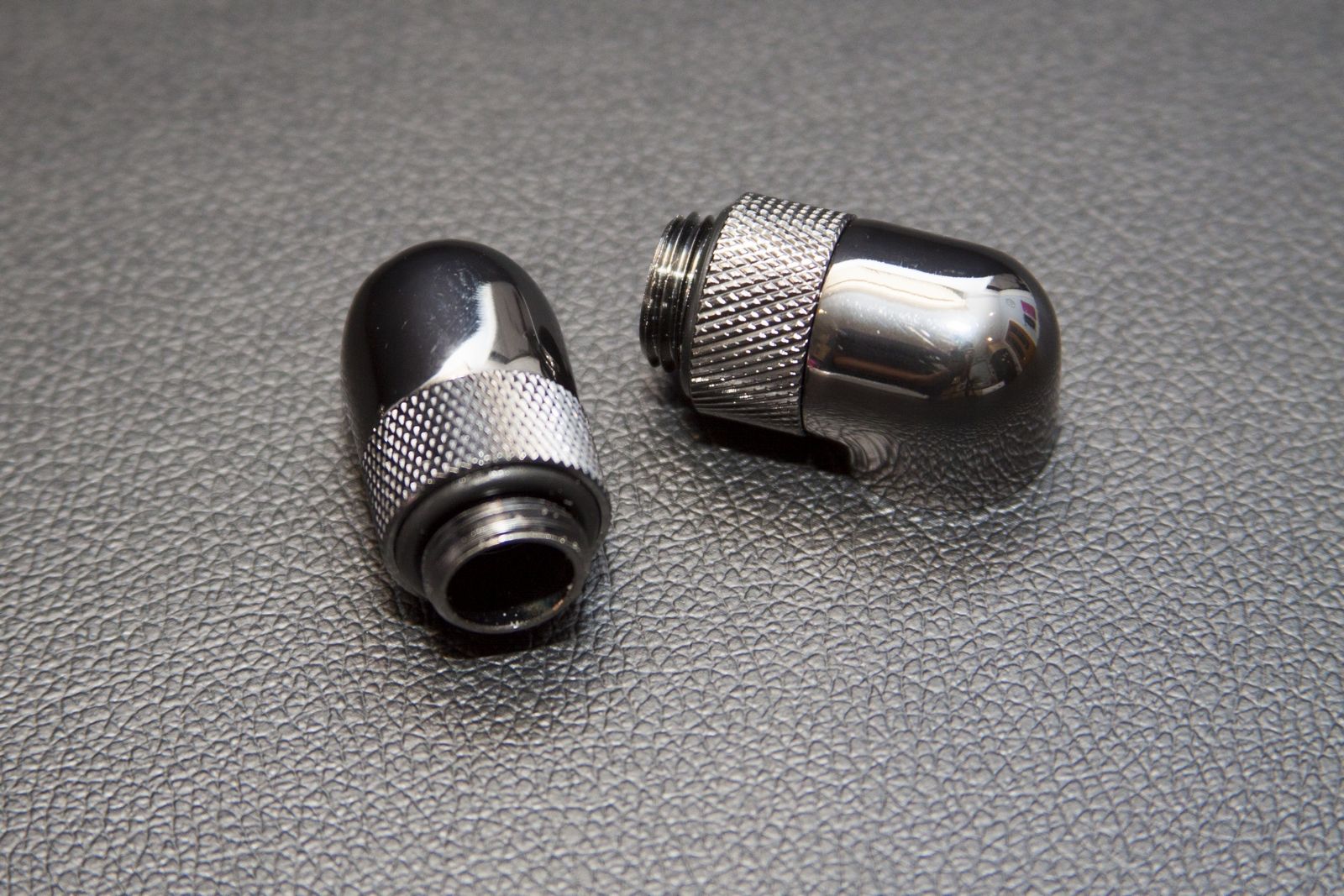

    Pictures of most the watercooling parts used for the build




    [​IMG]


    [​IMG][/CENTER]

    Last edited: 25 Feb 2014
  6. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

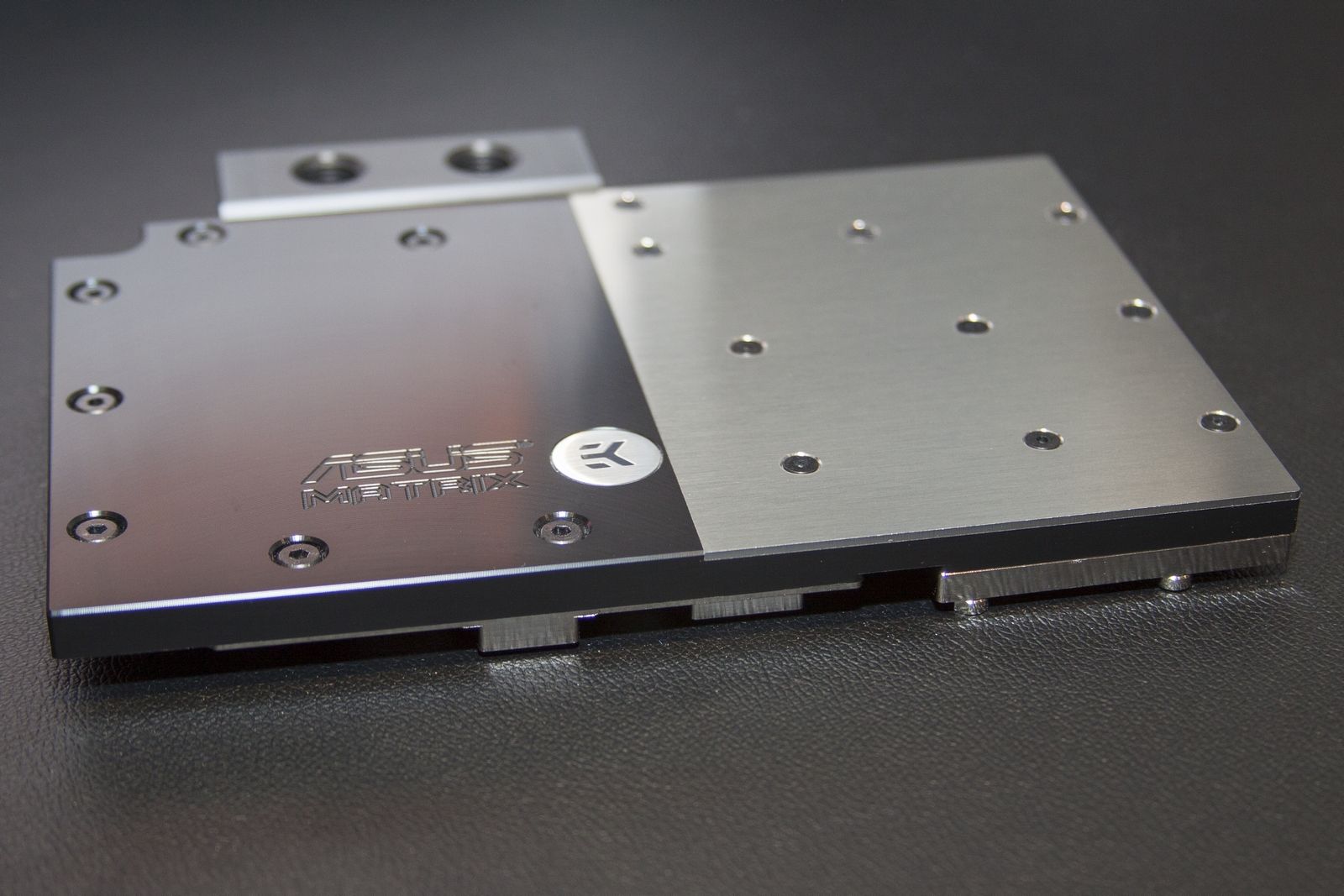

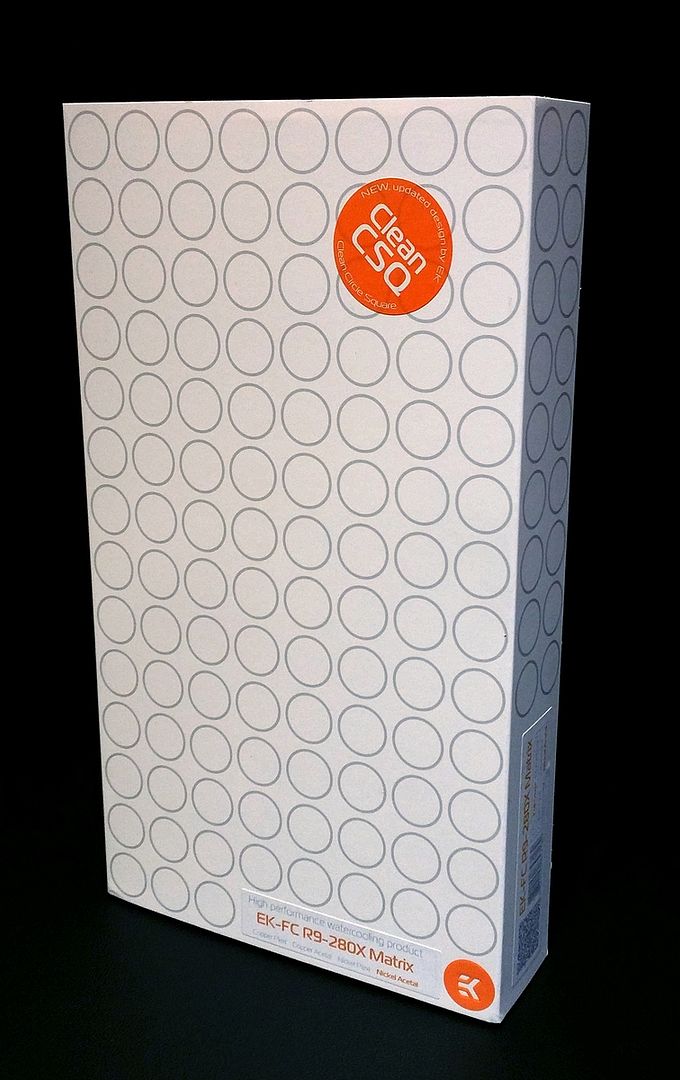

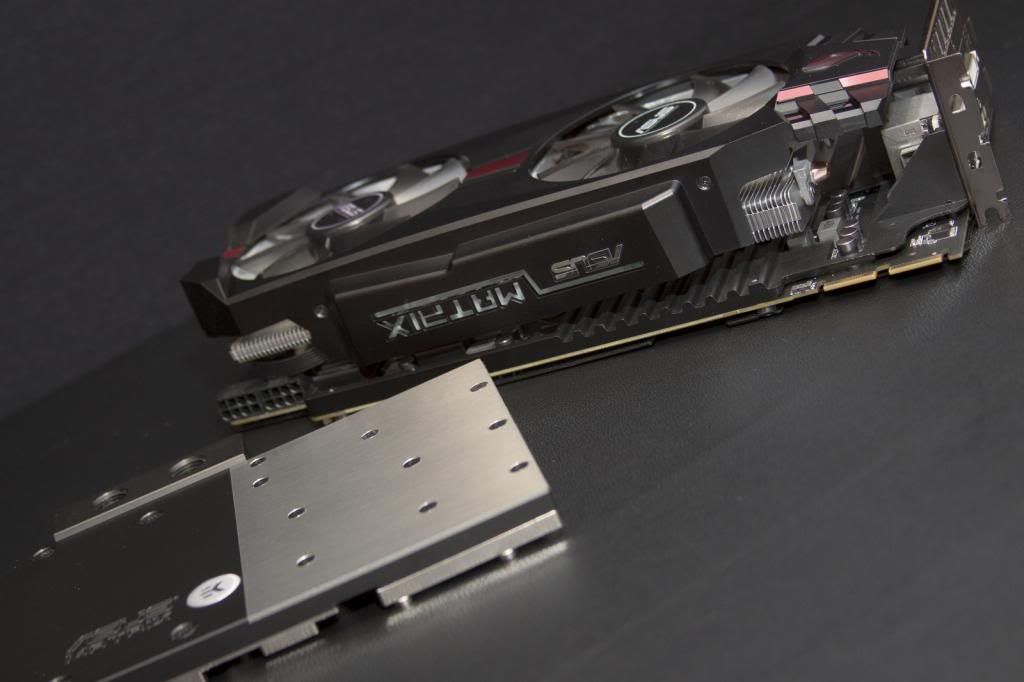

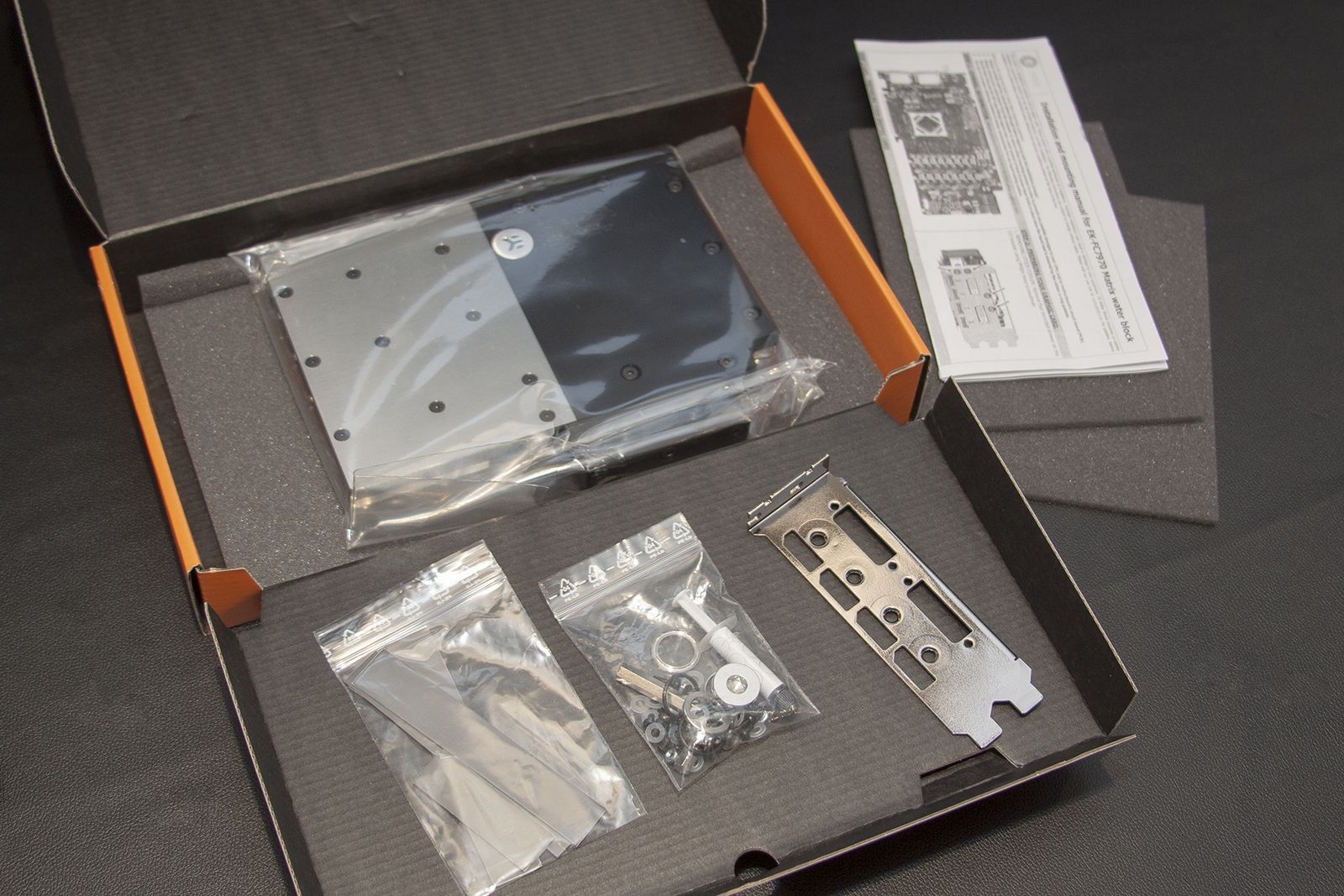

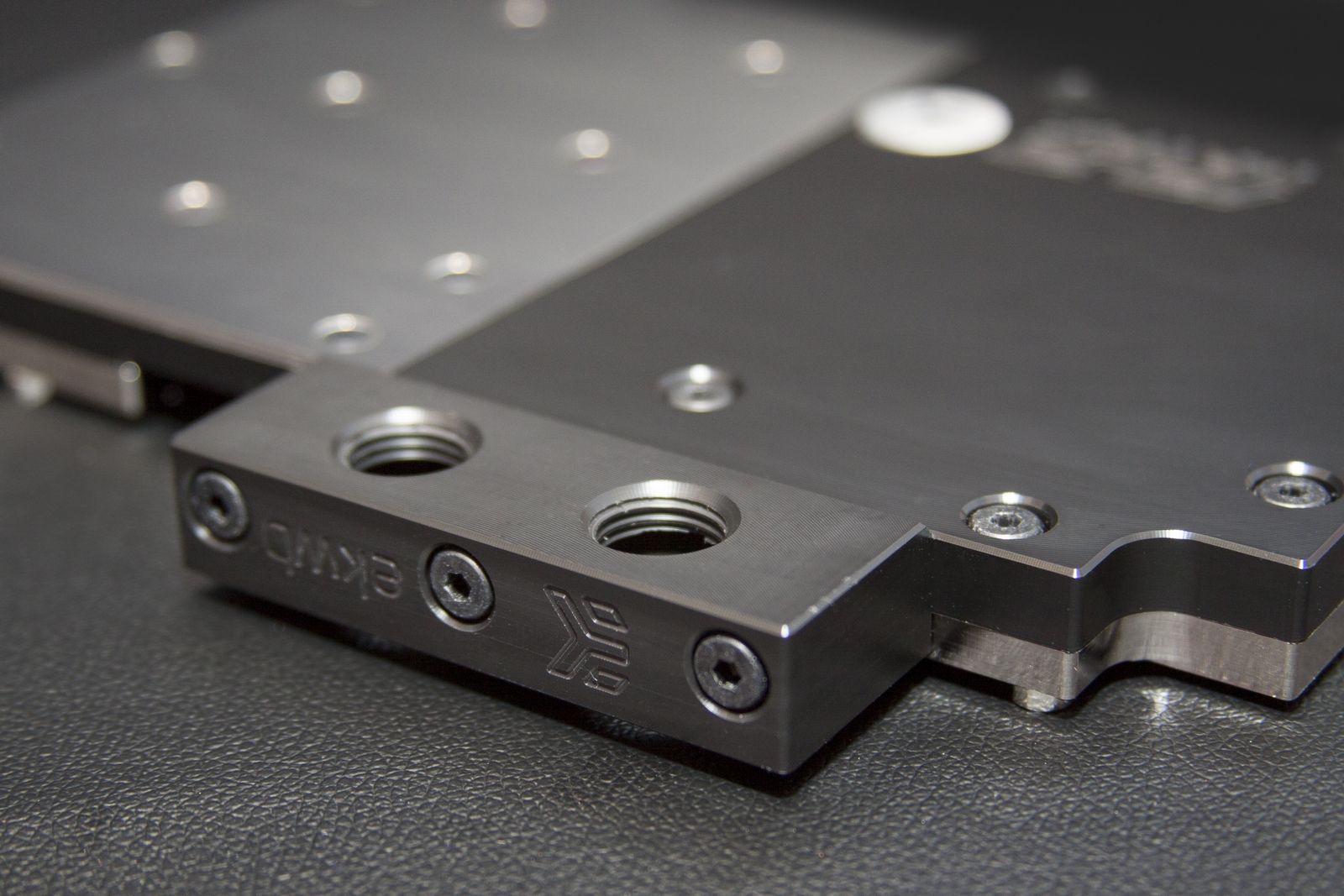

    The EK-FC R9-280X Matrix water blocks, i will be fitting them to 2x Asus Matrix HD7970's

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    Last edited: 2 Feb 2014
  7. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

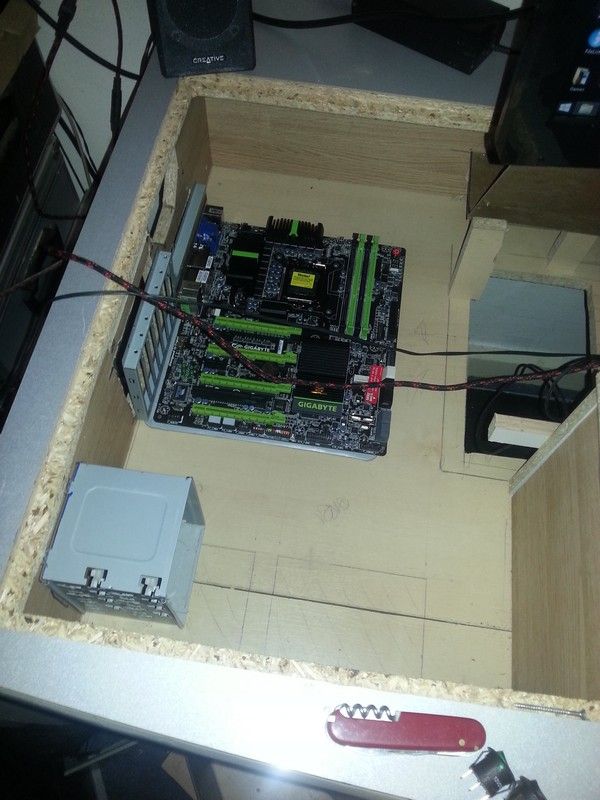

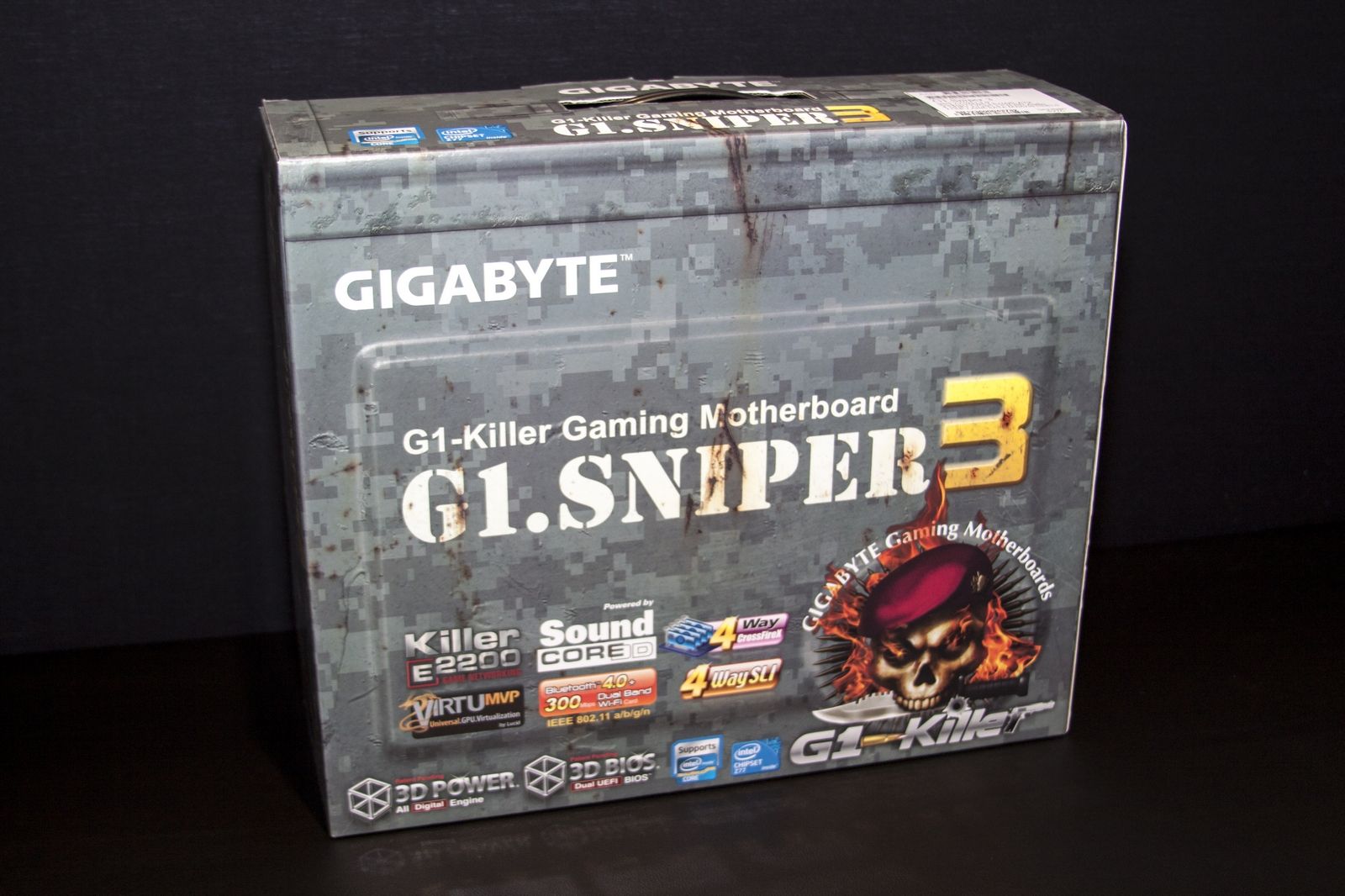

    Gigabyte G1 Sniper 3 Motherboard, i will add more photos to this post later.

    [​IMG]

  8. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

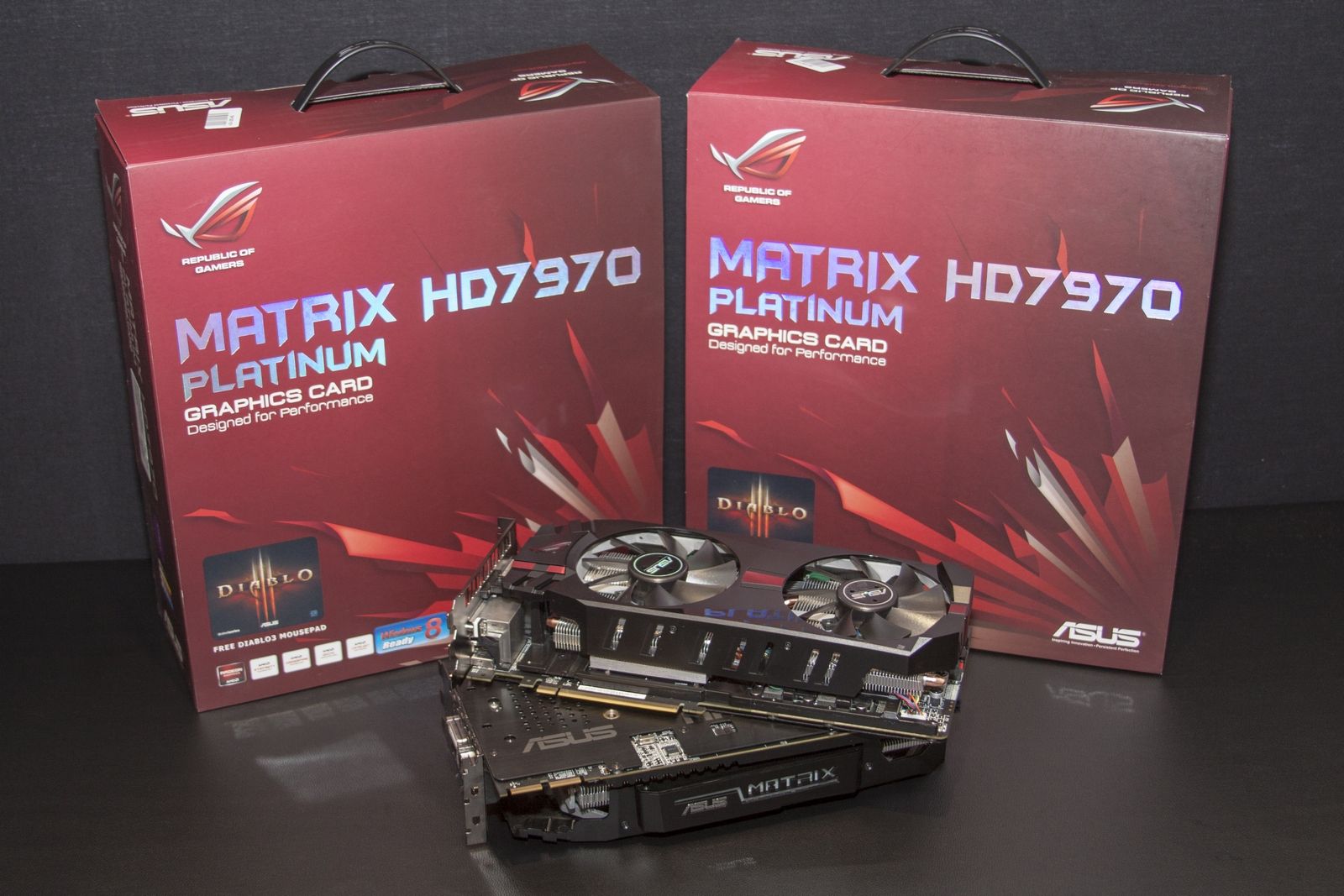

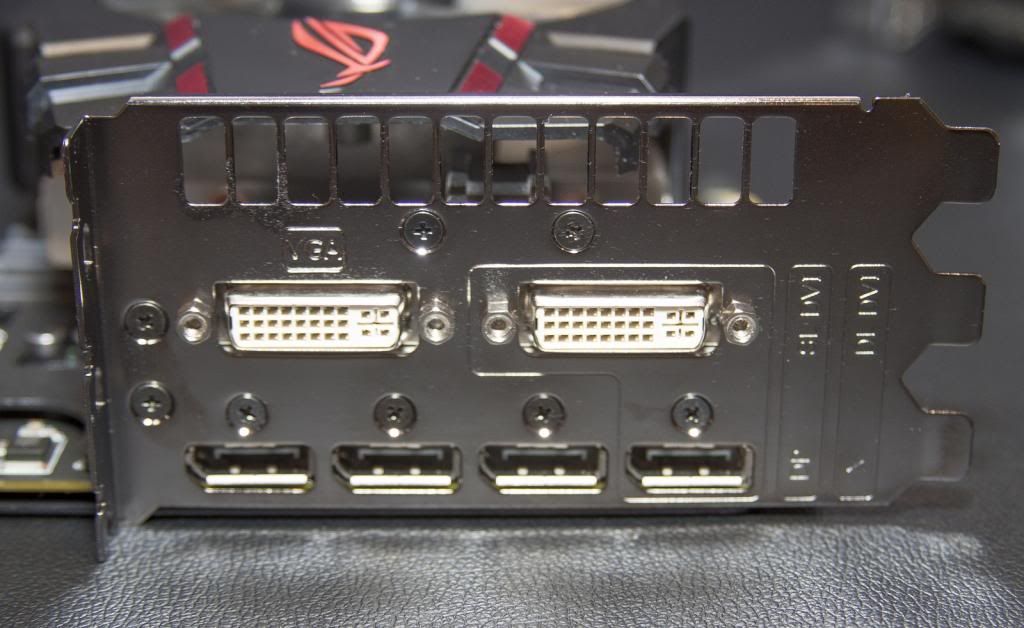

    Asus Matrix HD7970 Graphic cards X2 (crossfire)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 2 Feb 2014
  9. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

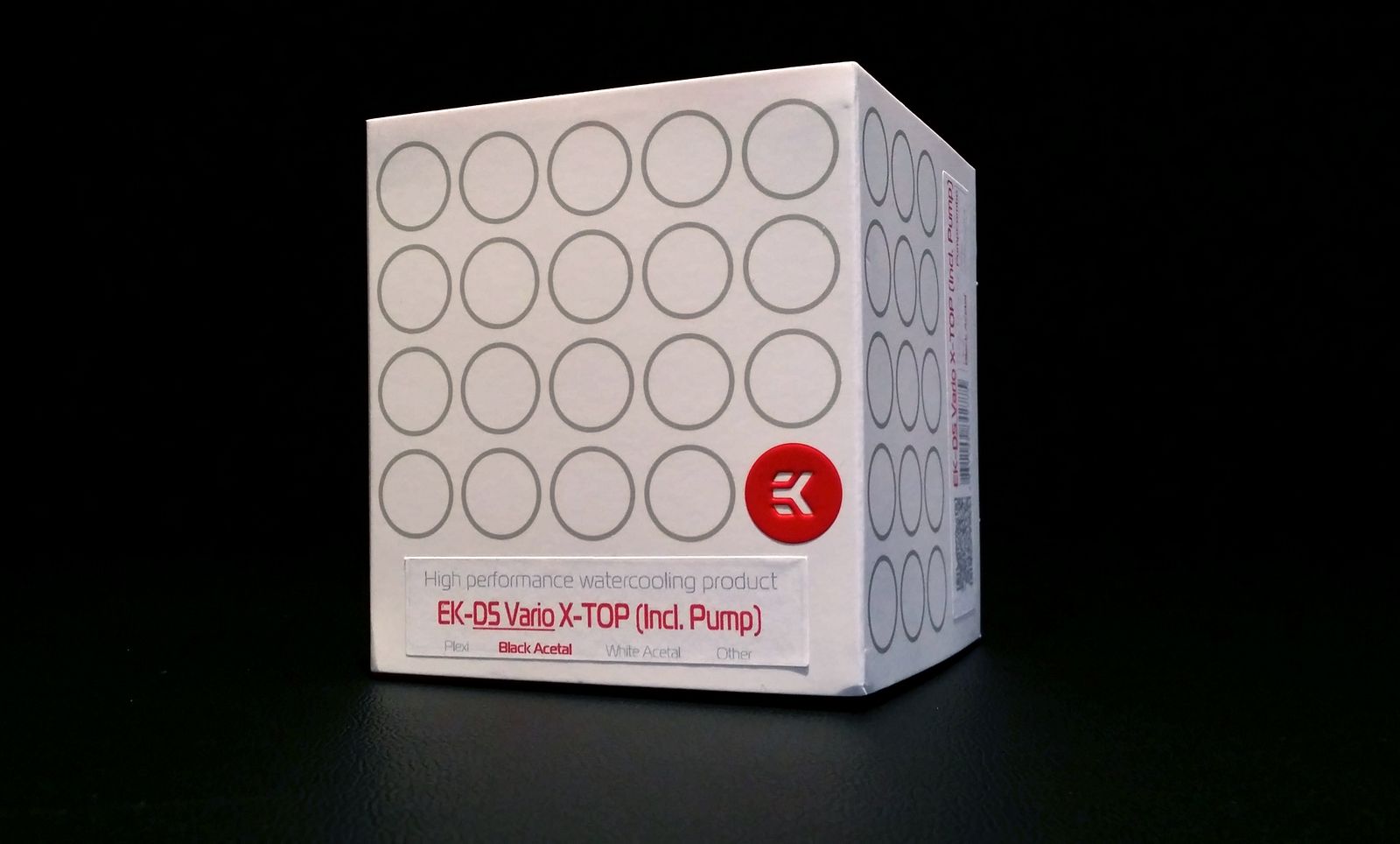

    EK-D5 Vario X-TOP - Acetal (incl. pump)

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 2 Feb 2014
  10. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

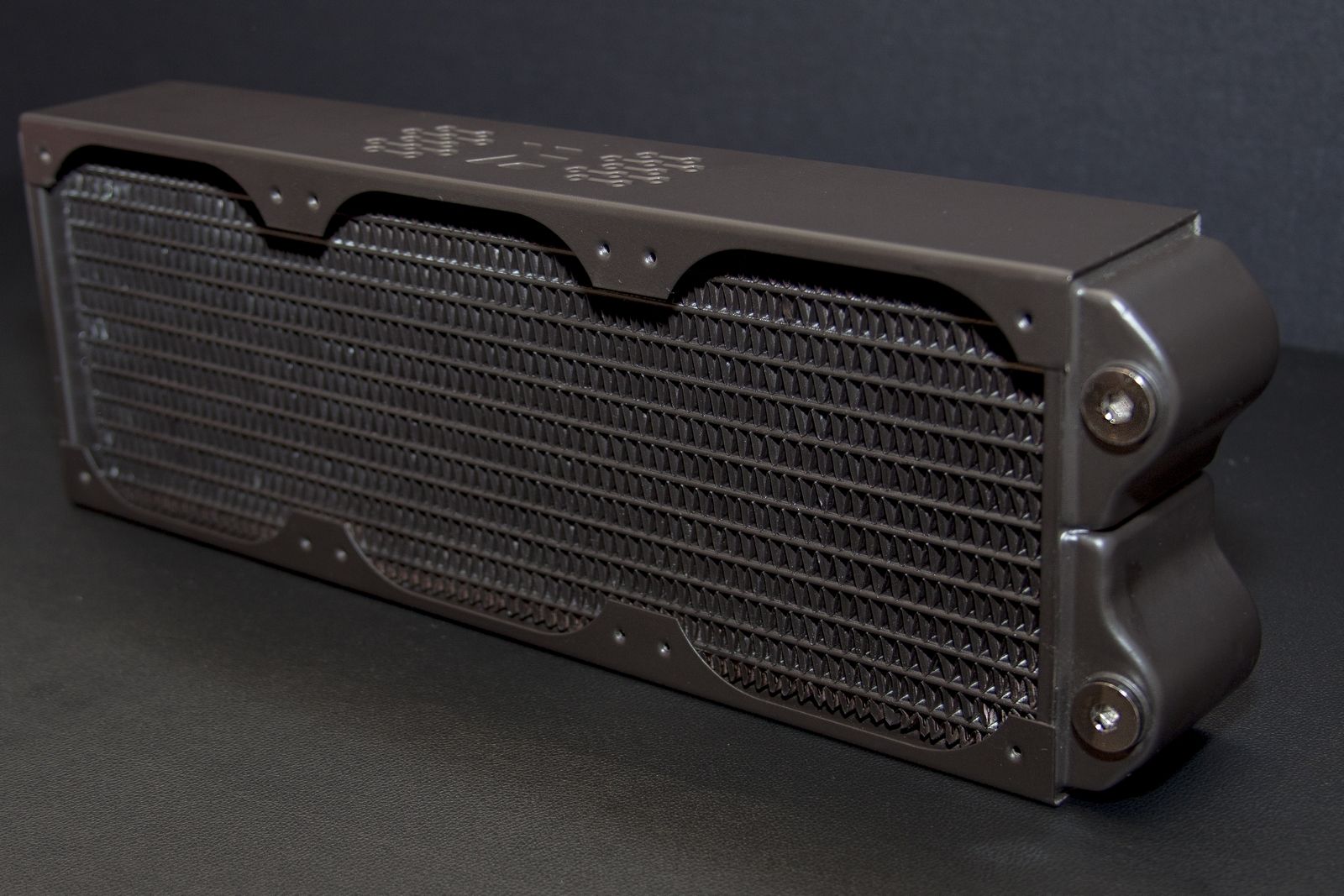

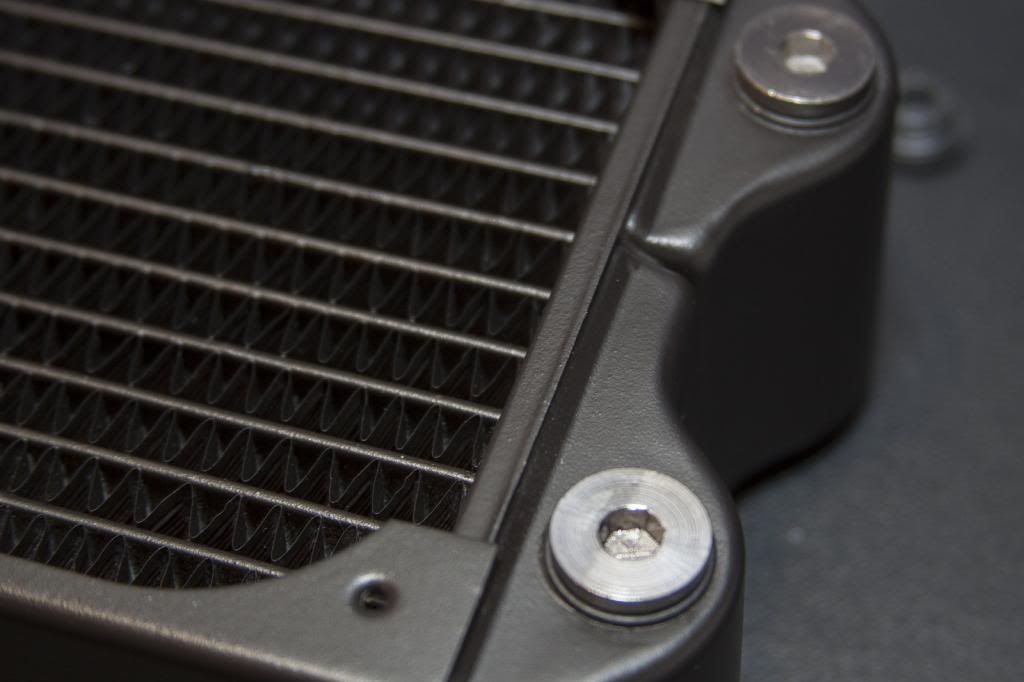

    EK-CoolStream RAD XTX (360) - Triple Radiator

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 2 Feb 2014
  11. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

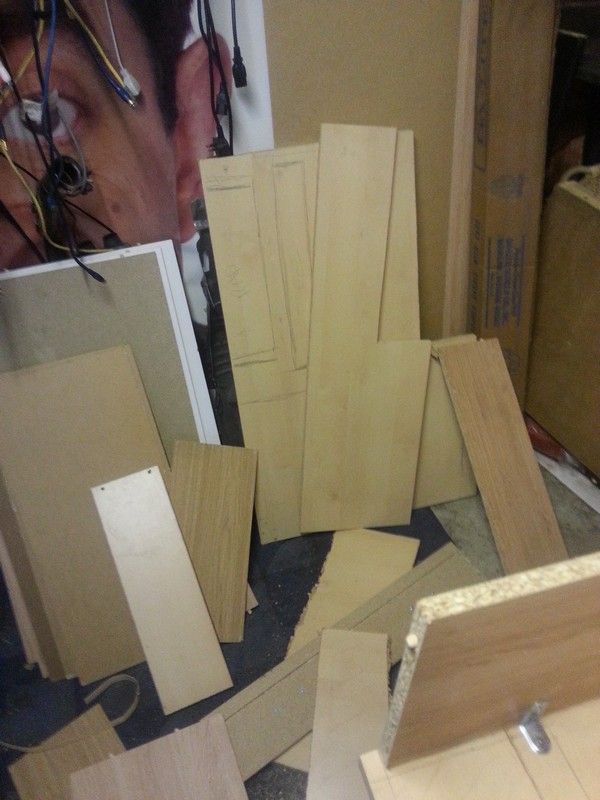

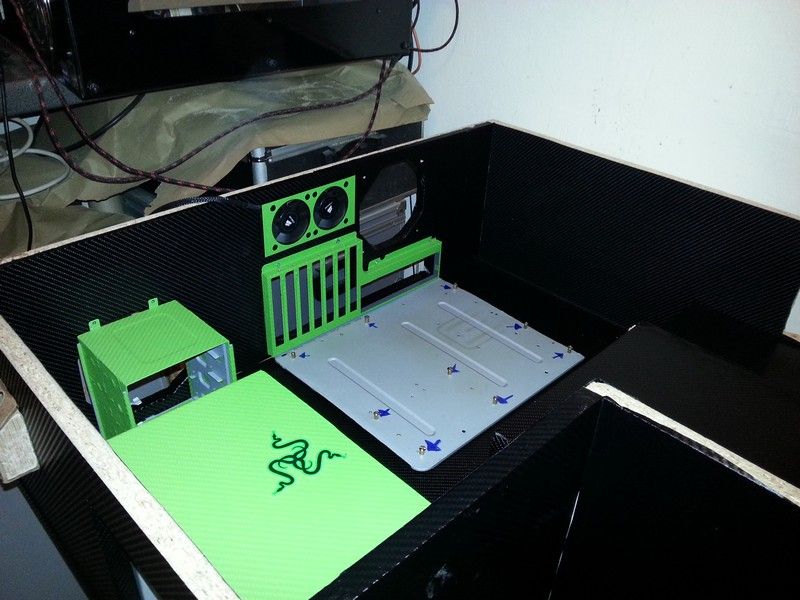

    Location - Shed
    The start of the build, mostly putting ideas in to action to see how things work out
    some photos will be missing, as most the photos i took in the shed was for my own reference and less care was taken :(


    [​IMG]

    [​IMG]

    [​IMG]



    Prototype 1,

    [​IMG]

    Last edited: 2 Mar 2014
  12. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
  13. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

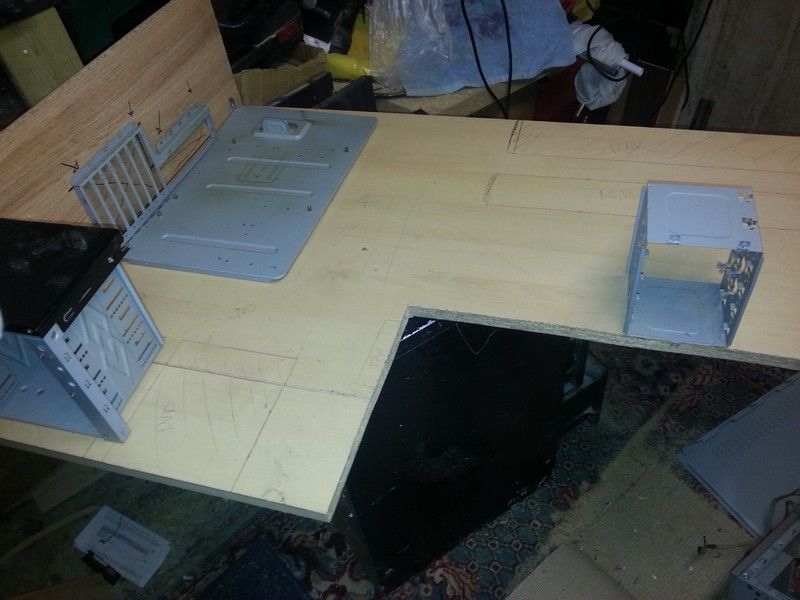

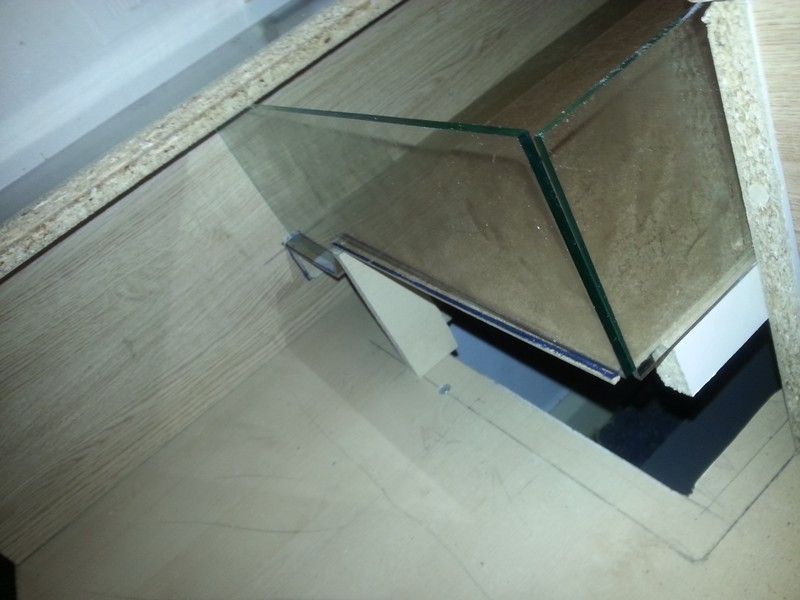

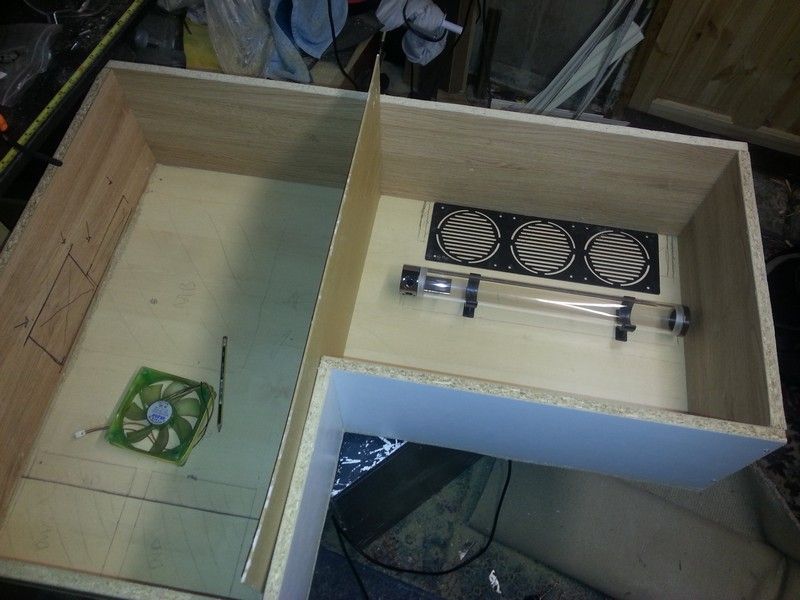

    Hole cut ready for the glass top

    [​IMG]

    [​IMG]

    Last edited: 11 Apr 2014
  14. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    Glass cutting info
    [​IMG]

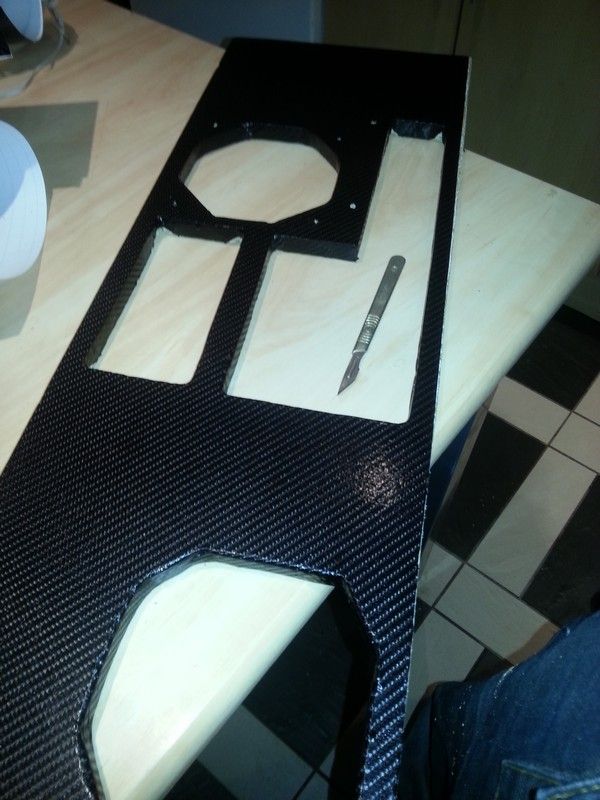

    Started to add most the carbon vinyl, green/black
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 3 Mar 2014
  15. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

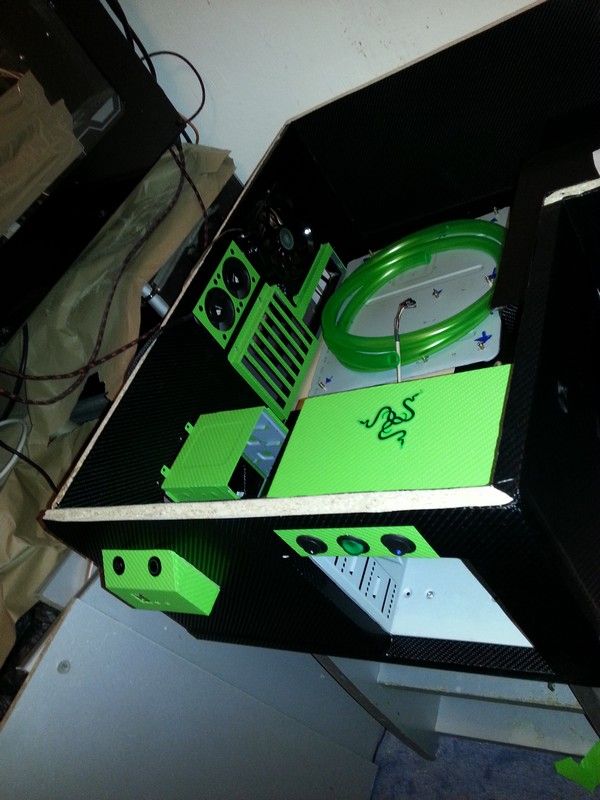

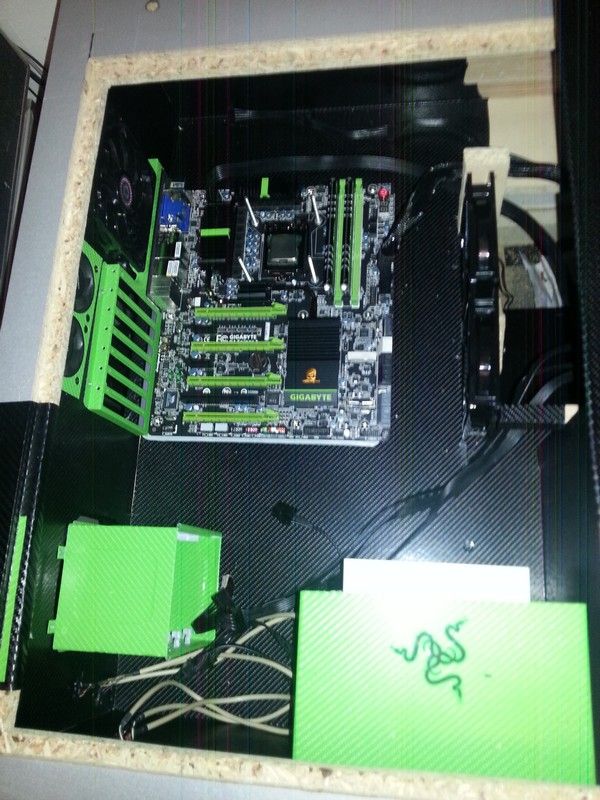

    A test build to check airflow & other things

    [​IMG]

    [​IMG]

    Last edited: 2 Feb 2014
  16. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    Not sure yet if i will have the pump facing up or sideways

    Last edited: 3 Mar 2014
  17. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47

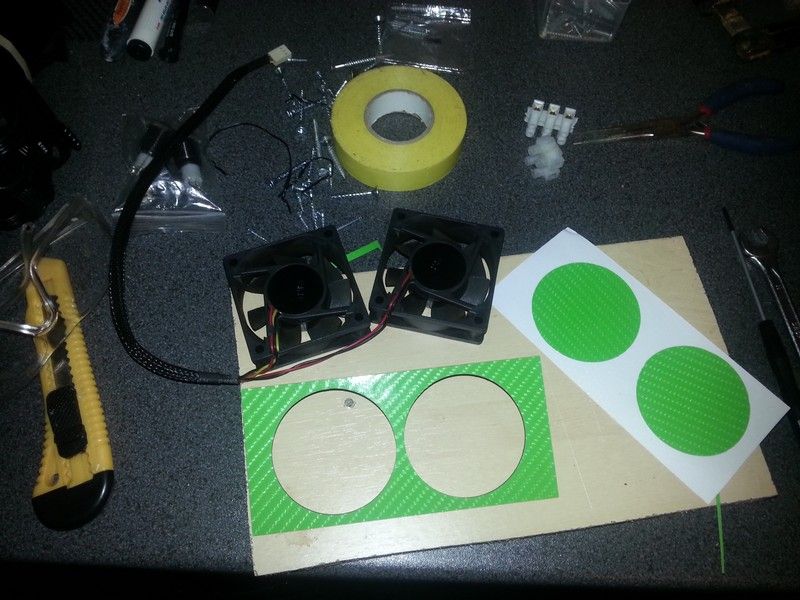

    Had to use a hair dryer on the wrap before fitting as it was creased when i received it :(
    [​IMG]

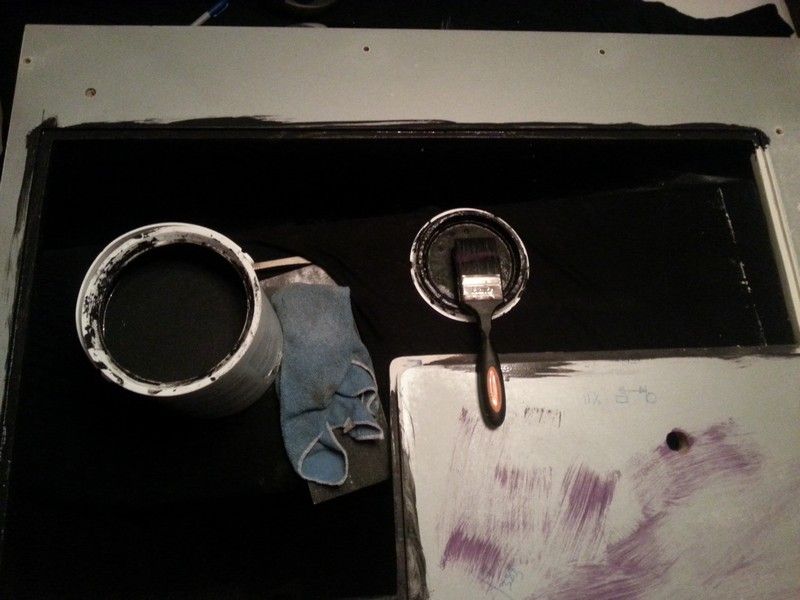

    Black paint for the grooves that will be holding the glass top in place, diceded to paint it just in case it was too hard to wrap when the time came

    [​IMG]

    [​IMG]

    [​IMG]

    LED strips cut ready to fit the the 4 bottom shelf's, using 5050 strip with remote.

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 11 Apr 2014
  18. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    [​IMG]

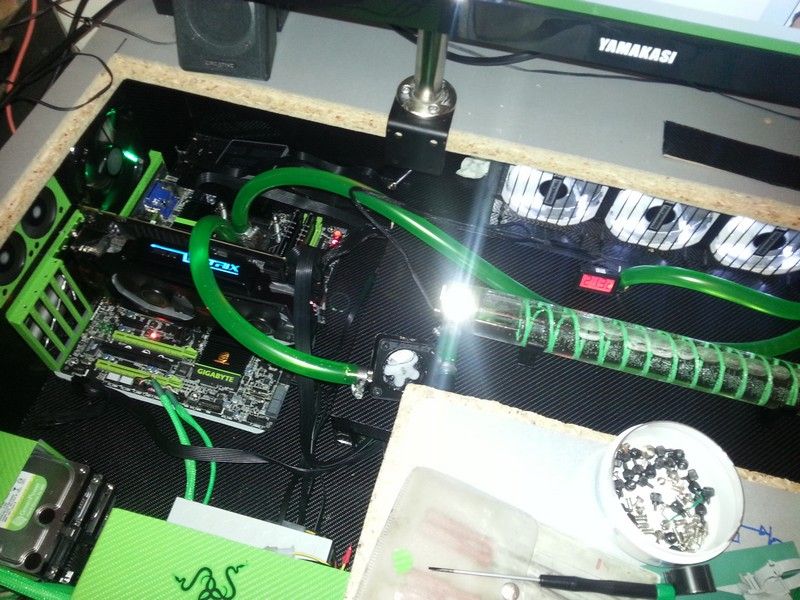

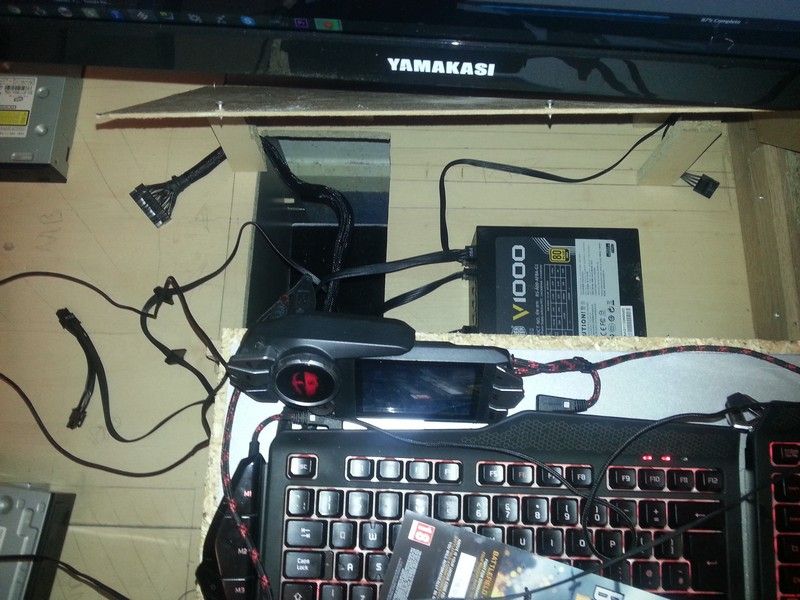

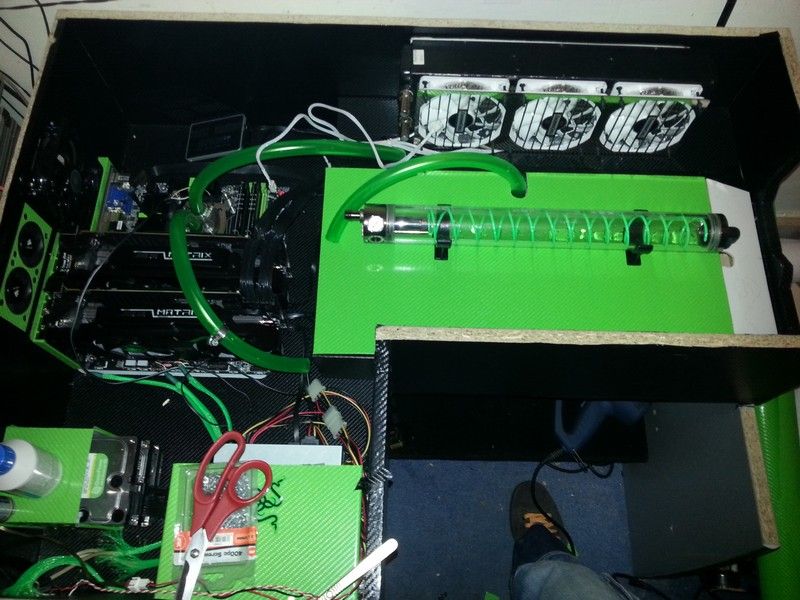

    Now working on the final build, most of the desk is just how i want it but i will need to add more room for a 2nd RAD and re-position a couple of things.
    i will also be adding 3 more switches to control the UV/LED's and adding a pullout for a second keyboard or my pad and phone.

    after not being able to find the triple RAD guards i wanted to use i have decided to try make my own, more than likely from black perspex.

    if everything goes to plan (finger crossed) i should have the desk up and running in 4 to 6 weeks .

    Last edited: 7 Feb 2014
  19. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    Waterblock fitted, and now im going to see if i can keep the Matrix LED indicator as its very useful in letting me know that the crossfire is working and how hard, Looks nice also

    [​IMG]

    [​IMG]

  20. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    47
    My black perspex has arrived so i can start having a play, was wanting to use it for the triple RAD grills and possibly the Matrix LED.

    [​IMG]
