Mk.6 EMP -Experimental Modular Project-

Discussion in 'Project Logs' started by Captain Slug, 20 Jun 2005.

  1. Burnout21

    Burnout21 Is the daddy!

    Joined:
    9 Sep 2005
    Posts:
    8,614
    Likes Received:
    197
    as slug said, he is not drilling those holes himself. he is getting an out side company to drill it. they probably use a CNC drill.

  2. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Back early from my trip, but feeling a bit under the weather so I'm not doing anything complicated until my attention span recovers.

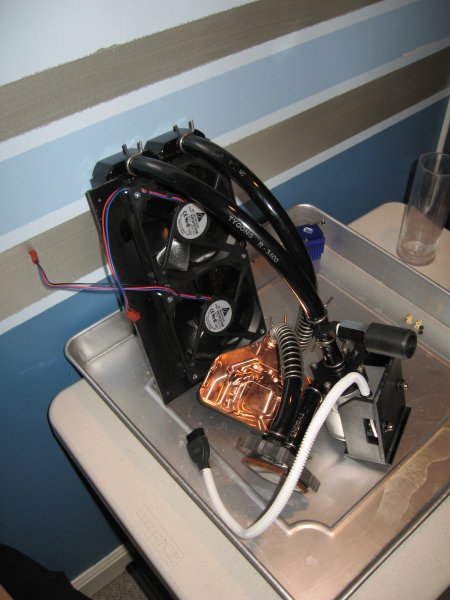

    As predicted the water-cooling loop is extremely easy to remove as a single unit. Only involves removing 5 screws.
    [​IMG]
    I got the HR-05 installed and temporarily the CPU and video card will both be air-cooled while I get the BIOS flashed.
    [​IMG]
    The faceplates are ready to be finished
    [​IMG]

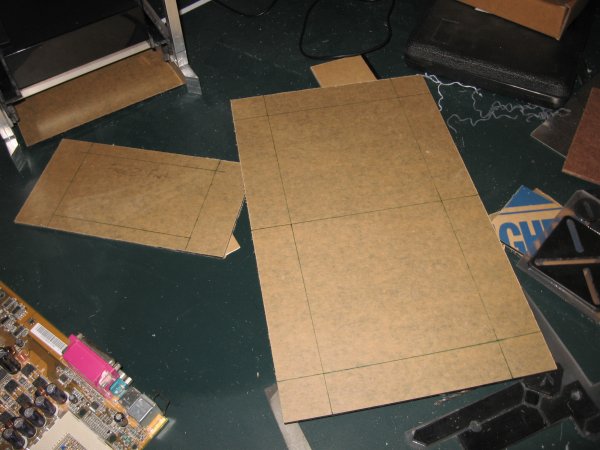

    The top and bottom pieces are sized
    [​IMG]

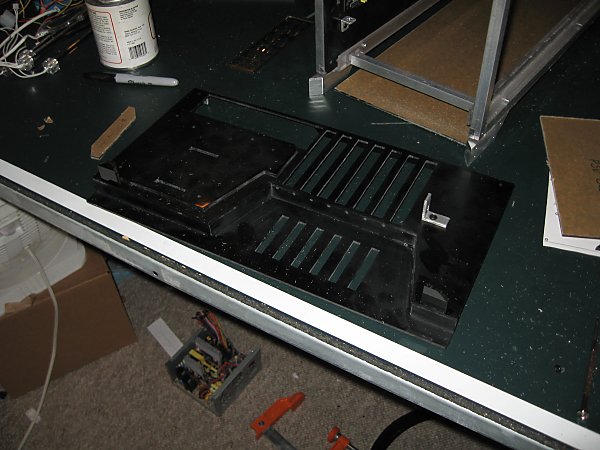

    And I added support teeth to square off and support the backplate when the tray is in the case.
    [​IMG]
    More to come this weekend.

  3. customh

    customh conflagration.

    Joined:
    22 Oct 2005
    Posts:
    2,590
    Likes Received:
    1
    I wanna see the plug bus!! This is sweet too, I guess....:D Great work, slug.,

  4. Burnout21

    Burnout21 Is the daddy!

    Joined:
    9 Sep 2005
    Posts:
    8,614
    Likes Received:
    197
    i think when this is finished this case will be up there with the greatest cases ever done.

    every step as been well thought. even if the res over the cpu idea was scraped it was a functioning mod. i loved it!

    i love this mod!

  5. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Well, I was about to do more tonight but I ran out of scrollsaw blades. I'll have to go to Sears tomorrow.
    I've finished refining the motherboard tray already. I'm hoping to get the rest of the case parts machined over the course of this weekend.

    Things I would like to finish this weekend
    - Faceplates
    - PSU Tray
    - Top & Bottom panels
    - Side Panels
    - BIOS flash

    Things I have planned for next week
    - Handles
    - Dock Bracket
    - Side panel slide brackets
    - Windows

  6. Fozzy

    Fozzy New Member

    Joined:
    25 Jan 2005
    Posts:
    1,413
    Likes Received:
    2
    You aren't from washington are you? There is an EMP there too only it stands for Experimental Music Project. It's a sweet museum

  7. Tulatin

    Tulatin The Froggy Poster

    Joined:
    16 Oct 2003
    Posts:
    3,161
    Likes Received:
    7
    Hey Slug; where do you get those damn clamps from?

  8. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Mcmaster part# 5324K46 or 5324K16

  9. floppyeardbunny

    floppyeardbunny New Member

    Joined:
    4 Jan 2006
    Posts:
    34
    Likes Received:
    0
    I love mcmaster carr. They have everything a modder could imagine and then some.

  10. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Not an update: The BIOS is updated now, but I feel horrible so I'm just going to lay down until my massage appointment on Monday. I overworked most of my back and my feet while working on my brother's house last weekend.

  11. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    Sorry to hear that. It's really starting to come together now! Can't wait for the end.

  12. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Tomorrow I have to put a barbeque together then go to Home Depot and pick up some scrollsaw blades, seeing as how that tool is invaluable for the remaining steps.
    My massage appointment earlier today has left me feeling quite awesome, which is something new to me and I want to take advantage of it.

  13. r4tch3t

    r4tch3t hmmmm....

    Joined:
    17 Aug 2005
    Posts:
    3,166
    Likes Received:
    48
    Great to hear your feeling great :thumb:
    Also a good luck for next years mod of the year competiton :idea:

  14. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7

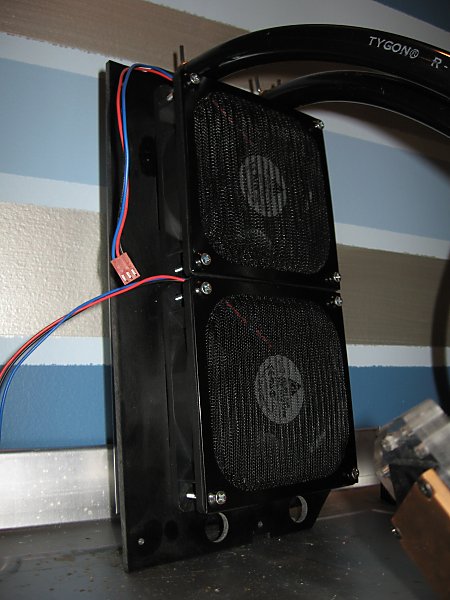

    Some progress today. Yesterday the 120mm mesh filters came in the mail.
    [​IMG]
    Should I drop any screws off the motherboard they won't get wedged inbetween the fans and the radiator. There are silver filters on the intake side of the radiator.

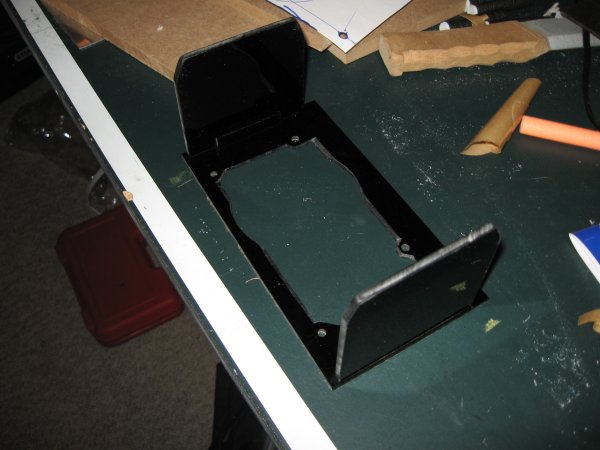

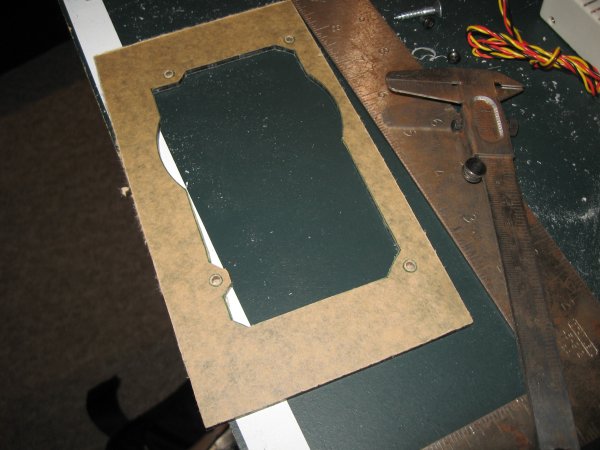

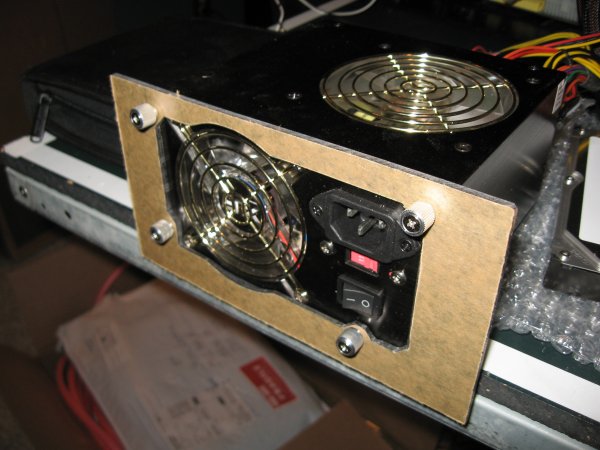

    I also started working on the Power Supply bracket.
    [​IMG]
    [​IMG]
    [​IMG]
    The solvent has to cure overnight and then I can add the last few pieces to it.

  15. customh

    customh conflagration.

    Joined:
    22 Oct 2005
    Posts:
    2,590
    Likes Received:
    1
    Are you going to have an easy way to take those fan filters off? I would want that to clean them outside or something.

  16. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    :thumb: as always looking slick

  17. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    The filters on the intake side of the radiator are very easy to remove.
    See
    [​IMG]

    Last edited: 14 Dec 2006
  18. Spaceraver

    Spaceraver Ultralurker

    Joined:
    19 Jan 2006
    Posts:
    1,363
    Likes Received:
    5
    B E A UTIFULL!!

  19. customh

    customh conflagration.

    Joined:
    22 Oct 2005
    Posts:
    2,590
    Likes Received:
    1
    Thumbscrews or what?

  20. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Just screws. I don't have many thumbscrews left and those are going on the exterior panels.
    I won't have to clean the filters anymore often than every 8 months anyways. (I have a very clean AC system).
