Modding Modded external hard drive... rilo-1

Discussion in 'Modding' started by swaggahurtz, 30 Mar 2010.

  1. swaggahurtz

    swaggahurtz 2 c not what is but what can be....

    Joined:
    24 Feb 2010
    Posts:
    43
    Likes Received:
    0
    Truth is i didn't like the looks of this.

    [​IMG]

    The connectors, on/off switch, and indicator light are are on the same side; the back. Then after prolonged use it becomes warm to the touch. Yet having back up of gigs of all types of data is hugely convenient so:


    [​IMG]
    [​IMG]
    [​IMG]

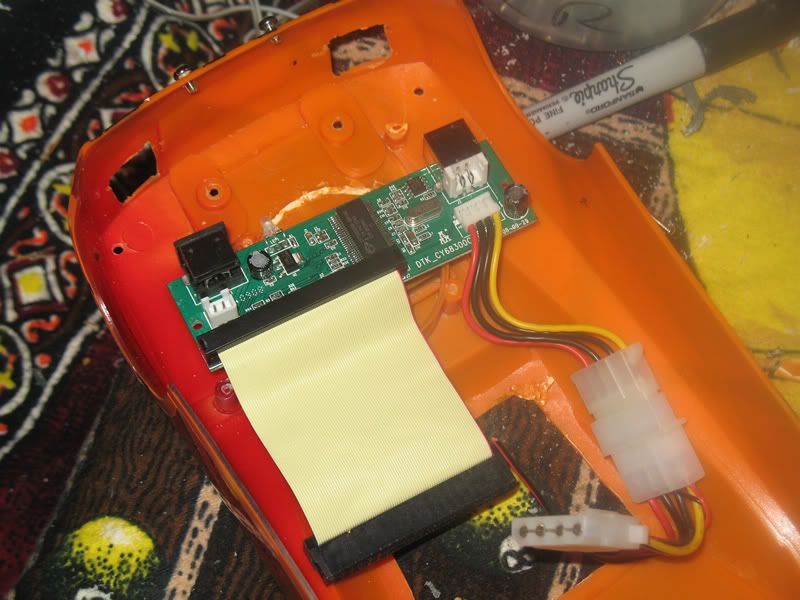

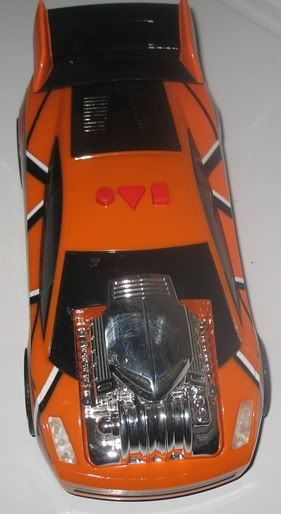

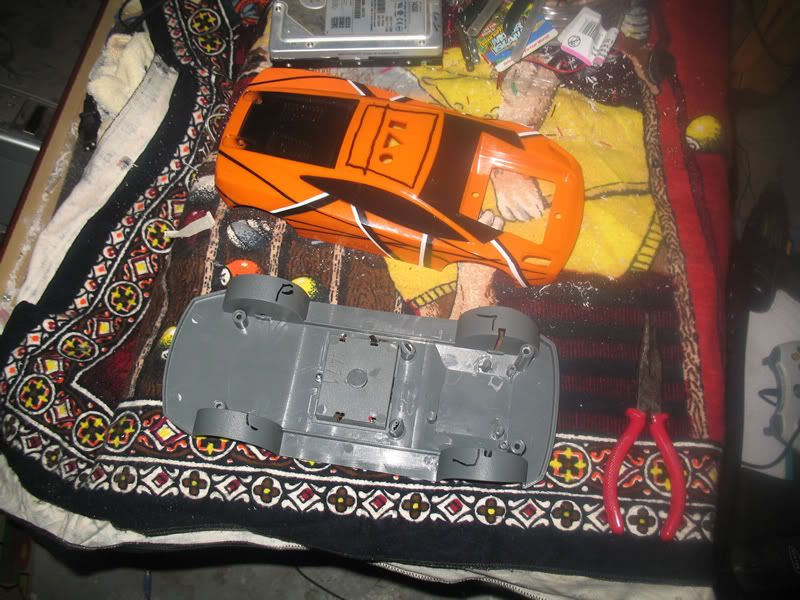

    This cheap toy solves my problems.


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

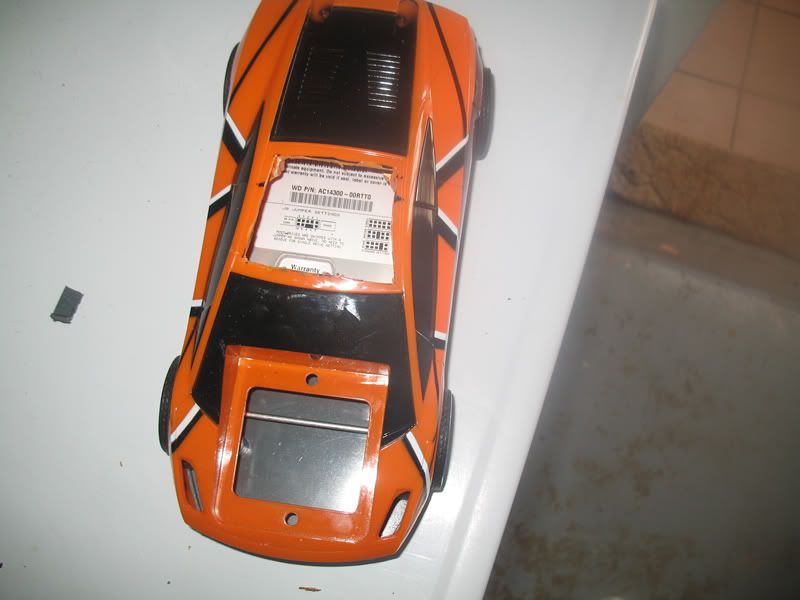

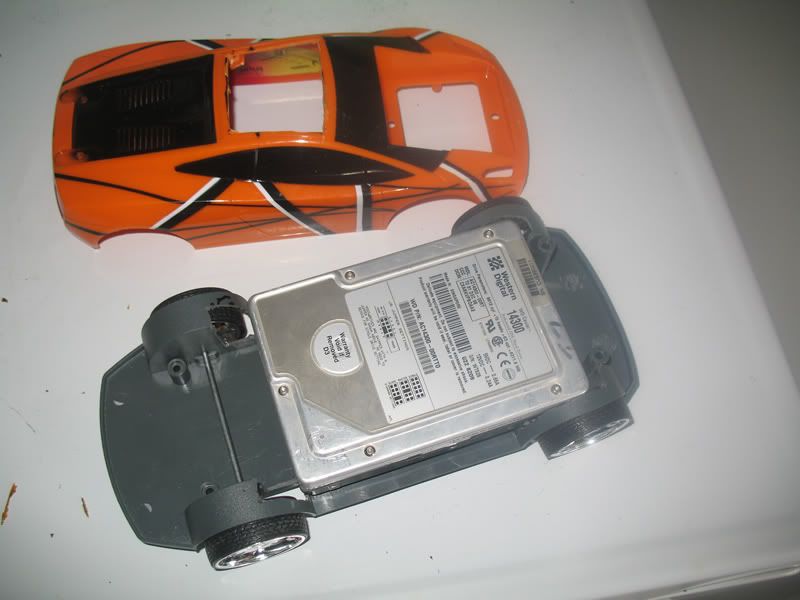

    The hd fits fine. I placed it too far forward at first and the engine block was stopping it from closing.

    [​IMG]
    [​IMG]

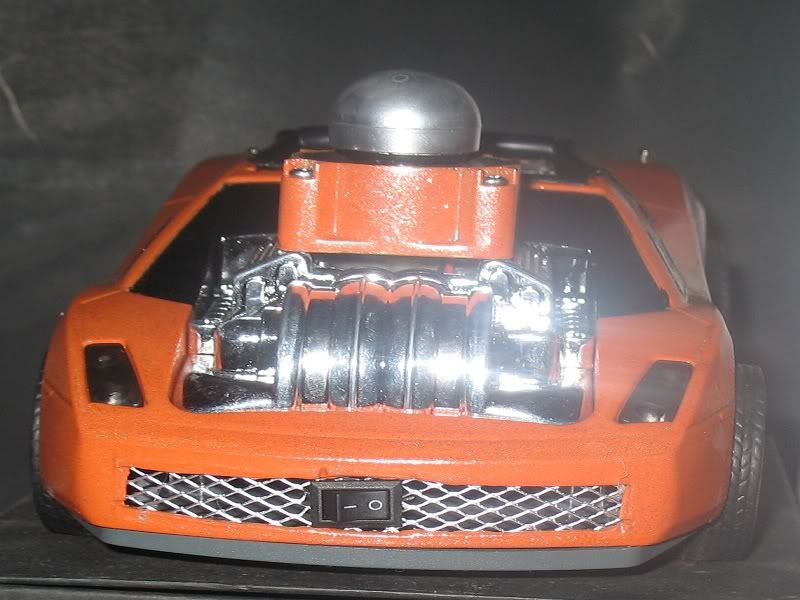

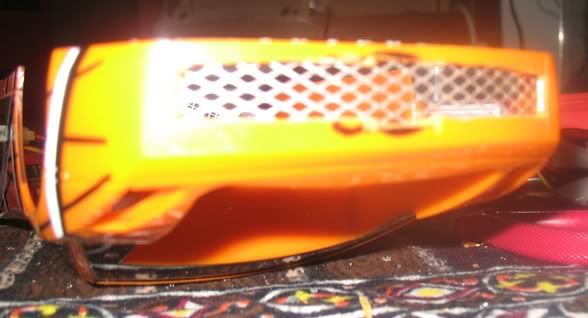

    The on/off switch im moving into the front grill.

    [​IMG]

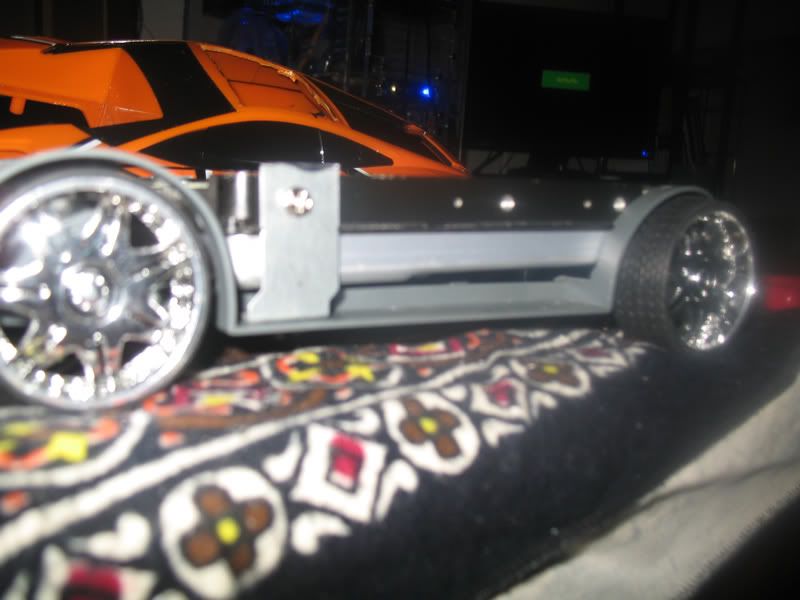

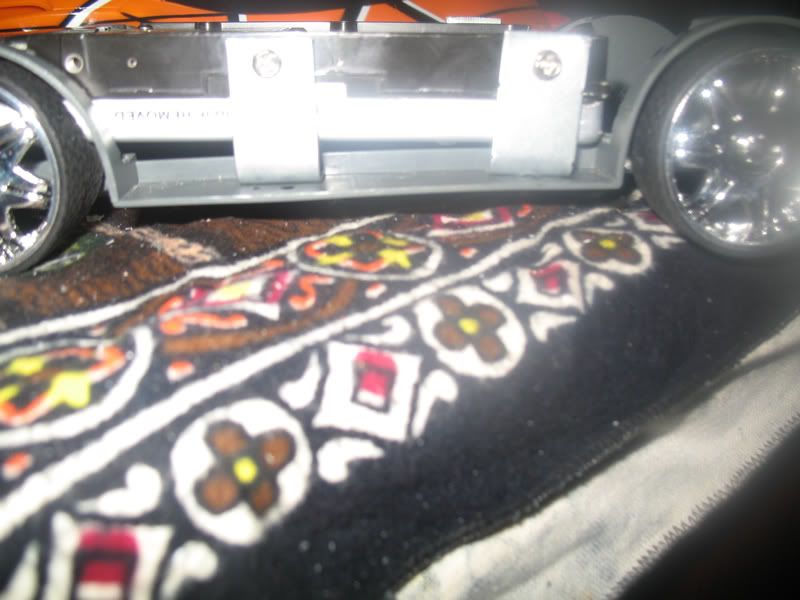

    Locked the drive down.

    [​IMG]
    [​IMG]

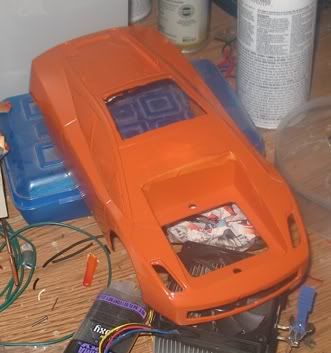

    Starting the paint process. And doing some "engine" modding.

    [​IMG]
    [​IMG]

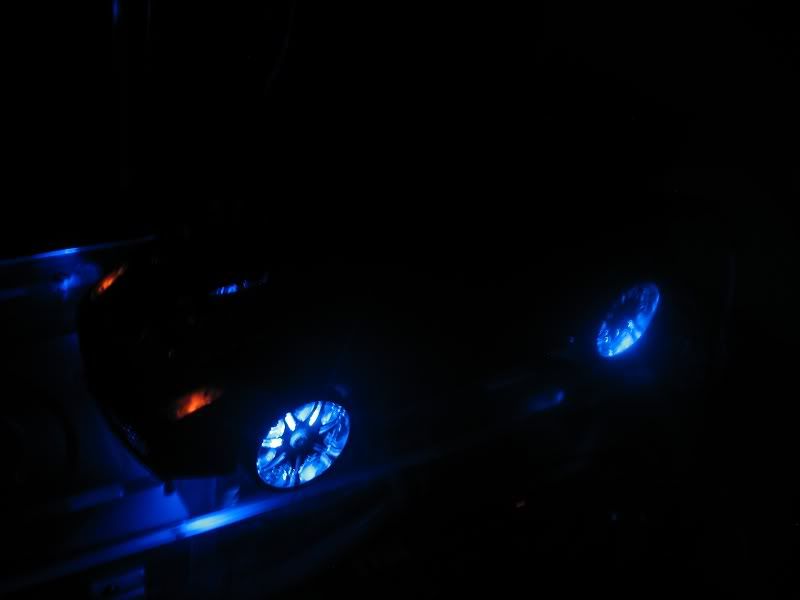

    Once the paint is finished I'll be adding two small fans and some leds.


    the paint on this one went smooth, a few more days and it will be finished. Im going with a 250 gb drive, because that's the biggest ide drive i have. Next time im going sata.

    [​IMG]

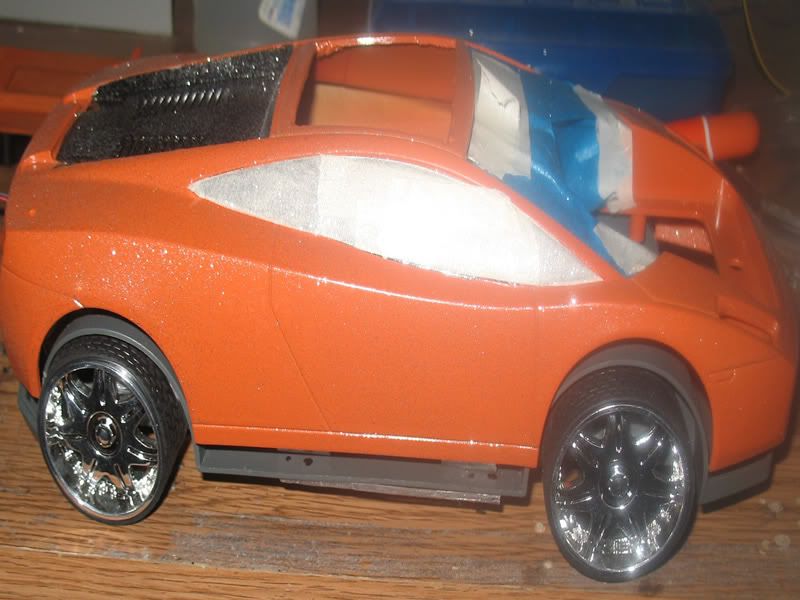

    The plastic is orange, so i stayed with that. But got rid of the pin stirps, and added chrome flake.

    [​IMG]

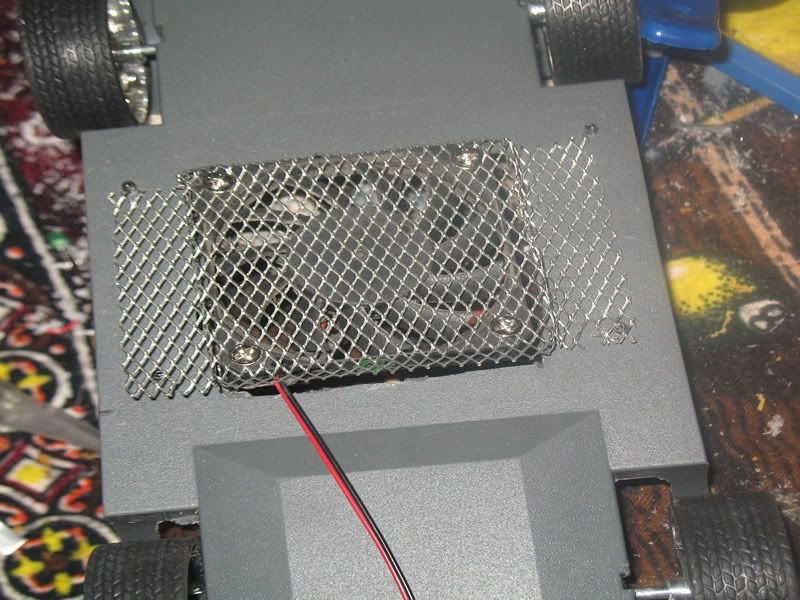

    Here's the bottom intake fan.

    [​IMG]


    Between coats i think im going to wire the leds and fit and cut the "moon roof"

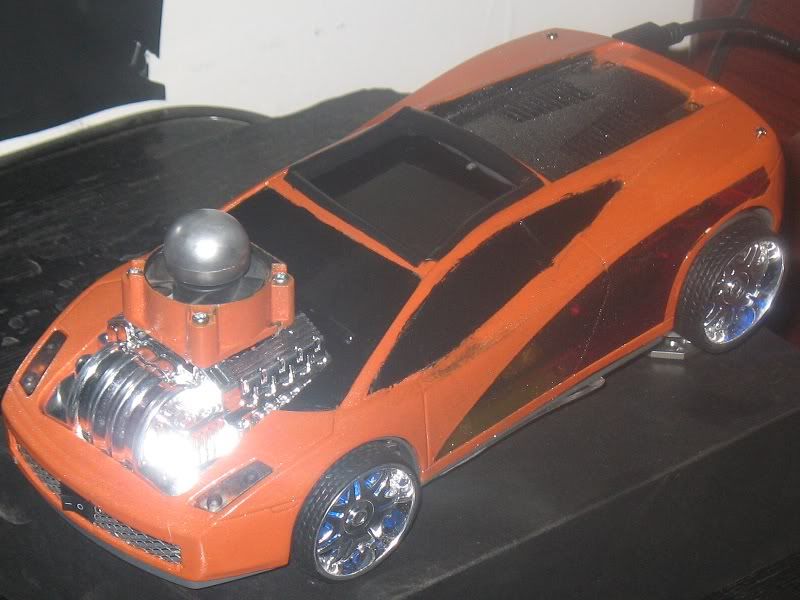

    Just about finished with this one......

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. swaggahurtz

    swaggahurtz 2 c not what is but what can be....

    Joined:
    24 Feb 2010
    Posts:
    43
    Likes Received:
    0
    spoiler.....

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  3. Burnout21

    Burnout21 Mmmm biscuits

    Joined:
    9 Sep 2005
    Posts:
    8,616
    Likes Received:
    197
  4. FrooP

    FrooP can I eat this?

    Joined:
    24 Oct 2007
    Posts:
    278
    Likes Received:
    7
    i second that

  5. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,579
    Likes Received:
    2,104
    :lol: Yeah, the work you put into it is great, but the original toy design was freakish. A rear engine Lambo with a funny car style blob of chrome in the front? And a big-*ss batmobile spoiler! I'm shocked the designer didn't add Buick vents.

  6. The_Beast

    The_Beast I like wood ಠ_ಠ

    Joined:
    21 Apr 2007
    Posts:
    7,379
    Likes Received:
    164
    not to be a critic but better camera work would be appreciated

  7. Smilodon

    Smilodon The Antagonist

    Joined:
    25 Mar 2003
    Posts:
    6,244
    Likes Received:
    102
    What can you expect from someone that designs a car with half of the tires sticking out from the body? On a truck it's cool, bot on a racing car? no way! (It will mess up the aerodynamics...)





    The mod itself is OK. You just didn't have a very good base to work with. ;)

  8. Unicorn

    Unicorn Uniform November India

    Joined:
    25 Jul 2006
    Posts:
    12,726
    Likes Received:
    456
    This.

  9. MarkW7

    MarkW7 Total Noob

    Joined:
    30 Nov 2008
    Posts:
    1,795
    Likes Received:
    32
    .

    Last edited: 20 Nov 2010
  10. swaggahurtz

    swaggahurtz 2 c not what is but what can be....

    Joined:
    24 Feb 2010
    Posts:
    43
    Likes Received:
    0
    thanks for the comments guys....

    most toy cars are either tooo small or way too big for a 3.5 hd. a 2.5 hd would have gave me many more options. but when i found this $5 car it became a hd. i dont really care that its a lambo/funny car, and since aerodynamics don't really apply to usb transfer rates, its perfect for my purposes :D.

    i only wish i would have went sata. i have a terabyte hd that would have been perfect.. since i will need more than the 250gb thats in its now, i will either get a 1tb ide drive or find a sata controller that matches my cuts.

    its about time to buff it out and touch it up. there's a led in the moon roof that's not firing. i just aint had the time. when i do i was thinking of adding just a lil orange to the engine.


    more pics...

    [​IMG]

    [​IMG]


    ill post more pics after i buff it and wax it :D

    thanks for looking......
