    It´s Time for a new Project....:D

    In the last days we already started to build a new project, we had the plans in our heads for a few years now...but up to now....we didn´t had the time to realize them...
    Now after the DCMM 2013 has passed, we thought it would be cool to build this as our next project.

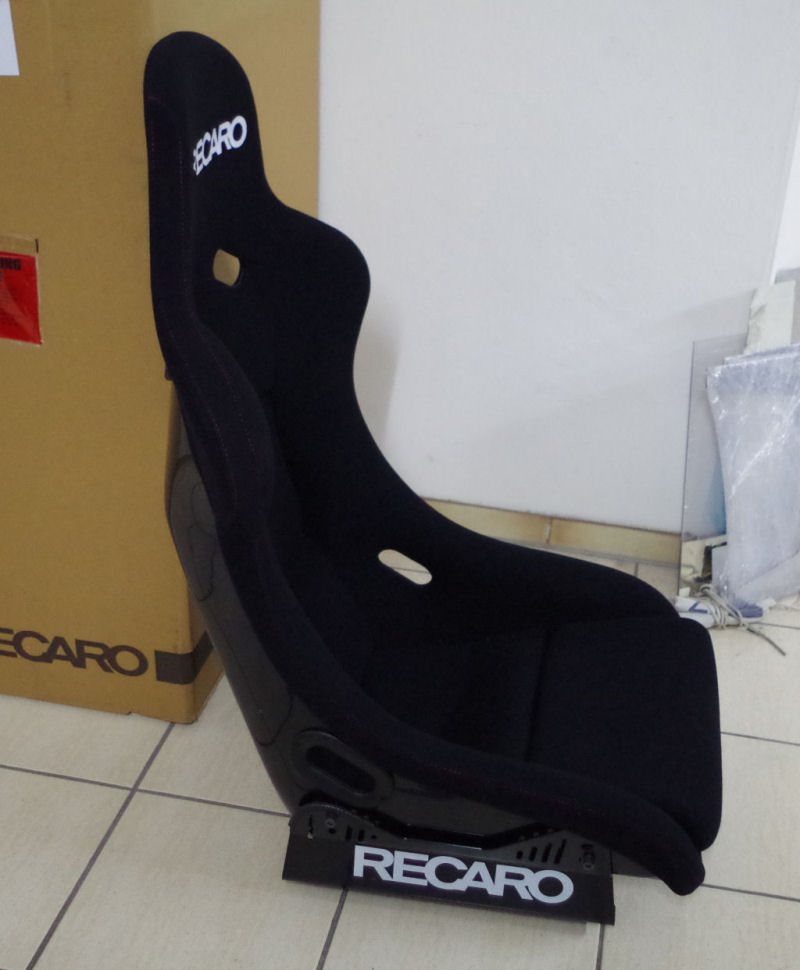

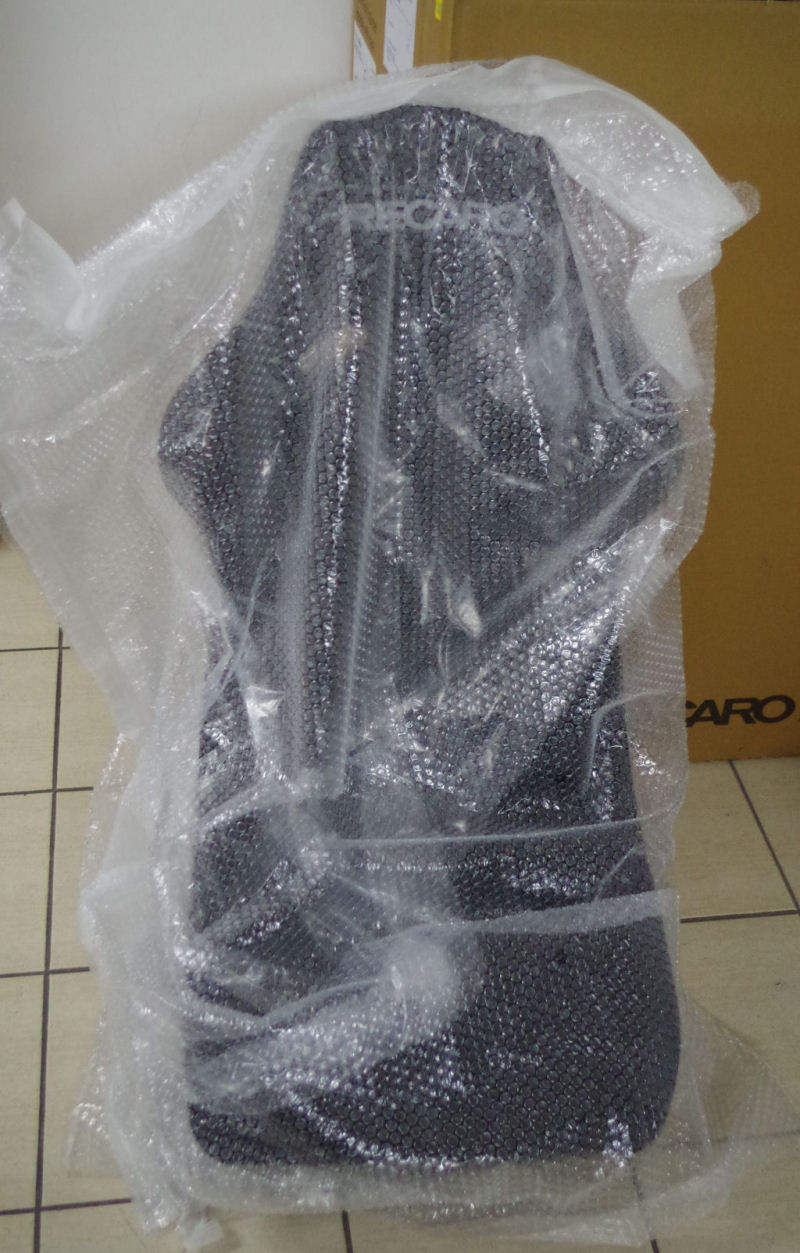

    So before we start, we already want to shoot out a real Big thank you !!!! to Recaro, they support this project with a custom build Racing Seat which was just builded for us (with exact measurements etc.) It will be one of the most important parts of this build....so we´re really glad about their support!!!!


    First we´re building this thing with 2DOF, but maybe when everything works like we planned it we´re going to add a few more DOF later....

    But before we come to that point....we first have to build a working base frame.

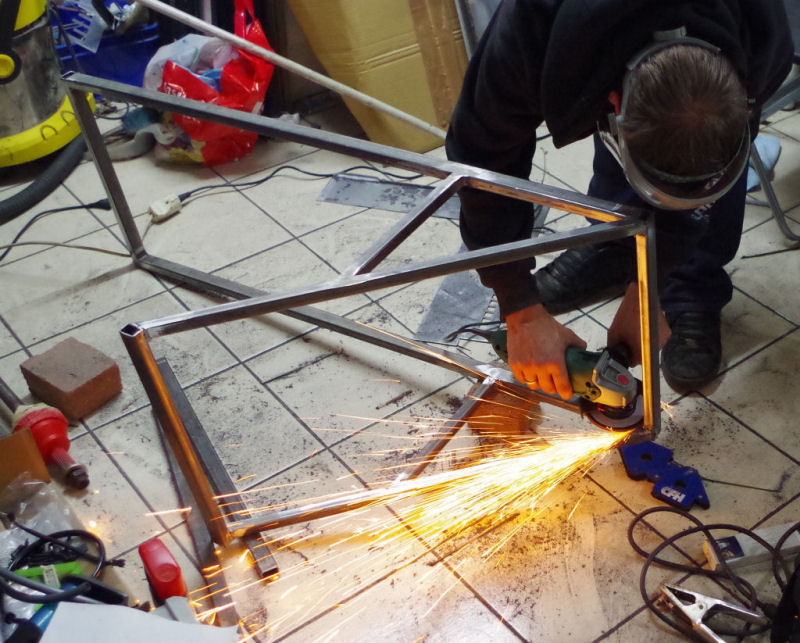

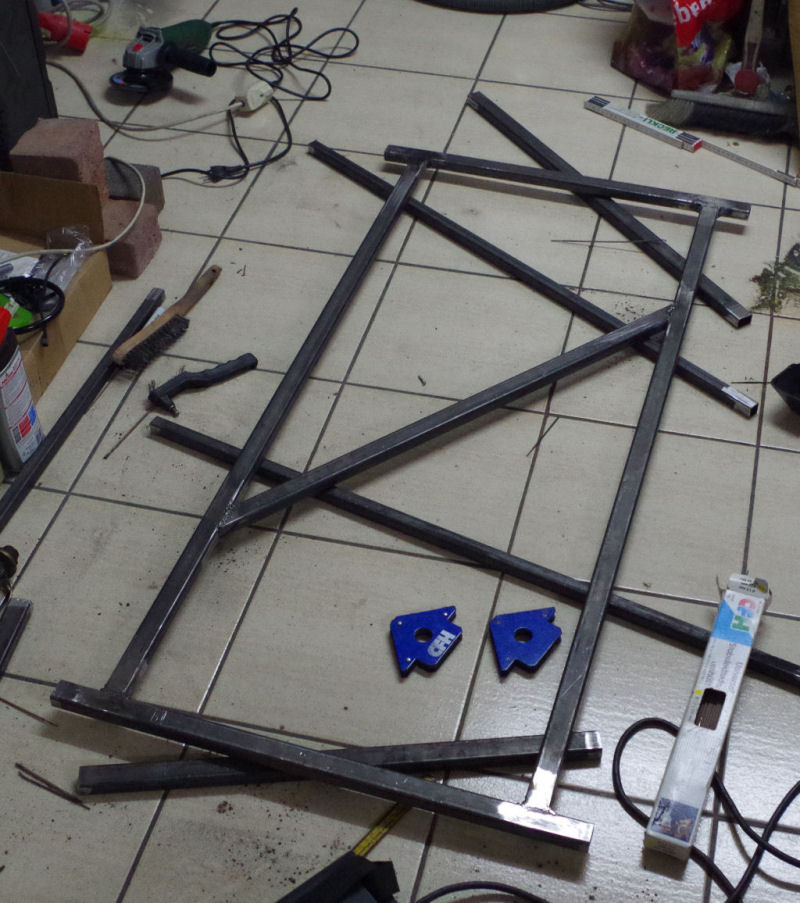

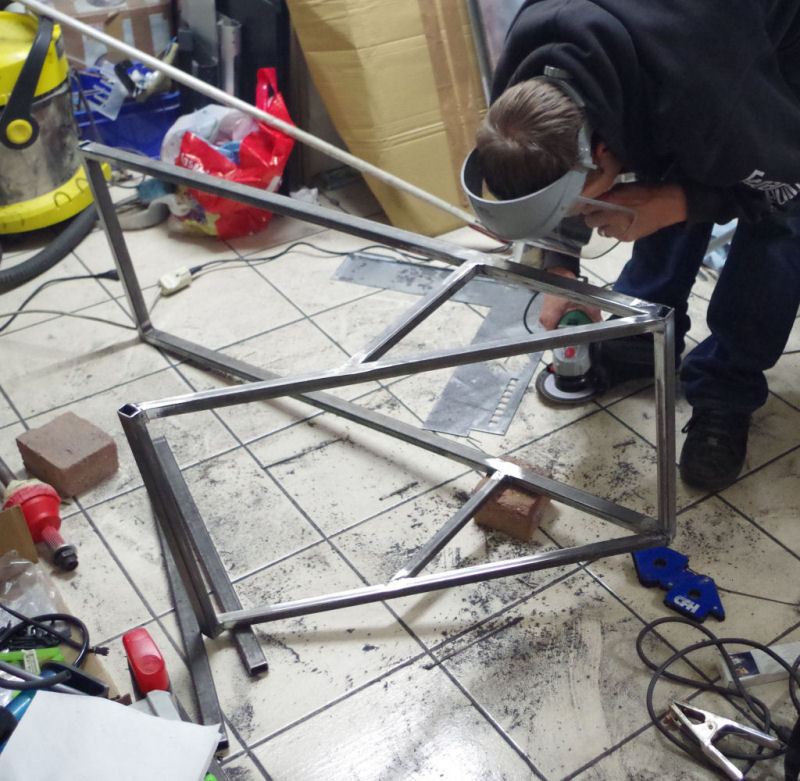

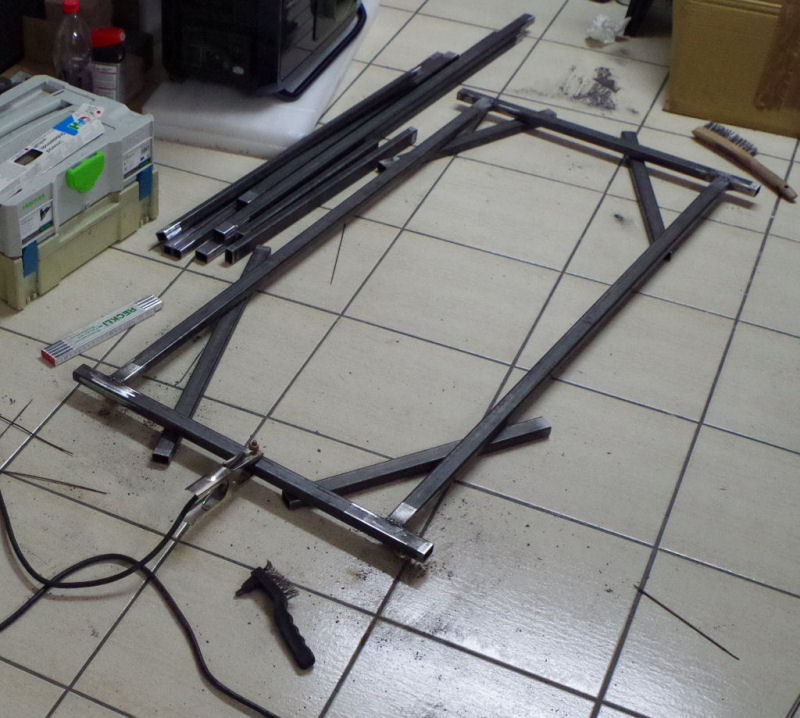

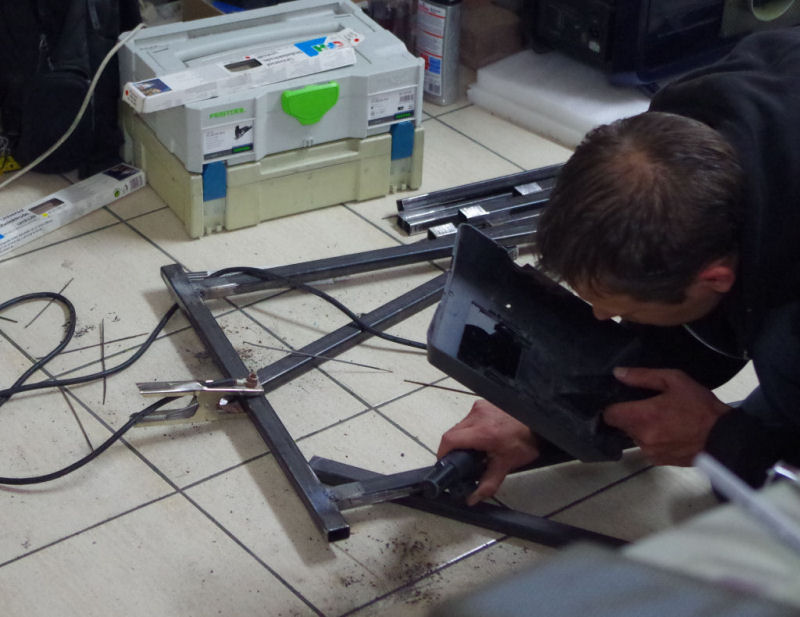

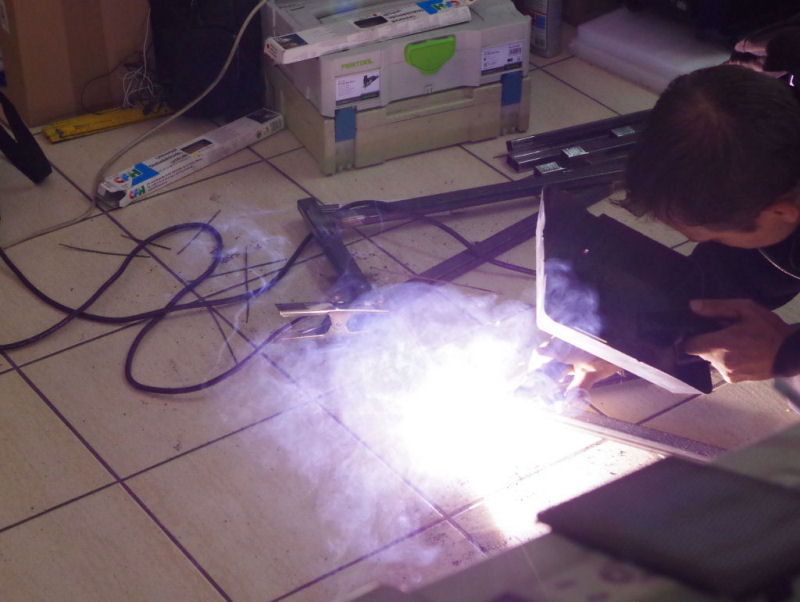

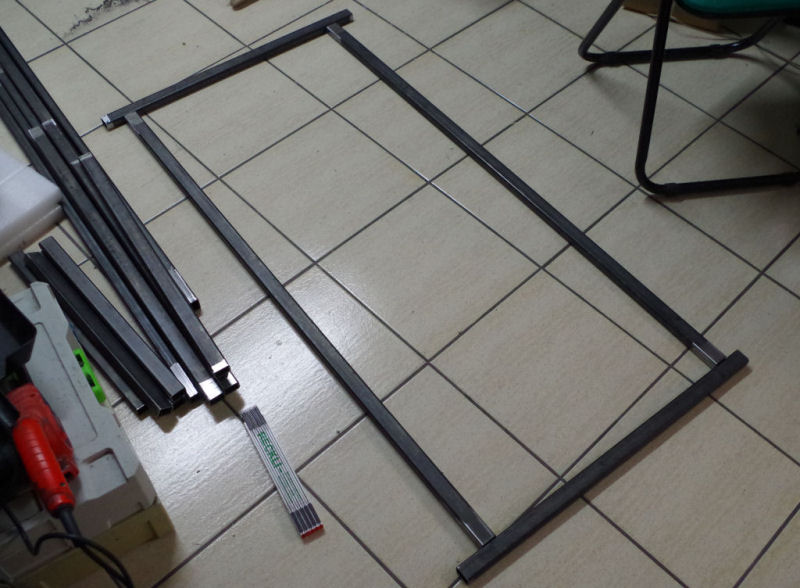

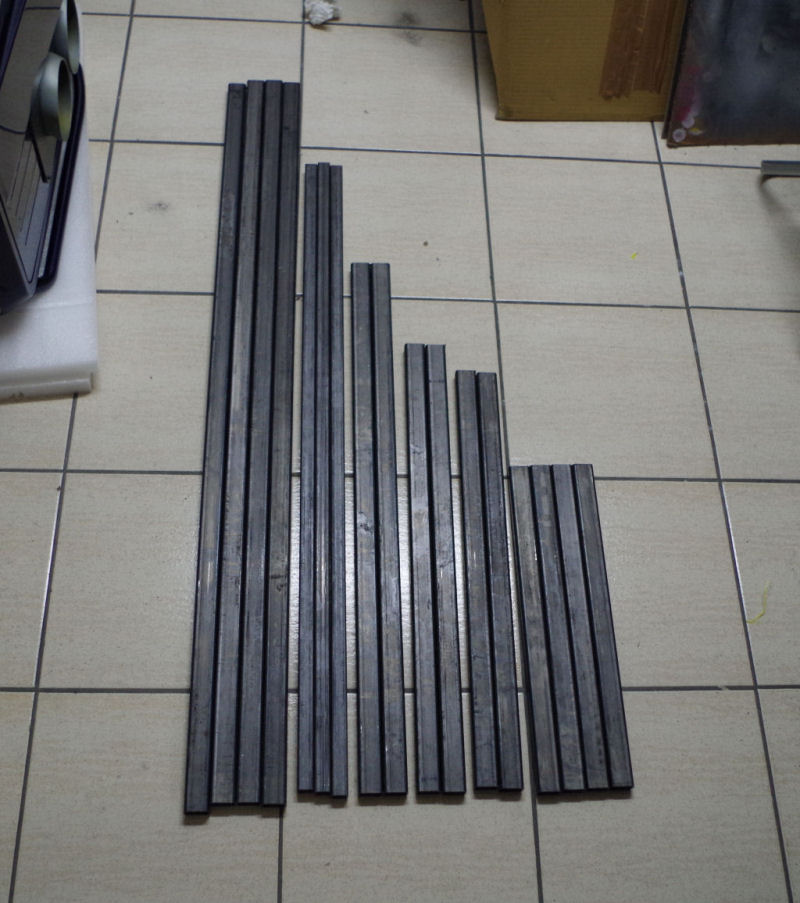

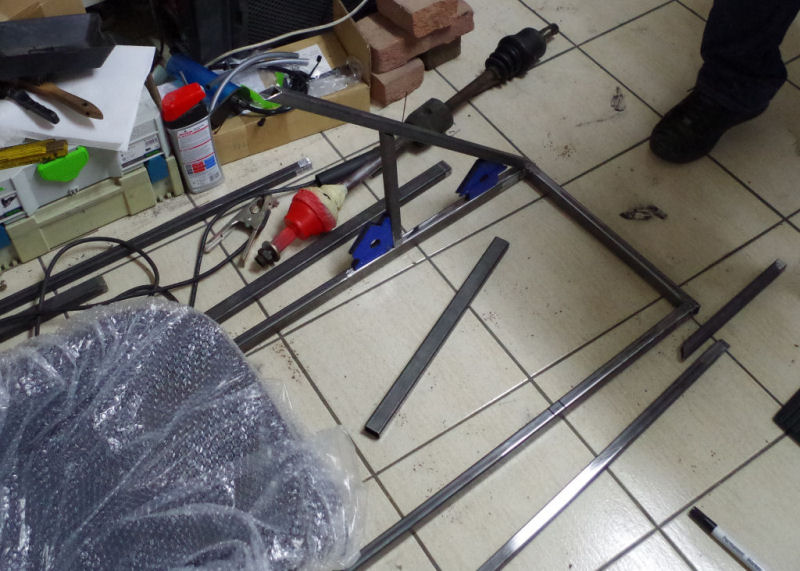

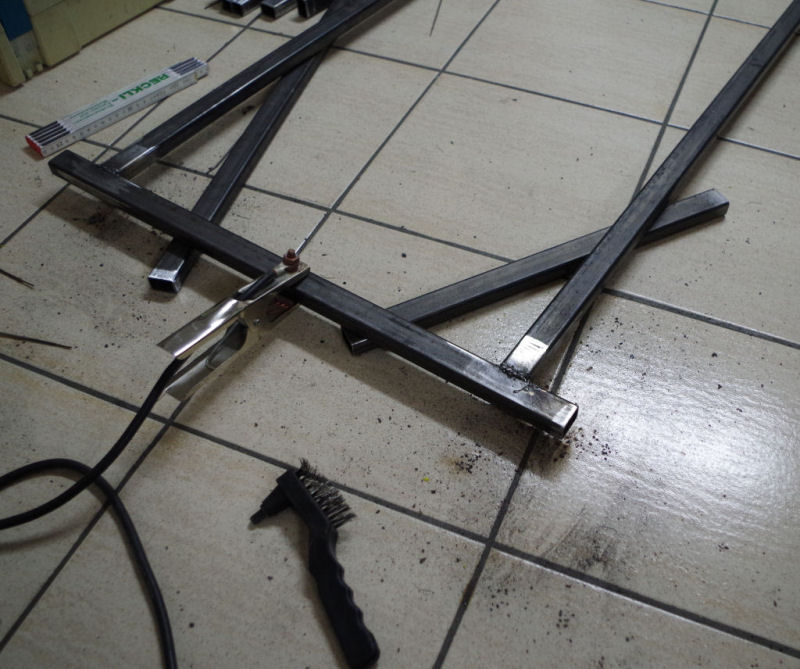

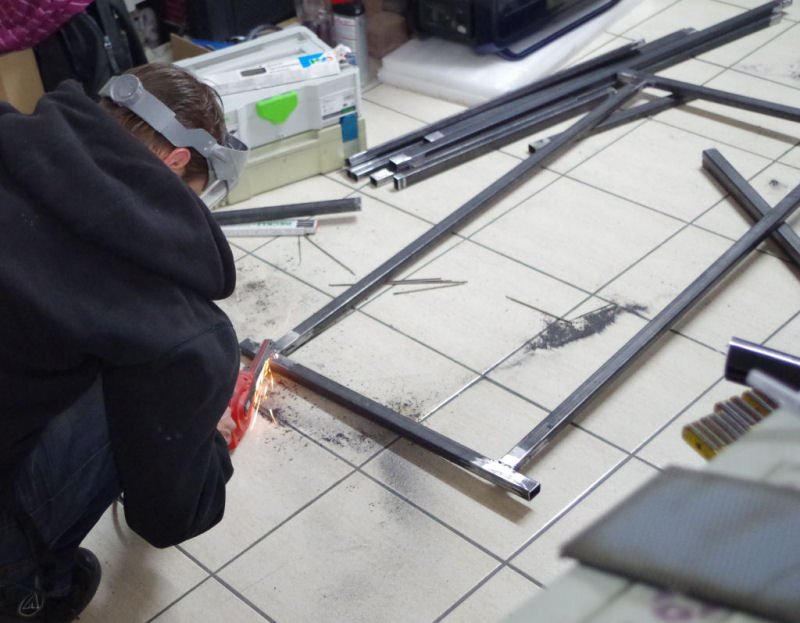

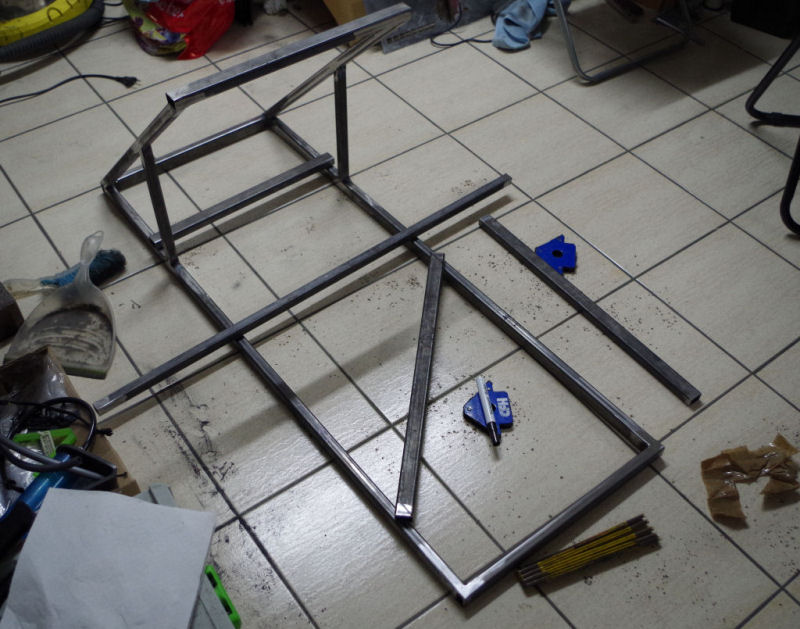

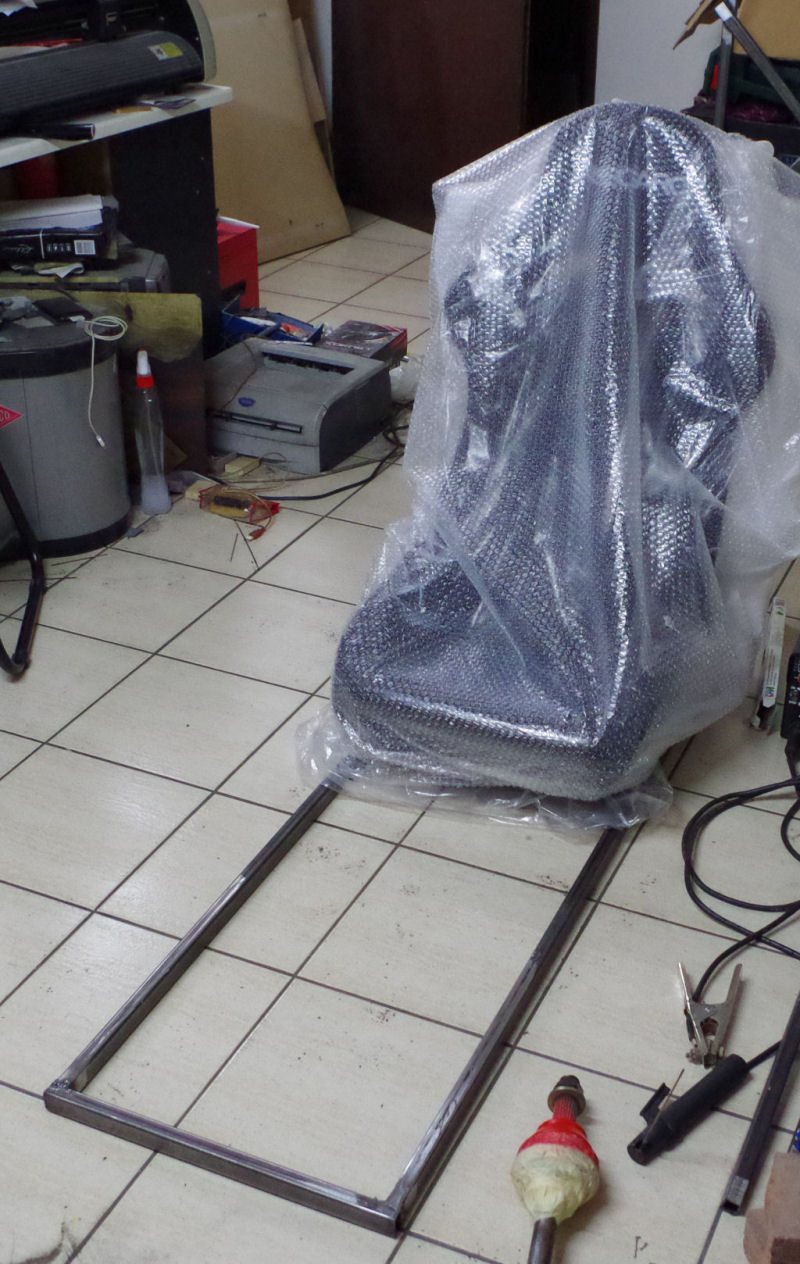

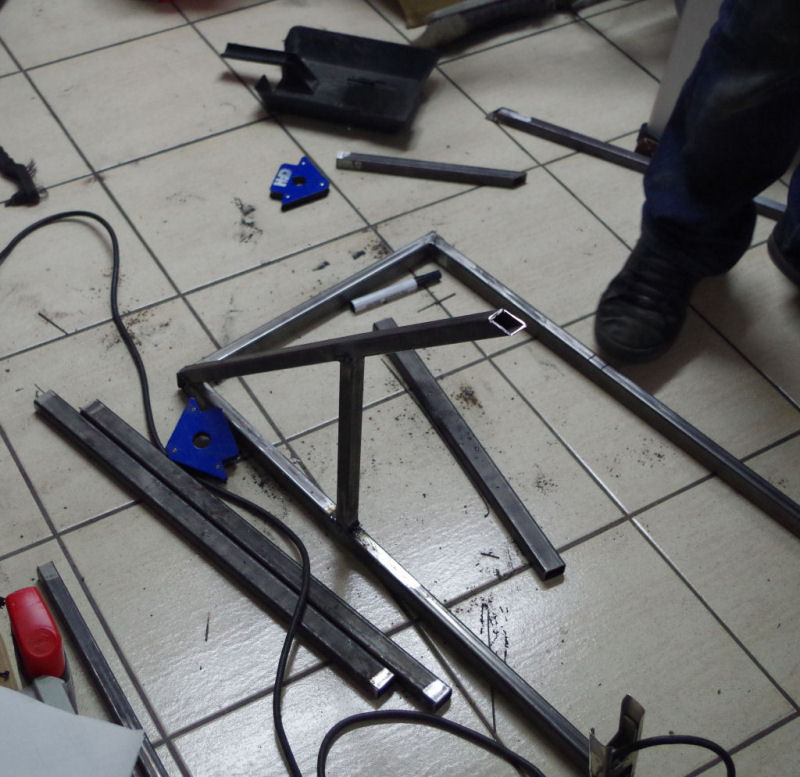

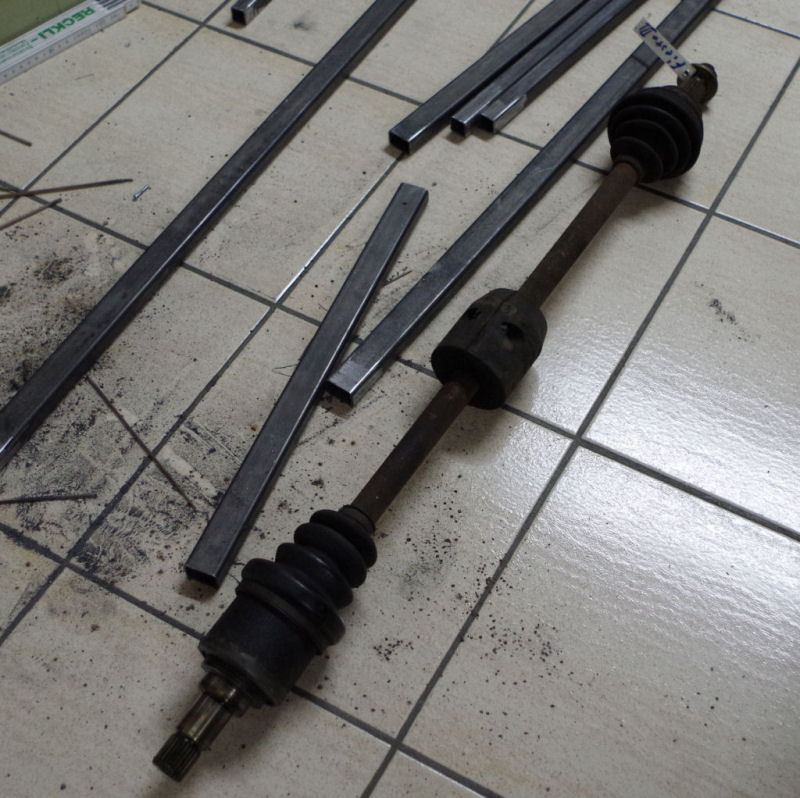

    So we already cutted a few steel square tubings into pieces and started to weld them together (our first welding experiments....)

    But now, it´s time for some pics....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 3 Sep 2014
  2. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    This looks like it will be good fun, subbed. :D

  3. jrs77

    jrs77 Well-Known Member

    Joined:
    17 Feb 2006
    Posts:
    3,487
    Likes Received:
    103
    Selfmade motion-platform for playing race-sims.... AWESOME!!!

  4. AlienwareAndy

    AlienwareAndy New Member

    Joined:
    7 Dec 2009
    Posts:
    3,421
    Likes Received:
    70
    Are you grinding and welding in your kitchen?

    That's 'kin hardcore :rock:

  5. Darkwisdom

    Darkwisdom Level 99 Retro Nerd

    Joined:
    27 Aug 2011
    Posts:
    2,675
    Likes Received:
    63
    Love these racing builds. They're always so technical; it's awesome. I'll be watching this one.

  6. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    Great start, looking forward to this build.

  7. Pierre3400

    Pierre3400 New Member

    Joined:
    22 Aug 2013
    Posts:
    44
    Likes Received:
    0
    Looking forward to this one, no project starting with a Recaro seat can be a bad idea!

  8. l3p

    l3p www.^.nl

    Joined:
    1 Nov 2010
    Posts:
    832
    Likes Received:
    71
    Subbed! Guess this will be something special :)

  9. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,270
    Likes Received:
    1,204
    Sweet.:D
    So, Is it going to be wild enough to need the racing harness?
    @AlienwareAndy - You don't?:eyebrow: I mean, The carpet in the living room would catch fire...

  10. Evenge

    Evenge Member

    Joined:
    16 Sep 2006
    Posts:
    659
    Likes Received:
    8
    Great work thechoozen! Can't wait to see more! :thumb:

  11. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thanks m8´s!

    nice to see that so many of you like this :D....

    no, its the workshop in our basement....but we used a lot of old kitchen furniture in our workshop around the walls as storage....and i really think if your kitchen would look like this....you won´t make a meal in it....:D

    i hope so :D:rock: (we already planned the mounting for the harness)

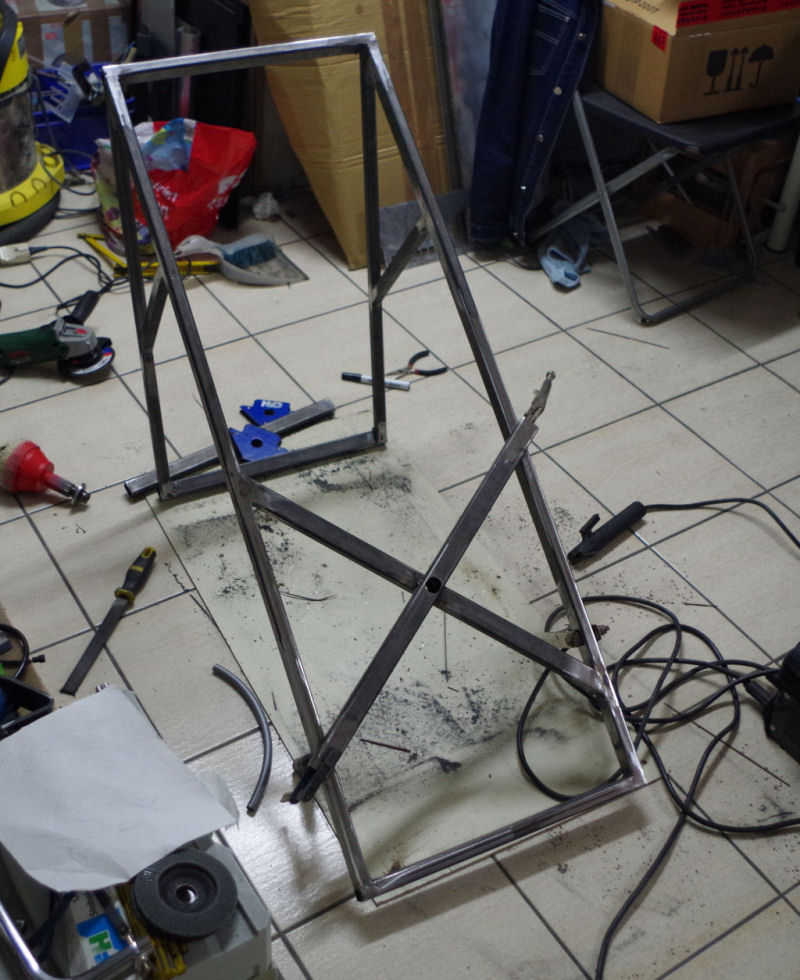

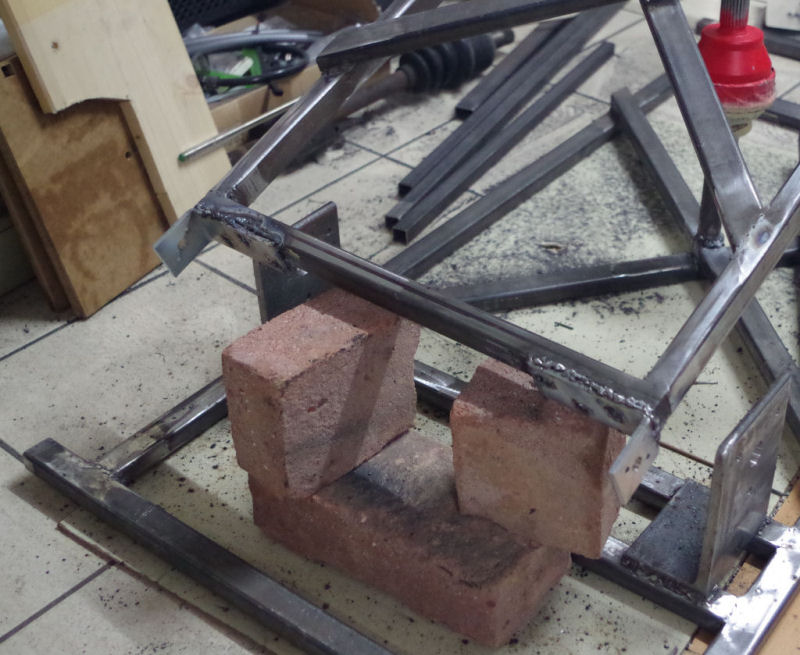

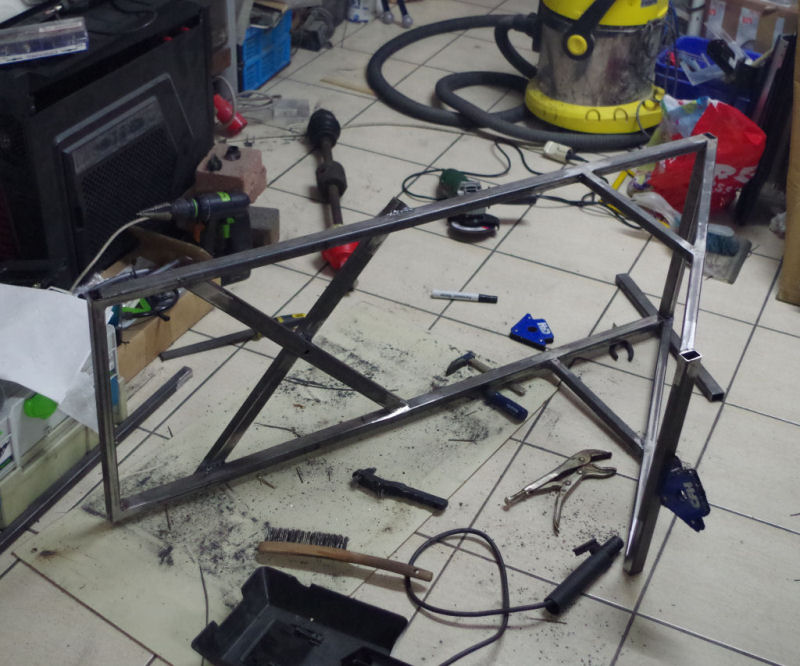

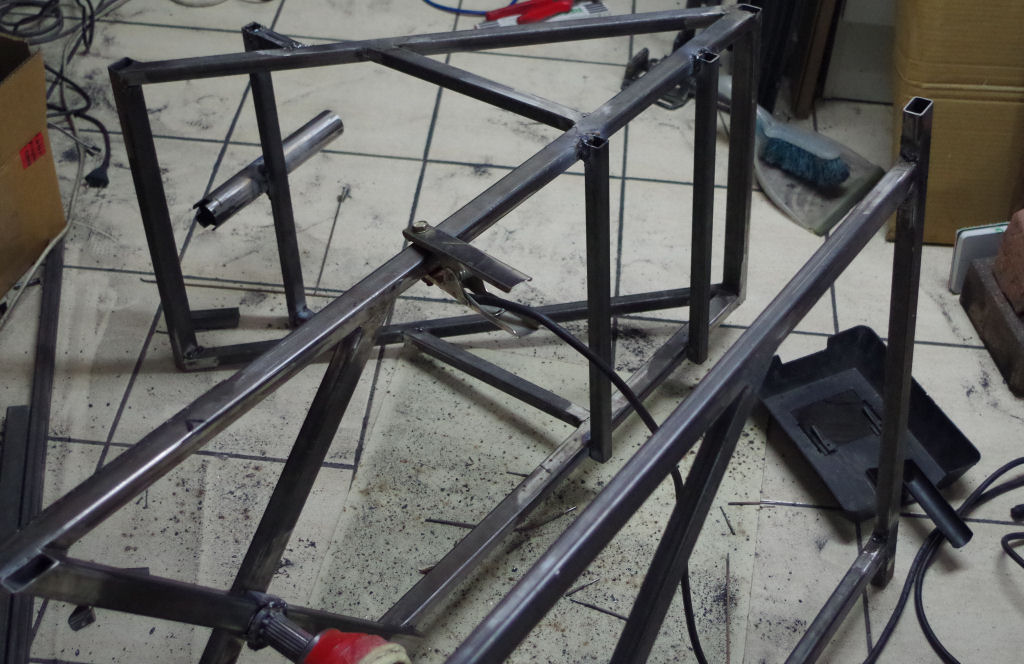

    In the last days we continued the welding and grinding process....so that we now have our base frame nearly completed....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  12. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for the next update:

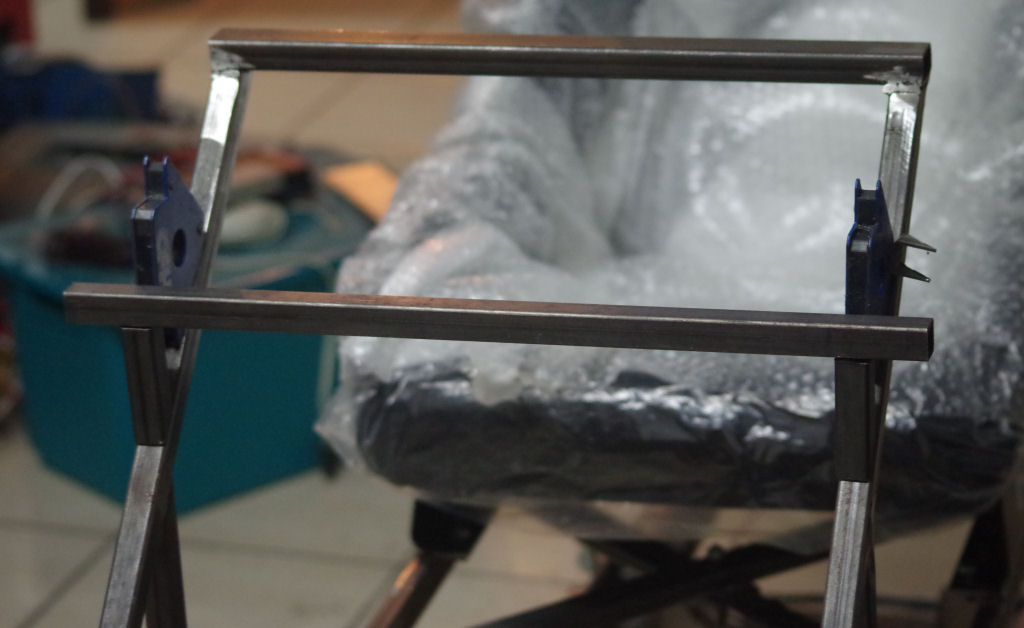

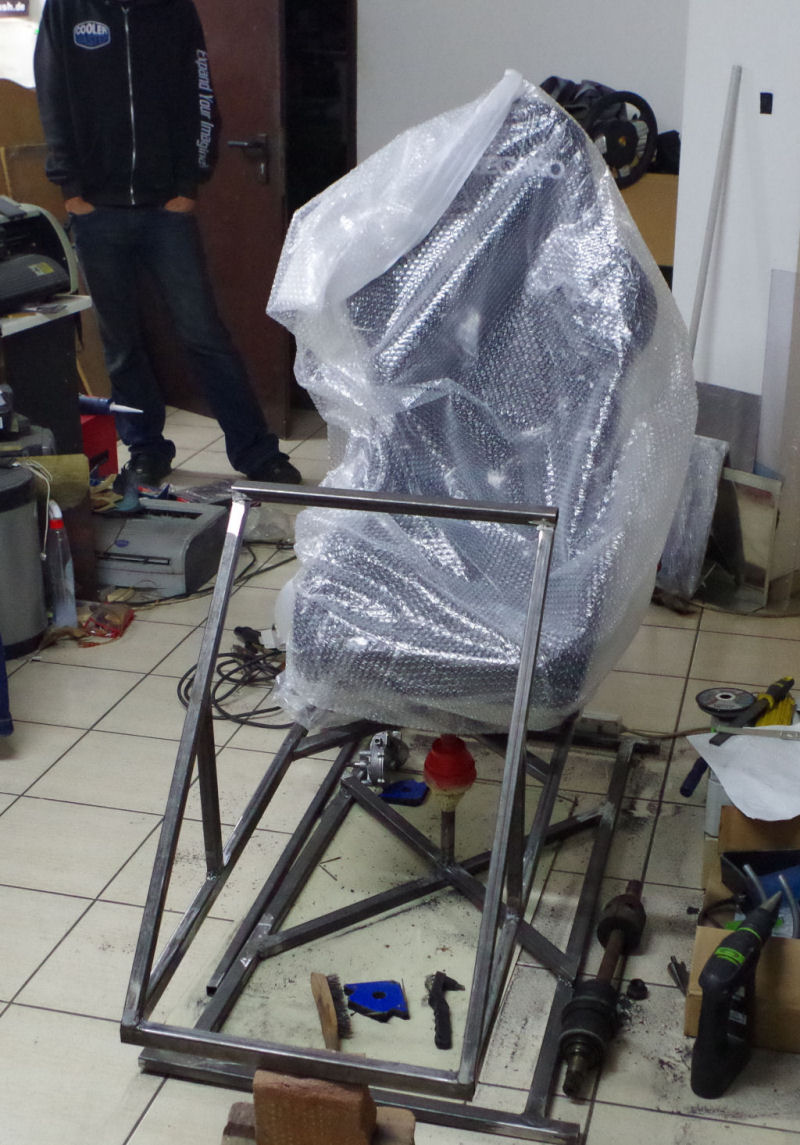

    In the last days we completed the work on the base construction...now we can mount the upper frame on the base frame .....(the seat is just put in place for the picture...)

    [​IMG]

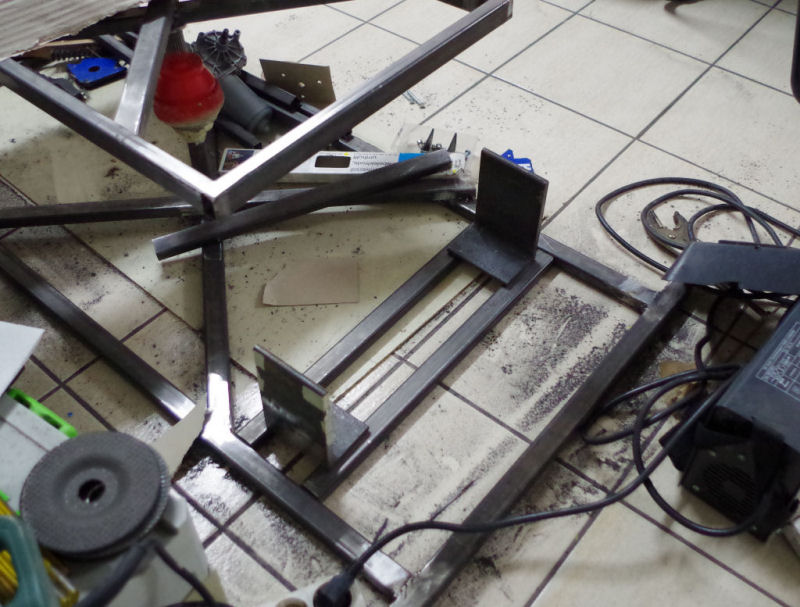

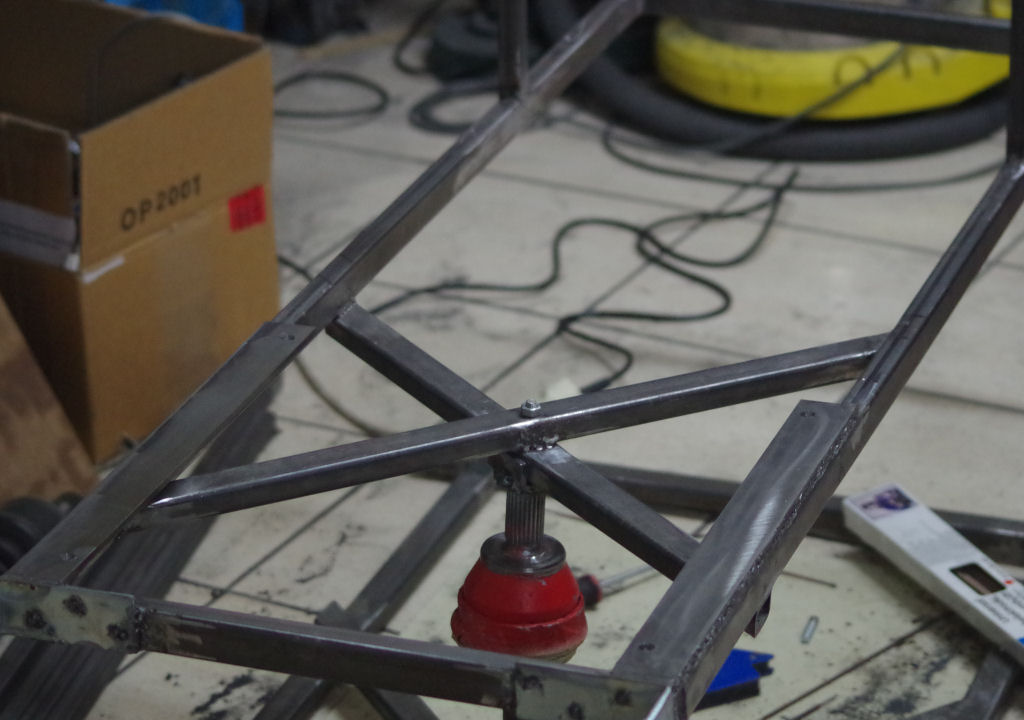

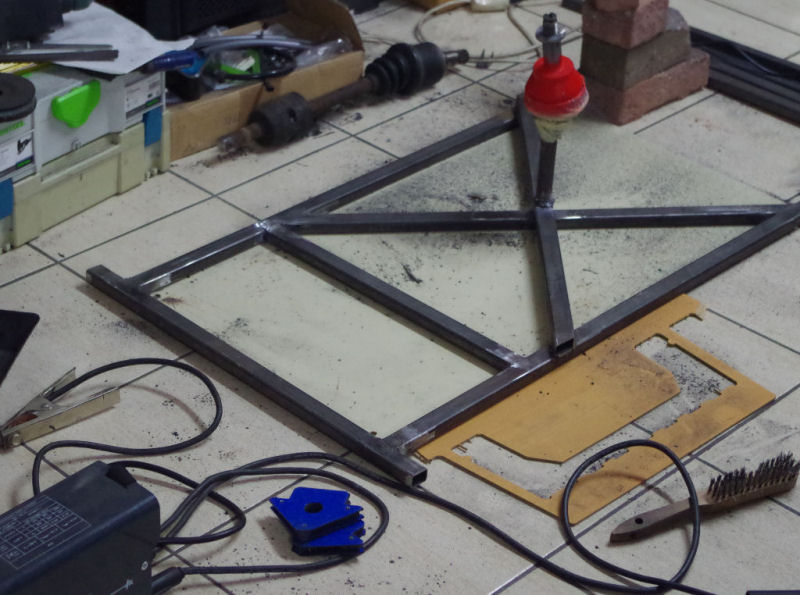

    After doing this, we continued the work on the lower Frame...we added 2 more struts in the back section. They´re just there so that we could mount or motor carriers on them.....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

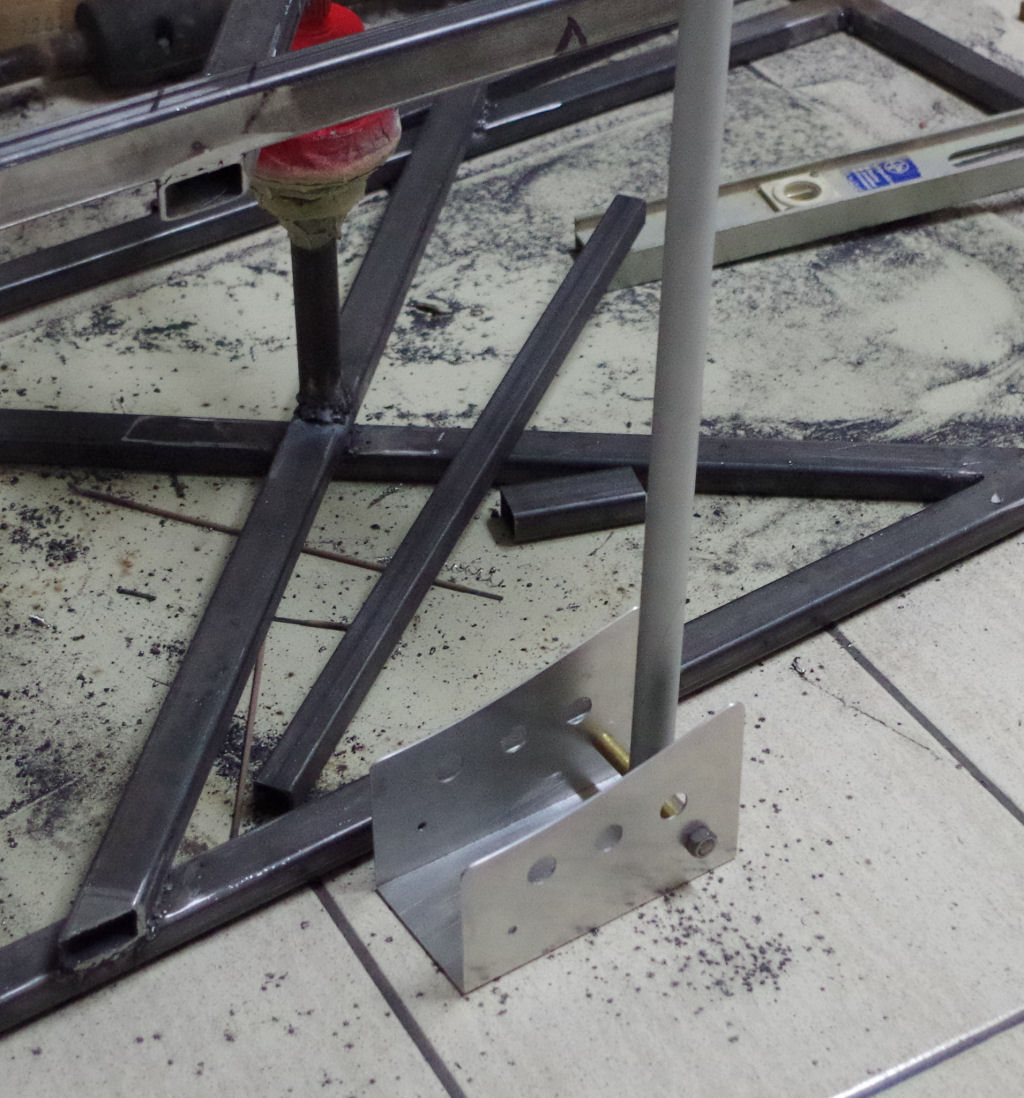

    last but not least we started to build a custom hand brake...
    [​IMG]

  13. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

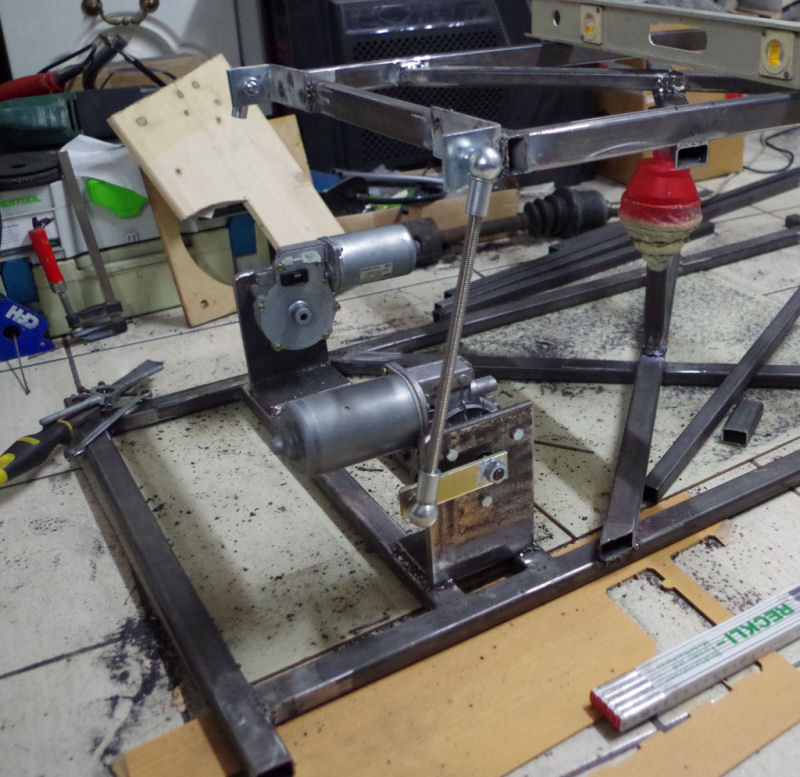

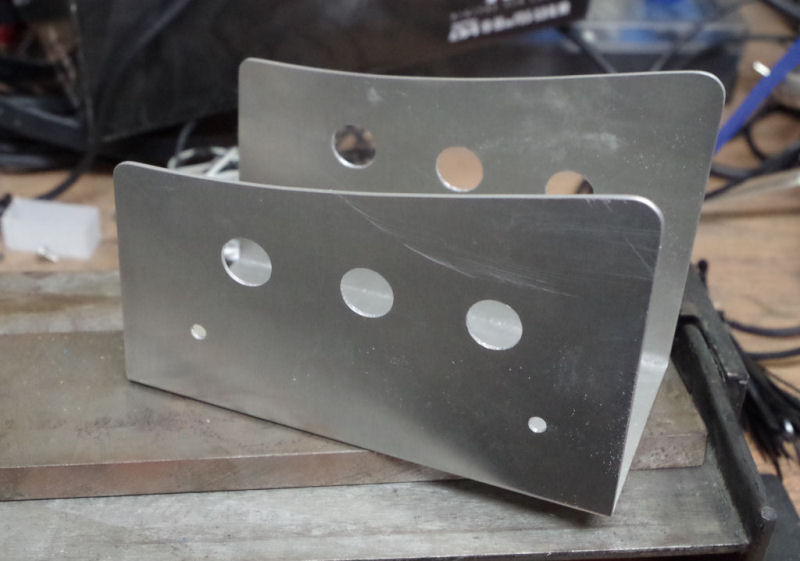

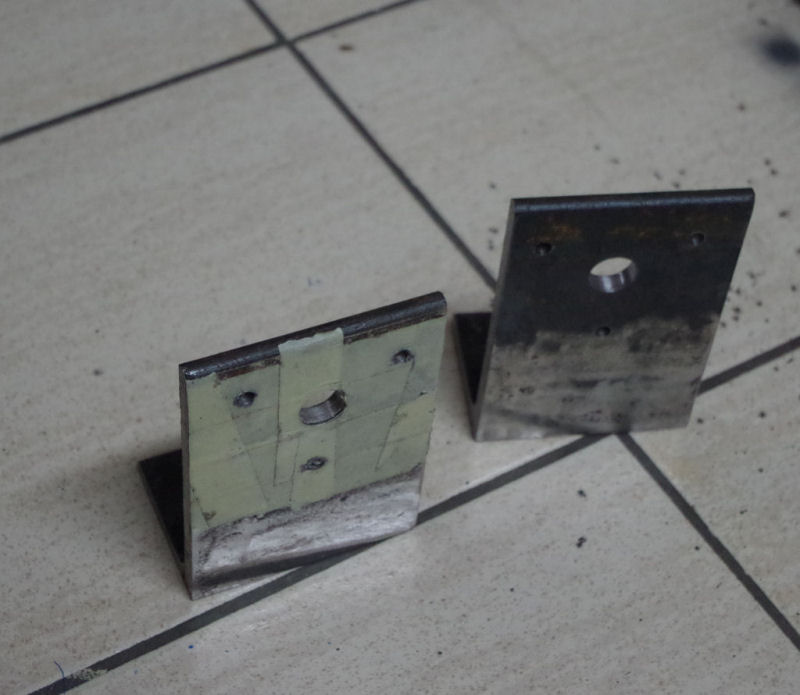

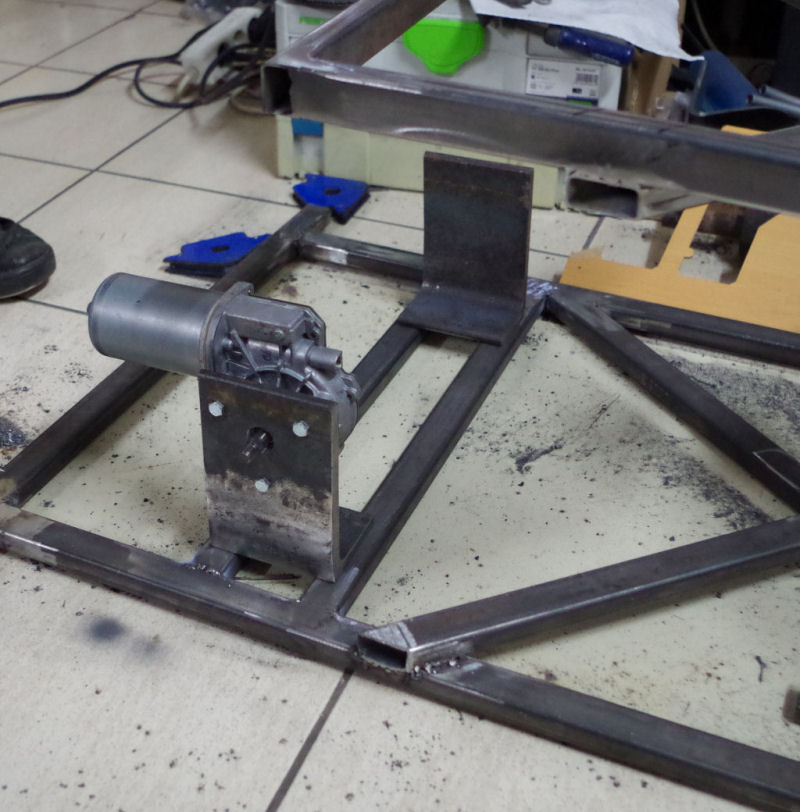

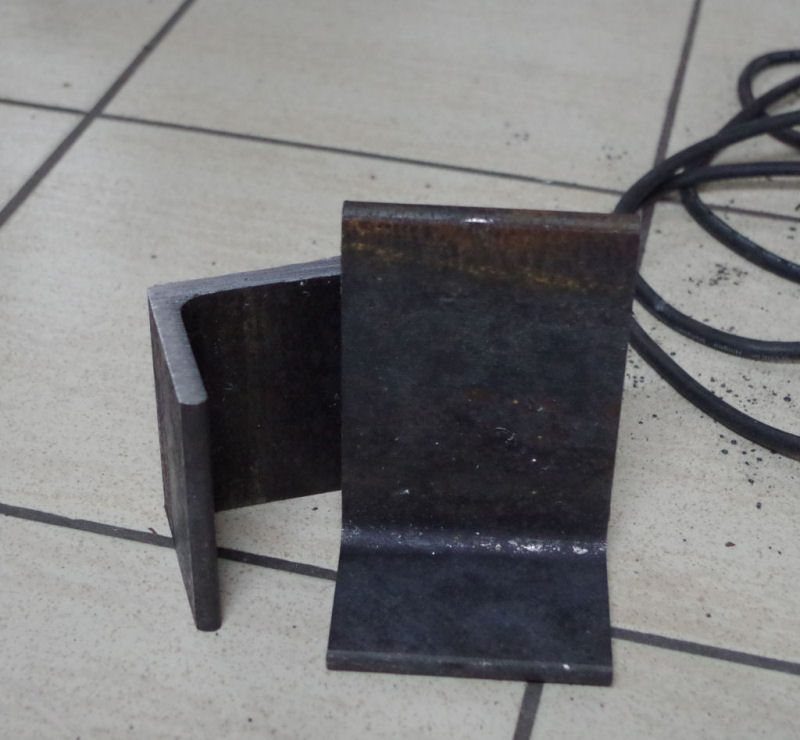

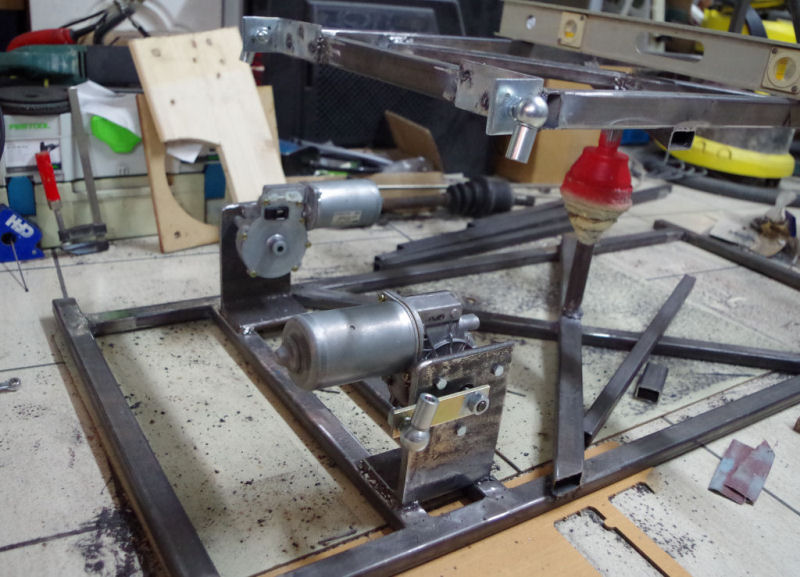

    In the last days we made some progress on this project....we attached the prepared Motor holders on the Baseframe....we also prepared the next mounting points on the upper frame...they will be used to connect the motors with the uper frame....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

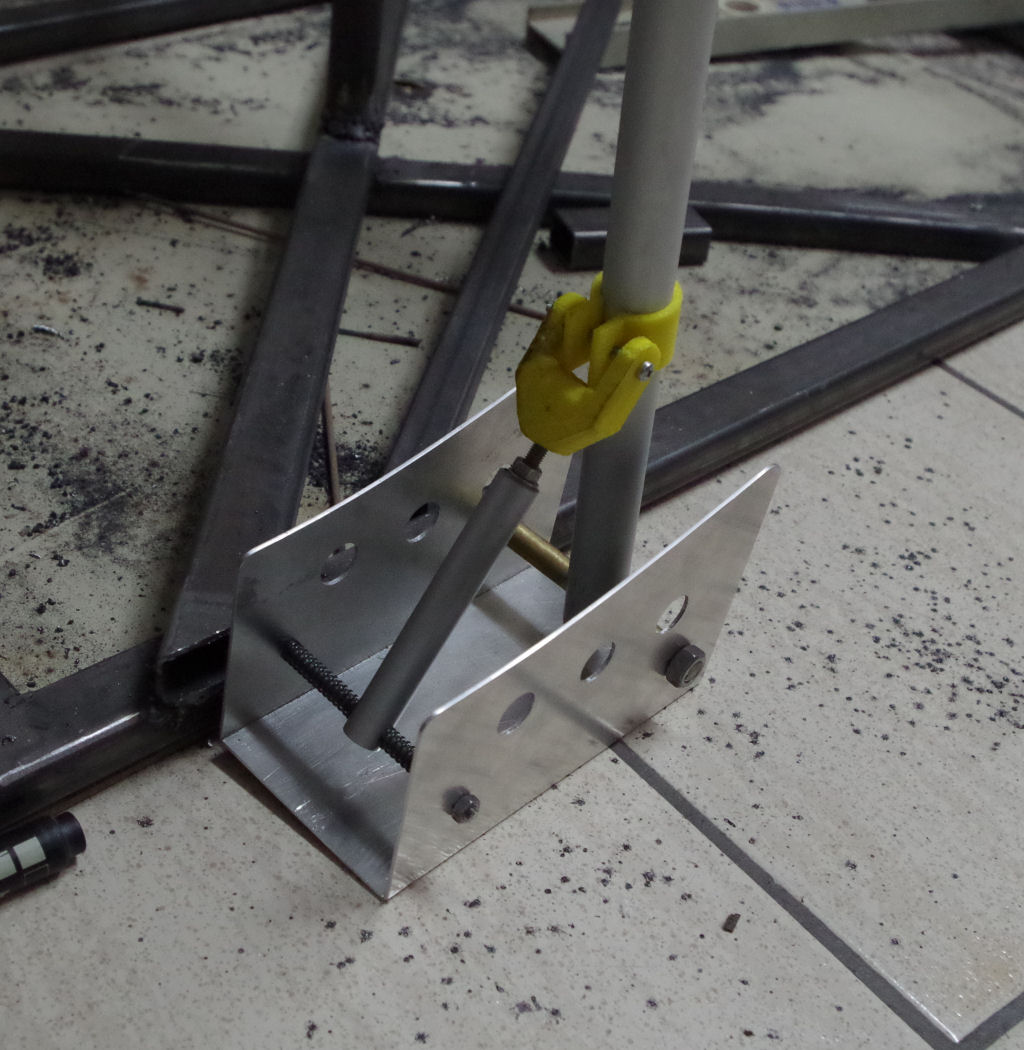

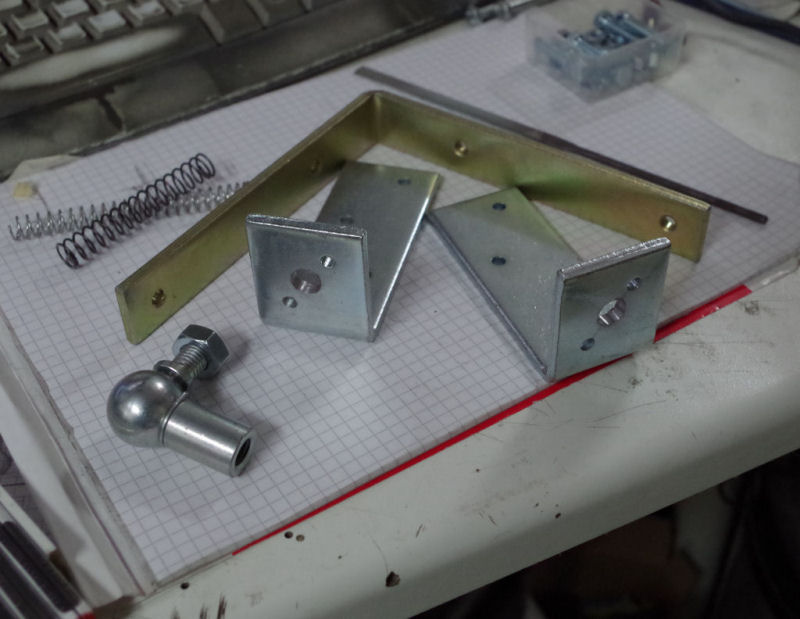

    Beside that we also made some progress on the Handbrake and it´s nearly done...just the electronic (switches etc.) are missing at the moment....
    [​IMG]
    [​IMG]
    [​IMG]

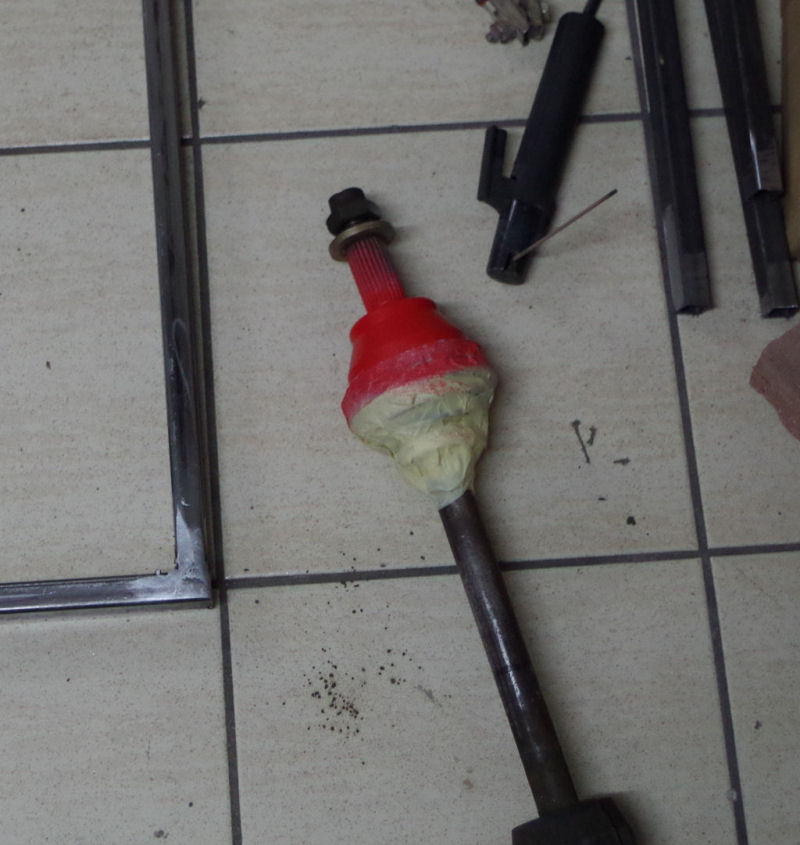

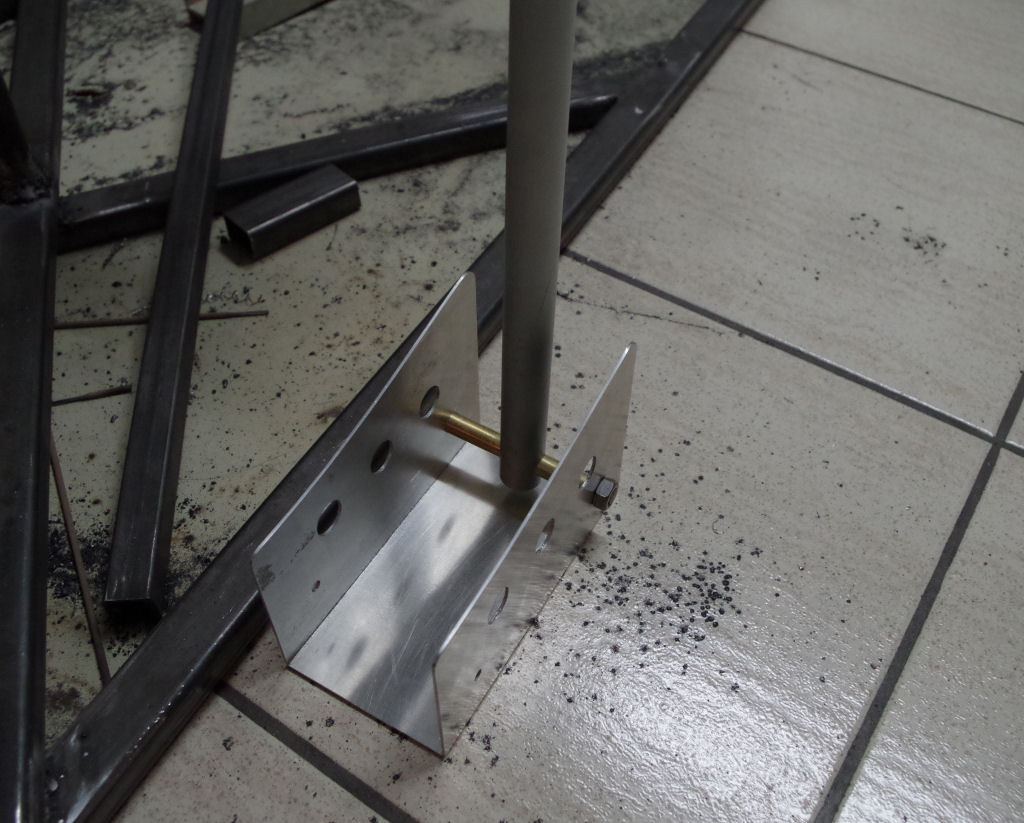

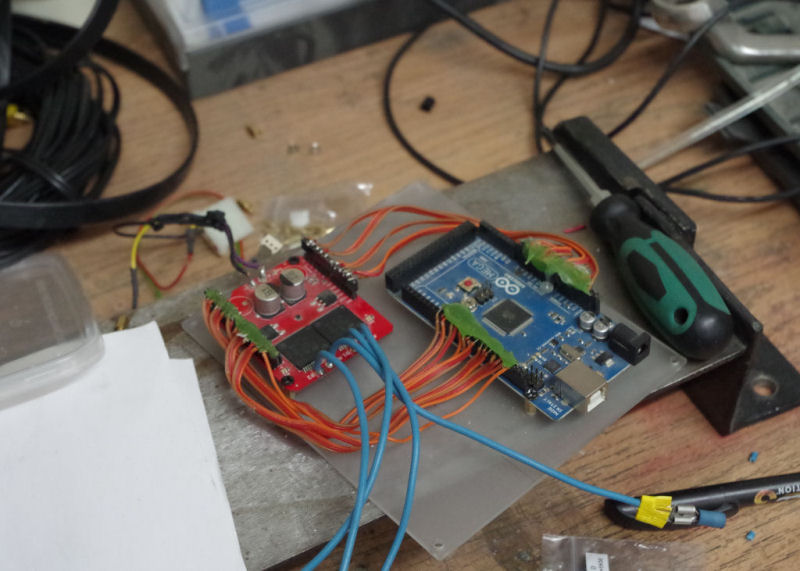

    We also drilled holes in both motor shafts so that we could fit in a screw which is attached to the potentiometers which will report the exact motor position to the electronics....

    [​IMG]

  14. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    Real sturdy base frame, nice work so far. :thumb:

  15. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,270
    Likes Received:
    1,204
    Is it too late to add an ejection feature?

  16. Pranja

    Pranja Blackwolf

    Joined:
    18 Dec 2011
    Posts:
    1,171
    Likes Received:
    24
    When I saw the name of project, I started thinking about MS1:

    [​IMG]

  17. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for the next small update on this project :clap:

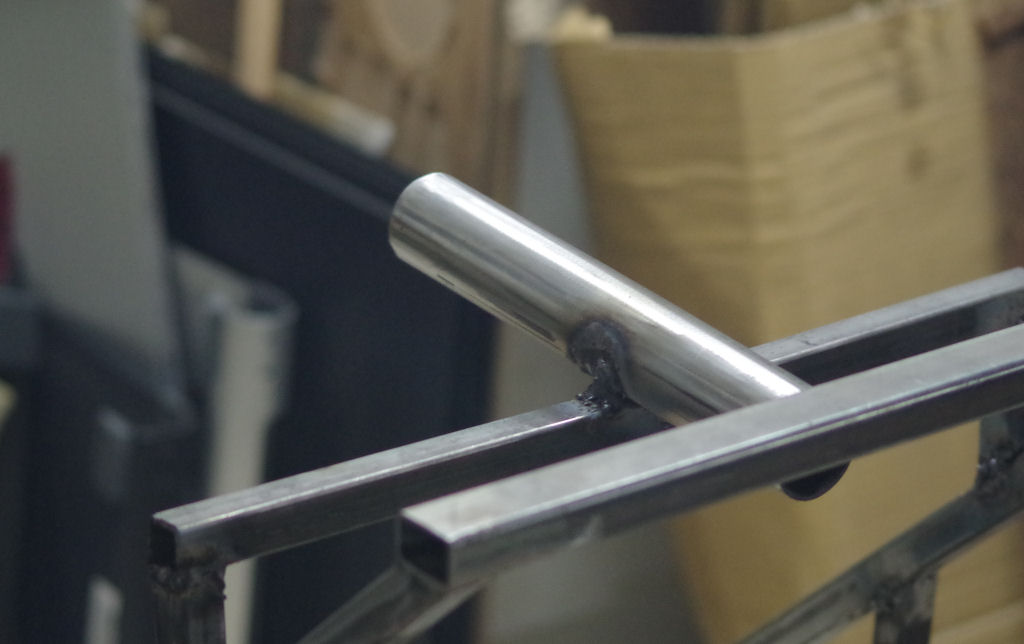

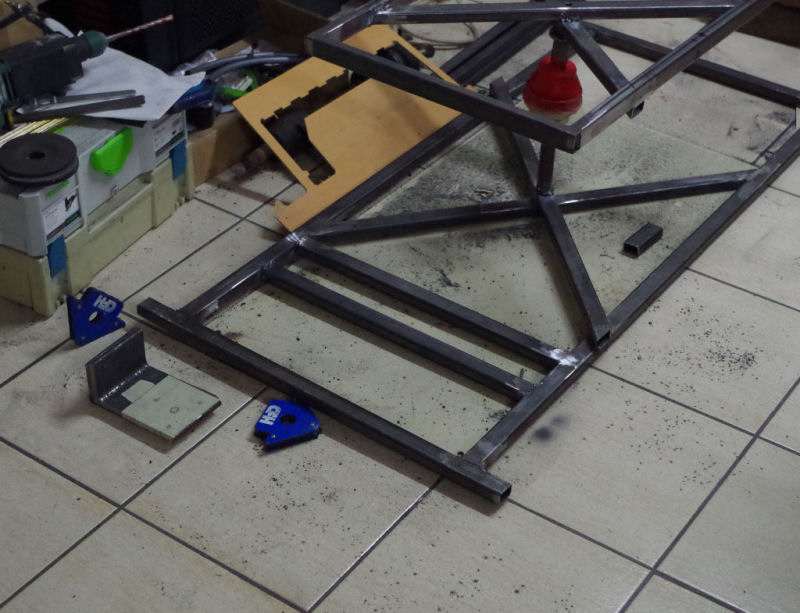

    in the last days we made a lot of small things, like drilling holes, cutting threads, welding small pieces on the center axes to prevent unwanted rotations. Beside that we also added a few more parts to the base frames so that we could mount the Steering wheel and also a bottom in the upper section.

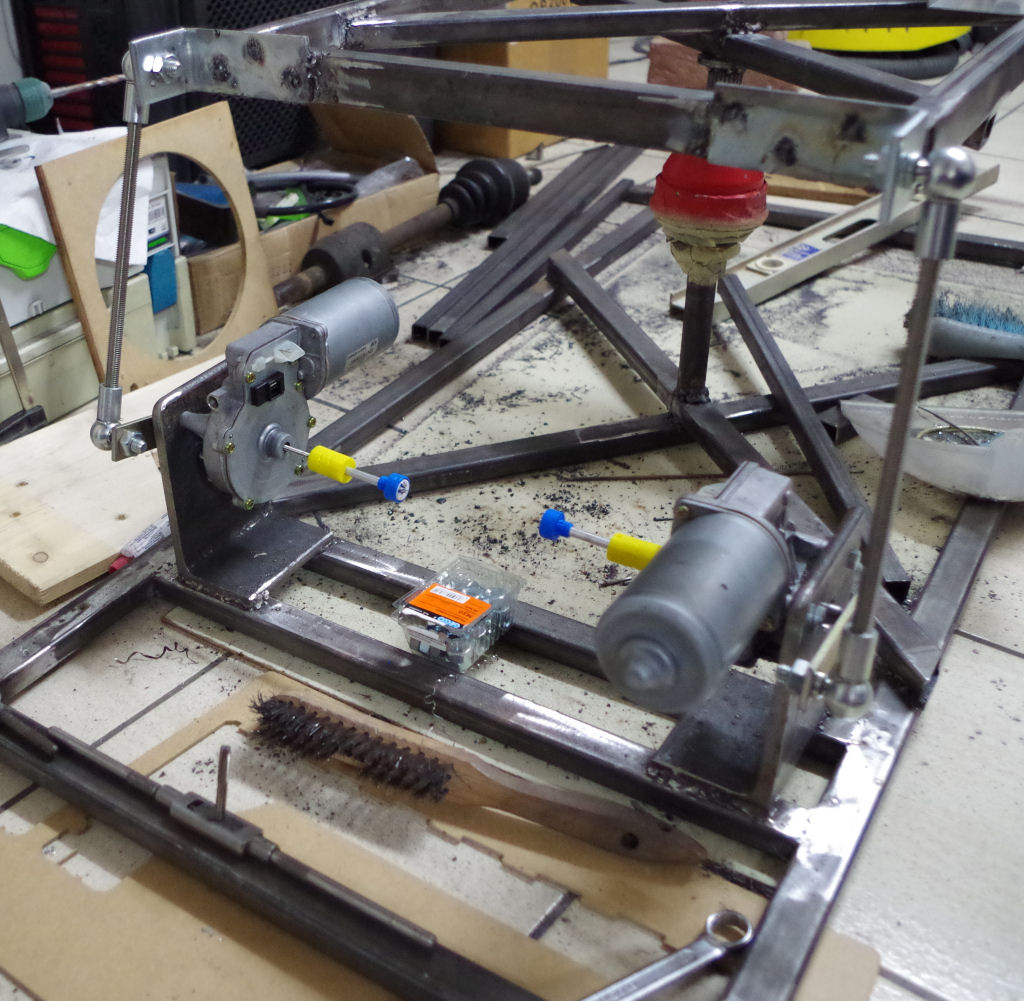

    Then we made a first Test with the motors....just to see if we have any problems with the movement...so that we could change it before we continue....but until now everything is fine....so i think we can continue with the next parts in the next days....:clap:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
