    thanks intel malaysia for the NUC hades canyon.
    Did this for event serverdna 3 puchong, Malaysia.

    this is biggest gamer gathering for malaysian.

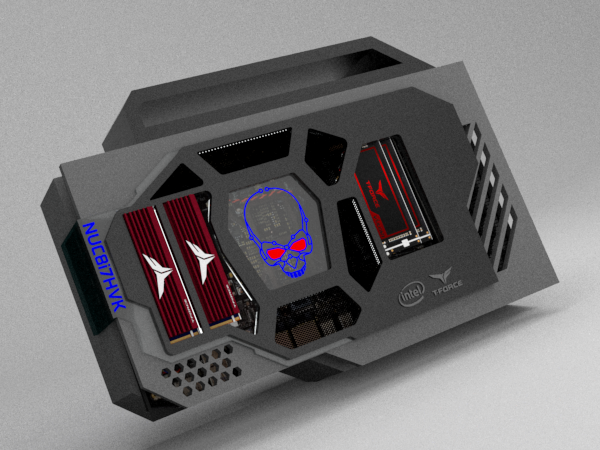

    would like to go for skull military theme
    with exposed on ssd and ram part. this could beauty if have m.2 heatsink.

    [​IMG]
    [​IMG]

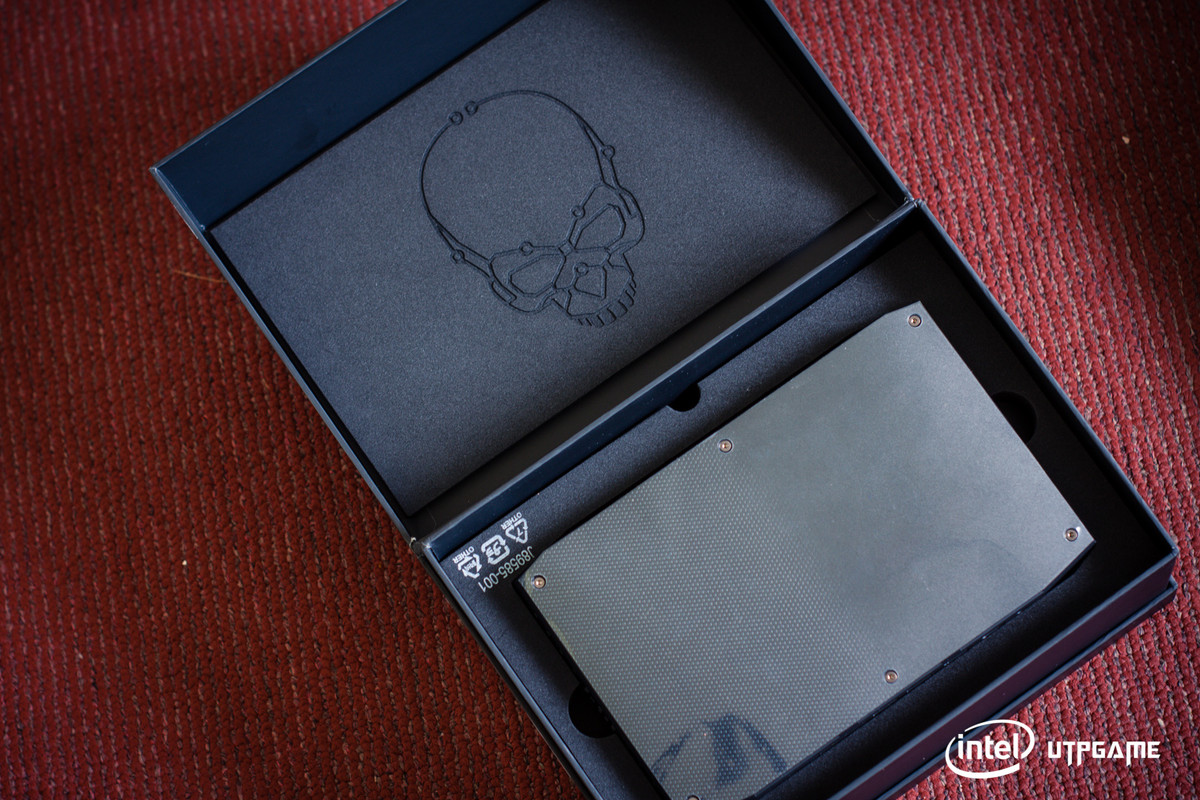

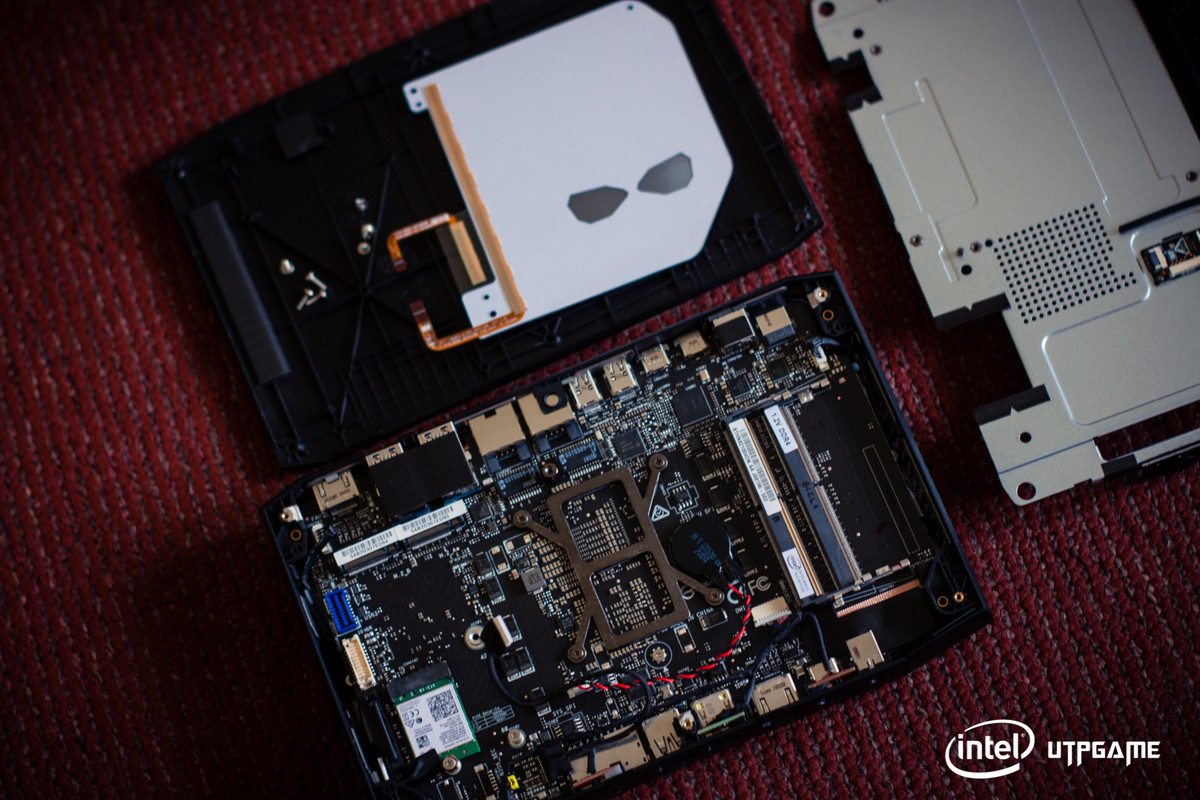

    Unbox pic below

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    the mosfet part covered with the heatsink.
    [​IMG]

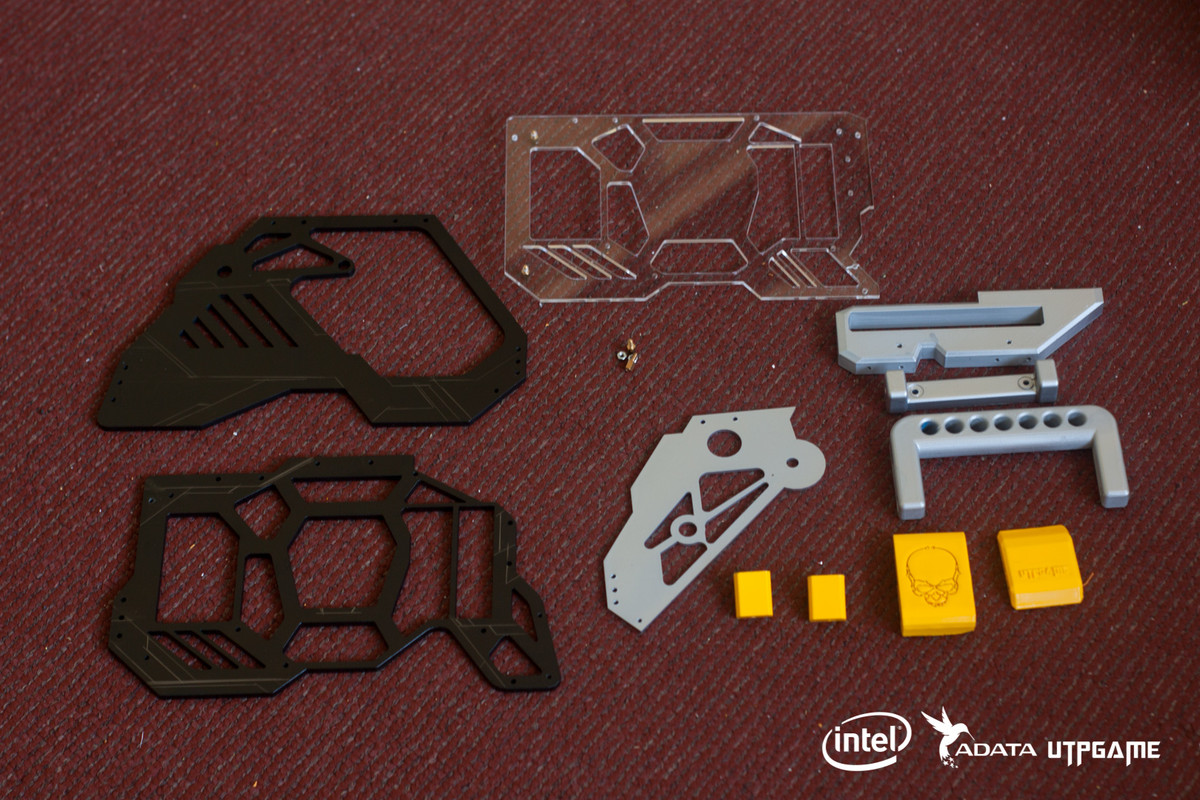

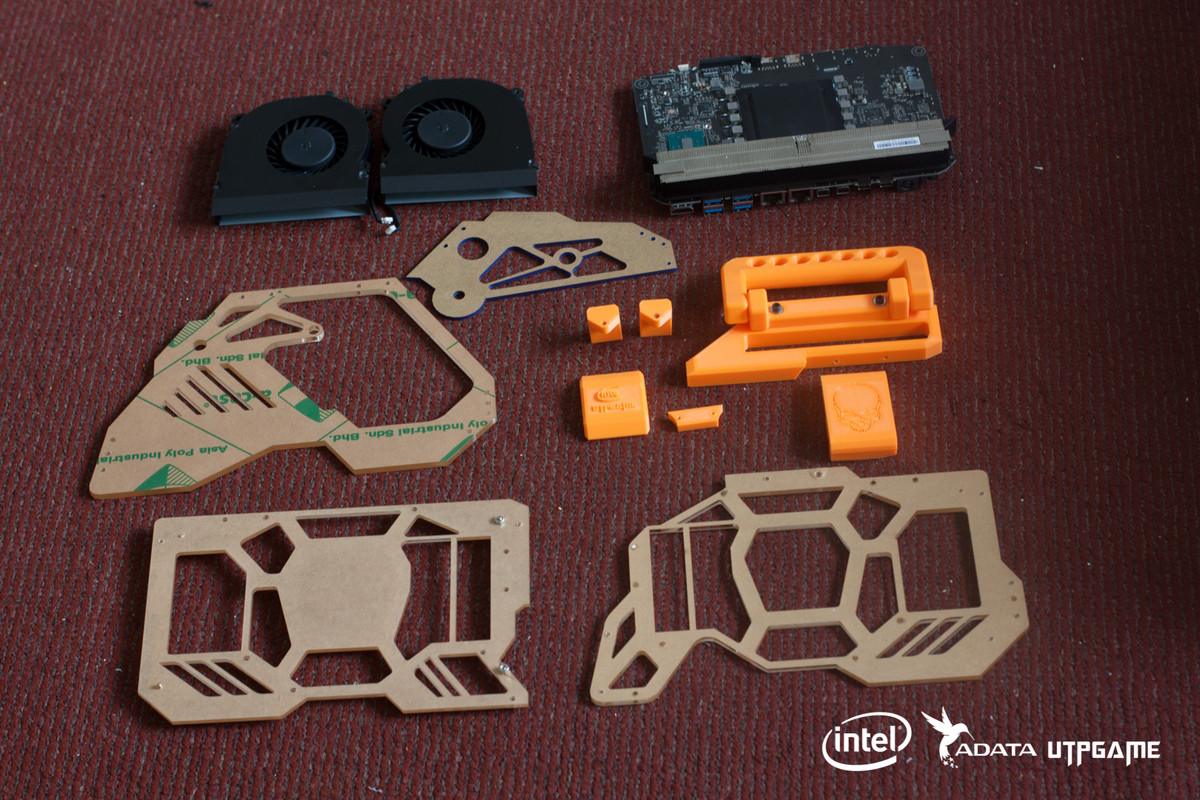

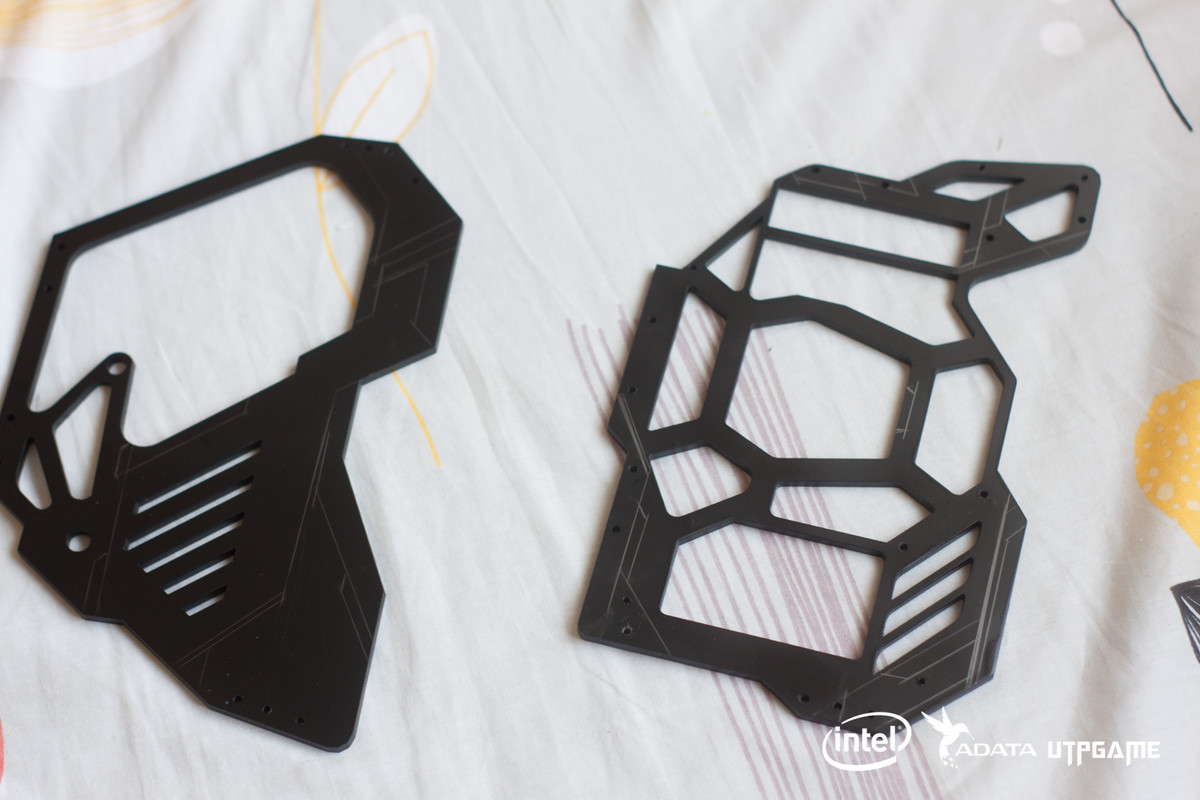

    from design and laser cut those part needed. I have a problem on color sheme.

    [​IMG][​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

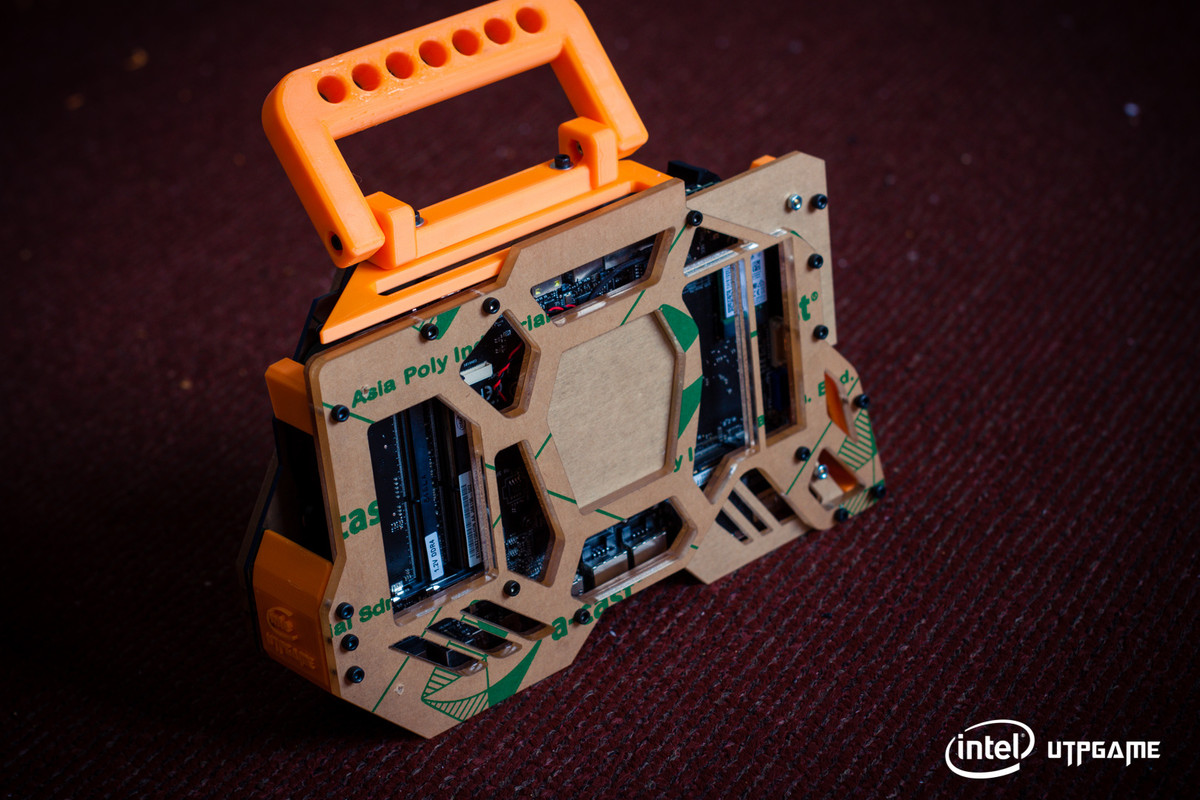

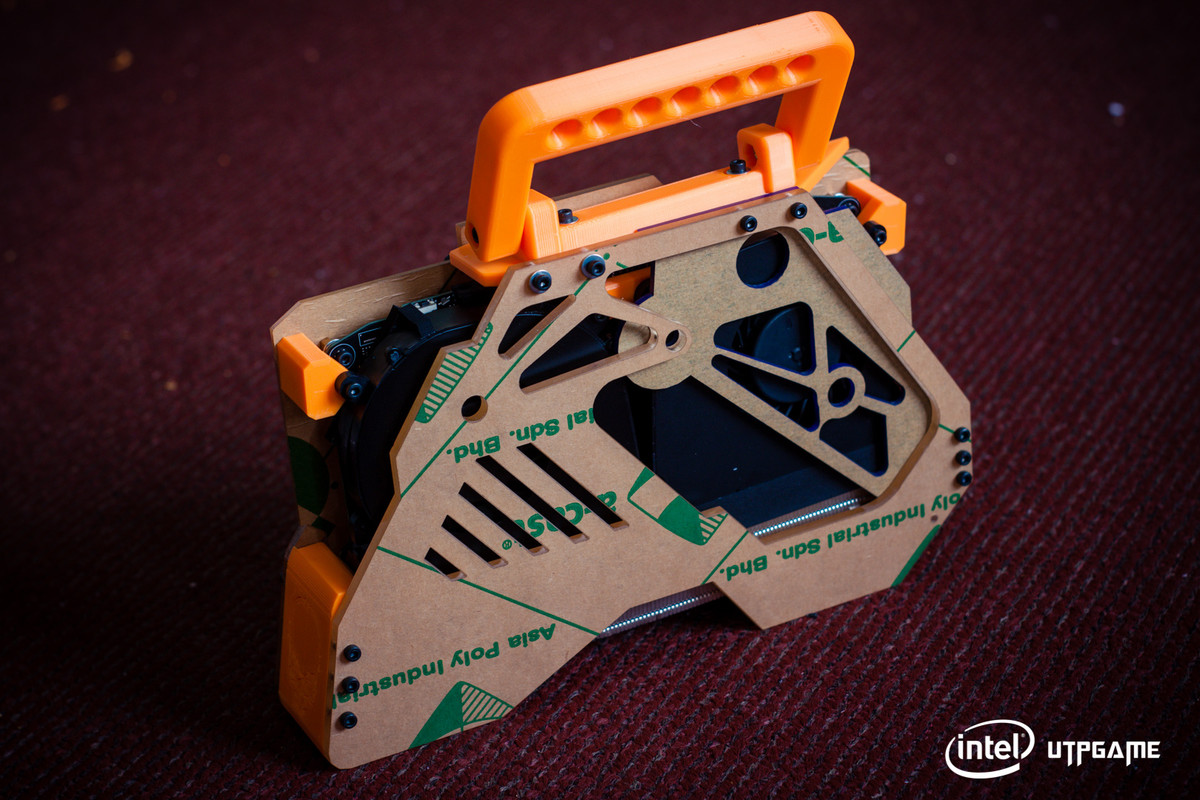

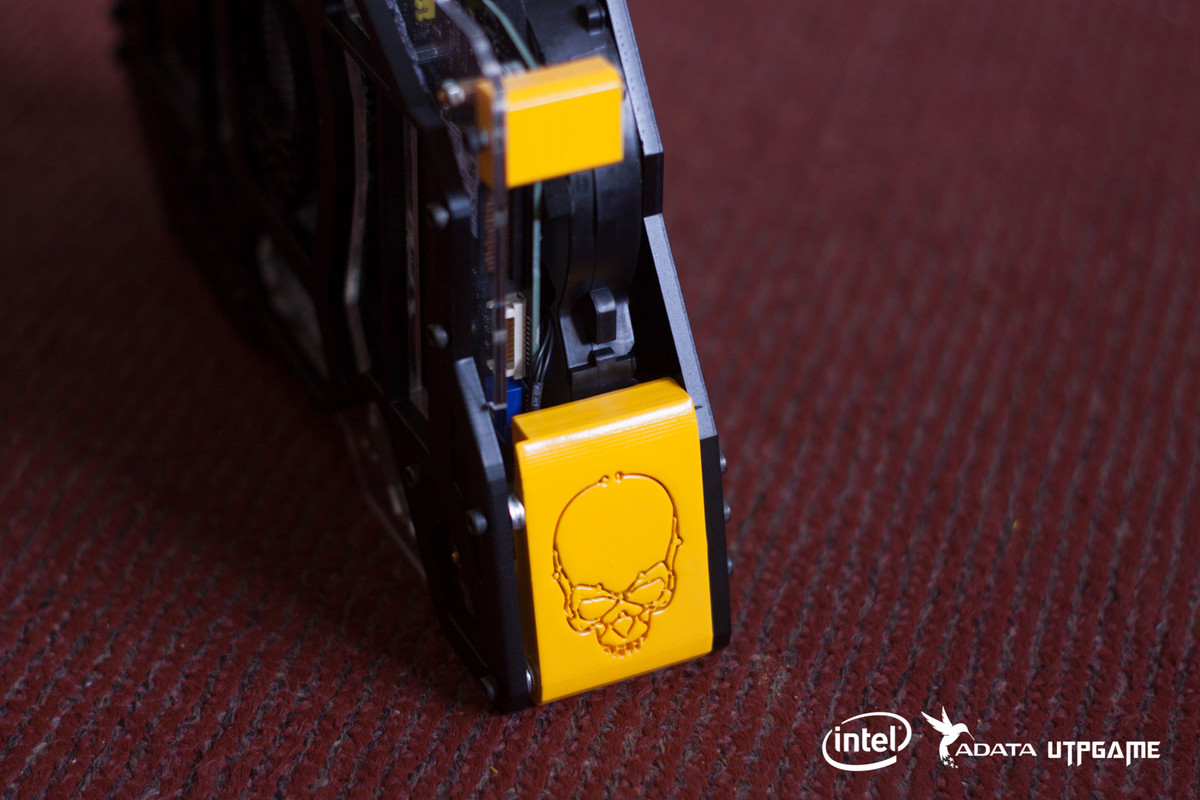

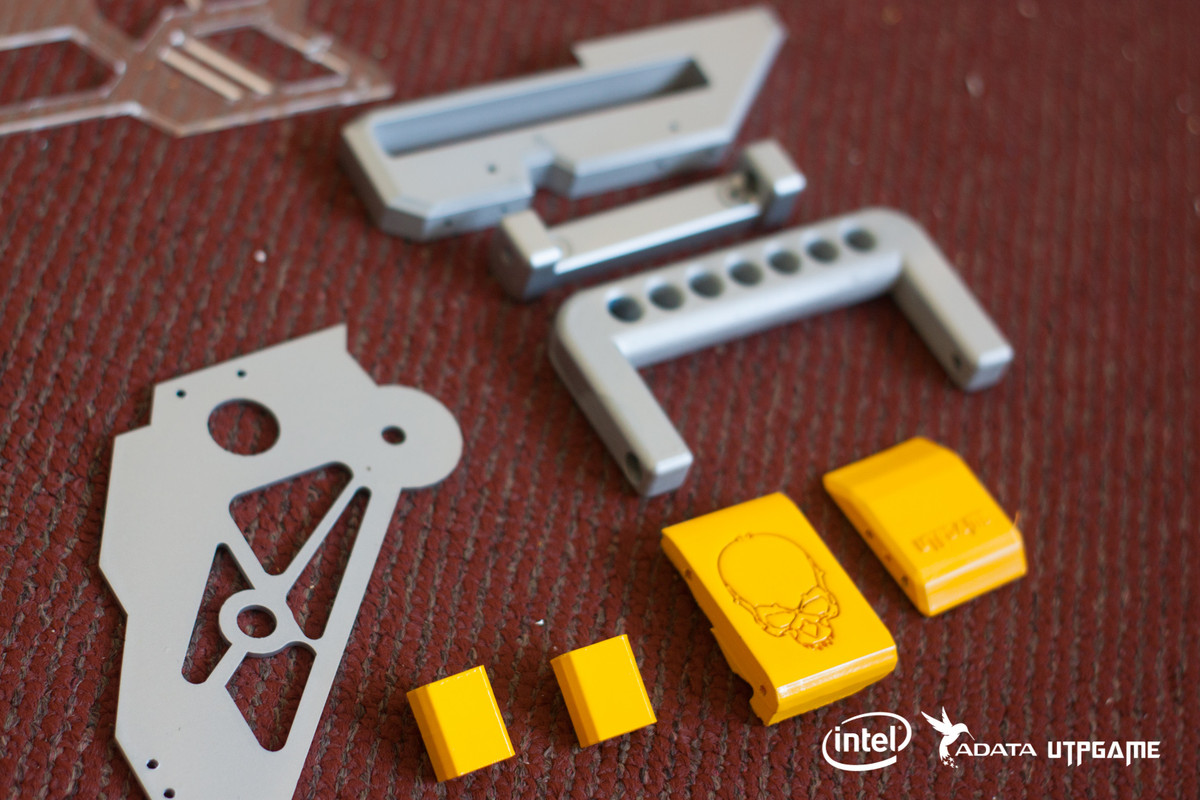

    have go for blue color to match the intel color. last i took silver consider as safe color because running out of time 2 days left . below us 3d printed part
    [​IMG]
    [​IMG]

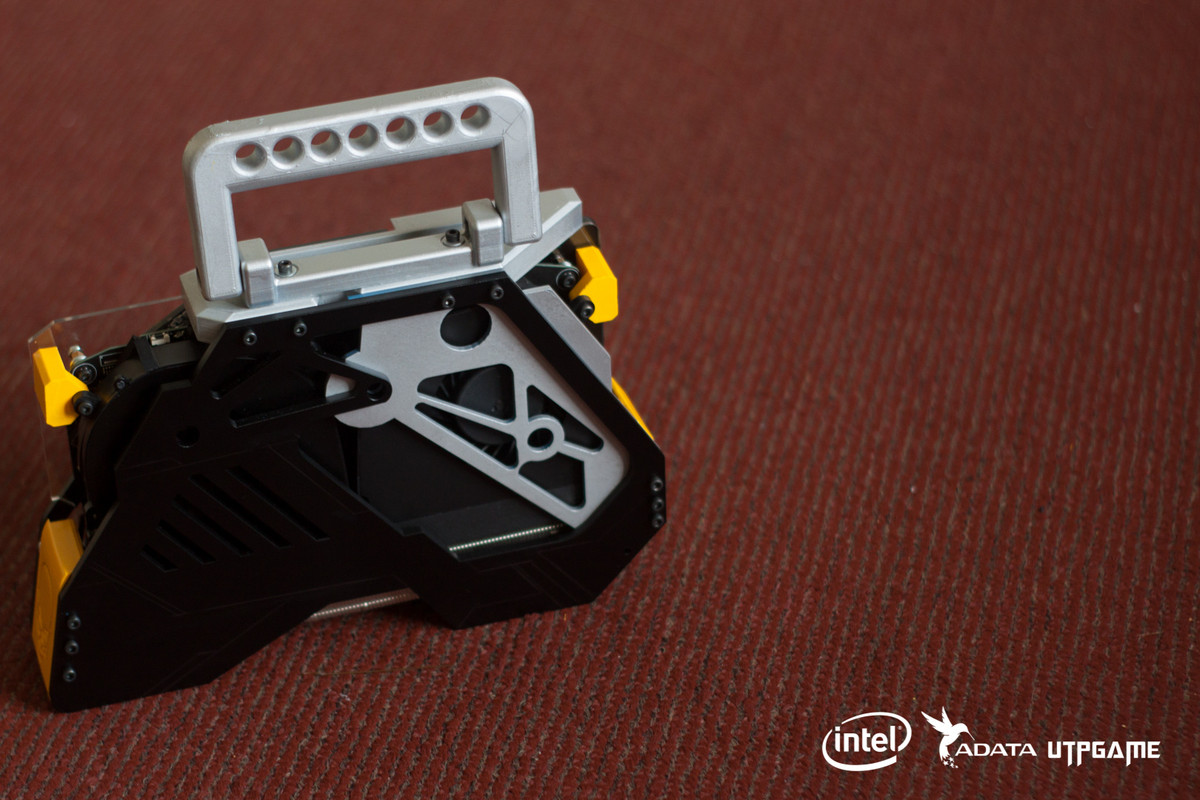

    it size of handbag briefcase
    [​IMG]

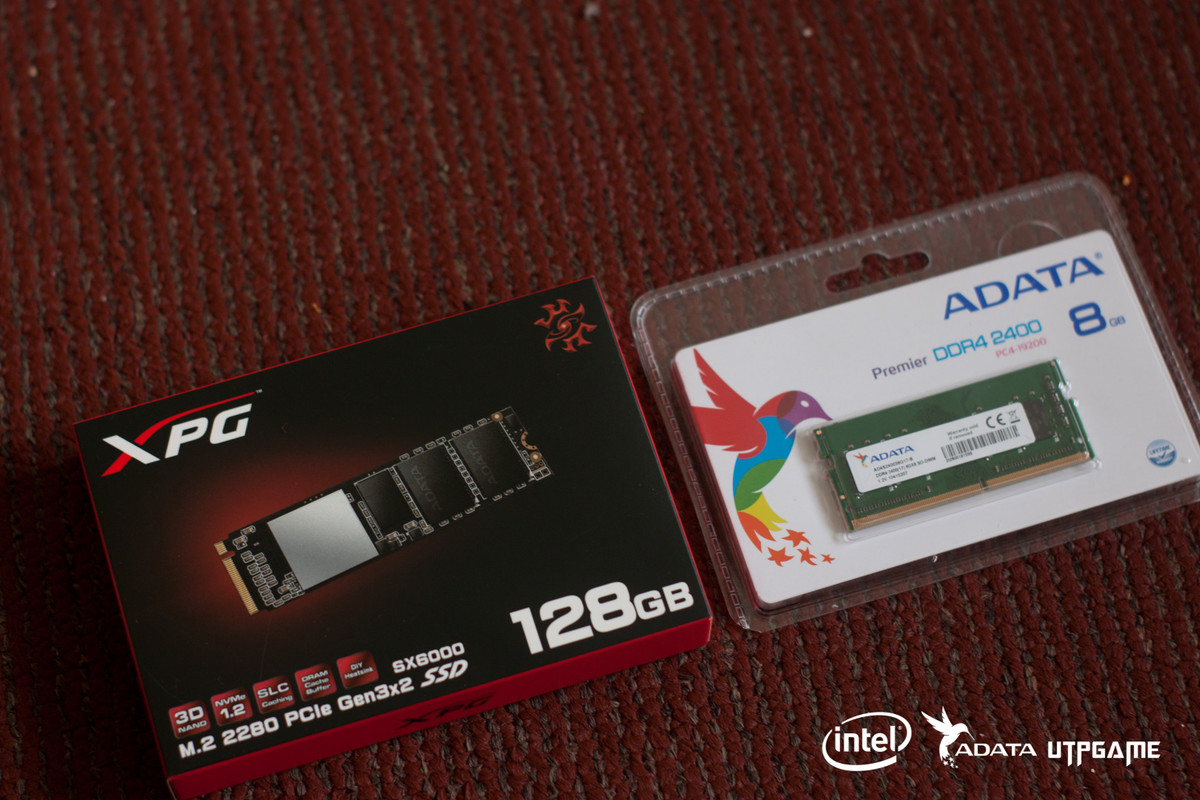

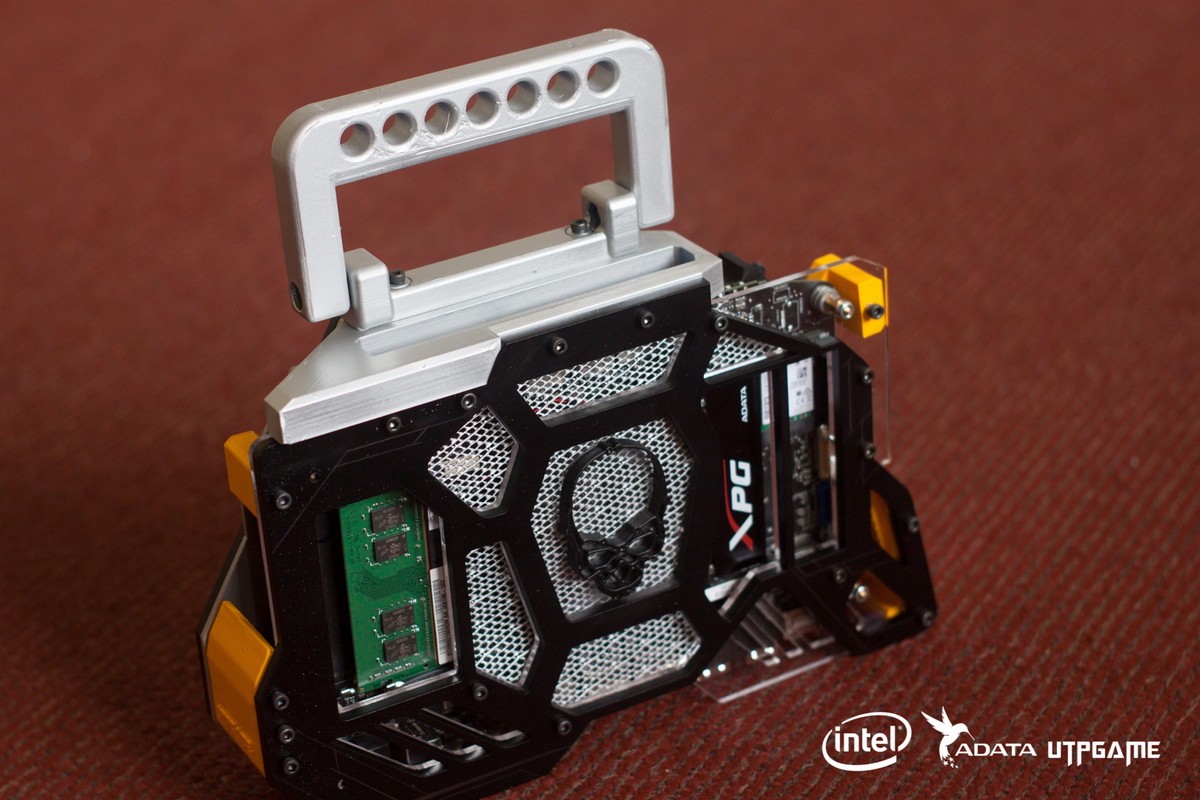

    thanks adata for last minutes sponsor. at least i can switch on display on NUC
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

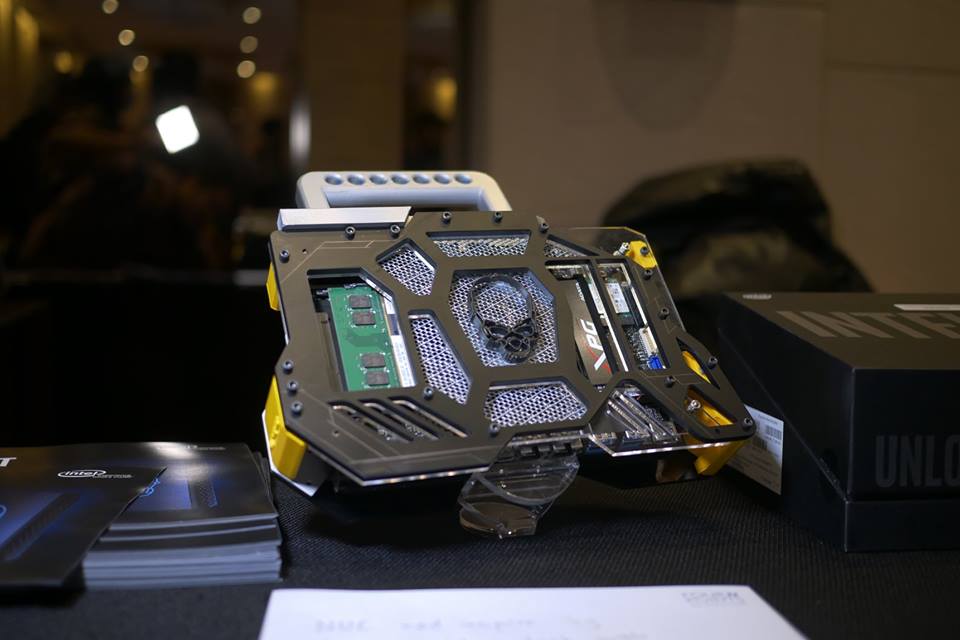

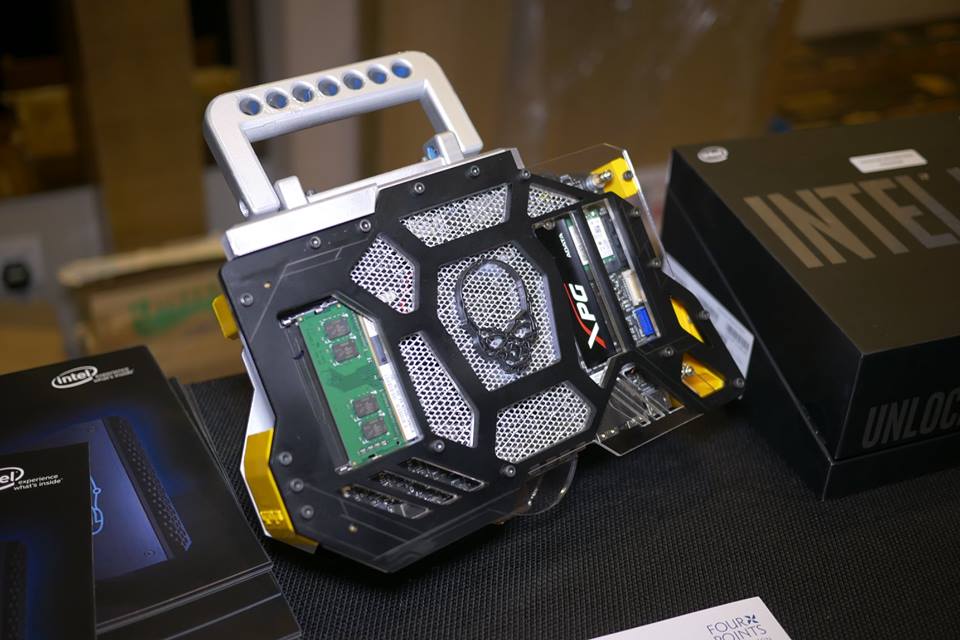

    during event picture
    (credit to some of my friend for picture)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Yaka and kim like this.
  2. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,769
    Likes Received:
    843
    That came out great. :D
    Intel finally gave up on the 10cm form factor I guess?

  3. zulboy45

    zulboy45 Member

    Joined:
    17 May 2018
    Posts:
    67
    Likes Received:
    15
    it need more. the vega and mosfet it self is partial of pcb i guess. haha

  4. HCMOD

    HCMOD Member

    Joined:
    16 Aug 2018
    Posts:
    34
    Likes Received:
    14
    the color combination is a bit off. but i believe this will be stunning work with match color correctly

  5. kim

    kim hardware addict

    Joined:
    10 Jan 2016
    Posts:
    712
    Likes Received:
    278
    :jawdrop:wahoo, I missed that one...great design :thumb:, awesome

    zulboy45 likes this.
  6. zulboy45

    zulboy45 Member

    Joined:
    17 May 2018
    Posts:
    67
    Likes Received:
    15
    a match high performance ram with heat sink and m2 heatsink you be lovely. i will repaint this in future.
