    Day 2 in the workshop of my university

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Stay tuned...

  2. Impatience

    Impatience Minimodder

    Joined:
    6 Apr 2014
    Posts:
    1,221
    Likes Received:
    34
    Awesome project! I'm looking forward to seeing how it turned out!

  3. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Thanks! I hope you gonna love it! :thumb:

    Day 3 in the workshop of my university

    And finally the CNC cut the 10mm thick parts:

    [​IMG]
    [​IMG]
    [​IMG]

    As you can see it wasn't sharp :?

    Stay tuned...

  4. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 4 (and last) in the workshop of my university

    I think I didn't mentioned that two piece of O.A.C will made. One for me, and one for my godfather. When he saw the renders he ordered one right away.

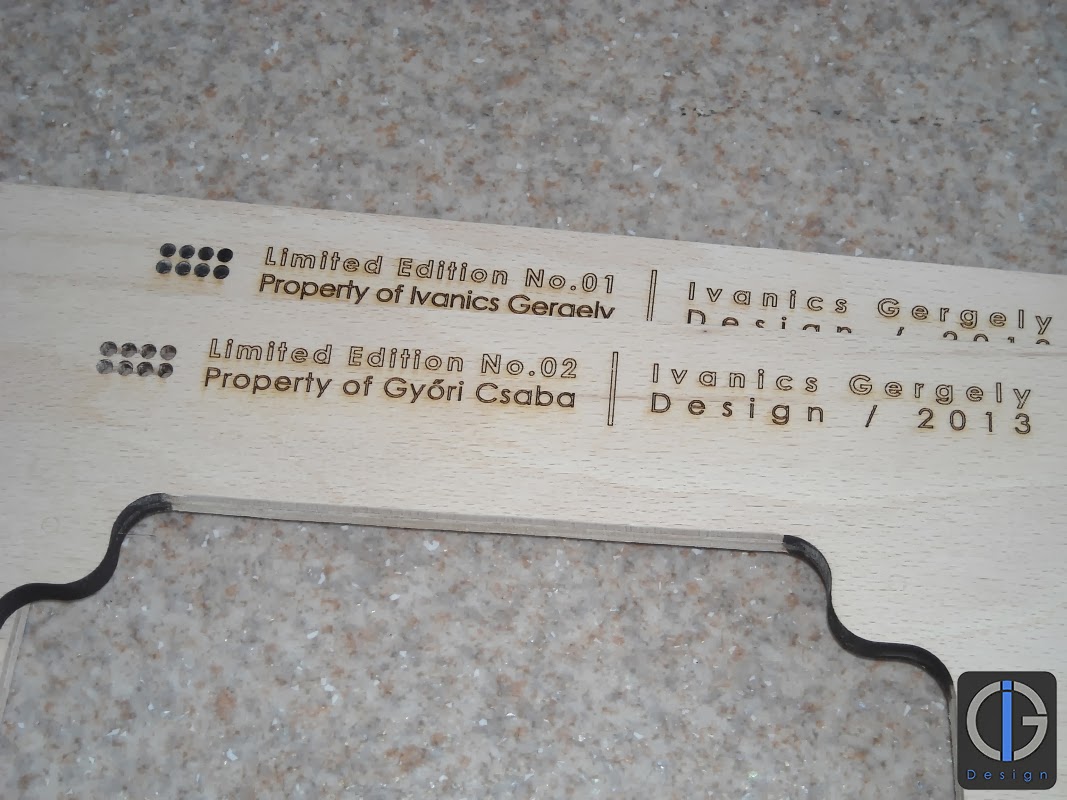

    So I thought it would be nice to make it special for him... let's engrave his name on it:

    [​IMG]
    [​IMG]

    An another interesting thing is that his O.A.C's hardwers will be different.

    Let's see some setups with my old motherboard (It died 6-7months ago :( ):
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    At last the new IO panel... which now fit in perfectly.
    [​IMG]
    [​IMG]
    [​IMG]
    (My old CM Elite 331 in the right)

    Stay tuned... next time I will bring the hole thing to home... my father workshop is the best! ;)

  5. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3

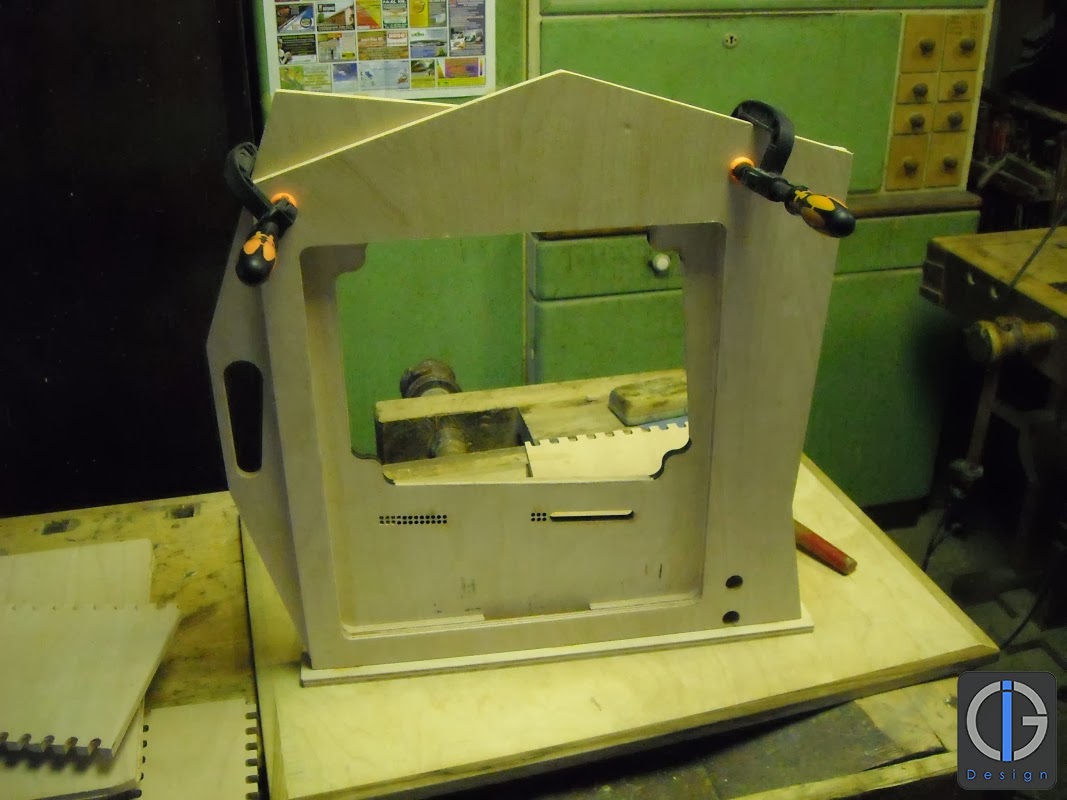

    Day 5 (and the first) in my father's workshop... home sweet home :D

    Let's clean off.
    [​IMG]
    Before/After
    [​IMG]
    [​IMG]
    [​IMG]

    How to make an "almost hole" to a hole XD
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    An another CNC work...
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Testing...
    [​IMG]

    R3 :arrow: R0
    [​IMG]
    [​IMG]

    Aaaaand:
    [​IMG]
    [​IMG]
    [​IMG]

    Make the lines to straight:
    [​IMG]
    [​IMG]

    That's all folks!

    Stay tuned...

  6. Razer2007

    Razer2007 Building Proxima

    Joined:
    18 Jul 2010
    Posts:
    1,212
    Likes Received:
    33
    Looks good. How will you refine and smoothen the edges?

  7. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    With sandpaper... it's gonna be sharpy but you can't cut yourseft with it.

    Day 6 in my father's workshop

    The most beautiful thing in joinery is the burnishing... and the best part of it It's never ends :D
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    When you burnishing and if you think it's smooth enough... wipe the wood's surface with wet clout:
    [​IMG]
    [​IMG]
    [​IMG]
    Then do the burnishing again :D

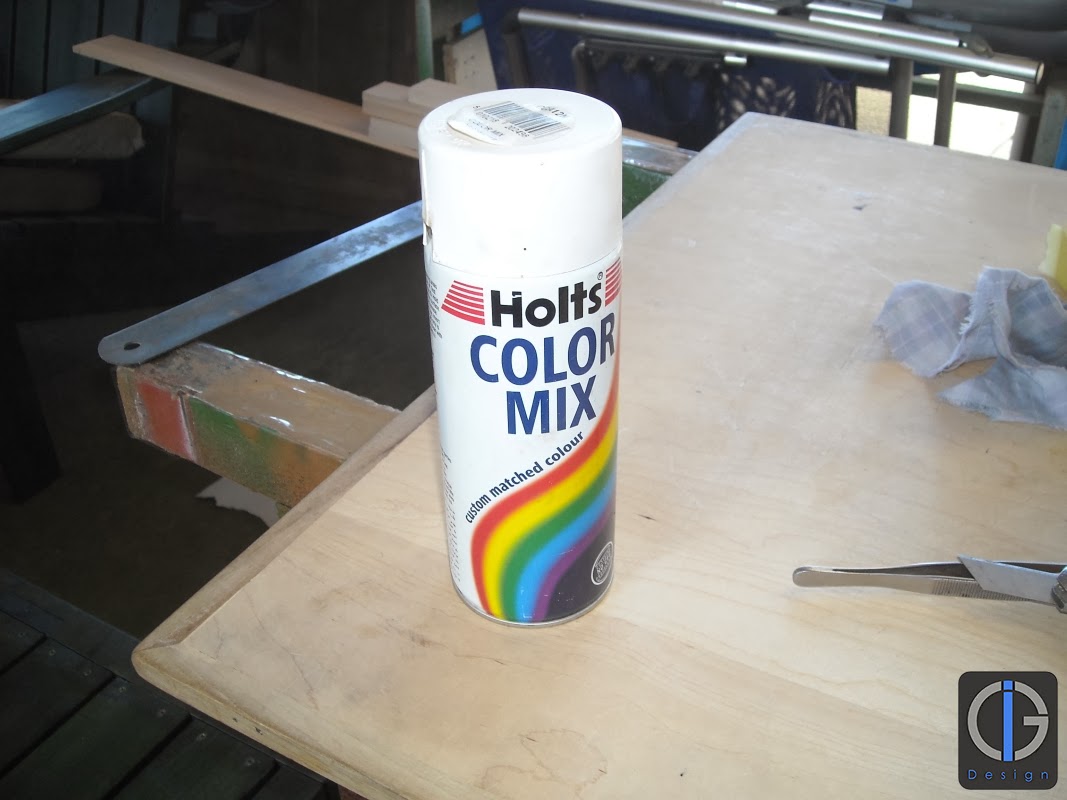

    Let's paint it:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Many-many thanks to my friend Borbély Péter for the oil. It just look shine ;)

    Stay tuned...

  8. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 7 in my father's workshop

    I think these two colors match just fine 8)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    The new technic to make the R3 to R0 :D
    [​IMG]
    [​IMG]

    Optical drive in the place:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Stay tuned...

  9. JD Design

    JD Design What's a Dremel?

    Joined:
    13 Feb 2014
    Posts:
    33
    Likes Received:
    0
    :jawdrop: this is a very nice project

  10. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Thank you!

    Day 8 in my father's workshop

    Just a little work...

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  11. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 9 in my father's workshop

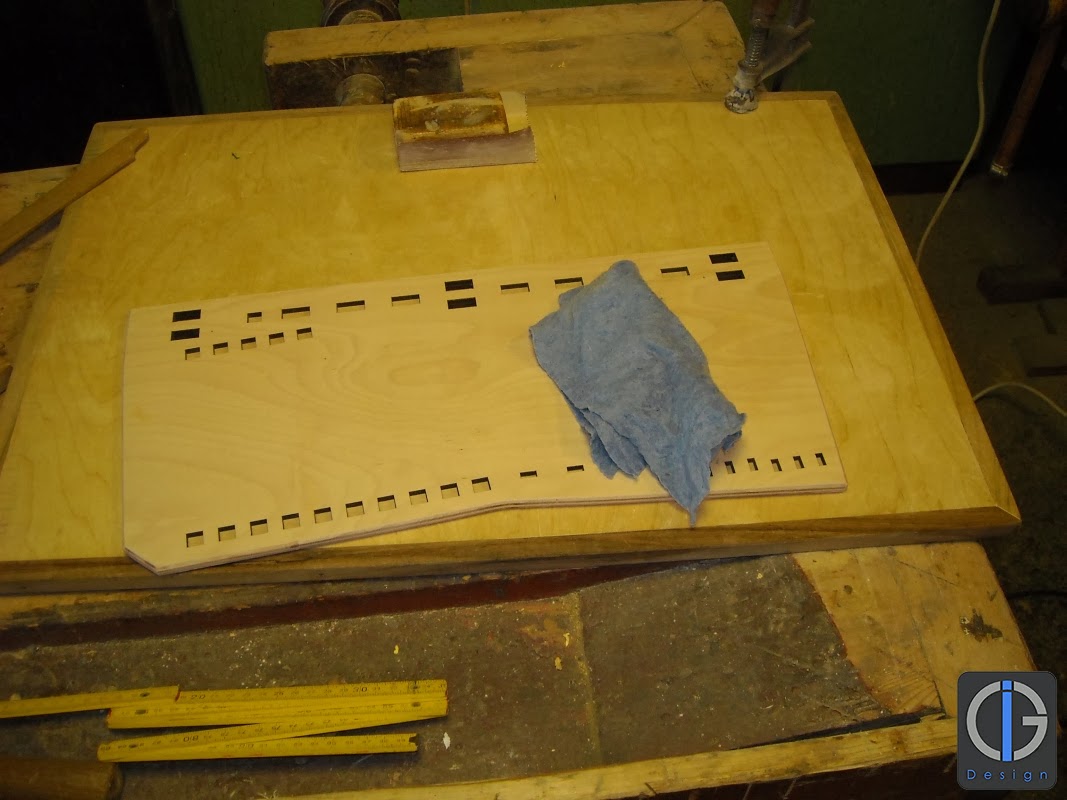

    Today I had just worked on the motherboard tray:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    This is the second layer:
    [​IMG]

    Stay tuned...

  12. Razer2007

    Razer2007 Building Proxima

    Joined:
    18 Jul 2010
    Posts:
    1,212
    Likes Received:
    33
    Looks very classy. Thought it's going to be painted.

  13. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 10 in my father's workshop

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Stay tuned...

  14. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 11 in my father's workshop

    Finally all PSU cover parts is cut off. 8)
    [​IMG]
    [​IMG]
    [​IMG]

    Stay tuned...

  15. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 12 in my father's workshop

    Power supply cover checking:
    [​IMG]
    (My father is working on something at the top of the pic :) )
    [​IMG]
    [​IMG]
    Parts:
    [​IMG]

    PCI slots cover checking:
    [​IMG]
    [​IMG]
    [​IMG]

    The O.A.C gets shape...
    [​IMG]
    [​IMG]
    [​IMG]

    Let's put a PSU into the O.A.C:
    [​IMG]
    [​IMG]
    The PSU fits into its place precisely :bounce:
    [​IMG]
    [​IMG]
    [​IMG]
    The fan (the missing fan) is in the right space...
    [​IMG]
    [​IMG]
    [​IMG]

    Stay tuned...

  16. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 13 in my father's workshop

    An another surface treatment:
    [​IMG]
    [​IMG]
    [​IMG]

    BIG thanks to my dad for he sacrificed the handles for a greater good. :mrgreen:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Sweet... :D
    [​IMG]

    Stay tuned...

  17. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 14 in my father's workshop

    Surface treatment: the second layer is on!
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Before every oil layer there was a burnishing by hand. :)

    Stay tuned...

  18. IVANICS Design

    IVANICS Design What's a Dremel?

    Joined:
    10 Feb 2014
    Posts:
    46
    Likes Received:
    3
    Day 15 in my father's workshop

    My old FSP in pieces:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Cable sleeving... this new for me... I've never ever sleeved. Let's try it! 8)
    The two main color:
    [​IMG]
    It's gonna be an extension cord:
    [​IMG]
    [​IMG]
    I haven't got any professional tools for this work...
    [​IMG]
    [​IMG]

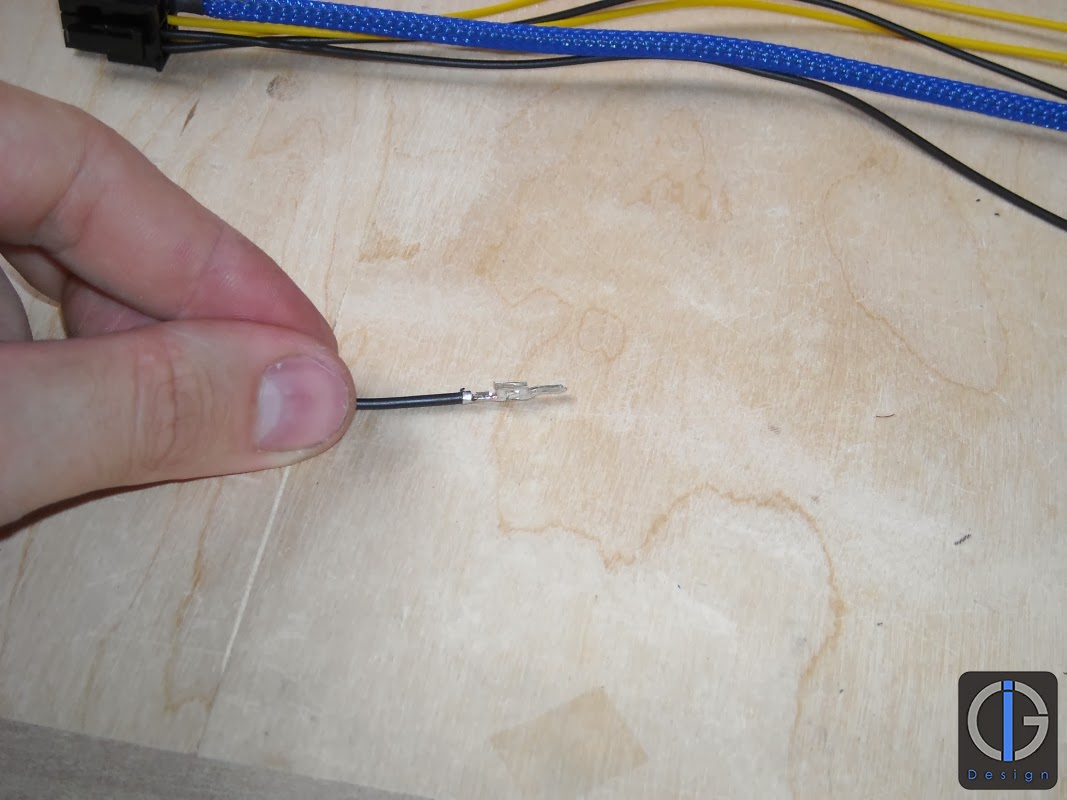

    So the extension cords came from an old PSU... there are pins at one end at least:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    It doesn't look good... at all... next time I'll be more careful!
    [​IMG]

    Stay tuned... and wish me luck :D
