Case Mod - In Progress -----'PARVUM MATE'-----

Discussion in 'Project Logs' started by imersa, 29 Nov 2014.

  1. SiZZiGY

    SiZZiGY Nano Evolution in progress...

    Joined:
    11 Oct 2013
    Posts:
    58
    Likes Received:
    2
    Maybe because it is just at "3d model" step and people wait to see this wonderfull waterblock trough real pics :p

    Anyway, the premium quality of materials give a very clean build thats very nice. I like more "fantasy" projects and i'm waiting maybe this fabulous waterblock to really appreciate this mod. But it's already nice job :)

  2. RooiDuiwel

    RooiDuiwel Member

    Joined:
    20 Sep 2009
    Posts:
    52
    Likes Received:
    4
    can you say PARVUM COMPLETE SYSTEM MONOBLOCK v1.0

  3. imersa

    imersa Parvum Princess

    Joined:
    9 Apr 2009
    Posts:
    1,792
    Likes Received:
    89
    It's not just a 3D model any more ^.^

  4. SiZZiGY

    SiZZiGY Nano Evolution in progress...

    Joined:
    11 Oct 2013
    Posts:
    58
    Likes Received:
    2
    :clap::clap::clap:

    Still waiting pics :blush:

  5. JR23

    JR23 Member

    Joined:
    29 Oct 2014
    Posts:
    104
    Likes Received:
    9
    [​IMG]

    The wait is over.

    [​IMG]

    Houston we have touch down...

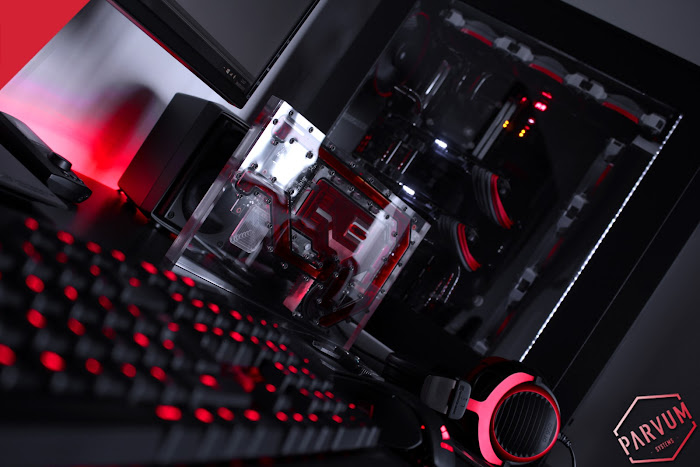

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Just when you thought it was over...

    [​IMG]

    ...the boys only went and cut the loop into the same block of acrylic.

    [​IMG]

    [​IMG]

    [​IMG]

    I can't add words to this!

    JR​

  6. storm-83

    storm-83 Member

    Joined:
    7 Nov 2014
    Posts:
    452
    Likes Received:
    14
    words alone are not enough :clap:

    [​IMG]

  7. Phame

    Phame COOOOFFFFEEEEE

    Joined:
    17 Sep 2012
    Posts:
    293
    Likes Received:
    14
    BRAVO :eek:

  8. Hukkel

    Hukkel James' minion

    Joined:
    20 Dec 2012
    Posts:
    1,284
    Likes Received:
    25
    It makes me all warm and fuzzy.

    Are you also going to sand and polish the inside of the milled slots?

  9. JR23

    JR23 Member

    Joined:
    29 Oct 2014
    Posts:
    104
    Likes Received:
    9
    [​IMG]

    Hey guys, i'm back with some toys from HyperX. A 120GB HyperX 3K drive and some baby little HyperX dimm's.

    [​IMG]

    [​IMG]

    Time to break out the dremel and find somewhere to show them off!

    [​IMG]

    [​IMG]

    Victory is mine, the motherboard tray has yielded.

    [​IMG]

    [​IMG]

    [​IMG]

    I hope you can see where this is going XD

    [​IMG]

    Don't worry I know how this goes back together.

    [​IMG]

    ...told you

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I think the motherboard should manage to magically levitate for a photo :)

    [​IMG]

    [​IMG]

    [​IMG]

    Next up i'll be figuring out how to mount everything, which I of course gave some considerable thought to before cutting out the entire motherboard tray ^_^

    JR​

    Last edited: 26 May 2015
  10. JR23

    JR23 Member

    Joined:
    29 Oct 2014
    Posts:
    104
    Likes Received:
    9
    Thanks guys.

    Well this block is just a test piece to validate everything works so we can be confident in the final design. A few tweaks have been made already and there are some parts of it that will definitely be adjusted next time around. It's the first block i've designed and it incorporates some elements that Parvum have never attempted before. When in it's final position the machining marks will be under the coolant and naturally less pronounced. But i'm not 100% on what coolant will be used just yet, probably something slightly translucent to show off the varying depths in the block. But everything will be considered and dealt with as required.

    JR

  11. saxovtsmike

    saxovtsmike Member

    Joined:
    12 Aug 2008
    Posts:
    142
    Likes Received:
    0
    speechless

  12. JR23

    JR23 Member

    Joined:
    29 Oct 2014
    Posts:
    104
    Likes Received:
    9
    [​IMG]

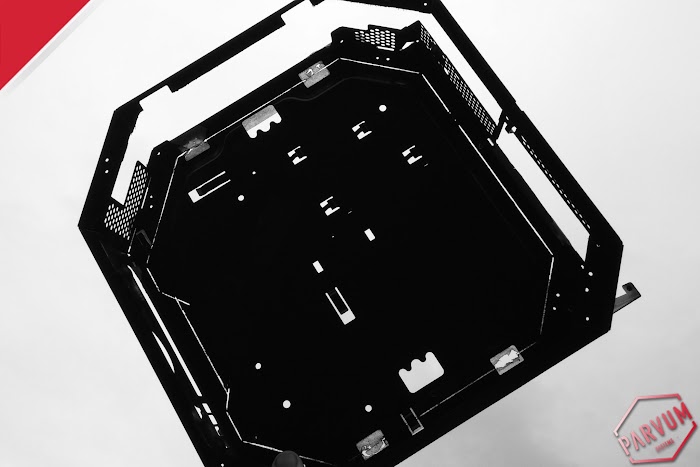

    Hey guys, i'm back with a very short and sweet update. I spent the last few days at Parvum HQ and among other things we cut a new motherboard tray for MATE. I prepared a cunning design before leaving home to maintain the magical levitating feeling and also support the PSU in the same way.

    [​IMG]

    I visited my local fastenings supplier and picked up some nice M3 screws and nuts to use around the build.

    [​IMG]

    Everything went together beautifully and I managed to get away with just one screw attaching the motherboard tray to the brace which is neatly hidden underneath the SSD.

    [​IMG]

    [​IMG]

    [​IMG]

    The PSU bolts directly to the plate, 4 of the stock screws in the casing were replaced with 6-32 3/8" countersunk screws cleanly holding it in place.

    [​IMG]

    While I was at Parvum I also picked up the test block, it's now officially passed leak testing and looking rather slick with EKWB blood red coolant. Although just a cheeky tease this time I will get some close ups in the next update. Soon we can start work on the final block :D

    [​IMG]

    JR​

  13. Nutman

    Nutman Never stuck with stock

    Joined:
    21 Oct 2008
    Posts:
    2,291
    Likes Received:
    59
    Sweet! LOVE the colours!

  14. Hukkel

    Hukkel James' minion

    Joined:
    20 Dec 2012
    Posts:
    1,284
    Likes Received:
    25
    That block is stunning, I love how you incorporated the pumptop with the GPU top.

    MOAR MOAR!!!

  15. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,404
    Likes Received:
    1,298
    That's pretty slick. Pleas tell me you will replace the EK cpu block top with a monoblock that mounts to this, and houses the reservoir, ...and plays the banjo.:D

  16. imersa

    imersa Parvum Princess

    Joined:
    9 Apr 2009
    Posts:
    1,792
    Likes Received:
    89
    Really blown away by the monoblock ourselves. Turning the concept into a working product has been great. Milling a part from both sides has opened us up to so many crazy ideas for future builds.

    We had thought about our own top for the CPU block but as a sponsored build running the tubes down to the CPU block looked really clean and actually looked better than some of the other options.

    Update for you all soon!

  17. The_Crapman

    The_Crapman Don't phone it's just for fun.

    Joined:
    5 Dec 2011
    Posts:
    5,557
    Likes Received:
    2,039
    Fantastic piece of design.

  18. el2k

    el2k Well-Known Member

    Joined:
    18 Jan 2010
    Posts:
    1,655
    Likes Received:
    109
    TOP WORK M8S!

  19. JR23

    JR23 Member

    Joined:
    29 Oct 2014
    Posts:
    104
    Likes Received:
    9
    [​IMG]

    Hello guys, with such radical progress on the other PARVUM-JR23 projects it's time to give MATE a little attention. Now that the radiator has been positioned all of the port locations were known so drawing work could start on the final full cover MATE block.

    [​IMG]

    [​IMG]

    Probably one of the most ambitious single parts attempted at Parvum the block itself features an integrated DDC pump top, GPU block and reservoir not forgetting all of the pass through channels required to complete the loop. There will be only four pieces of tubing dropping down to the CPU and radiator. Unfortunately due to the unique shape of the case and the shear size of the GTX980 we will have to use fittings in the radiator ports so the tubing can be staggered around the card.

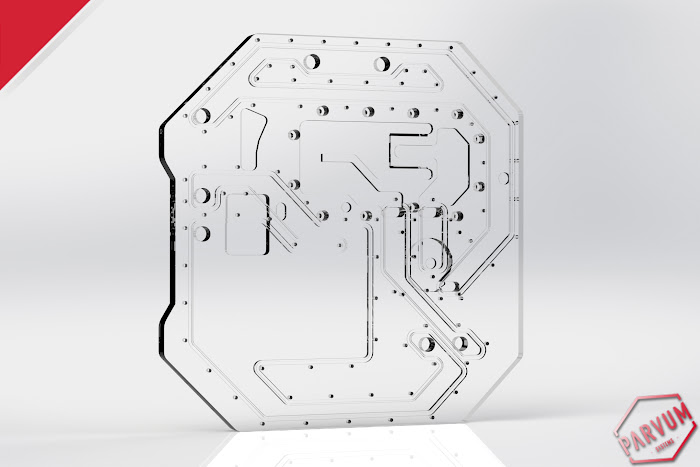

    Ok ok ok.... you can haz renders...

    [​IMG]

    The lid which seals against rubber o-rings surrounding each of the coolant channels will also form the window of the case, so naturally it will be adorned with a little Parvum branding.

    [​IMG]

    [​IMG]

    [​IMG]

    Hopefully all goes well with the cutting tomorrow/wednesday and i'll have the nice problem of figuring out how to mount it in the case. Which I have of course given much thought, lol jk, see if it fits first.

    JR​

  20. Icelander

    Icelander Member

    Joined:
    3 Mar 2015
    Posts:
    325
    Likes Received:
    7
    :jawdrop:
    Cant wait to see it installed
