    Before the final assembly could commence, there was one important job still left to do. Cut the tubing!

    [​IMG]

    Thankfully that didn't take very long :D

    [​IMG]

    [​IMG]

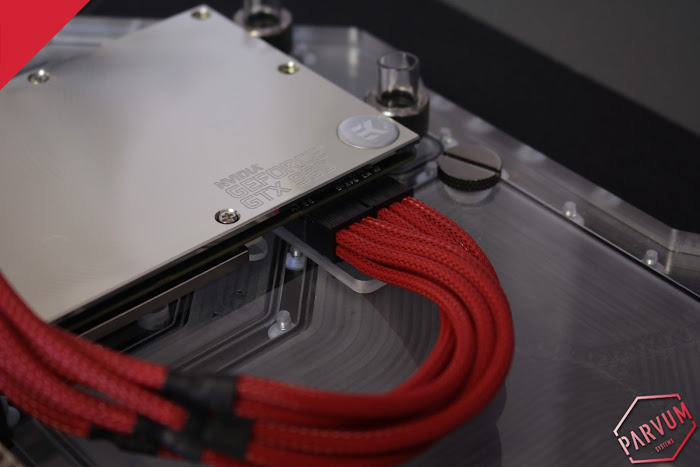

    Final preparations to the block, GPU power attached, tubes inserted and greased.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    So close now!

    [​IMG]

    [​IMG]

    Once the block is pressed into place 4 screws secure it in position.

    [​IMG]

    [​IMG]

    With everything united the exterior cladding of the case can go back.

    [​IMG]

    I guess that just leaves... coolant...

    [​IMG]

    Sorry I couldn't get more pictures of the process, most things required about 9 hands to simultaneously align pipes, screws, cables, risers and the physical part which fits the case with 1mm clearance on all sides. The block looks to have sealed perfectly and things are gradually settling in.

    [​IMG]

    As with most builds there are a few little things that need addressing before it's finalized. The pump is if anything a little too effective and the PCIe riser is dangerously short, easily solved, at least the block is solid.

    JR​
