Networks port fowarding on 3 routers

Discussion in 'Hardware' started by fartonmyear, 26 Sep 2005.

  1. fartonmyear

    fartonmyear What's a Dremel?

    Joined:
    16 Jul 2004
    Posts:
    565
    Likes Received:
    0
    i hope this makes sense to someone.
    i have router 1, a linksys WCG200.
    router 2 is a linksys wrt54g in client mode
    router 3 is a d-link di-624

    router 1 and router 2 are connected wirelessly
    router 2 and router 3 is connect with a cat5.

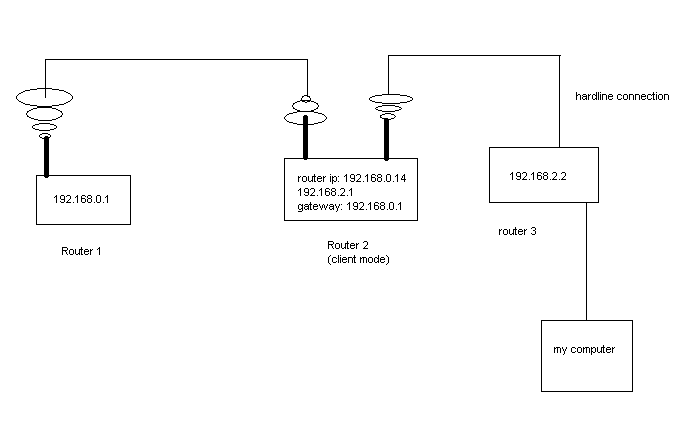

    this picture should help
    [​IMG]

    i want to let ports through all the routers. mainly azureus on port 6882.


    so this is what i have:
    router 1 fowards ports 6882 for router 2 (192.168.0.14)
    router 2 forwards ports 6882 for router 3 (192.168.2.2)

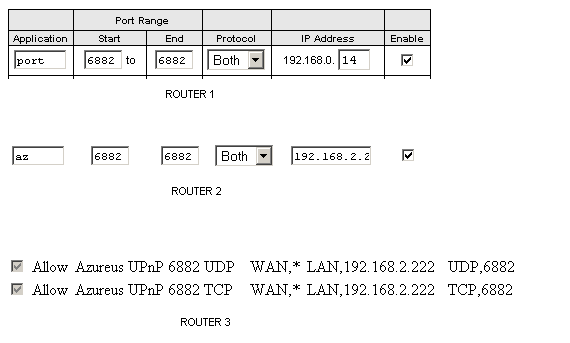

    [​IMG]

    it looks right to me, BUT when i do the NAT test on azureus it says failed. anyone know why?

    by the way, my ip is 192.168.2.222

    Last edited: 26 Sep 2005
  2. logan

    logan flashback!

    Joined:
    17 Aug 2002
    Posts:
    873
    Likes Received:
    1
    edit: ignore me, didn't read the last bit of that screenshot - only read your text.

    further edit - check you haven't got windows firewall blocking it.

    Last edited: 27 Sep 2005
  3. simon w

    simon w What's a Dremel?

    Joined:
    3 Nov 2003
    Posts:
    1,302
    Likes Received:
    0
    Is it possible to connect our pc directly to router 1 & 2 to try and establish where the problem is?

  4. fartonmyear

    fartonmyear What's a Dremel?

    Joined:
    16 Jul 2004
    Posts:
    565
    Likes Received:
    0
    i can directly connect to router 2. router 1 is too far away.
