DAY 14​

Day 14 consisted of filing and a couple little odd jobs that I needed done.

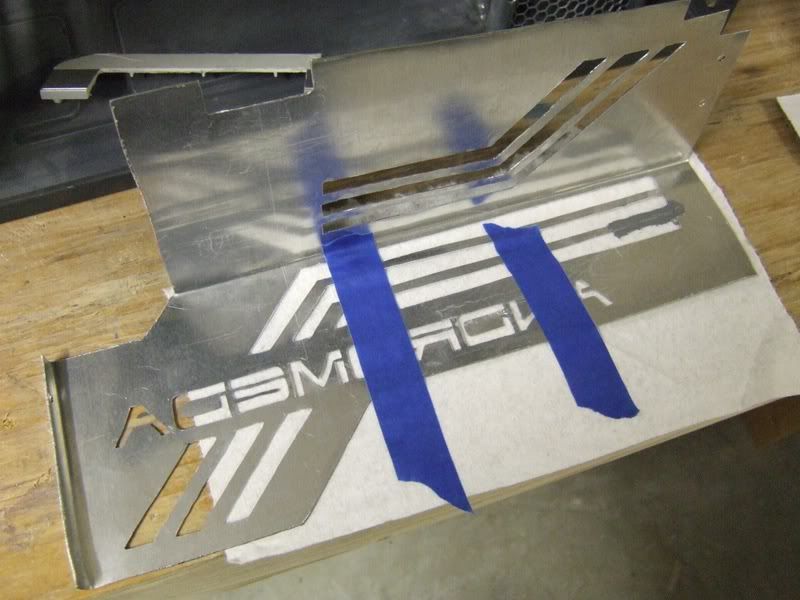

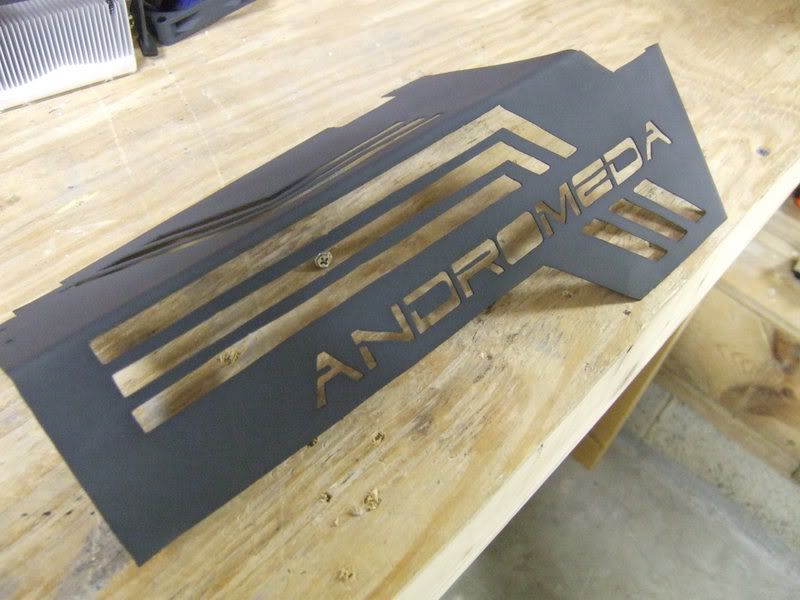

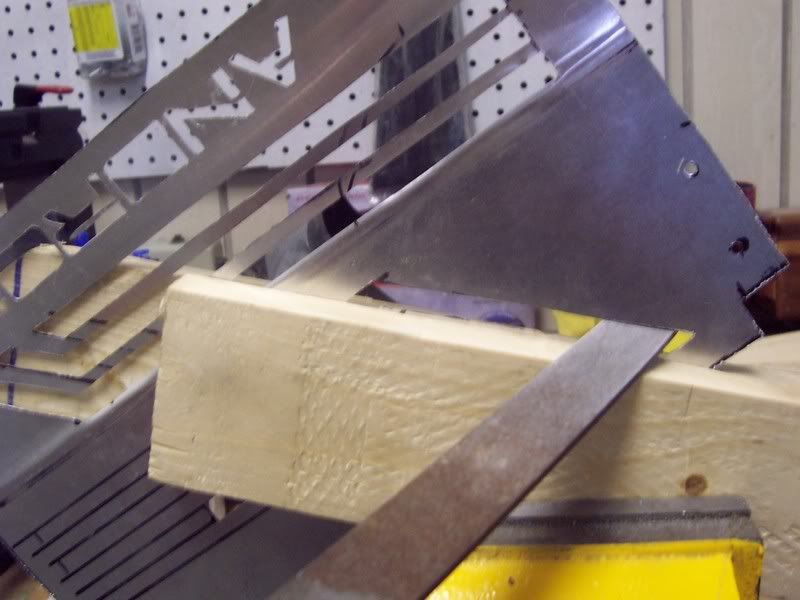

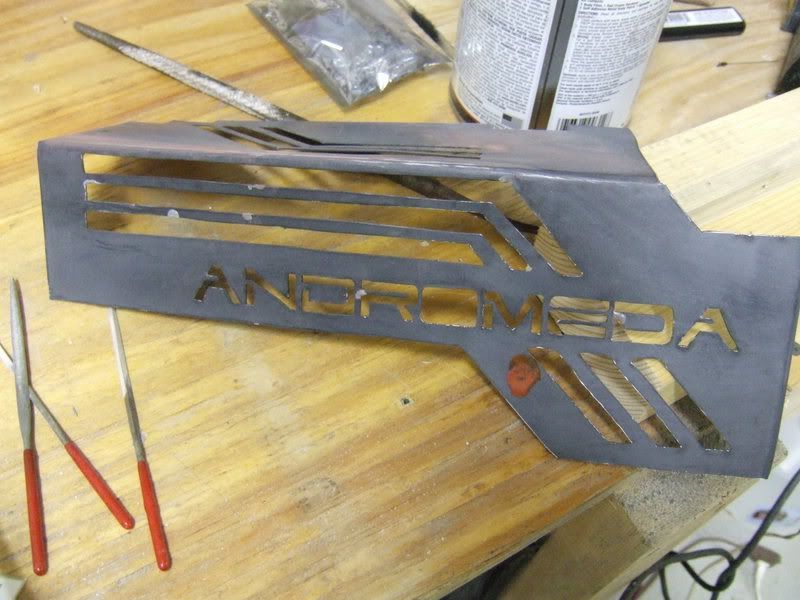

Filing the dust cover.




The O and one of the D's are missing the centers, and I got the replacement pieces and they will go on when I get the plexi back sorted out.

my other weapons of mass destruction. I got these for just a couple bucks and they have served me well!

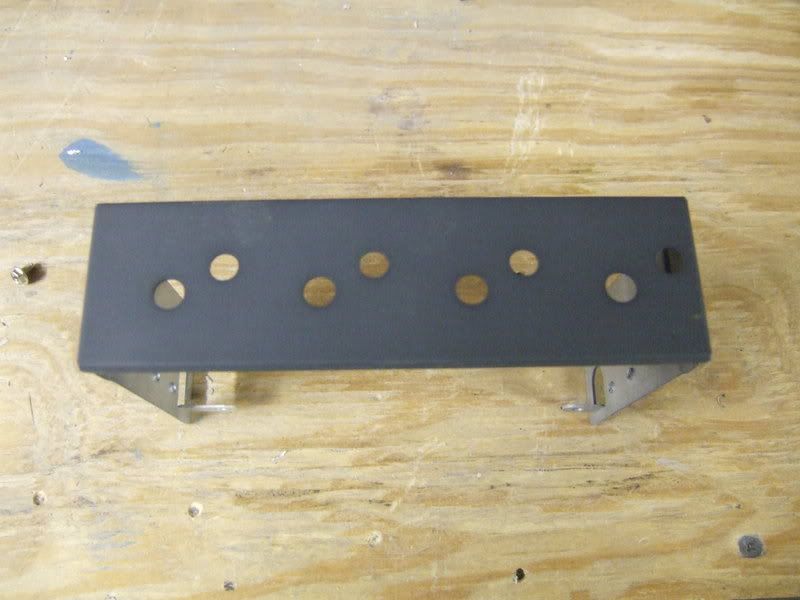

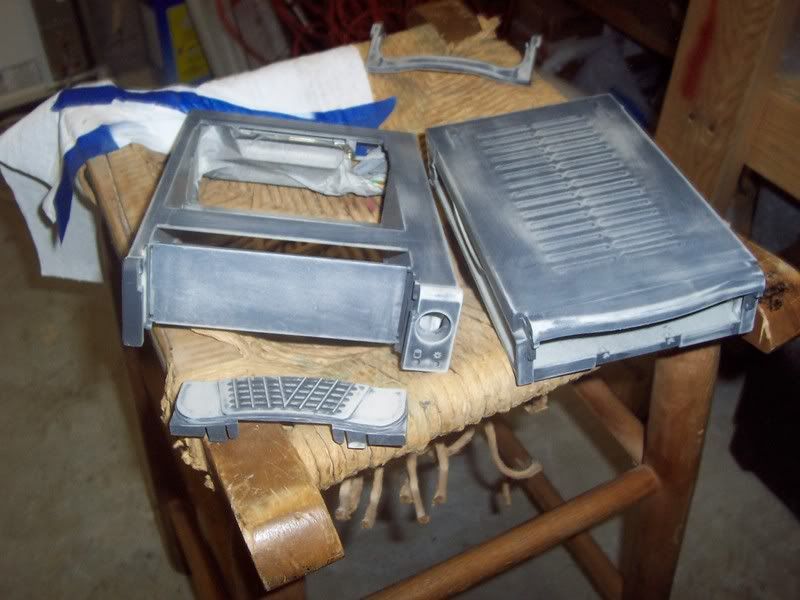

I also sanded the HDD tray to get it ready to paint.

DAY 15​

More filing! Yes! no....my arms were starting to get sore by the end of day 15.









I also got some filing done on the fan grills but I did not take a pic of them, sorry

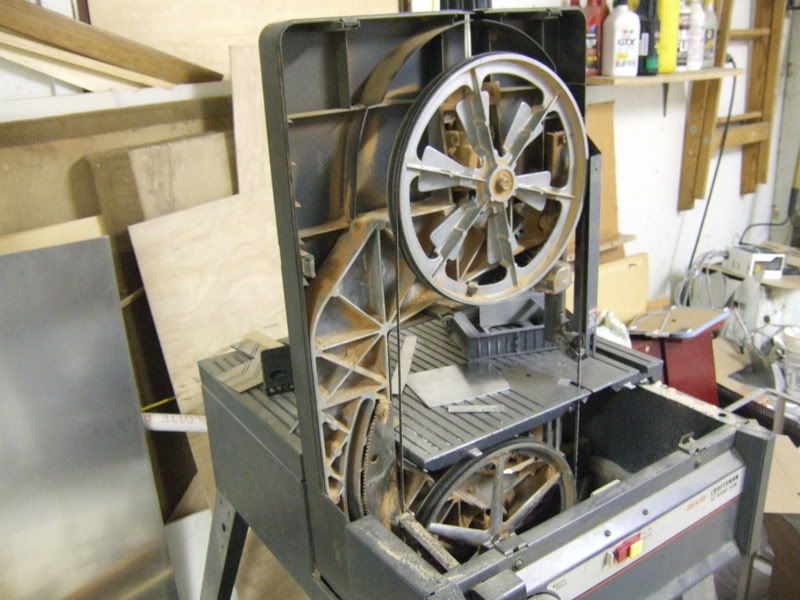

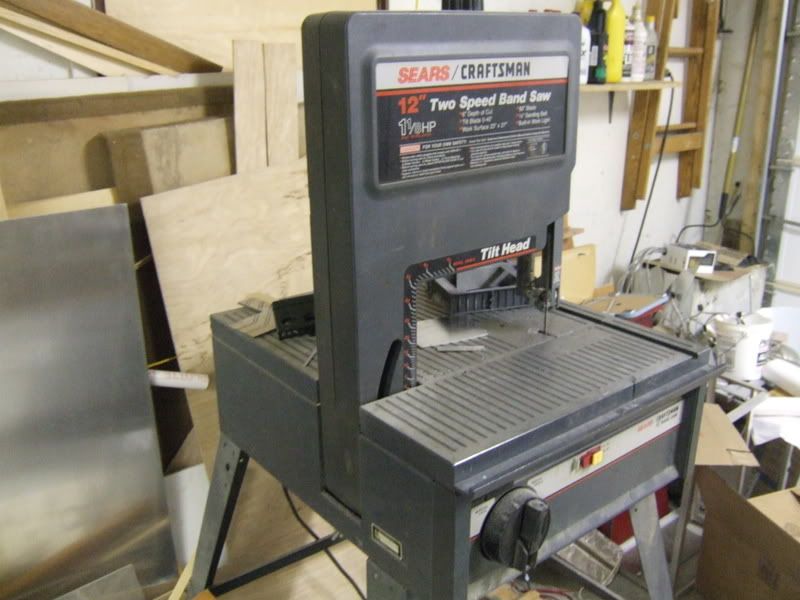

I had to change the blade out on my bandsaw. It was getting really bad.



all done

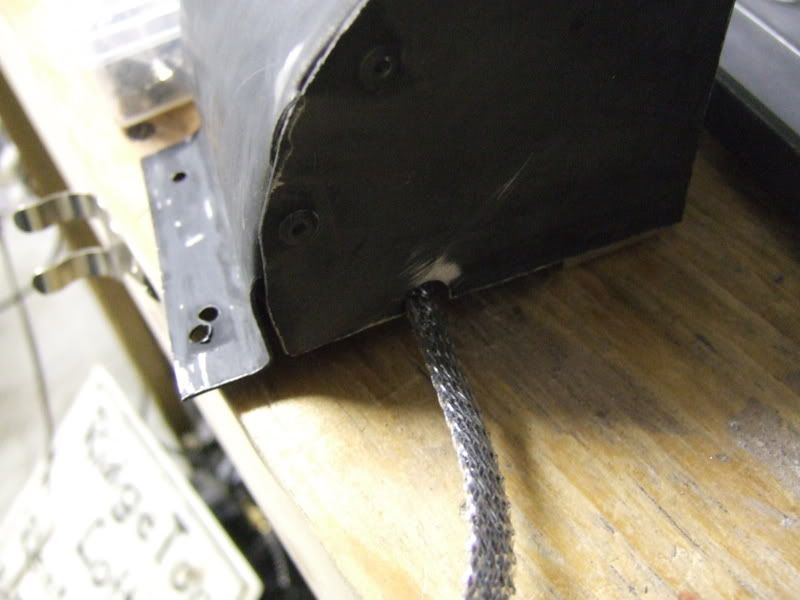

I got the notch cut out for the fan cable going out the fan shroud at the bottom of the case



snazzy


I'm putting 9 green LEDS behind the motherboard to give it a small green glow.





I'l try to get those wired up in the next day or so.

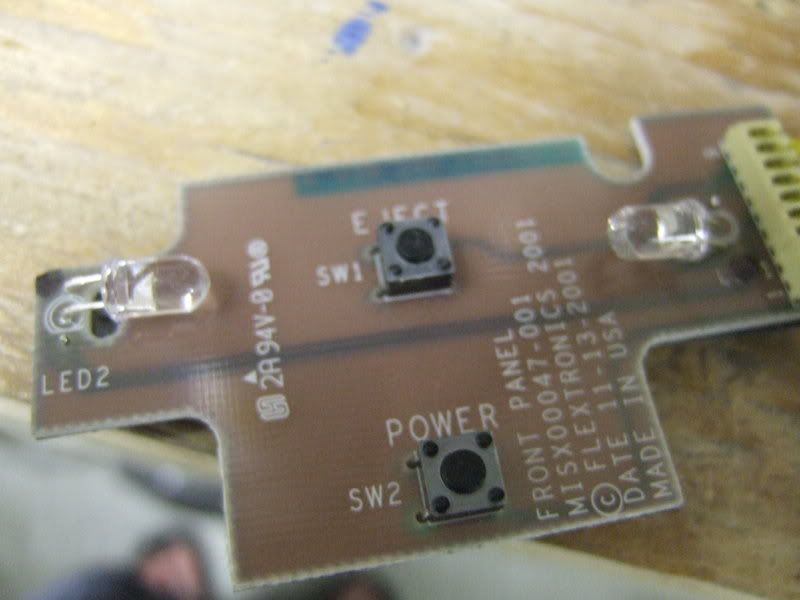

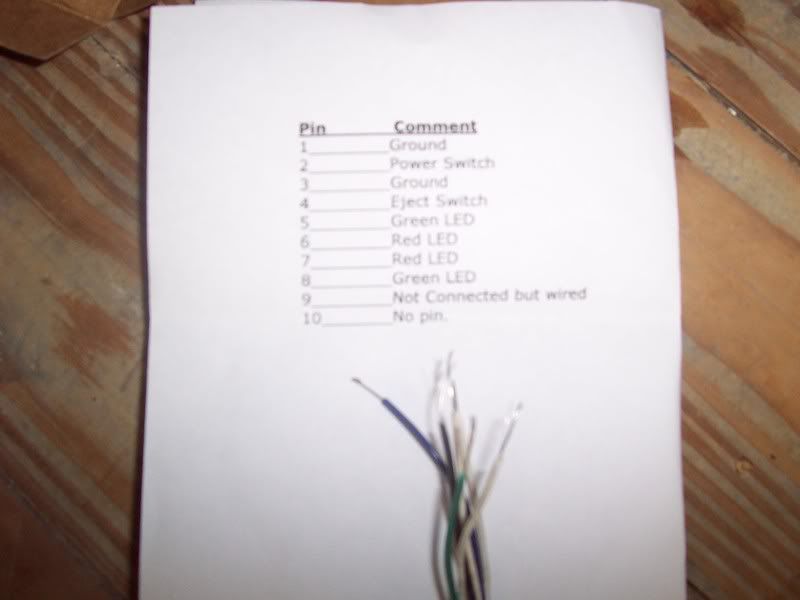

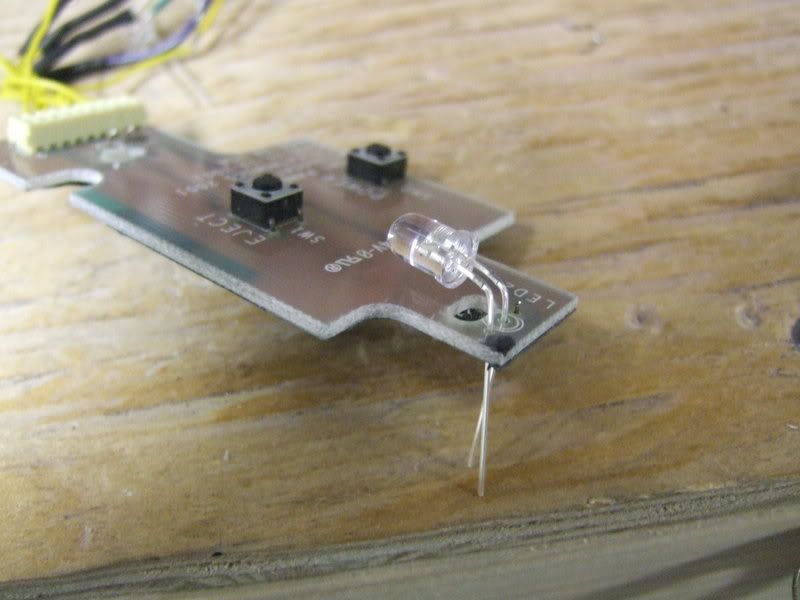

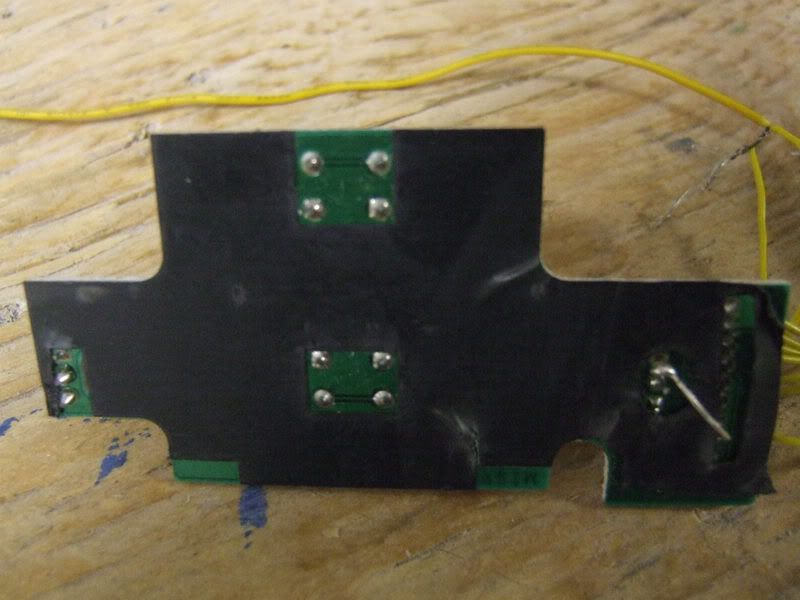

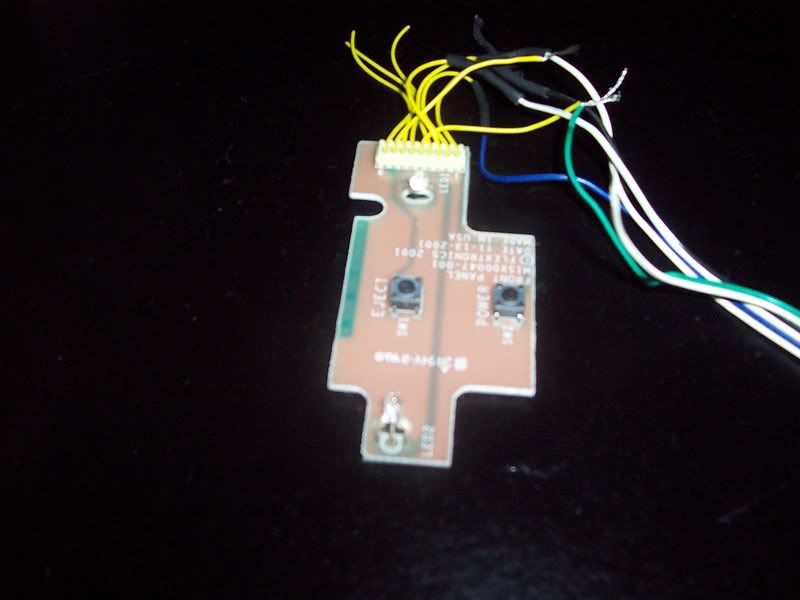

I also wired up the xbox PCB for the front panel power buttons.

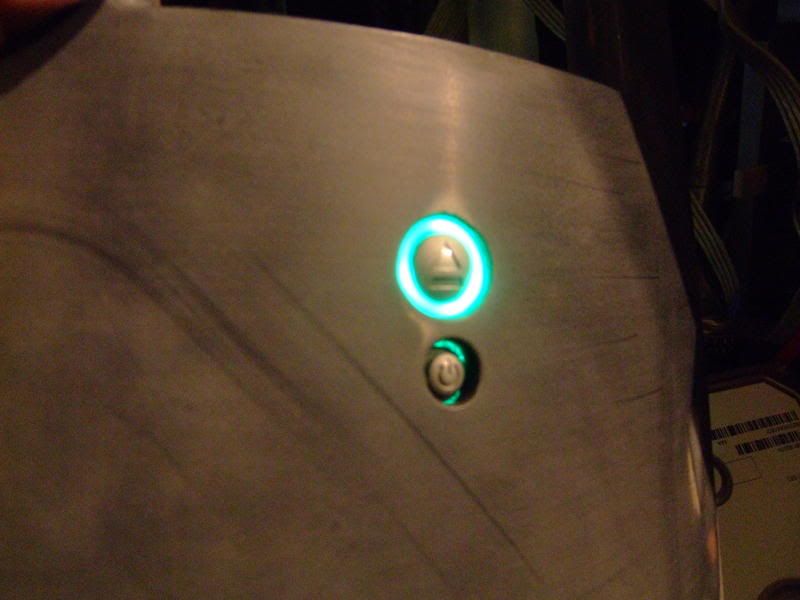

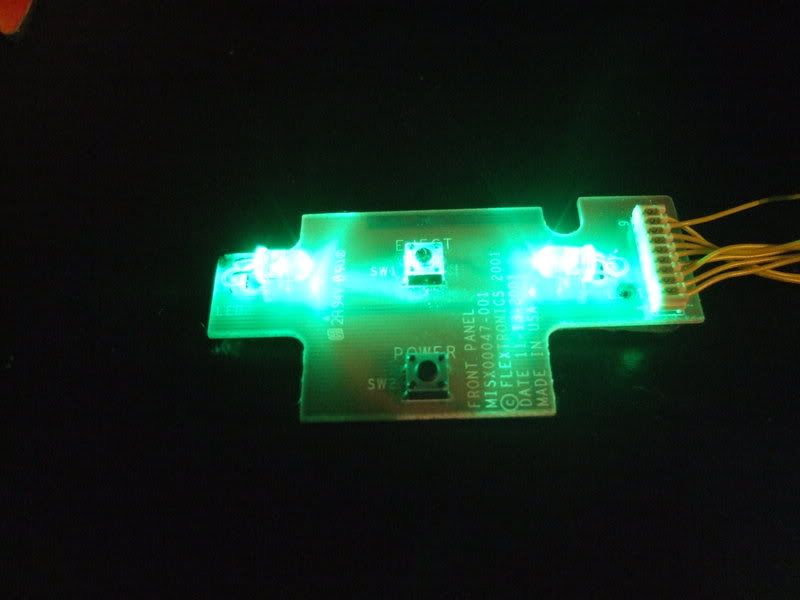

It worked great except for the green LEDs, which I'm trying to dort that out now. If they don't work, that's totally fine, I can work around it and still have a glowing green ring around the front panel. The important part was the microswitches, and they work great.

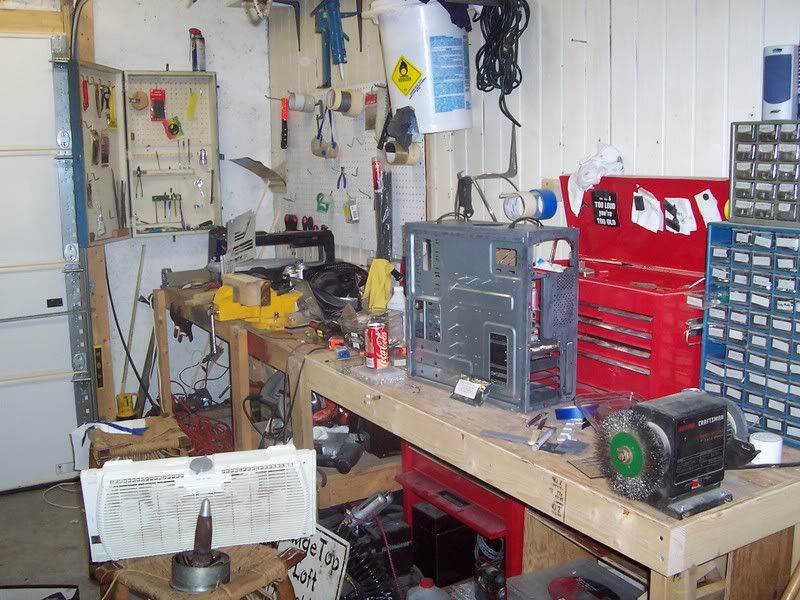

This place is a mess!


I'm gonna try and get this cleaned back up again and call it a night. My workshop gets like this about every 2 days and it's a pain to work in like trying to find that resistor you misplaced (know I put that somewhere....)

I hope you all enjoy this project, I pormise I'll be rid of that ugly grey primer soon enough! Thanks



with the green leds, it will look great with that desk you just built. i love your mods man!



buddy Every thing looks fine and Hot Goo job so far. You have a nice saw and tools go on



cheesecake diversion....

@Cs:sMods4YOU - Thanks, I used green partly because I had some left over, but also because I really liked the color of them. I'm sure it'll look great sitting on my desk as well!

@ComputerKing - Thanks man, I actually got that bandsaw from my awesome uncle who sold it to me for a steal. It has helped me so much on this project as well as my desk build.

DAY 16​

Just a small update for you all, I didn't get much mod time in this weeked due to a heavy workload and a family get together. I was able to get a few small things done so I'll go ahead and share those with you.

I finally figured out how to get the green LEDs to work. They needed 12v and the power led header on my mobo was ony 5v. So I got them wired up to a fan header and was good to go.

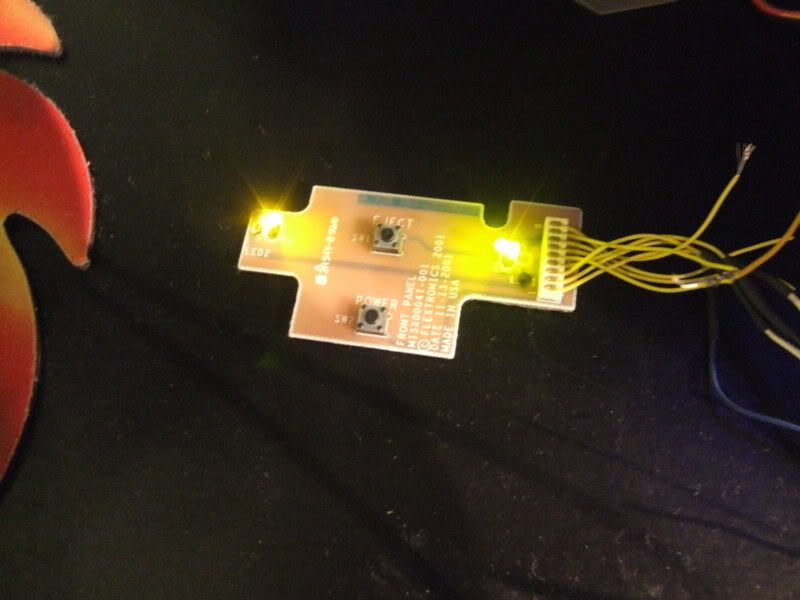

I unfortunately did not like the color of them. They did not match the other green LED's I'm using so I had to fix that.







much better....


here's what it looks like now

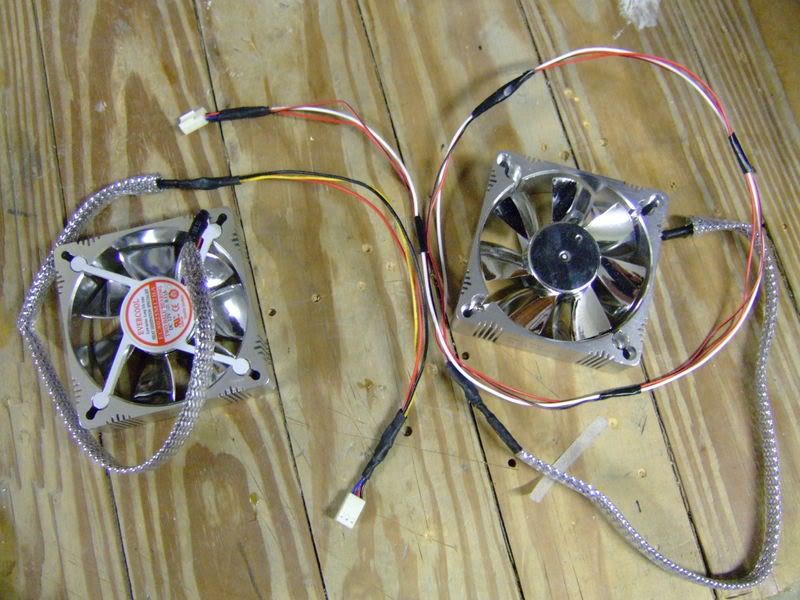

I also extended 2 of the fan's power wires. Luckily they don't have to have all of it sleeved since the naked wires will be hidden.

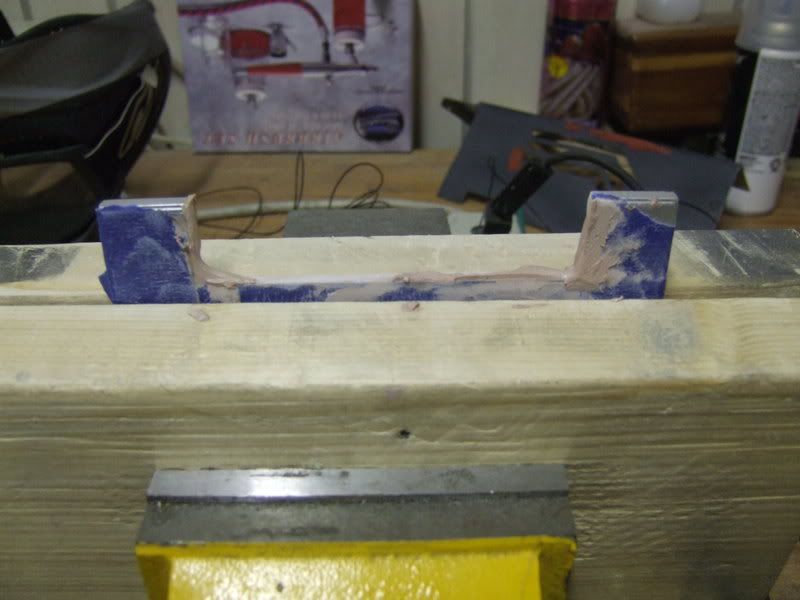

I alos had to make some repairs on the dust cover with some JB weld. I had made some cutting errors and I think once I get it cleaned up it will not be noticable when it's painted.



And as promised....


I hope you brought your foons!

I still have some minor tasks to take care of before I put the paint on it, but it won't be long now.



yummy yummy !!



e-fork is ready!



heathen! where is your spork?! (e- of course)

very nice cheesecake mod by the way.



30,000mcd? You went for the blinders.



Yeah, they were cheap and I don't have to use too many to get the effects I want. I don't know if they are true 30,000 but they are bright and have nice color. Out of 100 I haven't came across a dud yet. I never have had a problem with besthongkongs products.



The lighted power button looks so professional, so does the PSU.. looking great overall, keep it up!



AHA the CAKE, I want one piece plz It look very very hot one



color me bad...

@ ry@n - Thanks!

I was able to get some time in the past couple of days inching ever so closer to the final result.

DAY 17​

Mostly just prep work and small things to be done now before paint day.

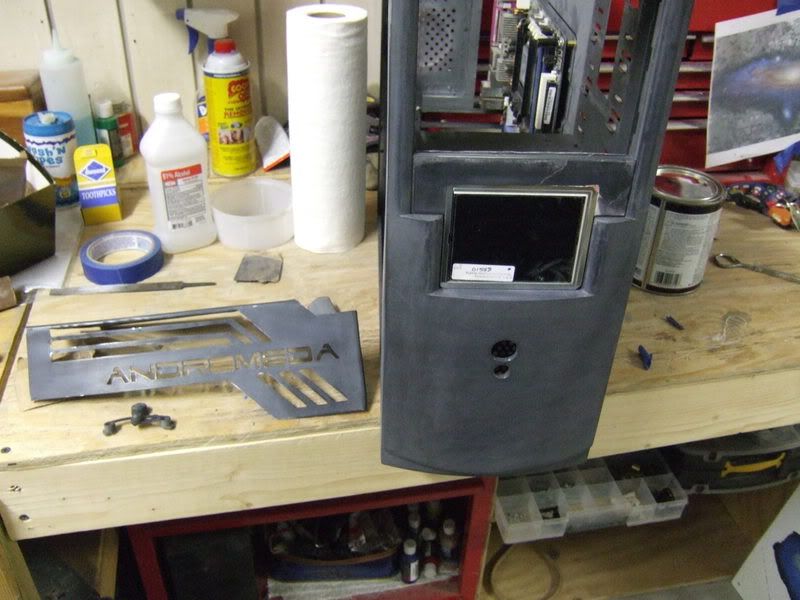

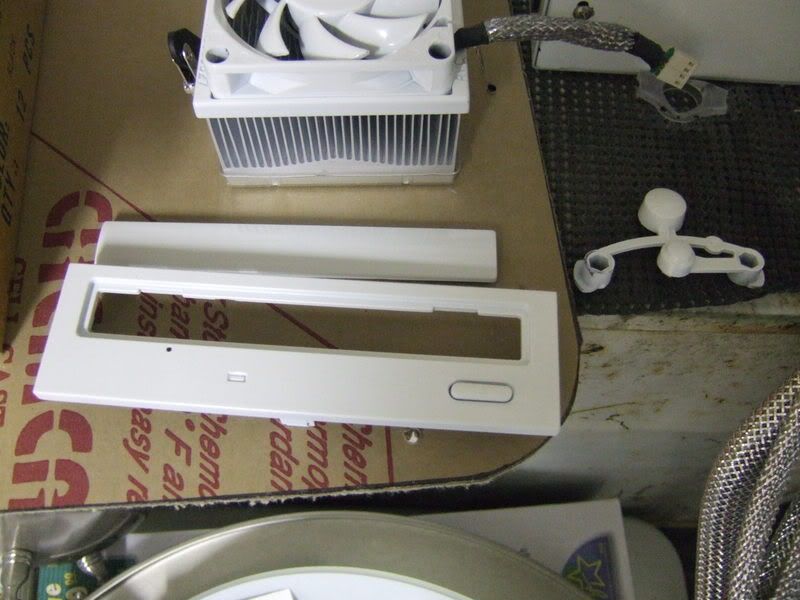

more prep on the dust cover


prep work on the LCD top frame

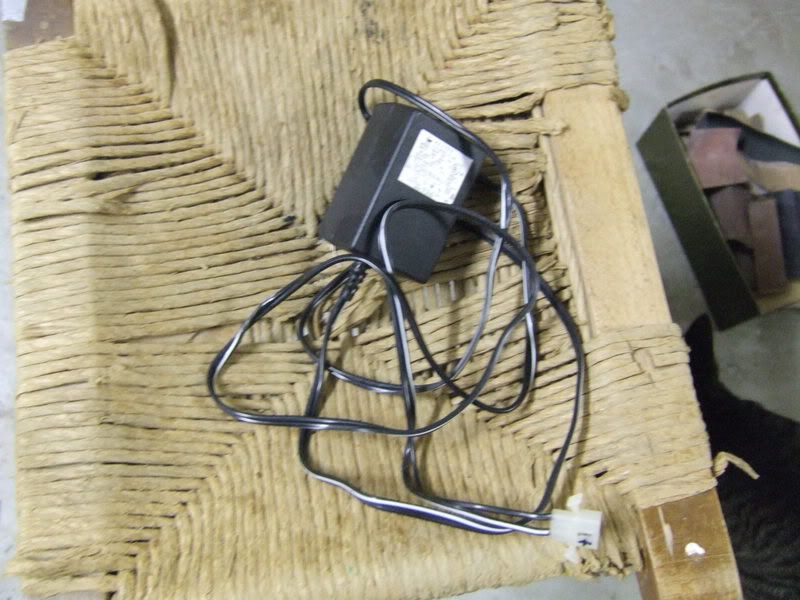

I got the power connector also wired up for the LCD. I did not want to run it off the PSU because it's a no-name. (shame on me )

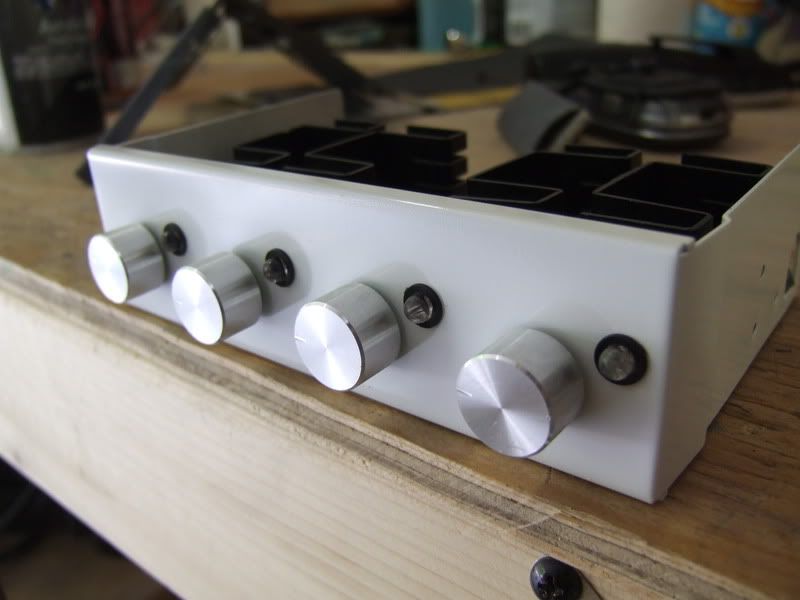

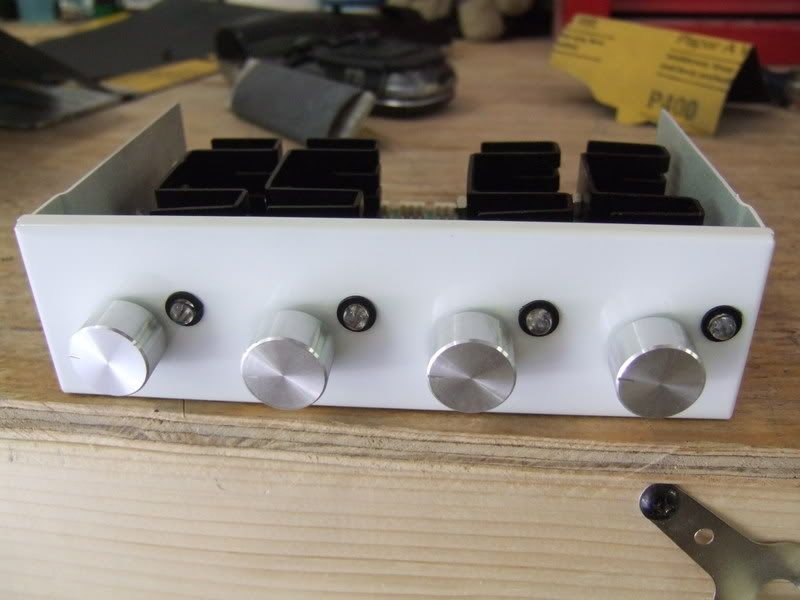

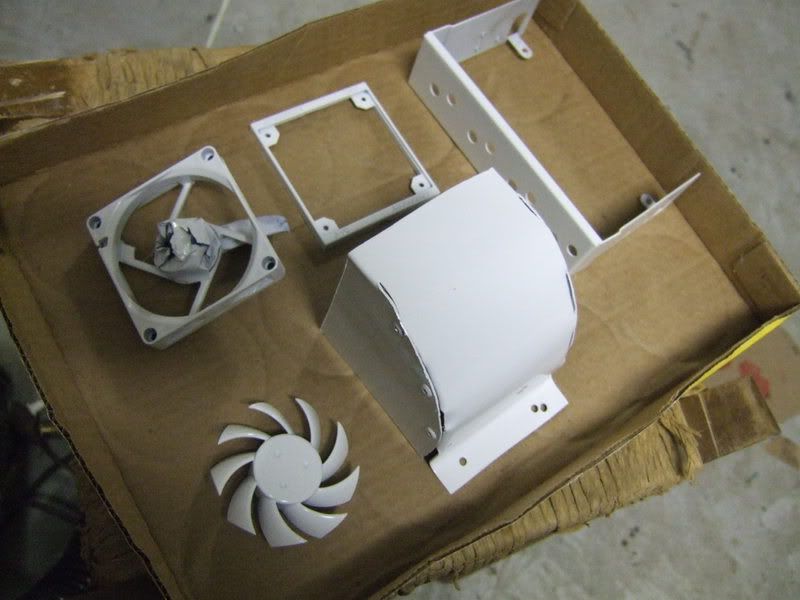

fan controller before paint

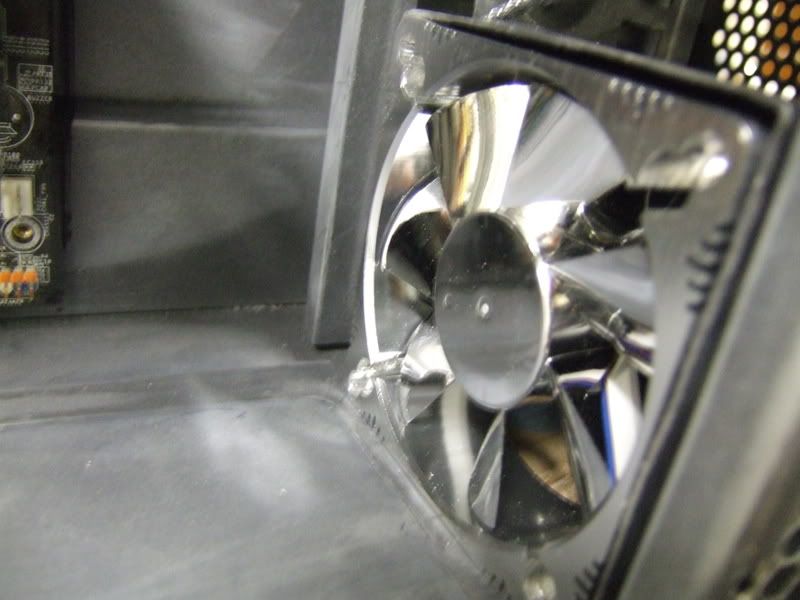

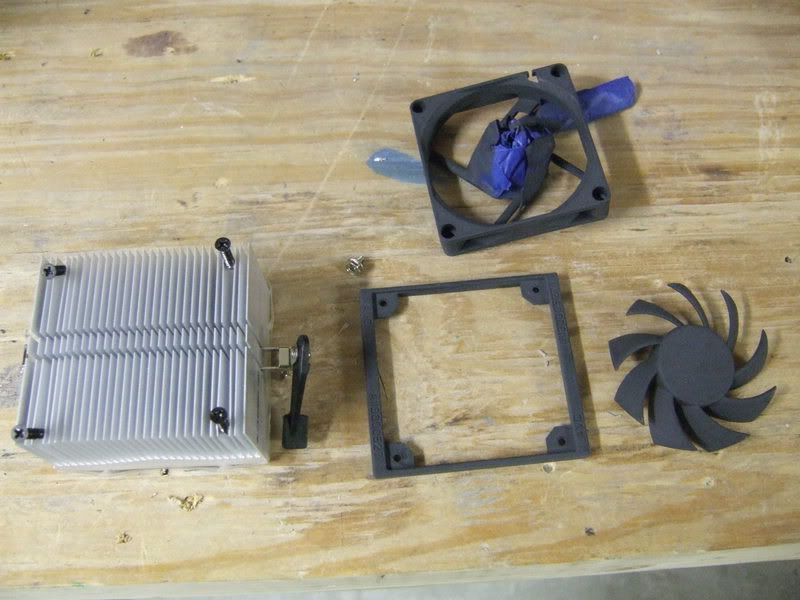

CPU fan before paint

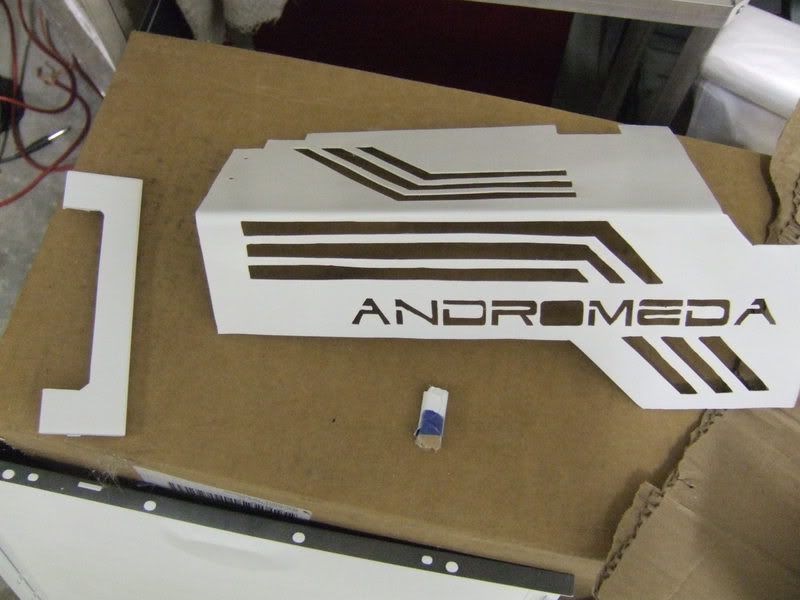

dust cover - should be ready for paint!




I also painted the CPU fan and the fan controller as well.

DAY 18​

Here's how the CPU fan and fan controoller turned out. Pretty nice!

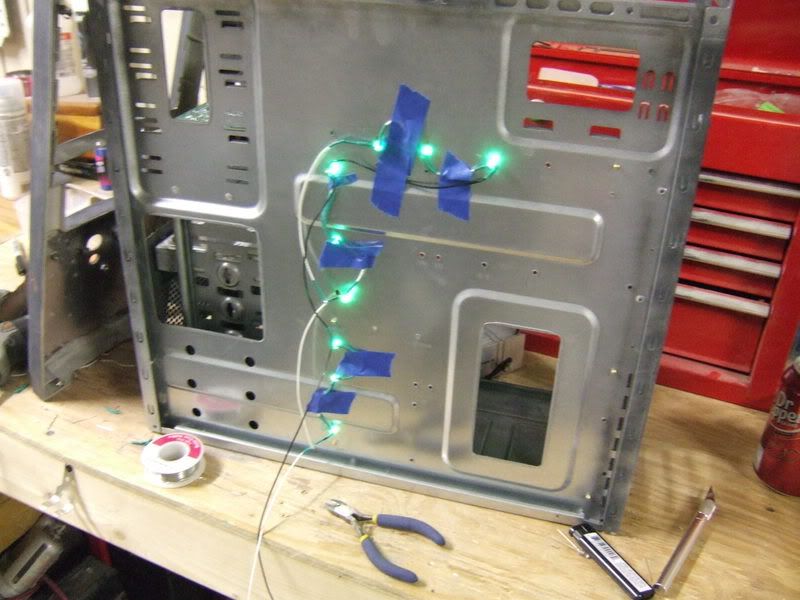

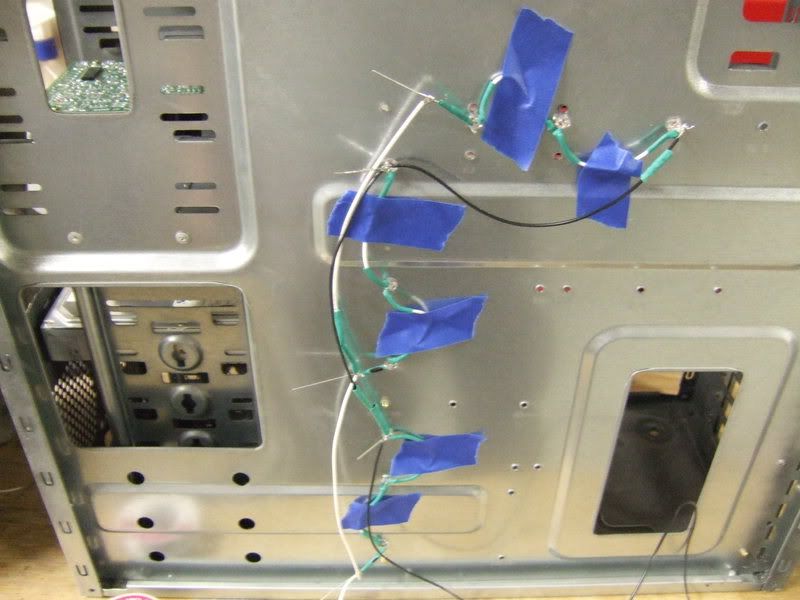

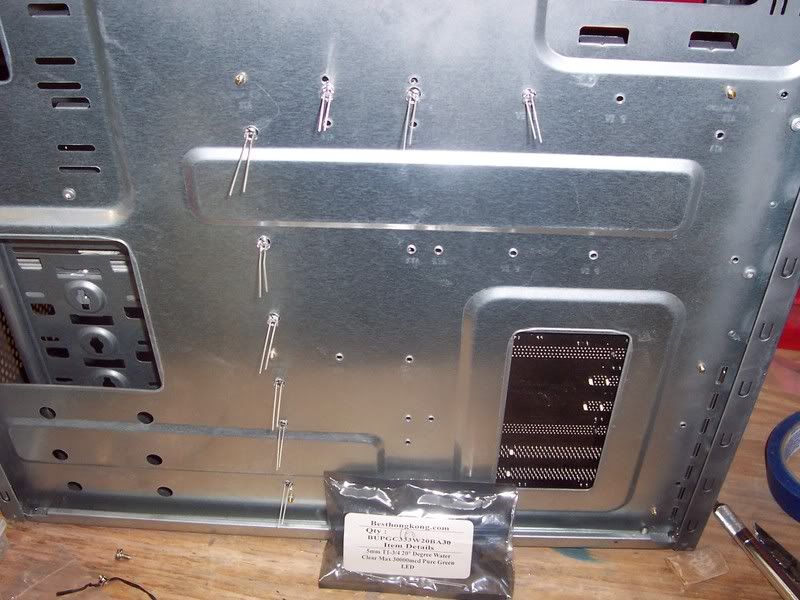

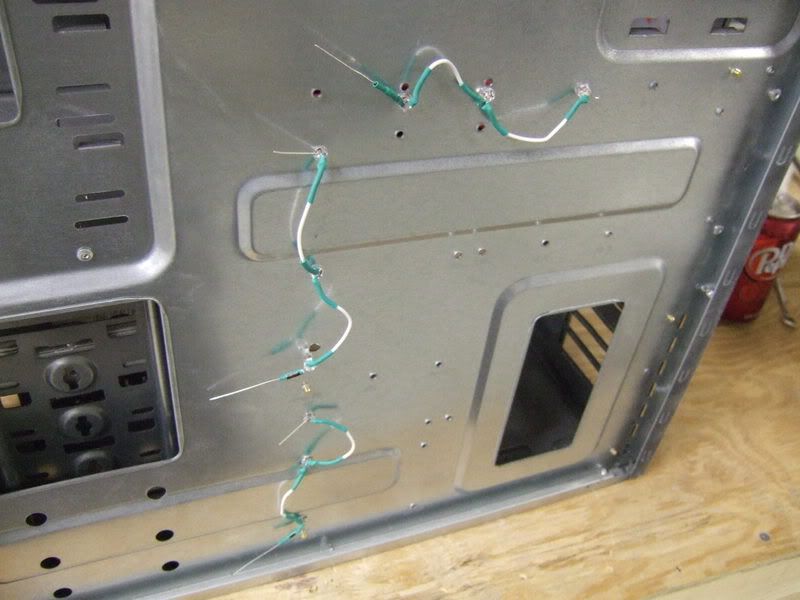

I also managed to get the LED's wired upfor behind the mobo. This a picture of the backside (it's a bit messy and temporary!)

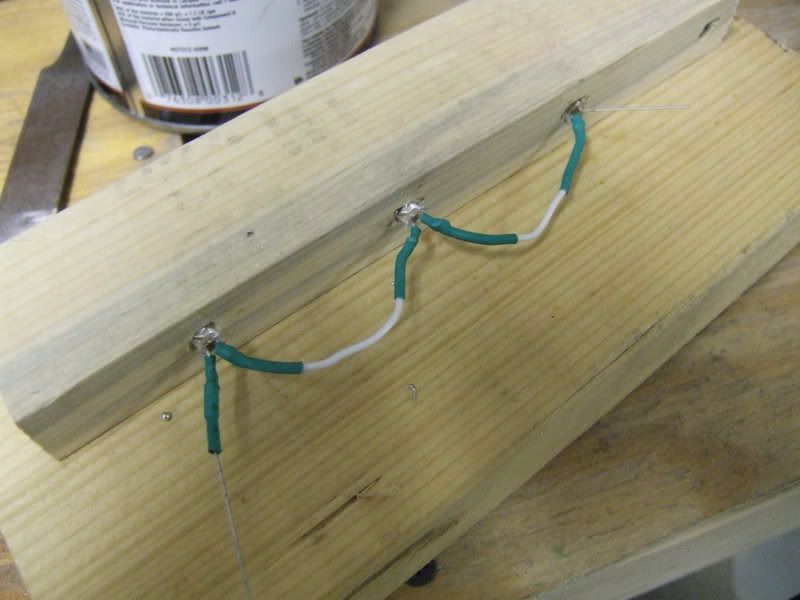

here's a picture of my jig for wiring LED's in sets of 3 or 4.



My moral support and alarm clock at 8 a.m. if I like it or not. She stays with me while I mod and she doesn't even mind the sound of power tools!

DAY 19​

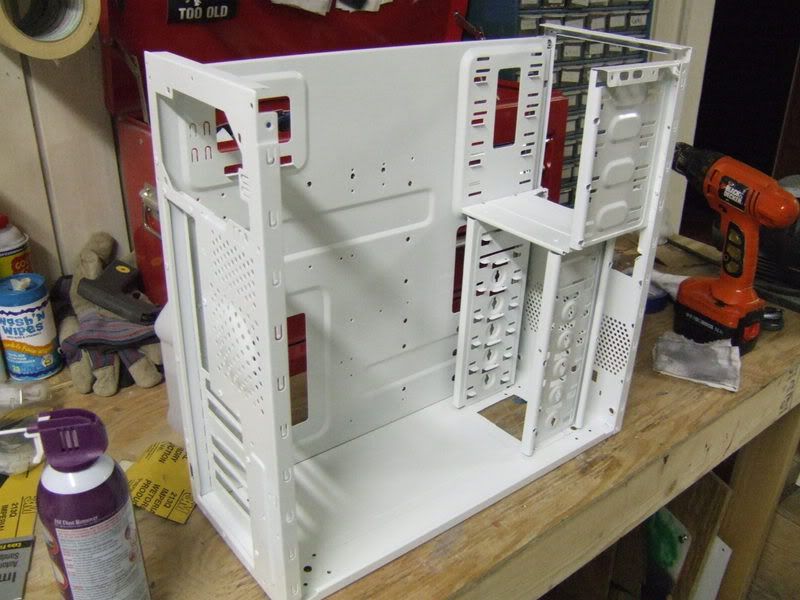

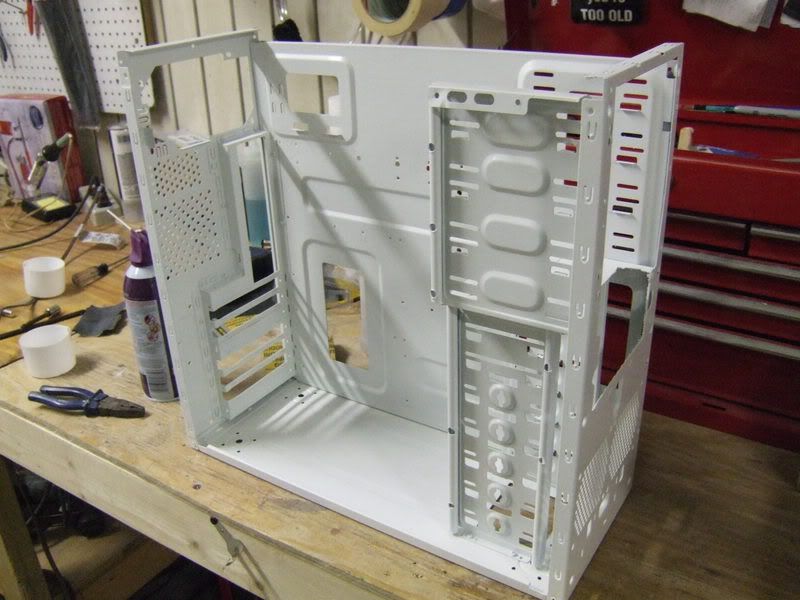

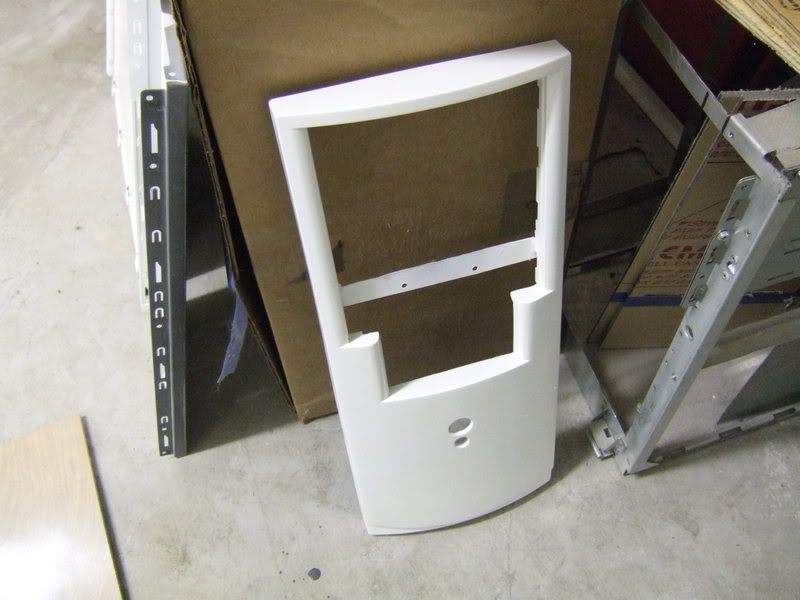

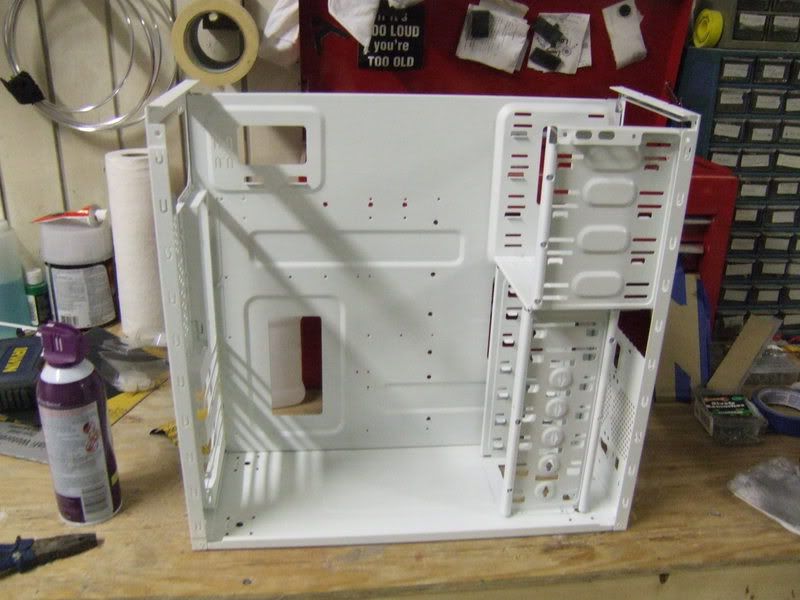

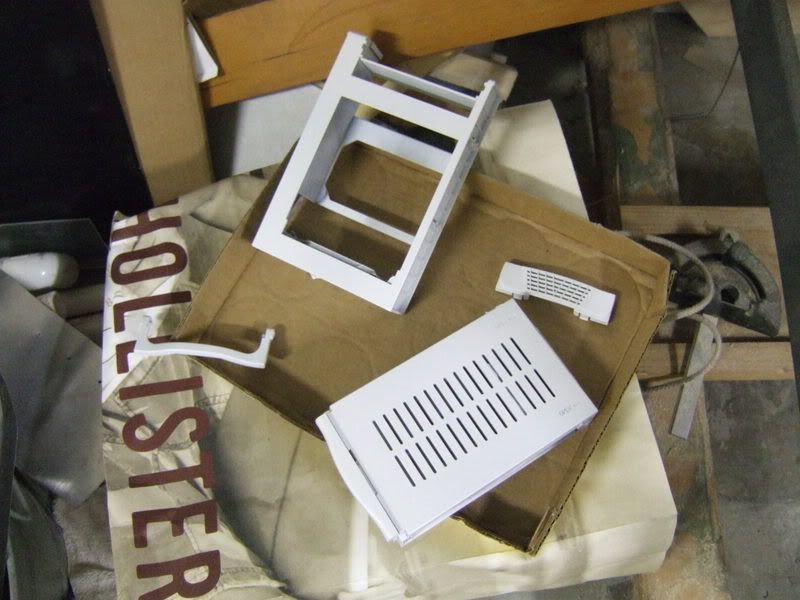

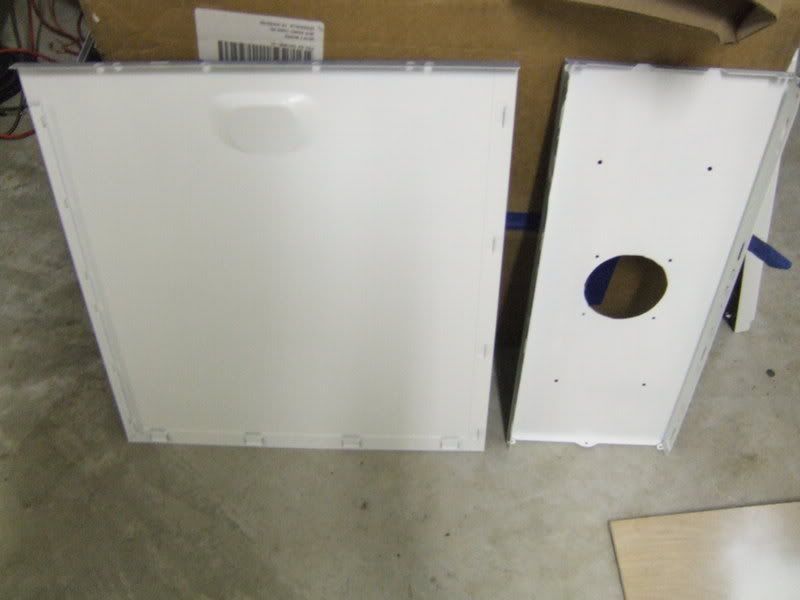

Today was paint day for 95% of the case. It went well with no runs in the paint. Yesss!

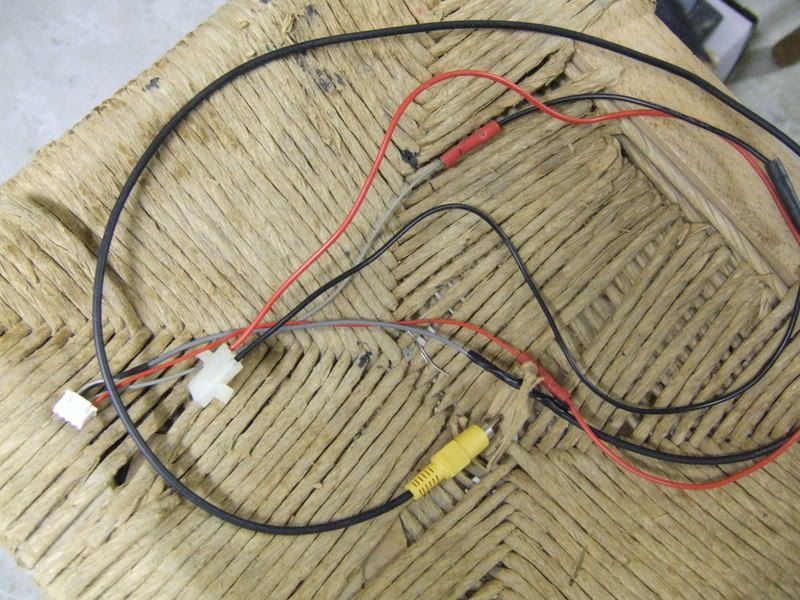

I also finished up the wiring harness for the LCD
