Project: Black Hazard Two - Finshed, just need to get some snaps.

Discussion in 'Project Logs' started by sc4mpi, 22 Jul 2005.

Page 2 of 6
  1. Strategy

    Strategy Banned

    Joined:
    19 Jul 2005
    Posts:
    1,359
    Likes Received:
    0
    rokain! :) Appologies, looked that way.

    Strategy, 24 Jul 2005
    #21
  2. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3
    rad came today along with some other bits, after 5hours of fighting with it i managed to get it fitted.

    i need to find some black 120mm all i have at the moment is blue :(


    [​IMG]

    The underside of the case with a nice evo 360 on the underside of the rad to prevent some nasty objects from puncturing it, i must say im highly impressed with the quality of these grills :)

    [​IMG]

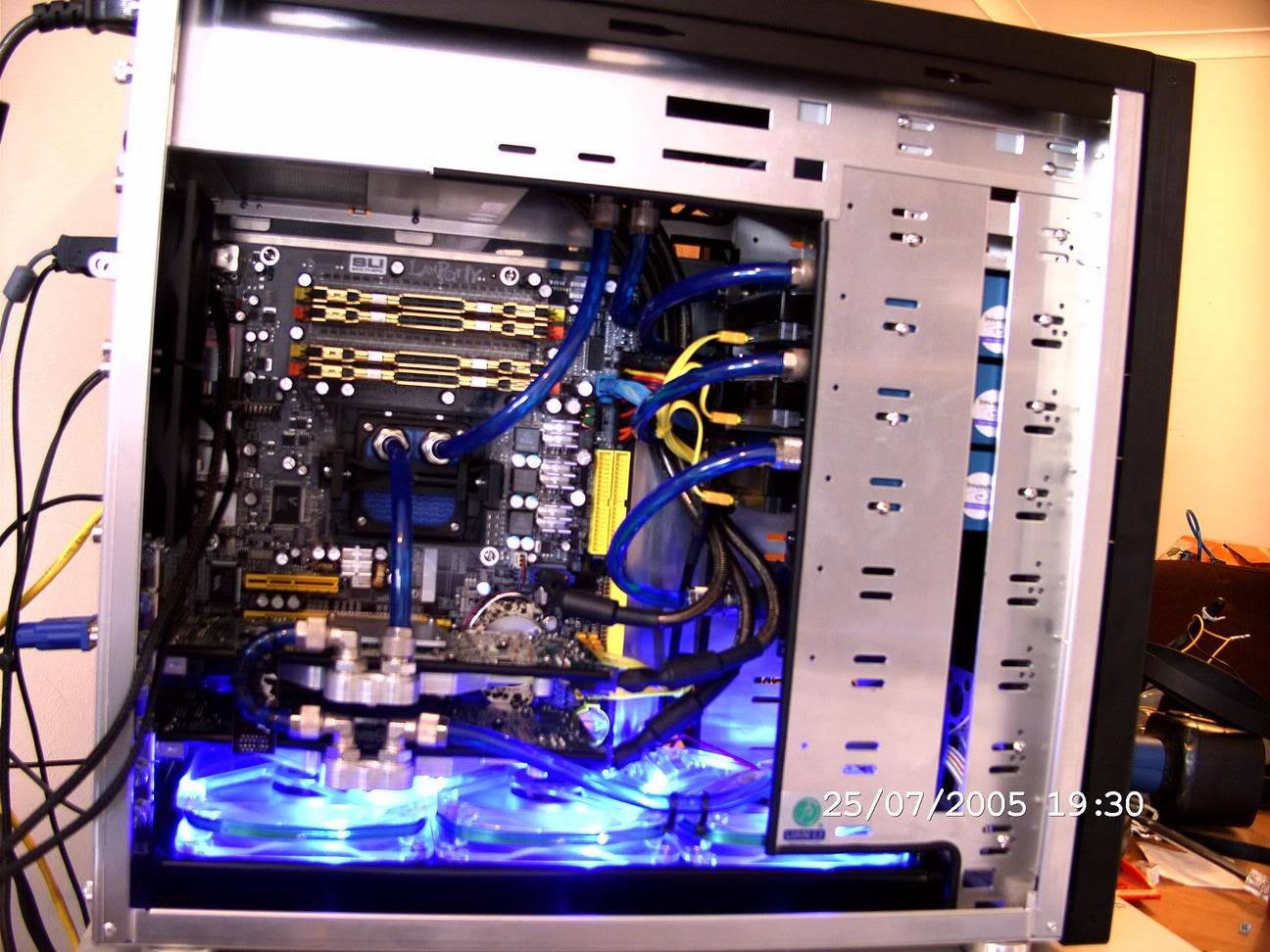

    the other shot, i still have a lot to do, but at least it all fits.

    iv got to make a acrylic plate to go over the rad somewhen this week, i was going to use the evo 360 but ended up using it on the bottem of the case instead.

    sc4mpi, 25 Jul 2005
    #22
  3. perplekks45

    perplekks45 LIKE AN ANIMAL!

    Joined:
    9 May 2004
    Posts:
    7,093
    Likes Received:
    1,123
    Will you dremeling the plexi to look evo-ish? Or will it be "just" a plexi cover for the fans?

    perplekks45, 25 Jul 2005
    #23
  4. Shadowed_fury

    Shadowed_fury Minimodder

    Joined:
    21 Nov 2003
    Posts:
    7,506
    Likes Received:
    21
    WOW, Sc4mpi, this looks awesome.
    The loops are perfect, and I love how you have it round the HDD's :)

    Shadowed_fury, 25 Jul 2005
    #24
  5. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3
    i dunno yet i might see if i can get hold of another grill :),i need to find three 25mm deep 120mm papst fans on the cheap, but at the moment i have not found any.. :(

    sc4mpi, 25 Jul 2005
    #25
  6. Shadowed_fury

    Shadowed_fury Minimodder

    Joined:
    21 Nov 2003
    Posts:
    7,506
    Likes Received:
    21
    ebay? ;)

    Shadowed_fury, 25 Jul 2005
    #26
  7. Rh1n0x

    Rh1n0x What's a Dremel?

    Joined:
    15 Nov 2004
    Posts:
    186
    Likes Received:
    0
    that looks real sweet sc4mpi. Maybe you should mount the pump on the other side, to maintain the tuber-wirl you have from the harddrives? That would look very nice :thumb:

    Rh1n0x, 25 Jul 2005
    #27
  8. Leeum

    Leeum What's a Dremel?

    Joined:
    16 Feb 2004
    Posts:
    2,494
    Likes Received:
    1
    How about some Panaflo L1A's from Dorothy Bradbury? :D

    Leeum, 25 Jul 2005
    #28
  9. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3
    there 38mm deep,i need 25mm other wise it will hit the bottem gfx card, im not aware that panaflow do 25mm ones? so it looks like it will be some papst's

    sc4mpi, 25 Jul 2005
    #29
  10. koola

    koola Minimodder

    Joined:
    11 Jul 2004
    Posts:
    2,401
    Likes Received:
    10
    That's just sweeeeeet :thumb:

    How about some candy shots of the front/side/back - all of it :D

    koola, 26 Jul 2005
    #30
  11. koola

    koola Minimodder

    Joined:
    11 Jul 2004
    Posts:
    2,401
    Likes Received:
    10
    Try here sc4mpi ;)

    koola, 26 Jul 2005
    #31
  12. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3
    ahh thats the type of fan im looking for but they only have 1 instock and its 120x120x38mm Dimensions i need 120x120x25

    sc4mpi, 26 Jul 2005
    #32
  13. Lost.Soul

    Lost.Soul What's a Dremel?

    Joined:
    26 Oct 2004
    Posts:
    339
    Likes Received:
    0
    It seems you have connected the additional power feed to your mobo, does it really have any benefits? :rolleyes:

    Lost.Soul, 26 Jul 2005
    #33
  14. frodo

    frodo What's a Dremel?

    Joined:
    1 Nov 2003
    Posts:
    1,095
    Likes Received:
    0
    higher stability :D

    i have BOTH the molex and the FDD extra connections... just because i wanted to :D

    sc4mpi it looks good, it looks nice and clean.

    frodo, 26 Jul 2005
    #34
  15. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3
    it provides the pci-e slots with clean power, it also helps provide the ram with a steady voltage increasing stabilty as frodo said. there are two a molex and a floppy but i have not rigged that up yet. :) time to get some braiding done !

    sc4mpi, 26 Jul 2005
    #35
  16. [ShoNuff]

    [ShoNuff] What's a Dremel?

    Joined:
    10 Sep 2004
    Posts:
    211
    Likes Received:
    0
    Nice job with the new case. What made you keep (or install) the BI vs. the Thermochill 120.3?

    Oh...you can send me your pump mounting plate from the X2 project. :naughty:

    [ShoNuff], 27 Jul 2005
    #36
  17. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3

    Space :p you physicly cant fit a bix or thermochill 120.3 in this case it wont fit under the bottem graphics only the pro can :).

    as for the plate
    give us the cost of postage and u can have it :p

    sc4mpi, 31 Jul 2005
    #37
  18. sicone

    sicone What's a Dremel?

    Joined:
    6 Oct 2004
    Posts:
    74
    Likes Received:
    0
    Still looking for fans? How about this one?

    sicone, 2 Aug 2005
    #38
  19. quadmodz

    quadmodz What's a Dremel?

    Joined:
    9 Oct 2004
    Posts:
    176
    Likes Received:
    0
    Nice job dude! Good luck! i love the water cooling. LOLZ!

    quadmodz, 2 Aug 2005
    #39
  20. sc4mpi

    sc4mpi OG watercooler

    Joined:
    16 Jan 2005
    Posts:
    625
    Likes Received:
    3

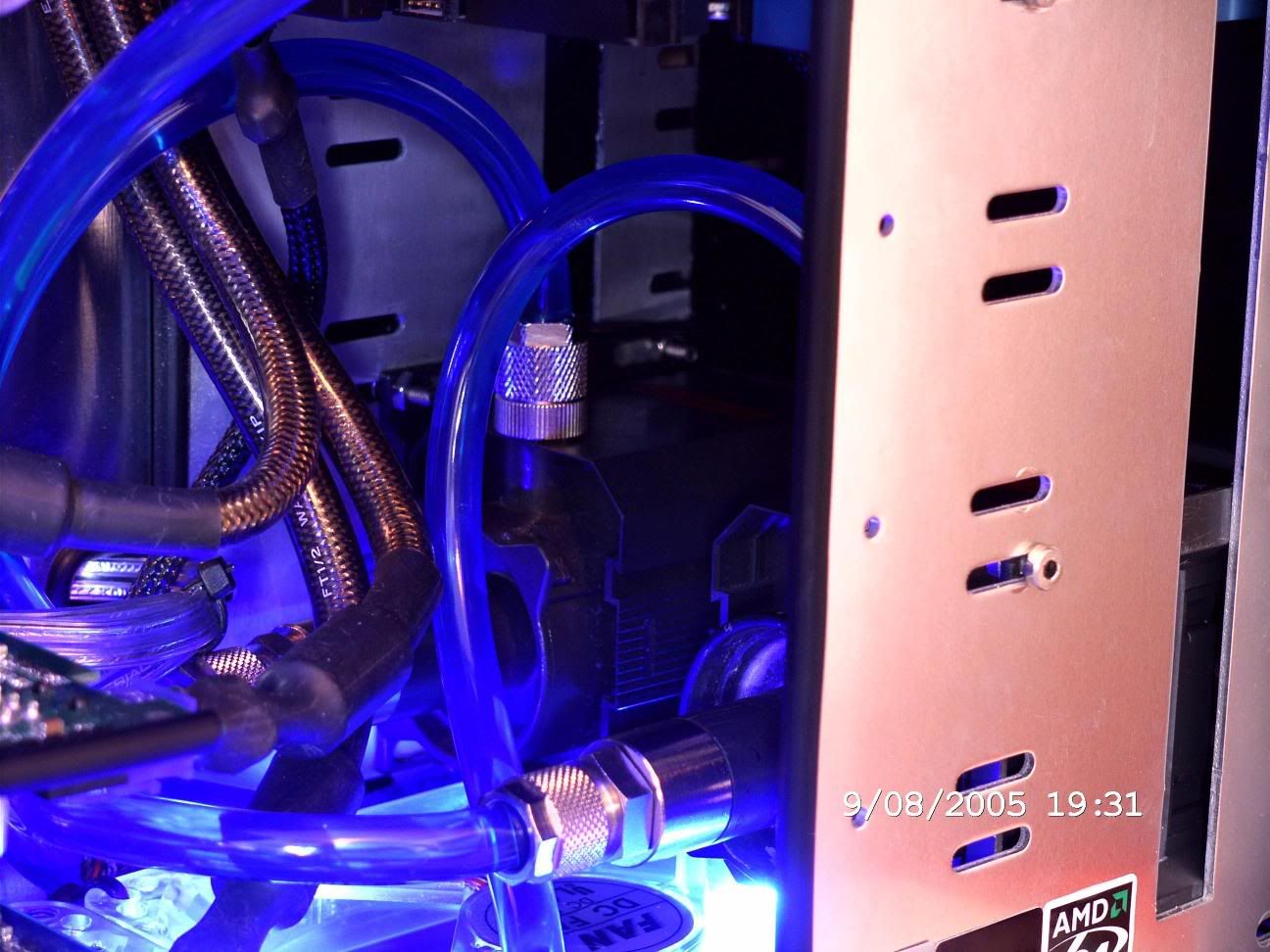

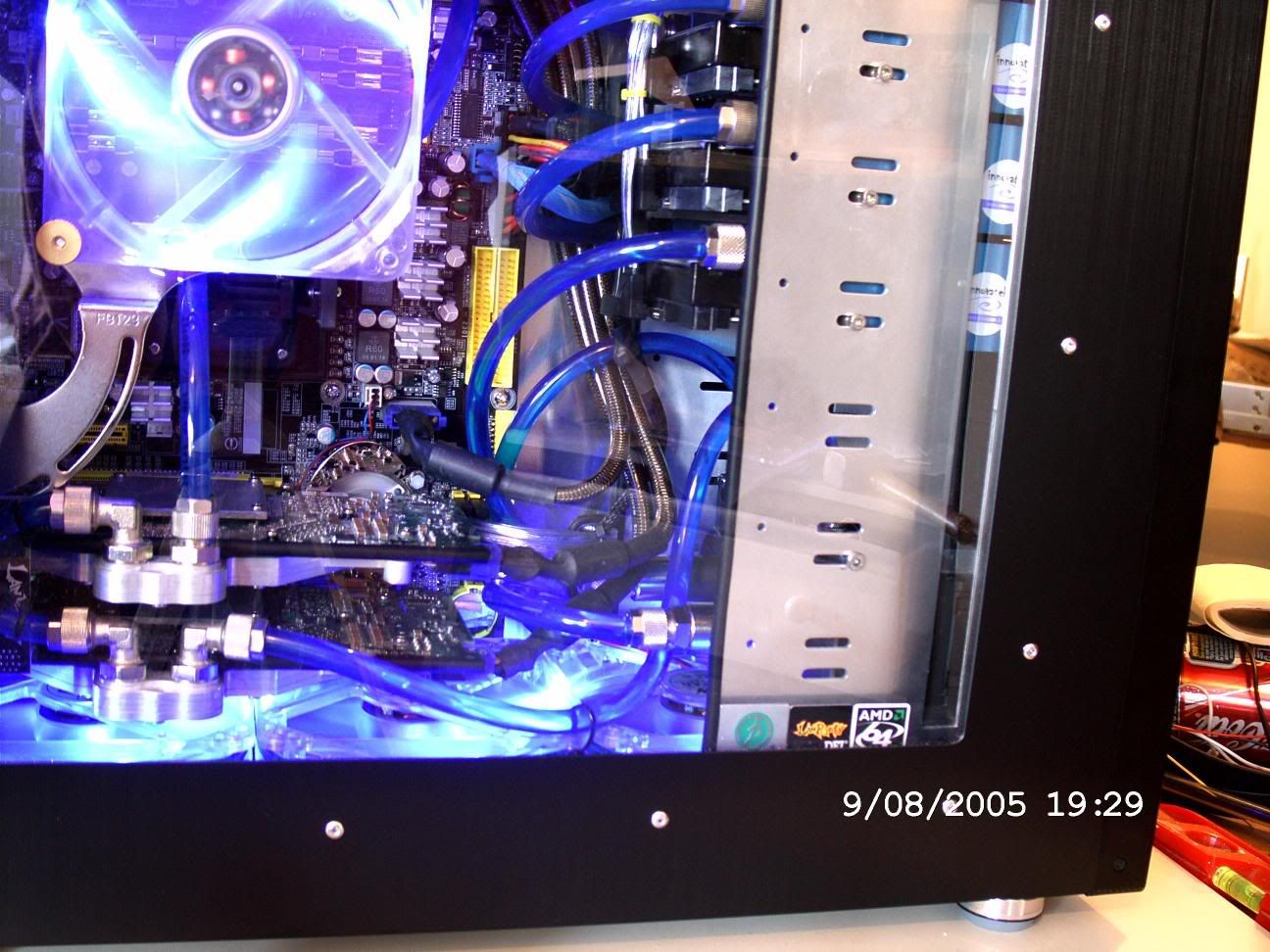

    Sorry for the lack of updates recently but the cam had to go in for repair :). i still have not found any good black fans that are not going to cost a arm and a leg & maby a kidney :p i did manage to fit the second pump in as it was definatly needed.

    Comparison:

    To fill and bleed the system with one pump took over 45 mins, and i had to turn the pc to get all the air out,

    To fill and bleed the pc with 2 pumps it took less that 30seconds

    The original loop was Res, hd 1 ,hd 2, hd 3, pump, tripple, gfx 2, gfx 1, cpu

    the loop now is Res, hd 1 ,hd 2, hd 3, pump, tripple, Pump, gfx 2, gfx 1, cpu

    This also eliminates the problem with the pressure drop from the rad :D


    [​IMG]

    [​IMG]

    sc4mpi, 9 Aug 2005
    #40
