Scratch Build – In Progress Project-Blue

Well the case will b 9-9.5 inches wide,24-24.5inches tall,and 22-22.5 inches long

the outside will b painted glossy blk and the inside matte blk and the frame blue.

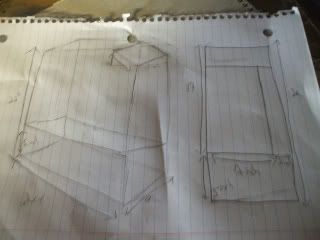

the drawing plan for the messurements

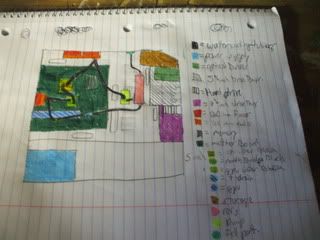

a platout of where objects will go

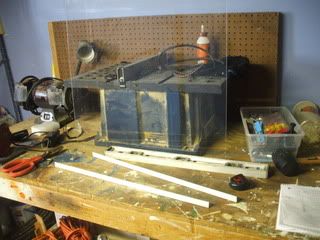

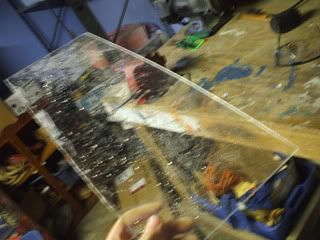

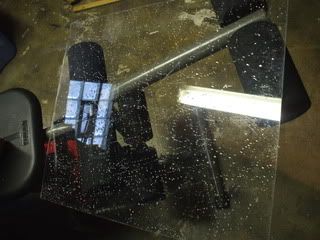

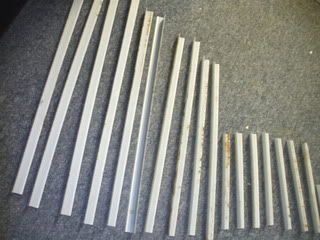

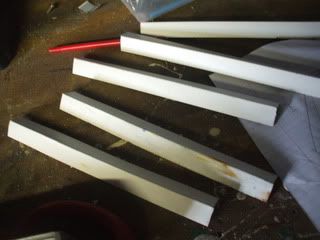

here is some of the parts for the frame cut and the plexi for certin parts....



Nice working out drawing on the lined A4 pad Got a high res of it?



working on that when i build it threw google sketchup which i am gunna start tomorrow night



ran into some problems with attaching the case....im not sure the hell im gunna do it



Going to try to assemble atlest the basic frame of the case tomorrow gunna b hard cuz my drill is a little messed up so intill i can buy a new one its gunna b very difficult drilling holes for the rivets



well im going air coolingh and am gunna b using these

(12) aerocoll turbine 3000 fans
for a cpu cooler the Noctua NH-U12P SE2
for a vga cooler ULTRA PERFORMANCE VGA COOLER
and the Zalman ZM-47J Northbridge Chipset Heatsink
