    Hi guys! :)

    Eterne is my new scratch build. Aim is to make it rather compact for an ATX-case - volume should be around 20 liters. I also love the 90° motherboard mounting so it will be featured here.

    For hardware I'm reusing my old components plus some new ones:
    MB: Crosshair IV Formula
    CPU: Phenom II X6 1090T + possibly H100i?
    RAM: 8GB DDR3 1600Mhz
    GPU: Radeon HD7850
    SSD: Vertex 2 120GB + Vertex 3 120GB
    PSU: Strider Plus 750W

    And now onto the start without any longer stories.. :D

    Just some 3mm and 5mm aluminum here for starters.. And by the way, everything in this project will be hand built from aluminum.

    [​IMG]

    [​IMG]

    Inverted standoffs for motherboard.. Installation is much easier this way. ;)

    [​IMG]

    [​IMG]

    If someone is interested in dimensions, those are currently about 410 x 310 x 158 mm. So rather tall compared to width and depth.

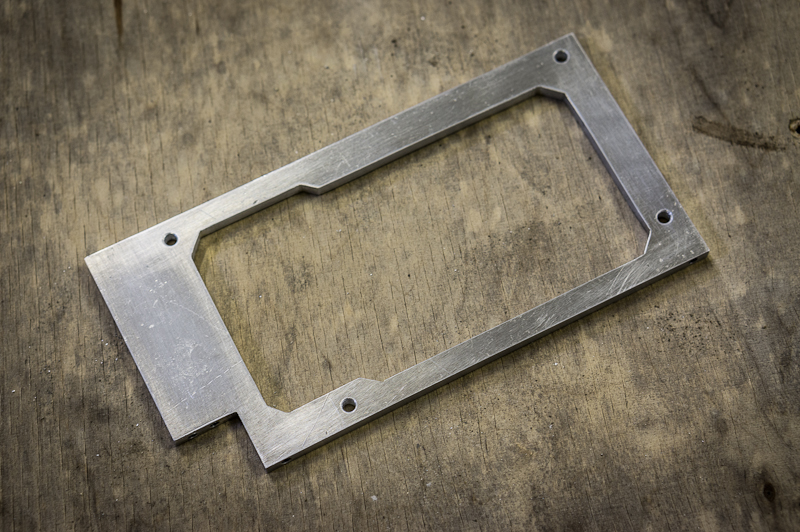

    And onto the next part - PSU mount! I'm using offcuts for these parts and sanding scratches away takes ages. :rolleyes:

    [​IMG]

    [​IMG]

    [​IMG]

    L-profile in the back is for routing cables. ;)

    Until next time.. :dremel:

    Last edited: 2 Sep 2013
  2. AciD_RaiN

    AciD_RaiN New Member

    Joined:
    29 Jul 2012
    Posts:
    150
    Likes Received:
    5
    This will be interesting :D

  3. sixfootsideburns

    sixfootsideburns modeteer

    Joined:
    6 Feb 2009
    Posts:
    621
    Likes Received:
    9
    Yep, I'm intrigued

  4. Zesti

    Zesti Aluminium + file

    Joined:
    9 Feb 2010
    Posts:
    122
    Likes Received:
    19
    I hope so too. :D

    :thumb:

    --

    I got Himuro for SSDs - it should fit two SSDs easily and maybe even a third one. :) It's really drool worthy piece of hardware. :lol:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    :dremel:

  5. tekonivel

    tekonivel Member

    Joined:
    14 Jul 2012
    Posts:
    121
    Likes Received:
    2
    cant wait to see more. the latest you made was awesome. i'll keep an eye out for this one too.

  6. J-Lyons

    J-Lyons New Member

    Joined:
    7 Jul 2012
    Posts:
    21
    Likes Received:
    0
    Great photography skills.

  7. dr-

    dr- New Member

    Joined:
    9 Aug 2012
    Posts:
    10
    Likes Received:
    0
    Zesti, great start to the worklog. I'll keep two eyes on this :thumb:

    Is it white acrylic which you are using as a canvas for your himuro shoot? Nice contrast!

  8. Nicolle1972

    Nicolle1972 Banned

    Joined:
    6 Sep 2012
    Posts:
    1
    Likes Received:
    0
    Hello forums.bit-tech.net Team! Im new to this web page and I wanted to say Hi. This can be a great web-site and im glad I joined. New to this phorum thanks for the welcome. I just came to this wonderful phorum and wanted to introduce myself to everyone. This really is such an excellent internet site.

  9. Vetalar

    Vetalar *learning english*

    Joined:
    21 Jun 2011
    Posts:
    577
    Likes Received:
    9
    does it really necessary to put ssd in silentbox? their small and could be placed nearly anywhere... or it's for "design"?

  10. Zesti

    Zesti Aluminium + file

    Joined:
    9 Feb 2010
    Posts:
    122
    Likes Received:
    19
    Thanks mates! :thumb:

    Thanks! It's just my white table on those photos.. :D

    Welcome! ;)

    Is it necessary to build a custom case? Is it necessary to watercool? Is it necessary to use LEDs? Well, no. :brrr: It just looks great. :)

  11. craig - toyoracer

    craig - toyoracer Member

    Joined:
    1 Mar 2011
    Posts:
    505
    Likes Received:
    21
    Very nice start and the Himuro's look great with the lines of the case :thumb:

    Great work so far. :)

  12. Dave Lister

    Dave Lister Member

    Joined:
    1 Sep 2009
    Posts:
    871
    Likes Received:
    10
    Love what I think your doing Zesti, great use of space. Will be watching with great interest !

    Nicolle1972: Welcome from me, odd place to say hello but what the hell at least you said hello :)

  13. Meelobee

    Meelobee New Member

    Joined:
    5 Nov 2003
    Posts:
    685
    Likes Received:
    27
    Intresting and great pics, subbed :)

  14. [ZiiP] NaloaC

    [ZiiP] NaloaC Well-Known Member

    Joined:
    9 May 2008
    Posts:
    4,585
    Likes Received:
    228
    Looks promising, will follow. :)

  15. Zesti

    Zesti Aluminium + file

    Joined:
    9 Feb 2010
    Posts:
    122
    Likes Received:
    19
    Thanks guys! :thumb:

    Here's how power supply looks mounted onto the chassis:

    [​IMG]

    And this is how Himuro will be mounted:

    [​IMG]

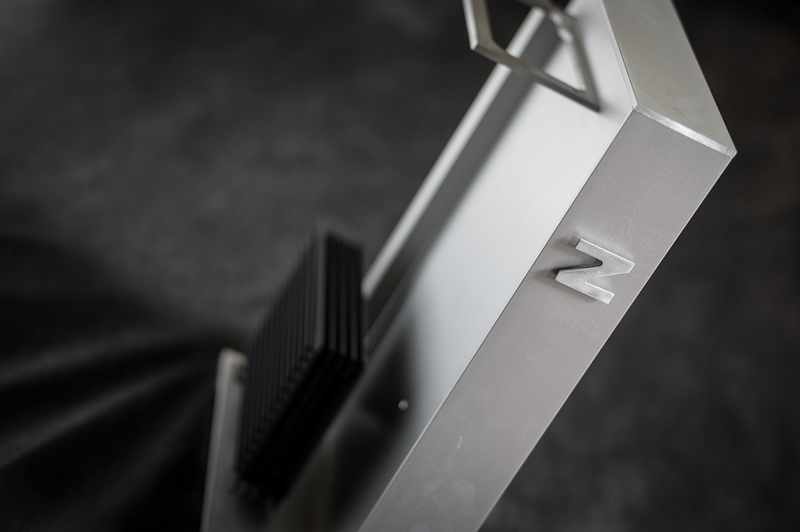

    Plus an extra sneak peak of the front panel and floating logo.. :D
