Case Mod - In Progress Project: Gearbox 2.0 - mini P180 Back to Basics

Discussion in 'Project Logs' started by THEkorean, 2 Jun 2007.

  1. Spaceraver

    Spaceraver Ultralurker

    Joined:
    19 Jan 2006
    Posts:
    1,363
    Likes Received:
    5
    What he suggests is that you add that extra piece of wire to make the total wire stiffer, i.e. Viagra for wires. :hehe:

    It's not connected to anything at the ends though. Note: Use thick copper wire and use it as your Ground (-) wire, that way you can push it into the molex/XLR/PCI-E connector too.

  2. jfab199+

    jfab199+ What's a Dremel?

    Joined:
    28 Oct 2007
    Posts:
    45
    Likes Received:
    1
    this may help for the key question, you should be able to find whatever you need, I have ordered from them before quick service

    http://search.digikey.com/scripts/DkSearch/dksus.dll?Cat=1114205;keywords=key switch

  3. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    Now we have to mount the pump to the pump mount, here is my idea:
    Take a strip of aluminum bend it at the ends and then bend the whole thing around the reservoir
    [​IMG]
    Oh yea, I got a new reservoir, the Alphacool one was a disaster because idiots that engineered the thing thought it was a good idea to combine an acrylic cap with an aluminum ring (cooling and heating cracks the cap which has already started to happen)
    [​IMG]
    [​IMG]
    [​IMG]
    anyways, we get something like this
    [​IMG]
    [​IMG]
    then I drill a bunch of holes, and then glue some aluminum angle bars to the ends
    [​IMG]
    finished product

    Well, until next time!

  4. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    Wow is there some kind of work limit on posts now?? Now my post is going to be all screwed up and out of order, anyways, here is the part proceeding the last one:

    TEN THOUSAND YEARS AND IM FREE!
    Ok it hasnt been that long but it sure seemed like it. I just graduated high school and now I have more time for modding so without further ado, i present to you updates.

    I did some modding here and there for a few months:
    First item on the agenda, pump mounting. Due to the lack of space in the Matx case, I have to suspend the pump and to do that I had to design a bracket that could hold it against the radiator yet allow air to flow through, here is what i came up with:
    [​IMG]
    [​IMG]

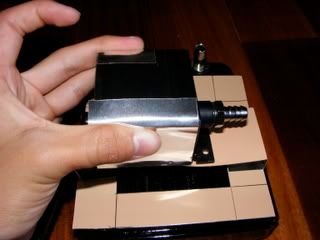

    Mocked up design with some paper thin aluminum sheets
    [​IMG]
    mock up with the pump attached
    [​IMG]
    also had to cut a notch in the rubber mounts that came with the pump so the wire could fit nice and snug
    [​IMG]
    see, nice and tidy :)

    Next item on the agenda, reservoir mount:
    hrm.. I didnt get any progress pictures after all... weird, anyways here is the finished product:
    [​IMG]
    [​IMG]
    [​IMG]

    Ok now on to some stuff I did today:
    [​IMG]
    Started cutting out the pump mounting bracket (refined design on the fly)
    [​IMG]
    Scored the thick sheet aluminum to use as guide lines
    [​IMG]
    Cut out and sanded, looks pretty good

  5. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,974
    Likes Received:
    1,629
    It's good to see you back. -and we didn't have to poke you this time.:D
    I like the hinged reservoir mount. What's this about cracking plastic caps on an aluminum reservoir? Is that something I can look forward too?

  6. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    @Cheapskate: Well no, nothing to look forward to because it already started to happen haha. I dont think I was verry clear the first time so let me explain again. Previously I had an Alphacool reservoir that had an acrylic cap that was screwed into a aluminum rim. The problem was that the aluminum had a different rate of expansion/contraction based on temperature change (which there was a lot on as the reservoir is inside the case) so when the aluminum contracts, it squeezes the cap and it cracks. I'll try to get a picture of it Asap.

  7. The_Beast

    The_Beast I like wood ಠ_ಠ

    Joined:
    21 Apr 2007
    Posts:
    7,379
    Likes Received:
    164
    Looking good :thumb:

  8. Oreon_237

    Oreon_237 CHEA BRO!

    Joined:
    11 Dec 2007
    Posts:
    1,170
    Likes Received:
    1
    Good to see you back man. and with an update! its been like 4 months or something! nice reservoir mount it looks good in design.

  9. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    Man I have been having a complete crap week. School sucks (as always), I have been given all my main assignments at once and I can't get anything right. Reading that this mod is now rolling again has made my day...no, it has make my whole week my friend. Thanks for the kick to get me through the rest of the week, it was just what I needed.

  10. Tec_

    Tec_ What's a Dremel?

    Joined:
    26 Feb 2008
    Posts:
    437
    Likes Received:
    6
    dude i like. i cant wait to see this done. i am currently working on liquid cooling a 300 my self, im looking forward to seeing yours.

  11. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,974
    Likes Received:
    1,629
    It's OK. I understood completely. I'm just worried because I just built a Plexi/alum res!
    Thanks for the warning, though. I'm going to see if I can ease the fit a bit.

  12. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    @The_Beast
    Thanks :thumb:
    @ Oreon_237
    Thanks and yea its been way to long, hopefully I get this thing wraped up before I have to move to Berkeley,CA at the end of August.

    BTW Anyone in the Bay Area going to NVision 08?
    @The boy 4rm oz:
    Haha glad I could help, sorry its been a while since my last update, I keep having trouble getting things rolling,
    @Ceapskate:
    Ouch, I hope that works out for you.
    _________
    Happy 4th if you are living in the US, not so happy if you're living in the UK i guess (?) )

    Lets start with some old pictures that I never got around to posting:
    Here is the res mount finished with a little demo video
    [​IMG]
    mount and res put together
    [​IMG]
    [​IMG]
    [​IMG]
    How its mounted (lots of 8 - 32 screws). Its a little bent in the last picture, but I fixed that.
    [​IMG]
    Everything put together in the down position.
    [​IMG]
    Everything put together in the up position.
    [​IMG]
    Here is the video to clarify.

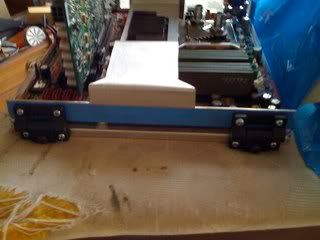

    Anyways, package came yesterday with a nice large sheet of aluminum. If you remember the mounting frame for the pump/radiator from my last post, then you will recognize this as the 2nd part of my innovative pump mounting system :D :
    [​IMG]
    [​IMG]
    Top view
    [​IMG]
    Check out that gap, looks nice a breezy

    Questions/comments welcome.

    Until next time!

    Last edited: 4 Jul 2008
  13. x06jsp

    x06jsp da ginger monkey!!!!

    Joined:
    2 Apr 2007
    Posts:
    1,651
    Likes Received:
    1
    looks good glad to see you taking it up again :up:

  14. E.E.L. Ambiense

    E.E.L. Ambiense Acrylic Heretic

    Joined:
    26 Jul 2007
    Posts:
    2,957
    Likes Received:
    68
    Sweet! Kick-ass job, man! Glad ta see ya back too.

  15. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    So I have exactly 1 month (from yesterday) to complete this mod before I leave for school, so I've done alot of thinking. I MIGHT have to finish everything I can to make it functional and running, then get the final pieces custom machined while im at college, but that's a surprise for another day.

    So, now we enter the phase where the boring stuff fades away and all the flash and eye candy comes into play, starting with the lighting.
    Gearbox will have 2 sets of 13 LED arrangements, on set on the Mobo tray, and the other on the interior and feet:

    1st set
    [​IMG]
    First set hooked up to J.Le in for repairs
    [​IMG]
    Overview
    [​IMG]
    [​IMG]
    [​IMG]
    Close ups

    I know the LEDs aren't spaced evenly, but that's because they arent hot glued down, which I did yesterday, but didnt photograph.. oh wait, nevermind I did:
    [​IMG]
    Oh and one more thing, if you look closely at the picture ^ you can see that the acrylic bordering has a grove that runs along the side that dosnt appear in the other pictures, that's because I had to cut it so that teh sliding mechanism inside the case would let it in, a picture for yall that are still curious:[​IMG]


    2nd set
    We got the 2nd set on the floor of the case
    [​IMG]
    Dont mind the bare wires, tehy wont be visible with all the hardware in.
    [​IMG]
    this is how they are going to light up the feet, which is coming next :]

    OK on to the most exciting part of the mod so far, the GEARS. It's the first set of gears that I have actually CUT for this case, minus the one that I cut for demo purposes:
    [​IMG]
    It all start with a little idea in photoshop
    [​IMG]
    that gets printed, pasted, cut, and drilled (1 hole for foot spike, 2 large holes for decoratoin, 2 smaller holes for LEDs, and 2 smallest holes for alignment)
    [​IMG]
    Then I draw up some spaces for teh gears
    [​IMG]
    Cut and drilled
    [​IMG]
    [​IMG]

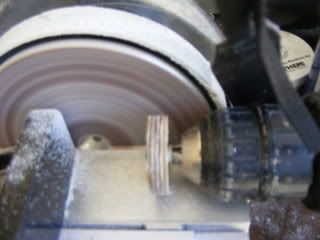

    attached to the drill via screw and nut and put to the disk sander
    [​IMG]
    everything stacked
    [​IMG]
    finished assembly looks someting

    [​IMG]
    [​IMG]
    sand and polished gears

    [​IMG]
    all of them installed
    [​IMG]
    closeup front
    [​IMG]
    closeup back

    notice there is no spacer on the back feet, and this why i'm dumb. FIrst of all I only measured the hole for the back feet and designed and made the gears based on those measurements, that was mistake #1. Now the gears on the front are protruding a little, which looks kinda weird. Mistake #2, I carpeted the case before Installing the feet, this means I totally forgot that the front of gearbox has an extra lump near the feet because of the original contruction of the case, therefore the threads on the metal spikes is not long enough to acomodate the spacers.

    Now, gearbox is lopsided, the back is higher than the front :[ I could remove the spacers in the back, but they complete the look... any ideas?

    Well that's it for now, until next time

  16. nickhelton

    nickhelton What's a Dremel?

    Joined:
    13 Feb 2008
    Posts:
    240
    Likes Received:
    0
    i think it would be cool if you took the rez mounting bracket and drilled little 1/3" holes in it machine gun barrel style

  17. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    That looks really clean. Fantstic work.

  18. THEkorean

    THEkorean 42

    Joined:
    10 Jun 2005
    Posts:
    480
    Likes Received:
    0
    nickhelton:
    man.. that's a really good idea, too bad i already bent it and drilling nice looking acurate holes will be too difficult :[ man.. where were you when I was building that piece lol. Maybe ill redo it some time if I dont like how the painting turns out.

    the boy 4rm oz:
    thanks :thumb:

  19. nickhelton

    nickhelton What's a Dremel?

    Joined:
    13 Feb 2008
    Posts:
    240
    Likes Received:
    0
    Yeah i figured that much. Get a flat one, hit the drill press, and send me pics :)

  20. The_Beast

    The_Beast I like wood ಠ_ಠ

    Joined:
    21 Apr 2007
    Posts:
    7,379
    Likes Received:
    164
    I almost forgot about this mod


    Still looking good :thumb: I really hope you finish
