Project: Gemstone (42" tall, Quad watercooled CPUs)

yay!

its about time someone mods a real computer(s)... its kind of funny looking at all these great mods with crappy systems inside.



Yikes, now this will be pretty intresting.

Lets see what happens.



Alright, on to some of the fun stuff.....

The custom resevoir was constructed from 6 pieces of 1/2" acrylic and assembled using an industril acrylic cement. Warning, this stuff is real nasty, only use it in a well ventilated area. It's also extremely flamable, so be carefull...

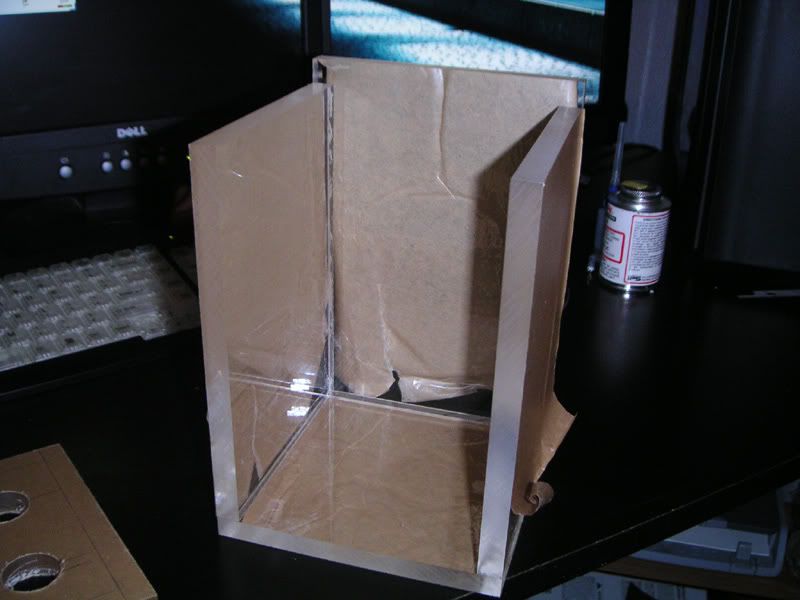

Here is a pic of the res partially assembled:

The acryllic cement is extremely unforgiving. Once it touches the surface it immediately begins meltin the accrylic anywhere it touches, so if you screw up you can't wipe it off as this will cause the whole area you wiped to look screwed up.

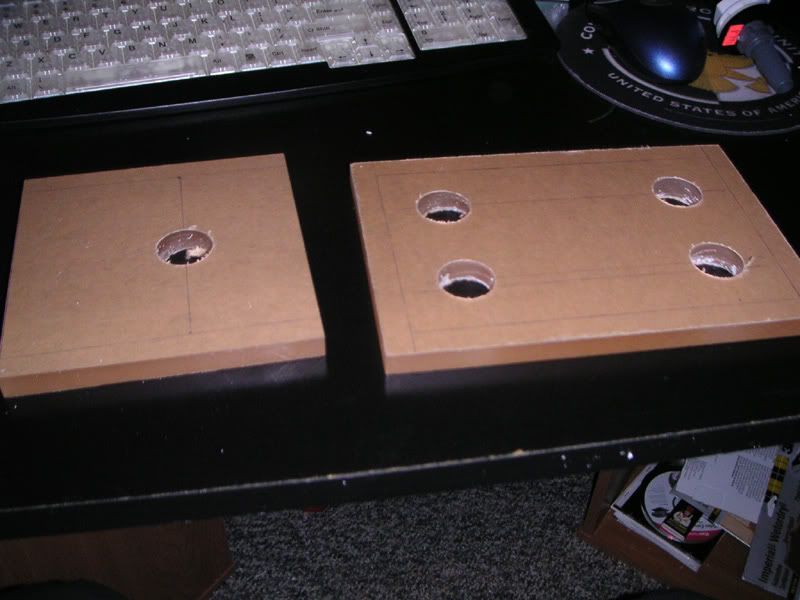

These are the back and top pieces with the holes cut for the bulkheads. First, I marked off where the holes would be located, then drilled a pilot hole, and finally drilled the 1" hole out using a hole saw.

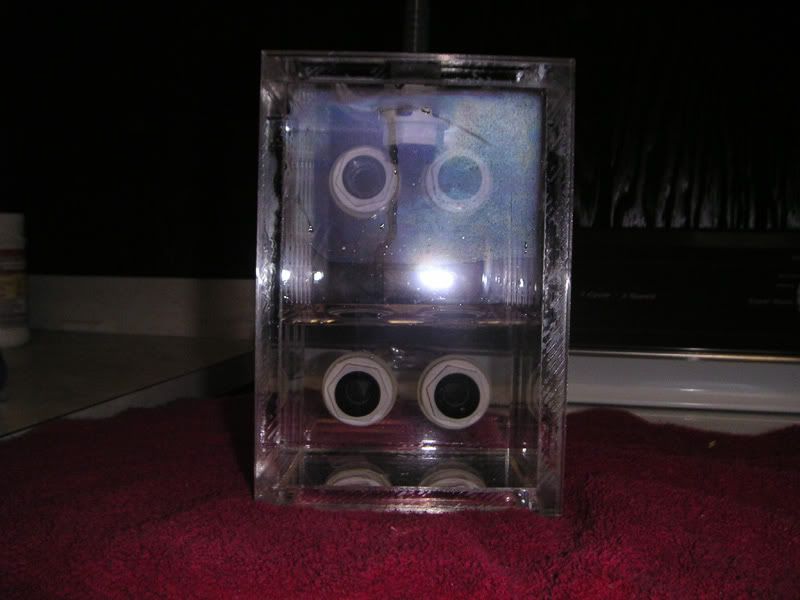

Here is a shot of the res with all the panels assembled and the bulkhead fittings in place....

The fittings are standard aquarium bulkhead fittings with 1/2" barbs. The one on the very top will be attached to a fill tube. The two top fittings on the back panel will be the inlets from both radiators, and the two bottom fittings will serve as outlets to the MCP650 Pumps to feed each cooling loop.

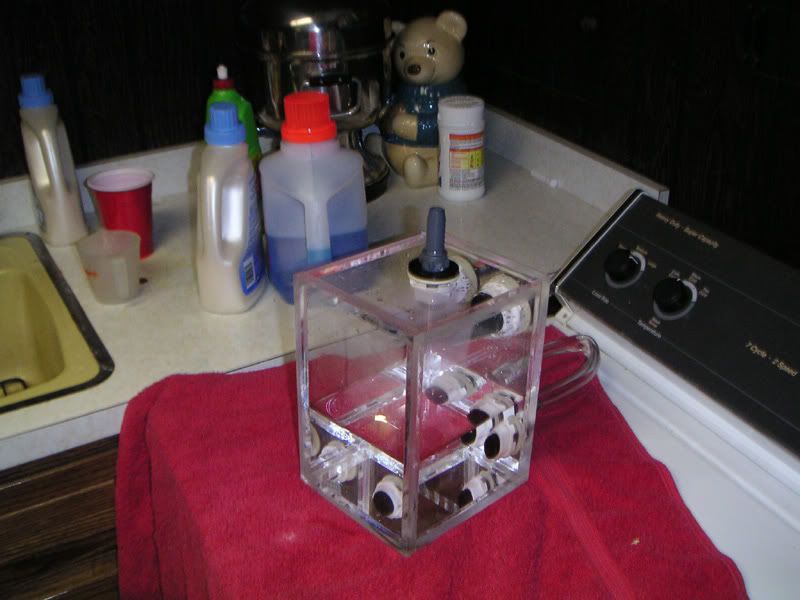

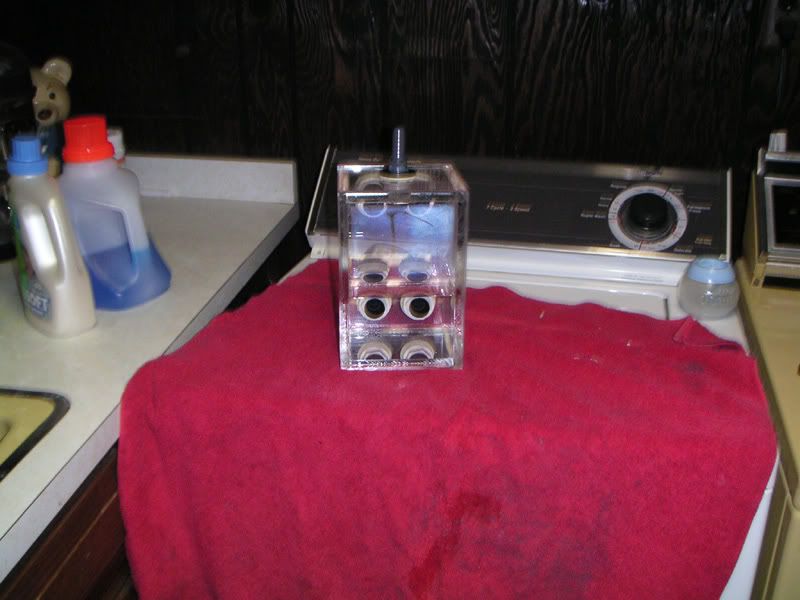

Here are some shots during initial leak testing:


Ahh, water tight!

The res fills up 5 drive bays in the front of a YY cube server case, because of the cases design (there is one big drive cage with rails for each drive) I decided to do two more things. First, since the sides of the res would only have a nice view of the cage, I decided to cover the sides using some chome self-adhesive vinyl (this stuff is really cool, you can find it at your local vinyl sign shop).

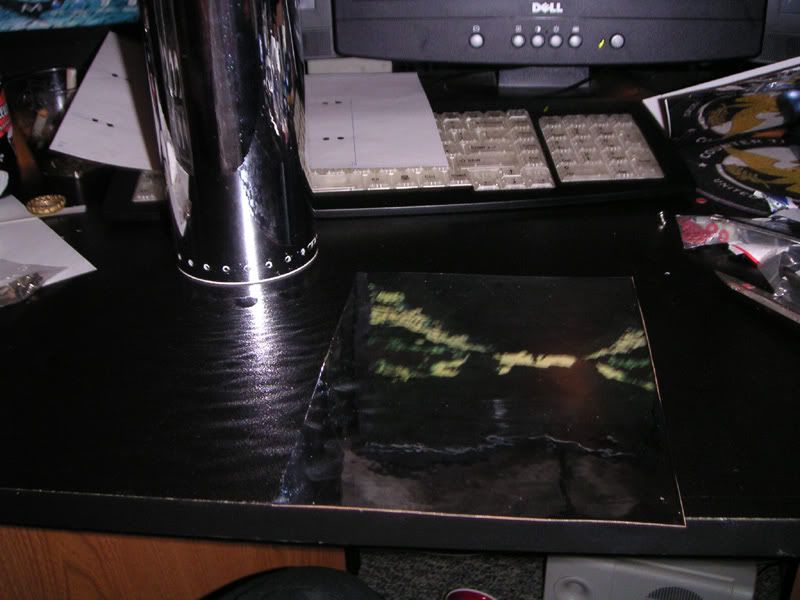

The chrome vinyl gives it a mirror like finish on the sides and bottom. The vinyl was applied to a manilla file folder to give it some strength then each piece was cut to size and simply taped togeather. The panel on the left side of the res was covered on both sides, since part of this will be visible through the case window through the drive cage (didn't want the file folder showing)


To hold the resevoir in place in the case, I'm using the standard YY rails that came with the case and attaching them to the res. This is why I went with 1/2" thick acrillic.... The 1/2" allows me to drill holes to accept the mounting screws halfway through the sides. I created a template for the screw hole locations using a piece of paper and an extra CD-ROM drive that was sitting around. Then layed the template over the sides of the res and drilled out some 3/32" holes halfway through the acrylic, two on top and two on the bottom of each side.

You can see one of the rails in the pic above, as well as the mirror effect that the chrome vinyl gives the res. This should look great with a blue CCFL inside the case filled with water dyed blue.......



Well, thats enough for today I think.... but I'll leave you guys with one more pic of things to come......

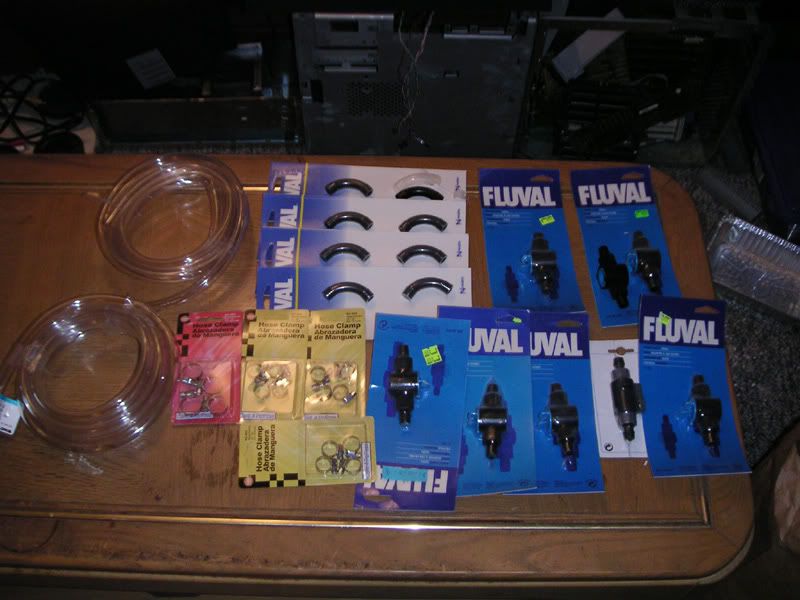

$140.00 worth of hoses, clamps and fittings to water cool this beast!!
