project: i-spider |stacker mod | 11-4: up and running (again)

Discussion in 'Project Logs' started by _ferry_, 19 Aug 2004.

  1. _ferry_

    _ferry_ What's a Dremel?

    Joined:
    22 Apr 2004
    Posts:
    333
    Likes Received:
    3
    Update

    Finaly, a new update!
    The Dutch casemod championchips are coming up and there is a lot of work left.

    What's the planning?
    - New spacing between the 2 cases
    - improving the baybus
    - modifying the reservoir
    - VGA watercooling
    - Finishing touch the he rearside of the case

    [​IMG]
    [​IMG]
    [imghttp://tweakers.net/ext/f/4f4e7ff0c17ba420c39c015340c06e4b/full.jpg[/img]
    [​IMG]
    Getting the case in parts, ready for updating

    [​IMG]
    [​IMG]
    Oops, some dirt in the CPU cooler due top bad cooling fluid and airbubbles

    [​IMG]
    [​IMG]
    The most inportant update, there will be a few acrylic bloks between the 2 cases with brake hoses running trough it. Offcourse with high precision and light effects.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

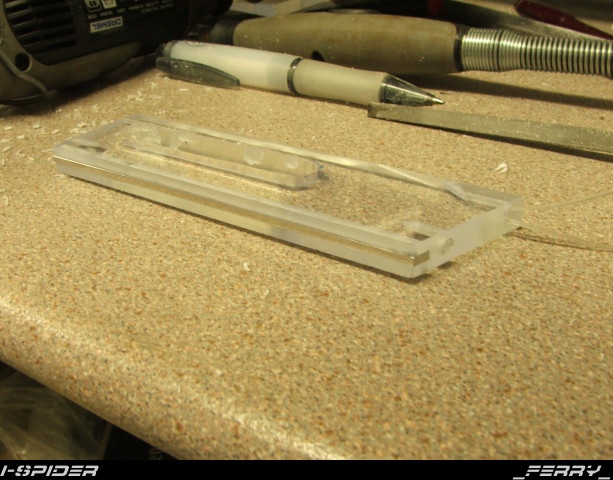

    This one was the hardest one because his length. It's bigger because the watercooling tubes are going trough it.

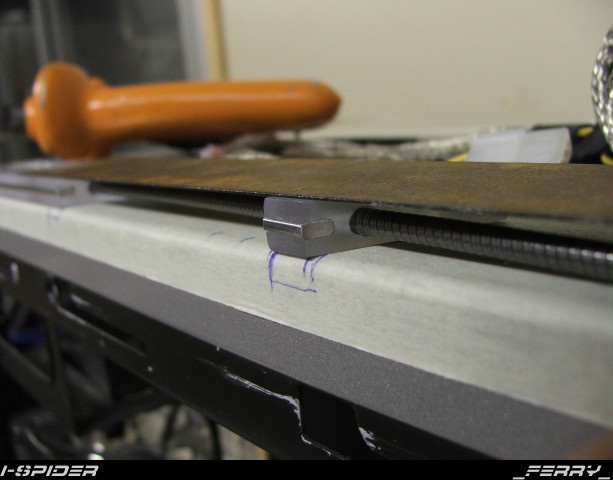

    Building the acrylic blocks is not as easy as you might think. First i should make a hole in it where the aluminium strip would fit in. The rough lines are done with a dremel, and after that it takes +/- half an hour to make it fit exactly for every block. The aluminium is pushed into the acryl with no need of glue. After fitting it it's time to get the right dimension and polish the aluminium. when moving your finger over it you can hardly feel the junction between acryl andaluminium.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Changing the reservoir, i hope this will remove air out of the water.

    [​IMG]
    [​IMG]
    [​IMG]
    The first idea was to use fibers, but the light output was way to low, so i decided to use RVS wire.

    [​IMG]
    Nice close-up

    [​IMG]
    Because i was polishing the RVS wires i did the rear grill too.

    [​IMG]
    Hard to keep a workspace tidy hehe.

    [​IMG]
    Left side is done :D

    [​IMG]
    What to do when your safety glasses are gone? Yep, use a piece of acrylic instead.
    [​IMG]
    All the blocks are done.

    Don't know when the next update will follow, but it won't take too long. In the next update i will add lights and a black piece beyond the blocks to prevent looking between them to the other side.

  2. .:ALOA:.

    .:ALOA:. What's a Dremel?

    Joined:
    23 Nov 2005
    Posts:
    40
    Likes Received:
    0
    hoe oud zijde gij maar meschien??
    wel chille bak

  3. jezmck

    jezmck Minimodder

    Joined:
    25 Sep 2003
    Posts:
    4,456
    Likes Received:
    36
    (please also write in English)

  4. Nexxo

    Nexxo * Prefab Sprout – The King of Rock 'n' Roll

    Joined:
    23 Oct 2001
    Posts:
    34,534
    Likes Received:
    1,901
    Translation:

    How old are you perhaps?
    Well cool case.

    ALOA: Please be polite and post in a language that the members can read.

  5. .:ALOA:.

    .:ALOA:. What's a Dremel?

    Joined:
    23 Nov 2005
    Posts:
    40
    Likes Received:
    0
    sorry, but my English is very bad, i can read it, but very bad write it ;)

  6. Nexxo

    Nexxo * Prefab Sprout – The King of Rock 'n' Roll

    Joined:
    23 Oct 2001
    Posts:
    34,534
    Likes Received:
    1,901
    I'm sure many people will still find it more comprehensible than Dutch or Flemish. ;)

  7. _ferry_

    _ferry_ What's a Dremel?

    Joined:
    22 Apr 2004
    Posts:
    333
    Likes Received:
    3
    Agrees :p Anyway, i'm 19 years old.

  8. Dj Ovin

    Dj Ovin What's a Dremel?

    Joined:
    7 Nov 2005
    Posts:
    349
    Likes Received:
    0
    WOW! Huge case and awesome work!!! :O
    Just love it!!

  9. _ferry_

    _ferry_ What's a Dremel?

    Joined:
    22 Apr 2004
    Posts:
    333
    Likes Received:
    3
    update

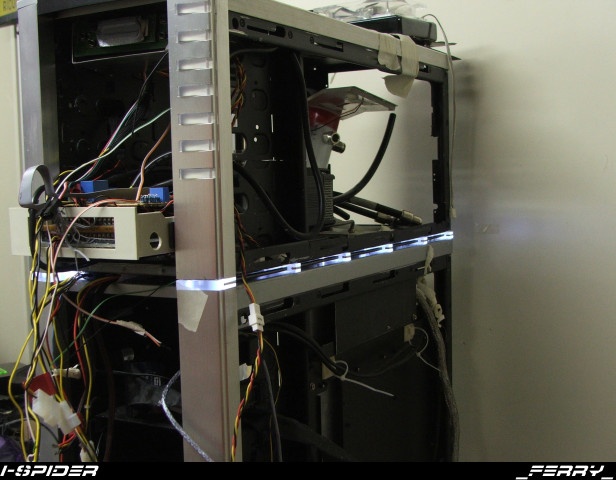

    Just a quick update to show you the result of the blocks with led's. I've mounted them today together with the black strip witch prevents looking trough the space between the cases:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I will get some better pictures when the saw-dust has been removed and the cable's are cleaned up.

  10. Starbuck3733T

    Starbuck3733T Look out sugar, here it comes

    Joined:
    16 Sep 2002
    Posts:
    920
    Likes Received:
    0
    It's a very clean effect and I like it a lot :)

  11. _ferry_

    _ferry_ What's a Dremel?

    Joined:
    22 Apr 2004
    Posts:
    333
    Likes Received:
    3
    update

    Finaly the system is up and running again. I was ill the past day's so i stayed home. Try to sleep is getting bored quickly so i did some modding. Yesterday my health was much better so i've been modding the whole day to get the machine up and running again. Very happy with that due to the fact that today is the deadline for the dutch casemod championship.

    [​IMG]

    [​IMG]
    The watercooling seems now without air bubbles :D So the mod on the reservoir worked well AFAIK.

    [​IMG]
    Finished the large rear grill.

    [​IMG]
    I've added 2 12cm fan's ( 4 in total), the whole front is now filled with fan's hehe. Much cooler in 2 ways.

    [​IMG]
    [​IMG]
    The new acrylic blocks.

  12. simon_C

    simon_C Minimodder

    Joined:
    13 Nov 2005
    Posts:
    271
    Likes Received:
    0
    so sexy. so so so damned sexy.... i might need to copy you for my next case.... (just finished my system, already planning the next ^.^)

    seriously though.... i cant get over how awesome that is. its everything ive ever wanted to do to a case. its so clean and intricate, so incredibly well done.... congratulations man, you must feel good about yourself....

  13. zr_ox

    zr_ox Whooolapoook

    Joined:
    5 Jan 2005
    Posts:
    1,143
    Likes Received:
    0
    Wicked mods Ferry!

    I loved your case the first time round, and I'm liking it again.

    One thing though, if your entering it into the same competition again maybe you dont stand as good a chance to win.

    Everyone has seen it, and whilst you have made some cool changes, its fundamentally the same mod.

  14. _ferry_

    _ferry_ What's a Dremel?

    Joined:
    22 Apr 2004
    Posts:
    333
    Likes Received:
    3
    Thanks both :)

    Past year i was there with a different mod. That one was more eye-catching (rust theme, complete different compared to the other 9 mods, see signature). This time there are more mod's witch are build around hi details etc. So the option to become 1'th again will be less anyway i think. Doesn't mather, i hopefully approved my craftsmanship anyway hehe.
