Project Lament: HellRaiser Cenobite PC -=FINISHED=-

Discussion in 'Project Logs' started by ARTbyTROY, 24 Feb 2005.

  1. Defyant Mods

    Defyant Mods Multimodder

    Joined:
    14 Sep 2004
    Posts:
    1,263
    Likes Received:
    735
    Some of the most original and inspiring work seen to-date :rock: :rock:

    In a world of convention and box's , you've stepped outside the square and shown anything is possible.


    Mindblowing work so far Troy :thumb:

  2. Chairboy

    Chairboy I want something good to die for...

    Joined:
    10 Jun 2004
    Posts:
    1,773
    Likes Received:
    112
    Those eyes will give me nightmares tonight!

    Seriously good work tho :rock:

  3. GoTaLL

    GoTaLL What's a Dremel?

    Joined:
    17 May 2005
    Posts:
    319
    Likes Received:
    0
    thats a damn nice mod.. i could use one of thoose torsos to play with myself :)

  4. Godboy_g

    Godboy_g What's a Dremel?

    Joined:
    13 Aug 2004
    Posts:
    396
    Likes Received:
    0

    Not me, I can play with myself just fine without aid :naughty:

  5. GoTaLL

    GoTaLL What's a Dremel?

    Joined:
    17 May 2005
    Posts:
    319
    Likes Received:
    0
    lol yeah but whats the fun in that ;)

  6. irish modder

    irish modder What's a Dremel?

    Joined:
    4 Mar 2005
    Posts:
    9
    Likes Received:
    0
    that is so incredibly frightening.

  7. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    05/19/2005 Update... It will not die!

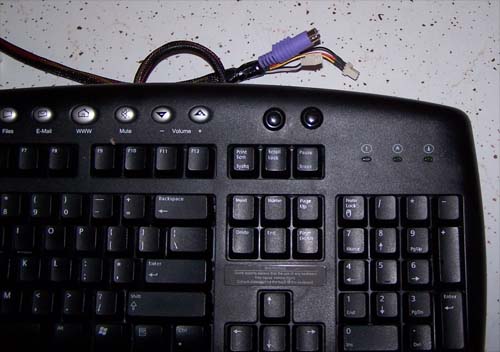

    Things that I thought to be (and well could have been) finished have been worked on even more to make them just that little bit better, like the previously pictured keyboard... it still needed something. Since I did not need for the UV LEDs above the eyes to be on all the time and did not want to hook them to any of the switches on the back of the torso I decided to run a second SPST momentary switch to the keyboard so that I can make the eyes completely freak out with light and motion all from one spot.

    [​IMG]

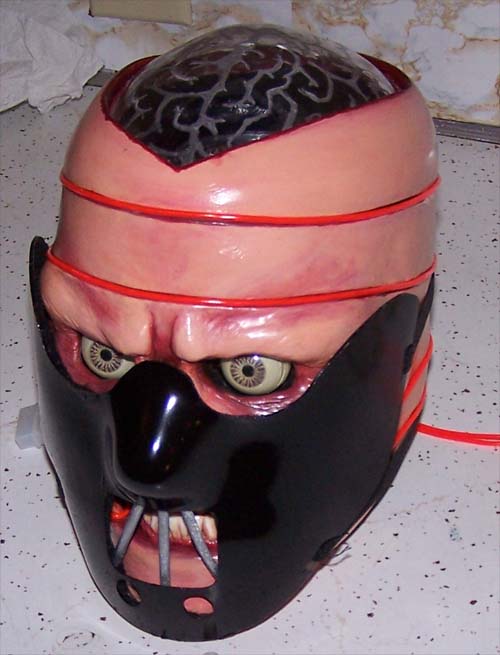

    I remembered an old Hannibal Lechter mask that I had, just goofing around I decided to put it on the head... it looked pretty freaked out, but it was a coppery color and made of thin plastic. Four coats of vinyl dye to the mask and the same in silver spray paint for the mouth section, along with felt lining the inside of the mask for both support and protection from scratching up the face and the newest addition to the mod is finished. It easily slips on and off and will mainly be used when transporting it.

    [​IMG]

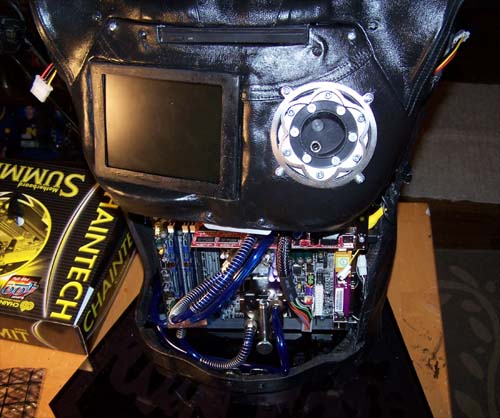

    Installing the hardware and water cooling...

    Well, installing hardware is easy (done it a million times) but water cooling is admittedly new to me. I got everything inside the abdomen and installed the window... which caused a few kinks in my tubing. I have some springs already installed on most of the hoses and have ordered more to cover the rest. I also have to shorten a couple other hoses to make sure that nothing gets kinked when the window is on... I am learning and thankful that I did not jump the gun and fill it with water before noticing the problems.

    [​IMG]

    Almost there, once the springs arrive I will redo the tubing, tidy up the wiring and probably add a pair of meteor lights into the abdomen... then I can finally fire this bad boy up.

  8. Meelobee

    Meelobee What's a Dremel?

    Joined:
    5 Nov 2003
    Posts:
    685
    Likes Received:
    27
    That is the most insane (in a good way) mod I've ever seen..Very nice !

  9. jokkos

    jokkos too busy to mod *sigh*

    Joined:
    10 May 2005
    Posts:
    1,052
    Likes Received:
    7
    hmm I kinda liked it better without the hannibal lecter mask. But I'll have to see it attached to the torso first, maybe it blends in better then.

    anyway, superb mod!

  10. papeniglio

    papeniglio Minimodder

    Joined:
    5 Dec 2002
    Posts:
    420
    Likes Received:
    0
    Please, :read: !! He said it will be used just during transportation......

    Great mod!

  11. Sheldog23

    Sheldog23 What's a Dremel?

    Joined:
    11 Jan 2004
    Posts:
    297
    Likes Received:
    0
    :jawdrop: :jawdrop: :jawdrop: :jawdrop: :jawdrop:

    That is going to look so Awsome when it is all together and lit. Great, Great work.

    One worry. The WCing. Perhaphs you should test it before firing it up? I would hate for it to leak and destroy your hardware after all that hard work. I dunno, I would just be super paranoid about it if it were me. :worried:

  12. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    I definitely plan to test the water cooloing before firing up the computer... it would suck to do it all at once and fry everything.

  13. Rufus-Seal

    Rufus-Seal Guest

    :hehe: I don't like monsters :waah:

  14. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    Since I made additions to both the head and the keyboard (both were supposedly done) I felt that an addition could be made to the abdomen window to make things better too. I painted and installed another strip of flexible red LEDs that will sit inside the bottom base of the belly and light the area around the processor block up to the video card.

    http://www.casemodgod.com/Hell166.jpg

    I also decided to upgrade the chest section as well by adding two meteor lights that I cut up to fit inside, they will shine down into the abdomen window section and provide an animated lighting effect to offset the lasers in the head. I used black vinyl dye to make the box, switch and button match and then installed the modded cover plate behind the section of leather with velcro on the top and bottom...

    [​IMG]

    Everything plugs in on this side. Some of the components like the mouse and keyboard plug into the PC beneath the flap, for the monitor plug I made its own cutout (as seen below). The cover flap was actually one of the biggest design hurdles of this project, but I think I made good use of space by having nearly EVERYTHING (external and internal) plug in from this area, including the monitor and also control of the meteor lights.

    http://www.casemodgod.com/Hell168.jpg

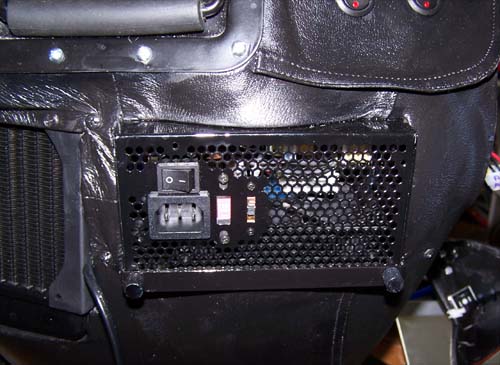

    For the back cutout I used a black mesh speaker grill that is held in place with liquid electrical tape, it looks a lot better than the black plastic mesh I had wedged in there before.

    [​IMG]

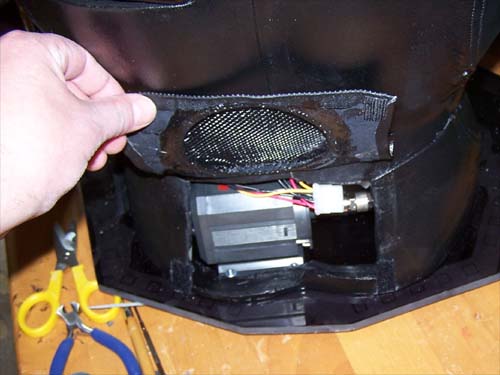

    The top is glued down and the bottom is held down by velcro, it makes for easy access to the pump and is also the air intake for the PC.

    http://www.casemodgod.com/Hell170.jpg

    I painted the PSU tray with black enanel paint and changed out the silver thumb screws for black.

    [​IMG]

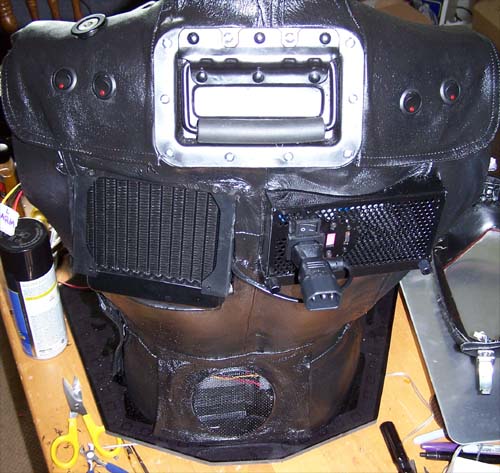

    Below is the back of the beast, one of the things that I decided early on was that it would have to look good from all angles, including the back. It was tempting to just ignore detailing the back since it would hardly be seen but now that it's done it really paid off.

    [​IMG]

    Just waiting for the springs I ordered to arrive so I can fix the tubing and leak test it.

  15. HollowFrank

    HollowFrank What's a Dremel?

    Joined:
    21 May 2005
    Posts:
    29
    Likes Received:
    0
    That's truly spectacular. Amongst other things I'm in awe of your scultping skill, it's top notch, heh at first glance he reminded me of Eddy!

  16. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    05/23/2005 Update... Killing time.

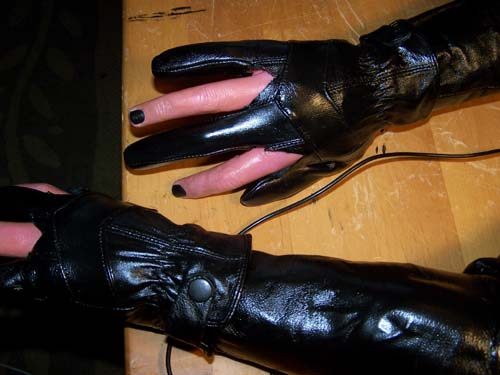

    Well, the springs did not get here today (damn USPS). Since the springs are holding me up I decided to finish up some other busy work and painted/glazed the arms... I also blacked out the fingernails for visual interest.

    [​IMG]

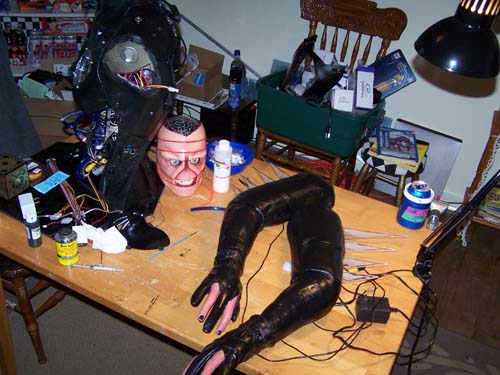

    Here is a quick snap of my dining room/work shop, I think that if nothing else the past six months have served to prove to my wife that I need a real workshop added onto our house... she has been missing the dining room.

    [​IMG]

    I really hope my springs get here tomorrow.

  17. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    06/05/2005 Update... Almost alive.

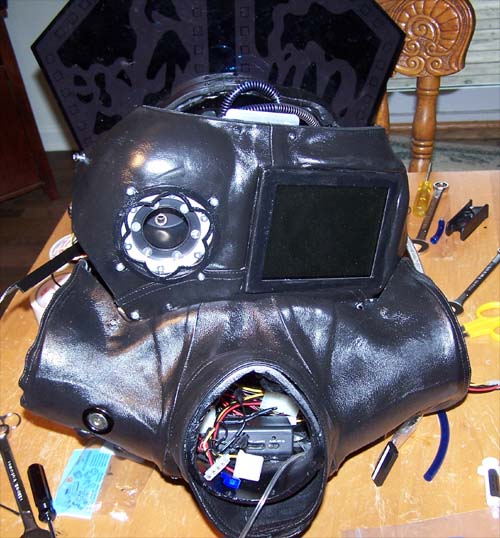

    My springs finally arrived a couple days ago, I did not have time to fix up the mod until today, but I got a good deal done... and it is almost done. I painted the grill over the Fass-o-Matic black and glazed it to match the leather, if you look inside the neck you can see the sound activated EL inverter I am using in place of the Ultra EL inverters for the Glo-wire on the head. I also touched up the paint around the Fass hole where glue showed through... it looks pro now.

    [​IMG]

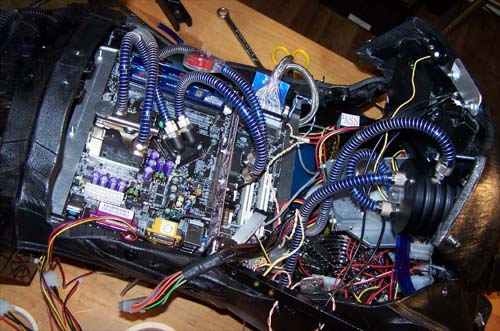

    Here is a view of the guts of the monster, all the springs are attached (21 in all) and I hope that any kinking issues have been killed.

    [​IMG]

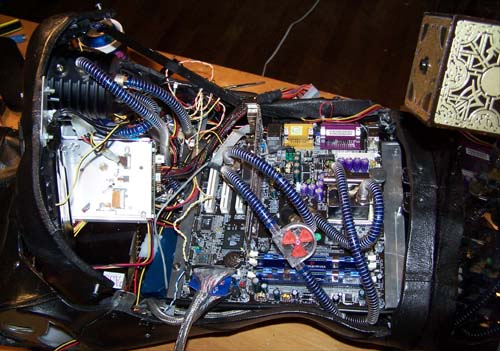

    And here is the view from the other side, the flow meter sits over the RAM and will provide visual as to whether the W/C is working proper or not.

    [​IMG]

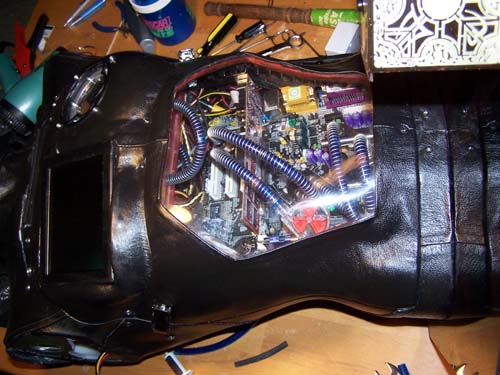

    I cleaned up the wiring a little and re-attached the chest section, I then attached the abdomen window section to test for kinks... I will add water and test for leaks tomorrow. Almost done, W00T!

    [​IMG]

  18. Stuntman

    Stuntman Minimodder

    Joined:
    22 Oct 2004
    Posts:
    346
    Likes Received:
    0
    Jesus Monkey Sh**! This is amazing! Heh, just think about what it'll be like to tell stories to your grandkids about how you built a computer in a person. What fun! :)

  19. ARTbyTROY

    ARTbyTROY Mod it Til it Bleeds!

    Joined:
    27 Jun 2002
    Posts:
    149
    Likes Received:
    3
    The above exclamation of "Jesus Monkey Sh**!" had me smiling, it is exactly the effect I am going for here.

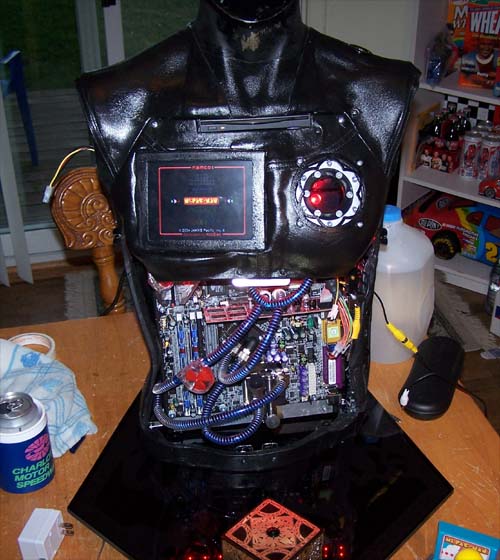

    Water is in and the pump is up and running, decided to test a couple of other things at the same time like some of the lighting and the LCD.

    [​IMG]

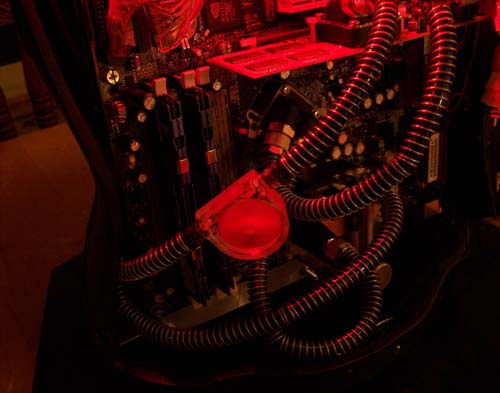

    Looking good so far and no leaks yet (knock wood)... I may have killed the CDRW/DVD drive, I will look into it after the leak test is through. Over four hours into leak testing and she looks sealed up tighter than a frogs bung, I know I cinched up everthing real good but I am still going to let it run overnight to make sure. Below is a shot of the flow-meter and guts, dark close up.

    [​IMG]

  20. G4m3R_X3r0

    G4m3R_X3r0 What's a Dremel?

    Joined:
    3 Sep 2004
    Posts:
    446
    Likes Received:
    0
    Wow... Thats all i can say... wow... :jawdrop:
