    Hello fellow Bit-Tech'ers

    Like a lot of other new people, I've been hovering around this website for some time now and haven't posted that much. Only excuse I have for that is that I am always speechless at the time and effort put into these amazing mods. Fluffen outstanding.

    So a little bit about me before I introduced you all to my first ever Scratch Build. Names Iain but people call me Randy. 18 Years old and living on the Isle of Man (TT anyone?) and currently waiting to head off to Guildford, Surrey to do a 2 year degree course in Guitar. Interest in PC building started about 3 years ago and only recently in making cases (thanks to discovering this website).

    So yeah, this is Project Marshall Amp. Basically what the name says. Im making a case shaped like a Marshall Half-Stack:
    [​IMG]

    I'll let the pictures speak for now and tell more after them.

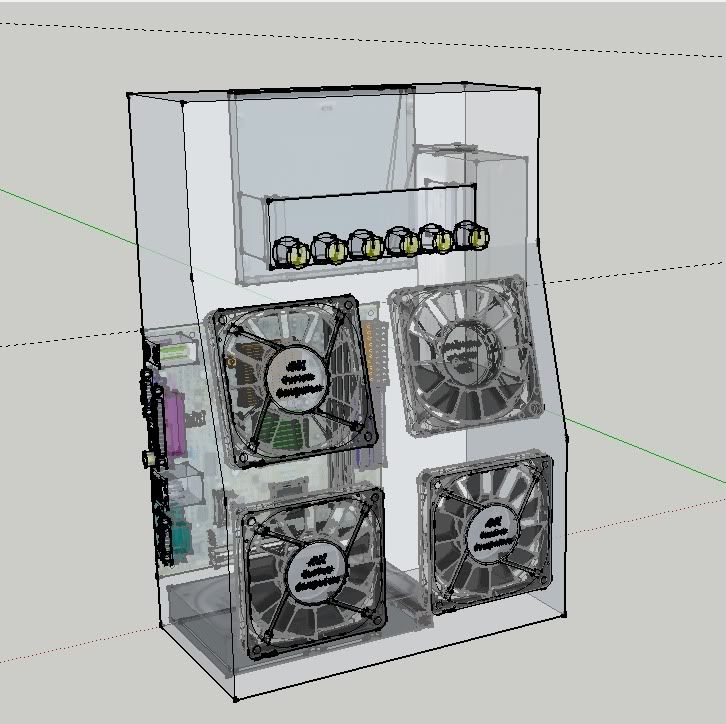

    Sketchup Pics (not very good at using this so as long as I have dimensions and everything fits im sound as a pound)

    [​IMG]
    [​IMG]

    Preparing for welding
    [​IMG]

    Welding
    [​IMG]

    Result. A nice smooth weld. seamless.
    [​IMG]
    [​IMG]
    [​IMG]


    So since this project is more for the look and not performance I've gone for the following:
    Mobo: Zotac nForce 630-itx WiFi
    CPU: E1400
    Fan Controller: Zalman ZM-MFC1 Plus
    HDD: Seagate 80Gb SATA 2.5
    Fans: 4 92mm Zalman ZM-F2
    Disk Drive: Plextor PX-608AL Slot-load

    I'm using 1.6mm Aluminium which is all welded together. The front will be mainly mesh and the 4 fans represent speakers. Only recently I thought that I probably should of actually got 4 small speakers to make it more realistic but ah well.

    so enjoy and if you have any questions, fire away please.

  2. jhanlon303

    jhanlon303 The Keeper of History

    Joined:
    7 Sep 2006
    Posts:
    9,263
    Likes Received:
    302
    I like ITX builds!
    I will watch this one.

    john

  3. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    I'm looking at doing a quick mod on the PSU and I'm just wondering which website would be best to grab some cable sleeving from?

  4. kaujazz

    kaujazz What's a Dremel?

    Joined:
    22 Feb 2009
    Posts:
    163
    Likes Received:
    8
    Nice! :)
    I like it

  5. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    Small Update.

    Finished off the welding today and I now have a back to the Amp so it's now officially a case :D.
    Came across some problems that will occur but managed to think of ways around them, though I'm not 100% sure they will work so I'll just name this Project MK1 in case it all goes T**s up.

    Heres a comparison to an actual Half-stack since I haven't been kind enough to give you dimensions:
    [​IMG]

    Just one of the inside again. The corner parts are for screwing the backplate on which has isn't going to be a tight fit as of yet because I'll be dressing the amp in fake leather so I left some space for that.
    [​IMG]

    Then one with the Backplate on.
    [​IMG]

    This project will be quite accelerated due to me going off to America in a week for 3 weeks and I will be moving to Guildford at the end of July so I'm wanting to get this done asap.

    Thanks for Viewing

  6. jhanlon303

    jhanlon303 The Keeper of History

    Joined:
    7 Sep 2006
    Posts:
    9,263
    Likes Received:
    302
    The proportions look right to me. One tiny stack with ITX. :rock:

    I watch.

    john

  7. DonT-FeaR

    DonT-FeaR I know what a fk'n Dremel is ok.:D

    Joined:
    23 Jul 2008
    Posts:
    867
    Likes Received:
    14
    wow this is gunna be great..

    nice welding mate

  8. coolamasta

    coolamasta Folding@Home CC Captain 2010/11/12

    Joined:
    26 Apr 2009
    Posts:
    2,619
    Likes Received:
    110
    Cool project, will be watching :D

  9. Macros_the_Black

    Macros_the_Black Yup.. I'm a f-ing reptile

    Joined:
    7 Jul 2007
    Posts:
    541
    Likes Received:
    11
    I'm guessing you TIG welded, right?

    ITX + scratch build + alu welding = coolness! *subscribed*

  10. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    Thanks for all your comments. Makes me wanna do more and more. :dremel:

    @ Macros. Yes, you guessed right, It's TIG welding. :D

    Unfortunately I am away to San Diego this friday for three weeks so I don't think they'll be any updates till then sorry. I promise that I will go full out when I come back and keep you watchers satisfied.

    Thanks Again

    Last edited: 24 Jul 2009
  11. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    Hello again B'techers.
    Sorry for the extremely late update. I'll just come clean and say that I was extremely lazy but things have changed now. I have now have a deadline due to me moving over to England to get ready for uni so I have until August 12th to get this complete so hopefully this will give me more of a shove.
    So today I did some more stuff. Got my I/O plate hole cut, got my fan holes cut, got my mobo fixed onto the back plate and get my fans mounted too.
    Heres some pictua's
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    So as usual, any questions, fire away please.
    Thanks for viewing.

  12. cmd_

    cmd_ What's a Dremel?

    Joined:
    4 Jul 2008
    Posts:
    94
    Likes Received:
    14
    I would suggest one thing, you can use a fan-less heatsink and take the flow of one of this zalman fans. Also turn 2 of 4 fans to make in and out flow to force a "wind tunnel".

  13. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    That would save me alot of space with the fanless idea. and its funny you should mention the wind tunnel thing, because I was contemplating it so I have better airflow. cheers for that.

  14. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    Have another Update just uploading the pictures atm.
    This project is coming to an end and it looks like I'll make my deadline for sure. only real obstacle that is slowing this down is how im going to integrate the power button as it'll be a on or off button, like, once I push it in in stays in that position. Forgot what they're called haha.
    So yeah, pictures will be up soon.

  15. El Rando

    El Rando I know what a dremel is

    Joined:
    29 Jan 2009
    Posts:
    87
    Likes Received:
    1
    Ok finally got them up.
    I've stuck in some comparison shots with the case too.

    Top of the case/amp :-
    [​IMG]
    [​IMG]

    Control Knobs :-
    [​IMG]
    [​IMG]

    Hole ready for the socket to get fitted :-
    [​IMG]

    I've had to make a frame to go round the outside the front of the case in order to give me the correct depths of the front panel and the mesh and you can see on these :-
    [​IMG]
    [​IMG]

    So it'll be MDF just to make things easier.
    [​IMG]
    [​IMG]

    So atm this is what the case looks like with everything in it (you don't want to see the inside)

    [​IMG]

    Any questions, fire away please.
    Thanks for viewing.
