Project: Metal Slug - [Hardware @ Dec. 1st]

Discussion in 'Project Logs' started by Captain Slug, 5 Jan 2007.

  1. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Well, it's more that any of the recessed handles that come in a non-metallic finish are the wrong dimensions. Space up-top is at a severe premium. That AND I simply don't like the way they look.
    The original intent was to make this case look very similar to (only different color-wise) the ammo pickups in Metal Slug. This computer looks more like an unlabeled prototype weapon.

  2. Soulmage

    Soulmage Minimodder

    Joined:
    20 Oct 2005
    Posts:
    242
    Likes Received:
    1
    Are you going to end up putting a window in the side of the case since you put the lighting in?

  3. RonaldoR9

    RonaldoR9 What's a Dremel?

    Joined:
    17 Dec 2006
    Posts:
    96
    Likes Received:
    0
    hey would u mind telling me where u got that t line peice or w/e it is called that can be ussed to fill your loop or drain it

    thanks

  4. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Nope. This machine won't have a window. The light inside let me know that the machine is on, without having a blinding light on the front of the case.
    I used
    mcmaster part#
    4596K321 - PVC Threaded Tee Pipe Fitting 1/4" NPT (drilled out the inner diameter a bit)
    48335K171 - Nylon Threaded Hex Nipple Pipe Fitting 1/4" NPT Pipe Size
    4912K87 - Miniature Chrome-Plated Brass Ball Valve Tee Handle, 1/4" NPT Male X 1/4" NPT Female

    The miniature ball valve is the best part. If you want to add one to a length of tubing simply buy a thread x barbed tube tee instead of having to use a threaded tee.
    [​IMG]

    I then made a fill cup funnel using a length of polyester tube and a polycarbonate sheet base. I can screw the cup onto the valve with an o-ring between the two for a quick seal. Once the loop is bled I simply close the valve and empty the excess coolant from the cup before removing it.

  5. malccy72

    malccy72 Minimodder

    Joined:
    9 Jan 2005
    Posts:
    658
    Likes Received:
    20
    Apart from loving all of it I particularly like the motherboard cover with the slim gaps for the memory to pop through.

    Are you planning on any cooling for the memory as would like to know your take on it?

  6. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    The memory and motherboard are getting direct airflow from the louvered fan in the rear of the case.
    RAM really doesn't need much in the way of cooling.

  7. mattthegamer463

    mattthegamer463 What's a Dremel?

    Joined:
    26 Nov 2004
    Posts:
    2,804
    Likes Received:
    1
    Some corsair dominator would be nice, because you could incorporate the 3x40mm cooling fan they have for it into the motherboard cover.

  8. SnOof ^^

    SnOof ^^ What's a Dremel?

    Joined:
    7 Dec 2005
    Posts:
    20
    Likes Received:
    0
    the dominators are great, wish i would have a few of those ^^

  9. perplekks45

    perplekks45 LIKE AN ANIMAL!

    Joined:
    9 May 2004
    Posts:
    7,214
    Likes Received:
    1,292
  10. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    No thanks. I don't need it or want it. And I hate tiny fans.

  11. Burnout21

    Burnout21 Is the daddy!

    Joined:
    9 Sep 2005
    Posts:
    8,614
    Likes Received:
    197
    memory has been in computers without cooling for many years, only the crazy people who push high volts and speeds on there memory need additional cooling.

    I would be seriously surprised if are friend the captain actually overclocked this rig.

    Nice mod chap!

  12. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7

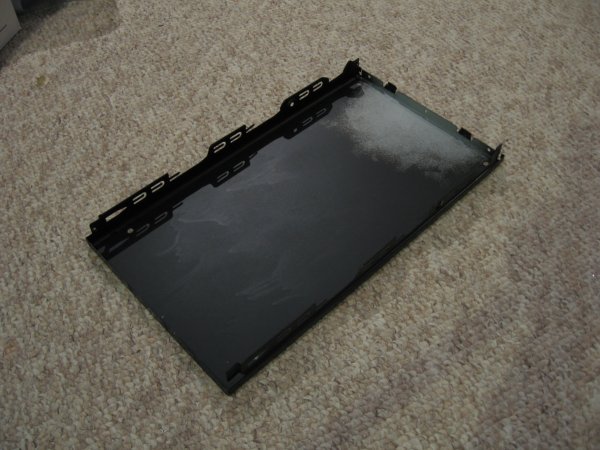

    Tiny update. I've been too sore to move around much. Last night I got the top piece of the case painted because I didn't want any naked steel visible. The only remaining patch will be above the optical drive.
    [​IMG]

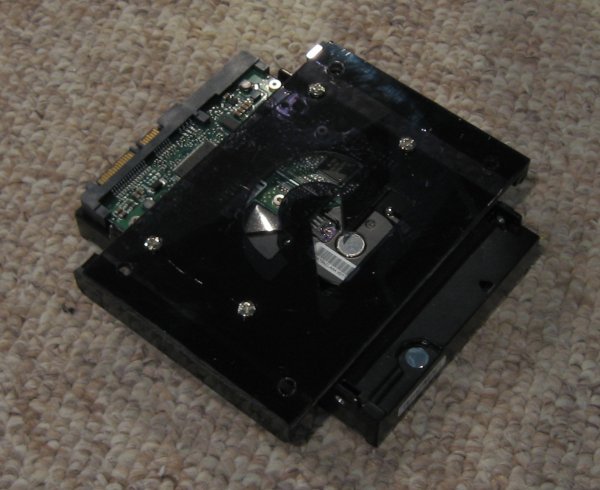

    And I had to retool the hard drive bracket because it wasn't fitting the drivecage.
    [​IMG]

    Last edited: 24 Feb 2007
  13. modsquad

    modsquad Grease Monkey Undergraduate..

    Joined:
    27 Feb 2004
    Posts:
    2,279
    Likes Received:
    6
    What can I say..
    The speed-at-which you have built this kick-ass-machine.... :thumb:
    what can I say.. !!

  14. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Haha, oops. I almost sliced off the end of my thumb with an X-acto knife (there was blood EVERYWHERE in the bathroom). Had I not run into my nail I would be in the emergency room getting stitches or even a skin graft. So thanks to my miraculously fast wound-closing abilities I probably won't even have a scar.
    [​IMG]
    This happened as I was finishing up the wiring, so the machine is 99.99% finished. Kind of hard to get the last few parts plugged in using only one hand. I'll probably have some more pics later tonight or tomorrow evening.

  15. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
  16. Tale Gunner

    Tale Gunner What's a Dremel?

    Joined:
    15 Dec 2006
    Posts:
    354
    Likes Received:
    1
    Great Mod there Captain Slug. What type of water tubing is that. Its very impressive. :clap: Sorry about your thumb. Hope you're feeling better. Must be difficult to type too!

    Last edited: 1 Mar 2007
  17. Sebbo

    Sebbo What's a Dremel?

    Joined:
    28 May 2006
    Posts:
    200
    Likes Received:
    0
    sorry, but i'm a bit curious as to how running into a nail kept you out of the ER...
    as for the case, looks great, tho it does seem a pity to hide the awesome job you've done inside the case

  18. r4tch3t

    r4tch3t hmmmm....

    Joined:
    17 Aug 2005
    Posts:
    3,166
    Likes Received:
    48
    The nail stopped the knife from going any further.
    Great work captain. I love the look of this mod a big :thumb: from me :thumb:

  19. Sebbo

    Sebbo What's a Dremel?

    Joined:
    28 May 2006
    Posts:
    200
    Likes Received:
    0
    ooh, right...i thought Captain himself ran into a nail, not the knife ^_^

  20. Evenge

    Evenge Minimodder

    Joined:
    16 Sep 2006
    Posts:
    659
    Likes Received:
    8
    Nice work! :thumb:
