Project: Metal Slug - [Hardware @ Dec. 1st]

Discussion in 'Project Logs' started by Captain Slug, 5 Jan 2007.

  1. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    I made a thing. More on that later.
    [​IMG]
    [​IMG]
    And I hurt myself again.
    [​IMG]

  2. KayinBlack

    KayinBlack Currently Rebuilding

    Joined:
    2 Jul 2004
    Posts:
    5,559
    Likes Received:
    302
    This thing you made, it interests me.

  3. customh

    customh conflagration.

    Joined:
    22 Oct 2005
    Posts:
    2,590
    Likes Received:
    1
    Good job junior. You made a thing!! Now tell us what it is and how you hurt yourself.

  4. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    I'll explain the thing more when I have its other part made.
    The thing is what hurt me since it got stuck on the drill bit while I was holding it. It spun around and the sharp edges on it gouged my finger.

  5. Brett89

    Brett89 Active Member

    Joined:
    15 Dec 2005
    Posts:
    1,317
    Likes Received:
    17
    ouch, is that the pump top that was pictured in your CAD designs?

  6. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    Luckily I learned my lesson about clamping workpieces without the loss of blood. :p

  7. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    No, that's already finished. See previous page.

    Edit: Yes it is the threading adapter.

    Last edited: 4 Dec 2007
  8. Brett89

    Brett89 Active Member

    Joined:
    15 Dec 2005
    Posts:
    1,317
    Likes Received:
    17
    oh i meant threading adapter, but my bad.

  9. Javerh

    Javerh Topiary Golem

    Joined:
    5 Sep 2006
    Posts:
    1,045
    Likes Received:
    26
    Safety first! Wear gloves while operating machinery.

  10. Angleus

    Angleus New Member

    Joined:
    28 Nov 2007
    Posts:
    673
    Likes Received:
    3
    Ok cool cheers man

  11. E.E.L. Ambiense

    E.E.L. Ambiense Acrylic Heretic

    Joined:
    26 Jul 2007
    Posts:
    2,957
    Likes Received:
    68
    I have that same board in my recording rig.

    Good job, mate. Ouch on the digit!

  12. Macros_the_Black

    Macros_the_Black Yup.. I'm a f-ing reptile

    Joined:
    7 Jul 2007
    Posts:
    541
    Likes Received:
    11
    *agrees*
    hmm, I wouldn't wear gloves while operating something like a drill press, not while doing stuff close to the rotating spindle at least. If the gloves get caught in the spindle it might take (part of) your hand off!! :waah:

  13. Jipa

    Jipa Avoiding the "I guess.." since 2004

    Joined:
    5 Feb 2004
    Posts:
    6,363
    Likes Received:
    125
    Spinning bits have learned me to use clamps as well... Part of the time. Sometimes you just feel radical enough not to do what's wise ;) Those grey bits of plastic look a bit ghetto, but other than that good job. Really a shame what happened to the earlier versions.

  14. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Well, I screwed the pooch on the threading adapter peace and I have to start over on it. I forgot to mirror the holes on it to take into account that it's mounting on what becomes the underside of the card when installed on the machine.
    So I have to print out some more templates and make another one.

    I should be able to get it all done tomorrow.

    Oh, and my finger is healing nicely.

  15. Thacrudd

    Thacrudd Where's the any key?!?

    Joined:
    27 Oct 2006
    Posts:
    1,216
    Likes Received:
    83
    Dude, great job! I really dig the look of everything. It looks like you could throw it off a balcony and it would be still intact (though I wouldn't reccommend it lol) Don't be cutting your fingers off! Wear protection or you won't be modding much of anthing:dremel::nono: Ha I can see it now for the next upate : "I accidentally cut my finger off today but a little JB Weld and some duct tape and I was back on track":rock:

  16. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7

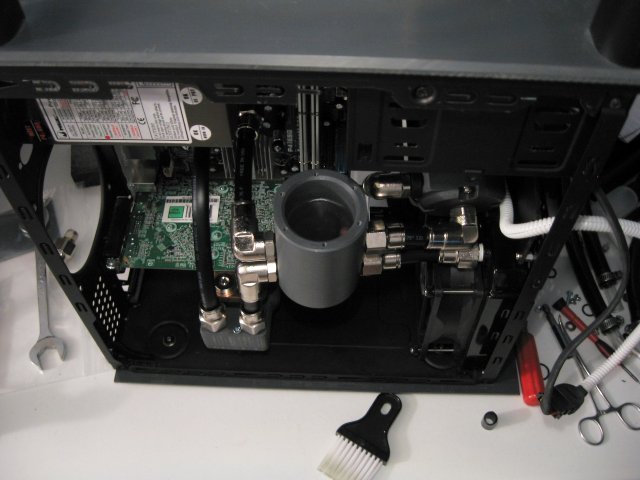

    Leak-testing the new loop now.
    [​IMG]
    Fills and bleeds SO EASILY. The tubing also acts to support the video card.
    [​IMG]

    Plenty still left to do.

  17. brinkz0r

    brinkz0r New Member

    Joined:
    15 Dec 2006
    Posts:
    612
    Likes Received:
    4
    That's a tight fit, but it looks really cool :thumb: I really like the res sitting there, and the solution to run through the lower connection of the res.

  18. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Extra-Flex Semi-Rigid Nylon

  19. Claas M

    Claas M New Member

    Joined:
    29 Jan 2006
    Posts:
    159
    Likes Received:
    0
    Happy to one of the Oldschool AGP-Boards...

    Do I see it right, the Reservoir is only held by the hoses? Isn't it to heavy?

  20. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    The reservoir doesn't weigh very much. And you have to take into account that it's basically anchored to the case by its connections to the radiator and the pump.
    The machine is now mostly together. I got the operating system and software installed and did test loops to make sure all the hardware is working. Everything works fine.
    I haven't gotten around to making a replacement bay-and-cord cover yet.
