Project: Metal Slug - [Hardware @ Dec. 1st]

Discussion in 'Project Logs' started by Captain Slug, 5 Jan 2007.

  1. matt.slysnake

    matt.slysnake Banned

    Joined:
    27 Dec 2006
    Posts:
    164
    Likes Received:
    0
    the LCD looks great, looking forward till your next update :)

  2. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7

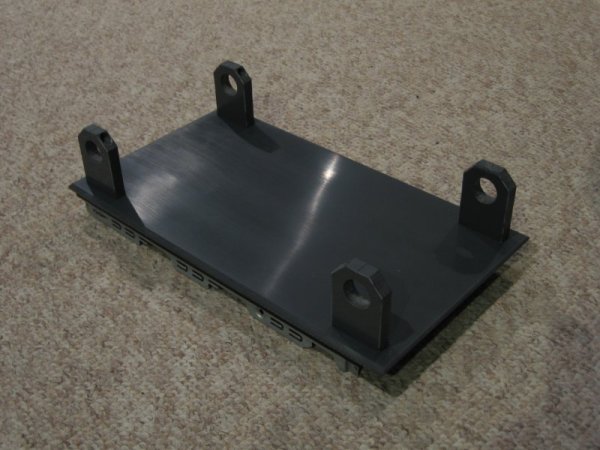

    The new handle brackets are done. And I'm not surprised but the delrin rod that arrived is not precisely 1" in diameter so I have to take it to the machine shop to lathe it down to size.
    [​IMG]

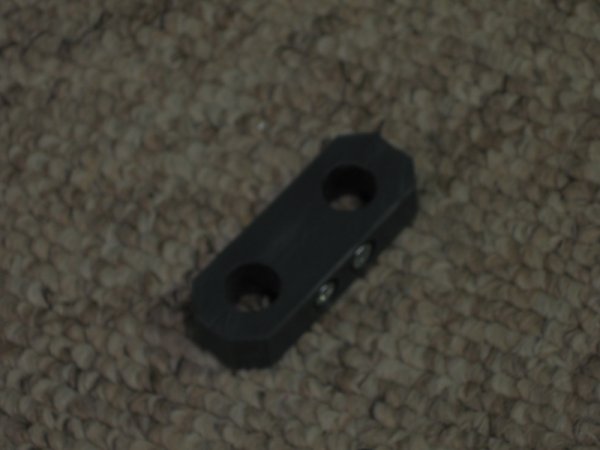

    Also made the hose separator. Which I can't seem to take a decent picture of right now...
    [​IMG]

    Last edited: 26 Jan 2007
  3. greensabbath

    greensabbath Got Wood?

    Joined:
    19 Apr 2005
    Posts:
    895
    Likes Received:
    167
    The new brackets look superb and will definately match the quality of the rest of the case better than the old ones, great job.

  4. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    Agreed. I like the new handles so far!

  5. Sol Badguy

    Sol Badguy What's a Dremel?

    Joined:
    29 Oct 2003
    Posts:
    104
    Likes Received:
    0
    you don't think those clamps are to thin? maybe double up on them, idk. gj with everything so far, your defintely no slacker. so what are you planning on doing/have done with baby mk.V, is it still up and running?

  6. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    The clamps are 1/2" thick
    I scalped Mk.V for parts to make this machine. I still have the rackmount and it's accessories though.
    I'm currently running on the machine I won in an article writing contest.

  7. r4tch3t

    r4tch3t hmmmm....

    Joined:
    17 Aug 2005
    Posts:
    3,166
    Likes Received:
    48
    5 stars and a subscripting, I hate missing out on great mods, but just don't have the time to select them out of the endless choice there is.
    I love the look of this case, and the new handles are looking great. I salute you Captain :salute:

  8. Jipa

    Jipa Avoiding the "I guess.." since 2004

    Joined:
    5 Feb 2004
    Posts:
    6,363
    Likes Received:
    125
    The brackets look great. Gave an instant impression of lifting hooks seen in some industrial stuff. That seid though.. I hope they won't look as much PVC when you're finished with them.

  9. rowin4kicks

    rowin4kicks a man walked into a bar ...

    Joined:
    5 Feb 2006
    Posts:
    1,481
    Likes Received:
    33
    damn you are really realing off the updates, you are working alot faster now and damn i am greatfull!
    the case looks brilliant, and the work is up to its usual excellent standards
    keep it up capitan

  10. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7

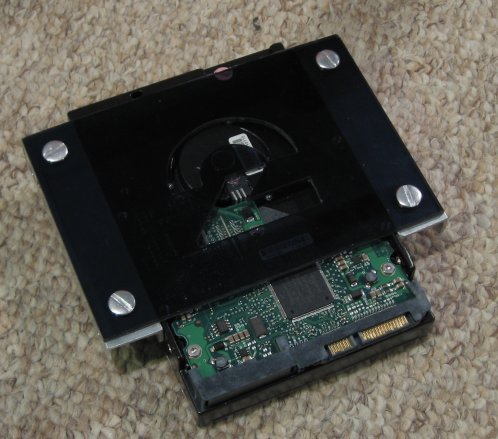

    Borrowing a HDD bracket from an old project.
    [​IMG]

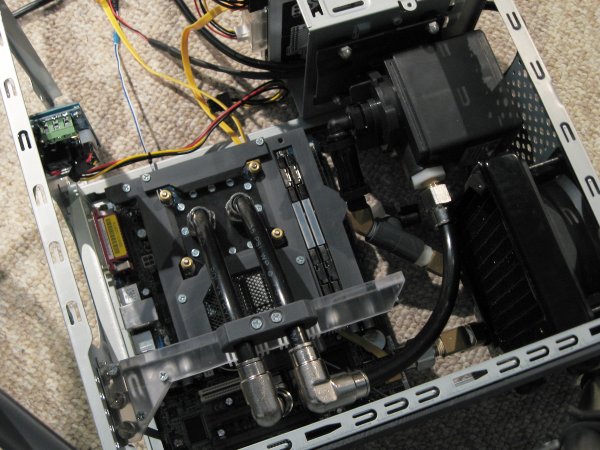

    Loop attempt number one. Had a small leak inbetween the GPU block and radiator because the length I cut was too short.
    [​IMG]

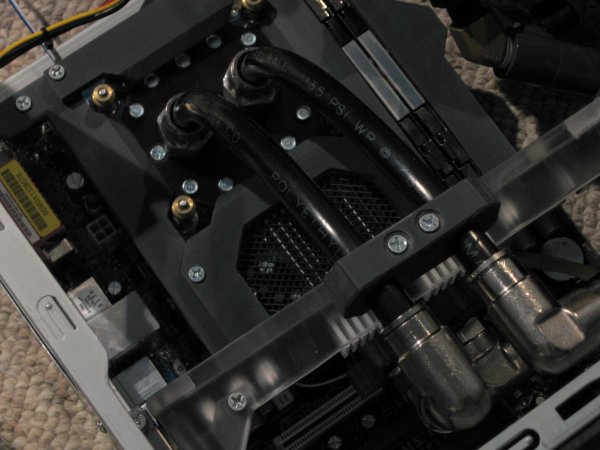

    Loop attempt number two. Had a small leak on the pump outlet NPT adapter. Worked on correcting it. Also small leak on lower barb on radiator because I didn't tighten it enough.
    [​IMG]

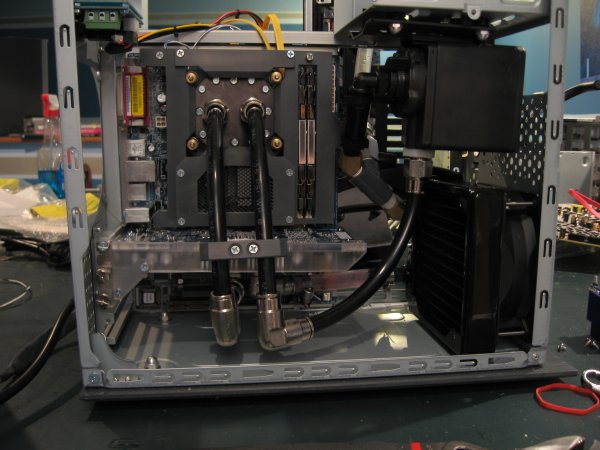

    Loop attempt number three. Still have pump outlet leak so after dinner I'm going to go to Home Depot and get some RTV Sealant.
    [​IMG]
    I'm VERY please with where everything is on the loop. Leaks in both the filling orientation and the standing position haven't touched any of the computer hardware. It has also been easy to bleed and refill (which can be attested to by the fact that I've done it three times in 4 hours). Once I get this last leak fixed I should be ready to send off all the steel parts to be powder-coated.

  11. jegerjon

    jegerjon What's a Dremel?

    Joined:
    10 Jan 2007
    Posts:
    476
    Likes Received:
    0
    This project is amazing! I like the mobo-hider, and evry single detail!

    Keep it up!

  12. r4tch3t

    r4tch3t hmmmm....

    Joined:
    17 Aug 2005
    Posts:
    3,166
    Likes Received:
    48
    Nice work there, I liek the look of it. But do I see a piece of clear tubing from the rad to the GPU?

  13. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    I made a tubing size adapter out of 1/2" OD clear polyester tube and needed to use clear tubing with it temporarily because I couldn't find the rest of the clamps that fit the thicker 1/2" ID 3/4" OD black tubing. The final loop setup will use nothing but black tubing.

    Edit: Got the sealant epoxy and applied it. Have to wait for it to cure overnight before testing the loop again.

    Last edited: 27 Jan 2007
  14. JazX101

    JazX101 What's a Dremel?

    Joined:
    27 Jun 2004
    Posts:
    99
    Likes Received:
    0
    Looking v great, nice to see the loops.

  15. jodah175

    jodah175 Wannabe Modder

    Joined:
    26 Oct 2006
    Posts:
    174
    Likes Received:
    2
    wow :jawdrop: :jawdrop:

    simply amazing work. i remember playing that game at the arcade, i alos remember dropping almost 20 bucks just so i could say i beat it. lol.

  16. modsquad

    modsquad Grease Monkey Undergraduate..

    Joined:
    27 Feb 2004
    Posts:
    2,279
    Likes Received:
    6
    Congrats on the front page Capt. I love the look of this project, it's just getting better and better..

  17. JAxen

    JAxen What's a Dremel?

    Joined:
    18 Nov 2005
    Posts:
    243
    Likes Received:
    0
    You sure stand out with you mods.. Cant think of anyone with something near your stuff!
    I love it :D

  18. wbdog206

    wbdog206 not me

    Joined:
    15 Jan 2007
    Posts:
    442
    Likes Received:
    1
    very nice looks great.

  19. RonaldoR9

    RonaldoR9 What's a Dremel?

    Joined:
    17 Dec 2006
    Posts:
    96
    Likes Received:
    0
    wow this project is amazing

    curious do u cut the metal peices urself or get them done bysomeone else cuz the precision is amazing

  20. Captain Slug

    Captain Slug Infinite Patience

    Joined:
    25 Nov 2001
    Posts:
    1,404
    Likes Received:
    7
    Everything in this log so-far has been done by me using my diverse collection of tools.
