    Hi. Theme of this project is "retro cars"

    Part1


    Thermaltake Element S. In the picture: without excessive parts
    [​IMG]

    [​IMG]

    Front panel frame
    [​IMG]

    Excessive parts are cut with a dremel tool, holes of 2 mm are drilled out, factory paint is washed off
    [​IMG]

    Put back
    [​IMG]

    New front panel 3d model.
    [​IMG]

    Milling. Aluminum 35mm
    [​IMG]

    [​IMG]

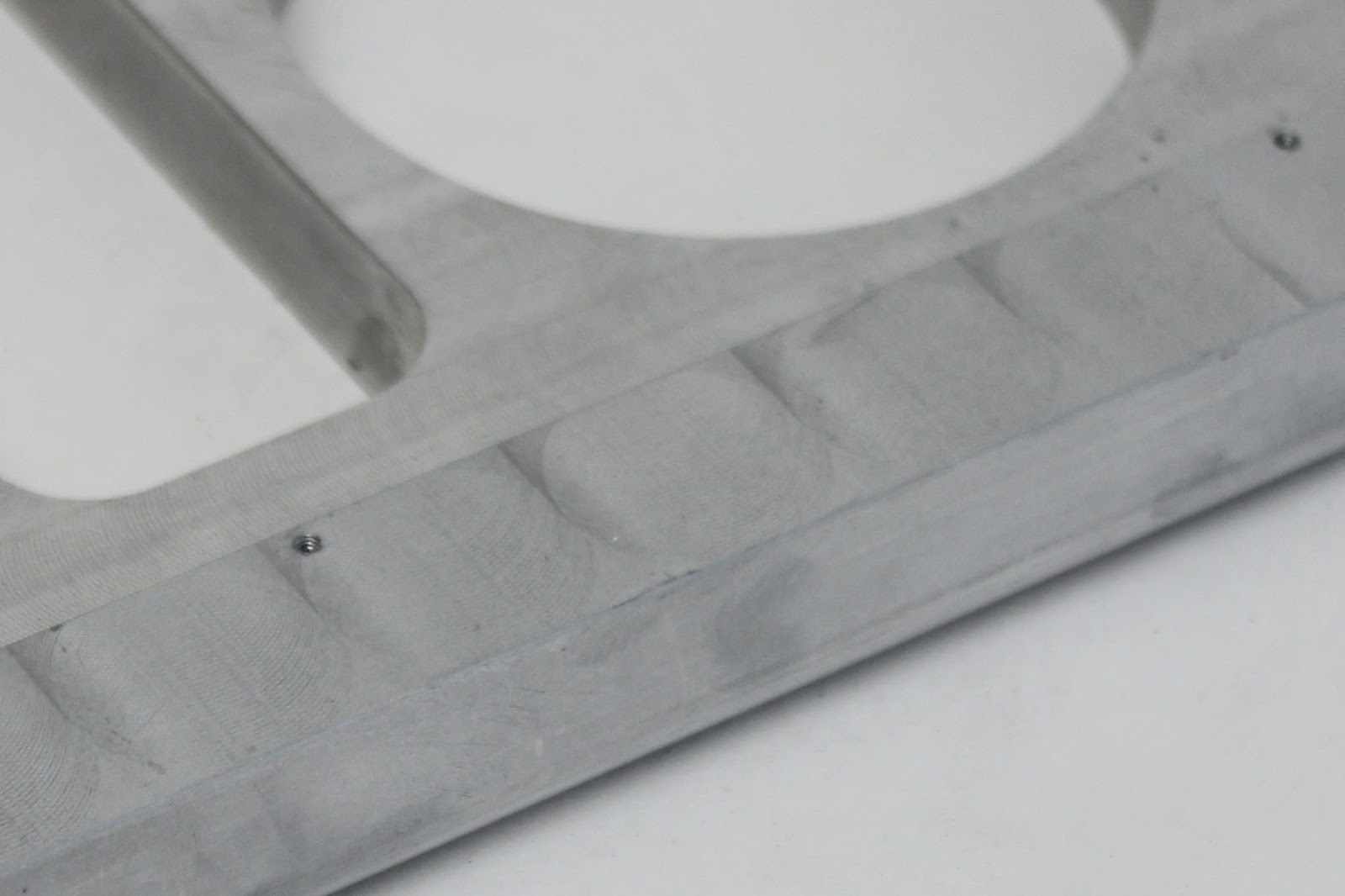

    Thread M2 for coupling with frame
    [​IMG]

    [​IMG]

    [​IMG]

    Side panel
    [​IMG]

    The same actions were taken as for front panel frame
    [​IMG]

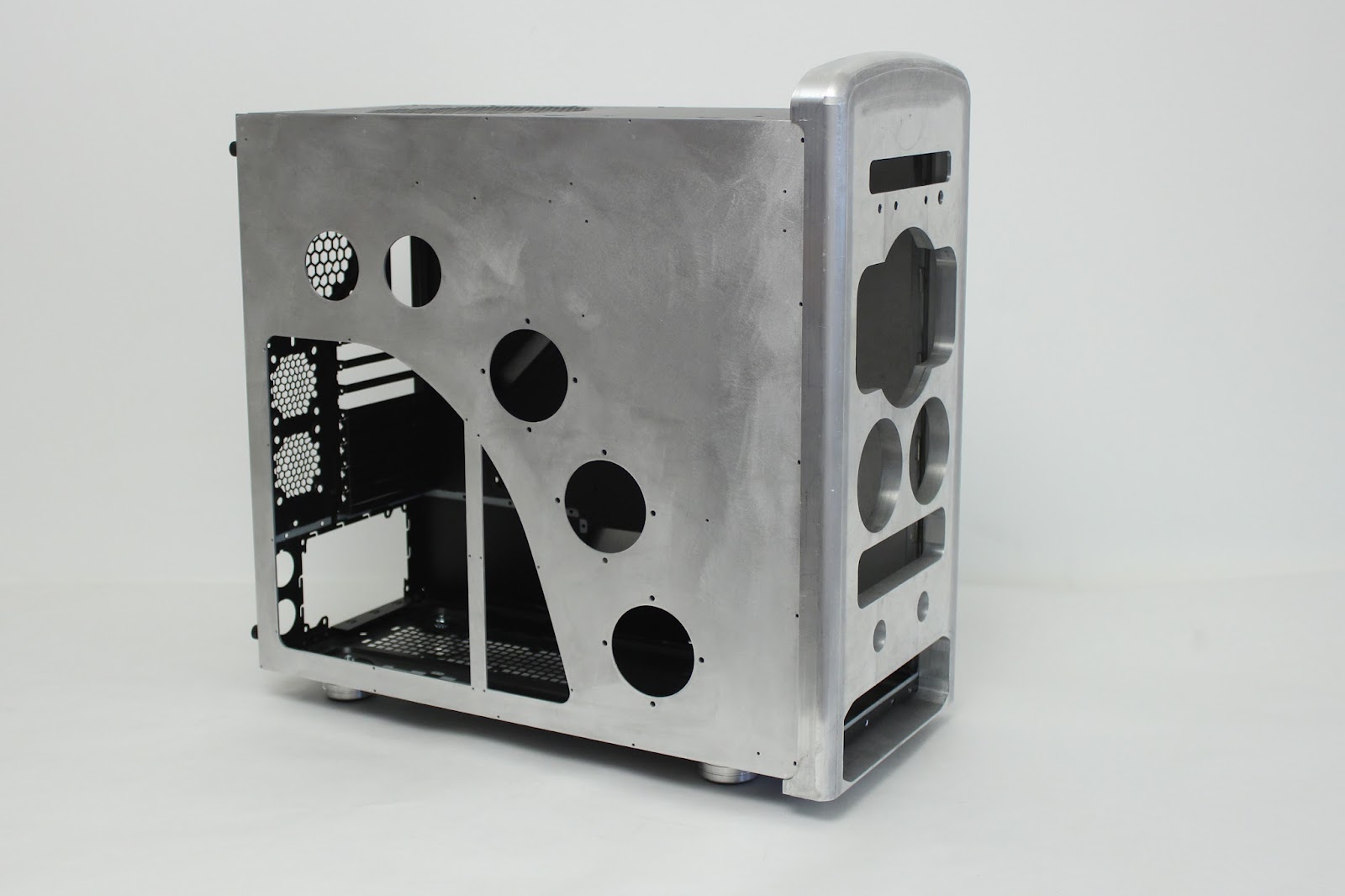

    Side wall panels. Vector
    [​IMG]

    Laser cutting. Aluminum 2mm
    [​IMG]

    Jointly with frame
    [​IMG]

    Punchdown rivets connection
    [​IMG]

    After grinding
    [​IMG]

    Heads (other side)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Mnpctech feets
    [​IMG]

    Last edited: 14 Nov 2014
    Pranja likes this.
  2. Nexxo

    Nexxo Queue Jumper

    Joined:
    23 Oct 2001
    Posts:
    33,505
    Likes Received:
    1,229
    Stopmotion animation and sweet, sweet CNC'd aluminium. I'm sold. :)

  3. Darkwisdom

    Darkwisdom Level 99 Retro Nerd

    Joined:
    27 Aug 2011
    Posts:
    2,675
    Likes Received:
    62
    Really unique and lovely stop motion animation; love it.

  4. Guest-23315

    Guest-23315 Guest

    Stopmotion is awesome for case mods.

  5. Darkened

    Darkened New Member

    Joined:
    28 Feb 2004
    Posts:
    965
    Likes Received:
    17
    That's a cool (and arduous) way of presenting a mod. Well done!

    I'll keep my eye on this for sure.

    Darkened

    Pranja likes this.
  6. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,266
    Likes Received:
    612
    Holy Cow! Hand riveting!:thumb:

  7. aio

    aio Member

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Part 2


    3D models of front panel plates
    [​IMG]

    1Milling stage. 2mm brass
    [​IMG]

    [​IMG]

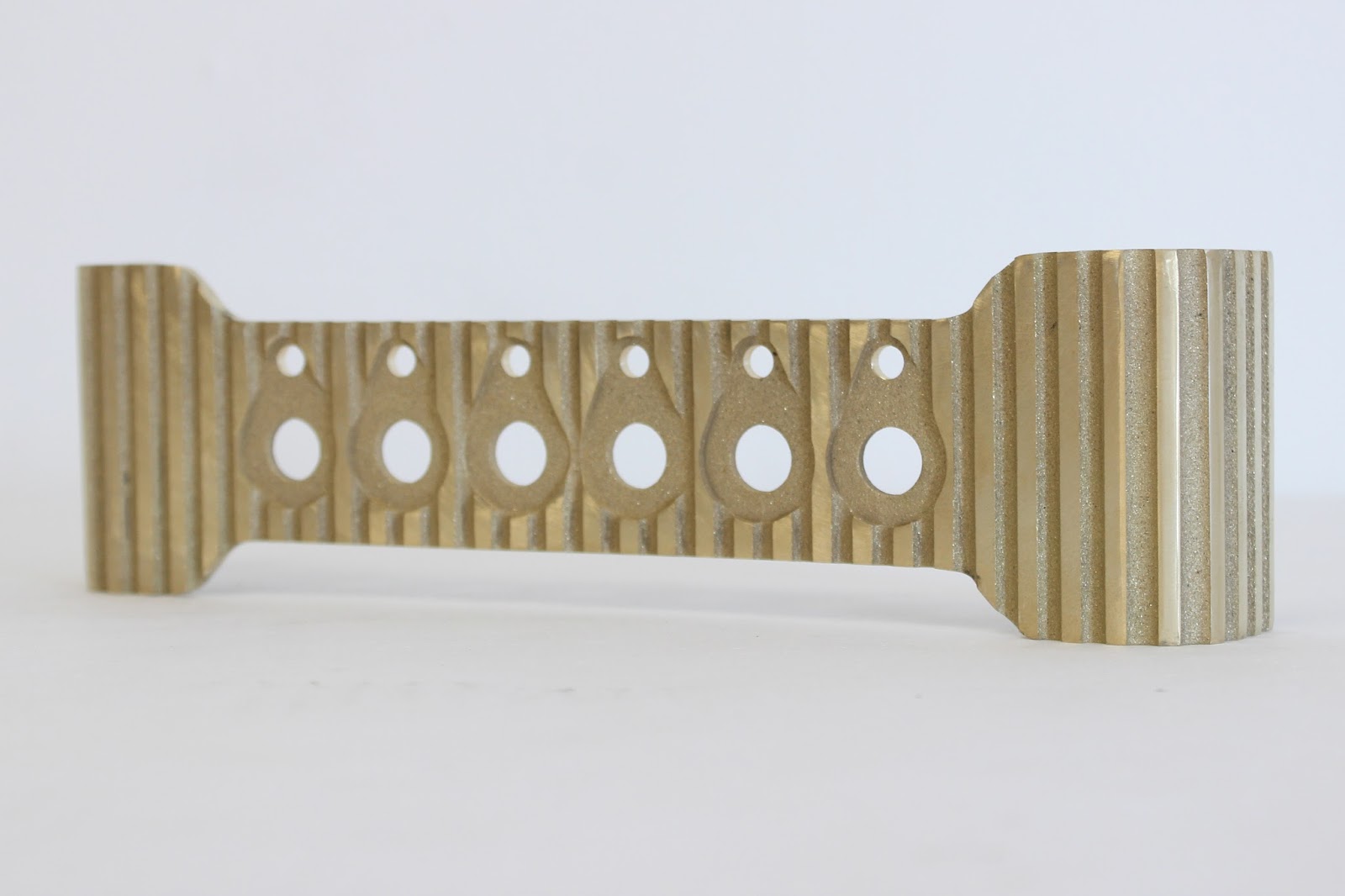

    Bending
    [​IMG]

    Second stage of milling
    [​IMG]

    Gas-oxygen welding pack rack
    [​IMG]

    Brass pins HMP soldering
    [​IMG]

    Plates took seat after through holes were made
    [​IMG]

    [​IMG]

    Side panel plates. Vector
    [​IMG]

    Laser cutting. Brass 2mm
    [​IMG]

    Brass pins M2. Brazing
    [​IMG]

    [​IMG]

    [​IMG]

    Overall view
    [​IMG]

    Mistook about two bottom holes sizes. Patch
    [​IMG]

    [​IMG]

    Parts after sandblasting. Flux, dross and cutter marks are removed.
    [​IMG]

    Sandy texture is a kind of artistic solution.
    [​IMG]

    After sandblasting, threads are made again on pins.
    [​IMG]

    External exposed surface grinding
    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

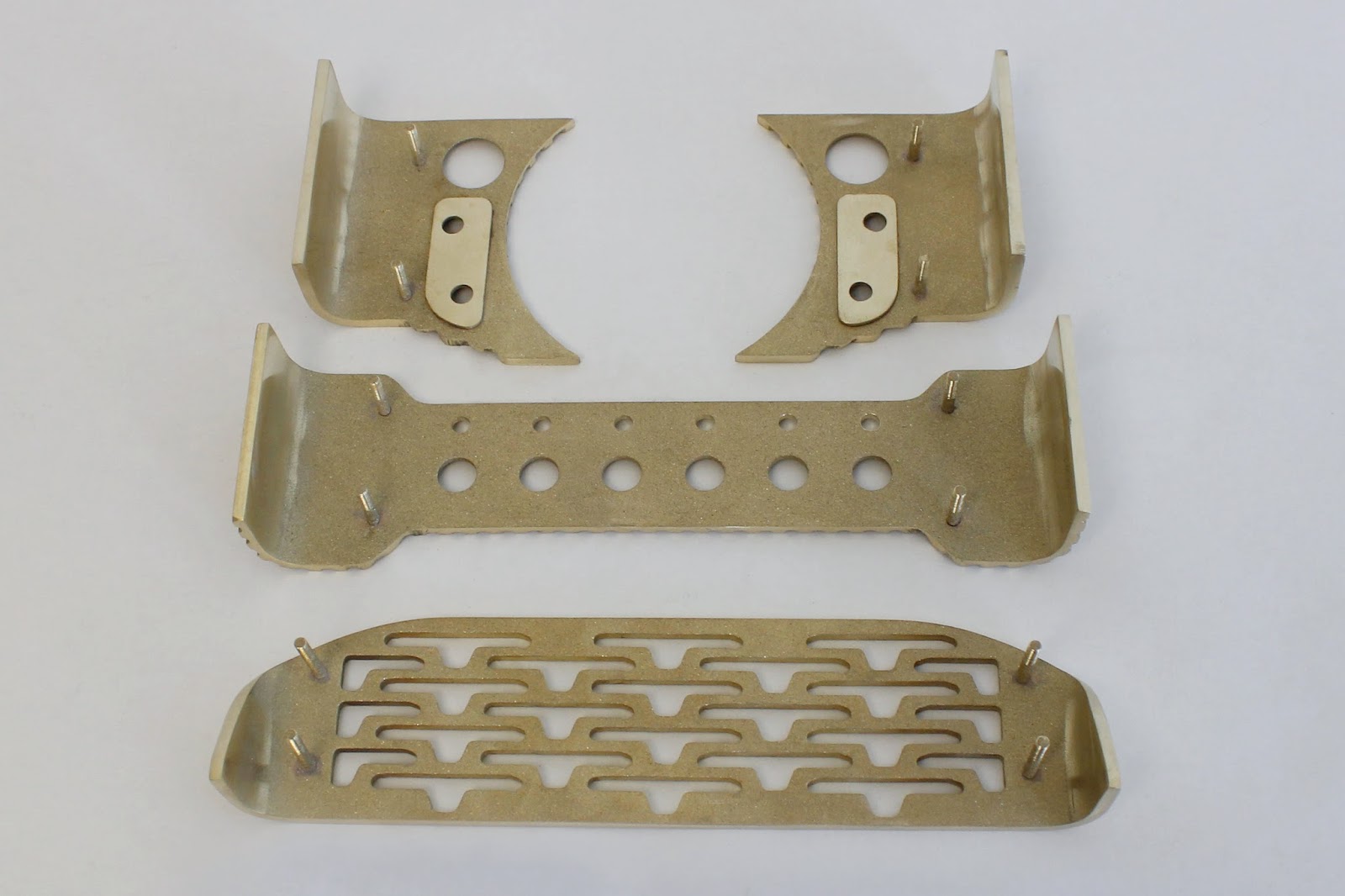

    Apertures pattern for bottom plate was taken from the radiator grill of Soviet car GAZ-13 "Chaika" [​IMG]

    [​IMG]

    Last edited: 24 Oct 2014
  8. Attila

    Attila still thinking....

    Joined:
    22 Feb 2008
    Posts:
    1,257
    Likes Received:
    235
    GET OUT! :eeek: Awesome work dude. :dremel:

  9. aio

    aio Member

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Thanks man :D

  10. aio

    aio Member

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Part 3


    Photos coming soon

  11. Hukkel

    Hukkel James' minion

    Joined:
    20 Dec 2012
    Posts:
    1,284
    Likes Received:
    25
    It is not my style of modding, but your presentation and work on it is amazing. Such cool videos!

  12. David

    David RIP Tel

    Joined:
    7 Apr 2009
    Posts:
    13,119
    Likes Received:
    2,149
    This is first class.

    The video work must be very time consuming, but it's such an effective presentation method. Well done.

  13. MarkVarley

    MarkVarley Member

    Joined:
    12 Sep 2014
    Posts:
    318
    Likes Received:
    13
    I love the way you compose the videos, done interesting points in the case too :)

    Sent from my GT-I9505 using Tapatalk

  14. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,266
    Likes Received:
    612
    Delicious

    Delicious!!!!!​

    Last edited: 2 Nov 2014
  15. bulldogjeff

    bulldogjeff The modding head is firmly back on.

    Joined:
    2 Mar 2010
    Posts:
    8,403
    Likes Received:
    634
    This is lovely. The look the way it's being put together. It's all seriously cool. Top modding dude :thumb:

  16. aio

    aio Member

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    can you say more about your style of modding ?

    Thanks

    :)

    :hip: woow, woow, thanks

    :)

  17. aio

    aio Member

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Let's deal with the chassis
    [​IMG]

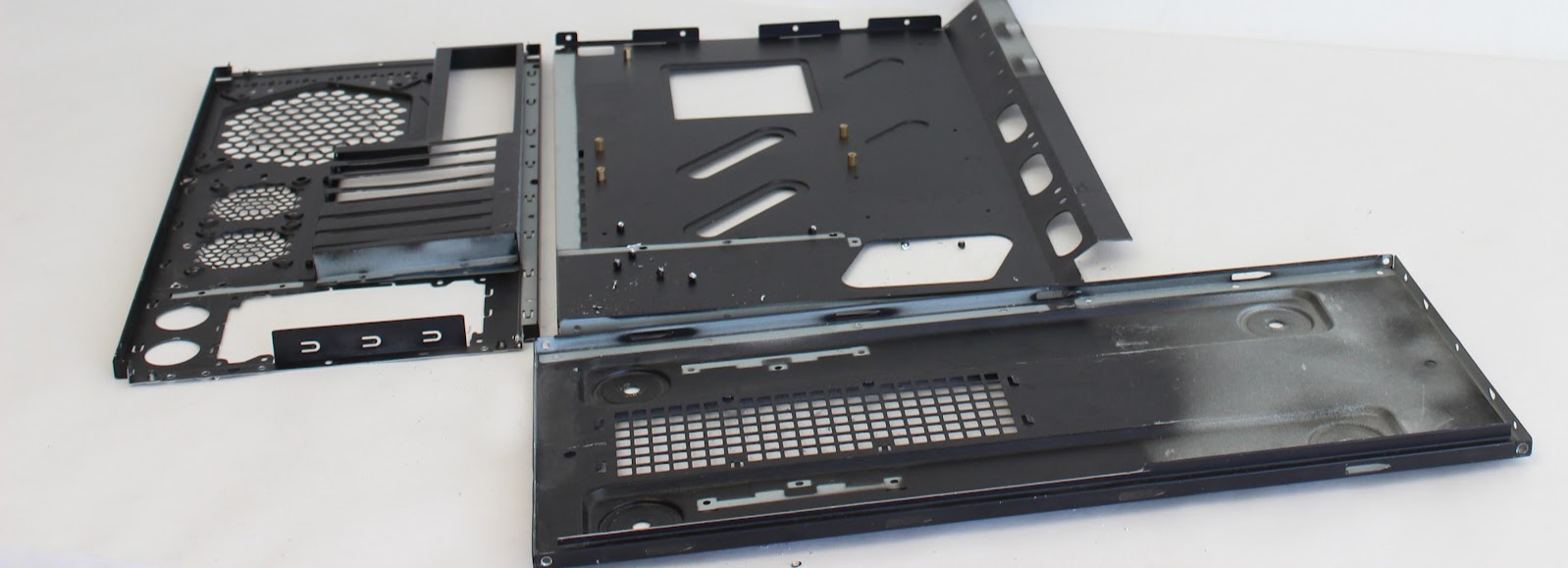

    Dismantled chassis
    [​IMG]

    Unnecessary parts are cut off
    [​IMG]

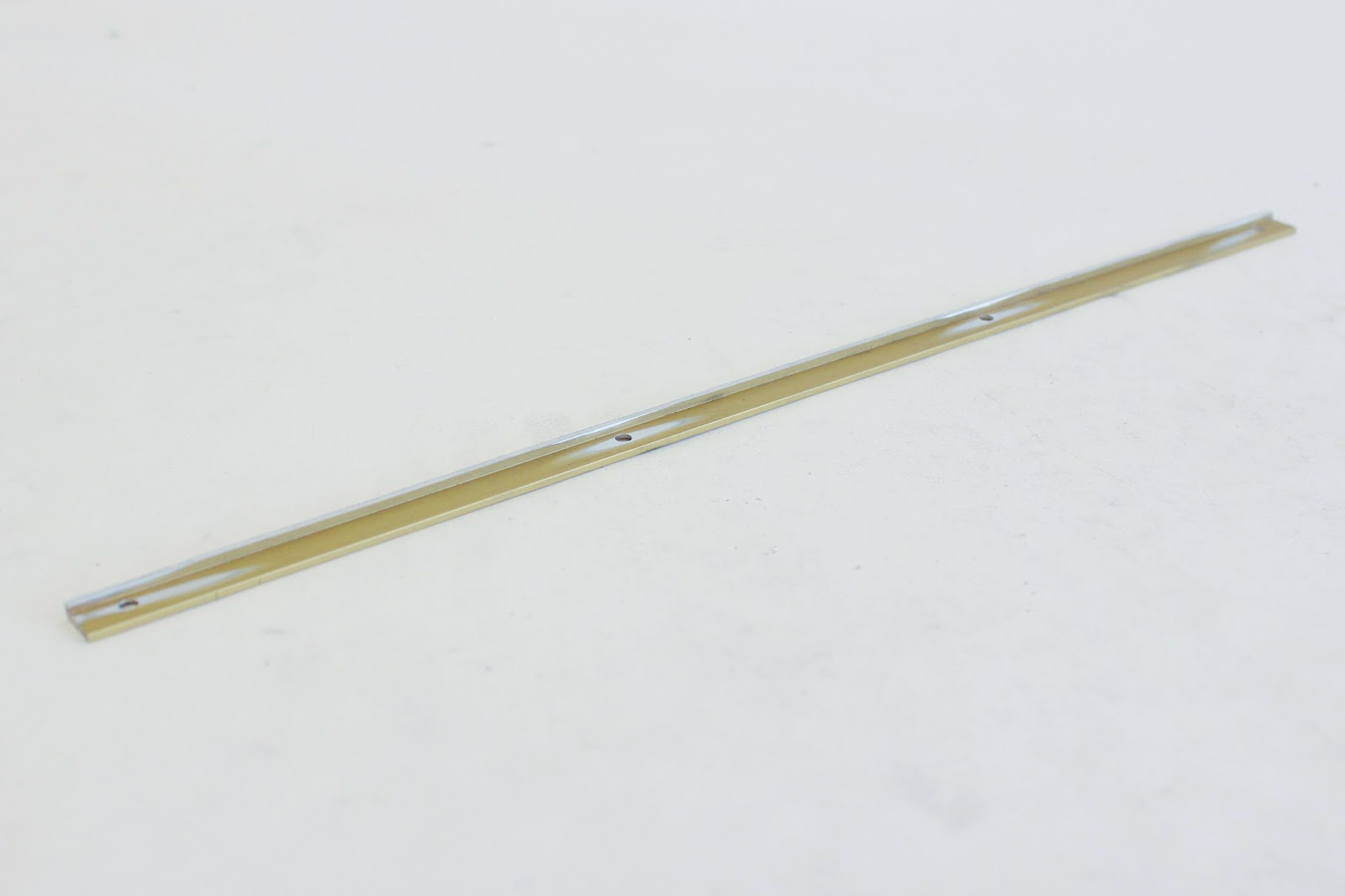

    L-profile aluminum stiffening rib
    [​IMG]

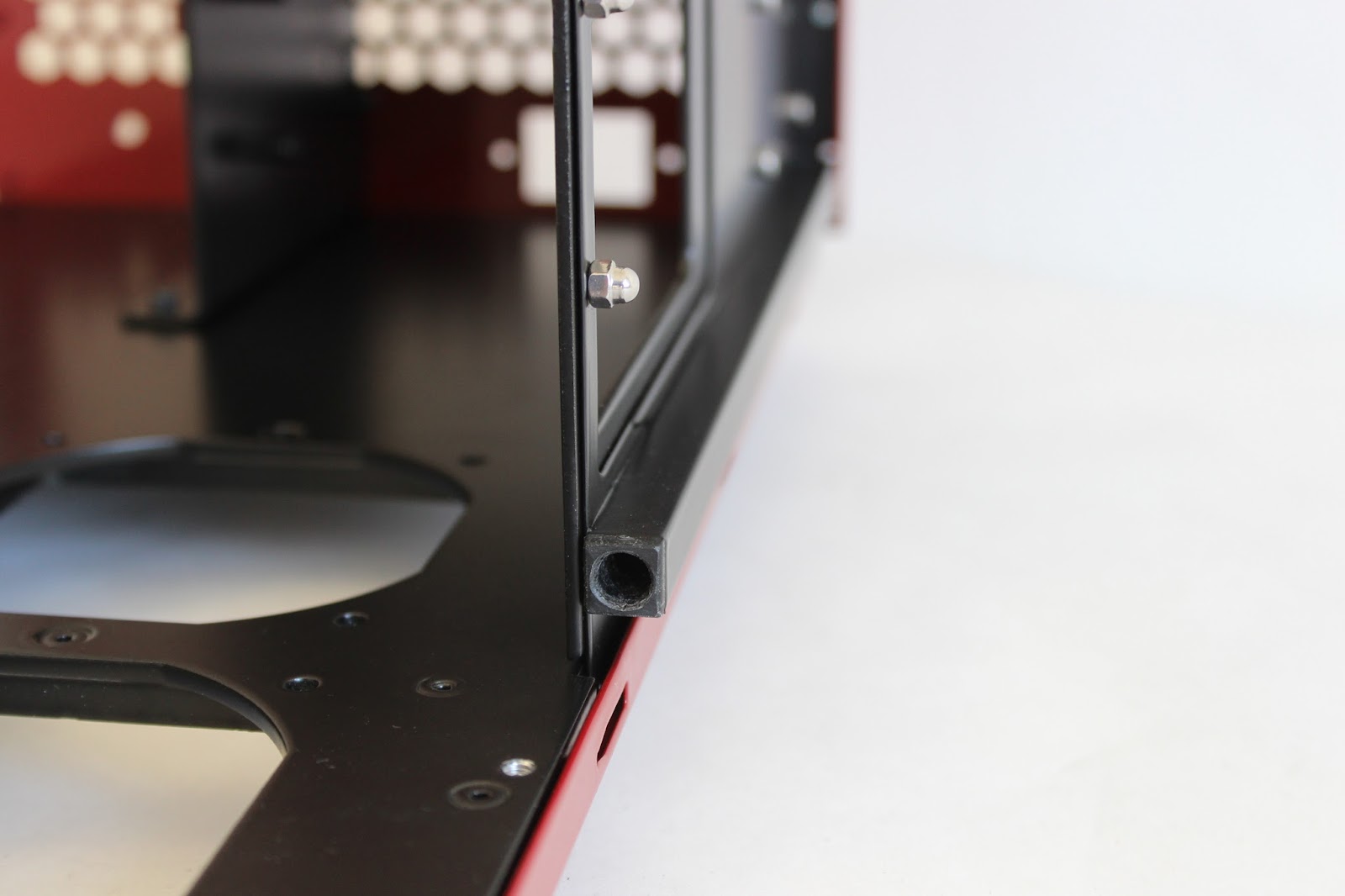

    Cable channel made from square aluminum tube for the inner lining of a power cable
    [​IMG]

    Let’s take off the factory paint and join the parts

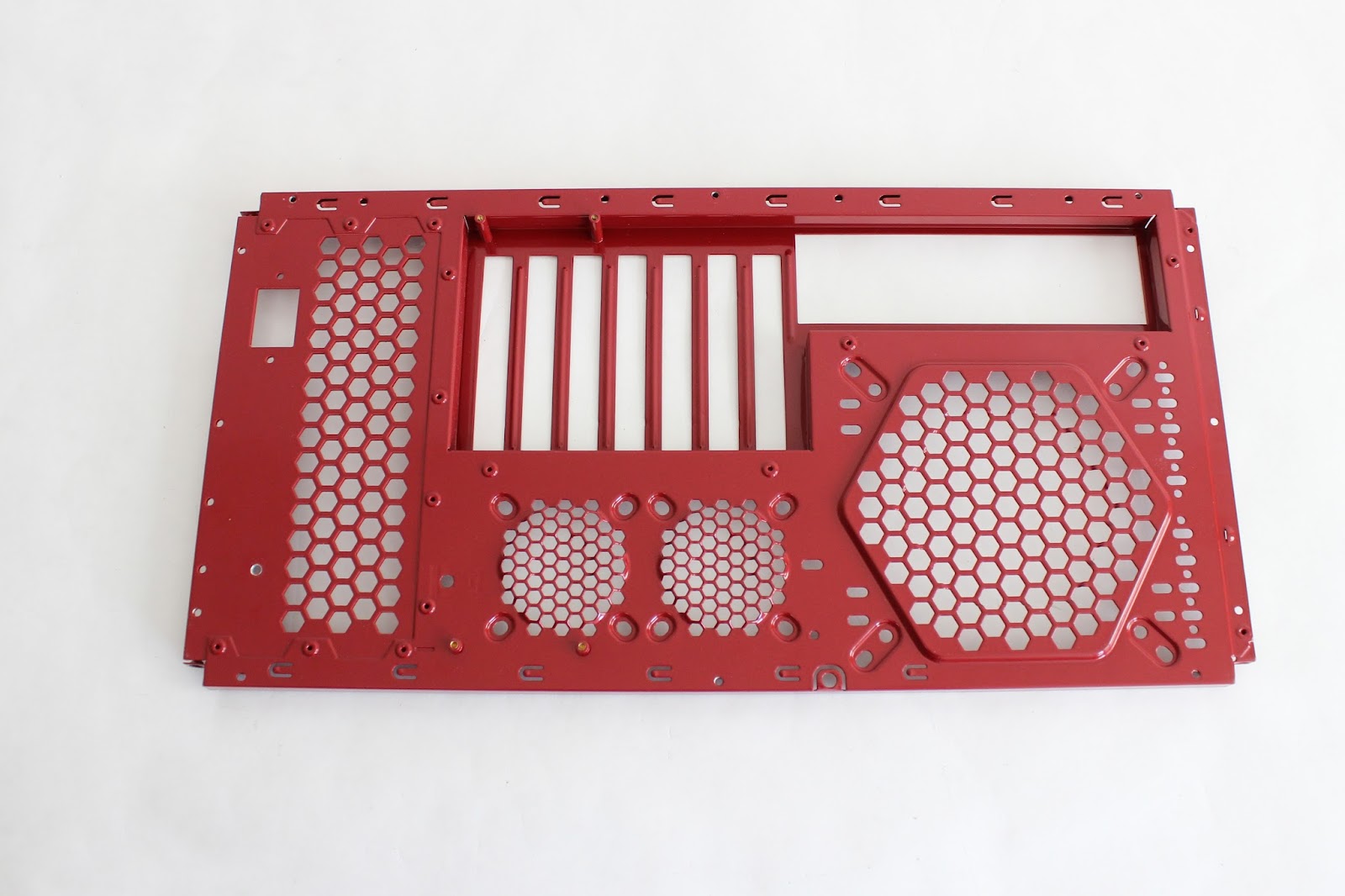

    [​IMG]

    Powder coating, RAL9005

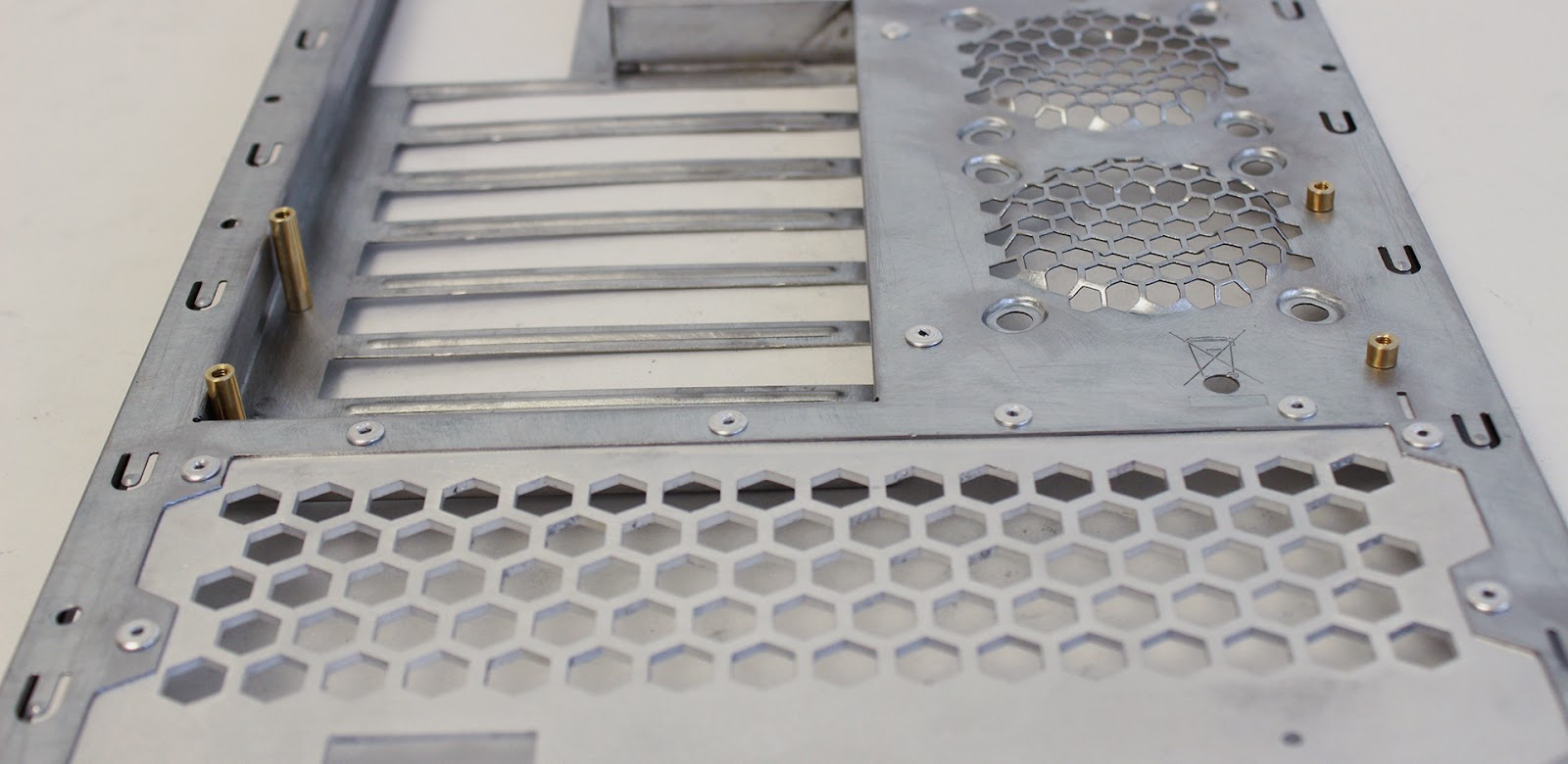

    [​IMG]

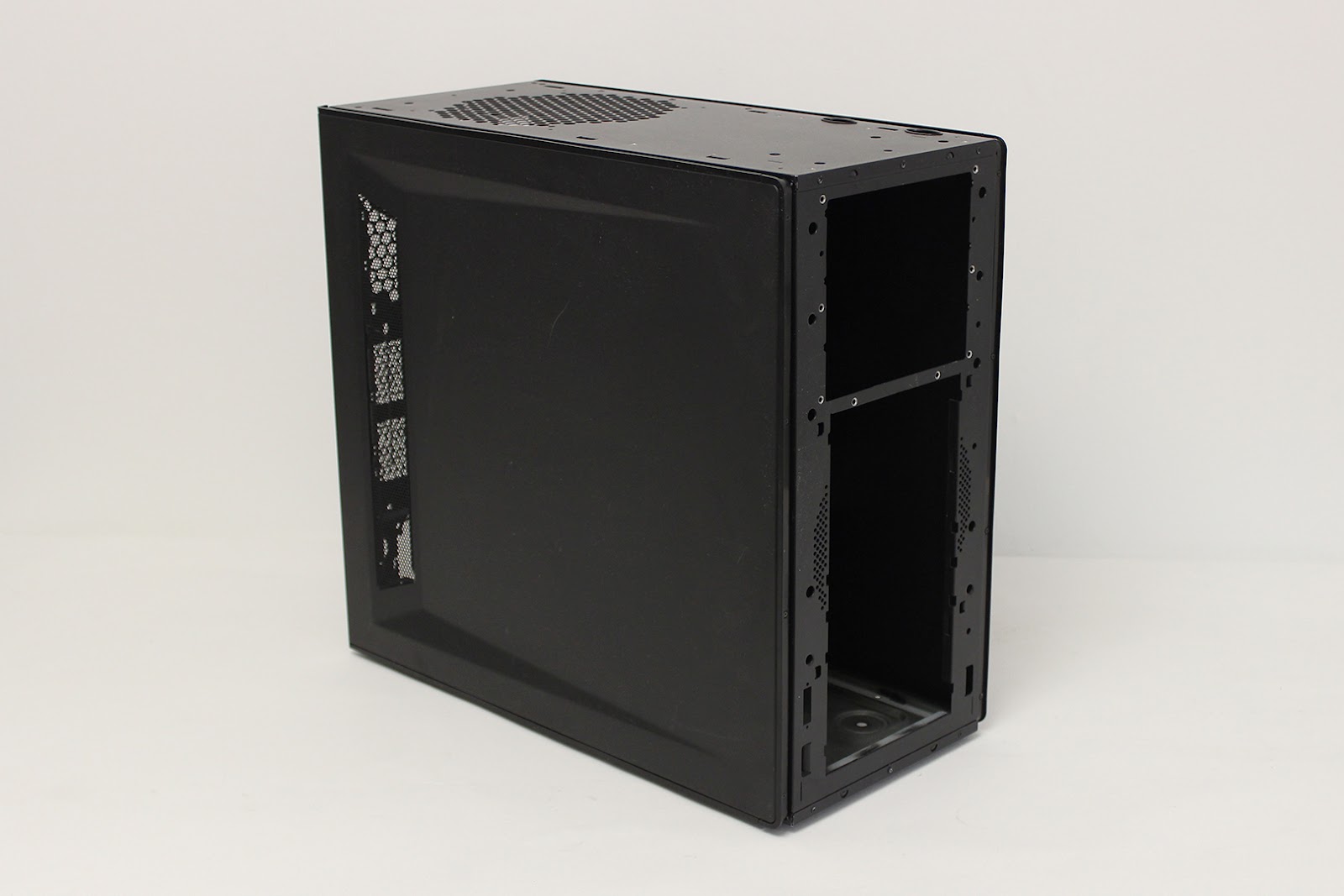

    Rear part of the case

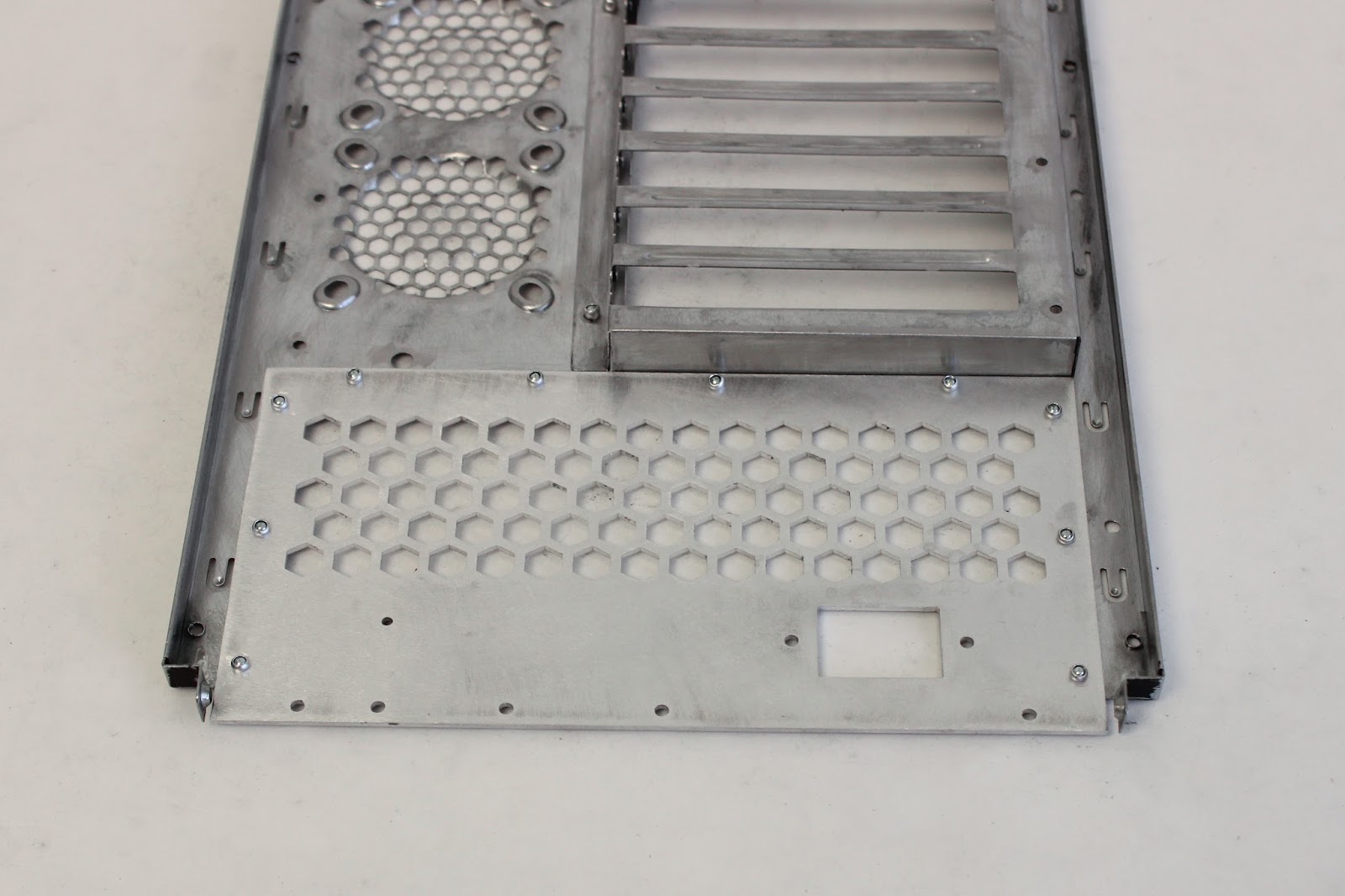

    [​IMG]

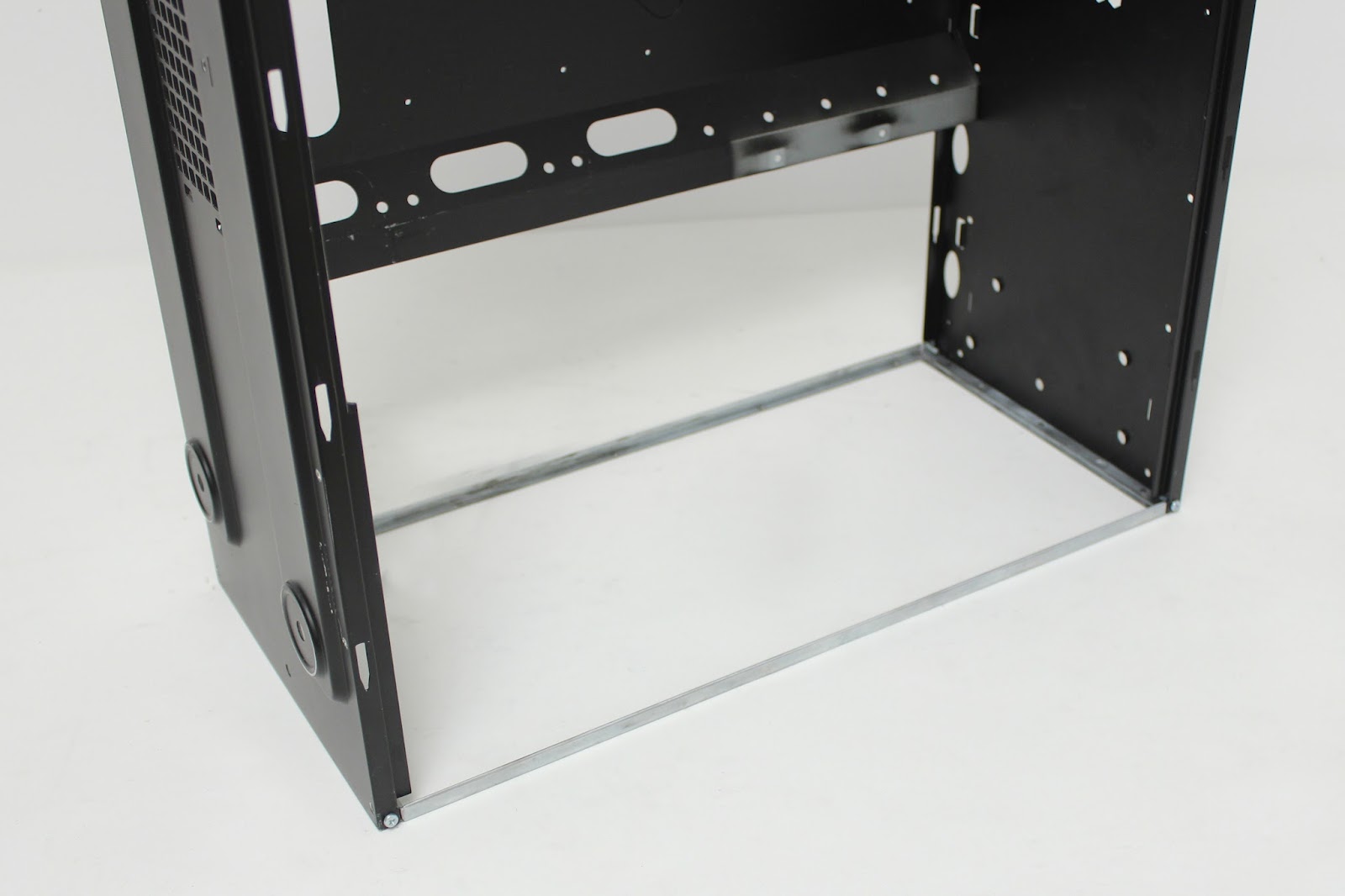

    Also cut off unnecessary
    [​IMG]

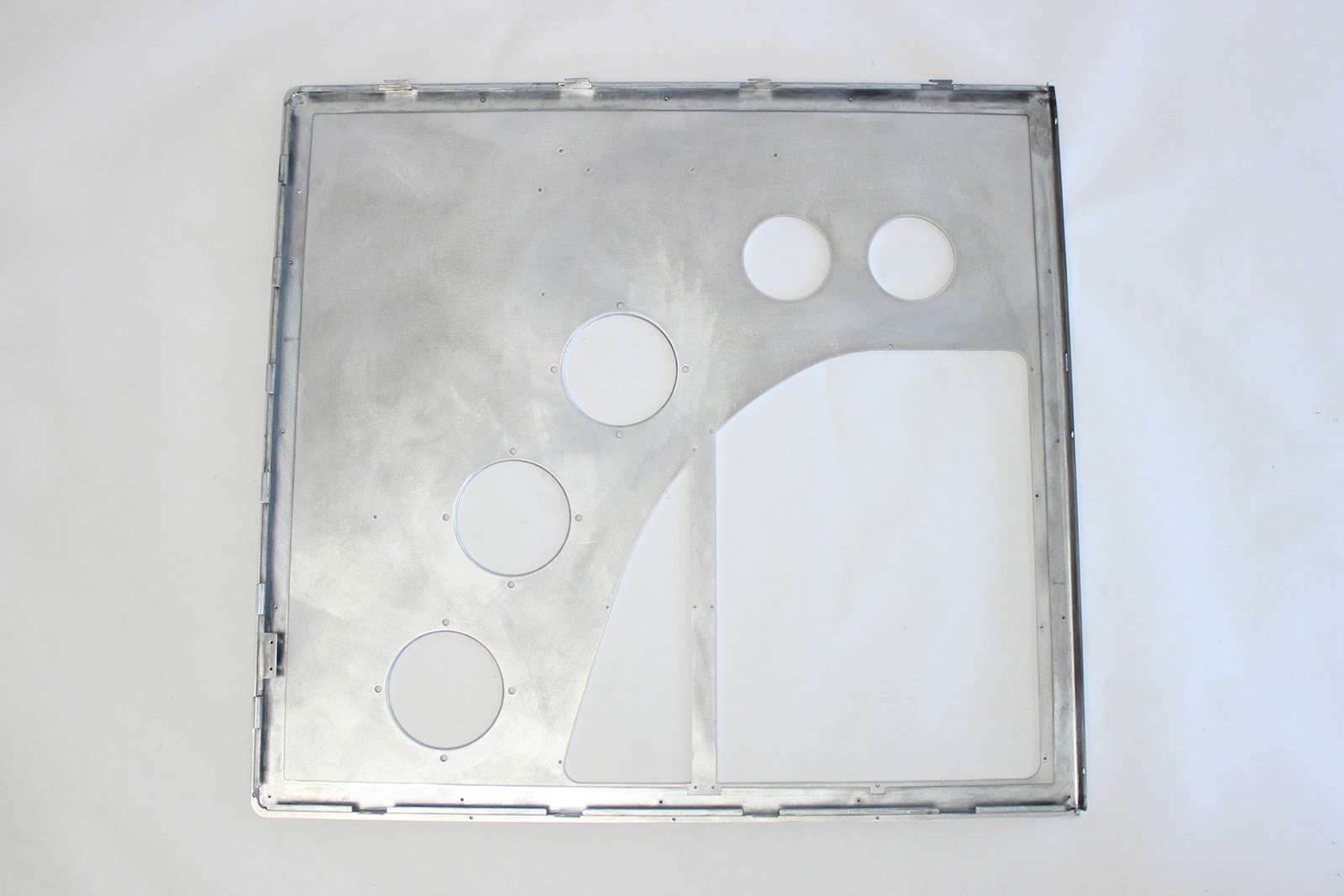

    The most difficult part for paint removal

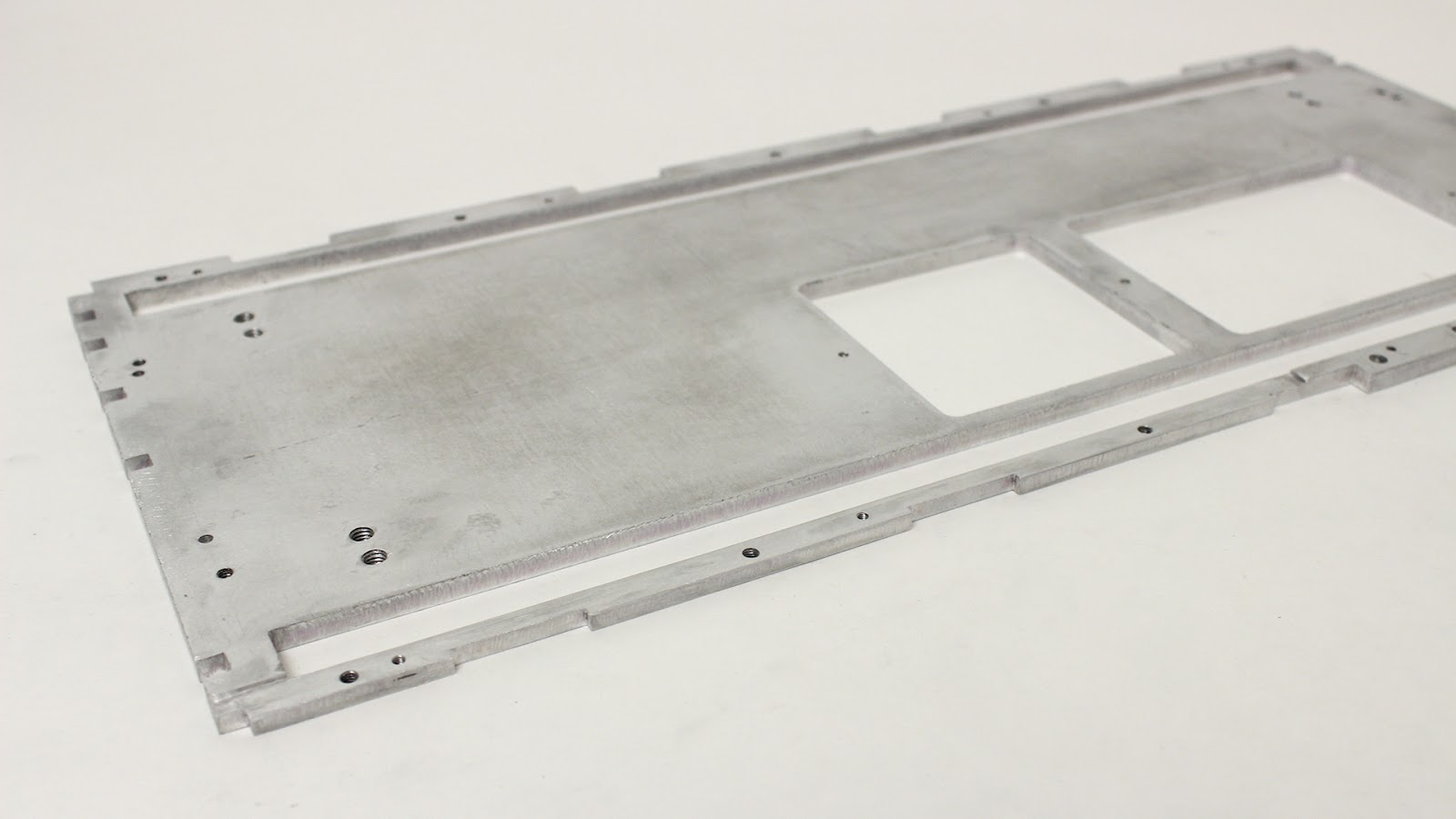

    [​IMG]

    Filling piece for the rear panel. Laser cutting, groove milling. 2 mm aluminium
    [​IMG]

    Riveted
    [​IMG]

    Four brass standoffs for mounting one prop that appears at the end of the project.

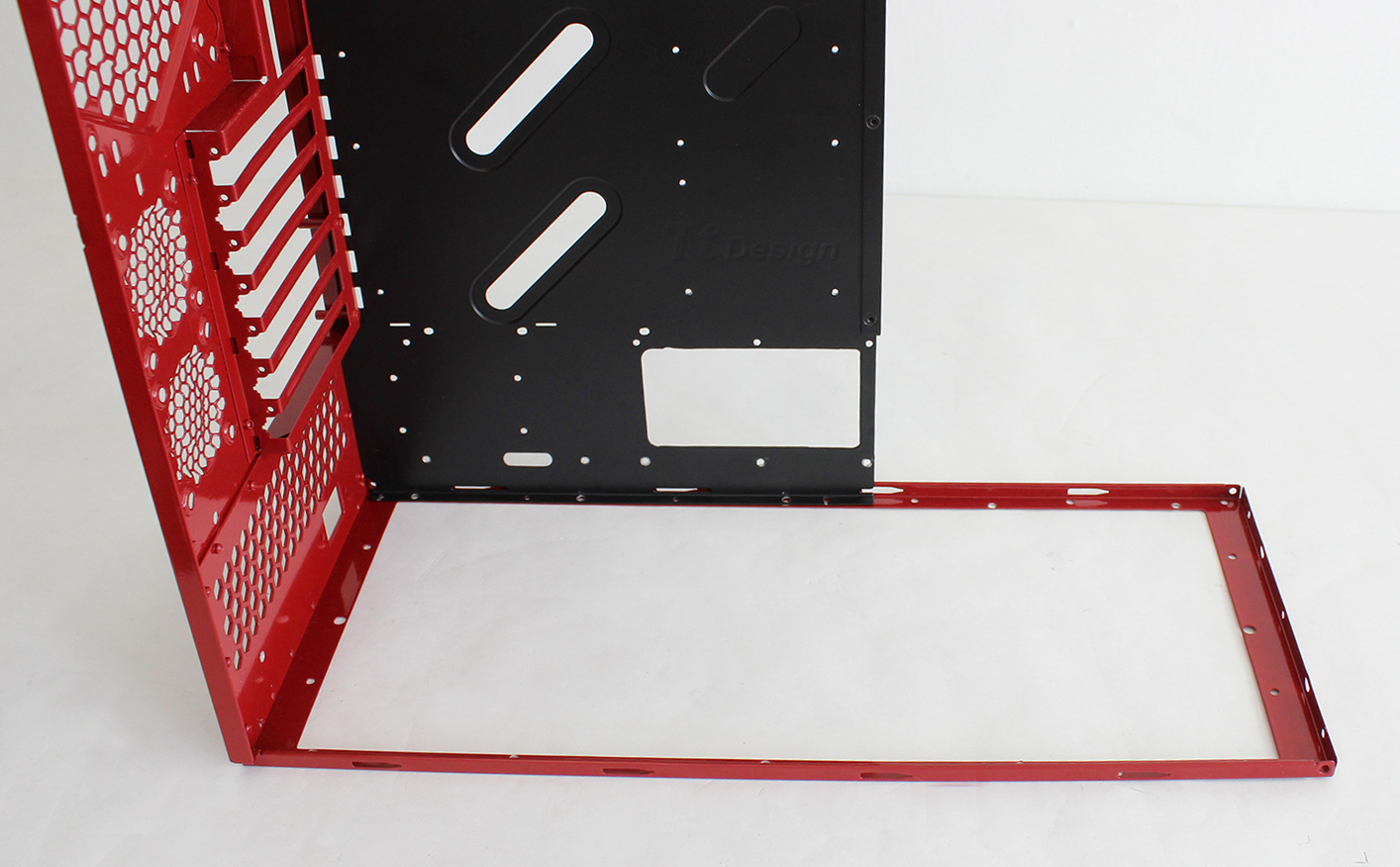

    [​IMG]

    Powder coating, RAL 3011
    [​IMG]

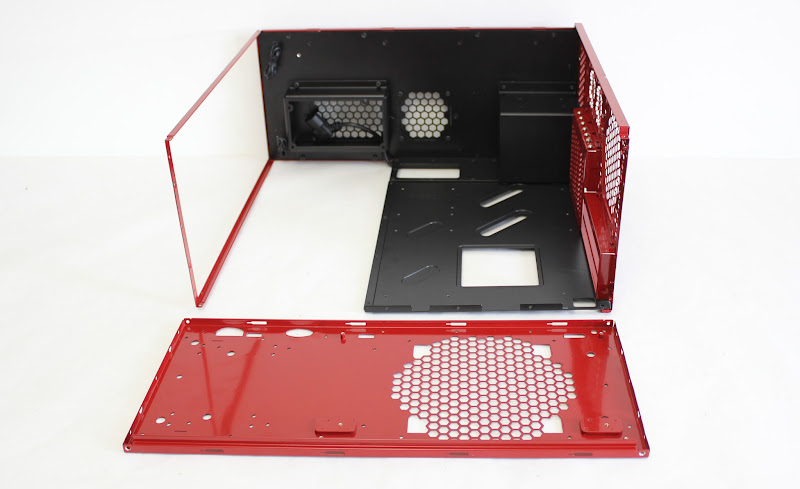

    Assembling the chassis
    [​IMG]

    Bottom part of the case
    [​IMG]

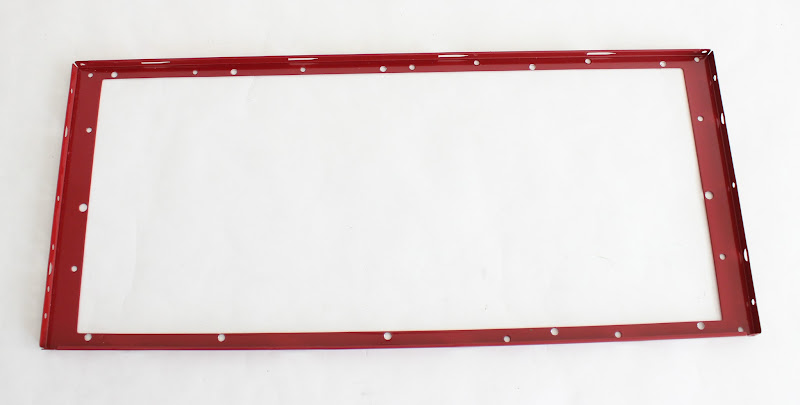

    The insides are cut, the paint is washed off.
    [​IMG]

    Powder coating, RAL 3011
    [​IMG]

    On its place
    [​IMG]

    Riveting
    [​IMG]

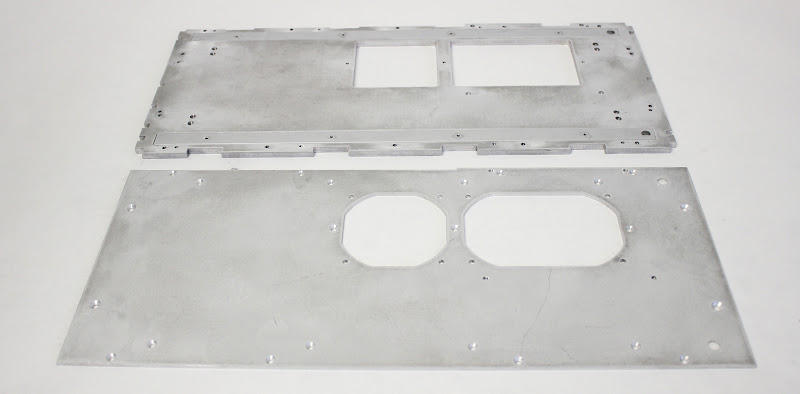

    New parts
    [​IMG]

    Laser cutting. 6 mm aluminium
    [​IMG]

    Profile for LED strip
    [​IMG]

    Inserted in the grooves
    [​IMG]


    [​IMG]

    Bottom of the case assembled
    [​IMG]


    [​IMG]

    RGB LED stripe inside the profile

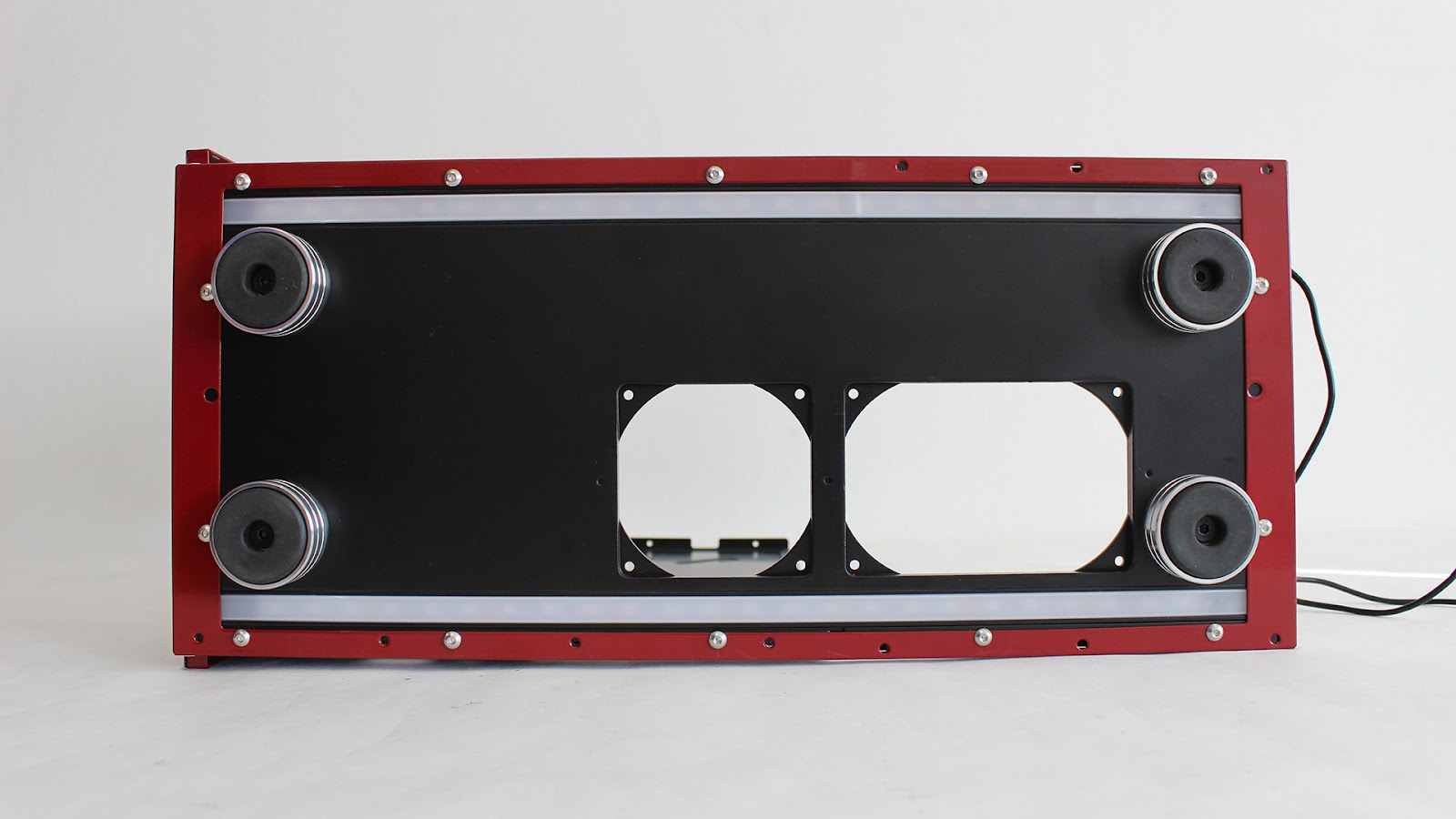

    [​IMG]

    Stripes are covered with light-diffusing cover. Feet are bolted to the bottom
    [​IMG]


    [​IMG]

    The connection between the bottom and the frame
    [​IMG]

    [​IMG]

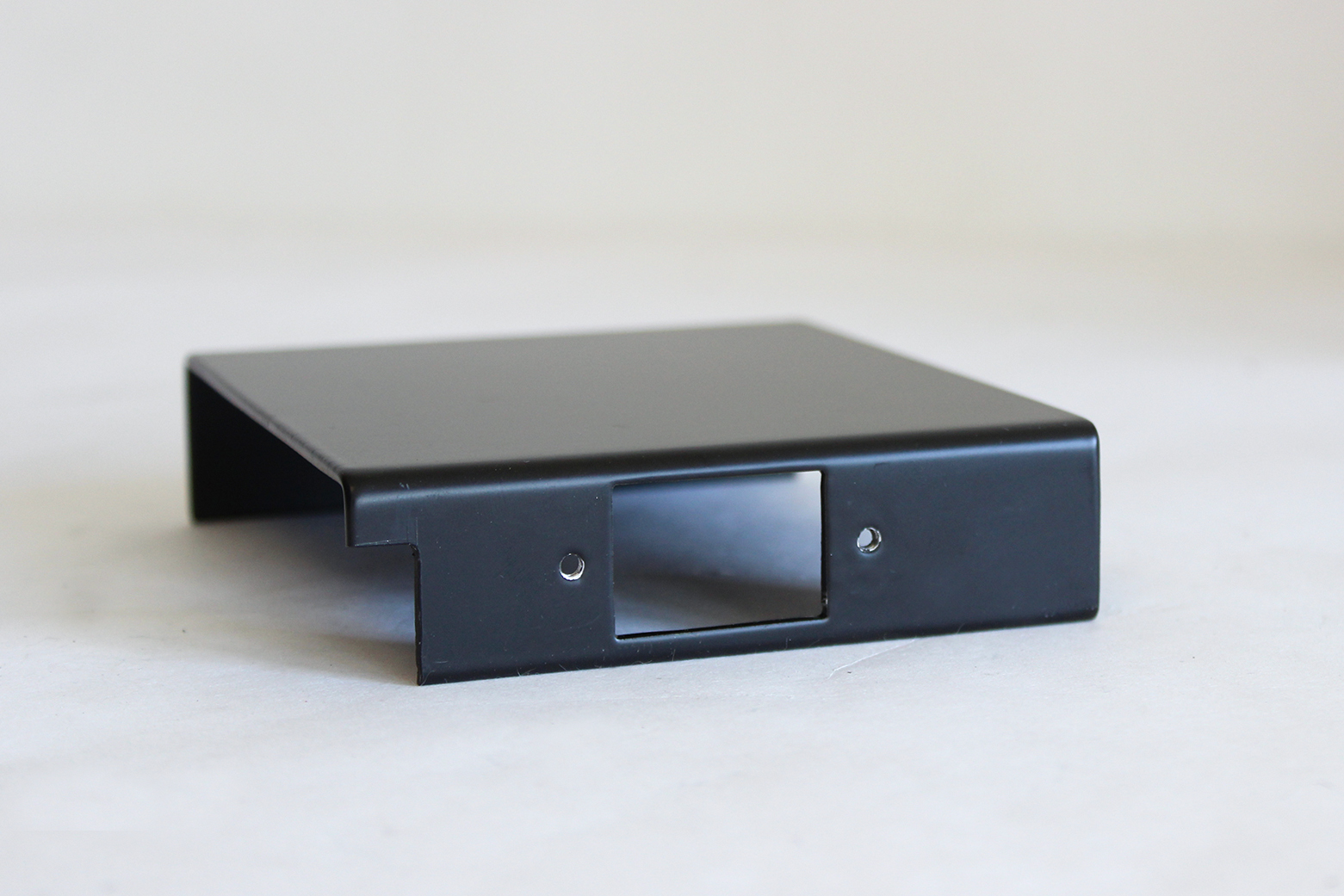

    PCI slot plugs. Laser cutting, CNC bending. 1 mm steel
    [​IMG]

    HDD enclosure. Laser cutting, CNC bending. 2 mm aluminum. Round brass standoffs are used instead of shelves
    [​IMG]

    On its place
    [​IMG]

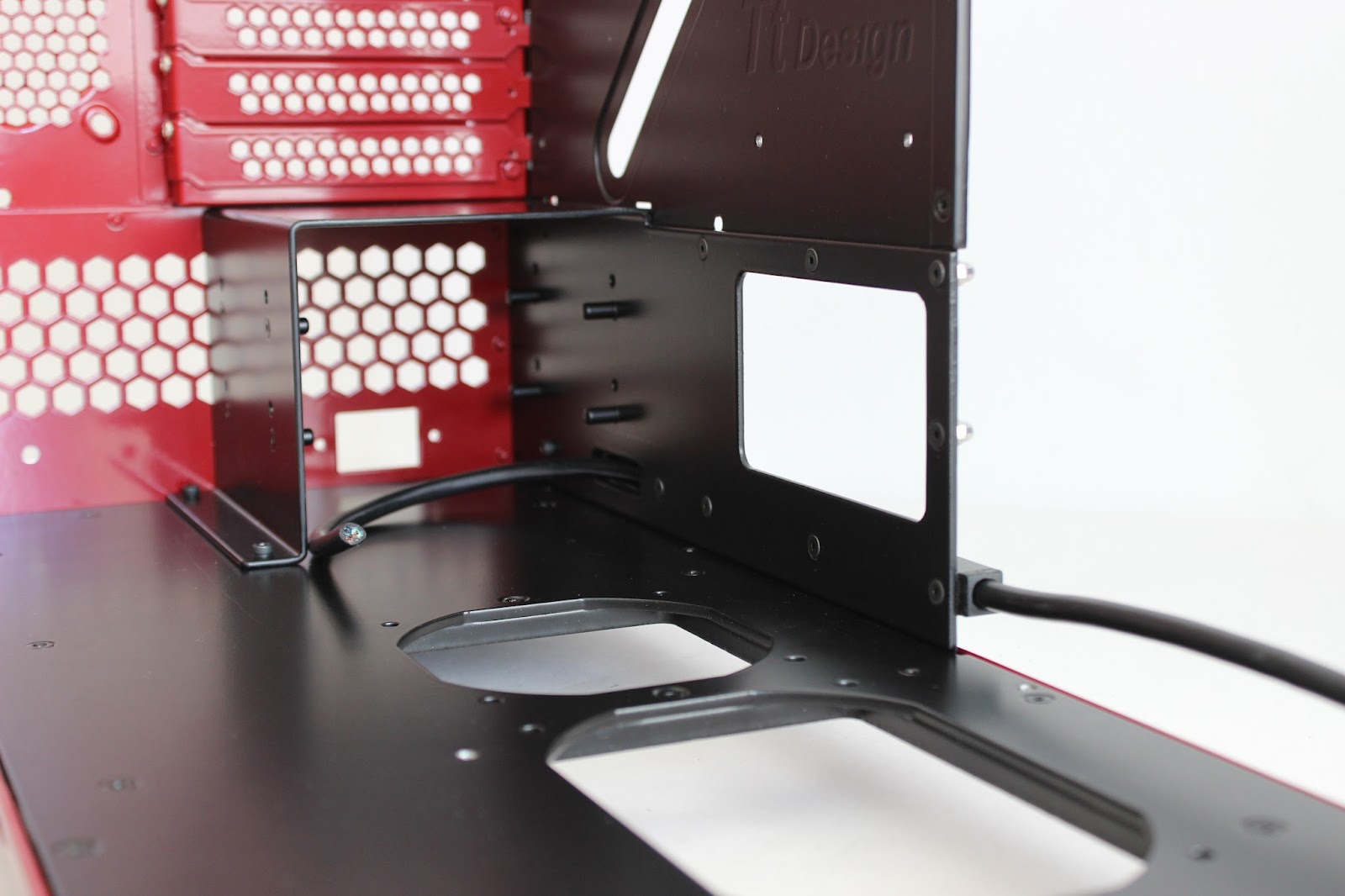

    Cable channel for power cable
    [​IMG]

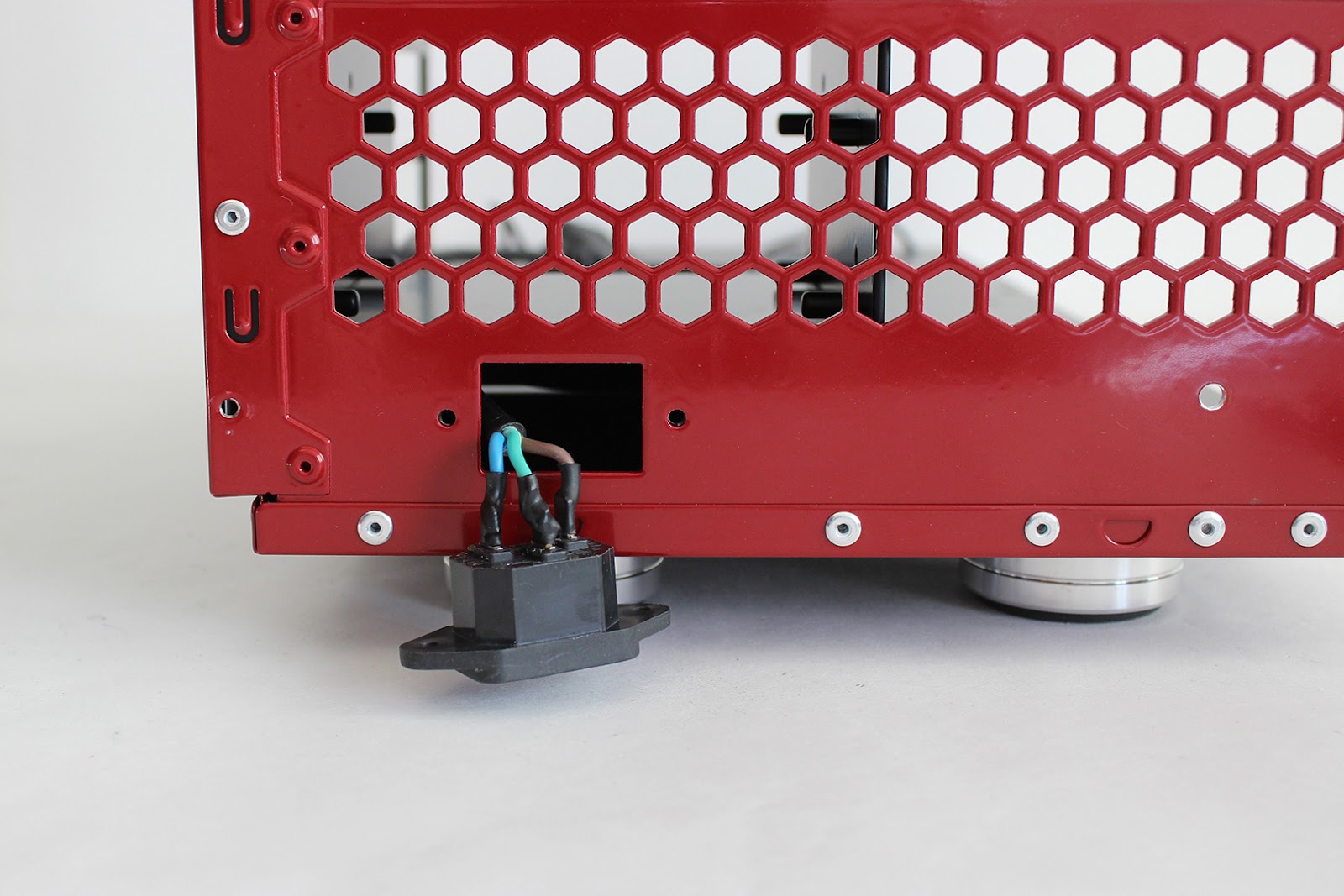

    Angle IEC cable.
    [​IMG]

    [​IMG]

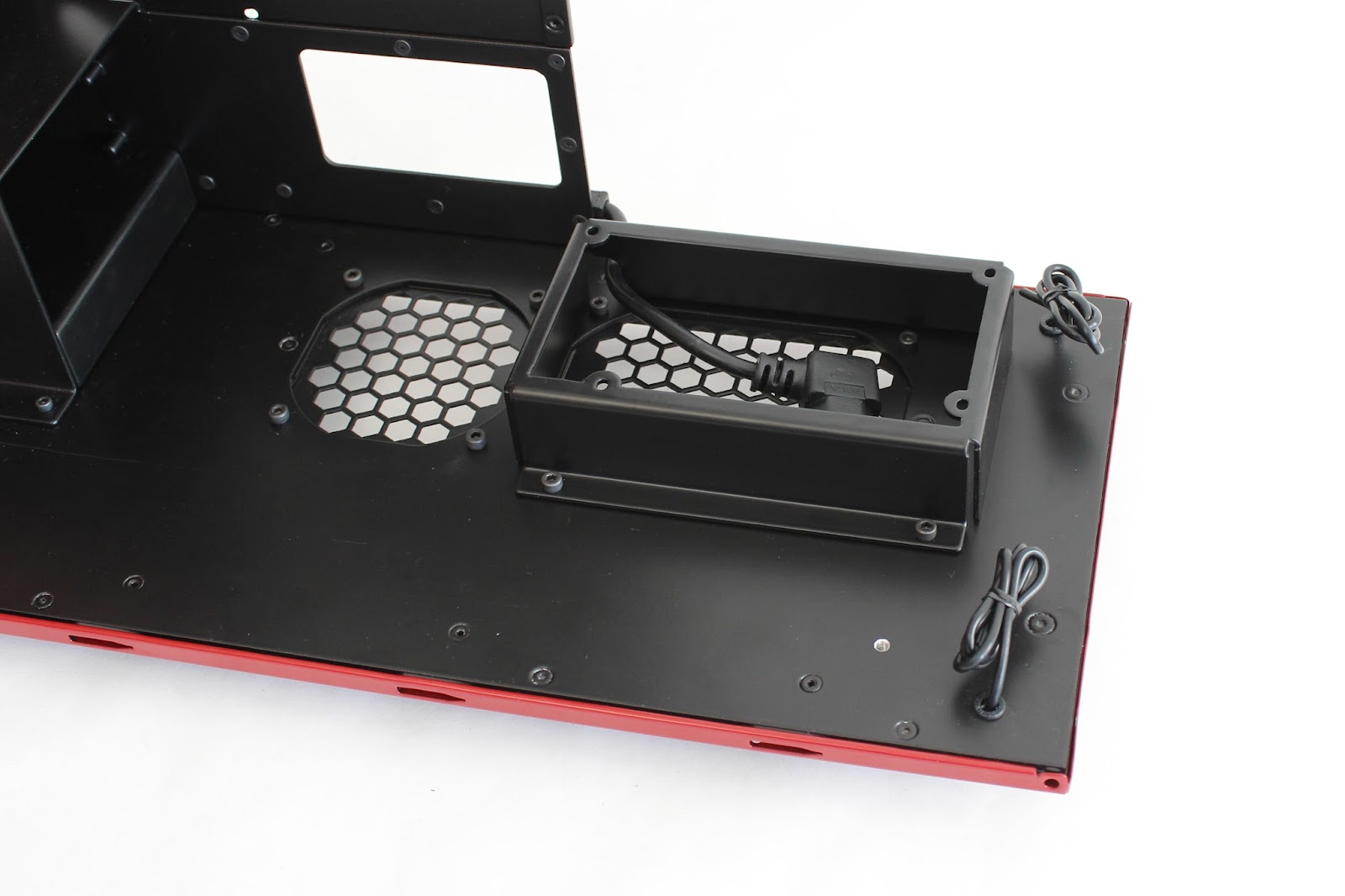

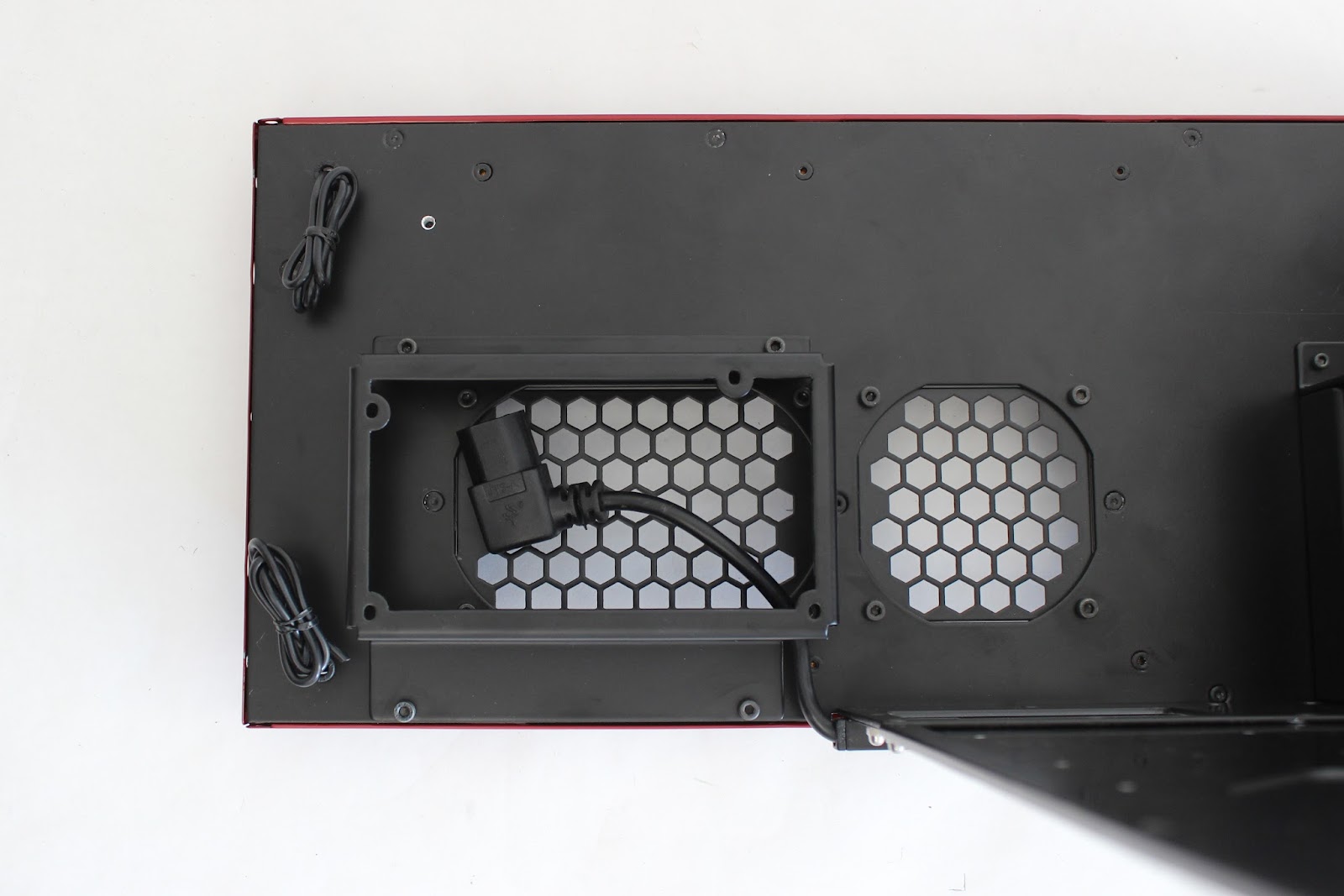

    Box for insulation of the high-voltage power connector and for storing of excess length of the power cable. Inserts into the HDD enclosure.
    [​IMG]

    On its place
    [​IMG]

    High-voltage plug is soldered to the cable
    [​IMG]

    Bolted
    [​IMG]

    Ventilation grids of the bottom
    [​IMG]

    On its place
    [​IMG]

    Enclosure is ideal for 2.5"drives. It also supports the installation of 3.5" drives by two outer mounting holes
    [​IMG]

    Frame for vertical installation of PSU
    [​IMG]

    On its place
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

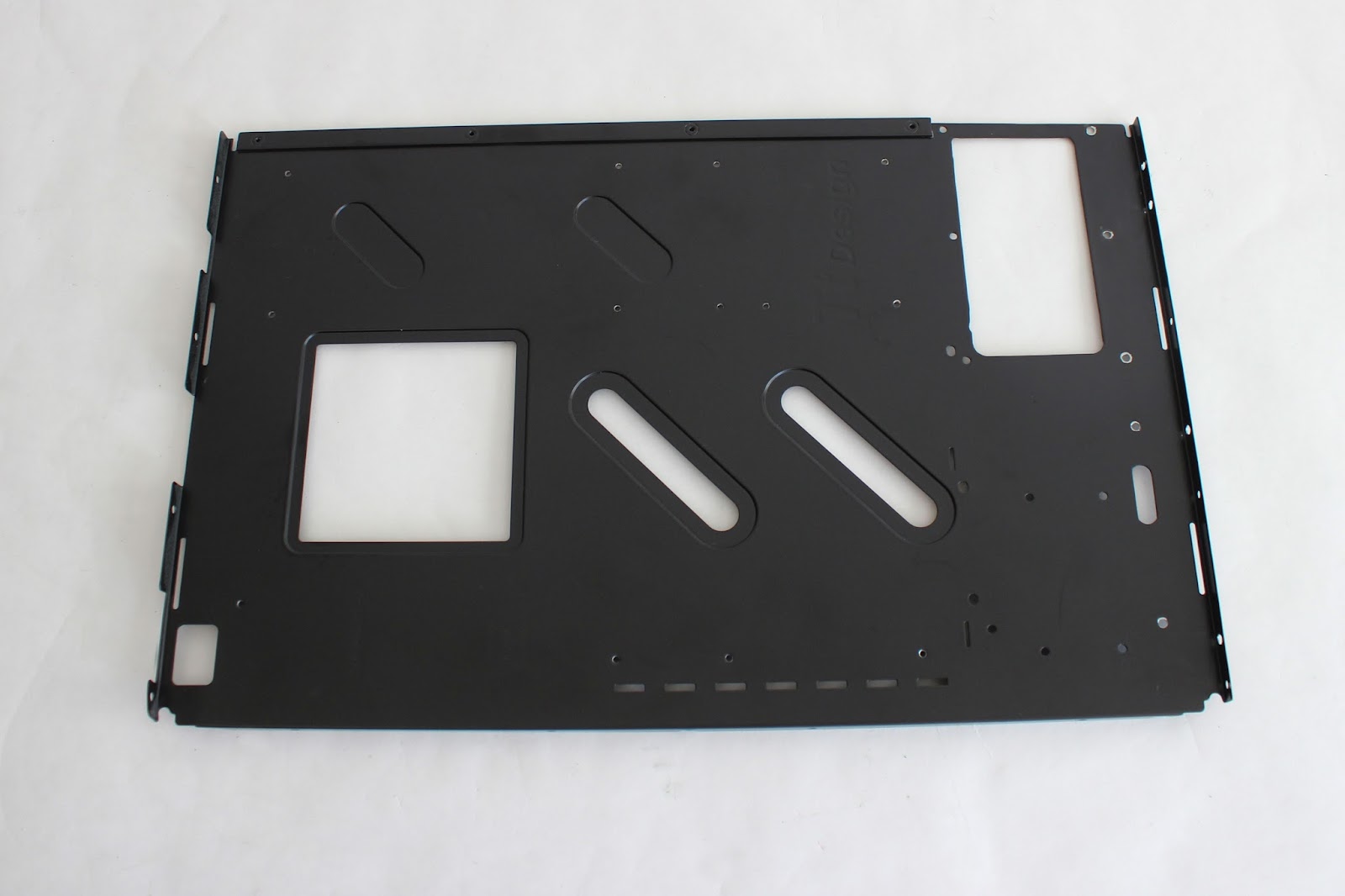

    Top panel of the original case. Powder coating, RAL 3011
    [​IMG]

    Added fastens for internal illumination
    [​IMG]

    [​IMG]

    [​IMG]

    The hull is ready
    [​IMG]

  18. Cheapskate
