Modding Remove scratches in Pleiglas/acrylic

Discussion in 'Modding' started by ROB 636, 11 Dec 2008.

  1. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    I am making a edge lit LED sign for my dads shop.This is the first time I have done this.While engraving I had a few run offs that go out of the engraving. These are not that deep but they look like crap up close. How would I remove them?

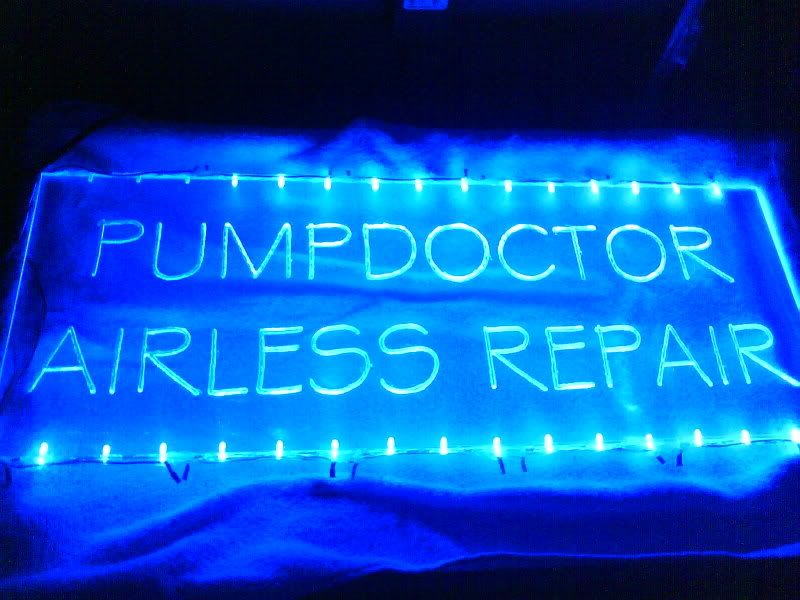

    They can be seen in this this picture.
    [​IMG]
    They dont show that well in this picture.(Good thing)
    [​IMG]

    30 14,000MCD LEDs spaced 1.5in apart. Letters are 2in tall and the plexiglas is 9x24in

  2. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    How deep are they? If they're surface scratches you can try novus 3 or 2.

  3. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    They are not that deep. I was using the flex shaft with the engraving bit on high. It more like skipped then cut in, a few where just marks in the protective film but these cut threw the film.

    As for the novus scratch removers any chance of finding it locally?

  4. jhanlon303

    jhanlon303 The Keeper of History

    Joined:
    7 Sep 2006
    Posts:
    9,263
    Likes Received:
    302
    Cheapskate turned us all on to using Comet cleanser. mnpctech used it on one of his big pieces of acrylic and it worked. I have used Novus forever but the Comet is like dollar store cheap. Try it first.
    Cheaps will probably find this thread and add comments on how to use it. If not PM him.

    john

  5. ModMinded

    ModMinded Are you throwing that away?

    Joined:
    26 Aug 2008
    Posts:
    1,378
    Likes Received:
    43
    damn, you guys got here first! The comet and novus ideas were top of the mind here. (and of course, no paper towels, some nice soft cloth is called for.)

    BTW, nice sign, it looks good!

  6. pksjaveed

    pksjaveed Nmodz: modding the world

    Joined:
    28 Apr 2008
    Posts:
    179
    Likes Received:
    0
    before you use novus get some super fine grit paper to make the scratch smaller and smaller start out like around 400 grit then go on to 600 and finush up with 1000 after use novus trust me youll get better results sanding it down with fine! if you go to my profile and look at the thread i posted a few mnths back it should help

  7. talladega

    talladega I'm Squidward

    Joined:
    18 Aug 2007
    Posts:
    5,258
    Likes Received:
    495
    Maybe I dont know how to remove scratches very good but I had rubbed sandpaper on my case window to give a fogged look which didnt work and instead made it ugly. I then used soap water and sanded with different grits up to like 2500 or 3000 and i couldnt get them out. :(

  8. tranc3

    tranc3 ADHD Modder

    Joined:
    16 Jul 2007
    Posts:
    1,622
    Likes Received:
    13
    I'm not certain on how to do it but there is this stuff called PlastX? might work, never used it personally, i have some scratches int he acrylic I'm using for my mod so I'll be watching this for some info as well. hope you find something that works, nice sign also.

  9. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    Last edited: 12 Dec 2008
  10. Herbicide

    Herbicide Lurktacular

    Joined:
    27 May 2004
    Posts:
    1,533
    Likes Received:
    17
    Abrasive paper/cloths are too coarse for what you need.

    I use polywatch on small items, but have heard of both toothpaste and brasso being used to restore DVDs, and they're polycarbonate. Autosol also works to some extent.

    Use lots of pressure and rub across the scratches

  11. AJB2K3

    AJB2K3 New Member

    Joined:
    12 Dec 2005
    Posts:
    1,605
    Likes Received:
    4
    Any kind of polish will do the trick and I find dremel's own stuff is quite good at scratch removal.

  12. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,444
    Likes Received:
    691
    The Comet is to replace 400 grit sandpaper in tight places. Here you need sandpaper.
    I fear you might need to fill in the damaged areas with a gel plexi glue, then sand them smooth. It looks pretty deep.

    Is your dad an astronaut porn star?

  13. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    LOL no

    He repairs airless paint sprayers. Like Graco, Titan, Speedflo, Spraytech, Wagner, and ASM.

    [​IMG]

  14. mvagusta

    mvagusta Did a skid that went for two weeks.

    Joined:
    24 Dec 2006
    Posts:
    4,639
    Likes Received:
    523
    LMAO :hehe:

    I never would have thought of that, but i can see it now:

    Helo, i am ze pump doctor. Open your mouth, and say "aahhh" :naughty:

  15. TotalEntropy

    TotalEntropy Coming soon...

    Joined:
    26 Nov 2008
    Posts:
    18
    Likes Received:
    0
    Brasso is good for polishing out scratches in plastic.

  16. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,444
    Likes Received:
    691
    I only have a bottle of fine novus. +1 on what TotalEntrophy said. If you don't want to spend money on polish, you can use a polish from the garage.

  17. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    I have Brasso if i can find it.

  18. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    Brasso did not work that well. I tried to use some Meguiar's clear plastic cleaner http://meguiarsdirect.com/detail/MEG+M1708 . That is actually working quite well. The weather was bad so I went to the closest auto parts store and found Napa.

  19. ROB 636

    ROB 636 Ski-Ba-Bop-Ba-Dop-Bop

    Joined:
    22 Feb 2008
    Posts:
    205
    Likes Received:
    0
    F$@#ing LEDs

    [​IMG]

  20. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,444
    Likes Received:
    691
    Yeah, I had 2 sets go out the other day. I don't know if it's the weather or the mistreatment of the wires.

    It's probably a bad connection or a single bad LED hosing the chain.
