Scratch Build – In Progress Ringo's la ultima [11-03-07 update]

Discussion in 'Project Logs' started by ringo, 26 Apr 2009.

  1. Monkey Puzzle

    Monkey Puzzle New Member

    Joined:
    18 Feb 2009
    Posts:
    204
    Likes Received:
    8
    Looking gorgeous. Good taste in beer btw. :D

  2. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
  3. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Today I do something on the acrylic cap for the reservoir. First I milled a hole in the center of the cap. Then i mounted it on the face chuck to drill the hole for the valve. The in turned the blind hole for the cover for the air relief valve. The turning was a little bit complicated. Than I test if the aluminium cover fits in the blind hole and it does.
    Now some pictures, who I do today.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  4. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    Damn that looks cool.

  5. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Thank you,

    in the last few days I make something round about the acrylic cap. I finished the notch for the sealing. Then I start to drill the blind holes for the thread inserts. I had to drill 6 holes to fit the aluminium part. I also drille some holes to mount the acrylic cap in the top plate of the reservoir. But first I had to finish it completly. Now I will present you some pictures of the part.
    Here a pictures which illustrates the mounting thread inserts for the aluminium part.
    [​IMG]

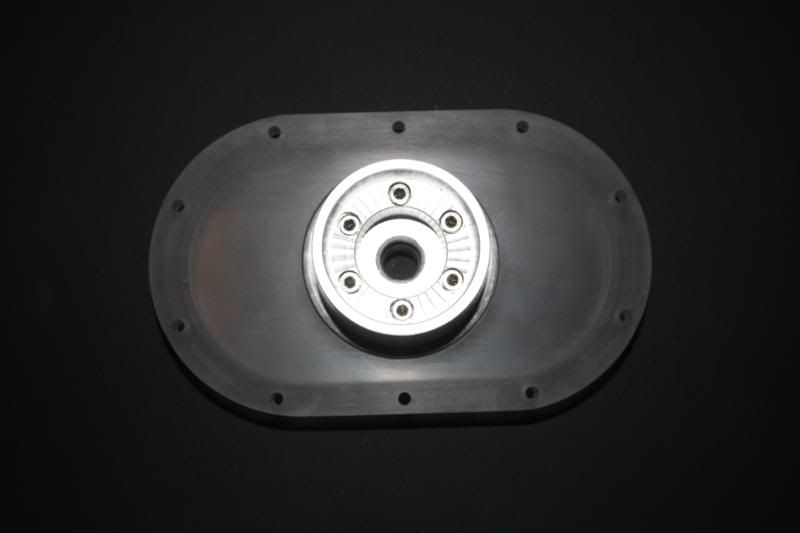

    Than two pictures of the mounted aluminium cap, which is needed for the relief valve.
    [​IMG]
    [​IMG]

    Finally a additional picture form the side. You can see there some scratches and jags. I have to sanded the complete part to get the final shape and a good surface.
    [​IMG]

    ModMinded likes this.
  6. DonT-FeaR

    DonT-FeaR I know what a fk'n Dremel is ok.:D

    Joined:
    23 Jul 2008
    Posts:
    867
    Likes Received:
    14
    that looks wicked!

  7. ModMinded

    ModMinded Are you throwing that away?

    Joined:
    26 Aug 2008
    Posts:
    1,378
    Likes Received:
    43
    Looking very nice Ringo +rep

  8. Kyor

    Kyor A Visitor

    Joined:
    28 Jul 2009
    Posts:
    17
    Likes Received:
    0
    I'm realy jalous at people like you... I can't touch bare metal or it will turn to rust.. :(

  9. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    thread digging,

    thanks for the replies.

    At the moment I can't do much on my project.

    But today I made a little test. I turned a part to mount the pipes for the reservoir. I don't know how I install the pipes. I also need some mounts for the pipes. I think a simple plate is boring. To complete the hole mount, you have to mirror the turned part the plate will be in the middle of the two parts, I will also make a little CAD sketch from this mount, I will post it in the next few days.

    And the end two pictures form the part.
    [​IMG]
    [​IMG]

    replies, comments, critique are allways welcome:D

  10. RuSGaMeR

    RuSGaMeR No Pain No Gain...

    Joined:
    10 Sep 2009
    Posts:
    45
    Likes Received:
    0
    Love every part of this thing)))

  11. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    +1

  12. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,407
    Likes Received:
    1,299
  13. perplekks45

    perplekks45 LIKE AN ANIMAL!

    Joined:
    9 May 2004
    Posts:
    6,806
    Likes Received:
    948
    I don't have any opinion on my own anyways, so +3.

  14. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Thanks,

    I had to add the cad sketch. I only made one version yet. I will uses this concept at every pipe fairlead. I think that looks much better than a simple one.

    I will try to sketch the tubing from my reservoir this weekend. I have several ideas to make it. I will try to present the different solutions.

    Now the cad sketch form the pipe fairlead.
    [​IMG]

  15. THP Dan

    THP Dan New Member

    Joined:
    21 Jul 2009
    Posts:
    40
    Likes Received:
    0
    wow amazing work!:jawdrop:

  16. perplekks45

    perplekks45 LIKE AN ANIMAL!

    Joined:
    9 May 2004
    Posts:
    6,806
    Likes Received:
    948
    Sketch, my ass! :p

  17. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10

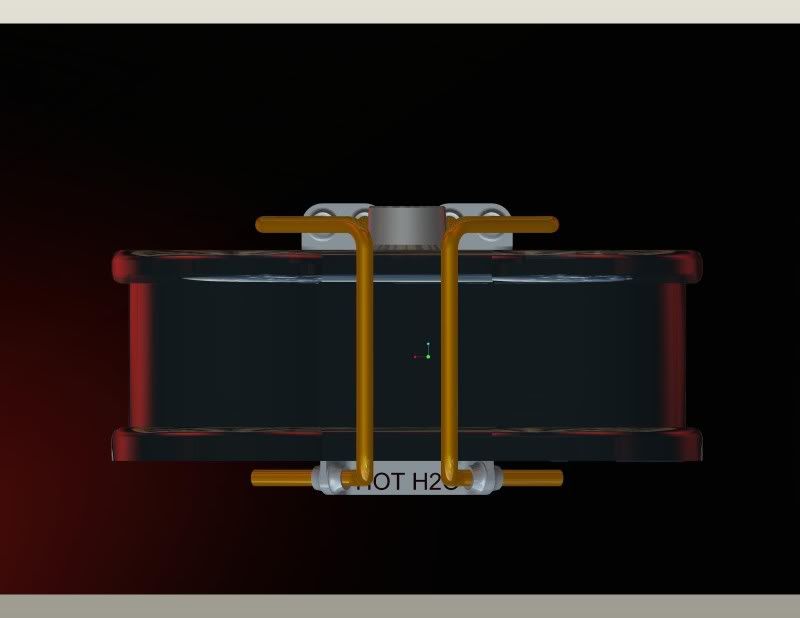

    today i sketch the tubing of the reservoir. I hope I can make it. At the moment I have to ckeck some ponits, before I can start turning the pipe fairleads and the mounting. I also think about a other mounting plate. If I have only one pipe i will try to make a turning part, but before I try such a part I will sketch it and think about the producing.

    Now the pictures of the tubing.
    [​IMG]
    [​IMG]
    [​IMG]

    What's your opinion about the tubing?

  18. RuSGaMeR

    RuSGaMeR No Pain No Gain...

    Joined:
    10 Sep 2009
    Posts:
    45
    Likes Received:
    0
    Damn that's a good work))) I think that's cool, but got a question)) If those are copper tubes, how good are they gonna look with acrylic (you're gonna need to get a nice color coolant 4 it) Other than that I think it looks perfect :p

  19. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Thanks.
    In my current watercooled System I used a pink colored coolant. But that's not perfect, I used this one because it was recommended by the pump manufacturer. I had to try it and to see it.
    I have two opinions. I can use copper tubes, or I can use chromed tubes. If I used the chromed one I had problems to get straight parts. I had no problem to get these tubes on coil, but then I have to straighten it.
    If I used the copper tubes I can polish the surface or chromed it, but I don't have a idea how expensive it is.
    My favorite is to chromed the copper tubes, after I bend it and soldering it.
    The case which I want to build for the reservoir wont get a colored painting. I only want to polish, sanded, engraved and sand blasted it, and the finish will be a varnish.

  20. Burnout21

    Burnout21 Is the daddy!

    Joined:
    9 Sep 2005
    Posts:
    8,614
    Likes Received:
    197
    i dont like the form that the tubing follows.

    Maybe follow the outter profile of the res
