Scratch Build – In Progress SA 360 - Shingart xbox 360 scratch build

Discussion in 'Project Logs' started by Shingart, 17 May 2009.

  1. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    [​IMG]

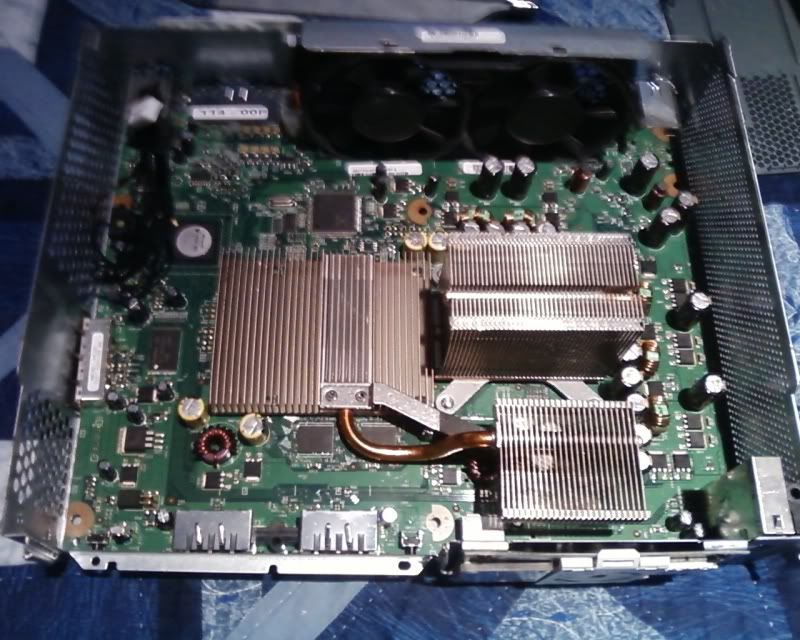

    Hi Shing here! Done lots of designs and thinking and av settled on a design that i think will cover what am trying to achieve here,

    1. Compact tower unit - that can be further modded in future & be compatible with new future hardware.
    2. Keep it simple - sticking to budget so a clean well functional case will do the trick. Also because its my first mod am tryin to keep it simple and not get over my head..
    3. Water cooling is the key to keeping the 360 cool, quiet & sharper on the graphics. I will make a enclosure for the CD drive, two reasons.... 1. looks 2. noise reduction..

    My ideas
    [​IMG]

    final concept
    [​IMG]

  2. disturbed13

    disturbed13 Minimodder

    Joined:
    28 Nov 2008
    Posts:
    905
    Likes Received:
    3
    we are missing a good deal of your post
    so
    what are your ideas
    and your final concept is what exactly?

  3. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    In time my good man, am very busy with work, check back tonight, all put up the digital stuff, cool!

  4. disturbed13

    disturbed13 Minimodder

    Joined:
    28 Nov 2008
    Posts:
    905
    Likes Received:
    3
    will do

  5. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    More Info on Design.

    its a bit more clear here - hopes this gives you a better idea of what it may look like!

    The side view is open to help explain whats in there, the only original hardware am using from the xbox 360 is the Motherboard, Cd drive & the original PSU.

    [​IMG]


    Heres the Illustrator files of the cut out parts that will go through CAD Using the CNC machine down at my Uni. Still waiting for access at the moment, but should be 2 weeks max - the guy that runs the workshop cut me out some little bits (corner connections) to give me an idea of how fine a cut I can get. Using a 3mm bit, not allowed to change the bit size. Thats uni for you! but it comes out nice. used black 3mm acrylic - gonna use a mixture of 3mm and 5mm acrylic.

    [​IMG]

    Heres the sample I got. Cant wait to get the rest cut! Am also helping a friend with the cutting -
    denis6902 - He's got a mad project on the go building a production 360 for modders to buy - water cooled also. Heres the link - http://forums.bit-tech.net/showthread.php?t=166731&highlight=Deathbox

    [​IMG]

    A 3D projection of what it looks like with the panels fitted!

    [​IMG]

    All post more soon...

  6. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Since av got to wait like 10 days before the CNC is available done all the boring stuff.

    got some cables together to make a molex connector to solder onto the back of the mobo power source entry point.. 12v & 5v for the Pump & LED Also slapped up 3 other LED's to be wired to the front Memory card slot 3.3v - wont be using these as I will run a Hard drive.

  7. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Boring stuff

    12v and 5v for backside of mobo
    [​IMG]

    Heres it soldered on. bit messy, borrowed a soldering iron from uni. bit big but it done the job. putt extra solder on purpose cause microsoft used hardcore industrial solder on their boards. I wants it to stay on good and proper!

    [​IMG]

    Also got two temp LCD sensors for the CPU & GPU.
    cut the wires to adapt them to a usb connection so they can be easy disconnected if need be in future modding/ upgrading of this enclosure.

    [​IMG]

    [​IMG]

    Testing
    [​IMG]

    Cut out the mobo side panel 26.5cm x 29.7, Black 5mm acrylic, also made small feet or catches so the board sits right. also using the corner samples from the guy at the uni workshop to mount them up. Gonna be spraying this enclosure one colour so starting to sand down the glass finish with 1200 wet n dry sandpaper so the paint sticks better!

    [​IMG]

    [​IMG]

  8. Sphering

    Sphering What's a Dremel?

    Joined:
    31 Oct 2006
    Posts:
    107
    Likes Received:
    2
    The pictures are gone

  9. Voluntary_Pariah

    Voluntary_Pariah a Real Man™

    Joined:
    23 Jan 2009
    Posts:
    624
    Likes Received:
    28
  10. BlackWhizz

    BlackWhizz What's a Dremel?

    Joined:
    17 Jul 2008
    Posts:
    383
    Likes Received:
    1
    /\ Yup

  11. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Yeh big problem, had them up 3 hours ago! F*ck knows

  12. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Hey you just need to wait a minute for it to load its a bit slow for some reason......... THE PICS ARE HERE!

    Last edited: 18 May 2009
  13. disturbed13

    disturbed13 Minimodder

    Joined:
    28 Nov 2008
    Posts:
    905
    Likes Received:
    3
    im sorry to report that they are indeed not here
    you should use photobucket.com
    then upload the pics
    and use the IMG code that each pic will have
    and paste that in here
    like so (hit the quote option to see :D )
    [​IMG]

  14. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Thats wat I done dude! all have to email bit tech

  15. disturbed13

    disturbed13 Minimodder

    Joined:
    28 Nov 2008
    Posts:
    905
    Likes Received:
    3
    what ever you done
    i can see em now
    looks interesting btw
    can you get a better shot of that molex that you put on the back of your board?
    and how much power will it be able to supply?
    could you tell me how many 12V fans it will be able to power?
    thanks if you can

  16. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Yeh no problem. Basicly The Molex has a 12v (Pump) and a 5v (LED) This power can be safely source from the back of the mobo. Heres a link explaining in a much simpler manner! Note it is possible to get 2 x 12v and 2 x 5v but you will be pushing the psu a little harder.

    How to get safe 12volt & 5volt power from the xbox mobo.
    http://www.youtube.com/watch?v=o2iZXg4LnnE

    Av tested it, It works and IS SAFE! Dont take power from anywhere else on the board.... And am using 2 x 120mm silent 12v fans but they are getting power from the existing fan connector on the board (where the original fan was connected) It Has 2 x 12volt power through it, Note! this voltage climbs from 5.5v to 12v as the system powers up. It is a wise idea to use the original fan connector as the speed of your fans will climb up and down in RPM 'In sync with your GPU as you use the xbox for different tasks, I.e games, voltage will boost to 12v, system idle will sit around 5.5v.

    Heres a pic of the fan connector.
    [​IMG]

  17. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    Hope this helps man! You can run 12v fans on 5volts. will reduce the RPM and be more quiet! so you could run 4 fans of it if you really wanted to.

    Heres my power list/

    Pump - 12 volts

    2 x fan - 2 x 12 volts

    Extra LEDs - 3.3 volts - From the memory slots on the front of the board, (wont b using them for data saves as I will be using a hard drive) so gonna take the power!

    Heres a pic below so you can get it yourself if need be.... 2 x 3.3 volts available... again, solder to the underside of the board...

    [​IMG]

  18. disturbed13

    disturbed13 Minimodder

    Joined:
    28 Nov 2008
    Posts:
    905
    Likes Received:
    3
    hmmmm
    thats cool!
    well i was going to try and run 4 120mm 12v fans
    i think that i will use the on board connector for the rear rad
    and take power from the PSU itself for the other 3
    thanks for the help man
    i cant wait to tear into the space heater
    but im switching between jobs
    so that might take a while

  19. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    Looks like this is going to be an insane mod, I can't wait for mor e;).

  20. Shingart

    Shingart Graphic Design & Customs

    Joined:
    15 May 2009
    Posts:
    49
    Likes Received:
    1
    HELP - Opinions - LCD Placement?

    Where should they go. I have these 4 spaces available to fit them........

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
